Product type	Microwave oven
Brand	Hamilton Beach
Model	31401
Dimensions (L x D x H)	45 x 38 x 28 cm
Weight	12 kg
Power supply	230 V ~ 50 Hz
Microwave power	900 W
Capacity	20 litres
Control type	Mechanical (rotary knobs)
Main functions	Cooking, defrosting, reheating
Timer	Up to 30 minutes
Power levels	5 levels
Turntable	Yes, glass
Child safety	Door lock with latch
Care and cleaning	Clean with a damp cloth and mild soap
Spare parts	Available from the manufacturer
Repairability	Repairability index: 7.5/10
General information	Countertop microwave oven, comes with user manual

Frequently Asked Questions - 31401 HAMILTON BEACH

What is the power of this microwave?

The microwave power is 900 W, ideal for quick cooking and reheating.

How to defrost food with the 31401 model?

Use the defrost function by setting the timer according to the weight of the food. Consult the manual for recommended times.

Is the turntable removable?

Yes, the glass turntable is removable for easy cleaning. Carefully remove it and wash it with soapy water.

How to clean the inside of the microwave?

Use a soft damp cloth with a little mild detergent. Avoid abrasives that could scratch the surface.

What to do if the microwave stops heating?

First check that the door is properly closed and that the safety latch is working. If the problem persists, contact customer service.

Is there a child lock?

This model does not have an electronic child lock, but the door requires some force to open to prevent accidental openings.

What types of containers can I use?

Use microwave-safe containers (glass, ceramic, suitable plastic). Avoid metal and aluminum.

How to set the timer?

Turn the timer knob clockwise to the desired time (max 30 minutes). An audible signal sounds at the end of cooking.

Where to find spare parts for this model?

Contact Hamilton Beach customer service or visit their website. Parts like the turntable are available.

Can I cook food without the turntable?

It is not recommended to operate the microwave without the turntable, as it may damage the appliance and affect cooking.

USER MANUAL 31401 HAMILTON BEACH

Visit www.hamiltonbeach.com for our complete line of products and Use and Care Guides – as well as delicious recipes, tips, and to register your product online!

Please call us – our friendly associates are ready to help. USA: 1.800.851.8900

Questions

Line drawing of a microwave oven with three side monitors and a handle (no text or symbols)

English 2

Français.... 12

Español 22

WARNING

Silhouette of a stylized flame or fire against a white background (no text or symbols)

Fire Hazard.

• If contents ignite, do not open oven door. Unplug oven and allow contents to stop burning and cool before opening door.
• Do not operate unattended while in Toast or Broil modes.
• Do not use with oven cooking bags.
• Do not heat taco shells in toaster oven. Always use full-size conventional oven.
  • Always allow at least 1 inch (2.5 cm) between food and heating element.
  • Always unplug toaster oven when not in use.
• Regular cleaning reduces risk of fire hazard.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance.
4. Do not touch hot surfaces. Use handles or knobs.
5. To protect against electrical shock, do not immerse cord, plug, or toaster oven in water or other liquid.
6. Unplug from outlet when not in use and before cleaning. Allow to cool before cleaning appliance and putting on or taking off parts.

7. Do not operate any appliance with a damaged supply cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Call the provided customer service number for information on examination, repair, or adjustment.

8. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.

9. Do not use outdoors.
10. Do not let cord hang over edge of table or counter or touch hot surfaces.
11. Do not place on or near a hot gas or electric burner, or in a heated oven.
12. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
13. To disconnect, turn all controls to OFF (☐) then remove plug from wall outlet. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
14. Use extreme caution when removing pan or disposing of hot grease.
15. Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts, creating a risk of electrical shock.
16. Oversize foods or metal utensils must not be inserted in a toaster oven as they may create a fire or risk of electric shock.
17. The bread may burn. A fire may occur if toaster is covered or touching flammable material, including curtains, draperies, walls, overhead cabinets, paper or plastic products, cloth towels, and the like, when in operation.

1. Extreme caution should be exercised when using containers constructed of materials other than metal or glass.
2. Do not store any materials, other than manufacturer- recommended accessories, in this oven when not in use.
3. Do not place any of the following materials in the oven: paper, cardboard, plastic, and the like.
4. Do not cover crumb tray or any part of the oven with metal foil. This will cause overheating of the oven.

5. To turn oven off, turn Timer to OFF (oposition. See any of the "How To" sections for specifics.

6. Do not place eyes or face in close proximity with tempered safety glass door, in the event that the safety glass breaks.

7. Always use appliance with crumb tray securely in place.
8. Do not use appliance for other than intended use.
9. Clean oven interior carefully. Do not scratch or damage heating element tube.
10. Do not operate the appliance by means of an external timer or separate remote-control system.

SAVE THESE INSTRUCTIONS

Other Consumer Safety Information

This appliance is intended for household use only.

⚠ WARNING Electrical Shock Hazard: This appliance is provided with a polarized plug (one wide blade) to reduce the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit fully into the outlet, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

This appliance is equipped with a fully tempered safety glass door. The tempered glass is four times stronger than ordinary glass and more resistant to breakage. Tempered glass can break; however, it breaks into pieces with no sharp edges. Care must be taken to avoid scratching door surface or nicking edges. If the door has a scratch or nick, call our toll-free customer service number.

Always unplug your toaster oven from the outlet when not in use.

Before First Use

Most heating appliances produce an odor and/or smoke when used the first time. Plug the toaster oven into an outlet. Turn Temperature Dial to 450°F (230°C). Heat at this temperature for 10 minutes. The odor should not be present after this initial preheating. Wash baking pan and oven rack before using.

Parts and Features

To order parts:

US: 1.800.851.8900

www.hamiltonbeach.com

Canada: 1.800.267.2826

Mexico: 01 800 71 16 100

CAUTION: HOT SURFACE. The

temperature of accessible surfaces may be high when the appliance is operating.

Broiling/Baking pan slides under oven rack.

Line drawing of a rack inside a refrigerator (no text or symbols)

HIGH RACK POSITION:

baking, broiling, and toasting

Line drawing of an oven interior showing internal grating structure (no text or symbols)

LOW RACK POSITION:

baking

Line drawing of an oven rack with insulation material (no text or symbols)

How to Toast

WARNING Fire Hazard.

- If contents ignite, do not open oven door. Unplug oven and allow contents to stop burning and cool before opening door.

- Do not leave appliance unattended when in operation.

• Always unplug toaster oven when not in use.

Line drawing of a refrigerator interior showing the rack and door (no text or symbols)

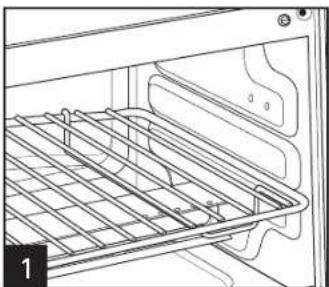

Plug into outlet. Place oven rack in LOW RACK POSITION (shown) for toast, English muffins, bagels, and waffles.

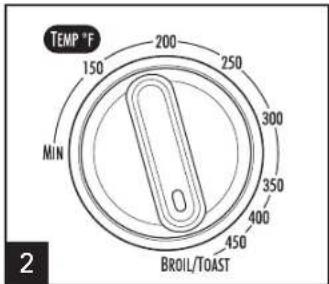

Turn Temperature Dial to BROIL/TOAST.

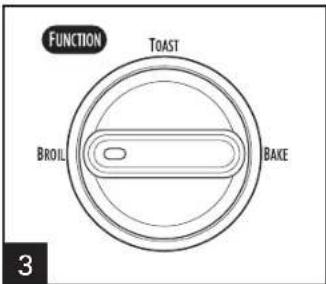

Place food in oven. Turn Function Dial to TOAST.

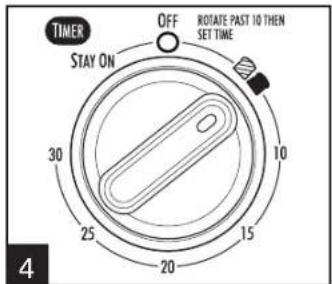

Rotate Timer past 10 and then back to desired toast color. A bell will sound when the toast cycle is complete.

Line drawing of a computer monitor with an outlet cable and power plug, no text or symbols present

- When toasting only two slices of bread, place bread in center of toasting area on low rack position to get even toasting on top and bottom.

• To toast bagels, English muffins, and waffles, place oven rack in low rack position and place food cut/split side facing up. This will toast the cut/split side more than the outside food. Set Timer to desired setting.

• To toast regular toaster pastries or frozen pastries, place oven rack in the low rack position.

- Select a color lighter than Medium and toast directly on the oven rack. If pastry has a glaze or frosting, use baking pan.

- When toasting, condensation may form on the oven door. The moisture will slowly escape from the enclosed oven.

- The number of slices of bread and the bread freshness will affect toast color. For example, toasting 4 slices of bread will require a darker toast color setting than 2 slices of bread. Adjust the Timer based on desired color and number of slices.

- If you are not satisfied with the color balance between the two sides of your food in the recommended rack position, select a different rack position.

How to Bake

WARNING Fire Hazard.

- If contents ignite, do not open oven door. Unplug oven and allow contents to stop burning and cool before opening door.

• Do not use oven cooking bags.
  • Always allow at least 1 inch (2.5 cm) between food and heating element.
  • Always unplug toaster oven when not in use.

Line drawing of a refrigerator interior showing the rack and door (no text or symbols)

Plug into outlet. Place oven rack on HIGH RACK POSITION or LOW RACK POSITION (depending on food to be cooked). LOW RACK POSITION shown.

Turn Temperature Dial to desired temperature.

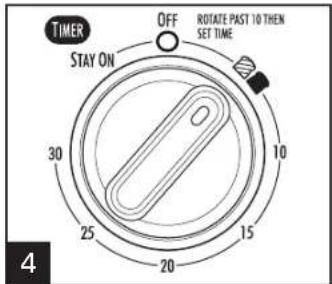

Turn Function Dial to BAKE Rotate Timer past 10 and then back to "dark toast" ☐o preheat oven for 5 minutes before beginning to bake. After oven is preheated, set Timer to desired time by rotating Timer past 10 and then to desired baking time or rotate Timer to STAY ON.

mer past 10 and then back to "dark before beginning to bake. After d time by rotating Timer past 10 late Timer to STAY ON.

Line drawing of a microwave oven with an outlet plug and cable, no text or symbols present

6

• Do not totally enclose foods in aluminum foil. Foil can insulate foods and slow down heating.
• To reheat rolls or biscuits, place on baking pan and heat at 300°F (149°C) for 10 minutes.

• Reheat leftover roasts or casseroles at 350°F (177°C) for 20 to 30 minutes or until heated through.

• Bake foods, such as pizza, on the LOW RACK POSITION. Place food directly on oven rack or in baking pan.

• Bake foods, such as a whole chicken, on the LOW RACK POSITION. Place food in baking pan.
• Turn foods halfway through cooking time. Visit foodsafety.gov for more safe cooking temperature information.

How to Broil

WARNING Fire Hazard.

• If contents ignite, do not open oven door. Unplug oven and allow contents to stop burning and cool before opening door.

• Follow food manufacturer's instructions.

• Do not leave oven unattended during operation.

• Keep 1 inch (2.5 cm) between food and heating element.
• Do not use oven cooking bags.
• Do not heat foods in plastic containers.

Line drawing of a refrigerator interior showing a rack with insulation and ventilation slots (no text or symbols)

Plug into outlet. Place oven rack in oven. HIGH RACK POSITION is for faster broiling times. LOW RACK POSITION is for foods needing longer broiling times, like chicken breasts. Slide the broiling/baking pan under the oven rack. DO NOT PREHEAT OVEN. Turn Temperature Dial to BROIL/TOAST.

Turn Function Dial to BROIL.

Rotate Timer past 10 and then to the desired broiling time or rotate Timer to STAY ON. Turn foods when browned or halfway through cooking time.

Line drawing of a microwave oven with an outlet connected to a power socket (no text or symbols)

NOTE: Turn foods halfway through cooking time.

Visit foodsafety.gov for more safe cooking temperature information.

Cleaning

WARNING Electrical Shock Hazard.

Do not clean with metal scouring pads. Pieces can break off pad and touch electrical parts.

Your toaster oven should be cleaned regularly for best performance and long life. Regular cleaning will also reduce the risk of fire hazard.

Line drawing of a device with an outlet cable and power plug, no text or symbols present

Line drawing of an oven with a rack and tray, showing a black arrow indicating a process (no text or symbols)

Illustration of two hands exchanging a tray with a tool, no text or symbols present

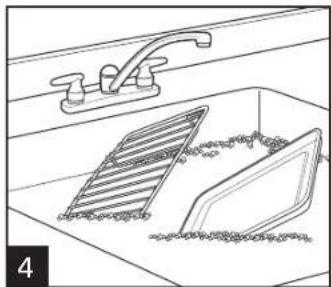

Line drawing of a kitchen sink with faucet and grater (no text or symbols)

Line drawing of a hand cleaning a microwave oven with a handle (no text or symbols)

To clean inside of oven, wipe oven walls, bottom of oven, and glass door with a damp, soapy cloth. Repeat with a damp, clean cloth. For stubborn stains, use a plastic scouring pad.

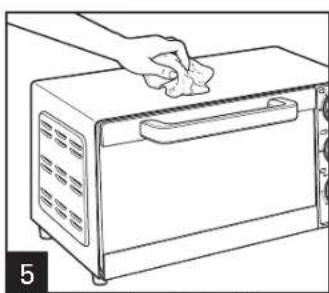

Wipe outside of oven with a damp cloth. Do not use abrasive cleansers or metal scouring pads.

8

Troubleshooting

PROBLEM PROBABLE CAUSE/SOLUTION

Oven will not heat.	Check to make sure electrical outlet is working and the oven is plugged in. Turn Temperature Dial to 350^ ( 177^ ). Turn Function Dial to BAKE; then turn Timer to STAY ON.
Moisture forms on inside of oven door when toasting.	This is normal when toasting in a toaster oven. Moisture is slower to escape from a toaster oven than from a toaster. The amount of moisture will differ between fresh bread, bagels, and frozen pastries.
An odor and smoke come from oven.	Smoke and odor are normal during first use of most heating appliances. These will not be present after initial heating period.
Oven will not toast.	Check to make sure outlet is working and oven is plugged in. Turn Temperature Dial to TOAST/BROIL Turn Function Dial to TOAST; then rotate Timer past 10 and then back to desired toast color.
Some foods burn and some are not done.	Adjust oven rack position to center food in oven.Adjust oven temperature or cooking time for best results with your recipes.

Notes

10

Limited Warranty

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of five (5) years from the date of original purchase in Canada and one (1) year from the date of original purchase in the U.S. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V \~ 60 Hz).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance.

⚠AVERTISSEMENT

Silhouette of a flame with sharp edges and jagged edges (no text or symbols)

Danger d'incendie.

Line drawing of a rack inside an oven (no text or symbols)

Line drawing of a refrigerator interior showing internal rack structure (no text or symbols)

Line drawing of an oven rack with mesh insulation (no text or symbols)

Line drawing of a refrigerator interior showing the rack and door (no text or symbols)

Line drawing of a microwave oven with an outlet plug, no text or symbols present

Line drawing of a refrigerator interior showing the rack and door (no text or symbols)

Line drawing of a microwave oven with an outlet cable and power plug, no text or symbols present

16

Line drawing of a refrigerator interior showing a rack with a door and seat (no text or symbols)

Line drawing of a microwave oven with an outlet plug, no text or symbols present

Line drawing of a microwave oven with an outlet cable and power plug, no text or symbols present

Line drawing of an oven with a rack and door, showing internal components and a directional arrow (no text or symbols)

Line drawing of two hands exchanging a piece of food on a flat surface (no text or symbols)

Line drawing of a kitchen sink with a grater and drawer, no text or symbols present

Line drawing of a hand cleaning a microwave oven with a cloth (no text or symbols)

Silhouette of a flame-like shape with sharp edges (no text or symbols)

Line drawing of a rack with mesh insulation and ventilation slots (no text or symbols)

Line drawing of an oven with internal grating structure (no text or symbols)

Line drawing of a rack inside an oven (no text or symbols)

Como Tostar

Line drawing of an oven interior showing a rack with insulation and ventilation slots (no text or symbols)

Line drawing of a microwave oven with an outlet cable and power plug, no text or symbols present

Line drawing of a refrigerator interior showing the rack and door (no text or symbols)

Line drawing of a microwave oven with an outlet plug, no text or symbols present

Line drawing of a microwave oven with an outlet cable and power plug, no text or symbols present

Line drawing of a refrigerator interior showing the rack and door (no text or symbols)

Line drawing of a microwave oven with an outlet cable and power plug, no text or symbols present

Line drawing of a microwave oven with an outlet cable and power plug, no text or symbols present

Line drawing of an oven interior showing a rack with a tray and a door, no text or symbols present

Line drawing of two hands exchanging a piece of food on a tray (no text or symbols)

Line drawing of a kitchen sink with faucet and drain (no text or symbols)

Line drawing of a hand cleaning a microwave oven with a cloth (no text or symbols)
