Product Type	All-in-One Desktop Computer
Brand	ASUS
Model	Eee Top ET2301INTH
Dimensions (L x H x D)	56.8 x 43.8 x 4.8 cm
Weight	7.2 kg
Screen Size	21.5 inches (54.6 cm)
Screen Resolution	1920 x 1080 pixels (Full HD)
Screen Type	LED multi-touch touchscreen
Processor	Intel Core i3-3227U (2nd generation, 1.9 GHz)
RAM Memory	4 GB DDR3
Hard Drive	500 GB SATA
Power Supply	100-240 V, 50/60 Hz, 120 W
Power Consumption	120 W (max)
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth 4.0, Ethernet Gigabit
Ports	4 x USB 2.0, 1 x USB 3.0, HDMI, VGA, SD card reader
Webcam	Integrated 1.3 megapixels
Speakers	2 x 3 W built-in
Care and Cleaning	Use a soft, dry cloth; avoid abrasive or liquid products.
Safety	Unplug the device before cleaning; do not block ventilation openings.
Spare Parts and Repairability	Parts available from ASUS after-sales service; repair possible by an authorized technician.
General Information	All-in-one computer with touchscreen; ideal for home and office use.

Frequently Asked Questions - Eee Top ET2301INTH ASUS

How to turn on and off the Asus Eee Top ET2301INTH?

To turn on, press the power button located on the back or side of the screen. To turn off, use the Windows shutdown procedure or press and hold the power button for a few seconds.

How to clean the touch screen of the ET2301INTH?

Use a soft, lint-free cloth slightly dampened (with plain water). Never use harsh cleaning products, alcohol, or solvents that could damage the touch coating.

Can I connect an external monitor to this computer?

Yes, the ET2301INTH has an HDMI port and a VGA port to connect an external monitor or projector. Use the screen menu or Windows display settings to configure extend or mirror.

How to reset to factory settings?

Go to Settings > Update & Security > Recovery. Under 'Reset this PC', click 'Get started'. Follow the instructions to keep or remove your files.

What to do if the touch screen stops responding?

Check that the touch driver is installed in Device Manager. Restart the computer. If the problem persists, perform a system restore or contact ASUS support.

How to increase RAM memory on the ET2301INTH?

The ET2301INTH has one free SODIMM slot. Open the compartment at the back (after unplugging the device) and insert a compatible DDR3 module (max 8 GB). Refer to the manual for exact specifications.

Can I replace the hard drive?

Yes, the hard drive is accessible after removing the back panel. Unplug the power adapter and remove the screws to access the 2.5-inch SATA drive. Replace it with a model of the same size.

How to connect the computer to a Wi-Fi network?

Click the network icon in the taskbar, select your Wi-Fi network, enter the password, and connect. The ET2301INTH is compatible with 802.11 b/g/n standards.

What to do if the computer does not turn on?

Check that the power adapter is properly plugged in and that the power LED is on. Try pressing and holding the power button for 10 seconds to reset the system. If nothing happens, contact support.

How to update the drivers?

Download the latest drivers from the ASUS support site for the ET2301INTH model. You can also use Windows Update or Device Manager to automatically search for updates.

USER MANUAL Eee Top ET2301INTH ASUS

Before launching your TV Tuner application, check if your digital TV-in or analog TV-in cable is connected.

Launching your TV Tuner Application

To launch ArcSoft TV 5.0 in Windows® 8, do one of the following:

- From the Windows® desktop, click the Arcsoft TV 5.0 icon.

NOTE: The Arcsoft TV desktop shortcut icon is not available for AIO ET2300

- Click ☐ to launch the search screen for applications. Type "Arcsoft" in the search field and click the Arcsoft TV icon from the search results.

Setting up your TV Tuner Application

To set up ArcSoft TV 5.0:

1. On the main menu, click Live TV.

1. The Setup Wizard will launch to guide you through setting up your TV Tuner application. Select your country or region and click Next to continue.

1. The Setup Wizard will attempt to detect the installed TV Tuner device. Select the appropriate TV tuner card which came with your All-in-One PC.

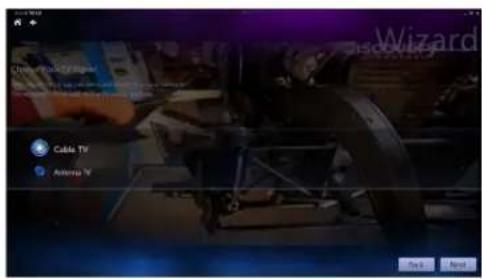

1. Select the type of television service you use.

• Select Cable TV for cable television.
- Select Antenna TV for television received via an antenna.

1. Click Scan to begin scanning for available channels.

1. If your All-in-One PC came with both an analog and digital TV tuner, the Setup Wizard will prompt you to set up your second TV tuner.

• Select Yes to set up the second TV Tuner.
- Select No to complete the Setup Wizard.

1. Click Finish to complete the Setup Wizard.

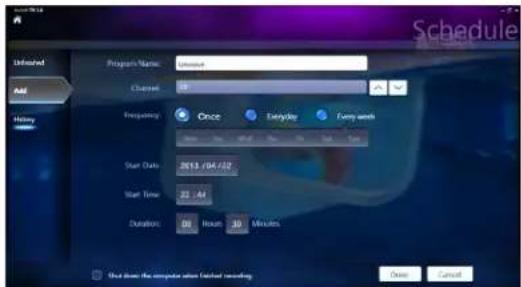

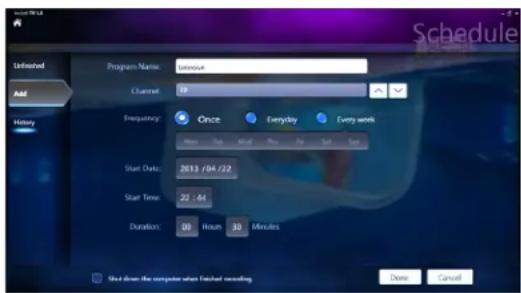

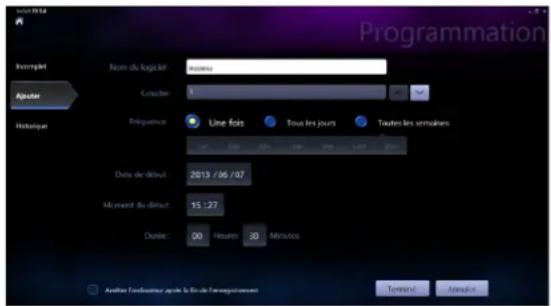

Scheduling recordings of TV broadcasts

To schedule recordings of TV broadcasts:

1. On the main menu, click Schedule.

1. On the left panel, click Add.

2. Configure the following options:

3. Program Name

4. Channel
   Frequency
5. Start Date/Time - Specify the date/time of recording.
   • Duration - Specify length of recording.
6. Shut down the computer when finished recording

1. Click Done to save settings and schedule recording.

NOTE: The All-in-One PC needs to be powered on to automatically record TV broadcasts.

1. To schedule additional recordings, repeat steps 1\~4.

NOTE: The number of recordings you can schedule is limited by the available storage on your All-in-One PC.

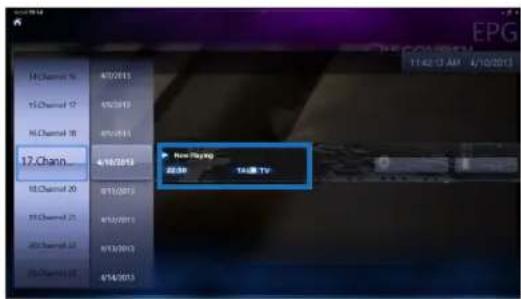

Using the Entertainment Program Guide (EPG)

The EPG displays the time and TV programs playing on a specified channel and date.

NOTE: EPG is only available for All-in-One PCs with a digital TV tuner.

Using the Live TV Onscreen Controls

1 Home button

Click this icon to go to the Arcsoft TV 5.0 main menu.

2 TV/AV

Click this button to toggle between analog TV and digital TV.*

*This item is only available for All-in-One PCs with both an analog and digital TV tuner.

3 Take a screenshot

Click this button to take a screen capture of the video or media playing.

4 Record

Click this button to begin recording the television broadcast.

5 Pause

Click this button to pause recording or playback.

6 Volume Controls

Click this button to display onscreen volume controls to increase/decrease volume.

7 CH-/CH+

Click this button to increase or decrease the channel by one.

8 Add to Favorites

Click this button to add this channel to the Favorites list.

9 Favorites List

Click this button to display list of saved Favorites.

10 Subtitles and Audio Tracks

Click this button to display list of available subtitles and audio channels/tracks.

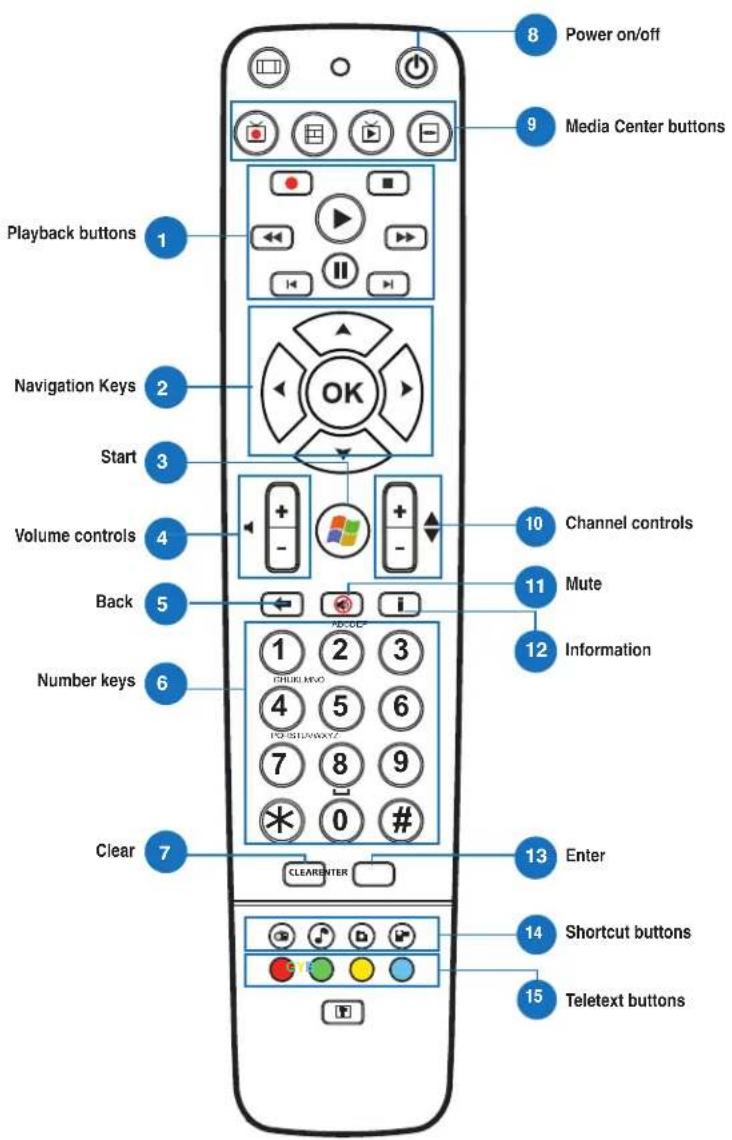

Using the Remote Control

1 Playback Buttons

Play

Starts playing media. If playback is paused, pressing this button begins playback from the current position.

Pause

Pauses media playback at the current position.

Stop

Stops playing media at the current position.

Record

Record the TV show to disk. If pressed while Live TV is on, records the current show. If pressed from the EPG screen, records a TV show or TV series to disk.

Fast Forward

Speeds up the playback of the media file to the first forward value (3X).

Rewind

Reverses direction of playback and speeds up the time base to the first rewind value (3X).

Skip Forward

Skips forward one increment when this button is pressed.

Skip Back

Skips backward one increment when this button is pressed.

2 Navigation Keys

Press the up/down keys to move through the menu bar in a submenu. Press the up/down keys to decrease/increase a numerical value.

Press the left/right keys to move through the main menus in the Home screen.

Press the left/right keys to move through the items in a submenu.

Press OK to confirm the selection.

Start\*

Takes the user to the Windows Media Center Start menu.

*This button is only available for All-in-One PCs installed with Windows Media Center.

4	Volume controlsPress the (+) button to increase the volume by one unit. Press the (-) button to decrease the volume by one unit.
5	BackMoves back one position in the user interface,
6	Number keys
7	ClearClear any entered user input.
8	Power on/offPress this button to put the All-in-One PC to sleep mode. Press a second time to wake up the system from sleep mode.
9	Media Center Buttons*Record TVDisplays the Recorded TV page in Windows Media Center.GuideDisplays the media guide in Windows Media Center.Live TVShows live TV on the currently selected channel.DVD menuDisplays the DVD menu.*These buttons are only available for All-in-One PCs installed with Windows Media Center.
10	Channel controlsIncreases/decreases the current channel by one.
11	MuteMutes the computer audio.
12	InformationPress to display information about the movie, video, or music.
13	EnterPress this button to select an option or input text.

4	Volume controlsPress the (+) button to increase the volume by one unit. Press the (-) button to decrease the volume by one unit.
5	BackMoves back one position in the user interface,
6	Number keys
7	ClearClear any entered user input.
8	Power on/offPress this button to put the All-in-One PC to sleep mode. Press a second time to wake up the system from sleep mode.
9	Media Center Buttons*Record TVDisplays the Recorded TV page in Windows Media Center.GuideDisplays the media guide in Windows Media Center.Live TVShows live TV on the currently selected channel.DVD menuDisplays the DVD menu.*These buttons are only available for All-in-One PCs installed with Windows Media Center.
10	Channel controlsIncreases/decreases the current channel by one.
11	MuteMutes the computer audio.
12	InformationPress to display information about the movie, video, or music.
13	EnterPress this button to select an option or input text.

Media Center Shortcut buttons

Displays the main Radio page in Windows Media Center.

Displays the Music Library in Windows Media Center.

Displays the Picture Library in Windows Media Center.

Displays the Video Library in Windows Media Center.

*These buttons are only available for All-in-One PCs installed with Windows Media Center.

Teletext buttons\*

Press these buttons to access Teletext features when available.

*These buttons are only available for All-in-One PCs installed with Windows Media Center.

NOTE:

• To avail of Windows Media Center features, you can purchase a Windows 8 Media Center Pack separately.
- You can download a version of this manual in a different language at the ASUS support site at http://support.asus.com
