Product Type	Refrigerator
Brand	Sharp
Model	SJ-GC700VSL
Dimensions (H x W x D)	176 x 91 x 78 cm
Weight	82 kg
Power supply	220-240 V ~ 50 Hz
Energy class	A+
Total capacity	605 L
Refrigerator capacity	405 L
Freezer capacity	200 L
Cooling technology	No Frost
Air distribution	Multi-Air Flow
Lighting	LED
Special functions	Super Cool, Super Freeze, Eco Mode
Control type	Electronic with digital display
Child safety	Yes (key lock)
Door alarm	Yes
Shelf material	Tempered glass
Number of shelves	5 in refrigerator, 3 in freezer
Defrost type	Automatic (No Frost)
Maintenance and cleaning	Clean the interior with a soft cloth and warm soapy water. Dust the condenser every 6 months.
Spare parts	Available on the official Sharp website
Repairability	Repairability score: 8/10

Frequently Asked Questions - SJ-GC700VSL SHARP

How to install the SJ-GC700VSL refrigerator?

Place the appliance on a flat, stable surface, away from any heat source. Leave at least 5 cm of space at the back and sides for optimal ventilation. Plug the appliance into a grounded outlet and wait 2 hours before placing food inside.

How to set the refrigerator and freezer temperature?

Use the adjustment buttons on the control panel. The recommended temperature is 4 °C for the refrigerator and -18 °C for the freezer. Press '+' or '-' to adjust in 1 °C increments.

What to do in case of abnormal noise?

Check that the appliance is level and not touching a wall or furniture. Operating noises (humming, clicking) are normal. If the noise persists, contact customer service.

How to clean the interior of the refrigerator?

Unplug the appliance and remove all food. Clean surfaces with a soft cloth dipped in warm water and mild soap. Rinse and dry thoroughly. Do not use abrasive cleaners or solvents.

How to activate Super Cool or Super Freeze mode?

Press the 'Super Cool' button to quickly cool the refrigerator compartment (e.g., after adding large quantities of food). Similarly, 'Super Freeze' lowers the freezer temperature for fast freezing.

What to do if the door alarm light turns on?

The alarm activates if the door remains open for more than 60 seconds. Close the door to stop it. Check that no food is preventing complete closure.

How to change the LED bulb?

The LED lighting is integrated and must be replaced by a certified professional. Contact Sharp customer service.

Is the appliance repairable?

Yes, the Sharp SJ-GC700VSL has a repairability score of 8/10. Spare parts are available on the official Sharp website. Refer to the manual for disassembly instructions.

How to save energy with this refrigerator?

Activate Eco mode. Avoid opening the doors too often. Do not place hot food inside. Defrost regularly (although No Frost reduces this need). Clean the condenser every 6 months.

What is the warranty for this product?

The legal warranty is 2 years. Keep the purchase receipt. For detailed information, visit the Sharp website.

USER MANUAL SJ-GC700VSL SHARP

Front view of a modern refrigerator with two doors, showing front and back panels (no text or symbols visible)

Device of this mark is a trademark of Sharp Corporation. Plasmacluster is a registered trademark or a trademark of Sharp Corporation.

• CARE AND CLEANING.... 11

- BEFORE YOU CALL FOR SERVICE.... 12

E CONTENIDO

• WAARSCHUWING....67

- LET OP 67

• INSTALLATIE 68

• TEMPERATUURINDICATOR 68

• BESCHRIJVING 69

• GEBRUIK 70

• OPBERGEN VAN VOEDSEL....74

• ONDERHOUD EN SCHOONMAKEN 74

• ALVORENS VOOR REPARATIE TE BELLEN..... 75

PL SPIS TREŚCI

• OSTRZEŻENIE 76

• ŚRODKI OSTROŻNOŚCI 76

• INSTALACJA....77

• WSKAŹNIK TEMPERATURY....77

• OPIS CZEŚCI....78

OBSŁUGA• 79

• PRZECHOWYWANIE ŻYWNOŚCI 83

• CZYSZCZENIE LODÓWKI....83

• ZANIM WEZWIESZ SERWIS 84

H TARTALOMJEGYZÉK

• FIGYELMEZTETÉS....85

• VIGYÁZAT 85

• ÜZEMBE HELYEZÉS 86

• HÖMÉRSÉKLETJELZŐ 86

• LEÍRÁS 87

• MÜKÖDTETÉS....88

• ÉLELMISZER-TÁROLÁS 92

This refrigerator contains flammable refrigerant (R600a: isobutane) and insulation blowing gas (cyclopentane). Observe the following rules to prevent ignition and explosion.

The refrigeration system behind and inside the • refrigerator contains refrigerant. Do not allow any sharp objects to come into contact with the refrigeration system.

Do not use mechanical devices or other means to accelerate the defrosting process. (This refrigerator has adopted automatic defrosting system.)

Do not use electric appliances inside the refrigerator.

Use only the specified parts for the refrigerator • compartment light.

Do not block the openings on the circumference of the refrigerator.

Do not use flammable sprays, such as spray paint near the refrigerator. It may cause explosion or fire.

If the refrigeration system should get punctured, do not touch the wall outlet and do not use open flames. Open the window and air out the room. Then ask a service agent approved by SHARP for servicing.

This refrigerator should be disposed appropriately. • Take the refrigerator to a recycling plant for flammable refrigerant and insulation blowing gases.

Do not store highly volatile and flammable materials such as ether, petrol, propane gas, aerosol cans, adhesive agents and pure alcohol etc.

These materials are liable to explode.

Dust deposited on the power plug may cause fire. Wipe it off carefully.

Do not attempt to change or modify this refrigerator. This may result in fire, electric shock or injury.

Ensure that the refrigerator presents no danger to children ■ while being stored for disposal. (e.g. remove the magnetic door seals to prevent child entrapment.)

CAUTION

Do not touch the compressor unit or its peripheral parts, as they become extremely hot during operation and the metal edges may cause injury.

Do not touch foods or metal containers in the freezer ■ compartment with your wet hands. This may cause frostbite.

Do not use an extension cord or adapter plug. ■

Do not place bottled and canned drinks in the freezer as they may crack when frozen.

Make sure that the power cord has not been damaged during installation or moving. If the power plug or cord is loose, do not insert the power plug. There is a risk of electric shock or fire.

Disconnect from the mains electricity supply by removing the mains plug from the electricity supply socket. Do not remove by pulling the mains lead. This may cause electric shock or fire.

■ In case of gas leak, ventilate the area by opening a window, etc. Do not touch the refrigerator or the power outlet.

Do not place objects containing liquid or unsteady objects on top of refrigerator.

IMPORTANT

■ Should the flexible supply cord be damaged, it must be replaced by service agent approved by SHARP as a special cord is required.

■ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Information on Disposal for Users (private households)

Symbol of a trash bin crossed with two crossed lines and a solid rectangle below (no text or labels)

Attention:

Your product is marked with this symbol.

It means that used electrical and electronic products should not be mixed with general household waste.

There is a separate collection system for these products.

1. In the European Union

Attention: If you want to dispose of this equipment, please do not use the ordinary dust bin! Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment.

Following the implementation by member states private households within the EU states may return their used electrical and electronic equipment to designated collection facilities free of charge*. In some countries* your local retailer may also take back your old product free of charge if you purchase a similar new one.

*) Please contact your local authority for further details.

If your used electrical or electronic equipment has batteries or accumulators, please dispose of these separately beforehand according to local requirements.

By disposing of this product correctly you will help ensure that the waste undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health which could otherwise arise due to inappropriate waste handling.

2. In other Countries outside the EU

If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal.

For Switzerland: Used electrical or electronic equipment can be returned free of charge to the dealer, even if you don't purchase a new product. Further collection facilities are listed on the homepage of www.swico.ch or www.sens.ch.

GB

WARNING

Do not install the refrigerator in a damp or wet ■ location as this may cause damage to the insulation and a leakage. Condensation may also build on the outer cabinet and cause rust.

1 Keep adequate ventilation space around the refrigerator.

The figure shows the minimum required space for installing the refrigerator. The measurement condition of power consumption is conducted under a different space dimension.

By keeping greater space, the refrigerator may be operated under a less amount of power consumption.

• If using the refrigerator in the smaller space dimension than the below figure, it may cause the temperature rise in the unit, loud noise and failure.
• The space between the rear of the refrigerator and the wall should be 60mm or more and less than 75mm. If the space is wider than 75mm, you may get injured by touching compressor and its peripheral parts which are extremely hot during the operation.

Overall space required in use

2 Use the two front adjustable feet, to ensure that the refrigerator is positioned firmly and flat on the floor.

3 Remove the 2 screws of the cabinet lower part, and then set the foot cover (supplied inside the refrigerator compartment) with removed 2 screws.

NOTE

Position your refrigerator so that the plug is accessible. • Keep your refrigerator out of direct sunlight.

Do not place next to heat generating appliance.*

Do not place directly on the ground. Provide suitable stand.

When transporting

The casters allow the refrigerator to move back and forth.· Carry the refrigerator by holding the handles located on the rear and the bottom.

Before using your refrigerator

Clean the inside parts with a cloth soaked in warm water. If soapy water is used, wipe it off thoroughly with water.

INDICATOR OF TEMPERATURE

This refrigerator is provided with an indicator of temperature in the refrigerator compartment to allow you to control the average temperature in the coldest zone.

Coldest zone

The symbol indicates the coldest zone in the refrigerator compartment.

(The door pocket positioned at the same height isn't the coldest zone.)

Symbol

Checking the temperature in the coldest zone

You can carry out regular checks to ensure the temperature in the coldest zone is correct and, if necessary, adjust the refrigerator temp. control.

To maintain a correct temperature inside the appliance, check that the indicator of temperature is always BLUE. If the indicator of temperature turns WHITE, the temperature is too high; in this case, increase the refrigerator temp. control setting and wait for 6 hours before checking the indicator of temperature again.

BLUE

WHITE

Correct setting Temperature too high, adjust the refrigerator temp. control.

NOTE

The internal temperature of the refrigerator depends on various factors such as the ambient temperature of the room, the amount of food stored and the frequency of door opening. When fresh food has been introduced or the door has been left open for some time, it is normal for the indicator of temperature to turn WHITE.

DESCRIPTION

2 star section ** for storing frozen foods only.

Freezer LED light1.

Freezer shelf2.

Movable shelf3.

You can make two levels, enabling you to store food separately. If used upside down, you can keep foods neatly within this shelf.

Ice cube maker4.

Do not over fill the ice cube trays; 1) otherwise the ice cubes will be joined together when frozen. When the ice cubes are made, 2) turn the lever clockwise to empty the ice into the ice cube box.

NOTE To prevent damage to the Ice cube box, do not make ice in the Ice cube box or pour oil into it.

Ice cube box5.

Deodorizing unit6.

No operation and cleaning are required.

Fresh case & door7.

Refrigerator LED light (Blue & white)

Refrigerator shelves 9.

(SJ-GC680V : 2 pcs. / SJ-GC700V : 3 pcs.)

Hybrid cooling panel 10.

The panel is cooled from the rear, thus indirectly cools the refrigerator compartment. In this way, food is refrigerated gently, without exposing it to cold air flow.

Egg holders (21pcs.) & stopper

How to take out the stopper Pull the refrigerator shelf 1) slightly toward you. Move the stopper to the center 2) of the shelf and tilt it upward.

Egg holder

Fruit and vegetable shelf12.

13. Fruit and vegetable crisper

14. Adjustable feet

15. Foot cover

Magnetic door seals (16pcs.)

17. Flexible pocket

Tall food items (e.g. pizza box) can be stored by lifting the partition from the bottom of the pocket.

Door pockets (18pcs.)

19. Refrigerator pocket & cover

20. Utility pockets

NOTE (Only for SJ-GC700V)

Do not replace the right utility pocket with that of the left, and vice versa.

21. Bottle pocket

22. Bottle stopper / Tube stands (2 pcs.)

Prevents bottles etc. from falling. Stick-type food products stored inside.

23. Touch control panel

OPERATION

GB

Touch control panel

To operate, touch the keys with your bare hand.

Features start automatically like right figure when inserting the power plug. (At first, Door alarm and Sound are "ON".)

Display for temperature setting1.

The preset temperature of selected compartment is displayed. It is not the actual temperature in the compartment.

Display for feature icon2.

The icon and are displayed on the standby display when each feature is in operation.

Plasmacluster

Energy saving

Controlling temperature (Freezer compartment)

Controlling temperature (Refrigerator compartment)

Door alarm indication3.

This indication shows door alarm "ON".

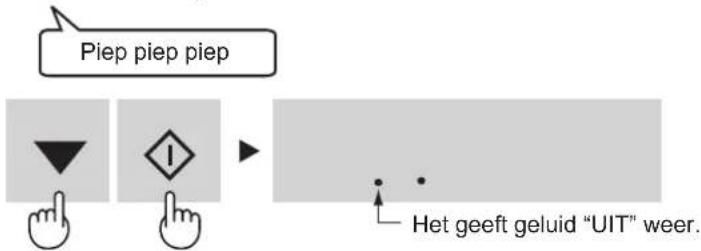

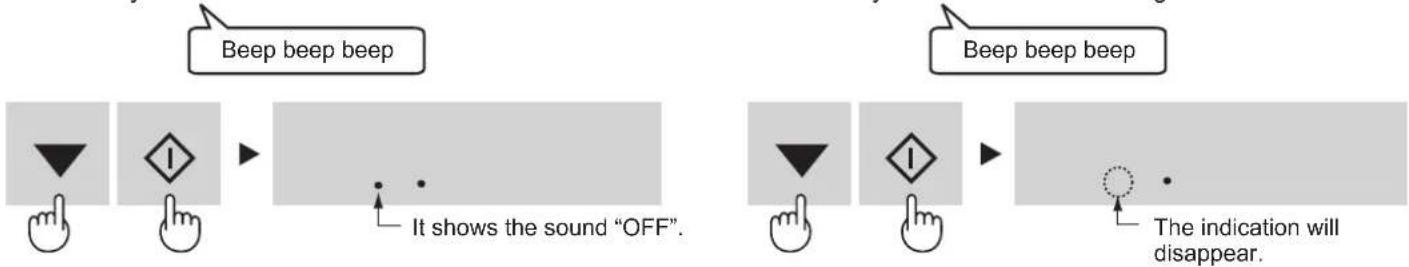

Sound ON/OFF indication4.

This indication shows sound "OFF".

Select key5.

Press to select feature icon and door alarm signal.

6. ▼ kay

Press to select feature ON/OFF or temperature setting.

7. Enter key

Finalize the setting.

NOTE

When there is no operation for 1 minute, the display • automatically return to the standby display.

Additionally, the display will be turned off when there is no operation for 1 minute.

When either of the key is pressed, the icons are blink once and show the standby display.

When the refrigerator stops with power failure, the display shows similarly as before having a power failure at the time of re-power distribution.

Plasmacluster

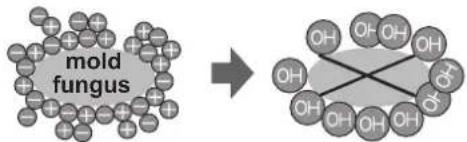

The ionizer inside your refrigerator releases clusters of ions, which are collective masses of positive and negative ions, into the refrigerator compartment. These ion clusters inactivate airborne mold fungus.

To start operation

1 Press the select key and select Plasmacluster icon.

2 Press the ▲ey. [ :ON, :OFN]

3 Press the ◊ key.

To cancel operation

It is the same method as starting operation.

Press the ▼ key in step 2.

NOTE

There may be a slight odor in the refrigerator. This is the smell of ozone generated by the ionizer. The amount of ozone is minimal, and quickly decomposes in the refrigerator.

Energy Saving

Use this feature when you want to switch the appliance to energy-saving operation.

To start operation

1 Press the select key and select Energy saving icon.

2 Press the ▲ey. [ :ON, :OFF]

3 Press the ◆ key.

To cancel operation

It is the same method as starting operation.

Press the ▼ key in step 2.

NOTE

While this feature is operating, the inside temperature of the refrigerator and freezer compartment will be higher than the preset temperature as follows; R: about 1°C, F: about 2°C. (If the preset temperature is set at R: 3°C, F: -18°C.) The displayed temperature will not be changed.

The efficiency of power saving depends on the usage environment (controlling temperature, ambient temperature, frequency of opening or closing the door, amount of food).

Cancel this feature when you feel the beverages are not • cooled enough or ice making takes time.

Tips for saving energy

Keep the ventilation space as much as ■ possible around the refrigerator.

Keep your refrigerator out of direct sunlight, ■ and do not place next to heat generating appliance.

Open your refrigerator door as briefly as ■ possible.

Hot foods should be cooled before storing. ■

Place the food evenly on the shelves to allow ■ the cooling air to circulate efficiently.

The amount of power consumption of this model is measured according to the international standard of the refrigerator performance.

If the refrigerator is operated with these accessories[lce cube maker, Ice cube box] taken out, it works under the most energy-efficient condition.

The amount of power consumption of this model is measured with these accessories taken out as indicated on the right figure.

Line drawing of an open refrigerator with doors open, showing internal compartments and storage areas (no text or labels)

The amount of power consumption • of this model is measured under the space dimensions on the right figure.

Controlling Temperature

The refrigerator controls its temperature automatically. However, if needed, adjust the temperature as follows.

GB

Freezer compartment

Adjustable between -13^ and -21^ in steps of 1^ .

1 Press the select key and select icon. The display shows the current preset temperature.

2 Press the ▲key and set the temperature. [▲: increase, ▼decrease]

3 Press the ◆ key.

Refrigerator compartment

Adjustable between 0^ C and 6^ C in steps of 1^ C.

1 Press the select key and select R icon. The display shows the current preset temperature.

2 Press the ▲ key and set the temperature. [▲: increase, ▼ decrease]

3 Press the ◆ key.

Advanced Setting of Freezer / Refrigerator compartment

The temperature of freezer compartment and refrigerator compartment can be adjusted in steps of 0.5 ^ by following steps ① to ③ below.

Freezer compartment

① Select F icon.

Beep beep beep

② Press ◇ key continuously for 3 seconds or more. The current preset temperature on the display will be changed to -18.0 °C. (The display will be indicated alternately like right figure.)
③ Adjust the temperature in the same way as steps 2 to 3 above.

Follow steps ① to ② again if you want to adjust the temperature in steps of 1°C.

Refrigerator compartment

① Select R icon.
Beep beep beep
② Press ◇ key continuously for 3 seconds or more. The current preset temperature on the display will be changed to 3.0 °C . (The display will be indicated like right figure.)
③ Adjust the temperature in the same way as steps 2 to 3 above.

Follow steps ① to ② again if you want to adjust the temperature in steps of 1°C.

Door Alarm

At first, door alarm is set "ON".

When the refrigerator or freezer door is left open, the door alarm will sound.

• The door alarm will sound in 1 minute after opening the door and again after 1 minute (once in each case).

If the door is left open for approx. 3 minutes, the alarm will sound continuously.

To cancel operation

1 Press the select key and select the door alarm indication like the below figure.

To start operation

It is the same method as canceling operation.

Press the ▲ key in step 2.

Sound ON/OFF

At first, the sound is set "ON".

- Use this feature when you want to switch the sound of key operation to "ON" or "OFF".

To set sound "OFF"

Press the ▼ey and keysimultaneously and continuously for 3 seconds or more.

To set sound "ON"

Press the ▼ey and key simultaneously and continuously for 3 seconds or more again.

STORING FOOD

Refrigeration reduces the rate of food spoilage. To maximize the shelf life of perishable food products, ensure that the food is of the freshest possible quality. The following is a general guide to help promote longer food storage.

Fruit / Vegetables

To minimize moisture loss, fruit and vegetables should be loosely enclosed in a plastic material e.g. wrap, bags (do not seal) and place in the vegetable crisper.

Dairy Products & Eggs

Most dairy products have a use by date on the outer • packaging which informs the recommended temperature and shelf life of the product.

• Eggs should be stored in the Egg holder.

Meats / Fish / Poultry

• Place on a plate or dish and cover with paper or plastic wrap.
• For larger cuts of meat, fish, or poultry, place to the rear of the shelves.
• Ensure all cooked food is wrapped securely or placed in an airtight container.

NOTE

• Evenly place the food on the shelves to allow the cooling air to circulate efficiently.
• Hot foods should be cooled before storing. Storing hot foods increases the temperature in the unit and increases the risk of food spoilage.
- Do not block the outlet and inlet of the cool air circulating circuit with foods or containers; otherwise the foods will not be evenly cooled throughout the refrigerator.
- Keep the door securely closed.

Diagram of an refrigerator interior showing airflow and ventilation system (no text or labels)

Do not place food directly in front of cold air outlet. This may lead to the food freezing.

For best freezing

• Quality of foods should be fresh.
- Freeze small quantities of food at a time to freeze them quickly.
- Food should be properly sealed, sealed tightly or covered.
• Evenly place the food in the freezer.
- Label bags or containers to keep an inventory of freezing food.

CARE AND CLEANING

WARNING

Unplug the refrigerator first to prevent electric shock. ■ Do not splash water directly on the outer cabinet or ■ the interior. This may lead to rusting and deterioration of the electrical insulation.

IMPORTANT

To prevent cracking on inside surfaces and plastic components, follow these tips.

Wipe any food oils adhered to plastic components. Some household chemicals may cause damage, so use only diluted washing-up liquid (soapy water). If undiluted detergent is used or soapy water is not wiped off thoroughly, cracking of plastic parts can result.

1 Remove the accessories e.g. shelves from the cabinet and door. Wash them in warm soapy dishwashing water; rinse in clean water and dry. (Only fruit and vegetable shelf is not removable)
2 Clean the inside with a cloth soaked in warm soapy dishwashing water. Then, use cold water to wipe off soapy water.
3 Wipe the exterior with a soft cloth each time it is soiled.
4 Clean the Magnetic door seal with a toothbrush and warm soapy dishwashing water.
5 Wipe the touch control panel with the dry cloth.

NOTE

To prevent damage to your refrigerator, do not use heavy duty cleansers or solvents (lacquer, paint, polishing powder, benzine, boiled water, etc.). If the power supply is disconnected, please wait for at least 5 minutes before re-connecting power. The glass shelves weigh approximately 3 kg each. Hold firmly when removing from the cabinet or carrying. Do not drop objects inside the refrigerator or strike the inner wall. This may cause the inner surface to crack.

Defrosting

Defrosting is fully automatic due to a unique energy saving system.

When the compartment light is blown

Contact the service agent approved by SHARP to request a replacement compartment light. The compartment light is not to be removed other than by qualified service personnel.

Switching off your refrigerator

If you switch your refrigerator off when you are going away for an extended period, remove all food, clean the interior thoroughly. Remove the power cord plug from the power socket and leave all doors open.

BEFORE YOU CALL FOR SERVICE

Before you call for service, check the following points.

Problem Solution
The outside of the cabinet is hot when touched.	It is normal. The hot pipe is in the cabinet in order to prevent dew generation.
When there is refrigerator noise. It is	normal for the refrigerator to produce the following sounds.Loud noise produced by the compressor when operation starts •--- Sound becomes quieter after a while.Loud noise produced once a day by the compressor •--- Operating sound produced immediately after automatic defrost operation.• Sound of flowing fluid (gurgling sound, fizzing sound)--- Sound of refrigerant flowing in pipes (sound may become louder from time to time).• Cracking or crunching sound, squeaking sound--- Sound produced by expansion and contraction of inner walls and internal parts during cooling.
Frosting or dew generation occurs inside or outside the refrigerator.	This may occur in one of the following cases. Use a wet cloth for wiping frost and a dry cloth for wiping dew.When the ambient humidity is high.•When the door is frequently opened and closed.•When foods containing plenty of moisture are stored. (Wrapping is required.)•
The foods in the refrigerator compartment freeze.	Is the refrigerator operated for a long time with refrigerator temp. control set at 0°C?•Is the refrigerator operated for a long time with freezer temp. control set at -21°C?•• Low ambient temperature may cause placed foods to freeze even if refrigerator temp. control is set to 6°C.
It smells in the compartment.	• Wrapping is required for the foods with strong smell.Deodorizing unit cannot remove all of the smell.•
Touch control panel does not work.	This may occur in one of the following cases.The panel or your finger is soiled with dripping, oil and etc.•• Touch the panel with gloved hand, adhesive bandage on your finger, nail or objects.• Sticker or tape is affixed on the keys.• Touch position is slightly off from the keys.• Operate time is not enough for the keys to work.

IF YOU STILL REQUIRE SERVICE

Refer to your nearest service agent approved by SHARP.

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Tornillo (2 tornillos)

NOTAS

3 Pulse la tecla "◇".

3 Pulse la tecla " "

NOTAS

Line drawing of an open refrigerator with doors open, showing internal compartments and doorways (no text or symbols)

3 Pulse la tecla "◇".

3 Pulse la tecla "◇".

3 Pulse la tecla "1

Diagram of a refrigerator interior showing airflow direction and component placement (no text or labels)

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

Attenzione:

Il dispositivo è

I

NOTA

NOTA

Line drawing of an open refrigerator with doors open, showing internal compartments and storage areas (no text or symbols)

Comparto frigorifero

Diagram of a refrigerator interior showing airflow and ventilation system (no text or labels)

Illustration of three food containers: a microwave, a pizza box, and a bottle (no text or symbols)

[▲: ON (MARCHE), ▼: OFF (ARRET)]

NOTE

NOTES

Line drawing of an open refrigerator with doors open, showing internal compartments and storage areas (no text or symbols)

2 Prima a tecla ▲ [ ▲ : ON (LIGADO), ▼OFF (DESLIGADO) ]

3 Prima a tecla "◇".

OBSERVAÇÕES

2 Prima a tecla ▲ [▲: ON (LIGADO), ▼OFF (DESLIGADO)]

3 Prima a tecla "1

OBSERVAÇÕES

Line drawing of an open refrigerator with doors, shelves, and storage compartments (no text or symbols)

3 Prima a tecla "◇".

Compartimento do frigorífico

2 Prima a tecla ▲ e ▼gule a temperatura. [ ▲ : aumentar, ▼diminuir ]

3 Prima a tecla "◇".

2 Prima a tecla ▼ [▲: ON (LIGADO), ▼OFF (DESLIGADO)]

3 Prima a tecla "1

Som LIGADO/DESLIGADO

Pure electrical circuit lines without any symbols

ΣΗΜΕΙΩΣΗ

ΣΗΜΕΙΩΣΗ

Line drawing of an open refrigerator with doors, shelves, and doorways (no text or symbols)

Χώρος ψυγείου

HINWEISE

HINWEISE

Line drawing of an open refrigerator with doors, shelves, and doorways (no text or symbols)

Kühlabteil

D

Illustration of three food containers: a cup, a box labeled 'Senna', and a tray with a spoon (no text or symbols on the containers themselves)

IJsblokjesmaker4.

Pure electrical circuit lines without any symbols

De werking starten

N.B.

N.B.

Line drawing of an open refrigerator with doors open, showing internal compartments and storage areas (no text or symbols)

Koelgedeelte

3 seconden of langer.

Symbol of a waste bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Uwaga:

Illustration of three household items: a plastic cup, a box labeled 'pizza', and a bag with chopsticks (no text or symbols on objects)

Kostkarka do lodu4.

Włączenie funkcji

UWAGA

Wyłączenie funkcji

Line drawing of an open refrigerator with doors open, showing internal compartments and storage areas (no text or symbols)

Komora lodówki

Illustration of three household items: a plastic cup, a box labeled 'SICZA', and a bag with a handle (no text or symbols on items)

Jégkockakészítő4.

Hang KI/BE jelzés4.

MEGJEGYZÉS

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

Hűtőtér

Symbol of a waste bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Atentie:

2 Apăsați tasta ▲. [ ▲ : ON (Pornit), ▼ : OFF (Oprit)]

NOTĂ

3 Apăsați tasta „.

NOTĂ

Line drawing of an open refrigerator with doors open, showing internal compartments and storage areas (no text or symbols)

Three-step diagram showing a container with cups, a package labeled 'S238', and a hand holding a bottle (no text or symbols present)

Spuštění operace

[ ▲ : ON (ZAPNUTO), ▼ : OFF (VYPNUTO) ]

POZNÁMKA

POZNÁMKA

Line drawing of an open refrigerator with doors, shelves, and storage compartments (no text or symbols)

Chladící oddělení

2 Stiskněte tlačítko ▼ [▲: ON (ZAPNUTO), ▼OFF (VYPNUTO)]

Symbol of a waste bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Pozor:

Illustration of four people pulling a large cylindrical object on a stand (no text or symbols visible)

Illustration of three food preparation steps: packing, packing with pizza, and pouring into a bottle (no text or symbols)

POZNÁMKA

2 Stlačte tlačidlo „“.

Zrušit' činnost'

POZNÁMKA

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

Priestor chladničky

Stlačte tlačidlo ▼[:ON (ZAP), :OFF(VYP)]

2 Stlačte tlačidlo "1

Zvuk ZAP/VYP

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no text or symbols present)

Dèmesio:

Illustration of five children pulling a large object on a table (no text or symbols visible)

Illustration of three different kitchen appliances: a microwave oven, a plastic bag with a baking pan, and a cylindrical device (no text or symbols on the devices themselves)

Ledukų gamintuvas4.

PASTABA

3 Paspauskite „klaviša.

PASTABA

Line drawing of an open refrigerator with doors and shelves (no text or symbols)

Šaldytuvo kamera

2 Paspauskite ▼haviša. [ ▲ : ON (IJUNGTA), ▼OFF (IŠJUNGTA) ]

3 Paspauskite „klaviša.

Garsas IJUNGTAS / IŠJUNGTAS

Illustration of four people pushing a cart with wheels, no text or symbols present

aizmugure apakšdala

3 Nospiediet taustinu

PIEZIME

3 Nospiediet taustinu

PIEZIME

Line drawing of an open refrigerator with doors open, showing internal compartments and storage areas (no text or labels)

3 Nospiediet taustinu ◆

Ledusskapja nodalijums

3 Nospiediet taustinu

2 Nospiediet taustinu ◆

Procesa sākšana

Skaņa IESLĒGTA/IZSLĒGTA

Symbol of a trash bin crossed with no visible text or labels

Tähelepanu:

Illustration of three food containers: a plastic cup, a cheese container, and a glass tube with a bottle (no text or symbols)

TÖÖTAMINE

Märge helist SEES/VÄLJAS4.

2 Vajutage ▲nuppu. [ : QN (SEES), : OFF(VÄLJAS) ]

3 Vajutage ◇- nuppu.

MÄRKUS

2 Vajutage ▲nuppu. [ ▲ : ON (SEES), ▼OFF (VÄLJAS) ]

2 Vajutage ♦huppu.

MÄRKUS

Line drawing of an open refrigerator with doors open, showing internal compartments and storage areas (no text or symbols)

2 Vajutage ◆ nuppu.

Külmiku sektsioon

Reguleeritav vahemikus 0°C ... 6°C sammuga 1°C.

2 Vajutage ▲- nupule ja seadistage temperatuur.

[▲: tösta, ▼langetada]

2 Vajutage ◇ nuppu.

Külmiku sektsioon

① Valige ikoon R.

2 Vajutage ▼uppu. [ ▲ : ON (SEES), ▼OFF (VÄLJAS) ]

3 Vajutage -ruppu.

Heli SISSE/VÄLJA lülitamine

Algselt on heli "SEES".

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Pozor:

Illustration of four people gathered around a table with circular objects, no text or symbols present

Three technical illustrations showing a food storage unit, a package labeled 'SIZA', and a hand holding a cylindrical object (no text or symbols on the objects themselves)

2 Pritisnite tipko ▲. [▲: ON (VKLOP), ▼: OFF (IZKLOP)]

2 Pritisnite tipko ◆.

OPOMBA

2 Pritisnite tipko ▲ : ON (VKLOP), : OFF (IZKLOP)]

2 Pritisnite tipko ◊

OPOMBA

Line drawing of an open refrigerator with doors open, showing internal compartments and storage areas (no text or symbols)

Poraba energije pri tem modelu se meri v prostorskih razmerah, ki so prikazane na sliki desno.

3 Pritisnite tipko

Hladilni predel

Nastavljivo od 0 °C do 6 °C v korakih po 1 °C.

2 Pritisnite tipko ▲ in nastavite temperaturo. [ ▲ : povišanje, ▼ znižanje ]

3 Pritisnite tipko

2 Pritisnite tipko ▼ : ON (VKLOP), : OFF (IZKLOP)]

2 Pritisnite tipko ◆

Zvok VKLJUČEN/IZKLJUČEN

Illustration of three food preparation steps: container, package with 'BEER' label, and bottle being inserted (no text or symbols)

ПРИМИТКА

ПРИМИТКА

Line drawing of an open refrigerator with doors open, showing internal compartments and storage areas (no text or symbols)

Illustration of four people pulling a cart with wheels, no text or symbols present

(SJ-GC680V:26p./SJ-GC700V:36p.)

3 Натиснете клавиша

ЗАБЕЛЕЖКА

3 Натиснете клавиша ◊

ЗАБЕЛЕЖКА

Line drawing of an open refrigerator with doors open, showing internal compartments and storage areas (no text or symbols)

3 Натиснете клавиша ◊.

Хладилно отделение

3 Натиснете клавиша ◎.

3 Натиснете клавиша ◇ ◇1 ▶ OFF.

Пачатак аперацыі

УВАГА

3 Націсніце Унопку.

Адмена аперацыі

УВАГА

Line drawing of an open refrigerator with internal compartments and doorways (no text or symbols)

2 Націсніце кнопку.

3 Націсніце кнопку.

3 Націсніце інопку.

Гук Укл./Выкл.

In Europe represented by

SHARP ELECTRONICS EUROPE LTD.

4 Furzeground Way, Stockley Park, Uxbridge, Middlesex, UB11 1EZ, U.K.

Printed in Thailand
