43LH570V - Television LG - Free user manual and instructions
Find the device manual for free 43LH570V LG in PDF.
| Product Type | LED TV |
| Brand | LG |
| Model | 43LH570V |
| Screen Size | 43 inches (109 cm) |
| Resolution | Full HD (1920 x 1080) |
| Display Technology | LED Backlit |
| Received TV Standards | Digital Terrestrial (DVB-T), Cable (DVB-C), Satellite (DVB-S2) |
| Connectivity | 3 HDMI inputs, 2 USB ports, Ethernet, Built-in Wi-Fi |
| Smart TV | Yes, with webOS operating system |
| Dimensions (without stand) | Approx. 97.6 x 57.1 x 6.3 cm (W x H x D) |
| Dimensions (with stand) | Approx. 97.6 x 61.5 x 22.5 cm |
| Weight (without stand) | Approx. 8.5 kg |
| Weight (with stand) | Approx. 9.0 kg |
| Power Supply | 100-240 V, 50/60 Hz |
| Typical Power Consumption | Approx. 70 W |
| Standby Power Consumption | Less than 0.5 W |
| Energy Class | A+ (estimated) |
| Maintenance and Cleaning | Clean with a soft, dry cloth. Do not use chemical products. |
| Safety | Do not expose to humidity, do not block ventilation slots. |
| Spare Parts and Repairability | Available via LG after-sales service. Repairability index not reported. |
| General Information | Full manual available for free download at notice-facile.com. |
Frequently Asked Questions - 43LH570V LG
User questions about 43LH570V LG
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Television in PDF format for free! Find your manual 43LH570V - LG and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 43LH570V by LG.
USER MANUAL 43LH570V LG
Safety and Reference
LED TV*
* LG LED TV applies LCD screen with LED backlights.
Please read this manual carefully before operating your set and retain it for future reference.
www.lg.com
P/NO: MFL69311714(1606-REV04)
Printed in Korea
Safety instructions
Please read these safety precautions carefully before using the product.
WARNING
Do not place the TV and/or remote control in the following environments:
produce heat
exposed to steam or oil
Otherwise, this may result in fire, electric shock, malfunction or product deformation.
Do not place the product where it might be exposed to dust. This may cause a fire hazard.
The mains plug is the device used to connect the TV to and disconnect it from the AC mains power supply. This plug must remain readily accessible and operable while the TV is in use.
Do not touch the power plug with wet hands. Additionally, if the cord or plug is wet or covered with dust, dry the plug completely or wipe off the dust. You may be electrocuted due to excess moisture.
Make sure to connect the mains cable to a compliant AC mains socket with a grounded earth pin. (Except for devices that are not grounded on earth.) Otherwise, you may be electrocuted or injured.
Insert the power cable plug completely into the wall socket. If it is not secured completely into the socket, a fire may break out.
Ensure the power cord does not come into contact with hot objects such as a heater. This may cause a fire or an electric shock hazard.
Do not place a heavy object, or the product itself, on power cables. Otherwise, this may result in fire or electric shock.
Bend the antenna cable between the inside and outside of the building to prevent rain from flowing in. This may cause water damage inside the product and could give an electric shock.
When mounting the TV onto a wall, make sure to neatly install and isolate cabling from the rear of the TV to avoid the possibility of electric shock or fire hazard.
Do not plug too many electrical devices into a single multiple electrical outlet. Otherwise, this may result in fire due to overheating.
Do not drop the product or let it fall over when connecting external devices. Otherwise, this may result in injury or damage to the product.
Keep the anti-moisture packing material or vinyl packing out of the reach of children. Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children.
Do not let your children climb or cling onto the TV. Otherwise, the TV may fall over, which may cause serious injury.
Dispose of used batteries carefully to ensure that a small child does not consume them. Please seek doctor's medical attention immediately if a child consumes batteries.
Do not insert any metal objects or conductors (like a metal chopstick, cutlery, or screwdriver) between the power cable plug and the input wall socket while it is connected to the input terminal on the wall. Additionally, do not touch the power cable right after plugging it into the wall input terminal. You may be electrocuted. (Depending on model)
Do not put or store inflammable substances near the product. There is a danger of combustion, explosion, or fire due to careless handling of the inflammable substances.
Do not drop metallic objects such as coins, hair pins, chopsticks or wire into the product, or inflammable objects such as paper and matches. Children must pay particular attention. Electrical shock, fire or injury can occur. If a foreign object is dropped into the product, unplug the power cord and contact the service centre.
Do not spray water on the product or scrub with an inflammable substance (thinner or benzene). Fire or electric shock accident can occur.
Do not allow any impact, shock or any objects to fall into the unit, and do not drop anything onto the screen. You may be injured or the product can be damaged.
Never touch this product or antenna during a thunder or lighting storm. You may be electrocuted.
Never touch the wall outlet when there is leakage of gas, open the windows and ventilate. It may cause a fire or a burn by a spark.
Do not disassemble, repair or modify the product at your own discretion. Fire or electric shock accident can occur.
Contact the service centre for check, calibration or repair.
If any of the following occur, unplug the product immediately and contact your local service centre.
This may result in fire or electric shock.
Unplug the TV from AC mains wall socket if you do not intend to use the TV for a long period of time. Accumulated dust can cause fire hazard and insulation deterioration can cause electric leakage/shock/fire.
Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.
Do not install this product on a wall if it could be exposed to oil or oil mist. This may damage the product and cause it to fall.
If water enters or comes into contact with TV, AC adapter or power cord please disconnect the power cord and contact service centre immediately. Otherwise, this may result in electric shock or fire.
Only use an authorized AC adapter and power cord approved by LG Electronics. Otherwise, this may result in fire, electric shock, malfunction or product deformation.
Never Disassemble the AC adapter or power cord. This may result in fire or electric shock.
Be careful in handling the adapter to prevent any external shocks to it. An external shock may cause damage to the adapter.
Make sure the power cord is connected securely to the power plug on the TV. (Depending on model)
CAUTION
Install the product where no radio wave occurs.
There should be enough distance between an outside antenna and power lines to keep the former from touching the latter even when the antenna falls. This may cause an electric shock.
Do not install the product on places such as unstable shelves or inclined surfaces. Also avoid places where there is vibration or where the product cannot be fully supported. Otherwise, the product may fall or flip over, which may cause injury or damage to the product.
If you install the TV on a stand, you need to take actions to prevent the product from overturning. Otherwise, the product may fall over, which may cause injury.
If you intend to mount the product to a wall, attach VESA standard mounting interface (optional parts) to the back of the product. When you install the set to use the wall mounting bracket (optional parts), fix it carefully so as not to drop.
Only use the attachments / accessories specified by the manufacturer.
When installing the antenna, consult with a qualified service technician. If not installed by a qualified technician, this may create a fire hazard or an electric shock hazard.
We recommend that you maintain a distance of at least 2 to 7 times the diagonal screen size when watching TV. If you watch TV for a long period of time, this may cause blurred vision.
Only use the specified type of battery. This could cause damage to the remote control.
Do not mix new batteries with old batteries. This may cause the batteries to overheat and leak.
Batteries should not be exposed to excessive heat. For example, keep away from direct Sunlight, open fireplace and electric heaters.
Do not place non-rechargeable batteries in charging device.
Make sure there are no objects between the remote control and its sensor.
Signal from Remote Control can be interrupted due to external/internal lighting e.g. sunlight, fluorescent lighting. If this occurs, turn off lighting or darken viewing area.
When connecting external devices such as video game consoles, make sure the connecting cables are long enough. Otherwise, the product may fall over, which may cause injury or damage to the product.
Do not turn the product On/Off by plugging in or unplugging the power plug to the wall outlet. (Do not use the power plug as a switch.) It may cause mechanical failure or could give an electric shock.

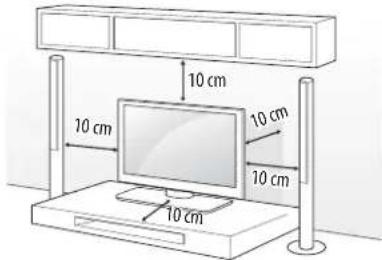

Please follow the installation instructions below to prevent the product from overheating.
than 10 cm.
bookshelf or in a cupboard).
Otherwise, this may result in fire.
Take care not to touch the ventilation openings when watching the TV for long periods as the ventilation openings may become hot. This does not affect the operation or performance of the product.
Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer.
Prevent dust collecting on the power plug pins or outlet. This may cause a fire hazard.
Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.
Do not press strongly upon the panel with a hand or sharp object such as a nail, pencil, or pen, or make a scratch on it, as it may cause damage to the screen.
Avoid touching the screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary or permanent distortion/damage to the screen.
When cleaning the product and its components, unplug the power first and wipe it with a soft cloth. Applying excessive force may cause scratches or discolouration. Do not spray with water or wipe with a wet cloth. Never use glass cleaner, car or industrial shiner, abrasives or wax, benzene, alcohol, etc., which can damage the product and its panel. Otherwise, this may result in fire, electric shock, or product damage (deformation, corrosion, or breakage).
As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if you turn off this unit by SWITCH.
When unplugging the cable, grab the plug and unplug it, by pulling at the plug.
Don't pull at the cord to unplug the power cord from the power board, as this could be hazardous.
When moving the product, make sure you turn the power off first. Then, unplug the power cables, antenna cables and all connecting cables. The TV set or power cord may be damaged, which may create a fire hazard or cause electric shock.
When moving or unpacking the product, work in pairs because the product is heavy. Otherwise, this may result in injury.
Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
If the product feels cold to the touch, there may be a small "flicker" when it is turned on. This is normal, there is nothing wrong with product.
This panel is an advanced product that contains millions of pixels. You may see tiny black dots and/or brightly coloured dots (red, blue or green) at a size of 1 ppm on the panel. This does not indicate a malfunction and does not affect the performance and reliability of the product.
This phenomenon also occurs in third-party products and is not subject to exchange or refund.
You may find different brightness and color of the panel depending on your viewing position(left/right/top/down).
This phenomenon occurs due to the characteristic of the panel. It is not related with the product performance, and it is not malfunction.
Displaying a still image for a prolonged period of time may cause image sticking. Avoid displaying a fixed image on the TV screen for a long period of time.
Generated Sound
"Cracking" noise: A cracking noise that occurs when watching or turning off the TV is generated by plastic thermal contraction due to temperature and humidity. This noise is common for products where thermal deformation is required. Electrical circuit humming/panel buzzing:
A low level noise is generated from a high-speed switching circuit, which supplies a large amount of current to operate a product. It varies depending on the product.
This generated sound does not affect the performance and reliability of the product.
Do not use high voltage electrical goods near the TV (e.g. electric mosquito-swatter). This may result in product malfunction.
Preparing
ENGLISH
NOTE
the factory, initialization of the TV may take a few minutes. (Depending on model)
shown in this manual.
or product model that you are using.
model.
without prior notice due to upgrade of product functions.
have bezels less than 10 mm thick and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your TV's USB port.
* A ≤ 10 mm
*B ≤ 18 mm
cable, the screen may not display
or a connection error may occur. (Recommended HDMICable Types)
- High-Speed HDMI®/TM Cable (3m or less)
- High-Speed HDMI®/TM Cable with Ethernet (3m or less)
- Use the ferrite core to reduce electromagnetic interference in the power cord. Wind the power cord on the ferrite core once.
[Wall side]
[TV side]
may not be supported including web browser. (Only LH57**)
CAUTION
life span.
covered by the warranty.
must not be removed.
down on a cushioned table or flat surface to protect the screen from scratches.
not fastened securely enough, the TV may tilt forward after being installed.) Do not use too much force and over tighten the screws; otherwise screw may be damaged and not tighten correctly.
Lifting and moving the TV
Please note the following advice to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.
that the TV originally came in.
all cables.
avoid damage.
hold the transparent part, speaker, or speaker grill area.
following illustration.
excessive vibration.
on its side or tilt towards the left or right.
chassis as it may damage screen.
buttons.
CAUTION
to the screen.
holders may break, and injuries and damage to the TV may occur.

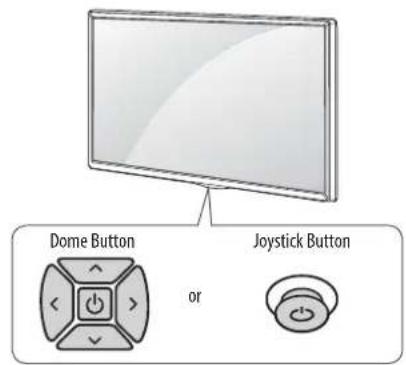

Using the button
(Depending on model)
You can simply operate the TV functions, pressing or moving the button.
NOTE
Power On/Off button.
Basic functions
 |  | Power On (Press)Power Off (Press and hold) 1 |
 |  | Volume Control |
 |  | Programmes Control |
1. All running apps will close, and any recording in progress will stop.
Adjusting the menu
When the TV is turned on, press the button one time. You can adjust the menu items by pressing or moving the buttons.
| Turns the power off. | |
| Clears on-screen displays and returns to TV viewing. | |
| Changes the input source. | |
| Accesses the settings menu. |
Mounting on a table
1. Lift and tilt the TV into its upright position on a table.
ventilation.
2. Connect the power cord to a wall outlet.
CAUTION
fire or other damage.
Securing the TV to a wall
(This feature is not available for all models.)
1. Insert and tighten the eye-bolts, or TV brackets and bolts on the back of the TV.
bolts first.
2 Mount the wall brackets with the bolts to the wall. Match the location of the wall bracket and the eye-bolts on the rear of the TV. 3 Connect the eye-bolts and wall brackets tightly with a sturdy rope. Make sure to keep the rope horizontal with the flat surface.
CAUTION
NOTE
support the TV securely.
additional accessories from your local dealer.
Mounting on a wall
Attach an optional wall mount bracket at the rear of the TV carefully and install the wall mount bracket on a solid wall perpendicular to the floor. When you attach the TV to other building materials, please contact qualified personnel. LG recommends that wall mounting be performed by a qualified professional installer. We recommend the use of LG's wall mount bracket. LG's wall mount bracket is easy to move with cables connected. When you do not use LG's wall mount bracket, please use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices. It is advised to connect all the cables before installing fixed wall mounts.
Make sure to use screws and wall mount bracket that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table.
Separate purchase (Wall mounting bracket)
| Model | 32/43LH57**32/43LH59**32/40/43LH60**32/43LH61**32/43LH63** | 49LH57**49LH59**49/55LH60**49/55LH61**49/55LH63** |
| VESA (A x B) (mm) 200 x 200 300 x 300 | ||
| Standard screw M6 M6 | ||
| Number of screws 4 4 | ||
| Wall mount bracket | LSW240BMSW240 | LSW350BMSW240 |
| Model | 55LH57**55LH59** | |
| VESA (A x B) (mm) 400 x 400 | ||
| Standard screw M6 | ||
| Number of screws 4 | ||
| Wall mount bracket | LSW440BMSW240 | |
CAUTION
performing the stand attachment in reverse.
NOTE
or protective cover provided. The adhesive label or protective cover will protect the opening from accumulating dust and dirt. (Only when the label or cover is provided)
| Provided item |  | |
 Adhesive Label | ||
Adhesive label
| Provided item |  |
 | |
| Adhesive label |
cover the stand hole using tape, in order to prevent the influx of dust and insects. (Depending on model)
Mount spacers into the TV wall mount holes to adjust the vertical angle of the TV. (Only when the item of the following form is provided)
| Provided Item |  |
 | |
| Wall mount spacer |
Stand cover as illustrated below. (e.g., a flat screwdriver) (Only when the item of the following form is provided)
Connections (notifications)
Connect various external devices to the TV and switch input modes to select an external device. For more information on external device connections, refer to the manual provided with each device.
Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices.
NOTE
TV port.
Connect the TV signal input cable to the TV through a DVD recorder or VCR. For more information on recording, refer to the manual provided with the connected device.
instructions.
with the gaming device.
vertical pattern, contrast or brightness. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the PICTURE menu until the picture is clear.
depending on the graphics card.
Antenna connection
Connect the TV to a wall antenna socket with an RF cable (75 Ω).
improve the image quality.
Realign the antenna in the correct direction.
HE-AAC
Satellite dish connection
(Only satellite models)
Connect the TV to a satellite dish to a satellite socket with a satellite RF cable (75 Ω).
CI module connection
(Depending on model)
View the encrypted (pay) services in digital TV mode.
right direction. If the module is not inserted properly, this can cause damage to the TV and the PCMCIA card slot.
connected, please contact to the Terrestrial/Cable/Satellite Service Operator.
USB connection
Some USB Hubs may not work. If a USB device connected through a USB Hub is not detected, connect it directly to the USB port on the TV.
Other connections
Connect your TV to external devices. For the best picture and audio quality, connect the external device and the TV with the HDMI cable. Some separate cable is not provided.
NOTE
Dolby Digital (32 kHz, 44.1 kHz, 48 kHz),
DTS (44.1 kHz, 48 kHz),
PCM (32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz)
(Depending on model)
Remote control
(Depending on model)
The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly.
To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching the and ends to the label inside the compartment, and close the battery cover. To remove the batteries, perform the installation actions in reverse.
Make sure to point the remote control toward the remote control sensor on the TV.
A
(POWER) Turns the TV on or off.
TV/RAD Radio, TV and DTV programme.
1, 4 (INPUT) Changes the input source. (Depending on model)
1, 4 SMOTITLE your preferred subtitle in digital mode. (Depending on model)
2 (1). Settings) Accesses the Quick Settings. (Depending on model)
2 ABy pressing the AD button, audio descriptions function will be enabled. (Depending on model)
3 INFO the information of the current programme and screen. (Depending on model)
3 LVEZOOMg in on the selected area, you can view it in full screen. (Depending on model)
3 ON AN image. (Depending on model)
B
Number buttons Enters numbers.
Alphabet buttons Enters letters. (Depending on model)
LIST Accesses the saved programmes list.
☐(Space) Opens an empty space on the screen keyboard. (Depending on model)
5, 7 GUIDE's programme guide. (Depending on model)
5 QVIEWS to the previously viewed programme. (Depending on model)
+△-Adjusts the volume level.
6 ①INFOthe information of the current programme and screen. (Depending on model)
6,7 (SEARCH) Search for content such as TV programmes, movies and other videos, or perform a web search by entering text in the search bar. (Depending on model)
6 FAVcesses your favourite programme list. (Depending on model)
(MUTE) Mutes all sounds.
^P∨ Scrolls through the saved programmes.
^ PAGE ∨ Moves to the previous or next screen.
C
8 REGEM the previous history. (Depending on model)
8, 9, 10, 11, 12, 13 Teletext buttons TEXT, T.OPT
These buttons are used for teletext. (Depending on model)
(HOME) Accesses the Home menu.
9 LSVE MBNU list of Programmes and Recommended.
(Depending on model)
10, 12 Blackrns to the previous level. (Depending on model)
10 Settings) Accesses the Quick Settings. (Depending on model)
11, 13 EK Cars on-screen displays and returns to TV viewing. (Depending on model)
11 QAMENUs the Quick menus. (Depending on model)
Navigation buttons (up/down/left/right) Scrolls through menus or options.
● Selects menus or options and confirms your input.
D
14 AD by pressing the AD button, audio descriptions function will be enabled. (Depending on model)
14 📋INFO the information of the current programme and screen. (Depending on model)
15 • BEG to record and displays record menu.
(Only Time Machine ready supported model) (Depending on model)
15 LIVEZOOMg in on the selected area, you can view it in full screen. (Depending on model)
15 SLABHe sleep timer. (Depending on model)
15 Select the MHP TV menu source. (Depending on model)
16 LIVE.TMs to LIVE TV. (Depending on model)
Control buttons (■, ▶, Ⅱ, ◀, ▶) Controls media contents.
Coloured buttons These access special functions in some menus.
(●: Red, ⋯: Green, ⋈: Yellow, ⋒: Blue)
Licenses
Supported licenses may differ by model. For more information about licenses, visit www.lg.com.
DOLBY. DIGITAL PLUS
dts-HD
Open source software notice information
To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product, please visit http://opensource.lqe.com.
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com. This offer is valid for three (3) years from the date on which you purchased the product.
External control device setup
To obtain the external control device setup information, please visit www.lg.com.
Troubleshooting
Cannot control the TV with the remote control.
control.
to⊕to).
No image display and no sound is produced.
products.
The TV turns off suddenly.
interrupted.
Timers settings.
Mode settings. (Depending on model)
automatically after 15 minutes of inactivity.
When connecting to the PC (HDMI), 'No signal' or 'Invalid Format' is displayed.
Specifications
Wireless module specification
adjust the operating frequency. This product is configured for the regional frequency table.
operated with a minimum distance of 20 cm between the device and the body.
| Wireless LAN module (TWFM-B006D) specifications | |
| Standard IEEE802.11a/b/g/n | |
| Frequency Range Output Power (Max.) | |
| 2400 to 2483.5 MHz | 14 dBm |
| 5150 to 5250 MHz | 12.5 dBm |
| 5725 to 5850 MHz (for Non EU) | 15.5 dBm |
| AC/DC Adapter | 32LH57**, 32LH59** |
| Manufacturer: APDModel: DA-48G19Manufacturer: Lien ChangModel: LCAP45 | |
| In: AC 100 - 240 V ~ 50/60 HzOut: DC 19 V--- 2.53 A |
| CI Module (W x H x D) 100.0 mm x 55.0 mm x 5.0 mm | ||
| Environment condition | Operating Temperature | 0 °C to 40 °C |
| Operating Humidity Less than 80 % | ||
| Storage Temperature -20 °C to 60 °C | ||
| Storage Humidity Less than 85 % | ||
(Depending on country)
| Digital TV Analogue TV | ||||
| Satellite Terrestrial Cable Terrestrial / Cable | ||||
| Television system DVB-S/S2* | DVB-TDVB-T2* | DVB-C | PAL/SECAM B/G, D/K, I, SECAM L | |
| Channel coverage (Band) | 950 ~ 2150 Mhz | VHF III: 174 ~ 230 MhzUHF IV: 470 ~ 606 MhzUHF V: 606 ~ 862 MhzS Band II: 230 ~ 300 MhzS Band III: 300 ~ 470 Mhz | 46 ~ 862 Mhz 46 ~ | 862 Mhz |
| Maximum number of storable programmes | 6,000 | 2,000 (LH57**)3,000 (LH59**, LH60**, LH61**, LH63**) | ||
| External antenna impedance | 75 Ω | |||
* Only DVB-T2/C/S2 support models.
LG
Life's Good
USER MANUAL
PCM (32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz)
person.
Dolby Digital (32 kHz, 44.1 kHz, 48 kHz),
DTS (44.1 kHz, 48 kHz),
PCM (32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz)
(Depending on the model)
Remote control
(Depending on the model)
people.
PCM (32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz)
by 2 people.
PCM (32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz)
(Depending on the model)
Remote control
(Depending on the model)
8, 9, 10, 11, 12, 13 Teletext buttons (TEXT, T.OPT
necessary.
PCM (32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz)
2 atoms.
Dolby Digital (32 kHz, 44.1 kHz, 48 kHz),
DTS (44.1 kHz, 48 kHz),
PCM (32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz)
8, 9, 10, 11, 12, 13 Teletext buttons (TEXT, T.OPT
excessive vibration.
box and do not tilt it to the left or right side.
damage the screen.
buttons.
WARNING
1 Insert and tighten the eye screws or brackets and screws on the back of the television.
remove these screws.
2. Attach the wall brackets to the wall using screws.
Align the eye bolts on the back of the TV with the wall brackets.
3. Securely connect the eye bolts and wall brackets with strong cord. The cord should be horizontal to a flat surface.
CAUTION
NOTE
securely supports the TV.
PCM (32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz)
(Depending on model)
Remote control
(Depending on model)
Record the model number and serial number of the TV. Refer to the label on the back cover and quote this information to your dealer when requiring any service.
MODEL ____
SERIAL
- SAFETY INSTRUCTIONS
- CAUTION
- GENERATED SOUND
- PREPARING
- ENGLISH
- NOTE
- LIFTING AND MOVING THE TV
- USING THE BUTTON
- ADJUSTING THE MENU
- MOUNTING ON A TABLE
- SECURING THE TV TO A WALL
- MOUNTING ON A WALL
- CONNECTIONS (NOTIFICATIONS)
- ANTENNA CONNECTION
- SATELLITE DISH CONNECTION
- CI MODULE CONNECTION
- USB CONNECTION
- OTHER CONNECTIONS
- REMOTE CONTROL
- A
- B
- C
- D
- LICENSES
- OPEN SOURCE SOFTWARE NOTICE INFORMATION
- EXTERNAL CONTROL DEVICE SETUP
- TROUBLESHOOTING
- SPECIFICATIONS
- WARNING
Brand : LG
Model : 43LH570V
Category : Television
