SF 22-A / SFH 22-A cordless drill / driver

It is essential that the operating instruct are read before the power tool is open the first time.

Always keep these operating instructions get her with the power tool.

Ensure that the operating instructions with the power tool when it is given persons.

Contents Page

1	General information 11
2	Safety instructions 12
3	Description 14
4	Technical data 15
5	Before use 16
6	Operation 17
7	Care and maintenance
8	Troubleshooting 18
9	Disposal
10	Manufacturer's warranty - tools
11	EC declaration of conformity (original)

1 These numbers refer to the illustrations. You can find the illustrations at the beginning of the operating instructions.

In these operating instructions, the designation “power tool” refers to the SF 22-A cordless drill/driver or S 22-A cordless hammer drill/driver with battery fitted.

Product overview 1

to other

(1) Side handle

② Keyless chuck

③ Setting ring for torque, drilling and hammer drilling

④ 3-speed gear selector

⑤ Forward / reverse selector switch with transport lock

⑥ Control switch (with electronic speed control)

⑦ Grip

⑧ Release buttons with additional function (charge status display activation)

8⑨ Type identification plate

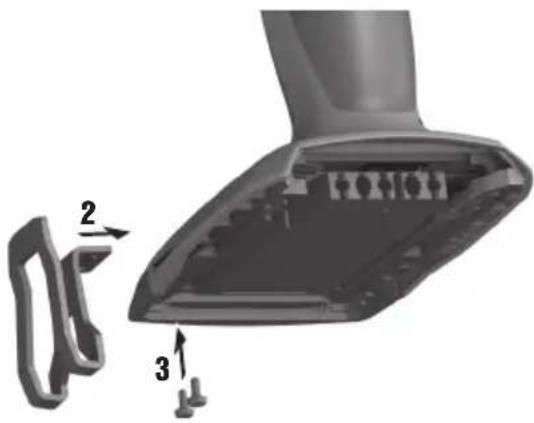

⑩ Belt hook (optional)

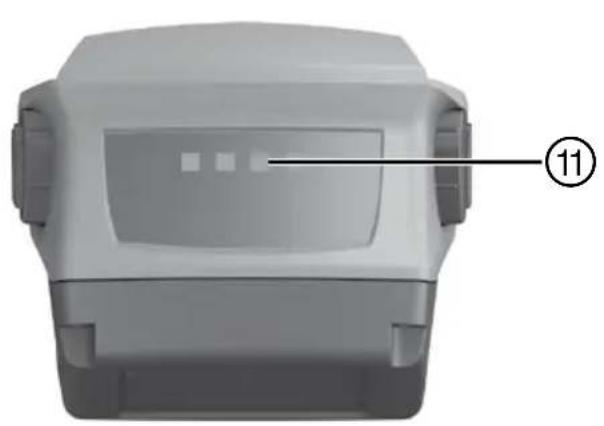

① Charge status and fault display (Li-ion battery)

19

20

1 General information

1.1 Safety notices and their meaning

DANGER

Draws attention to imminent danger that will lead to serious bodily injury or fatality.

WARNING

Draws attention to a potentially dangerous situat could lead to serious personal injury or fatality.

CAUTION

Draws attention to a potentially dangerous situation could lead to slight personal injury or damage to the equipment or other property.

NOTE

Draws attention to an instruction or other useful tion.

1.2 Explanation of the pictograms and other information

Warning signs

General warning

^n that Obligation signs

informa-

Read the operating instructions before use.

Symbols

Direct current

Rated speed under no load

Revolutions per minute

Hammer drilling

Drilling without hammering

Location of identification data on the power tool The typed designation can be found on the type ation plate at the base of the power tool and the number on the side of the casing. Make a data in your operating instructions and always refer when making an enquiry to your Hilti representative service department.

Type:

Generation: 01

Serial no.:

2 Safety instructions

NOTE

The safety rules in section 2.1 contain all general rules for power tools which, in accordance with applicable standards, must be listed in the operation instructions. Accordingly, some of the rules listed not be relevant to this tool.

2.1 General power tool safety warnings

a)

WARNING

Read all safety warnings and all instruction to follow the warnings and instructions in electric shock, fire and/or serious injury. warnings and instructions for future referer The term “power tool” in the warnings refer your mains-operated (corded) power tool or operated (cordless) power tool.

2.1.1 Workareasafety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive spheres, such as in the presence of flam liquids, gases or dust. Power tools create which may ignite the dust or fumes.
c) Keep children and bystanders away while ing a power tool. Distractions can cause y control.

2.1.2 Electrical safety

a) Power tool plugs must match the outlet. modify the plug in any way. Do not use apter plugs with earthed (grounded) power. Unmodified plugs and matching outlets will risk of electric shock.
b) Avoid body contact with earthed or ground surfaces, such as pipes, radiators, ranges refrigerators. There is an increased risk of shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet coral stings. Water entering a power tool will increase therisk of electric shock.
rating Do not abuse the cord. Never use the cord find may carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges of moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk may be electric shock.
Save If all operating a power tool in a damp location ice. unavoidable, use a residual current device (RCD) is to protected supply. Use of an RCD reduces the resistance of electric shock.

2.1.3 Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. I not use a power tool while you are tired or the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust operat-mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying any the tool. Carrying power tools with your finger or tools switch or energising power tools that have the s on invites accidents.
d) Remove any adjusting key or wrench before tu ded ing the power tool on. A wrench or a key left and tached to a rotating part of the power tool may electric in personal injury.

e) Do not overreach. Keep proper footing and d)Under abusive conditions, liquid may be ejectedance at all times. This enables better control of the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts
f) Dress properly. Do not wear loose clothing or eyes, additionally seek medical help. Liquid ejeckewellery. Keep your hair, clothing and gloves ted from the battery may cause irritation or burns away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. 2.1.6 Service
g) If devices are provided for the connection of dust your power tool serviced by a qualified repair extraction and collection facilities, ensure these person using only identical replacement pa en are connected and properly used. Use of dust collection can reduce dust-related hazards. This will ensure that the safety of the power too maintained.
d)baUnder abusive conditions, liquid may be ejected rol ofrothe the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts or eyes, additionally seek medical help. Liquid ejece-ves ted from the battery may cause irritation or burns jewellery
s. 2.1.6 Service of Have your power tool serviced by a qualified repair these person using only identical replacement pa en dust This will ensure that the safety of the power too maintained.

2.1.4 Power tool use and care

a) Do not force the power tool. Use the c power tool for your application. The correct tool will do the job better and safer at the which it was designed.
b) Do not use the power tool if the switch turn it on and off. Any power tool that controlled with the switch is dangerous and repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar power tool or these instructions to operate power tool. Power tools are dangerous in of untrained users.
e) Maintain power tools. Check for misalignm binding of moving parts, breakage of parts any other condition that may affect the power tool's operation. If damaged, have the pov repaired before use. Many accidents are ca poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking account the working conditions and the w be performed. Use of the power tool for options different from those intended could res hazardous situation.

2.1.5 Battery tool use and care

a) Recharge only with the charger specified manufacturer. A charger that is suitable for one type of battery pack may create a risk of used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery pa create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, keys, nails, screws or other small metal that can make a connection from one to another. Shorting the battery terminals together cause burns or a fire.

2.2 Drill safety warnings

Wear protectors when impact drilling. Expos- t power ure to noise can cause hearing loss. e rate for
b) Use auxiliary handle(s), if supplied with the tool Loss of control can cause personal injury. does not c) Hold power tool by insulated gripping surfaces, cannot be performing an operation where the cutting must be accessory may contact hidden wiring. Cutting ac cessory contacting a "live" wire may make expose metal parts of the power tool "live" and could g tool the operator an electric shock.

2.3 Additional safety rules

2.3.1 Personal safety

a) Modification of the machine or tampering with the parts is not permissible.
e b) the the hands Hold power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a "live" wire may make exposed metal parts of power tool "live" and could give the operator an electric shock.
ver tool Always hold the power tool securely with both used by hands on the grips provided. Keep the grips c clean and free from oil and grease.
d) Improve the blood circulation in your fingers by relaxing your hands and exercising your fingers during breaks between working.
(e) Avoid touching rotating parts. Switch the power g into tool on only after bringing it into position at work to workpiece. Touching rotating parts, especially rotat-pera-ing insert tools, may lead to injury.
f) "Activate the safety lock (forward / reverse switch in the middle position) before storing or transporting the power tool.
g) The appliance is not intended for use by debil by the ated persons who have received no special tra ing. Keep the appliance out of reach of children fire when h) Dust from materials, such as paint containing lead, some wood species, concrete/masonry/stone con- taining silica, and minerals as well as metal, may cks may harmful. Contact with or inhalation of the dust ma cause allergic reactions and/or respiratory or other diseases to the operator or bystanders. Certain kinds coins of dust are classified as carcinogenic such as oak and objects peech dust, especially in conjunction with additives for wood conditioning (chromate, wood preservative).
er may Material containing asbestos must only be treated by

specialists. Where the use of a dust device is possible it shall be used. To a high level of dust collection, use a suitable extractor. When indicated wear a respirator appropriate for the type of dust generated, that the workplace is well ventilated. Follo tional requirements for the materials you work with.

i) The user and any other persons in the v must wear suitable eye protection, a hard ear protection, protective gloves and breath protection while the tool is in use.

2.3.2 Careful use of the power tool

a) Secure the workpiece. Use clamps or a secure the workpiece. The workpiece is the more securely than by hand and both hand free to operate the power tool.
b) Check that the insert tools used are con with the chuck system and that they are in the chuck correctly.
c) Large and heavy insert tools must only be erated in first gear. There is otherwise a the tool will be damaged when it is switch under unfavorable conditions, the chuck might detached.

2.3.3 Careful use of the cordless tool

a) Ensure the switch is in the off position inserting battery pack. Inserting the battery into power tools that have the switch on accidents.

| to) eDa tnota expose nbatteries to high temperatures a chievkeep them away from fire. This presents a risk le desplosion.

- Do not disassemble, squash or incinerate batter. Ensures and do not subject them to temperatures w n80°C. This presents a risk of fire, explosion or i want through contact with caustic substances.

d) Avoid ingress of moisture. Ingress of moisture may incinity cause a short circuit, resulting in burning injuries hat, fire.

Observe the special guidelines applicable to the transport, storage and use of Li-ion batteries.

f) Avoid short circuiting the battery terminals. Before inserting the battery in the tool, make suvice that the battery terminals and the terminals in us held to be free from foreign objects. Short circuitir s remain battery terminals presents a risk of fire, expl and chemical burns.

Not charge or continue to use damaged battery sections (e.g. batteries with cracks, broken parts, bent or pushed-in and/or pulled-out contacts).

eh) of the battery is too hot to touch it may be de risk Place the tool in a location where it can be ed under, observation, well away from flammable ma t be terials, and allow it to cool down. Contact Hill Service after the battery has cooled down.

2.3.4 Electrical safety

before beginning work, check the working area (e.g. using a metal detector) to ensure that no conceal electric cables or gas and water pipes are present External metal parts of the power tool may become live, for example, when an electric cable is damaged accidentally. This presents a serious risk of electric shock.

3 Description

3.1 Use of the product as directed

The SF 22-A is a hand-held, cordless drill/driver for driving and removing screws and for drilling in steel, wood and plastic.

The SFH 22-A is a hand-held, cordless hammer drill/driver for driving and removing screws, for drillin and plastic and for hammer drilling in lightweight concrete and masonry.

Do not use the battery as a power source for other unspecified appliances.

To avoid the risk of injury, use only genuine Hilti accessories and insert tools.

The power tool is designed for professional use and may be operated, serviced and maintained only by trained, authorized personnel. This personnel must be informed of any special hazards that may be encountered. The power tool and its ancillary equipment may present hazards when used incorrectly by untrained personnel or when used not as directed.

3.2 Standard equipment includes:

1 Power tool
1 Side handle
1 Operating instructions

NOTE

Approved accessories are available from your Hilti Center or can be ordered online at www.hilti.com.

3.3 Additional items required for operating the tool

A suitable battery of the specified type (see table in the Technical Data section) and a suitable battery charger from the C 436 series.

3.4 Charge state and overheating indicator display on the Li-ion battery

When the lithium-ion battery is in use, the charge status can be indicated by gently pressing one of the battery buttons (press until resistance is felt - do not release the battery). The display on the rear of the battery provides the following information:

LEDs light constantly LEDs blink		Charge status C
LED 1, 2, 3, 4	-	C ≧ 75 %
LED 1, 2, 3	-	50 % ≦ C < 75 %
LED 1, 2	-	25 % ≦ C < 50 %
LED 1	-	10 % ≦ C < 25 %
-	LED 1	C < 10 %
-	LED 1 The battery has overheated

NOTE

Indication of the charge status is not possible while the power tool is in operation or immediately after operation. If the battery charge status LEDs flash, please refer to the information given in the Troubleshooting section.

3.5 Power tool overloading and overheating indicator

The power tool is equipped with an electronic protection system to prevent overloading and overheating. The power tool switches itself off automatically in the event of overloading and overheating. After releasing the control switch, the power tool may not restart immediately when the switch is pressed again (while the power tool is cooling down).

LEDs light constantly LEDs blink Power tool status
-	LED1,2,3,4 Powerto oloverloadedor overheated

4 Technical data

Right of technical changes reserved.

Power tool	SF 22-A SFH 22-A
Rated voltage (DC voltage) 21.6 V 21.6 V
Weight in accordance with EPT procedure 01/2003	2.52 kg	2.58 kg
Speed in 1st gear	0...370/min	0...370/min
Speed in 2nd gear	0...1,250/min	0...1,250/min
Speed in 3rd gear	0...2,140/min	0...2,140/min
Torque with tool set to drilling bol (soft/flexible joint)	Maxm- 50 Nm	Max. 50 Nm
Torque range (15 settings)	2...12 Nm	2...12 Nm
Hammering speed when drilling 3rd gear	in	39,000/min
Hammer drilling in masonry (max. length 100 mm)		4 ... 1 2 mm
Keyless chuck clamping range	1.5...13 mm	1.5...13 mm
Drilling diameter range in wood (soft)	1.5...32 mm	1.5...32 mm
Drilling diameter range in wood (hard)	1.5...20 mm 1.5...20 mm
Drilling dia. range in metal	1.5...13 mm 1.5...13 mm

NOTE

The sound pressure and vibration values given in these instructions have been measured in accordance with a standardized test and may be used to compare one electric tool with another. They may be used for a preliminary assessment of exposure. The data given represents the main applications of the electric tool. However, if the electric tool is used for different applications, with different accessories or is poorly maintained, the data may vary. This may significantly increase exposure over the total working period. An accurate estimation of exposure should also take into account the times when the tool is switched off, or when it is running but not actually being used for a job. This may significantly reduce exposure over the total working period. Identify additional safety measures to protect the operator from the effects of noise and/or vibration, for example: maintain the electric tool and accessories, keep the hands warm, organisation of work patterns.

Noise information in accordance with EN 60745:

Sound power level for the SF_WA 22-A, L 86 dB (A)

Sound power level for the SF_WA H22-A, L 107 dB (A)

Uncertainty for the given sound power_WA level, K 3 dB (A)

Emission sound pressure level for the SF_pA 22-A,75 dB (A)

Emission sound pressure level for the SF_pA H22-A,96 LdB (A)

Uncertainty for the given sound pressure_pA level, KdB (A)

Total vibration (vector sum of three directions), calculated in accordance with EN 60745:

Vibration emission value for screwdriving, a	<2.5 m/s2
Uncertainty, K	1.5 m/s2
Vibration emission value for hammer drilling in 20n-m/s2crete, aH,D
Uncertainty for hammer drilling in concrete, K	1.5 m/s2
Vibration emission value for drilling inh,Dmetal, a	<2.5 m/s2
Uncertainty for drilling in metal, K	1.5 m/s2

Battery B 22/1.6 Li-Ion B 22/3.3 Li-Ion			B 22/2.6 Li-Ion (01)	oBn 22/2.6 Li-Ion (02)	B 22/5.2 Li-Ion
Rated voltage	21.6 V	21.6 V	21.6 V	21.6 V	21.6 V
Capacity	1.6 Ah	3.3 Ah	2.6 Ah	2.6 Ah	5.2 Ah
Energy content	34.56 Wh	71.28 Wh	56.16 Wh	56.16 Wh	112.32 Wh
Weight	0.48 kg	0.78 kg	0.78 kg	0.48 kg	0.78 kg
No. of cells	6	12	12	6	12

5 Before use

5.1 Charging a previously used battery

Ensure that the outer surfaces of the battery and dry before inserting the battery in the core charger.

Read the operating instructions for the charger information about the charging procedure.

5.2 Inserting the battery 2

reCAUTION

Beforeting the battery, check that the power to is switched off and that the safety lock is engaged (forward/reverse switch in the middle position). Use

only the Hilti batteries approved for use with power tool.

1. CAUTION A falling battery may present a injury to yourself and others.

Check that the battery is securely seated in

5.3 Removing the battery 3

this Fitting and adjusting the side handle 4

DANGER

Check that the clamping band is engaged in the risk of groove provided on the power tool and that the handle is tightened securely.

5.5 Transport and storage of batteries

Pull the battery out of the locked position (women) and move it into the first latching position (that position).

Observe national and international transport regulations when shipping batteries (transportation by road, rail, sea or air).

6Operation

CAUTION

The tool may get hot during use. Wear prote

CAUTION

The power tool may suddenly swing to the (about its own axis) when drilling, hammer d screwdriving. Always use the power tool with handle fitted and hold it securely with both

CAUTION

To avoid injuries caused by the insert tool, protective gloves when changing insert tools.

6.1 Setting forward or reverse rotation 5

NOTE

The forward / reverse switch is used to select of rotation of the drive spindle. An interlock p switching while the motor is running. The control is locked when the forward / reverse switch is middle position. Push the forward / reverse swing left (when the power tool is held in the work to select forward rotation. Push the forward / switch to the right (when the power tool is her working direction) to select reverse rotation.

6.2 Speed selection with the 3-speed gear selector 6

WARNING

Large and heavy insert tools must only be open in first gear. There is otherwise a risk that is damaged when it is switched off or, under unfavorable conditions, the chuck might be detached.

NOTE

The mechanical 3-speed gear selector can be used to set the speed range required. Speed with a fu battery: 1st gear: 0-370 /min., 2nd gear: 0-125 3rd gear: 0-2140 /min.

6.3 Switching on / off

Speed of rotation can be controlled smoothly using the maximum speed by pressing the control switch slow

6.4 Fitting the drill bit

ctive gloves. NOTE

The connection end of the insert tool must be clean lightly greased. Use Hilti grease as it is compatible side (rotate) the tool's sealing system.

the side 1. Insert the drill bit in the keyless chuck and then hands turn the chuck firmly by hand until several click heard.

1. Check that the drill bit is held securely. wear

6.5 Removing the drill bit

1. Open the keyless chuck.
2. Pull the insert tool out of the chuck.
   the direction
   6.6 events Drilling

olCAUTION

Use thamps or a vice to secure the workpiece. The workpiece is thus held more securely than by hand and both hands remain free to operate the power reverse

d 1.in then the torque and operating mode setting ring the drilling symbol.

1. Move the forward / reverse switch to the "Forward position.

6.7 Hammer drilling (SFH 22-A)

erated Turn the torque and operating mode setting ring he to the will hammer drilling symbol.

1. Move the forward / reverse switch to the "Forward position.

6.8 Screwdriving

Ily-charged Fitting the bit holder / bit

1/min Open the keyless chuck.

1. Insert the bit adapter in the keyless chuck and turn the chuck firmly by hand until tight.

2. Check that the bit adapter is held securely (check to by Max pulling).

3. Fit the bit in the bit holder.

6.8.2 Screwdriving

1. Turn the torque, drilling and hammer drilling ring to the required torque setting.
2. Set the forward / reverse switch to the direction of rotation.

6.8.3 Removing the bit / bit holder

1. Remove the bit from the bit holder.
2. Open the keyless chuck.
3. Remove the bit adapter.

6.9 Belt hook 7

SATiTgON

Check that the belt hook is fitted securely before beginning work.

The belt hook allows the power tool to be attached belt worn by the operator. The belt hook can also to the other side of the power tool for use by let persons.

7 Care and maintenance

WARNING

Repairs to the electrical section of the power be carried out only by trained electrical spec

7.1 Care of the power tool

CAUTION

Keep the power tool, especially its grip surf clean and free from oil and grease. Do not ing agents which contain silicone.

Never operate the power tool when the ventilati are blocked. Clean the ventilation slots carefully a dry brush. Do not permit foreign objects to interior of the power tool. Clean the outside of tool at regular intervals with a slightly damp cl not use a spray, steam pressure cleaning equip

running water for cleaning. This may negatively affect electrical safety of the power tool. alists.

7.2 Care of the Li-ion battery

NOTE

Battery performance drops at low temperatures. ces,

NOTEclean-

Store the battery in a cool and dry place.

on slotter to achieve maximum battery life, stop using battery as soon as a significant drop in battery per enter the noticed.

the power NOTE

oth. If Do use continues, further battery discharge will be omitted stopped automatically before the battery cells suffer damage.

- Charge the batteries using the specified and approv Hilti battery chargers for Li-ion batteries.

8 Troubleshooting

Fault Possible cause	Remedy
The power tool doesn't run.	The battery is discharged or pushed all the way in.	The battery must be heard to engage with a double click or, respectively, needs to be charged.
	Electrical fault.	Remove the battery from the tool and contact Hilti Service.
The power tool doesn't run all 4 LEDs blink.	Timel power tool has been overloaded.	Release the control switch and put it again.
	The overheating prevention cut-out has been activated.	Allow the power tool to cool down. Clean the ventilation slots.
The power tool doesn't run 1 LED blinks.	Timel battery is discharged.	Change the battery and charge the empty battery.
	The battery is too hot or too cold.	Bring the battery to the recommended working temperature.
No hammering action.	The torque and operating mode.	Turret-the torque and operating mode.
	ting ring are not set to the hanging ring to the hammer drilling symbol.	drilling symbol.
The on / off switch can't be pressed, i.e. the switch is locked.	The forward / reverse switch is middle position (transport lock en-the left or right. gaged).	Push the forward / reverse switch to

Fault Possible cause Remedy
The battery runs down more quickly than usual.	Very low ambient temperature. Allow the battery to warm up slowly to room temperature.
The battery doesn’t engage an audible double click.	With retaining lugs on the battery clean the retaining lugs and push the battery in until it engages. Contact Hilti Service if the problem persists.
The power tool or the battery gets very hot.	Electrical fault. Switch the tool off immediately, remove the battery and contact Hilti Service.
	The power tool has been overloaded (application limits exceeded).

9 Disposal

CAUTION

Improper disposal of the equipment may have serious consequences: the burning of plastic components generates toxic fumes which may present a health hazard. Batteries may explode if damaged or exposed to very high temperatures, causing poisoning, burns, acid burns or environmental pollution. Careless disposal may permit unauthorized and improper use of the equipment. This may result in serious personal injury, injury to third parties and pollution of the environment.

CAUTION

Dispose of defective batteries right away. Keep them out of reach of children. Do not disassemble or incinerate the batteries.

CAUTION

Batteries that have reached the end of their life must be disposed of in accordance with national regulations or returned to Hilti.

Most of the materials from which Hilti power tools or appliances are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, Hilti has already made arrangements for taking back your old power tools or appliances for recycling. Please ask your Hilti customer service department or Hilti representative for further information.

For EC countries only

Disposal of electric tools together with household waste is not permissible.

In observance of the European Directive on waste electrical and electronic equipment and its implementation in accordance with national law, electrical appliances that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility.

10 Manufacturer's warranty - tools

Please contact your local Hilti representative if you have questions about the warranty conditions.

11 EC declaration of conformity (original)

Designation: Cordless drill / driver

Type: SF 22-A / SFH 22-A

Generation: 01

Year of design: 2008

en

We declare, on our sole responsibility, that this complies with the following directives and standa 2006/42/EC, until 19th April 2016: 2004/108/EC, from 20th April 2016: 2014/30/EU, 2006/66/EC, 2011/65/EU, EN 60745-1, EN 60745-2-1, EN 60 EN ISO 12100.

Hilti Corporation, Feldkircherstrasse 100, FL-9494 Schaan

Paolo Luccini Tassilo Deinzer

Head of BA Quality and Process Man-

agement

Business Area Electric Tools & Ac-

45-2018

03/2015

Executive Vice President

Business Unit Power

Tools & Accessories

03/2015

Technical documentation filed at:
