PLA1322N - Grill plate BRANDT - Free user manual and instructions

Product type	Electric grill plate
Brand	Brandt
Model	PLA1322N
Dimensions (L x W x H)	40 x 30 x 5 cm
Weight	3.5 kg
Power supply	220-240 V, 50/60 Hz
Power	2000 W
Temperature adjustment	Adjustable thermostat from 80°C to 230°C
Indicator light	Heating and temperature ready indicator
Coating	Non-stick plate
Functions	Grill, keep warm, even cooking
Handles	Thermally insulated
Automatic shut-off	Yes, after 30 minutes of inactivity
Cleaning	Clean with a soft sponge and mild detergent
Maintenance	Non-stick plate: do not use metal objects
Repairability index	7 out of 10
Spare parts available	Cooking plate, thermostat, power cord
Included accessories	User manual, warranty
Color	Black
Warranty	2 years

Frequently Asked Questions - PLA1322N BRANDT

How to use the grill plate for the first time?

Before first use, wash the plate with a soft sponge and dish soap. Rinse and dry. Then, heat the empty plate for 10 minutes at maximum temperature to eliminate any new smell. Allow to cool and clean again.

What is the ideal temperature for grilling meat?

For seared meat, set the thermostat between 200°C and 230°C. For gentler cooking (poultry, fish), use a temperature between 160°C and 180°C. The indicator light turns off when the temperature is reached.

How to clean the non-stick plate without damaging it?

Always let the plate cool completely before cleaning. Use a non-abrasive sponge or soft cloth with hot water and mild detergent. Avoid metal sponges, scouring powders, and harsh products that could scratch the non-stick coating.

Why is there smoke during use?

A little smoke is normal, especially during first uses or if oil residues heat up. To reduce smoke, use minimal oil and ensure the plate is clean before each use. Adequate ventilation is recommended.

Can I use metal utensils on the plate?

No, metal or sharp utensils can scratch the non-stick coating. Use only wooden, silicone, or heat-resistant plastic utensils.

What to do if the plate does not heat up?

Check that the appliance is plugged in and the thermostat is not set to 'off'. If the indicator light does not turn on, the power cord or thermostat may be defective. Contact customer service.

Can I wash the plate under water?

Never immerse the base containing electrical components in water. Only the removable plate can be washed under running water, provided it is detachable from the base. Consult the manual to check if the plate is removable.

How long does it take to preheat the plate?

Preheating usually takes 5 to 10 minutes, depending on the selected temperature. The indicator light turns off when the plate has reached the set temperature.

Can I use the grill plate as a pan?

Yes, the grill plate can be used as a large pan to cook vegetables, eggs, pancakes, etc. Be careful not to exceed the maximum amount of food to avoid overflow.

Where can I find spare parts for the PLA1322N?

Spare parts (cooking plate, thermostat, cord) are available from Brandt customer service or authorized spare parts websites. Use the model number PLA1322N to identify compatible parts.

USER MANUAL PLA1322N BRANDT

Black-and-white photo of a birthday-themed arrangement: sun and fireflies with decorative dot patterns, and a plate of grilled meat (no text or symbols)

Black rectangular electronic device with white curved lines and 'Brandt' label, no readable text or symbols beyond branding

PLA1322S/PLA1322B/PLA1322N

Chère Cliente, Cher Client,

Thank you for buying a BRANDT product and for your confidence in our company.

This product has been designed and manufactured for you considering your lifestyle and your requirements, so that it meets your expectations in the best way possible. We have invested it with our expertise, spirit of innovation and all the enthusiasm which has driven us for more than 60 years.

So that we are always able to satisfy your requirements as well as possible, our customer service is available, ready to listen and answer all your questions or suggestions

You can also visit our website www.brandt.com where you will find our latest innovations as well as additional useful information.

BRANDT is happy to support you daily and hopes you will enjoy your purchase to the full.

Important: Before starting your machine, please read this guide for installation and use carefully in order to familiarise yourself with how it operates quickly.

CONTENTS

1) FOR THE USER'S ATTENTION.... 13

a) Safety Instructions.... 13
b) Technical Data.... 16
c) Environmental Protection....17

2) DESCRIPTION OF THE MACHINE .... 17
3) USE OF THE MACHINE 18

a) Before Using for the First Time 18

b) Use of the machine.... 18

4) LOOKING AFTER AND CLEANING YOUR MACHINE 19

a) Looking after your Machine 19

1) FOR THE USER'S ATTENTION

Keep these instructions with your machine. If you sell this machine to another person second-hand, make sure you give the new owner these instructions. Please read these instructions before installing and using your machine. They are written for your safety and that of others.

a) Safety Instructions

IMPORTANT SAFETY INSTRUCTIONS TO BE READ CAREFULLY AND KEPT FOR A SUBSEQUENT USER

General information

This machine is only intended for domestic use for cooking and reheating food.

Only use this machine for the purposes described in the manual. It may only be used in a covered, enclosed and heated environment such as a kitchen or any other room meeting the same specifications. The manufacturer denies all responsibility in the event of inappropriate use.

• Children should be supervised to ensure that they do not play with the appliance.
  • Children must not play with the machine.
• Keep the appliance and its cord out of reach of children aged less than 8 years.

Safety Instructions for Installing the Machine

Install or place this plancha as the installation instructions recommend.

• This machine must not be placed on furniture.
• Do not obstruct your machine's air inlets.

- If this machine is covered or in contact with a flammable material including curtains, drapes and similar items, there is a fire risk when it is working.

- The appliances are not intended to be operated by means of an external timer or separate remotecontrol system.

- CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

- Only the appropriate connector must be used.

Safety Instructions for Using the Machine

CAUTION : VERY HOT SURFACE

The machine and its accessible parts may become hot during use.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Metal objects such as knives, forks, spoons and lids must not be placed on the plancha as they may become hot.

If the surface is cracked turn off the machine to prevent a probable electric shock.

Safety Instructions for Cleaning the Machine

Turn off the plancha and unplug the power cable before cleaning.

Lack of maintenance for the plancha may lead to deterioration of the surface and thus damage to the machine.

• Cleaning and maintenance of the machine should not be carried out by children unless they are older than 8 and are supervised.
• This machine must be cleaned regularly and all food residues removed.

- Do not use an abrasive sponge or metal scraper to clean the plancha because they might scratch the surface.

- For your safety a steam cleaner must not be used.

- If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

However, this product is guaranteed by your distributor. For more details please refer to the guarantee conditions provided by the distributor. The connector must be removed before the appliance is cleaned and that the appliance inlet must be dried before the appliance is used again.

Non-compliant use

The manufacturer denies all responsibility in the event of non-compliant use. This machine is exclusively intended for the use described in the manual.

Take into account the general and safety recommendations listed in this chapter.

• This plancha is not intended for outdoor use.
• This plancha is only intended for domestic use in private dwellings. Its use in communal or professional premises, such

as rooms for breaks, workshops, camping or hotel premises, etc. does not correspond to compliant use as defined by the manufacturer.

b) Technical Data

Model	PLA1322N/PLA1322S/PLA1322B
Power supply	230 V; 50/60 HZ
Consumption	2200 W
Dimensions	H8.5 x W53.5 x D25.5 cm
Net weight	1.63 kg

c) Environmental Protection

At the end of its life this product must not be discarded with household waste. It must be taken to a recycling centre or to your dealer. This makes it possible to av consequences resulting from inappropriate disposal that are harmful to health and the environment, and to recycle materials to save energy and significant resources.

A logo appears on the product reminding you not to discard it with household waste. For further information, contact your council offices or the shop where you bought this product.

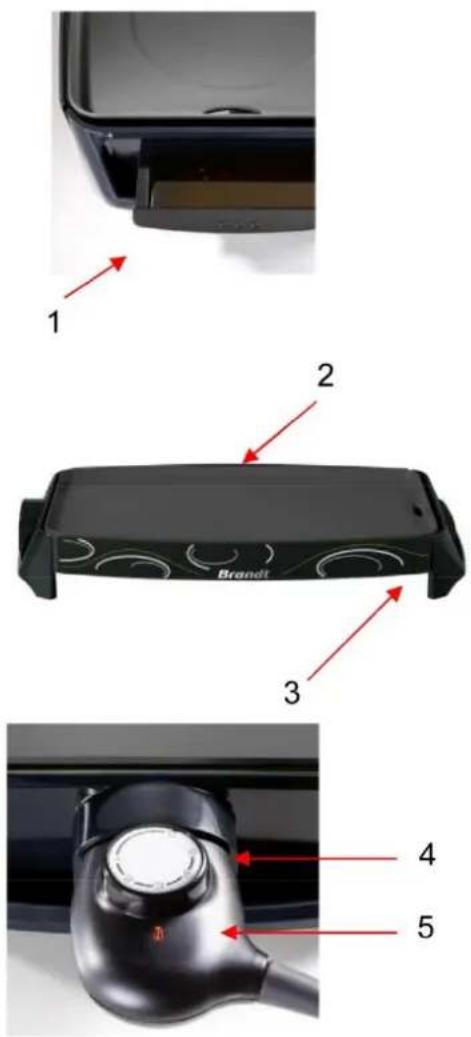

2) DESCRIPTION OF THE MACHINE

1. Fat collection tray

2. Plate with non-stick coating

3. Tilt stand

4. Power unit

5. Thermostat unit and operating light

3) USE OF THE MACHINE

a) Before Using for the First Time

Before using the machine for the first time wash the plancha in warm water with washing-up liquid and a soft sponge. Do not use abrasive detergents or metal scourers. After cleaning, dry the plate and the units. (For further information refer to the "Looking After and Cleaning Your Machine" section).

b) Use of the machine

Only use wooden or plastic heat-resistant utensils.

Do not cut food on the plate and do not use pointed objects to handle the food.

• Connect the thermostat unit to the electric unit.
• Place the thermostat on Position "0".
• Unplug the machine from the wall socket.
• Select the desired cooking marker (by aligning it with the operating light).
• When the light goes out the set temperature has been reached.
• After use place the thermostat on "0", unplug the machine and wait until it is cold before handling it.

N.B. To make it easier for the cooking juices to run into the fat collection tray, use the tilt stand located under the electric unit.

The 5 thermostat positions correspond to the following temperatures:

Settings	Temperature
0	0°C
1	80°C
2	110°C
3	140°C
4	170°C
5	200°C

Heat settings can cause variations of ±20^ircC

4) LOOKING AFTER AND CLEANING YOUR MACHINE

a) Looking after your Machine

Before cleaning the machine unplug the lead from the wall socket and then disconnect the machine's thermostat unit.

- Cleaning the plate

The machine cannot be washed in the dishwasher.

Clean the plate using a soft, non-abrasive sponge with washing-up liquid or cleaning cream.

Dry with kitchen towel and make sure the electric unit is dried properly.

Note: Do not use metal scourers or abrasive detergents because they may damage the non-stick surface.

Tips: To facilitate cleaning you can place a little rock salt on the non-stick surface and rub lightly with a damp sponge to remove burnt-on fat. Rinse with clean water and wipe dry.

- Cleaning the fat collection tray

Clean it with warm water and washing-up liquid. It can also be washed in the dishwasher.

- Cleaning the thermostat unit and the power lead.

Do not immerse in water or any other liquid.

You can clean them by wiping with a slightly damp sponge or cloth.
