Product Type	Wine Cellar
Brand	Haeger
Model	WC-08B.001A
Capacity	8 bottles (estimated)
Cooling Type	Compressor (estimated)
Temperature Range	5°C - 18°C (estimated)
Dimensions (W x H x D)	Approximately 50 x 70 x 50 cm (estimated)
Weight	Approximately 15 kg (estimated)
Power Supply	220-240 V, 50 Hz
Energy Class	G (estimated according to EU standard)
Annual Energy Consumption	Approximately 100 kWh (estimated)
Noise Level	40 dB (estimated)
Interior Lighting	LED
Glass Door	Yes, with UV protection
Shelves	2 wooden shelves (estimated)
Thermostat	Mechanical or electronic adjustment
Maintenance and Cleaning	Regular cleaning with a soft cloth; manual defrosting if necessary
Safety	Child lock not specified; stable temperature for storage
Spare Parts	Thermostat, fan, LED bulb (available)
Repairability	Repairability index not provided; parts accessible

Frequently Asked Questions - WC-08B.001A Haeger

How many bottles can the Haeger WC-08B.001A wine cellar hold?

The WC-08B.001A model can hold up to 8 standard bottles (estimated).

What is the temperature range of this wine cellar?

The adjustable temperature is generally between 5°C and 18°C, ideal for red and white wines (estimated).

Is the Haeger wine cellar noisy?

The noise level is estimated at 40 dB, corresponding to silent operation, comparable to a modern refrigerator.

Where to place the wine cellar for optimal operation?

Place it in a well-ventilated area, away from direct sunlight and heat sources. Leave at least 5 cm of space around for ventilation.

How to clean the interior of the wine cellar?

Unplug the appliance, remove the bottles and clean with a soft cloth dampened with warm water. Avoid abrasive products. Dry thoroughly before restarting.

Does the wine cellar need defrosting?

If ice forms, manual defrosting is necessary. Turn off the appliance and let the ice melt. Avoid using tools to scrape the ice.

What is the power consumption of this model?

The estimated annual consumption is about 100 kWh, corresponding to energy class G (according to the EU energy label).

Can I adjust the temperature easily?

Yes, the thermostat allows simple manual adjustment. Turn the knob to increase or decrease the temperature as needed.

What to do if the wine cellar does not cool enough?

Check that the ambient temperature is not too high, ventilation is correct and the thermostat setting is adequate. If the problem persists, contact customer service.

Are spare parts available?

Yes, parts such as the thermostat, fan and LED bulb are generally available from the manufacturer or authorized dealers.

USER MANUAL WC-08B.001A Haeger

User instructions

Instruções de uso

Thank you for having chosen a HÆGER product.

The HÆGER products have been produced to think about the welfare of the consumer privileging the most raised standards of quality, functionality and assign. We are sure you will be happy with this appliance.

Before using the appliance for the first time please read carefully and thoroughly through these operating instructions and the safety advice, completely familiarising yourself with the appliance. Keep these instructions for future reference and pass them on to whoever might acquire the appliance at a future date.

Intended use

This appliance is intended to be used in household and similar applications such as:

– Staff kitchen areas in shops, offices and other working environments;
- Farm houses and by clients in hotels, motels and other residential type environments;

The appliance is not fit for commercial use. Do not use it outdoors. Only use the appliance in a dry, indoor area. Keep it away from sources of heat, direct sunlight, humidity and sharp edges.

For safety reasons, alterations or modifications of the device are prohibited.

Please keep in mind that the manufacturer is not reliable for any damage resulting from incorrect or any other use then cooling/storing beverages.

General Safety Instructions

To reduce the risk of fire, electrical shock, or injury when using your appli follows these basic precautions:

WARNING:

Do not touch the plug at the mains cable with wet or moist hands when connecting or disconnecting. Risk of death by electric shock!

- In case of emergency, unplug the device immediately.

Instructions for use 1

• Hold the plug when disconnecting the mains cable; do not pull the cable.
• Disconnect the plug before cleaning or servicing.
• Regularly check the device and cable for signs of damage. Do not continue to operate the device in case of damage.
• A damaged mains cable must be replaced by the manufacturer or a technician and without any delay. Do not use the device with a damaged cable or plug.
• Do not repair the device by yourself. Please contact authorized personnel. In order to avoid hazards a damaged mains cable must be replaced with an equivalent cable by the manufacturer or qualified specialist.
• Except for cleaning and maintenance work described in this manual, no other alterations of this device must be executed.
• Do not place vases or other containers filled with liquids on the device.
• Do not operate the device with an external timer or separate remote control system.

Warning symbol: black exclamation mark inside a triangle (no text or numbers)

Caution!

In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

Do not allow small children to play with the foil as there is a danger of suffocation!

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Cleaning and user maintenance shall not be made by children unless they are older 8 years and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• The packaging must be undamaged. Check the device for any possible transport damage. Do not install a damaged device. In case of damage, please contact your distributor.

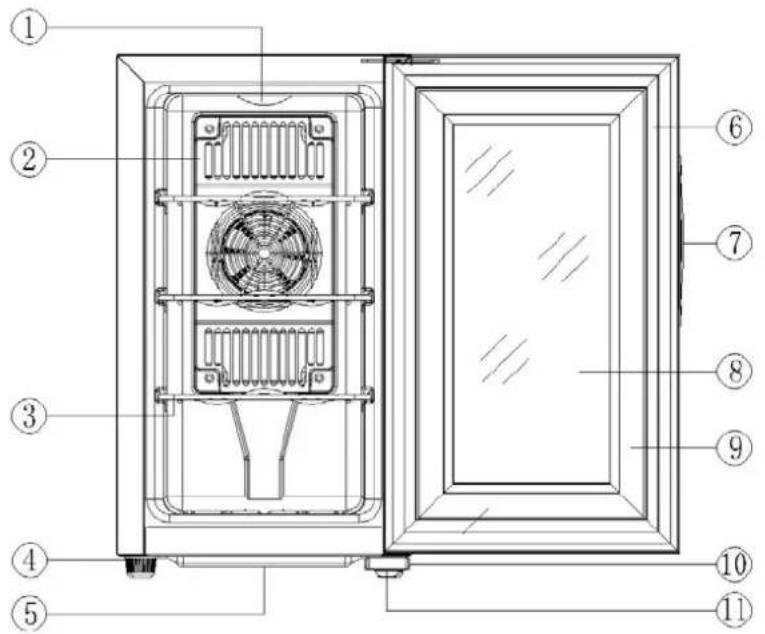

Product description

1. Light cover

2. Cold fan mask

3. Shelf (x 3)

4. Adjustable feet

5. Water tray

6. Door seal

7. Handle

8. Glass door

9. Door frame

10. Lower hinge

11. Lower hinge cover

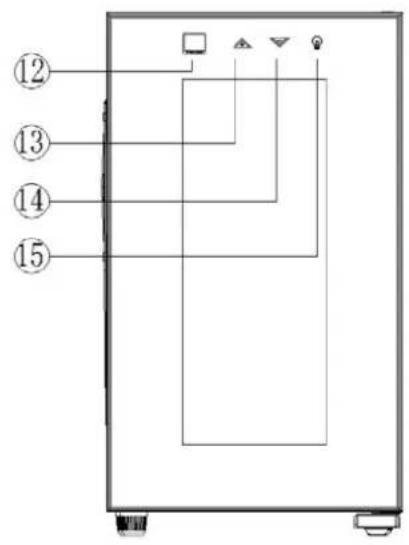

12. Temperature display windows

13. Temperature UP key

14. Temperature DOWN key

15. Light

Installation

Location

- In order for the heat to dissipate properly and to guarantee efficient cooling operation at low power consumption, please ensure sufficient ventilation around the device.

• Minimum clearance of 5 cm between rear side and wall and at least 20 cm on both sides and on the top of the device.

• Leave proper space in front of the device in order to open the door at an angle of 120^irc .

• Avoid installation at locations with high humidity (e.g. outdoors, cellar, bathroom), as metal parts would be susceptible to corrosion under such circumstances.

• Place your appliance on a floor that is strong enough to support the

Instructions for use

appliance when it is fully loaded. To level your appliance, adjust the front legs at the bottom of the appliance.

• Do not expose the device to direct sunlight.
• Do not place near heaters, next to a stove or any other heat sources.
• Only install at a location with an ambient temperature suitable for the climate class of the device.

Electrical connection

Warning: Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized service.

• The plug, together with the grounding conductor, must fit into the wall socket.
• The mains plug must be freely accessible.
• Do not cut or remove the ground wire from the power cord supplied under any circumstances.
• Use of extension cords is not recommended.
• The cord should be secured behind the wine refrigerator and not let exposed or dangling to prevent accidental injury.

Operation

Prior to first use

IMPORTANT: Before connecting the appliance to the power source, let it stand upright for approximately 2 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.

IMPORTANT: In case you disconnect the device or in case of power failure: Wait for 5 minutes before restarting the device.

• Clean the interior surface with lukewarm water using a soft cloth.
• It is recommended that you install the wine refrigerator in a place where the ambient temperature is between 16-26°C. If the ambient temperature is above or below recommended temperatures, the performance of the unit may be affected. For example, placing in extreme cold or hot conditions may cause interior temperature to fluctuate. The range of 7-18°C may not be reached.
• The temperature may fluctuate depending on whether or not the interior light is on or off or whether the bottles are located on the upper, middle or lower section.

LED Display

The display indicates your temperature setting and the actual internal temperature. When the device is turned on the LED always shows the standard setting 17^irc C. Short time after the LED indicates the internal temperature.

How to set temperature

1. Regulate the internal temperature by pressing the buttons“+” and “-” to increases or decreases the set temperature by 1°C-steps. About 5 seconds after the last button press the electronic switch automatically and the actual internal temperature will be indicated in display.

2. “ 📄 ” button turns on or off the interior light.

Notes:

- This product is designed for maximum cooling of 16^irc C below ambient temperature.

- When the ambient temperature around 25^irc C or less, unit can maintain a temperature range between 7-18^irc C.

- Only set the temperature as low as needed.

Storing

- Fill the device from the bottom to the top, this cools the bottles faster.

- The following specifications are only recommendations and are optional:

Wine	Temperature
Champagne, sparkling wine 7 – 10°C
Fruit wine 10 – 12°C
Light red wine / white wine 12 – 13°C
Dessert wine 14 – 15°C
Red wine 14 – 17°C

Notes:

- The temperature in the device will be warmer at the top of the cooling zone and cooler at the bottom. If you are going to store a mixture of wine types in the device, it is recommended that the red wines are stored at the top of the cooling zone, white wine in the middle of the cooling zone and sparking wines at the bottom.

- Pre-cool the wine for 2 hours in refrigerator before storing inside the device.

- Only switch the interior light on if necessary.

- Do not open the door longer then necessary.

- Make sure the door sealing is in good order for the door to close properly.

Cleaning and Maintenance

• Unplug the wine refrigerator and remove the bottles.
• Wash the inside with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water.
• The outside of wine refrigerator should be cleaned with mild detergent and warm water.
• Draw out the water tray at the bottom, and wash.

Troubleshooting

You can solve many common wine refrigerator problems easily, saving you the cost of a possible service call. Try the suggestion below to see if you can solve the problem before calling service centre.

PROBLEM	POSSIBLE CAUSE
Wine refrigerator do not operate.	Not plugged in using different voltage. The circuit breaker tripped or a blown fuse.
Wine refrigerator is not cold enough.	Check the temperature control setting.External environment may require a higher setting.The door is open too often.The door is not closed completely.The door seal does not seal properly.
The light does not work. Check the service centre.
Vibrations. Check to assure that the wine refrigerator is level.
The wine refrigerator seems to make too much noise	The wine refrigerator is not level.Check the fan.
The door will not close properly.	The wine refrigerator is not level.The doors were reversed and not properly installed.The seal is weak.The shaves out of position.
LED could not display.	Main control board does not work.PCB Problem.There is some problem with the plug.
LED display error. Weak quality of display.
	Temperature point is out off.
Bottoms are not functional.	Temperature controller panel is damaged.
Door can not close tightly	Check the door seal if it is in proper positionCheck if the wine bottles are placed in positionsWeak magnetic door seal

Product Fiche (according EU 1060/2010)

Model no. WC-008.001A
Trade mark HÆGER
Appliance Category 10
Energy Efficient class A+
Energy Consumption (kWh/annum) 92 (15°C)
Total Capacity 23L
Voltage / Protection class 220-240V~	50Hz / Class I
Current	1A(25°C)
Noise level [dB(A)] 35
Climate class SN;N
Input power 70W
Max working temperature 32°C
Max Temperature Difference	>16°C
Temperature Control Range 7-18°C
Net weight 9.5kg
Gross weight	11kg
Type	Freestanding
Shape size(W×H×D)	25.4 X 45 X 51.5 cm
Packing size(W×H×D)	29.5 X 49.5 X 55.5 cm

Conformity

This product has been designed, manufactured and marked in compliance with:

• the safety of Low Voltage Directive 2006/95/EC
• the protection requirements of EMC Directive 2004/108/EC
• ecodesign Directive 2009/125/EC

The electrical safety of the appliance is guaranteed only if it is connected to an efficient and approved earthing system.

Disposal – Environment policy

Packing

The packaging material is entirely recyclable, and marked with the recycling symbol. Follow local regulations for scrapping. Keep the packaging materials (plastic bags, polystyrene parts, etc.) out of reach of children, as they are

potentially dangerous.

Disposal

The appliance is manufactured using recyclable material.

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

This symbol on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

Before disposal, make the appliance unusable by cutting off the power cable and removing the doors and shelves so that children cannot easily climb inside the appliance.

Disposal must be carried out in accordance with local environmental regulations for waste disposal. Deliver the appliance immediately to an authorized dump; do not leave it unattended even for a few days, since it is potentially dangerous for children.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Guarantee

This unit is covered by a 24 months (*) warranty, from the purchase date, and covers the repair free of charges of the damaged due to the manufacturer fault or defected components. The distributor reserves the right to change the unit for an equivalent model.

The warranty does not cover any damaged caused by incorrect use, lightning, incorrect installation, external factors or any intentional damaged. The warranty does not cover damage thus attributable to falls, blows, spill, exposure to extreme environmental conditions or deterioration caused by normal use of plastic parts or keyboards, as well as by the use of batteries other than those specified in this manual.

For the repairing, during the warranty period, the unit shall be sent to the distributor or reseller, or to the address indicated by them, and must be jointed the warranty certificated and the respective original invoice or selling ticket, where the buying date is expressed indicated.

The consumer is protected by the guarantee provided by Directive 1999/44/CE of European Parliament and Council of 25 May.

(*) Only for European Union countries
