Product type All-in-one desktop computer
Brand Asus
Model ET2221AGKR
Dimensions (W x H x D) 544 x 444 x 194 mm
Weight 5.5 kg
Power supply 120 W, external power adapter
Processor Intel Core i5 4th generation
RAM memory 4 GB DDR3
Storage 500 GB SATA hard drive
Screen 21.5 inches, resolution 1920 x 1080
Connectivity Wi-Fi 802.11 b/g/n, Bluetooth 4.0, Gigabit Ethernet
Ports USB 2.0, USB 3.0, HDMI, VGA, card reader
Operating system Windows 8.1 (preinstalled)
Main functions Desktop, internet browsing, multimedia, office productivity
Maintenance and cleaning Dust with a soft dry cloth; avoid solvents
Safety Adequate ventilation required; do not block vents
Spare parts and repairability Internal battery, screen, power supply replaceable by a professional
General information Home and office use; 2-year warranty

Frequently Asked Questions - ET2221AGKR ASUS

How to reset factory settings on Asus ET2221AGKR?
To reset, go to Settings > Update & Security > Recovery, then choose Reset this PC. Follow the on-screen instructions.
What are the upgradeable components of this all-in-one?
RAM and hard drive can be upgraded. Refer to the manual for access screws. The screen and processor are not upgradeable.
How to connect an external monitor?
Use the HDMI or VGA port on the back of the device. Connect the cable and select the source in Windows display settings.
The fan makes noise, what should I do?
Clean the ventilation grilles with a low-power vacuum. If the noise persists, the fan may be defective: contact Asus support.
Can I use this PC for gaming?
This model is designed for office work and light multimedia. Recent games may run with low graphics settings. For demanding games, opt for a dedicated PC.
How to update the BIOS?
Download the latest version from the Asus website. Run the executable under Windows or use the EZ Flash tool in BIOS. Follow instructions without interrupting the process.
What if the screen stays black on startup?
Check that the power is connected and the light is on. Try to reset the CMOS by removing the button battery (see manual). If nothing changes, contact a technician.
How to replace the hard drive?
Turn off the device, unplug the power cable. Remove the back panel (Phillips screws). The hard drive is in a tray. Disconnect cables and replace it. Reassemble in reverse order.
Wi-Fi reception is poor, how to improve signal?
Place the PC closer to the router or use a Wi-Fi extender. Check the drivers in Device Manager. If needed, use an external USB Wi-Fi adapter.
Where to find the complete user manual?
The manual is available for free in PDF on notice-facile.com or on the Asus support site. You can download it for offline viewing.

User questions about ET2221AGKR ASUS

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Desktop computer in PDF format for free! Find your manual ET2221AGKR - ASUS and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. ET2221AGKR by ASUS.

USER MANUAL ET2221AGKR ASUS

Before launching your TV Tuner application, check if your digital TV-in or analog TV-in cable is connected.

Launching your TV Tuner Application

To launch ArcSoft TV 5.0 in Windows® 8, do one of the following:

- From the Windows® desktop, click the Arcsoft TV 5.0 icon.

NOTE: The Arcsoft TV desktop shortcut icon is not available for AIO ET2300

ASUS ET2221AGKR - Launching your TV Tuner Application - 1

- Click + to launch the search screen for applications. Type "Arcsoft" in the search field and click the Arcsoft TV icon from the search results.

Start TV 10 Mastercard Email Search Apps Add Energy Intelligence Start Menu Manage Email Edit Help Help Home Send to Web Send to Web Send to Web Send to Web Send to Web Send to Web Send to Web Send to Web Send to Web Send to Web Send to Web Send to Web Send to Web Send to Web Send to Web Send to Web Send to Web Send to Web Send to Web Send to Web Send to Web Send to Web Send to Web Send to Web Send to Web Send toWeb

Setting up your TV Tuner Application

To set up ArcSoft TV 5.0:

  1. On the main menu, click Live TV.

Save As Refresh As OK Save As Settings

  1. The Setup Wizard will launch to guide you through setting up your TV Tuner application. Select your country or region and click Next to continue.

Select Your Region United Arab Emirates United Kingdom United States Uruguay Uzbekistan Wizard

  1. The Setup Wizard will attempt to detect the installed TV Tuner device. Select the appropriate TV tuner card which came with your All-in-One PC.

Select Video Device Digital Tunet (NBIT Tunet) Analog Tunet(Analog Tunet) Next Next

English

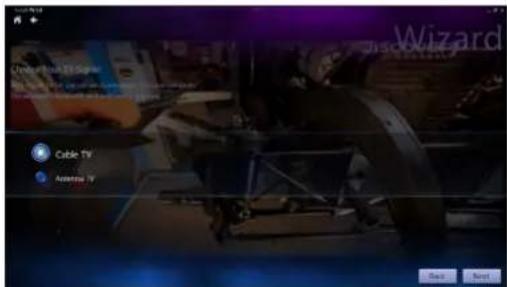

  1. Select the type of television service you use.

  2. Select Cable TV for cable television.

  3. Select Antenna TV for television received via an antenna.

  4. Click Scan to begin scanning for available channels.

Cable TV Antenna TV Back New

  1. If your All-in-One PC came with both an analog and digital TV tuner, the Setup Wizard will prompt you to set up your second TV tuner.

  2. Select Yes to set up the second TV Tuner.

  3. Select No to complete the Setup Wizard.

Scan Channels Note for update channels. This process may form external returns. Use LCN (Local Channel Number) Scan OK Cancel Help Back Next

Start Up Two Turners Yes or No: This is a key to switch in your computer. With two turns, you will switch if you are also allowed while according to instructions, for you want to configure them.

  1. Click Finish to complete the Setup Wizard.

Scheduling recordings of TV broadcasts

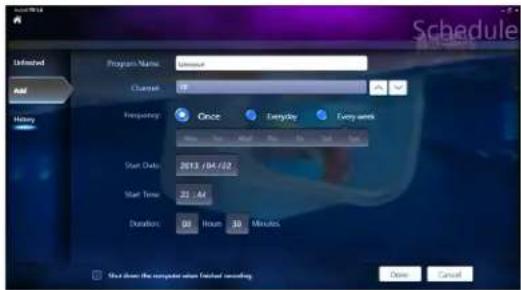

To schedule recordings of TV broadcasts:

  1. On the main menu, click Schedule.

Line TV Download TV SPG Information Settings

  1. On the left panel, click Add.

  2. Configure the following options:

  3. Program Name

  4. Channel
    Frequency
  5. Start Date/Time - Specify the date/time of recording.
    • Duration - Specify length of recording.
  6. Shut down the computer when finished recording

Schedule Infinevel Add Heavy Program Name: Unreal Channel: 18 Frequency: Once Everyday Every week Start Date: 2013/04/22 Start Time: 25:44 Duration: 00 Hour 30 Minutes Show the computer when installed recording Close Cancel

  1. Click Done to save settings and schedule recording.

NOTE: The All-in-One PC needs to be powered on to automatically record TV broadcasts.

  1. To schedule additional recordings, repeat steps 1\~4.

NOTE: The number of recordings you can schedule is limited by the available storage on your All-in-One PC.

Using the Entertainment Program Guide (EPG)

The EPG displays the time and TV programs playing on a specified channel and date.

NOTE: EPG is only available for All-in-One PCs with a digital TV tuner.

12 Channel 4/10/2013 New Playing 22:50 TAI TV

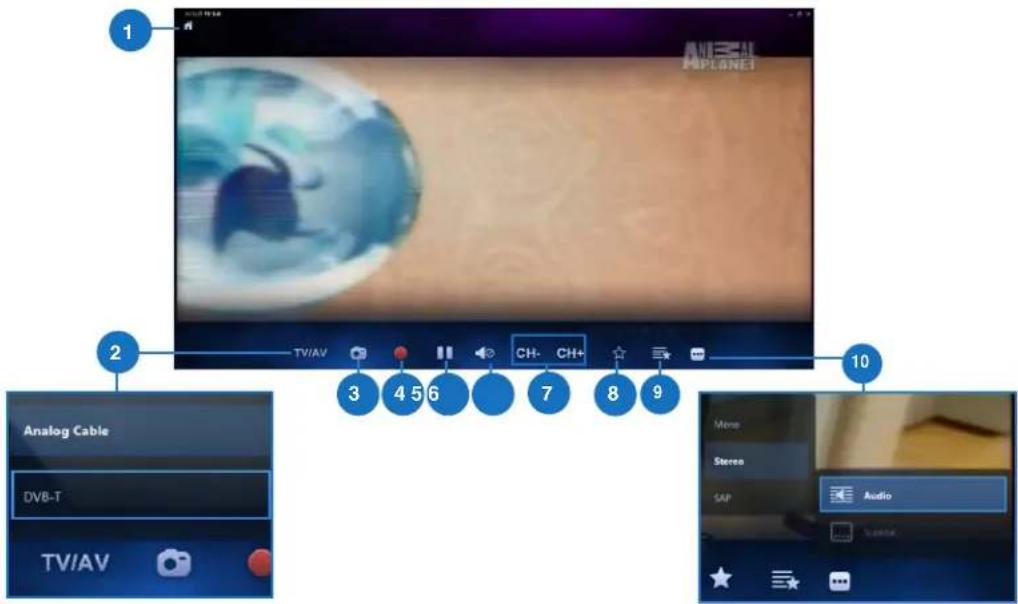

Using the Live TV Onscreen Controls
1 ANESCAL APLANET 2 TV/AV 3 4 5 6 7 CH- CH+ 8 9 10 Analog Cable DVB-T TV/AV Mono Stereo SAP Audio

1 Home button

Click this icon to go to the Arcsoft TV 5.0 main menu.

2 TV/AV

Click this button to toggle between analog TV and digital TV.*

*This item is only available for All-in-One PCs with both an analog and digital TV tuner.

3 Take a screenshot

Click this button to take a screen capture of the video or media playing.

4 Record

Click this button to begin recording the television broadcast.

5 Pause

Click this button to pause recording or playback.

6 Volume Controls

Click this button to display onscreen volume controls to increase/decrease volume.

7 CH-/CH+

Click this button to increase or decrease the channel by one.

8 Add to Favorites

Click this button to add this channel to the Favorites list.

9 Favorites List

Click this button to display list of saved Favorites.

10 Subtitles and Audio Tracks

Click this button to display list of available subtitles and audio channels/tracks.

Using the Remote Control
8 Power on/off 9 Media Center buttons 10 Channel controls 11 Mute 12 Information 13 Enter 14 Shortcut buttons 15 Teletext buttons 1 Playback buttons Navigation Keys Start Volume controls Back Number keys Clear 7 CLEAR ENTER

1 Playback Buttons

ASUS ET2221AGKR - Playback Buttons - 1

Play

Starts playing media. If playback is paused, pressing this button begins playback from the current position.

ASUS ET2221AGKR - Play - 1

Pause

Pauses media playback at the current position.

ASUS ET2221AGKR - Pause - 1

Stop

Stops playing media at the current position.

ASUS ET2221AGKR - Stop - 1

Record

Record the TV show to disk. If pressed while Live TV is on, records the current show. If pressed from the EPG screen, records a TV show or TV series to disk.

ASUS ET2221AGKR - Record - 1

Fast Forward

Speeds up the playback of the media file to the first forward value (3X).

ASUS ET2221AGKR - Fast Forward - 1

Rewind

Reverses direction of playback and speeds up the time base to the first rewind value (3X).

ASUS ET2221AGKR - Rewind - 1

Skip Forward

Skips forward one increment when this button is pressed.

ASUS ET2221AGKR - Skip Forward - 1

Skip Back

Skips backward one increment when this button is pressed.

2 Navigation Keys

ASUS ET2221AGKR - Navigation Keys - 1

Press the up/down keys to move through the menu bar in a submenu. Press the up/down keys to decrease/increase a numerical value.

Press the left/right keys to move through the main menus in the Home screen.

Press the left/right keys to move through the items in a submenu.

Press OK to confirm the selection.

ASUS ET2221AGKR - Navigation Keys - 2

Start\*

Takes the user to the Windows Media Center Start menu.

*This button is only available for All-in-One PCs installed with Windows Media Center.

4Volume controlsPress the (+) button to increase the volume by one unit. Press the (-) button to decrease the volume by one unit.
5BackMoves back one position in the user interface,
6Number keys
7ClearClear any entered user input.
8Power on/offPress this button to put the All-in-One PC to sleep mode. Press a second time to wake up the system from sleep mode.
9Media Center Buttons*Record TVDisplays the Recorded TV page in Windows Media Center.GuideDisplays the media guide in Windows Media Center.Live TVShows live TV on the currently selected channel.DVD menuDisplays the DVD menu.*These buttons are only available for All-in-One PCs installed with Windows Media Center.
10Channel controlsIncreases/decreases the current channel by one.
11MuteMutes the computer audio.
12InformationPress to display information about the movie, video, or music.
13EnterPress this button to select an option or input text.
4Volume controlsPress the (+) button to increase the volume by one unit. Press the (-) button to decrease the volume by one unit.
5BackMoves back one position in the user interface,
6Number keys
7ClearClear any entered user input.
8Power on/offPress this button to put the All-in-One PC to sleep mode. Press a second time to wake up the system from sleep mode.
9Media Center Buttons*Record TVDisplays the Recorded TV page in Windows Media Center.GuideDisplays the media guide in Windows Media Center.Live TVShows live TV on the currently selected channel.DVD menuDisplays the DVD menu.*These buttons are only available for All-in-One PCs installed with Windows Media Center.
10Channel controlsIncreases/decreases the current channel by one.
11MuteMutes the computer audio.
12InformationPress to display information about the movie, video, or music.
13EnterPress this button to select an option or input text.

ASUS ET2221AGKR - Start\* - 1

Media Center Shortcut buttons

ASUS ET2221AGKR - Media Center Shortcut buttons - 1

Displays the main Radio page in Windows Media Center.

ASUS ET2221AGKR - Media Center Shortcut buttons - 2

Displays the Music Library in Windows Media Center.

ASUS ET2221AGKR - Media Center Shortcut buttons - 3

Displays the Picture Library in Windows Media Center.

ASUS ET2221AGKR - Media Center Shortcut buttons - 4

Displays the Video Library in Windows Media Center.

*These buttons are only available for All-in-One PCs installed with Windows Media Center.

ASUS ET2221AGKR - Media Center Shortcut buttons - 5

ASUS ET2221AGKR - Media Center Shortcut buttons - 6

Teletext buttons\*

Press these buttons to access Teletext features when available.

*These buttons are only available for All-in-One PCs installed with Windows Media Center.

NOTE:

• To avail of Windows Media Center features, you can purchase a Windows 8 Media Center Pack separately.
- You can download a version of this manual in a different language at the ASUS support site at http://support.asus.com

All-in-One PC

English

All-in-One PC TV

Stručná příručka

Scan Channels View the local channels. This process may not contain any options. Use LCN (Local Channel Number) Scan OK UN Name Back Next

Start Up Two Turners Yes or No: This tool is used in your computer. With two turns, you can switch? "If you are shared while extending home configuration, for you want to config each turner?"

Line TV Download TV PNG Addable Settings

Schedule Unfinished Add Heavy Program Name: Unfinished Channel: 10 Frequency: Once Everyday Every week Start Date: 2013/04/22 Start Time: 25 - A4 Duration: 00 Hour 30 Minutes Show the computer when fetched recording Close Cancel

Scan Channels Use the local channels. This process may not contain any data. Use LCN (Local Channel Number) Scan OK UN Name Back Next

Start Up Two Turners Yes or No: This tool is used in your computer. With two turns, you can switch? "If you are channel while extending home configuration, for you want to config next turner?"

Line TV Download TV PNG Mobile Settings

Schedule Infinevel Add History Program Name: Unreal Change: 18 Frequency: Once Everyday Every week Start Date: 2013/04/22 Start Time: 25:44 Duration: 08 Hour 30 Minutes Show the computer when installed recording Close Cancel

  1. Klik på Done (Udført) for at gemme indstillingerne og den planlagte optagelse.

All-in-One PC

Scan Channels Scan to switch channels, file names, log time, and settings. Use LON (Local Channel Number) OK OK Cancel Back Next

Schedule Unloaded AM Program Name: unique Channel: 19 Frequency Once Everyday Every week Start Date: 2013/04/22 Start Time: 22:44 Duration: 00 Hours 30 Minutes Start down the computer when linked scrolling Date Cancel

All-in-One PC

Scan Channels Use local compatible channels. This process may not contain any other categories. Use LCN (Local Channel Number) Scan On USB Name Back Next

Start Up Two Turners Yes or No: This will be in your computer. With new turns, you can switch? "If you are shared while ensuring that you verify, for you want to config each turner?"

Line TV Download TV PNG Addable Settings

Schedule Unshared All History Number Program Name: Unshared Channel: 18 Frequency: Once Everyday Every week Start Date: 2013/04/22 Start Time: 22:44 Duration: 08 Hour 30 Minutes Get down the computer after detached recording Close Cancel

All-in-One PC

ASUS ET2221AGKR - All-in-One PC - 1

Cable TV Automatic TV Back Next

Scan Channels Use LON (Social Channel Number) Stop OK 24% Save Back Next

Wiza Set Up Text Turners Yes No

All-in-One PC

All-in-One PC

Scan Channels Note for update channels. This process may form external returns. Use LCN (Local Channel Number) Scan -10 10A Name Back Next

Start Up Two Turners Yes or No: This is a key to switch in your computer. With two turns, you can switch it to any one channel while according to instructions for you want to configure them? Yes No Back Next

Schedule Unfinished Add Heavy Program Name: Unreal Channel: 10 Frequency: Once Everyday Every week Start Date: 2013/04/22 Start Time: 25:44 Duration: 00 Hour 10 Minutes Stop from the computer when finished recording Close Cancel

Scan Channels Use the local channels. This process may not contain any data. Use LCN (Local Channel Number) Scan OK UN Name Back Next

Start Up Two Turners Yes or No: This tool is used in your computer. With two turns, you can switch? "If you are channel while extending home configuration, for you want to config next turner?"

Schedule Infinevel Add Heavy Program Name: Unreal Charge: 18 Frequency: Once Everyday Every week Start Date: 2013/04/22 Start Time: 25:44 Duration: 08 Hour 30 Minutes Show the computer when fetched recording Close Cancel

Bruke programguiden (EPG = Electronic Program Guide)

Viser hovedsiden for radio i Windows Media Center.

ASUS ET2221AGKR - Bruke programguiden (EPG = Electronic Program Guide) - 1

Viser musikkbiblioteket i Windows Media Center.

ASUS ET2221AGKR - Bruke programguiden (EPG = Electronic Program Guide) - 2

Viser bildebiblioteket i Windows Media Center.

ASUS ET2221AGKR - Bruke programguiden (EPG = Electronic Program Guide) - 3

Viser videobiblioteket i Windows Media Center.

* Disse knappene er bare tilgjengelig på Alt-i-én-PC-er när Windows Media Center er installert.

15 GYB YOb Tekst-TV-knapper ^TM Trykk på disse knapp

Tekst-TV-knapper\*

Scan Channels View the local channels. This process may not contain any data. Use LCN (Local Channel Number) Scan OK UN Name Back Next

Start Up Two Turners Yes or No: This is not in your computer. With new turns, you can switch? "If you are channeled while encoding their passwords, for you want to config each turner?"

Line TV Download TV PNG Addable Settings

Schedule Infinevel Add Heavy Program Name: Unreal Change: 18 Frequency: Once Everyday Every week Start Date: 2013/04/22 Start Time: 25:44 Duration: 08 Hour 30 Minutes Get down the computer when fetched recording Close Cancel

Scan Channels Use LCN (Local Channel Number) Scan OK USB Name Back Help

Start Up Two Turners Yes or No: This will not be a company. With a turner, you must switch? Do you have a wait while according to instructions, for you want to configure your future? Yes No Back Next

Line TV Download TV PNG Addable Settings

Schedule Infinevel Add Heavy Program Name: Unreal Change: 18 Frequency: Once Everyday Every week Start Date: 2013/04/22 Start Time: 25:44 Duration: 08 Hour 30 Minutes Get down the computer when fetched recording Close Cancel

ASUS ET2221AGKR - Tekst-TV-knapper\* - 9

2

All-in-One PC

Cable TV Antenna TV Back Next

Scan Channels Task for portable channels. The process may take several minutes. Use LCN (Local Channel Number) Scan On 029 Name Back Next

ASUS ET2221AGKR - All-in-One PC - 3

All-in-One PC

All-in-One PC

Schedule MAYERS Unfunded Program Name: Unfunded Channel: 10 Frequency: Once Everyday Every word Start Date: 2013/04/02 Start Time: 22:44 Duration: 00 Hour 30 Minutes Show from the computer when funded recording Done Cancel

Installera ditt TV-mottagarprogram

Installera ArcSoft TV 5.0:

Scan Channels Note for update channels. This process may have external returns. Use LCN (Local Channel Number) Scan -10 10A Name Back Next

Start Up Two Turners Yes or No: This is a key to switch in your computer. With two turns, you can switch it to any one channel while according to instructions for you want to configure them? Yes No Back Next

Line TV Download TV SPG Additions Settings

Schedule Unfunded Program Name: Unfunded Channel: 92 Frequency: Once Everyday Every time Start Date: 2013/04/22 Start Time: 22:44 Duration: 08 Hour 30 Minutes Stop from the computer when fetched recording Close Cancel

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : ASUS

Model : ET2221AGKR

Category : Desktop computer
