Product Type	Rugged Mobile Computer with Barcode Scanner
Brand	Honeywell
Model	Dolphin 9500
Dimensions (L x W x H)	185 x 75 x 45 mm (7.3 x 3.0 x 1.8 in)
Weight	400 g (14.1 oz) including battery pack
Power Supply	Rechargeable Li-Ion 3.7V, 4000 mAh
Operating System	Windows Embedded Handheld 6.5
Processor	Marvell XScale PXA270 624 MHz
Memory	256 MB SDRAM, 512 MB Flash
Display	3.5 in QVGA (240 x 320) color touchscreen
Scan Engine	1D/2D imager, omni-directional
Keyboard	Numeric keypad with backlight
Wireless Connectivity	WLAN 802.11b/g, Bluetooth 2.0, USB 1.1
Environmental Sealing	IP54 (dust and splash resistant)
Drop Specification	1.5 m (5 ft) to concrete
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Cleaning Instructions	Wipe with a soft cloth dampened with mild soap and water; do not use solvents
Safety	Laser Class 2; comply with IEC 60825-1
Spare Parts	Replacement stylus, battery pack, charging cradle, dock
Repairability	Field-replaceable battery and stylus; other repairs require service center
General Information	Designed for retail, warehouse, and field use; supports extensive enterprise features

Frequently Asked Questions - Dolphin 9500 HONEYWELL

How do I turn on the Dolphin 9500?

Press and hold the Power key (top right of the keypad) for about 3 seconds until the screen lights up.

How do I scan a barcode?

Aim the scan engine at the barcode and press the Scan button (left side of the unit). Ensure the barcode is within 6-18 inches from the scanner.

How do I charge the battery?

Place the Dolphin 9500 into the charging cradle or connect the AC adapter to the bottom USB port. The LED will turn red during charging and green when fully charged.

Can I connect to Wi-Fi?

Yes, go to Start > Settings > Connections > Wi-Fi. Enable Wi-Fi and select your network. Enter the password if required.

Is the device waterproof?

It is not waterproof but has an IP54 rating, meaning it is protected from dust and splashes from any direction. Do not submerge in water.

How do I reset the device?

Perform a soft reset by pressing the reset button (small hole on the back) with a stylus. For a hard reset, remove the battery and wait 10 seconds.

Can I install custom software?

Yes, the device runs Windows Embedded Handheld 6.5, so you can install .cab files or use ActiveSync to deploy applications. Ensure compatibility with the OS.

How do I clean the scanner window?

Use a lint-free cloth slightly dampened with water or lens cleaner. Wipe gently the scanner window. Avoid abrasive materials or solvents.

What accessories are available?

Common accessories include replacement battery, stylus, charging cradle, holster, and USB cable. Check official Honeywell accessories.

How do I update the firmware?

Download the latest firmware from Honeywell website, copy it to a microSD card or use ActiveSync to transfer. Install via the device's settings or a dedicated utility.

USER MANUAL Dolphin 9500 HONEYWELL

Always here to help you

Register your product and get support at

www.philips.com/welcome

PT919

PT866

PT860

PT845

PT739

PT737

PT731

PT730

PT727

PT726

PT725

PT723

PT721

PT720

User manual

PHILIPS

ENGLISH 4

БЪЛГАРСКИ 15

ČEŠTINA 27

EESTI 38

HRVATSKI 49

MAGYAR 60

КАЗАКША 71

LIETUVIŠKAI 83

LATVIEŠU 94

POLSKI 105

ROMÂNĂ 117

РУССКИЙ 129

SLOVENSKY 141

SLOVENŠČINA 152

SRPSKI 163

УКРАЇНСЬКА 174

Introduction

Congratulations on your purchase and welcome to Philips!

To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

Please read this user manual, as it contains information about the wonderful features of this shaver as well as some tips to make shaving easier and more enjoyable.

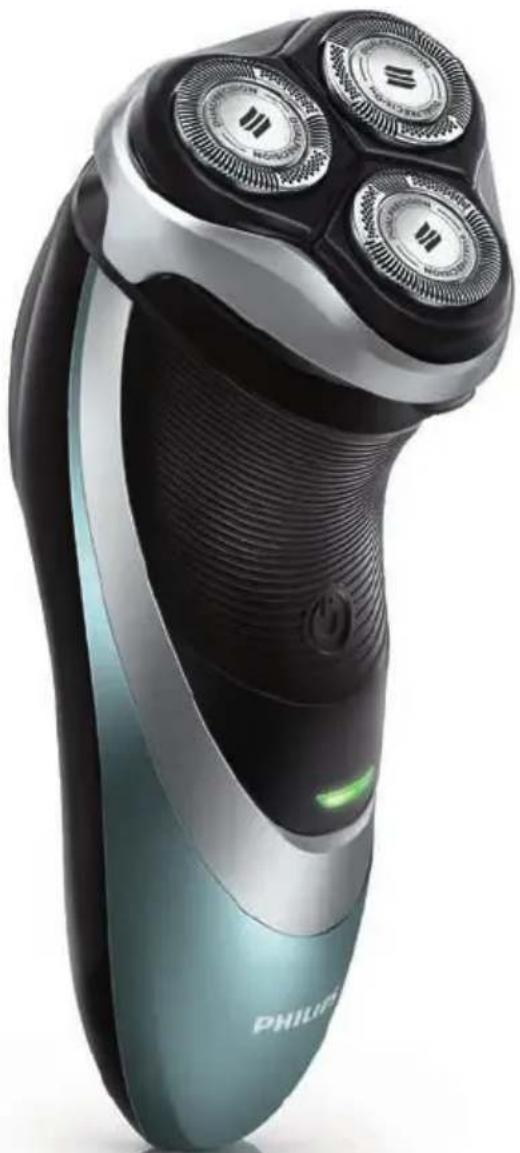

General description (Fig. 1)

1 Protection cap
2 Shaving unit
3 Shaving unit release button
4 Shaver on/off button
5 Shaving head symbol
6 Charging light
7 Charging stand (PT866*/PT739*)
8 Pouch (PT866*)
9 Adapter
10 Cleaning brush

11 Trimmer release slide (PT919/PT866/PT860/PT845/PT739/PT737/PT731 only)

12 Trimmer (PT919/PT866/PT860/PT845/PT739/PT737/PT731 only)

Note: You can find the type number on the back of the shaver.

* only for UK, Holland, Germany, France, Turkey, Sweden, Finland, Norwegia, Denmark, Italy, Portugal, Spain and Greece.

Important

Read this user manual carefully before you use the appliance and save it for future reference.

Danger

- Keep the adapter dry.

Warning

• The adapter contains a transformer. Do not cut off the adapter to replace it with another plug, as this causes a hazardous situation.
• The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Always unplug the shaver before you clean it under the tap.

Caution

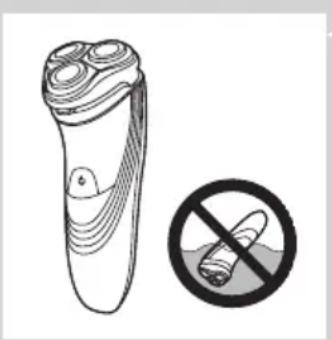

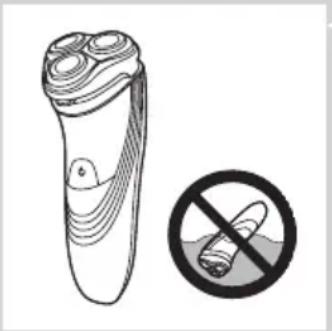

• Never immerse the shaver in water.
• Do not use the shaver in the bath or in the shower.
• Never use water hotter than 80° C to rinse the shaver.
• Be careful with hot water. Always check if the water is not too hot, to prevent your hands from getting burnt.
• The shaver is not dishwasher-proof.
• Water may leak from the socket at the bottom of the shaver when you rinse it. This is normal and not dangerous because all electronics are enclosed in a sealed power unit inside the shaver.
• Do not use the shaver, adapter or any other part if it is damaged, as this may cause injury. Always replace a damaged adapter, charger or part with one of the original type.
• Use, charge and store the appliance at a temperature between 10° C and 35° C.
• Always place and use the shaver on a surface that is fluid-resistant.
• Only use the adapter, charger and accessories supplied.
• Always put the protection cap on the shaver to prevent damage and to avoid dirt accumulation in the shaving heads.

Compliance with standards

- This Philips appliance complies with all standards and regulations regarding exposure to electromagnetic fields (EMF) and can be safely cleaned under the tap.

General

• The appliance is equipped with an automatic voltage selector and is suitable for mains voltages ranging from 100 to 240 volts.
• The adapter transforms 100-240 volts to a safe low voltage of less than 24 volts.

Charging

PT919/PT866/PT860: It takes approx. 1 hour to fully charge the shaver. PT845/PT739/PT737/PT731/PT730/PT727/PT726/PT725/PT721/PT720: It takes approx. 8 hours to fully charge the shaver.

When you charge the shaver for the first time or after a long period of disuse, let it charge until the charging light lights up continuously.

A fully charged shaver provides up to 50 (PT919/PT866/PT860) or up to 45 shaving minutes (PT845/PT739/PT737/PT731/PT730/PT727/PT726/PT725/PT721/PT720).

The shaving time may be less than 50 (PT919/PT866/PT860) or 45 shaving minutes (PT845/PT739/PT737/PT731/PT730/PT727/PT726/PT725/PT721/PT720) as a result of your shaving behaviour, your cleaning habits or your beard type.

Charge indications

Battery low

• When the battery is almost empty (when there are only 5 or fewer shaving minutes left), the charging light starts to flash orange.
• When you switch off the shaver, the charging light continues to flash orange for a few seconds.

Quick charging

- When you start charging the empty battery, the charging light alternately flashes orange and green. After approx. 3 minutes, the charging light continues to flash green. The shaver now contains enough energy for a 5-minute shave.

Charging

- When the shaver is charging, the charging light flashes green.

Battery fully charged

- When the battery is fully charged, the charging light lights up green continuously.

Note: After approx. 30 minutes, the charging light goes out to save energy.

Charging with the adapter

1 Put the small plug in the shaver.
2 Put the adapter in the wall socket.
The charging light shows the charging status of the shaver (see section ‘Charge indications’ in this chapter).

Charging in the charging stand (PT866/PT739 only)

1 Put the small plug in the charging stand.
2 Put the adapter in the wall socket.
3 Place the shaver in the charging stand.
The charging light shows the charging status of the shaver (see section ‘Charge indications’ in this chapter).

Using the shaver

Note: You can also use the shaver directly from the mains. Simply connect the shaver to the mains.

Shaving

1 Press the on/off button once to switch on the shaver.
2 Move the shaving heads over your skin. Make circular movements.

- Your skin may need 2 or 3 weeks to get accustomed to the Philips shaving system.

3 Press the on/off button once to switch off the shaver.
4 Clean the shaver (see chapter ‘Cleaning and maintenance’).

Trimming (PT919/PT866/PT860/PT845/PT739/PT737/PT731 only)

You can use the trimmer to groom your sideburns and moustache.

1 Press the on/off button once to switch on the shaver.

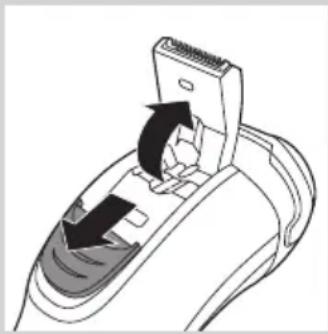

2 Push the trimmer slide downwards to open the trimmer.

▶You can now start trimming.

3 After trimming, close the trimmer and switch off the shaver.

Cleaning and maintenance

Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.

• Clean the shaver after every shave for optimal shaving performance.
• Regular cleaning guarantees better shaving performance.
• For the best cleaning results, we advise you to use the Philips Cleaning spray (HQ110).
• Be careful with hot water. Always check if the water is not too hot, to prevent your hands from getting burnt.

Note: Water may leak from the socket at the bottom of the shaver when you rinse it. This is normal and not dangerous because all electronics are enclosed in a sealed power unit inside the shaver.

Cleaning the shaving unit under the tap

1 Switch off the shaver and disconnect it from the mains.

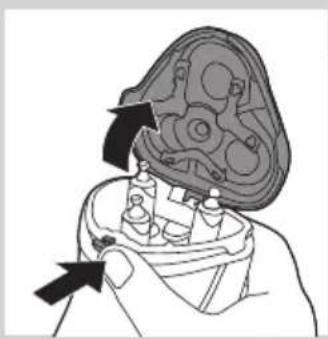

2 Press the release button to open the shaving unit.

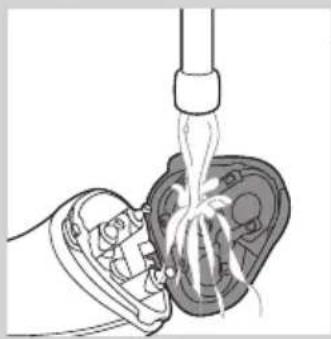

3 Rinse the shaving unit and hair chamber under a hot tap for 30 seconds.

Be careful with hot water. Always check if the water is not too hot, to prevent your hands from getting burnt.

- Rinse the hair chamber and the inside of the shaving unit.

- Rinse the outside of the shaving unit.

4 Close the shaving unit and shake off excess water.

Be careful not to hit the shaving unit against anything while shaking off excess water.

Never dry the shaving unit and the hair chamber with a towel or tissue, as this may damage the shaving heads and the coupling spindles.

5 Open the shaving unit again and leave it open to let the shaver dry completely.

Cleaning the shaving unit with the cleaning brush

1 Switch off the shaver and disconnect it from the mains.
2 Press the release button to open the shaving unit.

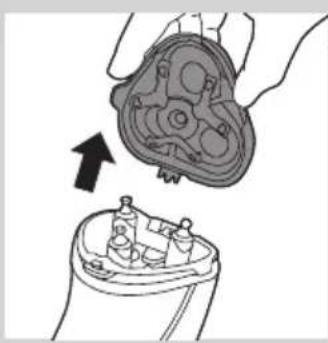

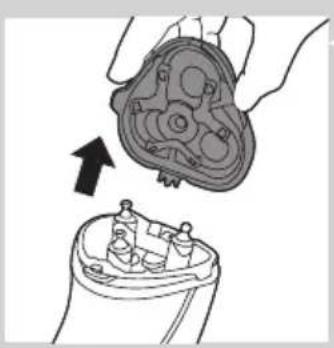

3 Pull the shaving unit off the shaver.

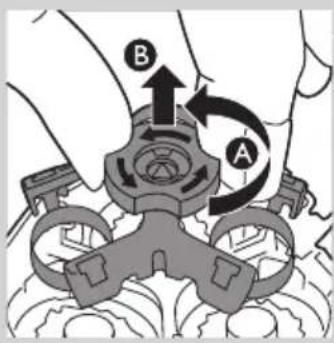

4 Turn the lock anticlockwise (A) and remove the retaining frame (B).

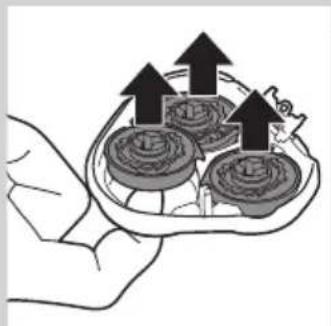

5 Remove and clean one shaving head at a time. Each shaving head consists of a cutter and a guard.

Note: Do not clean more than one cutter and guard at a time, since they are all matching sets. If you accidentally mix up the cutters and guards, it may take several weeks before optimal shaving performance is restored.

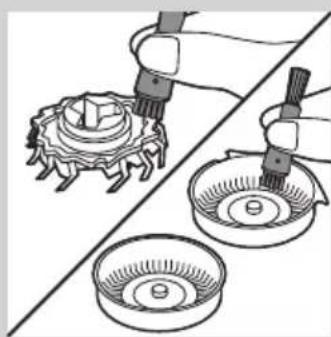

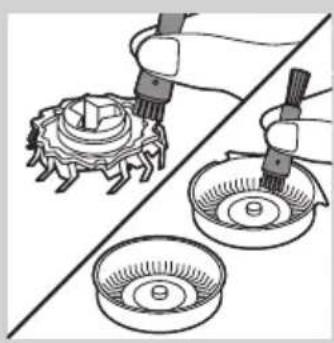

- Remove the cutter from the shaving guard and clean it with the brush.

- Clean the inside and outside of the shaving guard with the brush.

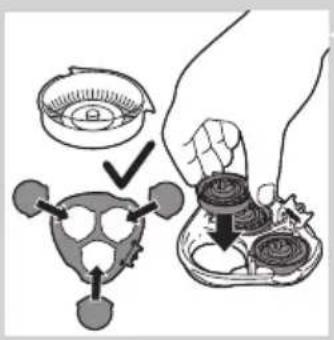

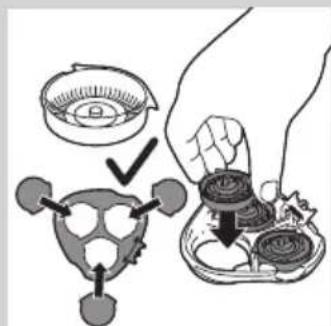

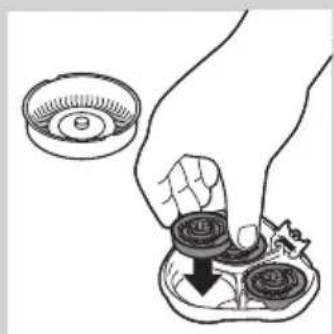

6 Put the shaving heads back into the shaving unit.

Note: Make sure that the projections of the shaving heads fit exactly into the recesses.

7 Put the retaining frame back into the shaving unit (A) and turn the lock clockwise (B).

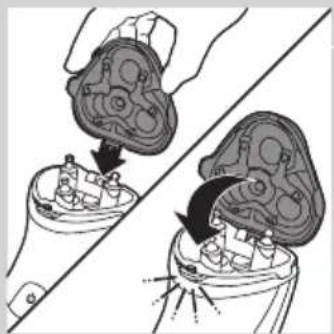

8 Insert the lug of the shaving unit into the slot in the top of the shaver. Then close the shaving unit.

Note: If the shaving unit does not close smoothly, check if you have inserted the shaving heads properly and if the retaining frame is locked.

Cleaning the trimmer with the cleaning brush (PT919/PT866/PT860/PT845/PT739/PT737/PT731 only)

Clean the trimmer every time you have used it.

1 Switch off the shaver and disconnect it from the mains.
2 Push the trimmer slide downwards to open the trimmer.

3 Clean the trimmer with the short-bristled side of the cleaning brush. Brush up and down along the trimmer teeth.
4 Close the trimmer ('click').

Tip: For optimal trimming performance, lubricate the trimmer teeth with a drop of sewing machine oil every six months.

Storage

• Put the protection cap on the shaver after use to prevent damage and to avoid dirt accumulation in the shaving heads.
• PT866 only: Store the appliance and the accessories in the pouch.

Replacement

For maximum shaving performance, we advise you to replace the shaving heads every two years.

Replacement reminder

The shaving head symbol will light up to indicate that the shaving heads need to be replaced. Replace damaged shaving heads right away. Only replace the shaving heads with original HQ8 or HQ9 (PT919 only) Philips Shaving Heads.

1 The shaving head symbol lights up orange continuously.
2 Switch off the shaver. Disconnect the shaver from the mains.
3 Press the release button to open the shaving unit.
4 Pull the shaving unit off the shaver.

5 Turn the lock anticlockwise (A) and remove the retaining frame (B).

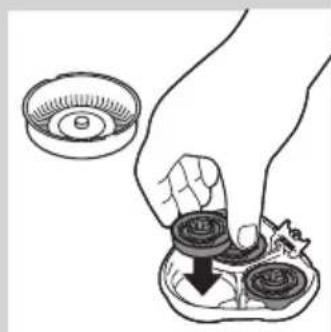

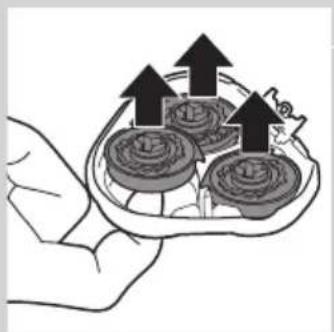

6 Remove the shaving heads and place new ones in the shaving unit.

ENGLISH ¹²

Note: Make sure that the projections of the shaving heads fit exactly into the recesses.

7 Put the retaining frame back into the shaving unit (A) and turn the lock clockwise (B).

8 Insert the lug of the new shaving unit into the slot in the top of the shaver. Then close the shaving unit.

Note: If the shaving unit does not close smoothly, check if you have inserted the shaving heads properly and if the retaining frame is locked.

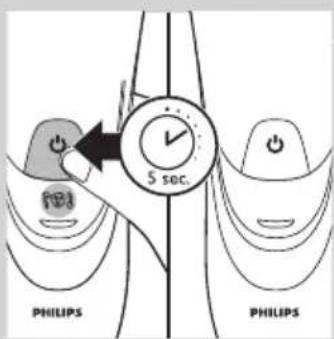

9 Press and hold the on/off button for 5 seconds to reset the replacement reminder on the shaver. The orange light goes out.

Accessories

To retain the top performance of your shaver, make sure you clean it regularly and replace its shaving heads at the recommended time.

Shaving heads

- We advise you to replace your shaving heads every two years. Always replace with HQ8 or HQ9 (PT919 only) Philips Shaving Heads

Cleaning

- Use Cleaning spray (HQ110) to clean the shaving heads thoroughly.

Environment

- Do not throw away the appliance with the normal household waste at the end of their life, but hand them in at an official collection point for recycling. By doing this, you help to preserve the environment.

- The built-in rechargeable shaver battery contains substances that may pollute the environment. Always remove the battery before you discard or hand in the shaver at an official collection point. Dispose of the battery at an official collection point for batteries. If you have trouble removing the battery, you can also take the appliance to a Philips service centre. The staff of this centre will remove the battery for you and will dispose of it in an environmentally safe way.

Removing the rechargeable shaver battery

Only remove the rechargeable battery when you discard the shaver. Make sure the rechargeable battery is completely empty when you remove it.

1 Disconnect the shaver from the mains.
2 Let the shaver run until it stops.
3 Undo the screws in the back of the shaver and in the hair chamber.
4 Remove the front panel and the back panel.
5 Bend the 6 hooks aside and take out the power unit.

Be careful, the hooks are sharp.

6 Remove the battery.

Be careful, the battery strips are sharp.

Do not connect the shaver to the mains again after you have removed the rechargeable battery.

Guarantee and support

If you need information or support, please visit www.philips.com/support or read the separate worldwide guarantee leaflet. If there is no Consumer Care Centre in your country, go to your local Philips dealer.

Guarantee restrictions

The shaving heads (cutters and guards) are not covered by the terms of the international guarantee because they are subject to wear.

Troubleshooting

This chapter summarises the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, contact the Consumer Care Centre in your country.

Problem Possible cause Solution

The shaver does not shave as well as it used to.	The shaving heads are damaged or worn.	Replace the shaving heads (see chapter ‘Replacement’).
	Long hairs obstruct the shaving heads.	Clean the shaving heads one by one (see chapter ‘Cleaning and maintenance’).
	You have not inserted the shaving heads properly.	Make sure that the projections of the shaving heads fit exactly into the recesses (see chapter ‘Cleaning and maintenance’).
The shaver does not work when I press the on/off button.	The rechargeable battery is empty.	Recharge the battery (see chapter ‘Charging’) or connect the shaver to the mains.
	The temperature of the shaver is too high. In this case, the shaver does not work.	As soon as the temperature of the shaver has dropped sufficiently, you can switch on the shaver again.
Water leaks from the shaver after cleaning.	This is normal and not dangerous.	During rinsing some water may collect between the power unit and the housing. After rinsing this water flows out through the socket. The power unit is completely watertight so water cannot reach the electronic parts of the shaver. Your shaver continues to be absolutely safe.

Въведение

Внимание

Изтощена батерия

Upozornění

Modely PT845/PT739/PT737/PT731/PT730/PT727/PT726/PT725/PT721/

Ettevaatust

Vastavus standarditele

Laadimine

Aku on täis laetud

- Loputage karvakambrit ja pardlipea sisemust.

Oprez

• Aparat nikada ne uranjajte u vodu.
• Aparat nemojte koristiti u kadi ili pod tušem.
• Za ispiranje aparata za brijanje nikada ne koristite vodu temperature više od 80 °C.
• Budite oprezni s vrućom vodom. Uvijek pazite da voda ne bude prevruća kako biste izbjegli zadobivanje opeklina na rukama.
• Aparat za brijanje ne može se prati u stroju za pranje posuđa.
• Voda može curiti iz utičnice na dnu aparata prilikom pranja. To je normalno i potpuno bezopasno jer je sva elektronika aparata zaštićena u zatvorenoj jedinici za napajanje unutar aparata za brijanje.
• Aparat za brijanje, adapter ili neki drugi dio nemojte koristiti ako je oštećen jer biste se mogli ozlijediti. Oštećeni adapter, punjač ili neki drugi dio obavezno zamijenite originalnim.
• Aparat koristite, punite i odlažite na temperaturi između 10°C i 35°C.
• Aparat za brijanje uvijek stavljajte i koristite na površini otpornoj na tekućine.
• Koristite isključivo isporučeni adapter, punjač i dodatke.
• Na aparat za brijanje uvijek postavite zaštitni poklopac kako bi se spriječilo njegovo oštećivanje i nakupljanje prljavštine u glavama za brijanje.

Sukladnost standardima

- Ovaj aparat tvrtke Philips sukladan je svim standardima i propisima koji se tiču izloženosti elektromagnetskim poljima (EMF) te se može sigurno prati pod mlazom vode.

Općenito

Baterija je gotovo prazna

• Kada je baterija gotovo prazna (kada preostane samo 5 minuta ili manje vremena za brijanje), indikator punjenja počinje bljeskati narančastom bojom.
• Kada isključite aparat za brijanje, indikator punjenja nastavlja bljeskati narančasto još nekoliko sekundi.

Brzo punjenje

- Kada počnete puniti praznu bateriju, indikator punjenja naizmjenično bljeska narančasto i zeleno. Nakon približno 3 minute indikator punjenja nastavit će bljeskati zeleno. Aparat za brijanje sada ima dovoljno energije za 5 minuta brijanja.

Punjenje

- Dok se aparat za brijanje puni, indikator punjenja bljeska zeleno.

1 Mali utikač ukopčajte u postolje za punjenje.
2 Adapter ukopčajte u zidnu utičnicu.
3 Aparat za brijanje stavite na postolje za punjenje.
Indikator punjenja naznačuje status punjenja aparata za brijanje (pogledajte odjeljak “Indikatori punjenja” u ovom poglavlju).

Uporaba aparata za brijanje

Trimer možete koristiti za podrezivanje zalizaka i brkova.

3 Nakon podrezivanja zatvorite trimer i isključite aparat za brijanje.

1 Isključite aparat za brijanje i iskopčajte ga iz struje.
2 Pritisnite gumb za otpuštanje kako biste otvorili jedinicu za brijanje.
3 Jedinicu za brijanje i spremnik za dlake 30 sekundi ispirite pod mlazom vruće vode.

- Isperite vanjski dio jedinice za brijanje.

1 Isključite aparat za brijanje i iskopčajte ga iz struje.
2 Pritisnite gumb za otpuštanje kako biste otvorili jedinicu za brijanje.

3 Jedinicu za brijanje skinite s aparata.

7 Vratite okvir za pričvršćivanje u jedinicu za brijanje (A) i okrenite kvačicu za zaključavanje u smjeru kazaljke na satu (B).
8 Umetnite jezičac jedinice za brijanje u utor na gornjem dijelu aparata za brijanje. Zatim zatvorite jedinicu za brijanje.

Napomena: Ako se jedinica za brijanje ne zatvara lako, provjerite jesu li glave za brijanje ispravno umetnute i je li zaključan okvir za pričvršćivanje.

Čišćenje trimera četkicom (samo PT919/PT866/PT860/PT845/PT739/PT737/PT731)

Očistite trimer nakon svake uporabe.

1 Isključite aparat za brijanje i iskopčajte ga iz struje.
2 Klizač trimera gurnite prema dolje kako biste otvorili trimer.

3 Trimer očistite onom stranom četke na kojoj se nalaze kraće dlačice. Zupce trimera četkom prijeđite u smjeru gore-dolje.
4 Zatvorite trimer ("klik").

1 Simbol glave za brijanje počet će postojano svijetliti narančasto.
2 Isključite aparat za brijanje. Iskopčajte aparat za brijanje iz napajanja.
3 Pritisnite gumb za otpuštanje kako biste otvorili jedinicu za brijanje.
4 Jedinicu za brijanje skinite s aparata.

6 Izvadite stare glave za brijanje iz jedinice za brijanje i stavite nove.

8 Umetnite jezičac nove jedinice za brijanje u utor na gornjem dijelu aparata za brijanje. Zatim zatvorite jedinicu za brijanje.

Napomena: Ako se jedinica za brijanje ne zatvara lako, provjerite jesu li glave za brijanje ispravno umetnute i je li zaključan okvir za pričvršćivanje.

- Aparat koji se više ne može koristiti nemojte odlagati s uobičajenim otpadom iz kućanstva nego ih odnesite u predviđeno odlagalište na recikliranje. Time ćete pridonijeti očuvanju okoliša.

Figyelmeztetés!

Töltés

Ескерту

Батарея заряды аз

Dèmesio

Ikrovimas

levērībai

Varat lietot trimmeri, lai koptu vaigubārdu un ūsas.

Uwaga

Ładowanie

Precauție,

Baterie descărcată

Внимание!

Výstraha

Nabíjanie

- Pri nabíjaní holiaceho strojčeka bliká kontrolné svetlo nabíjania na zeleno.

1 Malú koncovku zasuňte do stojana na nabíjanie.
2 Adaptér pripojte do siet'ovej zásuvky.
3 Holiaci strojček postavte do stojana na nabíjanie.
Kontrolné svetlo nabíjania zobrazuje stav nabíjania holiaceho strojčeka (pozrite si čast', "Ukazovatele nabíjania" v tejto kapitole).

1 Vypnite holiaci strojček a odpojte ho zo siete.
2 Stlačte uvolňovacie tlačidlo a otvorte holiacu jednotku.
3 Holiacu jednotku a komôrku na chípky oplachujte 30 sekúnd horúcou tečúcou vodou.

1 Vypnite holiaci strojček a odpojte ho zo siete.
2 Stlačte uvolňovacie tlačidlo a otvorte holiacu jednotku.

3 Vytiahnite holiacu jednotku z holiaceho strojčeka.

6 Holiace hlavy vložte spät' do holiacej jednotky.

Previdno

Skladnost s standardi

Polnjenje

- Ko se brivnik polni, indikator polnjenja utripa zeleno.

Baterija napolnjena

- Ko je baterija napolnjena, indikator polnjenja sveti zeleno.

3 Po striženju zaprite prirezovalnik in izklopite brivnik.

- Sperite predelek za odrezane dlačice in notranji del brivne enote.

- Sperite zunanji del brivne enote.

3 Brivno enoto odstranite z brivnika.

4 Zaklep obrnite v levo (A) in odstranite nosilni okvir (B).

6 Brivne glave namestite nazaj v brivno enoto.

5 Zaklep obrnite v levo (A) in odstranite nosilni okvir (B).

6 Odstranite brivne glave in v brivno enoto namestite nove.

Oprez

• Nikada ne uranjajte aparat za brijanje u vodu.
• Aparat za brijanje ne koristite u kadi niti pod tušem.
• Za ispiranje aparate za brijanje nemojte koristiti vodu topliju od 80°C.
• Pazite sa vrućom vodom. Uvek proverite da voda ne bude prevruća da biste izbegli opekotine na rukama.
• Aparat za brijanje ne može da se pere u mašini za sudove.
• Prilikom ispiranja može da procuri voda iz utičnice na dnu aparata za brijanje. To je normalno i nije opasno, jer je sva elektronika zatvorena u zapečaćenoj jedinici za napajanje unutar aparata.
• Nemojte koristiti aparat za brijanje, adapter ili neki drugi deo ako je oštećen jer to može izazvati povrede. Ako je adapter, punjač ili neki drugi deo oštećen, obavezno ga zamenite originalnim.
• Upotrebljavajte, punite i odlažite aparat na temperaturi od 10°C do 35°C.
• Uvek postavite aparat za brijanje i koristite ga na podlozi koja je otporna na tečnost.
• Koristite samo adapter, punjač i dodatke koji se nalaze u kompletu.
• Uvek stavite zaštitni poklopac na aparat za brijanje kako biste sprečili oštećenja i izbegli nakupljanje prljavštine na glavama za brijanje.

Uskladenost sa standardima

1 Jednom pritisnite dugme za uključivanje/isključivanje da biste uključili aparat za brijanje.
2 Kružnim pokretima prelazite glavama za brijanje preko kože.
- Vašoj koži će možda trebati 2 do 3 sedmice da se navikne na Philips sistem brijanja.
3 Jednom pritisnite dugme za uključivanje/isključivanje da biste isključili aparat za brijanje.
4 Očistite aparat za brijanje (vidi poglavlje „Čišćenje i održavanje“).

Podrezivanje (samo kod modela PT919/PT866/PT860/PT845/PT739/PT737/PT731)

Trimer možete da koristite za podrezivanje zulufa i brkova.

1 Jednom pritisnite dugme za uključivanje/isključivanje da biste uključili aparat za brijanje.
2 Pritisnite klizni prekidač nadole da biste otvorili trimer.
▶Sada možete početi sa podrezivanjem.

3 Nakon podrezivanja, zatvorite trimer i isključite aparat za brijanje.

1 Isključite aparat i izvucite kabl za napajanje iz utičnice.
2 Pritisnite dugme za oslobađanje i otvorite jedinicu za brijanje.
3 30 sekundi ispirajte jedinicu za brijanje i komoru za prikupljanje dlaka pod mlazom vruće vode.

Pazite sa vrućom vodom. Uvek proverite da voda ne bude prevruća da biste izbegli opekotine na rukama.

- Isperite komoru za prikupljanje dlaka i unutrašnjost jedinice za brijanje.

- Operite spoljni deo jedinice za brijanje.

1 Isključite aparat i izvucite kabl za napajanje iz utičnice.
2 Pritisnite dugme za oslobadanje i otvorite jedinicu za brijanje.

3 Povucite jedinicu za brijanje sa aparata.

4 Okrenite bravu u pravcu suprotnom od smera kretanja kazaljke na satu (A) i izvadite granični okvir (B).

5 Uklanjajte i čistite jednu po jednu glavu za brijanje. Svaka glava za brijanje sastoji se od rezača i štitnika.

Trimer očistite nakon svake upotrebe.

1 Isključite aparat i izvucite kabl za napajanje iz utičnice.
2 Pritisnite klizni prekidač nadole da biste otvorili trimer.

3 Očistite trimer stranom četke sa kratkim vlaknima. Povlačite četku gore i dole niz zupce trimera.
4 Zatvorite trimer (,,klik“).

Savet: Za najbolje rezultate podrezivanja, podmažite zupce trimera jednom kapi ulja za šivaću mašinu na svakih 6 meseci.

Odlaganje

- Stavite zaštitni poklopac na aparat za brijanje nakon upotrebe kako biste sprečili oštećenja i izbegli nakupljanje prljavštine na glavama za brijanje.

- Samo PT866: Aparat i dodatke odložite u torbicu.

Zamena

1 Simbol glave za brijanje neprekidno svetli narandžasto.

2 Isključite aparat za brijanje. Isključite aparat iz električne mreže.

3 Pritisnite dugme za oslobađanje i otvorite jedinicu za brijanje.

4 Povucite jedinicu za brijanje sa aparata.

5 Okrenite bravu u pravcu suprotnom od smera kretanja kazaljke na satu (A) i izvadite granični okvir (B).

6 Skinite glave za brijanje i u jedinicu za brijanje stavite nove glave.

Увага

PT845/PT739/PT737/PT731/PT730/PT727/PT726/PT725/PT721/PT720:

Розряджена батарея

Заряджання
