VD-E200NF - Surveillance Camera Brickcom - Free user manual and instructions

Product Type	Surveillance Camera
Brand	Brickcom
Model	VD-E200NF
Category	Indoor/Outdoor Dome Camera
Dimensions	120 mm x 90 mm (diameter x height)
Weight	0.5 kg
Power Supply	12V DC or PoE (IEEE 802.3af)
Power Consumption	Max 6W
Resolution	2 Megapixels (1920x1080)
Lens	Fixed focal length, 2.8mm
Night Vision	Up to 30m with IR LEDs
Weatherproof Rating	IP66
Operating Temperature	-20°C to 50°C
Main Functions	Motion detection, remote viewing, two-way audio, microSD recording
Network Interface	Ethernet RJ45 10/100 Mbps
Compression	H.264, H.265
Maintenance & Cleaning	Clean lens with soft dry cloth; keep vents clear
Safety	CE, RoHS compliant; use only provided power adapter
Spare Parts & Repairability	Replacement IR LED kit and lens available; professional repair recommended
General Information	User manual available online; supports ONVIF standard

Frequently Asked Questions - VD-E200NF Brickcom

How do I reset the Brickcom VD-E200NF to factory defaults?

Press and hold the reset button (located near the network port) for 10 seconds using a paperclip. The camera will reboot and reset to factory settings.

Can I use this camera outdoors?

Yes, the VD-E200NF has an IP66 weatherproof rating, making it suitable for outdoor use in rain and dust.

How do I access the camera remotely?

Connect the camera to your network via Ethernet, then use the Brickcom viewing app or web browser. Ensure port forwarding is configured on your router.

What is the maximum microSD card size supported?

The camera supports microSD cards up to 128GB for local recording.

Does this camera support Power over Ethernet (PoE)?

Yes, the VD-E200NF supports PoE (IEEE 802.3af), allowing both power and data over a single Ethernet cable.

How far can the IR night vision see?

The built-in IR LEDs provide night vision up to 30 meters (98 feet) in complete darkness.

Can I use the camera with third-party software?

Yes, it supports ONVIF Profile S, so it works with many NVRs and software like Blue Iris, Milestone, etc.

What should I do if the camera is not powering on?

Check the power adapter or PoE switch. If using PoE, ensure the cable is connected and the switch supplies adequate power. Test with a known working cable.

How do I update the firmware?

Download the latest firmware from the Brickcom support website. Access the camera's web interface, go to Maintenance > Firmware Upgrade, and upload the file.

Is two-way audio supported?

Yes, the camera has a built-in microphone and speaker for two-way audio communication.

USER MANUAL VD-E200NF Brickcom

Hardware User's Manual

Megapixel Day & Night Vandal Dome Network Camera

VD-E200Af/VD-E200Nf Series

Product name: Network Camera (VD-E200Af / VD-E200Nf)

Release Date: 2014/9

Version: V1.0

Web Site: www.brickcom.com

[e-mail]

[e-mail]

© 2014 Brickcom Corporation. All Rights Reserved

Editor: Tracy Cho

Table of Contents

Before You Use This Product ....1

FCC Warning 2

Regulatory Information ....3

Chapter 1 - Package Contents......4

Chapter 2 - Vandal Dome Network Camera Overview ....5

Chapter 3 - Device Appearance Description ....6

Chapter 4 - LED Behavior ....7

Chapter 5 - Hardware Reset......8

Chapter 6 - System Requirements ......9

Chapter 7 - Installation....10

7.1 Hardware Installation ....Error! Bookmark not defined.

7.2 Camera Connection....11

7.3 Software Installation....13

7.4 Launch EasyConfig....16

Chapter 8 - Accessing the Network Camera....25

8.1 Check Network Settings ....25

8.2 Add the Password to Prevent Unauthorized Access....25

8.3 Viewing Video Streams with Internet Explorer....26

Chapter 9 - Viewing Video Streams with BRC64....27

Before You Use This Product

In many countries, there are laws prohibiting or restricting the use of surveillance devices. This Network Camera is a high-performance, web-ready camera which can be part of a flexible surveillance system. It is the user's responsibility to ensure that the operation of this camera is legal before installing this unit for its intended use.

Upon opening the product's package, verify that all the accessories listed on the "Package Contents" are included. Before installing the Network Camera, read the warnings in the "Quick Installation Guide" to avoid misuse. When installing the Network Camera, carefully read and follow the instructions in the "Installation" chapters to avoid damages due to faulty assembly or installation.

FCC Warning

This device complies with Part 15 of FCC rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause undesired operations.

Regulatory Information

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user.

Chapter 1 - Package Contents

A. Network Camera	B. Product CD
C. Allen Key	D. Screw Bag
E. Easy Installation Guide	F. Alignment Sticker

NOTE - The feature or function with the asterisk (*) is optional. Please refer to the datasheet for the list of features and functions that are available for this product.

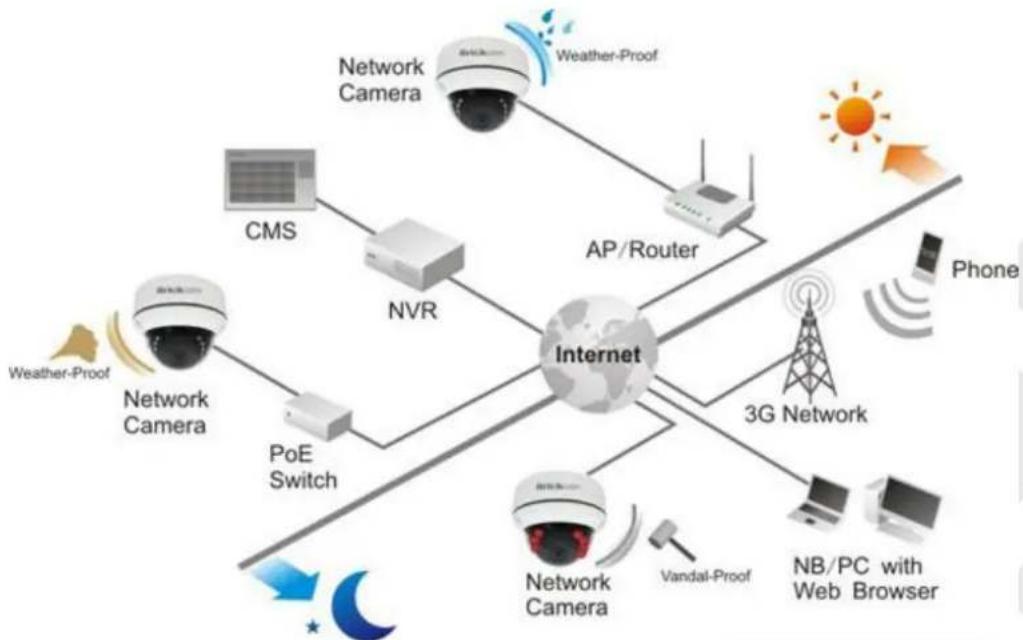

Chapter 2 - Vandal Dome Network Camera Overview

The VD-E200Af / VD-E200Nf vandal dome network camera features the 2-megapixel CMOS sensor, IR-cut filter, IR LEDs, auto light sensor, and is designed to provide the 24-hour indoor and outdoor surveillance.

The VD-E200Af / VD-E200Nf is designed to provide the high-quality video feed for security system. The embedded high-performance image sensor and CPU allow the camera to stream the real-time, high-resolution video at 30 fps. The camera supports many video codecs, including MJPEG and H.264. H.264 can reduce the bandwidth and storage requirements without compromising the video quality.

Installation is simplified with the support for Power over Ethernet (PoE), which enables the camera to receive power and transmit data through the same cable. The camera's vandal-proof enclosure protects itself from damage caused by vandalism or harsh environments. With the IP66-certified enclosure, the VD-E200Af / VD-E200Nf is not only water resistant, but also dust and rust resistant.

The included EasyConfig software offers the users the easy installation without the need for a strong technical background. The design makes the VD-E200Af / VD-E200Nf the perfect security camera for the school, bank, or corporate office surveillance system.

Chapter 3 - Device Appearance Description

NOTE

The feature or function with the asterisk (*) is optional. Please refer to the datasheet for the list of features and functions that are available for this product.

Chapter 4 - LED Behavior

Function	LED Behavior	Description
Ethernet Link	Continuous illumination (Green)	Ethernet Connected
Data Link	Blinking (Orange)	Data Transmitting

Chapter 5 - Hardware Reset

The Reset Button can be used to restore the camera to factory default settings. If the camera experiences a problem, rebooting the camera may correct the problem. If the problem remains, please restore the camera to factory default settings and set it up again.

To Reset

Press and hold the Reset Button for more than 10 seconds using a paper clip or thin object. Wait for the camera to reset to default.

NOTE - By resetting the camera, all settings will be restored to the factory default

settings.

Chapter 6 - System Requirements

• Operating System: Microsoft Windows, ONVIF Supported NVR system
  • CPU: Pentium 3GHz or faster
  • Network Interface: 10/100Mbps Network interface card must be installed
  • Web Browser: Microsoft Internet Explorer, Firefox, Chrome

Chapter 7 - Installation

7.1 Hardware Installation

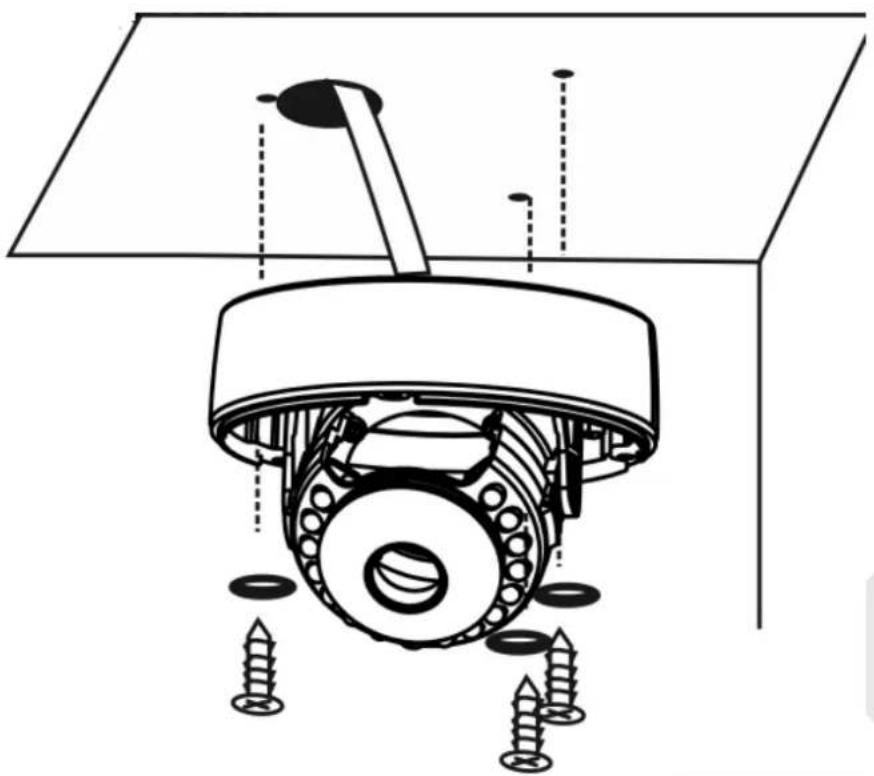

a. Use the enclosed Allen key to detach the dome cover from the camera device.
b. Put the three waterproof rubbers which are provided in the product package into the location holes.
c. Hammer the three plastic anchors which are provided in the product package into the three location holes. The user needs the three screws which are included in the product package and a screwdriver. Mount the camera on the wall or ceiling and position the three screw slots over the plastic anchors. Insert the screws into the holes and use the screwdriver to tighten the screws clockwise until they are secure.

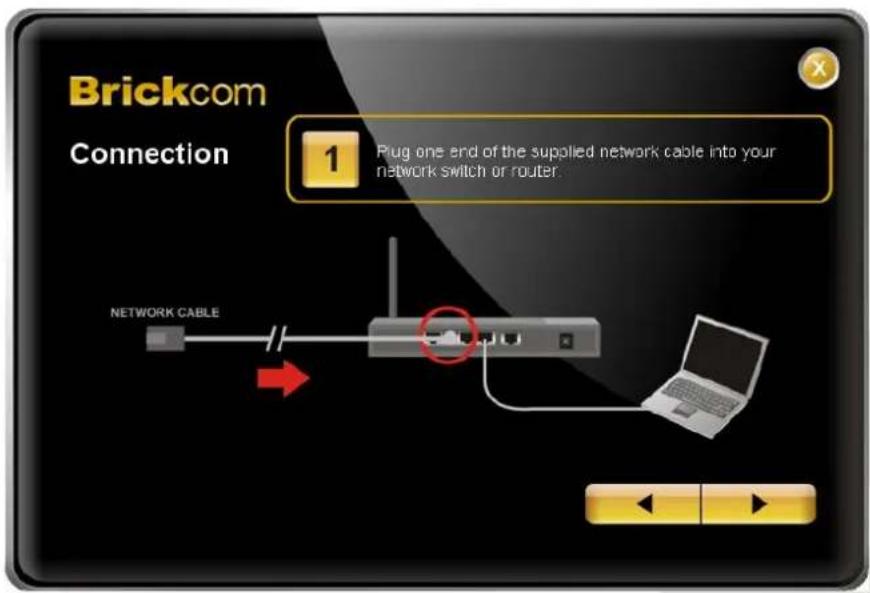

7.2 Camera Connection

The VD-E200Af / VD-E200Nf is DC12V and PoE compliant, so there are two options for connecting the camera to a power and Ethernet source. The camera can either be connected to a PoE-enabled switch or a non-PoE switch.

a. If using a PoE-enabled switch:

Use a single Ethernet cable to connect the camera to the PoE-enabled switch.

b. If using a non-PoE switch:

i. Use a standard RJ-45 cable to connect the camera to a PoE Injector.
ii. Use a standard RJ-45 cable to connect the PoE Injector to the non-PoE switch.
iii. Use a standard power cable to connect the PoE Injector to a power outlet.

Brickcom

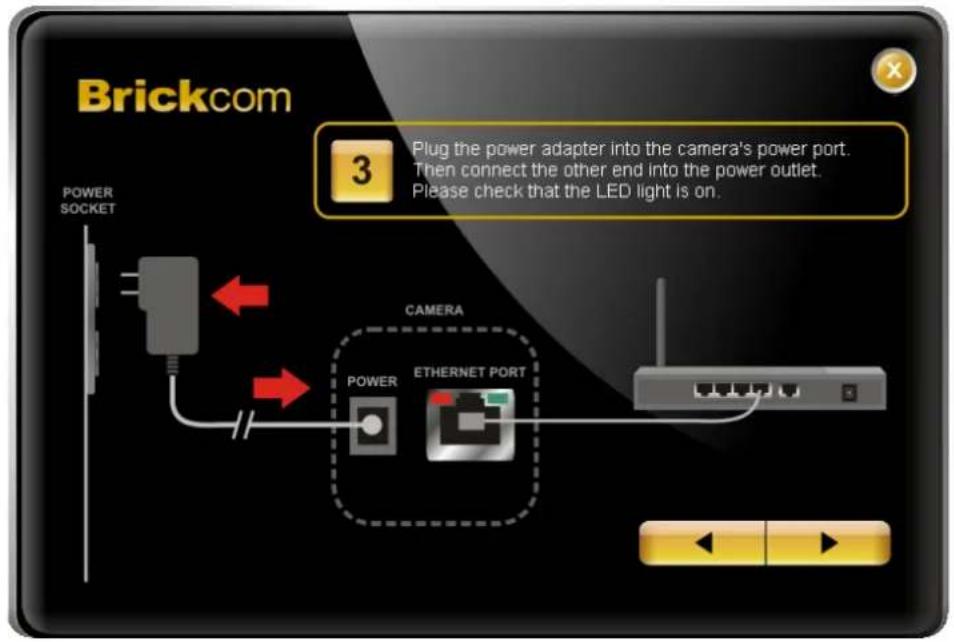

c. If using the DC12V power supply. The RJ45 Ethernet cable will be for data transmission only.

7.3 Software Installation

In this manual, "User" refers to whoever has access to the Network Camera, and "Administrator" refers to the person who can configure the camera and grant user access to the camera.

After checking the hardware connection, run the Installation Wizard program included on the product's CDROM to automatically search the intranet for the camera. There may be many cameras on the local network. Differentiate the cameras using the serial number which is printed on the labels on the carton and the bottom of the camera.

A. Insert the Installation CD into the CD-ROM driver. Run Auto-Run Tool directly from the CD-ROM to start the installation. When installing the Brickcom software kit for the first time, select a desired language for the interface. The available languages are listed in the scroll box. Click and follow the steps to install the EasyConfig wizard on the desired computer.

B. In the Install Shield Wizard dialog box, click to continue.

C. Read the End-User License Agreement and check the option "I accept the terms of the license agreement". Click to continue.

D. Click to change the appointed folder where installation and program files will be stored. Click to continue.

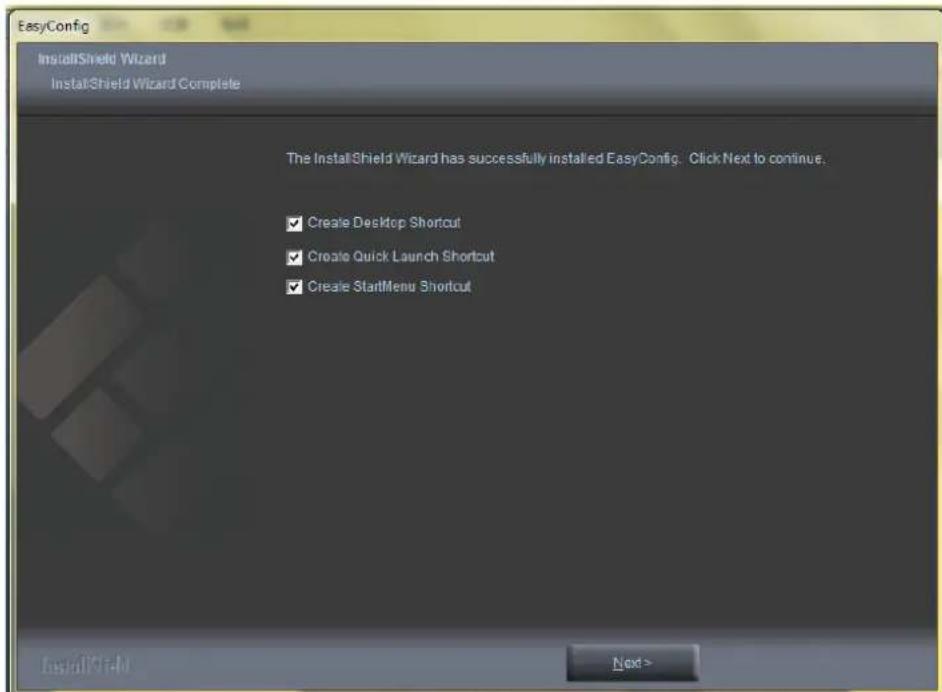

E. Select to create shortcuts. Click to continue.

F. Select the application and click . When launching the PC-NVR program, please refer to the PC-NVR user manual.

7.4 Launch EasyConfig

Users can search cameras by EasyConfig and configure the settings below:

• IP address configuration
• Easylink configuration
  ● Live View & Individual Camera Modification

To launch EasyConfig, select "EasyConfig" from the start menu. If Complete Setup type was used in the software installation, an EasyConfig icon was installed on the desktop.

Double click EasyConfig.

If Custom Setup type was used in the software installation but an EasyConfig icon was not installed on the desktop, by default the program is installed under "C:\Program

Files\Brickcom\EasyConfig".

NOTE - Check to skip checking the

hardware connection. To check the hardware installation settings, do not check the option box.

1. Click to continue. The program will automatically search for the camera in the intranet.

Brickcom

1. Select either or to obtain the camera's IP settings. If is selected, EasyConfig will set up the connection automatically. If is selected, the user will need to configure the IP settings manually.

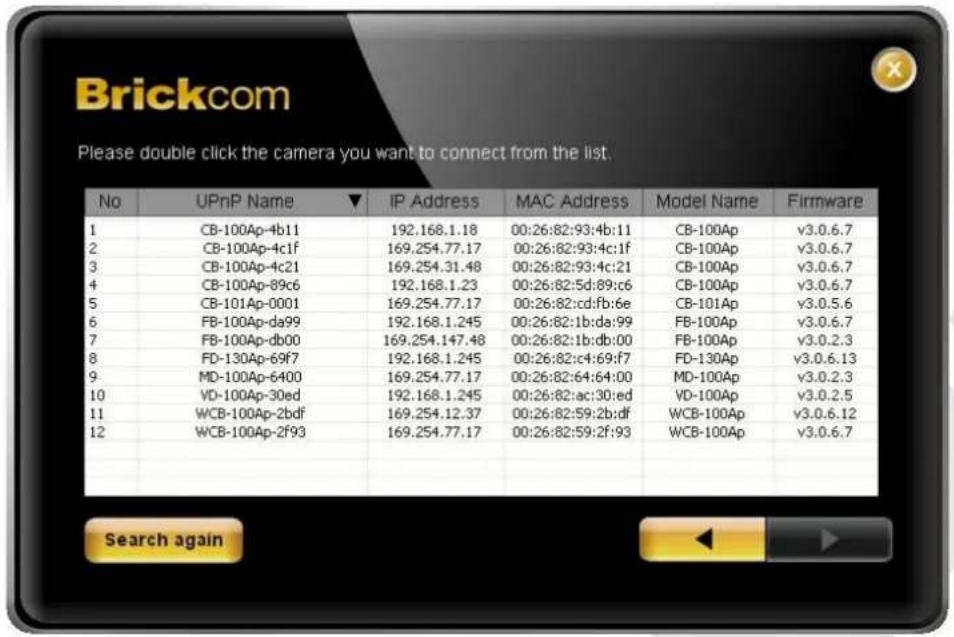

1. There may be many cameras in the local network. Differentiate the cameras using their UPnP name. Double click on the camera from the survey list to connect.

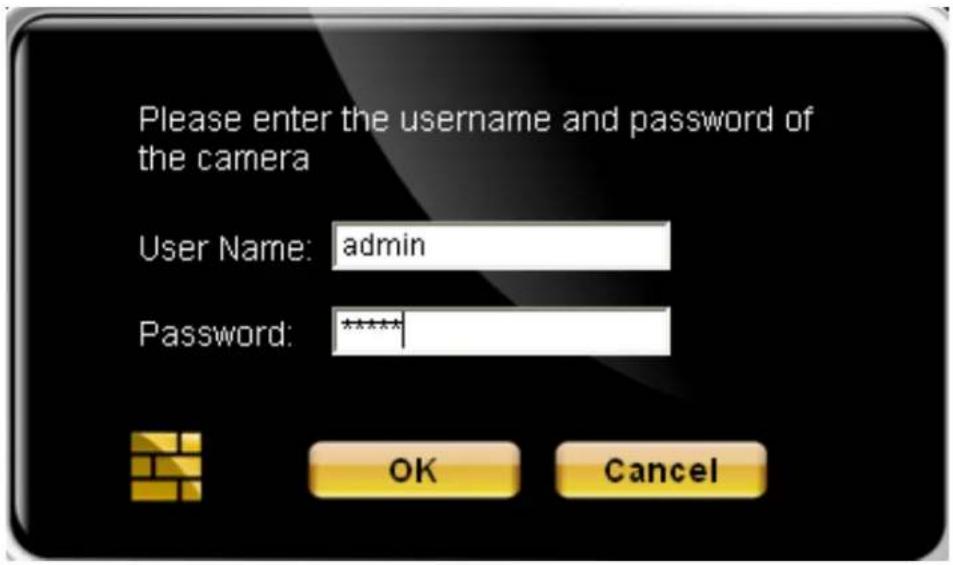

1. Enter the username and password of the camera. For the first-time use, the default username and password are "admin/admin."

1. For configuring the IP address settings, select either , or . The DHCP setting is recommended.

1. If is selected, the following pages will be displayed.

1. If the camera supports the EasyLink™ function, the following window will be displayed. Otherwise, this window will not be shown.

*If desired, click to skip this setting. EasyLink™ is a unique Brickcom function which allows users to assign a unique EasyLink name to map to the network camera's IP address. Users can log onto

[uniqueEasyLinkname].mybrickcom.com to view the camera's web GUI and Live View.

• Enter a unique EasyLink name whose length must be between 5-32 characters.
• When finished, click the arrow button to continue.

Brickcom

1. When the IP address settings have been configured, the screen will either display a successful or failed connection message. If the connection failed, either try again or quit the installation.

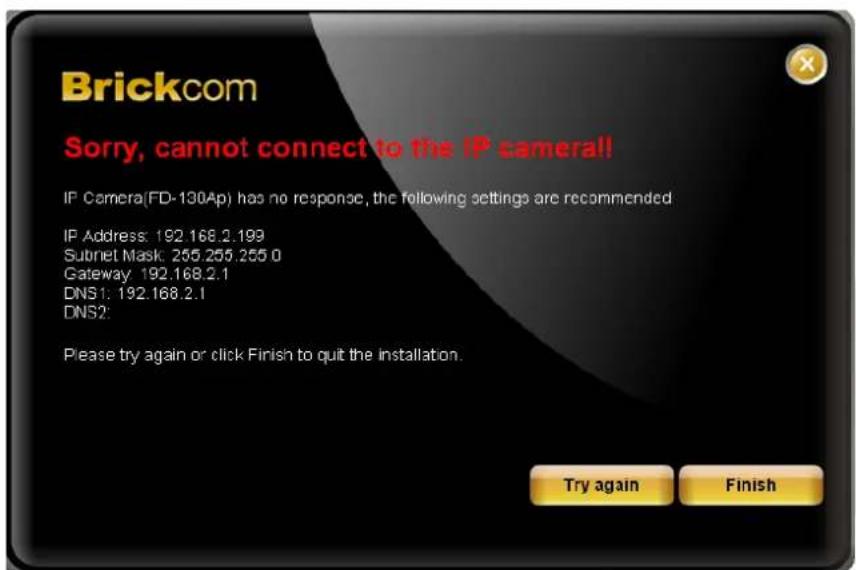

If "DHCP IP address settings" was selected, the failure window will be displayed as below.

If was selected, the failure window will be displayed as below.

Brickcom

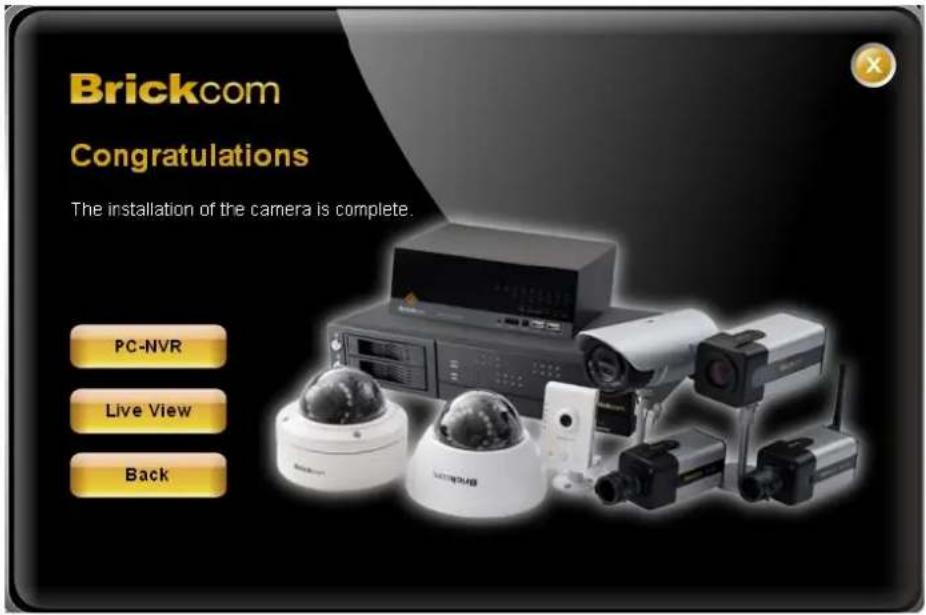

If the connection was successful, the user will see the message:

1. When this window is displayed, click to start the BRC64 program, to view the live video from the connected IP camera, or in the top right corner of the screen to close the installation window. If the user starts the BRC64 program, please refer to PC-NVR's user manual.

Once the installation is complete, the administrator should proceed to the next section "Accessing the Network Camera" for necessary changes and configurations.

Chapter 8 - Accessing the Network Camera

8.1 Check Network Settings

The camera can be connected either before or immediately after the software installation. The Administrator should complete the network settings on the configuration page, including entering the correct Subnet Mask, Default Gateway, primary DNS and Secondary DNS. Ask the network administrator or Internet service provider for the detail information.

8.2 Add the Password to Prevent Unauthorized Access

The administrator should immediately implement a new password as a matter of prudent security practice. For the first time, the username and password for the administrator are assigned as “admin/admin”. After the administrator changes the administrator password, the web browser will display an authentication window to confirm the new password. Once the password is set, there is no provision to recover the administrator’s password. If the administrator’s password is lost, please reset to the original factory default settings.

The administrator can set up a maximum of ten user accounts. Users will be able to access the network camera, but will not be allowed to access system configurations.

8.3 Viewing Video Streams with Internet Explorer

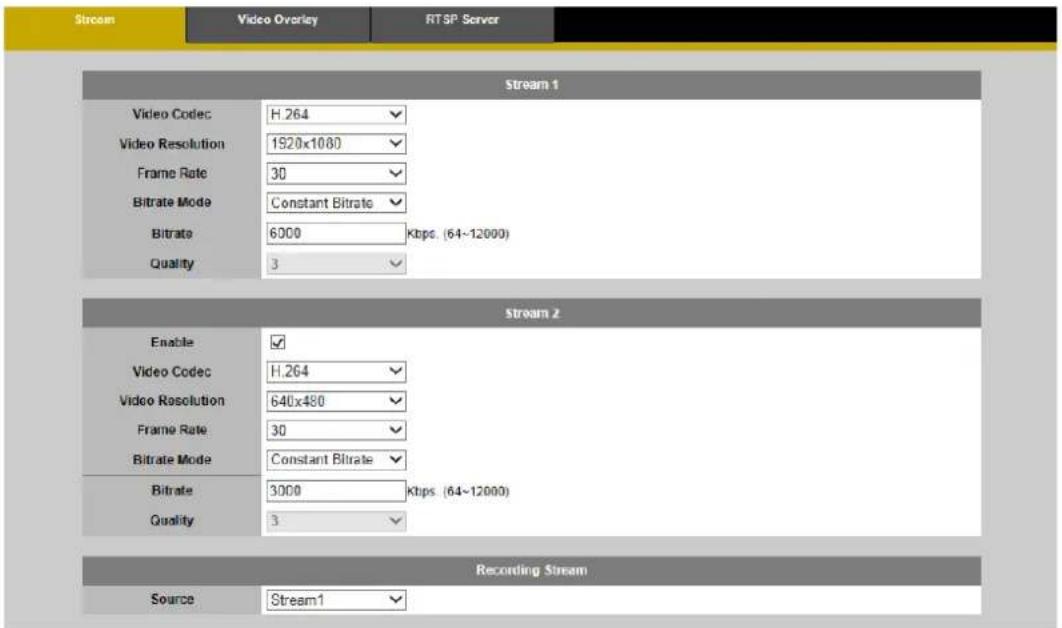

Step1. Check the Video Stream Settings

On the camera's web UI, please go to Configuration → Camera/Video/Audio → Video, and you will find the stream settings. Please select the desired setting from the drop-down menus to meet the application requirements.

Step2. Select the Video Stream for Live View

After finishing the video stream settings, please go to "Live View" and select the stream you want to view from Channels (Stream1, Stream2, etc.)

©

Brickcom

Step3. View Stream

For each video stream you want to view, please select the camera item on the control panel. Then, drag and drop it to the video matrix for live view.
