VD-502AP - Surveillance Camera Brickcom - Free user manual and instructions

Product Type	IP Surveillance Camera
Brand	Brickcom
Model	VD-502AP
Dimensions (W x H x D)	Approx. 120 x 100 x 100 mm
Weight	Approx. 0.5 kg
Power Supply	PoE (802.3af) or 12V DC
Power Consumption	Max 6W
Image Sensor	1/2.8" Progressive Scan CMOS
Resolution	2 Megapixels (1920 x 1080)
Lens	Fixed, 2.8mm, F2.0
Field of View	Horizontal: 90°, Diagonal: 110°
Night Vision	Up to 30m with IR LEDs
IP Rating	IP65 (weatherproof)
Video Compression	H.264, H.265
Network	Ethernet RJ45, Wi-Fi 802.11b/g/n
Storage	MicroSD card up to 128GB, NAS, NVR
Audio	Built-in microphone and speaker
Security Features	Password protection, HTTPS, firmware update
Maintenance	Clean lens with soft dry cloth; check connections
Spare Parts & Repairability	No user-serviceable parts; contact support for repairs
Mounting	Wall or ceiling mount (bracket included)
Operating Temperature	-20°C to 50°C

Frequently Asked Questions - VD-502AP Brickcom

How do I install the Brickcom VD-502AP camera?

Mount the camera to a wall or ceiling using the included bracket. Connect the Ethernet cable for PoE power and network, or use the 12V DC adapter. Adjust the lens angle and tighten the screws.

How do I view the camera feed remotely?

Use the Brickcom Viewer software or a compatible app. Enter the camera's IP address, username, and password (default: admin/admin). Ensure your network allows remote access via port forwarding or cloud service.

What is the default IP address?

Default IP is 192.168.1.168. You may find it using the Brickcom IP Finder tool.

Can I connect the camera via Wi-Fi?

Yes, the VD-502AP supports Wi-Fi 802.11b/g/n. Connect to your network via the web interface or app. For best stability, use wired Ethernet.

Does the camera have night vision?

Yes, it features infrared LEDs with a range of up to 30 meters. The IR cut filter automatically switches for day/night mode.

How do I reset the camera to factory settings?

Press and hold the reset button (located near the Ethernet port) for 10 seconds using a paperclip. The camera will reboot with default settings.

What video resolutions are supported?

The camera supports up to 2 Megapixels (1920x1080) at 30 fps. It also supports lower resolutions like 1280x720 and 640x480.

Can I record video to a microSD card?

Yes, insert a microSD card (up to 128GB) into the slot. Configure recording schedules or motion detection via the web interface.

Is the camera weatherproof?

Yes, the VD-502AP has an IP65 rating, making it suitable for outdoor use. Ensure all connections are sealed properly.

How do I update the firmware?

Download the latest firmware from the Brickcom support site. Access the camera's web interface, go to Maintenance > Firmware Upgrade, and upload the file. Do not power off during update.

USER MANUAL VD-502AP Brickcom

Hardware User's Manual

Megapixel Day & Night Vandal Dome Network Camera Quality Service Group

Vandal Dome V2 Series

Review History:

1. Separate User Manual into HW and SW.
2. Merge VD-100A/ VD-130A/ VD-130N/ VD-300A/ VD-302A/ VD-300N/ VD-302N/ VD-500A / VD-502A/ VD-501Af series into this Hardware User Manual.
3. Add Waterproof Connector into accessory list.

Product name:	Network Camera (Vandal Dome series)
Release Date:	2013/1
Manual Revision:	V3.1
Web site:	www.brickcom.com
Email:	[e-mail]@brickcom.com
	© 2012 Brickcom Corporation. All Rights Reserved

Table of Contents

Before You Use This Product ....1

Regulatory Information 2

Chapter 1 - Package Contents....3

Chapter 2 - Vandal Dome Network Camera Overview ....4

Chapter 3 - Device Appearance Description ......6

Chapter 4 - LED Behavior ....8

Chapter 5 - Installation....10

5.1 Hardware Installation .... 10

5.2 Camera Connection....16

5.3 System Requirements....17

5.4 Software Installation....18

5.4.1 EasyConfig....21

Before You Use This Product

In many countries, there are laws prohibiting or restricting the use of surveillance devices. This Network Camera is a high-performance, web-ready camera which can be part of a flexible surveillance system. It is the user's responsibility to ensure that the operation of this camera is legal before installing this unit for its intended use.

Upon opening the product's package, verify that all the accessories listed on the "Package Contents" are included. Before installing the Network Camera, read the warnings in the "Quick Installation Guide" to avoid misuse. When installing the Network Camera, carefully read and follow the instructions in the "Installation" chapters to avoid damages due to faulty assembly or installation.

Regulatory Information

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user.

Chapter 1 - Package Contents

a. Network Camera(Vandal Dome V2 Series)	b. Dry Bag, Strap Tie
c. Product CD	d. Location Sticker
e. Warranty Card	f. Screw Bag
g. Terminal Block	h. Allen Key
i. Easy Installation Guide	j. High Power PoE (*)(T4W5]
k. Wall Mount Bracket: L-WM-01(*)	l. Waterproof Connector:WPC-EU(M20)/ WPC-US (3/4") (*)(CCGZ)

NOTE - (*) These are optional features. Please refer to the Product List for the

full list of optional features that are available for this product.

Chapter 2 - Vandal Dome Network Camera Overview

The VANDAL DOME SERIES is a full-featured, 3-axis, fixed-dome, network camera. With a megapixel progressive sensor and built-in IR-cut filter/ IR illuminator LEDs/Auto Light sensor, it can provide 24-hour, indoor surveillance. The VANDAL DOME SERIES features a wide-angle and vari-focal lens, which offers wide view coverage of all angles.

The VANDAL DOME SERIES is designed to provide end users with high quality video feed for an easily accessible security system. The embedded high performance image sensor and CPU allow for each camera to stream real time, high resolution video at 30 fps. It can transmit video using many codec compression options, including MPEG-4/MJPEG/H.264, which reduce bandwidth and storage requirements without compromising image quality. For easy viewing of the video feed, users can view the live feed from anywhere through internet browsers or 3G portable devices.

Installation is simplified by the added support for Power over Ethernet which enables each camera to receive power through the same cable as for data transmission. The DI/DO function allows users to connect the VANDAL DOME SERIES to external alarm and sensor devices for added security protection.

Users do not have to worry about their camera as its vandal proof enclosure protects it from damage caused by vandalism or harsh environments. With an IP66 certified enclosure, the VANDAL DOME SERIES is not only weather proof, but also dust and rust resistant. By utilizing a built-in industrial fan and heater, it can perform well in extreme temperatures.

With the included EasyConfig installation software, this series offers end-users easy installation without the need for a strong technical background. The 3-axis mechanical design makes the VANDAL DOME SERIES the perfect security camera for any school, bank, or corporate office surveillance system.

Chapter 3 - Device Appearance Description

1. Below "Device Appearance Description" is for VD-300Ap

1. Below “Device Appearance Description” is for VD-100A-series/VD-130A-series / VD-130N-series/ VD-300N-series/ VD-302N-seris/ VD-300AV3-series/ VD-302A-series/ VD-500A-series/ VD-502A-series

3. Below "Device Appearance Description" is for VD-501Af-series

NOTE

1. SD Card Capacity (*) - The network camera is compatible with SD/SDHC (Maximum 32GB) cards.
2. (*) These are optional features. Please refer to the Product List for the full list of optional features available for the product.

Chapter 4 - LED Behavior

Function	LED Behavior	Description
Power LED	Continuous illumination (Green)	Power on
Power LED	Unlit	Power off
Link LED	Continuous illumination (Red)	Link
Link LED	Blinking (Red)	Connecting

< DI/DO Diagram >

< Hardware Reset >

Reset Button

The Reset Button can be used to reboot the camera or restore it to factory default settings. If the camera experiences a problem, rebooting the camera may correct the problem. If the problem remains, please restore the camera to factory default settings and reinstall the software.

To Reboot

Press and hold the Reset Button for one second using a paper clip or thin object. Wait for the camera to reboot.

To Restore

Press and hold the Reset Button for ten seconds until the LED light turns off. When successful restored, the LED will be blue during normal operation.

NOTE - By restoring the camera, all settings will be restored to the factory default settings.

Chapter 5 - Installation

5.1 Hardware Installation

a. Remove the vandal dome cover:

Use the Allen Key to unscrew the four screws and remove the dome cover from the camera device.

b. Open/Close The Conduit Hole:

The conduit hole allows the air to circulate through the camera device. By default, a lid is attached to the conduit hole on the side of the camera device, and the conduit hole on the bottom of camera device is open.

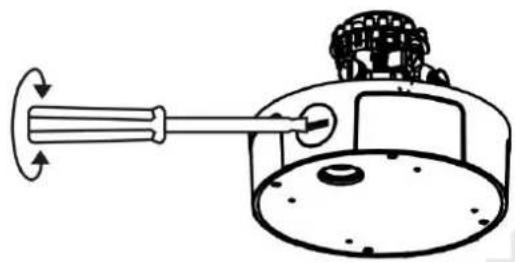

Please use the screw driver to screw/ unscrew the lid. Please note that the lid and the waterproof connector must be tightly screwed to the conduit hole to achieve IP67.

c. PoE, Power, DIDO, Audio Connection

Put all the cables, such as PoE ①, 12VDC power ②, DI / DO / Audio cable ③, together as one single cable and run it through the waterproof connector. Then attach the waterproof connector to the conduit hole A or B, and attach the lid tightly to the other hole. All cables are user-supplied.

Waterproof Connector

A compliant waterproof connector shall be attached tightly to the conduit hole of the Vandal Dome Network Camera, and all the cables shall run through the connector for the camera to be IP67-compliant.
1) Power over Ethernet (PoE) Connection
2) Power Adapter Connection

Please refer to the definition of the terminal blocks below. It is also printed on the motherboard.

Terminal Block
Pin No.	Function
Pin 1	12V DC
Pin 2	GND

3) DIDO and Audio Connection

Please refer to the definition of the terminal blocks below. It is also printed on the motherboard.

Terminal Block
Pin No.	Function	Pin No.	Function
Pin 1	5V	Pin 5	Audio OUT
Pin 2	D_0	Pin 6	DGND
Pin 3	D_I	Pin 7	Mic/Line in
Pin 4	DIDO GND	Pin 8	DGND

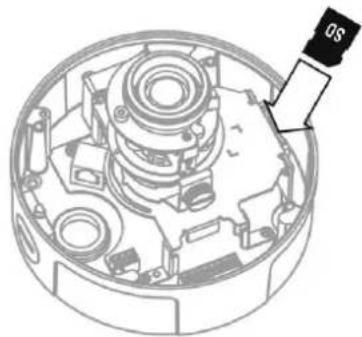

d. For SD/SDHC Card Installation(Optional):

Insert the SD/SDHC card into the SD/SDHC card slot.

The SD/SDHC card is not included in the product package and needs to be purchased separately.

e. Dry Bag Installation:

Open the silver packing of the dry bag, then place the dry bag inside the camera device and secure it using the strap tie.

f. Mount The Camera To The Wall:

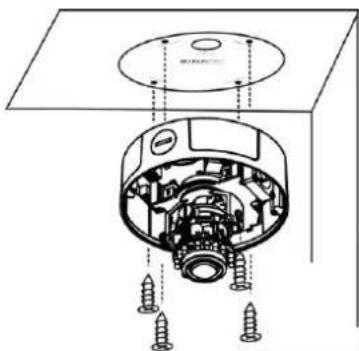

i. Choose the location on the wall to place the camera. Attach the location sticker to the desired spot.

ii. Drill four holes as instruted on the sticker.

iii. Hammer the four plastic anchors which are provided in the product package into the four location holes. Mount the camera on the wall and position the four screw holes over the plastic anchors. Insert the screws into the holes and use the screwdriver to tighten the screws clockwise into the holes until they are fixed.

g. Mount The Camera To The Ceiling:

Mount the camera device on the desired location. Use the screwdriver to tighten the four included screws clockwise through the four holes of the device as shown below. The best place to mount the camera is the ceiling stud.

WARNING: Do not mount the camera on any soft material. The camera

may fall and be damaged.POE, Power, DIDO, Audio Connection:

h. Adjust the Lens

(This function is only applicable for VD-100A series/ VD-130A series/ VD-X02A series/ VD-X02N series)

1) Adjust The Lens Angle

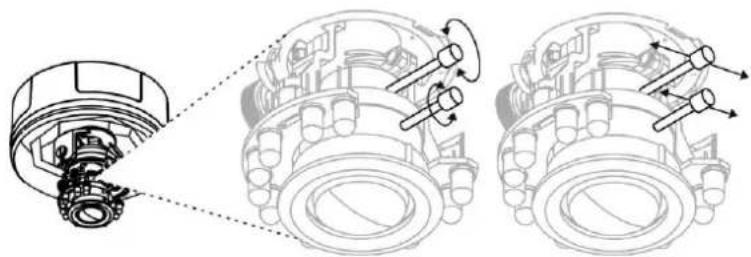

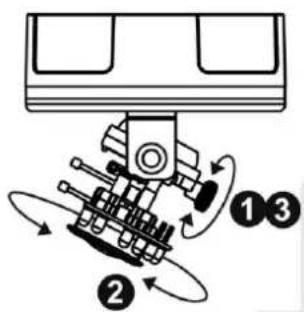

i. The lens holder can be rotated clockwise or counter clockwise.

ii. Release the tilt screw on both side of the device to tilt the lens up or down. After completion, tighten the tilt screw.

iii. Release the video adjustment screw and to adjust the lens direction. After completion, tighten the video adjustment screw.

2) Adjust The View Angle and Focus

i. Release the zoom ring controller bar and then slide it left or right to get the desired field of view. After completion, tighten the zoom ring controller.

ii. Release the focus ring controller bar and slide it left or right to make the image in focus. After completion, tighten the focus ring controller.

Zoom Ring Controller Focus Ring Controller

i. Complete the Installation

a. Place the dome cover on the camera device and slowly turn it until it is in the desired position.

b. Use the Allen Key to attach the four dome screws to fix the dome cover onto the camera device.

Please make sure the light sensor is not blocked by the dome cover.

5.2 Camera Connection

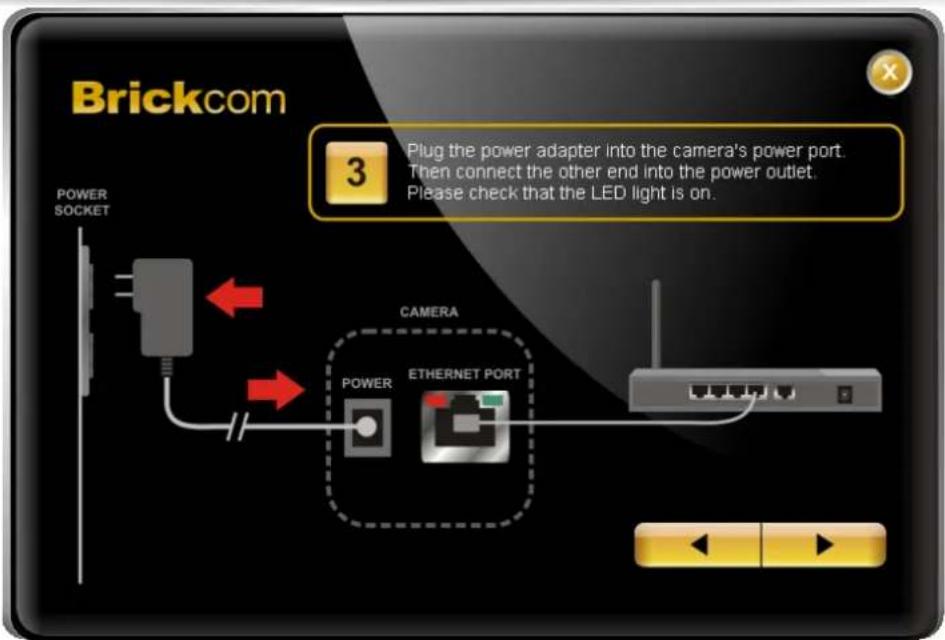

a. Ethernet and DC12V Connection

Connect the camera device to the Ethernet switch using an RJ45 Ethernet cable and connect the DC12V power adaptor to the camera device.

b. Power over Ethernet (PoE) Connection

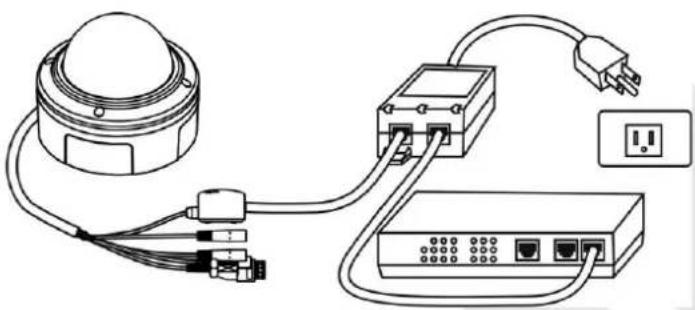

i. Connect the camera to a PoE switch using a single Ethernet cable.

ii. Connect the camera to a non-PoE switch using the PoE Injector.

5.3 System Requirements

Operating System:

Microsoft Windows XP Home Edition SP2

Microsoft Windows XP Professional SP2

Computer:

IBM PC/AT Compatible

CPU:

Pentium 3GHz or faster

Memory:

1024 MB or more

Monitor:

1024 x 768 pixels or more, 24-bit True color or better

Network Interface:

10/100Mbps Network interface card must be installed

Web Browser:

Microsoft Internet Explorer 6.0 SP2 or higher

Adobe Reader:

Adobe Reader 8.0 or higher

Audio:

The audio function will not work if a sound card is not installed in the PC. Audio may be interrupted depending on network traffic.

5.4 Software Installation

In this manual, "User" refers to whoever has access to the Network Camera, and "Administrator" refers to the person who can configure the camera and grant user access to the camera.

After checking the hardware connection, run the Installation Wizard program included on the product's CDROM to automatically search the intranet for the camera. There may be many cameras on the local network. Differentiate the cameras using the serial number which is printed on the labels on the carton and the bottom of the camera.

A. Insert the Installation CD into the CD-ROM driver. Run Auto-Run Tool directly from the CD-ROM to start the installation. When installing the Brickcom software kit for the first time, select a desired language for the interface. The available languages are listed in the scroll box. Click and follow the steps to install the EasyConfig wizard on the desired computer.

B. In the Install Shield Wizard dialog box, click to continue.

C. Read the End-User License Agreement and check the option "I accept the terms of the license agreement". Click to continue.

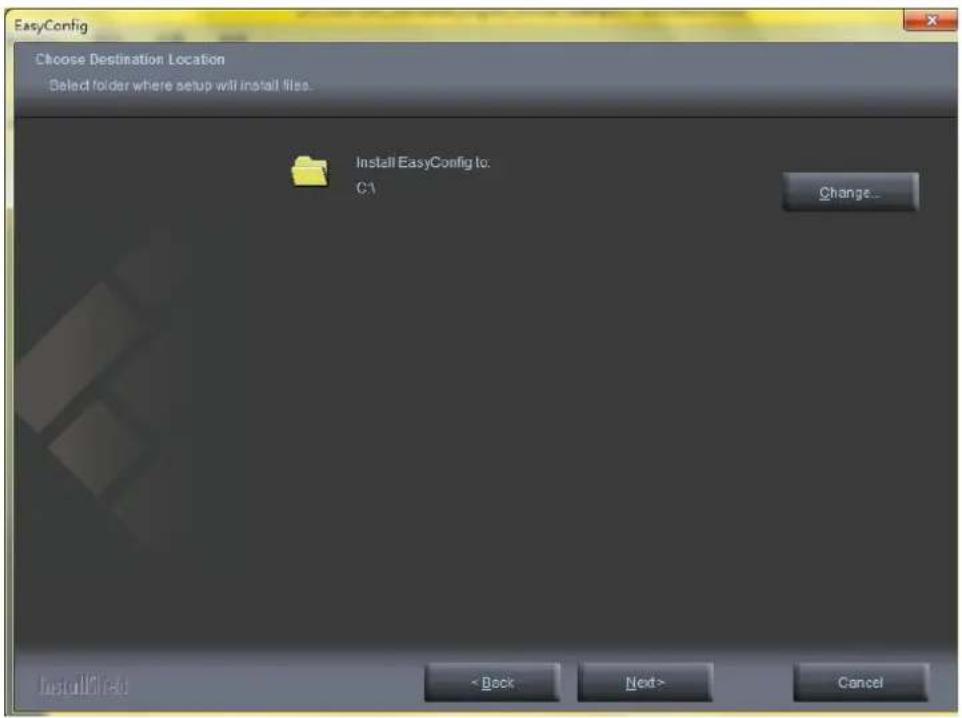

D. Click to change the appointed folder where installation and program files will be stored. Click to continue.

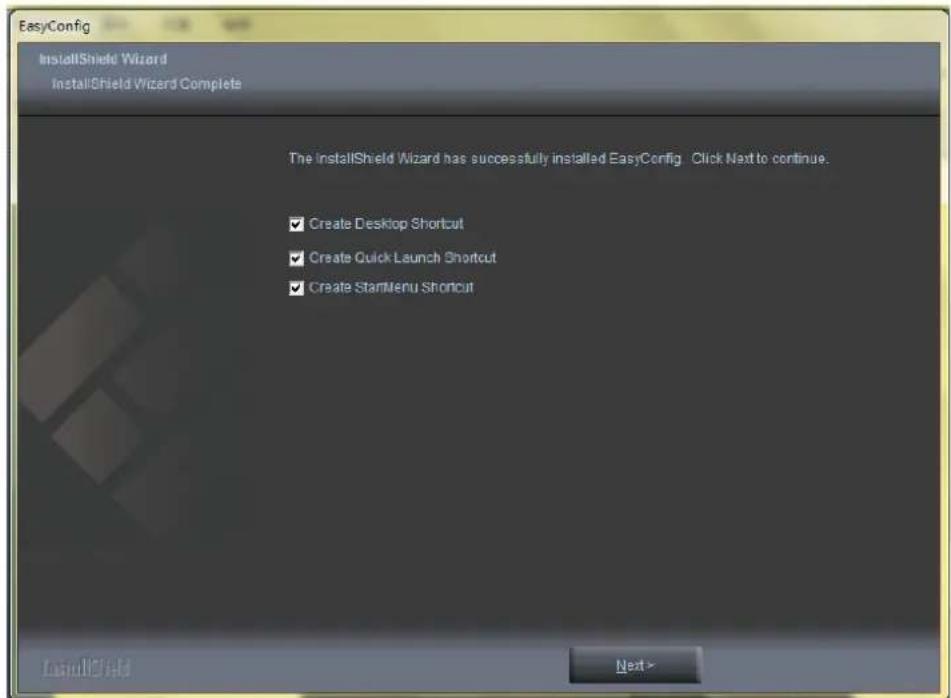

E. Select to create shortcuts. Click to continue.

F. Select the application and click . When launching the PC-NVR program, please refer to the PC-NVR user manual.

5.4.1 EasyConfig

To launch EasyConfig, select EasyConfig from the start menu. If Complete Setup type was used in the software installation, an EasyConfig icon was installed on the desktop. Double click to open the icon.

If Custom Setup type was used in the software installation and an EasyConfig icon was not installed on the desktop, the program will be installed under C:\Program Files\Brickcom\EasyConfig unless the program was saved to a preferred directory.

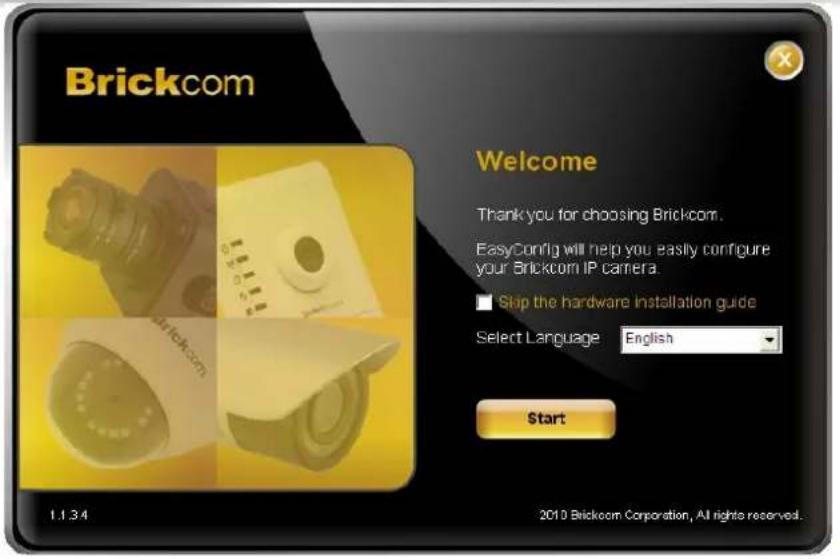

A. Click to continue. The program will automatically search for the camera in the intranet.

NOTE - Check "Skip the hardware installation guide" to skip checking the hardware connection. To check the hardware installation settings, do not check the option box.

B. Select either "Simple Mode" or "Professional Mode" to obtain the camera's IP settings. If "Simple Mode" is selected, EasyConfig will set up the connection automatically. If "Professional Mode" is selected, the user will need to configure the IP settings manually.

Brickcom

C. There may be many cameras in the local network. Differentiate the cameras using their UPnP name. Double click on the camera from the survey list to connect.

D. For configuring the IP address settings, select either , or . The DHCP setting is recommended.

E. If is selected, the following pages will be displayed.

Brickcom

F. When the IP address settings have been configured, the screen will either display a successful or failed connection message. If the connection failed, either try again or quit the installation.

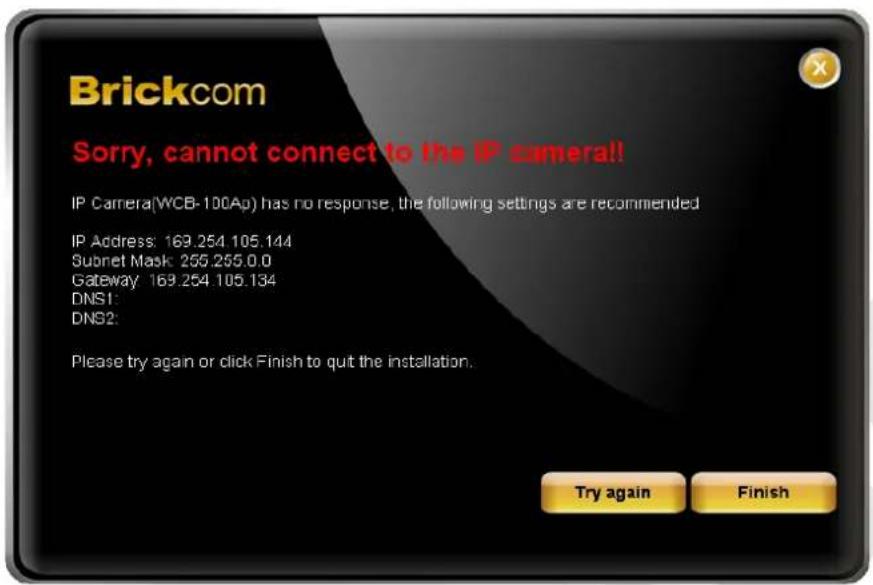

a. If "DHCP IP address settings" was selected, the failure page will be displayed as below:

b. If "Static IP address settings" was selected, the failure page will be displayed as below:

c. If the connection was successful, the user will see the message: "Congratulations. The installation of the camera is complete."

When this window is displayed, click to start the PC-NVR program, to view the live video from the connected IP camera, or in the top right corner of the screen to close the installation window. If the user starts the PC-NVR program, please refer to the PC-NVR user manual.

Click to view the live video feed of the network camera.

Enter the default user name (admin) and password (admin) in the prompt request dialogue.

After connecting to the network Vandal Dome Camera, the request for installing the ActiveX control will appear below the URL bar. Right click on the bar, and click "Install Brickcom ActiveX Control." to permit ActiveX control installation.

In the pop-up security warning window, click "Install" to start downloading Viewer software on the PC.

Click "Finish" after Viewer installation is complete.
