Product Type	Surveillance Camera
Brand	Swann
Model	PRO-735
Dimensions (approx.)	120 x 70 x 70 mm
Weight (approx.)	300 g
Power Supply	12V DC Power Adapter
Video Resolution	HD 1080p (1920 x 1080)
Night Vision	Infrared LED up to 10 m
Viewing Angle	90° (diagonal)
Motion Detection	Yes, with push alerts
Audio	Built-in microphone, speaker (two-way audio)
Connectivity	Wi-Fi 2.4 GHz, Ethernet RJ45
Storage	Swann Cloud or microSD card (up to 128 GB)
Protection Rating	IP65 (outdoor)
Usage	Indoor and outdoor
Maintenance and cleaning	Clean with a soft, dry cloth; avoid solvents
Security	Wall mount included; security screws
Spare parts / Repairability	Adapter, cable, mount available; repair by authorized center
Box contents	Camera, adapter, cable, mounting bracket, screw kit, quick guide
Warranty	2 years (parts and labor)

Frequently Asked Questions - PRO-735 SWANN

How to reset the Swann PRO-735 camera?

Hold the reset button located under the camera for 10 seconds using a paperclip. The LEDs will blink, indicating the camera is reset.

Can I use the camera without a cloud subscription?

Yes, you can insert a microSD card (up to 128 GB) into the slot for local recording without a subscription.

How to install the camera outdoors?

Use the provided mounting bracket and attach it to the wall with the included screws and anchors. Ensure the camera is aimed at the desired area and the power cable is protected from the weather.

Does night vision work in color?

No, night vision uses infrared LEDs that produce a black and white image. The camera can automatically switch to color mode in low light if the 'color mode' feature is enabled in the app.

How to connect the camera to my Wi-Fi network?

Download the Swann Security app, create an account, then follow the instructions to add a device. Scan the QR code on the back of the camera and connect to your 2.4 GHz Wi-Fi network.

What to do if the camera does not detect motion?

Check the motion detection settings in the app: increase sensitivity and ensure the detection zone is correctly set. Also verify that the camera is not obstructed or too far away.

Can I share camera access with other people?

Yes, in the Swann Security app, go to 'Share' and add the person's email address. They will need to create a Swann account to view the live stream.

How to update the camera firmware?

Open the app, go to the camera's 'Settings', then 'Firmware Update'. The app will automatically search and install the latest version if available.

The camera beeps or makes a strange noise, what to do?

This may indicate a power or connection issue. Check that the adapter is properly plugged in and the cable is not damaged. If the noise persists, contact Swann support.

What is the maximum length of the power cable?

The supplied power cable is approximately 3 meters long. If you need a longer distance, use a quality suitable extension (12V power cable).

USER MANUAL PRO-735 SWANN

Before you begin

Introduction

Congratulations on your purchase of this 700TVL indoor/outdoor day & night CCTV camera from Swann. The 700TVL Day/Night Camera is a color camera that can operate in almost all lighting conditions, from bright daylight (provided it's not pointed straight toward the sun!) to pitch darkness.

The 700TVL is very sensitive to light and therefore can make use of even the smallest amount of light to provide an image of what it sees. In low light, this comes through as a black and white image.

In complete or near-total darkness, the camera uses built-in infrared LEDs to illuminate the area in front of it. This light is invisible to the human eye, although you might notice a faint red glow coming from the front of the camera - this is normal.

In day or well lit environments, the IR Cut Filter feature of the camera activates to filter out wavelengths of light the camera does not need in order to provide a clear color image.

IMPORTANT NOTE

All jurisdictions have specific laws and regulations relating to the use of cameras. Before using any camera for any purpose, it is the buyer's responsibility to be aware of all applicable laws and regulations that prohibit or limit the use of cameras and to comply with the applicable laws and regulations.

WARNING

Modifications not approved by the party responsible for compliance could void user's authority to operate the equipment.

IMPORTANT SAFETY INSTRUCTIONS

• Make sure product is fixed correctly and stable if fastened in place
• Do not operate if wires and terminals are exposed

Connection Guide

Connect the camera's DC and BNC socket cable to the extension cable's DC and BNC plugs. Then connect the BNC extension cable to an open channel on the back of the DVR.

For a single camera:

Connect the extension cable's DC socket to the DC plug on the power adapter.

For 2 & 4 camera packs:

Connect the extension cable's DC socket to the multiple sockets on the power splitter. Then, plug the single end of the power splitter to the DC plug on the power adapter.

Positioning the Cables

• When running your cable, try to avoid bending it at sharp angles.
• Don't put your cable near live electrical wiring. AC electricity generates radio "noise" which can interfere with the signal from your camera.

Mounting the camera

The stand on the 700TVL is deceptively adaptable. At first glance it may appear to limit how many options you have when mounting and aiming the camera, but this is simply untrue. The 700TVL stand is almost infinitely adaptable – it's like the Rubik's Cube of CCTV camera stands!

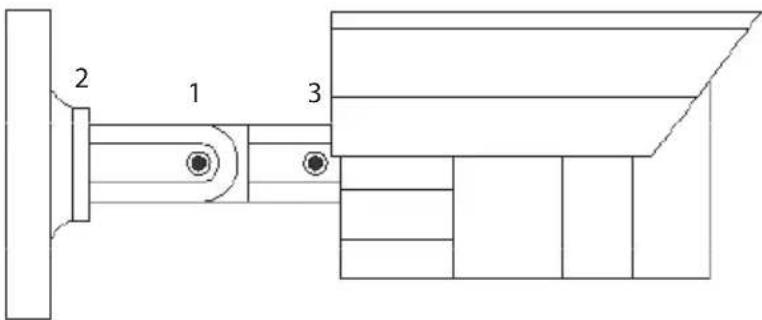

You've got three points of articulation. The most obvious is the locking screw-secured elbow joint in the centre of the stand (1). This one is pretty obvious and straight forward – loosen the screw, adjust to the position you want, and then tighten the screw again to secure in place.

The second point of articulation (2) is the radial joint where the neck of the stand attaches to the base. To adjust this joint, loosen the locking ring by rotating counter-clockwise. Rotate the camera and stand to the position you want then tighten the locking ring. By using articulation points 1 and 2, you can aim the camera in virtually any direction.

Point 3, located where the camera attaches to the stand, is held in place by one locking screw. Like point 2, it is a radial joint, allowing you to rotate the camera so that no matter how points 1 and 2 are configured, the camera can still face upright. Simply loosen the screw, rotate the camera to the upright position (so that up in your pictures is actually up) then tighten the screw to lock into place.

Of course, there will always be some outlying cases where the camera and stand simply won't fit where you want to mount them. Maybe you have a hanging awning, or a drain pipe in an inconvenient spot. In these cases, we suggest obtaining a mounting bracket, which should be available from any good hardware store.

Troubleshooting

On my Swann DVR, ‘Video Loss’ appears where the image from my camera should be.	Check the extension cable (power and video) is securely connected to the camera.Check the video output from the camera is securely connected to a video input channel on the DVR.Check the power from the camera is securely connected to a power supply.
When I view an image from the camera at night I only see a bright spot and no image.	A reflection can be caused in night vision mode if the camera is looking through a window. Move the camera to the other side of the window or to another location.
The BNC extension cable will not connect to my TV.	Many TV’s and monitors do not have a BNC connector but do have an RCA connector. Connect a BNC to RCA adapter (not supplied) to the end of the extension cable and then plug into the RCA socket on your TV or monitor.

Technical Support Details

Swann Technical Support

All Countries E-mail: [e-mail]

Telephone Helpdesk

USA toll free 1-800-627-2799

USA PARTS & WARRANTY 1-800-627-2799

(M-F, 9am-5pm US PT)

AUSTRALIA 1300 138 324

NEW ZEALAND toll free 0800 479 266

UK 0203 027 0979

Swann

Limited Warranty Terms & Conditions

Swann Communications warrants this product against defects in workmanship and material for a period of one (1) year from it's original purchase date. You must present your receipt as proof of date of purchase for warranty validation. Any unit which proves defective during the stated period will be repaired without charge for parts or labour or replaced at the sole discretion of Swann. The end user is responsible for all freight charges incurred to send the product to Swann's repair centres. The end user is responsible for all shipping costs incurred when shipping from and to any country other than the country of origin.

The warranty does not cover any incidental, accidental or consequential damages arising from the use of or the inability to use this product. Any costs associated with the fitting or removal of this product by a tradesman or other person or any other costs associated with its use are the responsibility of the end user. This warranty applies to the original purchaser of the product only and is not transferable to any third party. Unauthorized end user or third party modifications to any component or evidence of misuse or abuse of the device will render all warranties void.

By law some countries do not allow limitations on certain exclusions in this warranty. Where applicable by local laws, regulations and legal rights will take precedence.

For Australia: Our goods come with guarantees which cannot be excluded under Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to major failure.

FCC Verification

This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna
- Increase the separation between the equipment and the receiver
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
- Consult the dealer or an experienced radio/TV technician for help

These devices comply with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) These devices may not cause harmful interference, and
(2) These devices must accept any interference received, including interference that may cause undesired operation.

700TVL
