Product type	All-in-one computer
Brand	ASUS
Model	ET2221INKH
Screen size	21.5 inches
Screen resolution	1920 x 1080 pixels
Processor	Intel Core i5 (generation not specified)
RAM memory	8 GB
Storage	1 TB hard drive
Operating system	Windows 10 Home
Power supply	120 W power adapter
Dimensions (W x H x D)	52.3 x 38.7 x 4.8 cm
Weight	7 kg
Connectivity	Wi-Fi, Bluetooth, USB 3.0, HDMI
Main functions	Office work, Internet browsing, multimedia
Maintenance and cleaning	Clean with a soft dry cloth; do not use abrasive products
Safety	Use on a stable and flat surface; avoid moisture
Included accessories	Keyboard, mouse, power adapter, power cable
Repairability	Spare parts available from the manufacturer
Warranty	2 years

Frequently Asked Questions - ET2221INKH ASUS

How to turn on the ASUS ET2221INKH?

Press the power button located on the back or side of the screen. Wait for the system to start.

How to connect the computer to Wi-Fi?

Click on the network icon in the taskbar, select your Wi-Fi network, enter the password, and click Connect.

My screen remains black, what should I do?

Check that the power adapter is plugged in and the power indicator is on. If the problem persists, contact ASUS support.

How to clean the screen?

Use a slightly damp microfiber cloth (water only). Never use chemicals or glass cleaners.

How to upgrade the RAM?

The ASUS ET2221INKH allows RAM upgrade. Open the rear compartment, insert a compatible module (DDR4 SO-DIMM). Refer to the manual for details.

What to do if the computer overheats?

Place the computer in a well-ventilated area, clean the ventilation grilles with a soft brush, and avoid blocking the vents.

How to restore factory settings?

Go to Settings > Update & Security > Recovery, then click 'Reset this PC' and follow the instructions.

How to connect an external monitor?

Use the HDMI port on the back of the computer. Connect the HDMI cable between the computer and the monitor, then select the appropriate source on the monitor.

Where to find the serial number?

The serial number is on a label on the back of the computer, near the stand. It is also visible in system information.

How to update drivers?

Visit the ASUS support website, download and install the latest drivers for your ET2221INKH model. You can also use Windows Update.

USER MANUAL ET2221INKH ASUS

Before launching your TV Tuner application, check if your digital TV-in or analog TV-in cable is connected.

Launching your TV Tuner Application

To launch ArcSoft TV 5.0 in Windows® 8, do one of the following:

- From the Windows® desktop, click the Arcsoft TV 5.0 icon.

NOTE: The Arcsoft TV desktop shortcut icon is not available for AIO ET2300

- Click ☐ to launch the search screen for applications. Type "Arcsoft" in the search field and click the Arcsoft TV icon from the search results.

Setting up your TV Tuner Application

To set up ArcSoft TV 5.0:

1. On the main menu, click Live TV.

1. The Setup Wizard will launch to guide you through setting up your TV Tuner application. Select your country or region and click Next to continue.

1. The Setup Wizard will attempt to detect the installed TV Tuner device. Select the appropriate TV tuner card which came with your All-in-One PC.

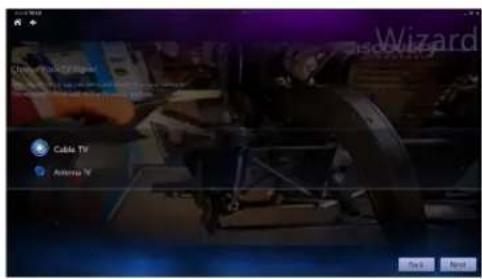

1. Select the type of television service you use.

2. Select Cable TV for cable television.

3. Select Antenna TV for television received via an antenna.

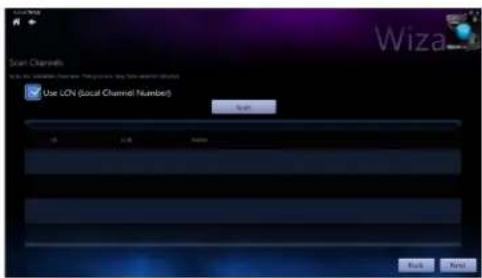

1. Click Scan to begin scanning for available channels.

1. If your All-in-One PC came with both an analog and digital TV tuner, the Setup Wizard will prompt you to set up your second TV tuner.

• Select Yes to set up the second TV Tuner.
- Select No to complete the Setup Wizard.

1. Click Finish to complete the Setup Wizard.

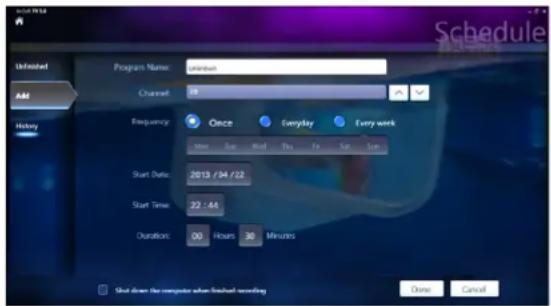

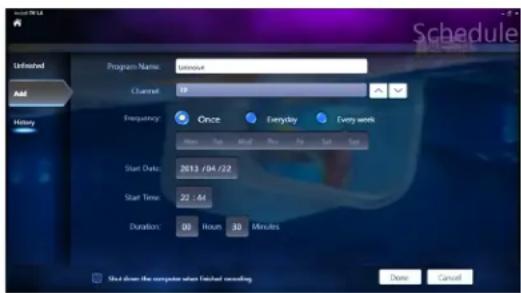

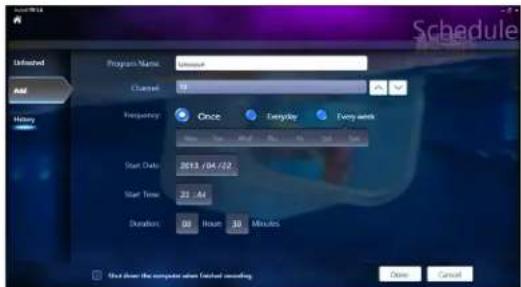

Scheduling recordings of TV broadcasts

To schedule recordings of TV broadcasts:

1. On the main menu, click Schedule.

1. On the left panel, click Add.

2. Configure the following options:

3. Program Name

4. Channel
   Frequency
5. Start Date/Time - Specify the date/time of recording.
   • Duration - Specify length of recording.
6. Shut down the computer when finished recording

1. Click Done to save settings and schedule recording.

NOTE: The All-in-One PC needs to be powered on to automatically record TV broadcasts.

1. To schedule additional recordings, repeat steps 1\~4.

NOTE: The number of recordings you can schedule is limited by the available storage on your All-in-One PC.

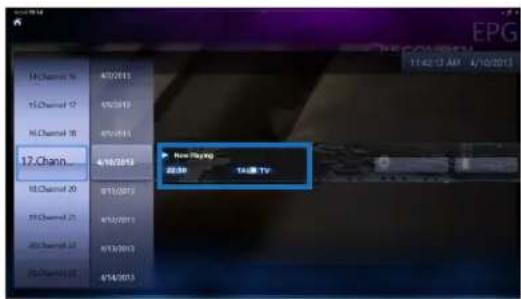

Using the Entertainment Program Guide (EPG)

The EPG displays the time and TV programs playing on a specified channel and date.

NOTE: EPG is only available for All-in-One PCs with a digital TV tuner.

Using the Live TV Onscreen Controls

1 Home button

Click this icon to go to the Arcsoft TV 5.0 main menu.

2 TV/AV

Click this button to toggle between analog TV and digital TV.*

*This item is only available for All-in-One PCs with both an analog and digital TV tuner.

3 Take a screenshot

Click this button to take a screen capture of the video or media playing.

4 Record

Click this button to begin recording the television broadcast.

5 Pause

Click this button to pause recording or playback.

6 Volume Controls

Click this button to display onscreen volume controls to increase/decrease volume.

7 CH-/CH+

Click this button to increase or decrease the channel by one.

8 Add to Favorites

Click this button to add this channel to the Favorites list.

9 Favorites List

Click this button to display list of saved Favorites.

10 Subtitles and Audio Tracks

Click this button to display list of available subtitles and audio channels/tracks.

Using the Remote Control

1 Playback Buttons

Play

Starts playing media. If playback is paused, pressing this button begins playback from the current position.

Pause

Pauses media playback at the current position.

Stop

Stops playing media at the current position.

Record

Record the TV show to disk. If pressed while Live TV is on, records the current show. If pressed from the EPG screen, records a TV show or TV series to disk.

Fast Forward

Speeds up the playback of the media file to the first forward value (3X).

Rewind

Reverses direction of playback and speeds up the time base to the first rewind value (3X).

Skip Forward

Skips forward one increment when this button is pressed.

Skip Back

Skips backward one increment when this button is pressed.

2 Navigation Keys

Press the up/down keys to move through the menu bar in a submenu. Press the up/down keys to decrease/increase a numerical value.

Press the left/right keys to move through the main menus in the Home screen.

Press the left/right keys to move through the items in a submenu.

Press OK to confirm the selection.

Start\*

Takes the user to the Windows Media Center Start menu.

*This button is only available for All-in-One PCs installed with Windows Media Center.

4	Volume controlsPress the (+) button to increase the volume by one unit. Press the (-) button to decrease the volume by one unit.
5	BackMoves back one position in the user interface,
6	Number keys
7	ClearClear any entered user input.
8	Power on/offPress this button to put the All-in-One PC to sleep mode. Press a second time to wake up the system from sleep mode.
9	Media Center Buttons*Record TVDisplays the Recorded TV page in Windows Media Center.GuideDisplays the media guide in Windows Media Center.Live TVShows live TV on the currently selected channel.DVD menuDisplays the DVD menu.*These buttons are only available for All-in-One PCs installed with Windows Media Center.
10	Channel controlsIncreases/decreases the current channel by one.
11	MuteMutes the computer audio.
12	InformationPress to display information about the movie, video, or music.
13	EnterPress this button to select an option or input text.

Media Center Shortcut buttons

Displays the main Radio page in Windows Media Center.

Displays the Music Library in Windows Media Center.

Displays the Picture Library in Windows Media Center.

Displays the Video Library in Windows Media Center.

*These buttons are only available for All-in-One PCs installed with Windows Media Center.

Teletext buttons\*

Press these buttons to access Teletext features when available.

*These buttons are only available for All-in-One PCs installed with Windows Media Center.

NOTE:

• To avail of Windows Media Center features, you can purchase a Windows 8 Media Center Pack separately.
- You can download a version of this manual in a different language at the ASUS support site at http://support.asus.com
