KS 9783 - Refrigerator SEVERIN - Free user manual and instructions

Product Type	Compact Refrigerator
Brand	SEVERIN
Model	KS 9783
Dimensions (H x W x D)	85 cm x 55 cm x 60 cm
Net Weight	25 kg
Net Capacity	95 liters
Climate Class	N-ST (ambient temperature 16 °C to 38 °C)
Energy Class	A+
Annual Energy Consumption	120 kWh/year
Power Supply	220-240 V ~ 50 Hz
Main Features	Adjustable thermostat, LED lighting, removable glass shelves, vegetable drawer, door bins
Reversible Door	Yes
Defrosting	Manual
Noise Level	42 dB
Maintenance and Cleaning	Clean the interior with a soft cloth and soapy water. Do not use abrasive cleaners.
Safety	Adjustable feet for optimal stability; ventilation space required; do not use an extension cord.
Spare Parts and Repairability	Parts available through SEVERIN customer service; repairability score estimated at 7.7/10.
General Information	Appliance intended for domestic use; 2-year warranty; manufactured in accordance with European standards.

Frequently Asked Questions - KS 9783 SEVERIN

How to properly install the KS 9783 refrigerator?

Place the appliance on a flat and stable surface, away from direct sunlight and heat sources. Leave a ventilation space of at least 10 cm at the back and sides. Plug it in after 2 hours of resting if transported horizontally.

How to adjust the temperature of my SEVERIN KS 9783 refrigerator?

Use the rotary thermostat inside. Setting 1 is least cold, setting 7 is coldest. The recommended temperature is 4 °C to 6 °C for the refrigerator compartment.

My refrigerator makes a strange noise, is that normal?

Yes, some noises are normal: gurgling of refrigerant, clicks of the compressor, or humming of the fan. If the noise is very loud or irregular, check that the appliance is level and that there are no objects behind.

Can the door opening direction be reversed?

Yes, the door of the KS 9783 is reversible. Remove the hinges and screws, reverse the door, and reassemble. Consult the manual for detailed steps.

How to clean the interior of the refrigerator?

Unplug the appliance and remove the shelves. Wash them with warm soapy water. Wipe the interior with a soft cloth soaked in water and baking soda. Dry thoroughly before restarting.

Does my refrigerator frost? How to defrost it?

Cooling is static, frost may occur. To defrost, unplug the appliance, remove food, leave the door open, and place towels. Do not scrape ice with a sharp object.

What are the tips for saving energy?

Install the appliance away from heat sources, do not overload, let hot foods cool before storing, open the door briefly, and keep door seals clean.

What are the exact dimensions of the KS 9783?

Dimensions are approximately 85 cm in height, 55 cm in width, and 60 cm in depth. Allow extra space for ventilation.

What to do in case of a power outage?

Do not open the door. The appliance keeps cold for about 4 hours. If the outage lasts longer, consume perishable foods quickly.

Where to find spare parts for the KS 9783?

Contact SEVERIN after-sales service or visit their website. Common parts like shelves and seals are available.

USER MANUAL KS 9783 SEVERIN

Exterior view of a white refrigerator with two doors and a side door (no visible text or symbols)

GB Instructions for use Fridge/freezer combination 12

Line drawing of a rectangular table with a recessed top and legs, no text or symbols present

Line drawing of a rectangular table with a recessed top and two side supports (no text or symbols)

Line drawing of a simple wooden table with legs and a small inset box (no text or symbols)

Technical line drawing of a cabinet or enclosure with internal compartments and mounting brackets (no text or symbols)

Technical line drawing of two identical mechanical assembly setups with no visible text or symbols

Simple line drawing of a ladder with support fixtures and weights (no text or symbols)

Technical line drawing showing mechanical components and assembly (no text or symbols)

Technical line drawing of a cabinet or rack structure with mounting feet and internal compartments (no text or symbols)

Technical line drawing of a mechanical bracket or frame assembly with labeled points A and B (no text or symbols beyond labels)

Technical line drawing of a mechanical frame assembly with mounting brackets and mounting holes (no text or symbols)

Warnung!

Technical line drawing of a mechanical component with an inset showing a magnified detail (no text or symbols)

Before using the appliance, please read the following instructions carefully and keep this manual for future reference. The appliance must only be used by persons familiar with these instructions.

Connection to the mains supply

The appliance should only be connected to an earthed socket installed in accordance with the regulations. Make sure that the supply voltage corresponds with the voltage marked on the rating label. This product complies with all binding CE labelling directives.

• Do not operate this unit by means of a transformer.
• To prevent noise vibration, ensure that the power cord does not touch any part of the rear of the unit

General information

• This appliance is a compressor refrigerator, designed for the short-term storage of food in the main cabinet and long-term storage of food in the freezer compartment.
• Refrigeration appliances are classified into certain climate classes. Please refer to the product data sheet for information on the classification for this unit.
• No responsibility is accepted if damage results from improper use, or if these instructions are not complied with.

Important safety instructions

• This appliance is intended for domestic or similar applications, such as the
• staff kitchens in shops, offices and similar working environments,
• agricultural working environments,
• by customers in hotels, motels etc. and similar accommodation,
• in bed-and breakfast type environments.
• This appliance is not intended for commercial use, nor for use in the catering business or similar wholesale environments.

- The cooling circuit in this appliance contains the refrigerant isobutane (R600a), a natural gas with a high level of environmental

compatibility, which is nevertheless fl ammable. Ensure, therefore, that none of the components of the refrigerant circuit

become damaged during transportation and installation of the appliance. If damage to the cooling circuit does occur, do not switch on or connect the appliance to the mains power. In the case that there is an open fire or any other sources of ignition in the vicinity of the refrigerant gas, make sure it is removed immediately from this area and that the room is then thoroughly ventilated.

- Warning: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. Suffi cient ventilation must be ensured at all times.

- Warning: Do not damage the cooling circuit. Any escaping refrigerant causes damage to the eyes; there is also a danger of the gas igniting.

- Warning: Do not use any external device (e.g.; heaters or heating fans) to accelerate de-frosting; follow only the methods recommended in this manual.

- Warning: Do not operate any electrical appliances (e.g. ice makers) inside the storage compartment that are not specifically permitted in these instructions.

- Before it is connected to the mains power, the unit must be thoroughly checked for transport damage, including its power cord. In the event of any such damage being found, the appliance must not be connected to the mains.

- This appliance is not designed for the storage of explosive substances such as aerosol cans with a flammable propellant.

- If the unit is sold, handed over to a third party or disposed of at a suitable recycling facility, attention must be drawn to the presence of the insulation agent ‘cyclopenthane’ as well as to the refrigerant R600a. For additional information on

correct recycling please refer to the section Disposal.

• In order to comply with safety regulations and to avoid hazards, any repairs or modifications to this unit must be carried out by our authorised service personnel, including the replacement of the power cord.
• This appliance may be used by children (at least 8 years of age) and by persons with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, provided they have been given supervision or instruction concerning the use of the appliance and fully understand all dangers and safety precautions involved.
  • Children must not be permitted to play with the appliance.
  • Children must not be permitted to carry out any cleaning or maintenance work on the appliance.
• For frequent cleaning we recommend the use of warm water with some mild detergent. For detailed information on cleaning the appliance, please refer to the section Defrosting and cleaning.
• If the interior light fails, Customer Service must be contacted for a replacement. For more information, please refer to the section Interior lighting.
  • To prevent the risk of personal injury or damage to the unit, it must only be transported while in its original packaging.
• Caution: Keep any packaging materials well away from children: there is a risk of suffocation.
• The ice removed from the unit during de-frosting is not suitable for human consumption.
• The power cord should be regularly examined for any signs of damage. In the event of such damage being found, the appliance must no longer be used.
• To avoid the risk of fire, do not place any electric appliances on top of the unit. Do not place liquid containers on top of the unit, to prevent any leaking or escaping liquid damaging the electrical insulation.
• This unit is designed for storing food only.
• Alcoholic substances may be stored only in properly sealed containers and in upright positions.
• Do not store any glass bottles containing carbonated or

other freezable liquids in the unit: such bottles may burst during the freezing process.

• To avoid the risk of food poisoning, do not consume food after its storage time has expired. Thawed foods must not be frozen a second time.
• Do not lean or put undue weight on the shelves, compartments, door etc.
• Protect the inside of the refrigerator at all times from open flames and any other sources of ignition.

- Remove the plug from the wall socket

• in case of any malfunction,
• before de-frosting,
• during cleaning,
• before maintenance or repair work is carried out.

- When removing the plug from the wall socket, never pull on the power cord; always grip the plug itself.

- If the unit is not used for an extended period of time, we recommend keeping the door open.

• We reserve the right to introduce technical modifications.

Familiarisation

The components of your refrigerator-freezer unit may differ in quantity and design from those described here. This description refers to a unit of the group of two-compartment refrigerator-freezer combinations.

The unit consists of two parts: refrigerator cabinet and freezer cabinet.

1. Temperature control and interior light
2. Storage shelves (height-adjustable)
3. Storage shelf above fresh storage compartment
4. Vegetable/fruit fresh storage compartment
5. Freezer compartment
6. Freezer compartment

7. Adjustable feet

8. Door storage

9. Bottle storage

Before using for the first time

• Remove any exterior and interior packaging materials completely, including the adhesive strips.
  • The packaging materials must be properly disposed of.
• Before it is connected to the mains, the unit must be thoroughly checked for transport damage, including its power cord.
• Clean the unit as described in the section De-frosting and cleaning.
• For positioning, we recommend that you tilt the unit slightly backwards. In this way, the transport rollers can be used to move it to its intended place of installation.
• The unit should only be transported in its vertical position; do not tilt any more than 30^ .
• Once the unit has been positioned, wait for about 30 minutes before it is connected to the mains.
• If the unit has been tilted more than 30^ during transport, allow it to stand upright for at least 4 hours before it is connected to the mains.
• When the unit is first switched on, a slight 'new' smell may be noticed. However, this will disappear once the cooling process has begun.

Installation

• The appliance should be set up in a well-ventilated, dry room.
- It should be operated in conditions where the relative humidity is no more than 70 %.
- The product data sheet contains details of the ambient temperature range suitable for this appliance.
• Do not use the appliance outdoors.
- Ensure that the plug is accessible and can be removed from the wall socket at any time.
- Do not expose the appliance to direct sunlight, and do not position it next to any heat sources (radiators, cookers etc). If this cannot be avoided, however, suitable insulation must be in installed between the heat source and the unit.
- The unit must not be installed inside a cabinet, nor directly below a hanging cupboard, shelf or similar object.

Ventilation

Ensure that there is enough space around the unit so that the air circulation round and behind it is not obstructed. (Rear, sides and top 10 cm.)

Caution: Ensure at all times that the rear ventilation openings around the top cover are not obstructed.

• In the case of uneven floors, the adjustable feet on the unit can be used to compensate and ensure optimum stability.
• Ensure that the door can swing open to an angle of 160^ .

Reversible door

If required, the door may be reversed, i.e. from right-hinged (default installation) to left-hinged.

To avoid the risk of personal injury or damage to the unit, two people are needed to reverse the door.

Warning: Always disconnect the unit from the mains before any maintenance or repair work is carried out.

Before reversing the door, tip the whole unit rearwards until it is resting on its back. However, ensure that it is resting on a soft, smooth surface to prevent any damage to the unit.

Before you start, please note the following:

• Always ensure that the correct number of washers is used on all hinge bolts and screws.
So that the doors can close tightly against the frame, take the utmost care that they are properly aligned during re-assembly.

1. Remove the screw covers from the top cover.

Line drawing of a rectangular table with a recessed top and legs, no text or symbols present

1. Take out the screws and remove the entire top cover.

Line drawing of a rectangular electronic device with mounting feet and a flat base (no text or symbols)

1. Take off the upper hinge by removing the 3 screws. Remove the hinge pin on the underside of the hinge. Turn the plate around and re-fi t the hinge pin, again from below. Put the hinge assembly aside for now, to be installed later at step 13. Take off the upper door and place it on a soft surface to protect it from scratches.

Line drawing of a simple wooden table with a small object on top (no text or symbols)

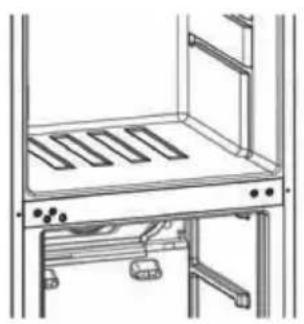

1. Pull out the two screws which hold the centre hinge in position. Remove the hinge, turn it through 180^ and put it aside, to be installed later at step 9. Take off the lower door and place it also on a soft surface to protect it from scratches.

Technical line drawing of a cabinet or enclosure with internal compartments and mounting bracket (no text or symbols)

1. Remove all four of the blind covers over the hinge mounting holes on the left of the unit and the freezer door, and replace them in the corresponding places on the right.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

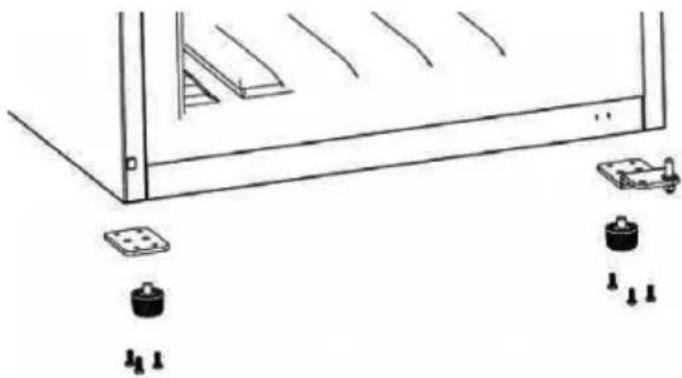

1. Remove both adjustable feet, the screws holding the lower hinge and the mounting plate.

Simple line drawing of a roof structure with support fixtures and mounting base (no text or symbols)

1. Remove the lower hinge and the mounting plate. Unscrew the hinge pin and mount it on the opposite side of the hinge. Now fit the hinge on the left-hand side (Note: do not fully tighten the screws yet). Fit the mounting plate on the right.

Technical line drawings of mechanical components and a storage unit (no text or symbols)

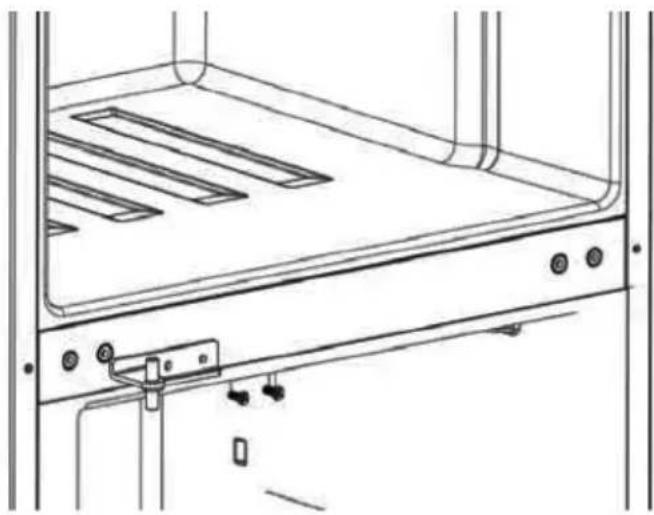

1. Change the hinge-pin set-up on the underside of the freezer door from right to left. Fit the freezer door onto the lower hinge-pin. Align the door along its outside edges, and tighten the screws of the hinge. Now proceed to fit both adjustable feet.

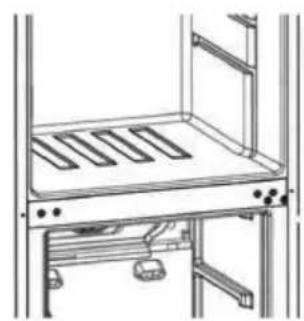

2. Take the centre hinge (removed in step 4), fi t the hinge pin into the corresponding opening on the freezer door and tighten the screws on the hinge.

Technical line drawing of a server rack with ventilation slots and mounting bracket (no text or symbols)

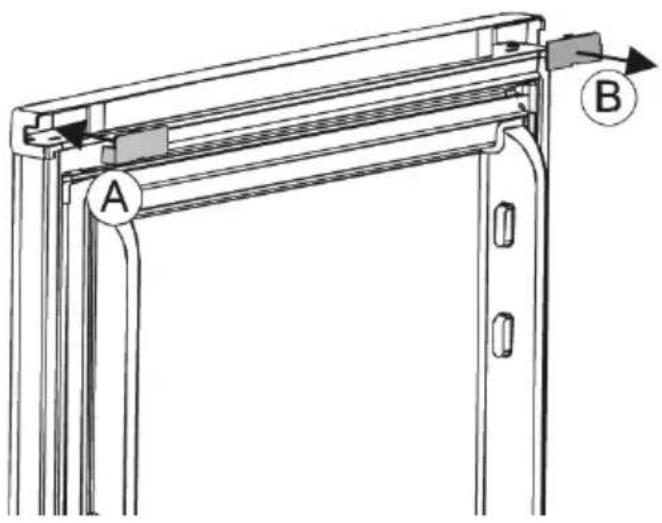

1. Remove the hinge bracket on the lower part of the refrigerator compartment. Take the new hinge bracket (enclosed separately) and fit it to the other side.

2. Remove the upper right hinge cover inside the refrigerator compartment door (B). Fit the new hinge cover (enclosed separately) to the upper left (A).

Technical line drawing of a door frame structure with labeled points A and B (no text or symbols beyond labels)

1. Fit the door of the refrigerator compartment onto the hinge pin of the centre hinge.

2. Place the hinge pin of the upper hinge into the hinge-pin sleeve in the refrigerator compartment door. Secure the hinge by means of the three screws, having first removed any insulation material that may be blocking the screw holes.

3. Move the cover for the hinge recess on the top cover to the opposite side. Replace the top cover on the unit and use the screws to secure it. Finally, replace the four screw covers.

Technical line drawing of a mechanical assembly with two stacked plates and mounting holes (no text or symbols)

Warning

Once the unit has been returned to its upright position and moved to where it is to remain, it must not be connected to the mains for at least four hours.

Temperature control

The unit is re-activated by connecting it to the mains. It is only switched off completely when the plug is removed from the wall socket.

The green mains indicator light shows that the unit is connected to the mains.

The temperature in the refrigerator cabinet can be adjusted by setting the temperature control. Turning the control clockwise will decrease the temperature, while turning it anti-clockwise will increase it.

The medium settings are usually most suitable for home use.

We recommend using a thermometer to check the actual temperature inside the cabinet and make adjustments as necessary.

Following a power interruption, or if the unit has been switched off on purpose, it may take 3 to 5 minutes before it switches on again.

In position '0', the cooling function is switched off, though the appliance is still connected to the mains.

Interior lighting

The appliance is equipped with a long-life LED light. In the case of a defect, please contact Customer Service for assistance. Replacement may only be carried out by Customer Service.

Freezer compartment door

To ensure that frozen food will not de-frost prematurely, the door to the freezer compartment should be kept closed at all times. This will also prevent an undue build-up of ice and frost. Ensure, therefore, that the door is only opened briefly to place food in the freezer compartment or to remove it.

Freezing and storing food

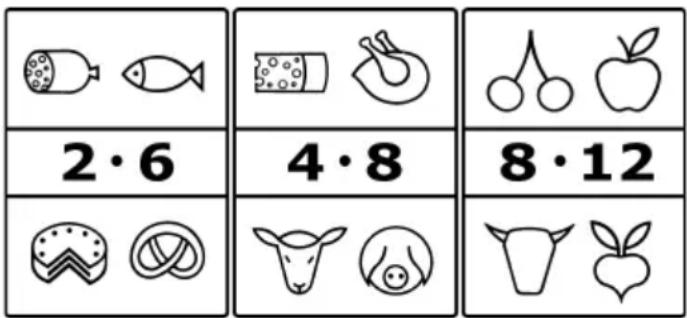

The temperatures inside the refrigerator cabinet and freezer compartment depend mainly on the ambient temperature, the temperature control setting and the amount of food stored.

Freezer compartment:

- The freezer compartment is designed for deep-freezing and long-term storage of frozen food, and for making ice cubes.

• To ensure that nutritious elements such as vitamins are not lost, fresh food should be deep-frozen right through as quickly as possible. To that effect, the prepared food should be placed into the freezer compartments, properly spaced in one or two rows.

- Avoid contact with food that has already been frozen.

- Caution: Do not exceed the maximum freezing capacity per day. The product data sheet contains details of the maximum daily freezing capacity.

- Set the temperature control to Max. After 24 hours, once the food is well frozen, the temperature control can be set back to its original position.

- The time required to freeze food may be shortened by dividing it into smaller portions.

- Suitable packaging materials for frozen food are transparent (i.e. non-coloured) plastic wrap or bags, or aluminium foil. The packaging materials should be well aired before use;

check that the package is air-tight before freezing the food. We strongly recommend that you label every item stored in the freezer with all relevant information such as type of food, freezing date and use-by date.

• Do not attempt to deep-freeze carbonated beverages, warm food or any kind of bottled liquids.
• Frozen food can be defrosted in the refrigerator. This way, the food is defrosted at a slower rate, retaining its taste. Furthermore, the frozen food helps to keep the temperature inside the refrigerator at its intended level.

Use-by dates for frozen food are specified (in months) in the table below.

Do not exceed these storage times.

However, always observe the manufacturer's use-by dates for the frozen food.

- If the unit remains switched off for an extended period (eg during a power failure), the door should be kept closed; this will help to maintain the lowest possible temperature in the cabinet. The product data sheet contains detailed information of the maximum safe storage time in case of malfunction. Even a slight rise in the inside temperature will shorten the storage life of the food.

Main cabinet

• Different areas of the refrigerator cabinet are affected differently by the cooling effect. The warmest area is around the door in the higher part of the cabinet, the coldest around the rear wall and in the lower part of the cabinet.
  • The food should therefore be stored as follows:
• On main cabinet shelves (from top to bottom): bakery items, ready meals, dairy products, meat, fi sh and cold meats/sausages.
  • In the vegetable compartment: vegetables, salad and fruit.
• In the door (from top to bottom): butter, cheese, eggs, tubes (eg mustard), small bottles, large bottles, milk and fruit-juice tetra-packs.
• Initially, the temperature control should be set to position 4. If the cooling effect is too strong, lower it to position 1-3; if it is insufficient, raise it to 5-7.

If you notice frost on the rear wall, the most likely cause is that the door has been left open for too long, or that warm food has been placed inside the refrigerator or that the temperature control has been set too high.

• Liquid or strong-smelling food, or food which is likely to absorb strong odours (e.g. cheese, fi sh, butter), should be stored separately or in hermetically sealed containers.
• Warm food should be left to cool down to room

temperature before being placed in the refrigerator.

• Always ensure that the door is properly closed and that the seal is not obstructed by food stored inside the cabinet or door.

Making ice cubes

A special ice-cube tray is provided for making ice cubes. Fill the tray 34 full with drinking water and place it in the freezer compartment. The ice cubes are easier to remove from the tray if the tray is left standing at room temperature for 5 minutes.

De-frosting and cleaning

- Always remove the plug from the wall socket before cleaning.

Do not pour water over or inside the unit.
- For frequent cleaning we recommend the use of warm water with some mild detergent. To prevent any unpleasant odour within the refrigerator, it should be cleaned about once a month.
- Any accessories should be cleaned separately with soapy water. Do not put them in a dishwasher.
- Do not use abrasives or harsh cleaning solutions or any cleaning agents that contain alcohol.
• After cleaning, thoroughly clean all surfaces with fresh water before wiping them completely dry. When re-inserting the plug into the wall socket ensure that you have dry hands.
- To save energy and to ensure optimum performance, the compressor should be cleaned at least twice a year with a brush or vacuum cleaner.
• Take care not to remove or damage the rating plate inside the cabinet during cleaning.

When de-frosting the freezer compartment

Once the build-up of ice inside the freezer compartment has reached a thickness of 2-4 mm, it needs to be de-frosted. This should be done at least twice a year.

• Ensure that the plug has been removed from the wall socket.
• Remove all food from the compartment and store it in a cool location, eg together with pre-frozen freezer-packs in a closed plastic container. Note that, even with a slight increase in temperature, the storage life will be shortened and the food should be used as soon as possible.
• Keep the door open. To accelerate defrosting, one or several containers with hot (but not boiling) water may be placed inside the freezer compartment.
• Warning: do not use any external device or other means (e.g. heaters or heating fans) to accelerate de-frosting.
  • After cleaning, ensure that the freezer compartment is thoroughly dried and set the temperature control to its maximum position. After 24 hours, it may turned back to its normal setting.

Defrosting the refrigerator cabinet :

The integral vapouriser is sealed in foam in the rear wall; you may therefore notice a build-up of frost around the rear area. This layer of frost will start melting when the compressor is not working. Through a system of hoses, the melt-water drains into the collection tray below the compressor, where it will be

absorbed into the surrounding air. The refrigerator cabinet does not therefore require de-frosting, but only proper cleaning instead.

Technical line drawing of a mechanical component with an inset showing a hand holding a circular component (no text or symbols)

- To enable the melt-water to drain freely, always ensure that the channel and discharge opening in the cabinet are free of any blockage.

Energy saving tips

- The appliance should be set up in a well-ventilated, dry room.

- Do not expose the appliance to direct sunlight, and do not position it next to any heat sources (radiators, cookers etc.). If this cannot be avoided, however, suitable insulation must be installed between the heat source and the unit.

- Ensure sufficient air circulation around the unit.

- The compressor (at the rear) should be cleaned at regular intervals. Accumulated dust causes an increase in energy consumption.

- Warm food should be allowed to cool down before it is stored inside.

• To prevent an increased build-up of ice, do not leave the doors of the unit open for too long when loading or taking out food.

- Frequent de-frosting helps to save energy. For detailed information on cleaning the appliance, please refer to the section De-frosting and cleaning.

- Do not set a lower-than-necessary temperature. For detailed information on the temperature settings, please refer to the section Temperature control.

Trouble-shooting

Certain typical sounds can be heard when the appliance is switched on. These sounds are:

- caused by the electrical motor within the compressor assembly; during compressor start-up the sound level will be slightly higher for a limited period of time.

- caused by the cooling agent flowing through the circuit.

The following table lists possible malfunctions and their probable causes and solutions. In the event of operational problems, check first whether a solution can be found using this table. If the problem persists, disconnect the appliance from the mains power and contact our Customer Service Department.

Problem Possible cause and solution
The appliance is not working at all.	There is a power failureThe main fuse has blown.The temperature control is set to ‘0’.The fuse in the wall socket (if applicable) has blown. This can be checked by connecting another electrical device to the socket and checking for function.
The temperature inside the freezer compartment is not low enough.	Too much food has been stored in the appliance.The doors are not properly closed.There is too much dust on the condenser.Insufficient ventilation: the unit is too close to a wall or other structure or object.The temperature control is set too low.
The normal operating sound changes or becomes louder.	Check for proper positioning (uneven floor?).Are any adjacent objects affected by the running of the cooling unit (i.e. causing them to vibrate?)Are there any objects on top of the unit which might be vibrating?
Water is collecting on the bottom of the unit.	The melt-water drain system is blocked. Remove the blockage and clean the system.

Transporting the appliance

To prevent damage to the unit during transport, ensure that all accessories and components inside and around the appliance are securely fastened.

The unit must only be transported in its vertical position; do not tilt any more than 30^ .

Once the unit has been positioned, wait for about 30 minutes before it is connected to the mains.

If the unit has been tilted more than 30^ during transport, allow it to stand in an upright position for at least 4 hours before it is connected to the mains.

Disposal

This appliance has been manufactured from recyclable materials. After removing the plug from the wall socket, the unit should be rendered unusable by cutting off the power cord before disposing of it through special waste collection points in accordance with local regulations. The refrigerant and the chemical agent in the insulation foam must be disposed of through a competent agency. Take special care not to damage the cooling circuit before the unit is handed over for such disposal.

Guarantee

This product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modified, repaired or interfered with by any unauthorised person, or damaged through misuse.

This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal rights you may have as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase.

Information needed by the Customer Service Department Should repairs to the appliance become necessary, please contact our Customer Service Department, providing a detailed fault description and quoting the model number KS ... on the rating plate of the appliance (see picture). This information will help us to handle your request efficiently.

In case of any malfunction or other problem, please contact our Customer Services Department. The address can be found in the appendix to this manual.

Product data sheet

Art. no. KS 9783
Product category Fridge/freezer
Energy efficiency classification	A+++
Energy consumption in kWh/year 131
The actual consumption depends on the pattern of use and the location of the appliance
Usable refrigerator capacity (litres) 176
Usable capacity * * * * - Freezer unit (litres)	65
Frost-free : freezer unit no
Frost-free : refrigeration unit yes
Safe storage time in case of malfunction, hrs. 15
Freezing capacity, kg/24h 3
Climate classifi cation T
Ambient temperature range, °C 16-43°C
Noise emission 41 dB(a)
Dimensions (H x W x D) in mm 1800 x 554 x 566
Weight (kg)	59
Electrical specifi cations	See rating plate

Chère cliente, Cher client,

Warning symbol of a flame inside a triangle (no text or numbers)

Line drawing of a rectangular table with a recessed top and legs, no text or symbols present

Line drawing of a rectangular table with a recessed top and two side supports (no text or symbols)

Line drawing of a simple wooden table with a small object on top (no text or symbols)

Technical line drawing of a cabinet or rack with internal compartments and mounting bracket (no text or symbols)

Technical line drawing of two identical mechanical assembly setups with no visible text or symbols

Simple line drawing of a ladder leaning against a wall, with small blocks and weights on the floor (no text or symbols)

Technical line drawing showing mechanical assembly steps with no visible text or symbols

Technical line drawing of a mechanical assembly with mounting brackets and a sliding mechanism (no text or symbols)

Technical line drawing of a door frame structure with labeled points A and B (no text or symbols beyond labels)

Technical line drawing of a mechanical assembly with two stacked plates and mounting brackets (no text or symbols)

Avertissement

Technical line drawing of a mechanical component with an inset showing a hand holding a tool inside a gear mechanism (no text or symbols)

- in bed and breakfast gasthuizen.

Line drawing of a rectangular table with a recessed opening, supported by four legs (no text or symbols)

Line drawing of a rectangular frame mounted on a stand, with mounting holes and support legs (no text or symbols)

Line drawing of a simple wooden table with a flat top and a small object on the side (no text or symbols)

Technical line drawing of a cabinet or storage unit with internal compartments and mounting bracket (no text or symbols)

Technical line drawing of two identical mechanical assembly setups with no visible text or symbols

Simple line drawing of a ladder leaning against a wall, with small weights and a scale on the ground (no text or symbols)

Technical line drawing showing mechanical assembly steps with no visible text or symbols

Technical line drawing of a cabinet or rack structure with mounting holes and a handle (no text or symbols)

Technical line drawing of a mechanical bracket or frame structure with labeled points A and B (no text or symbols beyond labels)

Technical line drawing of a mechanical assembly with two stacked plates and mounting holes (no text or symbols)

Waarschuwing

Vriezer compartiment:

Technical line drawing of a mechanical component with an inset showing a hand holding a tool inside a bracket (no text or symbols)

Puesta en marcha

Line drawing of a rectangular table with a recessed top and legs, no text or symbols present

Line drawing of a rectangular frame mounted on a stand, with mounting holes and support legs (no text or symbols)

Line drawing of a simple wooden table with a flat top and side legs, no text or symbols present

Technical line drawing of a cabinet or enclosure with internal compartments and mounting bracket (no text or symbols)

Technical line drawing of two identical mechanical assembly setups with no visible text or symbols

Simple line drawing of a ladder setup with a ladder, two blocks, and a weight scale (no text or symbols)

Technical line drawing showing mechanical assembly steps with no visible text or symbols

Technical line drawing of a mechanical or electrical component with no visible text or symbols

Technical line drawing of a mechanical bracket or frame structure with labeled points A and B (no text or symbols beyond labels)

Technical line drawing of a mechanical assembly with two stacked plates and mounting brackets (no text or symbols)

Advertencia

Technical line drawing of a mechanical component with an inset showing a hand holding a circular component (no text or symbols present)

Warning symbol of a flame inside a triangle (no text or numbers)

Simple line drawing of a rectangular table with legs and a recessed top, no text or symbols present.

Line drawing of a rectangular table with a recessed top and two side supports (no text or symbols)

Line drawing of a simple wooden table with a flat top and side legs, no text or symbols present

Technical line drawing of a mechanical cabinet or enclosure with internal compartments and mounting bracket (no text or symbols)

Technical line drawing of two identical mechanical or electrical device compartments with no visible text, numbers, or symbols.

Simple line drawing of a ladder setup with a ladder, weights, and a support frame (no text or symbols)

Technical line drawing showing mechanical components and assembly (no text or symbols)

Technical line drawing of a server rack with mounting bracket and control panel (no text or symbols)

Technical line drawing of a door frame structure with labeled points A and B (no text or symbols beyond labels)

Technical line drawing of a mechanical assembly with two stacked plates and mounting brackets (no text or symbols)

Avvertenza

Technical line drawing of a mechanical component with an inset showing a hand holding a circular component (no text or symbols)

1. Temperaturregulering og indvendigt lys
2. Opbevaringshylder (højdejusterbare)
3. Opbevaringshylde over grøntsagsskufferne
4. Skuffer til grøntsager og frisk frugt
5. Frostboks
6. Frostboks
7. Justerbare ben
8. Opbevaring i døren
9. Flaskeopbevaring

Før brug

Simple line drawing of a rectangular table with legs and a recessed top, no text or symbols present.

Line drawing of a rectangular frame mounted on a stand, with mounting holes and support legs (no text or symbols)

Line drawing of a simple wooden table with a flat top and two small items on the side (no text or symbols)

Technical line drawing of a cabinet or enclosure with internal compartments and mounting brackets (no text or symbols)

Technical line drawing of two identical mechanical assembly setups with no visible text or symbols

Simple line drawing of a ladder leaning against a wall, with small blocks and a ruler nearby (no text or symbols)

Technical line drawing showing assembly steps of a mechanical component (no text or symbols present)

Technical line drawing of a cabinet or rack structure with mounting feet and internal compartments (no text or symbols)

Technical line drawing of a door frame structure with labeled points A and B (no text or symbols beyond labels)

Technical line drawing of a mechanical assembly with two stacked plates and mounting brackets (no text or symbols)

Advarsel

Technical line drawing of a mechanical component with an inset showing a hand operating a circular component (no text or symbols)

Warning symbol of a flame inside a triangle (no text or numbers)

Line drawing of a rectangular table with a recessed top and legs, no text or symbols present

Line drawing of a rectangular frame with supports and mounting holes, no text or symbols present

Line drawing of a simple wooden table with a flat top and side legs, no text or symbols present.

Technical line drawing of a cabinet or storage unit with internal compartments and mounting bracket (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Simple line drawing of a ladder setup with two blocks and a ladder, no text or symbols present

Diagram showing three mechanical components with arrows indicating assembly or alignment (no text or symbols)

Simple line drawing of a storage rack with three boxes and a small object nearby (no text or symbols)

Technical line drawing of a cabinet or rack structure with mounting holes and a handle (no text or symbols)

Technical line drawing of a door frame structure with labeled points A and B (no text or symbols beyond labels)

Technical line drawing of a mechanical assembly with two stacked components and mounting holes (no text or symbols)

Varning

Technical line drawing of a mechanical component with an inset showing a hand holding a circular component (no text or symbols)

Warning symbol of a flame inside a triangle (no text or numbers)

Line drawing of a rectangular table with a recessed top and legs, no text or symbols present

Line drawing of a rectangular frame mounted on a stand, with no text or symbols present.

Line drawing of a simple wooden table with a flat top and two small items on the side (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Simple line drawing of a mechanical assembly with mounting feet and a ladder (no text or symbols)

Diagram showing three mechanical components with arrows indicating assembly or alignment (no text or symbols)

Simple line drawing of a storage rack with three small objects below (no text or symbols)

Technical line drawing of a mechanical or electrical component with no visible text or symbols

Technical line drawing of a door frame structure with labeled points A and B (no text or symbols beyond labels)

Technical line drawing of a mechanical assembly with two stacked components and mounting holes (no text or symbols)

Varoitus

Technical line drawing of a mechanical component with an inset showing a hand holding a circular component (no text or symbols)

Warning symbol of a flame inside a triangle (no text or numbers)

Line drawing of a rectangular table with a recessed opening, supported by two legs (no text or symbols)

Line drawing of a rectangular frame with supports and mounting holes (no text or symbols)

Line drawing of a simple wooden table with a small inset showing a small object, no text or symbols present.

Technical line drawing of a cabinet or rack structure with mounting bracket and clamping mechanism (no text or symbols)

Technical line drawing of two identical mechanical assembly setups with no visible text or symbols

Technical line drawing of a mechanical assembly with mounting base and supporting components (no text or symbols)

Technical line drawing showing mechanical assembly steps with no visible text or symbols

Technical line drawing of a cabinet or rack structure with mounting brackets and a handle (no text or symbols)

Technical line drawing of a door frame structure with labeled points A and B (no text or symbols beyond labels)

Technical line drawing of a mechanical assembly with two stacked plates and mounting holes (no text or symbols)

Ostrzeżenie

Regulator temperature

Technical line drawing of a mechanical component with an inset showing a hand holding a circular component (no text or symbols)

Warning symbol of a flame inside a triangle (no text or numbers)

Line drawing of a rectangular tray with a recessed opening, supported by four legs (no text or symbols)

Line drawing of a rectangular frame mounted on a stand, with mounting holes and support legs (no text or symbols)

Line drawing of a simple wooden table with a flat top and two small items on the side (no text or symbols)

Technical line drawing of a cabinet or enclosure with internal compartments and mounting bracket (no text or symbols)

Technical line drawing of two identical mechanical assembly setups with no visible text or symbols

Simple line drawing of a ladder setup with a ladder, two blocks, and a weight scale (no text or symbols)

Technical line drawing showing mechanical components and assembly (no text or symbols)

Technical line drawing of a cabinet or rack structure with mounting brackets and control knobs (no text or symbols)

Technical line drawing of a door frame with labeled points A and B (no text or symbols beyond labels)

Technical line drawing of a mechanical assembly with two stacked plates and mounting brackets (no text or symbols)

Προειδοποίηση

Technical line drawing of a mechanical component with an inset showing a hand holding a circular component (no text or symbols present)

Line drawing of a rectangular table with a recessed top and legs, no text or symbols present

Line drawing of a rectangular table with a recessed top and two side supports (no text or symbols)

Line drawing of a simple wooden table with a small object on top (no text or symbols)

Technical line drawing of a cabinet or enclosure with internal compartments and mounting brackets (no text or symbols)

Technical line drawing of two identical mechanical assembly setups with no visible text or symbols

Technical line drawing of a mechanical assembly with mounting base, clamps, and support components (no text or symbols)

Technical line drawing showing mechanical components and assembly (no text or symbols)

Technical line drawing of a cabinet or rack structure with mounting brackets and control knobs (no text or symbols)

Technical line drawing of a door frame with labeled points A and B, showing structural components without any text or symbols.

Technical line drawing of a mechanical assembly with two stacked plates and mounting brackets (no text or symbols)

Предупреждение!

Technical line drawing of a mechanical component with an inset showing a hand holding a textured component (no text or symbols)

2/F., Block A, Dong He Industrial Building

Yue He Street, Sha Shen Road, Sha Tou Jiao

Shenzhen

Tel.: [phone] or 25550852

Fax: [phone] or 25357498

eMail: [e-mail]

Web: http://www.severinchina.com

Czech Republic

BVZ Commerce s.r.o.

Parkerova c.p. 618

CZ 25067 Klecany

Tel.: [phone]

Fax: [phone]

Danmark

F&H of Scandinavia A/S

Gl. Skivevej 70

DK-8800 Viborg

Tel.: [phone]

Fax: [phone]

F-67210 OBERNAI CEDEX

Tel.: [phone]

Fax: [phone]

eMail: [e-mail]

Web: http://www.severin.fr

Greece

BERSON

C. Sarafi dis Bros. S.A.

Agamemnonos 47

176 75 Kallithea, Athens

Tel.: [phone]

Philippos Business Center

Service Post of Thermi

570 01 Thessaloniki, Greece

Tel.: [phone]

Hong Kong

Pacifi c Coff ee Company

7/F Hollywood Centre, 233 Hollywood Road,

Sheung Wan, Hong Kong

Tel.: [phone]

Fax: [phone]

eMail: espresso@pacifi ccoff ee.com

India

Zansaar

1210, 2nd Floor

Fawar Manor, 100ft Road

Indiranagar, Bangalore 560 038

Tel.: [phone]

eMail: [e-mail]

Web: http://www.zansaar.com

Iran

IRAN-SEVERIN KISH CO. LTD.

No. 668, 7th. Floor

Bahar Tower

Ave. South Bahar

TEHRAN - IRAN

Tel.: [phone]

Fax: [phone]

[e-mail]

www.iranseverin.com

Iraq

Al JOUD Home Appliances Manufacturing Co. Ltd

PIC: Eng. Ahmad Al-Sharabi

Al Joud Building Karadat Kharej

Baghdad - Iraq

Tel.: [phone]

[phone]

[phone]

Ireland

Bluestone Sales & Distribution Ltd

26 Oaktree Business Park

Trim Co Meath Ireland

Tel.: [phone]

Fax: [phone]

Web: www.bluestone.ie

Italia

via Dino Col 52r-54r-56r,

I - 16149 Genova

Green Number: 800224155

Tel.: [phone]

Fax: [phone]

e-mail: [e-mail]

Jordan

J.L.C.

P.O. Box 910330

Mecca Street, Jaber Complex Building No. 193

Amman 11191 Jordan

Tel: [phone]

Korea

Jung Shin Electronics co., Ltd.

501, Megaventuretower 77-9,

Moonrae-Dong 3ga, Yongdeungpo-Gu

Seoul, Korea

Tel: [phone]\~7

Fax: [phone]

Service Hotline: [phone]

Kuwait

Mohammed Abdulrahman Al Bahar

Al Bahar Building P.O. Box 148

Safat 13002 Kuwait

Tel: [phone]

Latvia

SERVO Ltd.

Mr. Janis Pivovarenoks

Tel: [phone]

Lebanon

Khoury Home

7th Floor, Cité Dora 3 Building, Dora

P.O.Box 70611

Antelias, Lebanon

Tel: [phone]

Fax:[phone]

eMail: [e-mail]

Internet: www.khouryhome.com

Luxembourg

Ser-Tec

GHALA 112, P.O. Box 996

Muscat Sultanate of Oman

Tel.: [phone]

Fax.: [phone]

Philippines

COLOMBO MERCHANT PHILIPPINES, INC.

Mezzanine 1, South Center Tower

2206 Venture Street, Madrigal Business Park

Alabang, Muntinlupa City

Tel.: [phone]

eMail: [e-mail]

Polska

SERV- SERWIS SP. Z 0.0.

UL. WSCHODNIA 4

46-070 CHMIELOWICE K/OPOLA

Tel: [phone]

Fax: [phone]

Serbia and Montenegro

tel: + 381-21-524-638

tel: [phone]

fax: [phone]

Singapore

Beste (S) Pte. Ltd.

Tagore Building

6 Tagore Drive, #03-04

Singapore 787623

Tel.: [phone]

Fax: [phone]

eMail: [e-mail]

Slovenia

SEVTIS d.o.o.

Smartinska 130

1000 Ljubljana

Tel: [phone]

Fax: [phone]

Slowak Republic

PREMT,s.r.o.

Skladová 1

917 01 Trnava

Tel: [phone]

Fax: [phone]

eMail: [e-mail]

South Africa

AL.CD. Ashley (Pty) Ltd

ABSA on Grove

Grove Avenue

Claremont, Cape Town 7708

Tel.: [phone]

Fax: [phone]

eMail: [e-mail]

Web: www.alcdashley.co.za

Svenska

Rakspecialisten HS

Möllevångsgatan 34

214 20 Malmö

Tel.: [phone]

Fax: [phone]

eMail: [e-mail]

Switzerland

VB Handels Sàrl GmbH

Postfach 306

1040 Echallens

Tel: [phone]

Fax: [phone]

mail: [e-mail]

Syria

Joud Industries Domestic Appliances Co.

P.O. Box 199 or 219

Motorway entrance

Lattakia - Syria

Tel.: [phone]

[phone]

Fax: [phone]

Thailand

Verasu Ltd. part.

83/7 Wireless Rd., Lumpini,

Patumwan, Bangkok 10330

Tel.: [phone]

eMail: [e-mail]

United Arab Emirates

Juma al Majid Est

P.O. Box 156

Dubai U.A.E.

Tel.: [phone]

Fax: [phone]

eMail: [e-mail]

Web: www.al-majid.com

United Kingdom

Homespares Centres Limited

Firwood Industrial Estate

Thicketford Road

Bolton, BL2 3TR

Tel.: [phone]

Fax: [phone]

eMail: offi [e-mail]

Web: www.hscl.info

Vietnam

Brand Partner

W.22, D. Binh Thanh

180/38 Nguyen Huu Canh Street

Ho Chi Minh City. Vietnam

Tel.: [phone]

Fax: [phone]

eMail: [e-mail]

Stand: 08.2014 (Special Edition)
