Product type	Toaster
Brand	DeLonghi
Model	Distinta CTI 4003
Number of slots	2
Power	800-1000 W
Power supply voltage	220-240 V, 50/60 Hz
Browning control	6 positions
Additional functions	Defrost, reheat, manual stop
Automatic bread centering	Yes
Removable crumb tray	Yes
Dimensions (W x H x D)	28 x 20 x 18 cm
Weight	1.5 kg
Cord length	0.8 m
Housing material	Brushed stainless steel
Safety	Automatic shut-off if jammed, thermally insulated surface
Care and cleaning	Empty crumb tray regularly, wipe with a damp cloth
Spare parts	Crumb tray, power cord (available on request)
Repairability	Repairability index not provided
Warranty	2 years
General information	Design 2-slot toaster with rotary controls

Frequently Asked Questions - Distinta CTI 4003 DELONGHI

How to use the Distinta CTI 4003 toaster?

Insert the bread into the slots, set the browning level (1-6) with the rotary knob, then lower the lever. The appliance stops automatically. You can also use the defrost or reheat functions.

How to clean the crumb tray?

Pull out the crumb tray located under the appliance, empty it and wash it with soapy water. Dry it before putting it back. Do this regularly to avoid fire hazards.

What to do if bread gets stuck in the toaster?

First unplug the appliance. Use the manual stop button or wooden tongs to remove the bread. Never use metal utensils to avoid damaging the heating elements.

How to adjust the toasting level?

Turn the browning knob to the desired position (1 for light, 6 for dark). Do a test to find your preference.

Can I toast frozen bread?

Yes, use the defrost function: lower the lever then press the dedicated button. The cycle will be extended to defrost and toast.

Does the toaster get too hot on the outside?

The surface is thermally insulated, but it can become hot. Do not touch metal parts during use.

How to change the power cord?

The cord is not removable. If damaged, contact DeLonghi after-sales service. Do not attempt to repair it yourself.

What types of bread can I use?

All types of sliced bread, brioche slices, bagels (cut). Avoid pieces that are too thick or too long that might jam the slots.

Does the toaster stop automatically?

Yes, it is equipped with automatic shut-off at the end of the cycle and in case of overheating. You can also interrupt the cycle at any time with the stop button.

Where to find spare parts?

Contact DeLonghi customer service or an authorized dealer. The crumb tray and cord are the most requested parts.

USER MANUAL Distinta CTI 4003 DELONGHI

Interior view of a toaster oven with a tray holding various food items (no visible text or labels)

Close-up of a mechanical component with transparent glass panels and black components (no visible text or symbols)

Close-up of a toaster oven with open food being cooked, next to a rotary control knob (no visible text or symbols)

Návod k použití

Návod na použitie

Instrukcja obsługi

Bruksanvisning

Bruksanvisning

Brugsanvisning

Käyttöohjeet

Upute za uporabu

Navodila za uporabo

A) If your appliance comes fitted with a plug, it will incorporate a 13 Amp fuse. If it does not fit your socket, the plug should be cut off from the mains lead, and an appropriate plug fitted, as below.

WARNING: Very carefully dispose of the cut off plug after removing the fuse: do not insert in a 13 Amp socket elsewhere in the house as this could cause a shock hazard.

With alternative plugs not incorporating a fuse, the circuit must be protected by a 15 Amp fuse. If the plug is a moulded-on type, the fuse cover must be re-fitted when changing the fuse using a 13 Amp Asta approved fuse to BS 1362. In the event of losing the fuse cover, the plug must NOT be used until a replacement fuse cover can be obtained from your nearest electrical dealer. The colour of the correct replacement fuse cover is that as marked on the base of the plug.

B) If your appliance is not fitted with a plug, please follow the instructions provided below:

WARNING - THIS APPLIANCE MUST BE EARTHED

IMPORTANT

The wires in the mains lead are coloured in accordance with the following code:

Green and yellow: Earth

Blue: Neutral

Brown: Live

As the colours of the wires in the mains lead may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The green and yellow wire must be connected to the terminal in the plug marked with the letter E or the earth symbol

or coloured green or green and yellow.

The blue wire must be connected to the terminal marked with the letter N or coloured black.

The brown wire must be connected to the terminal marked with the letter L or coloured red.

Description of appliance

A Top heating element

B Inside light (certain models only)

C Wire rack - (*) Certain models only

D Bake pan (certain models only)

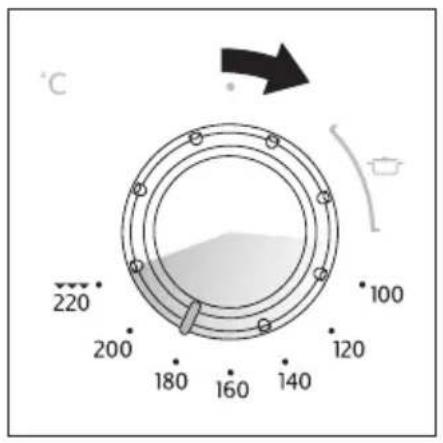

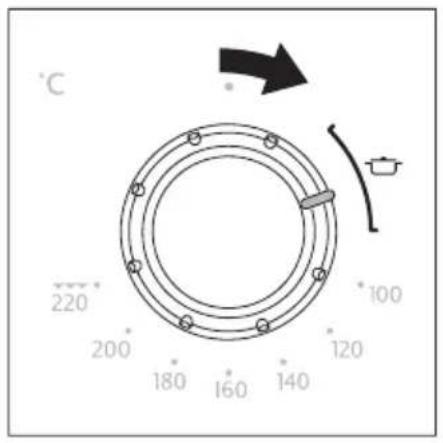

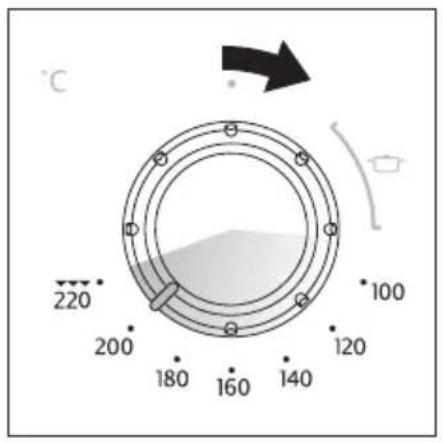

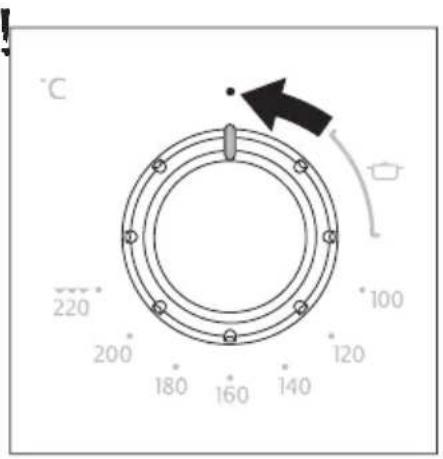

E Thermostat dial

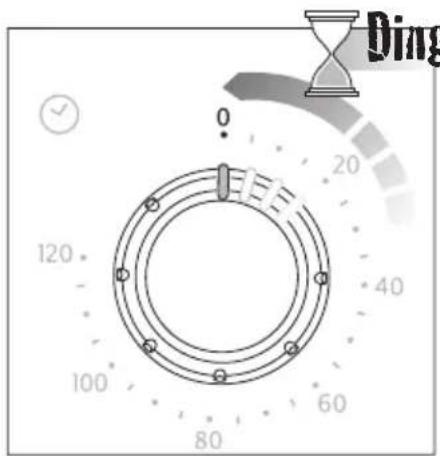

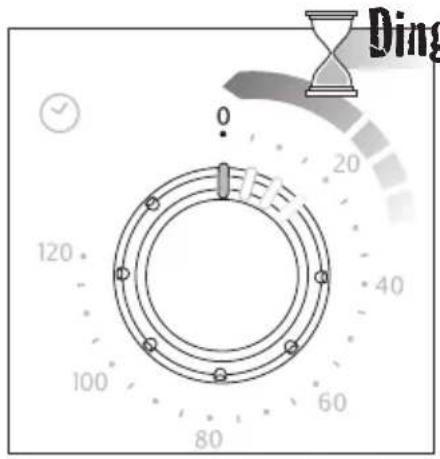

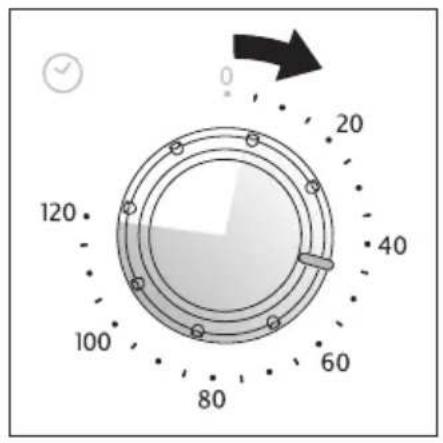

F Timer dial

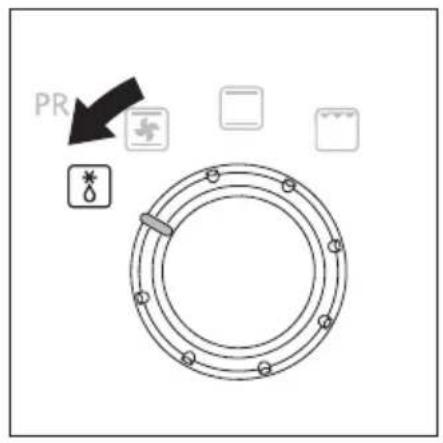

G Function selector dial

H Thermostat light

I Bottom heating element

L Glass door

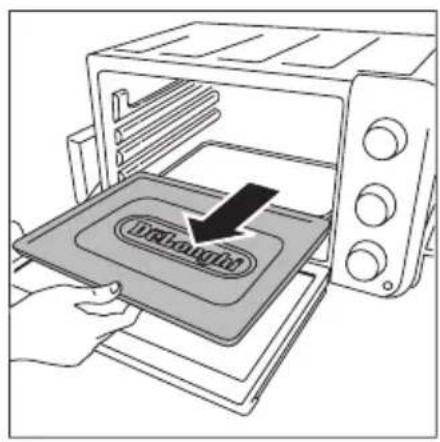

M Crumb tray

Technical data

Voltage: 220-240 V \~ 50/60Hz

Absorbed power: 1400 W

Size LxHxD: 490 x 235 x 370

Weight: E012012 6.6 kg - E012562 8.1 kg

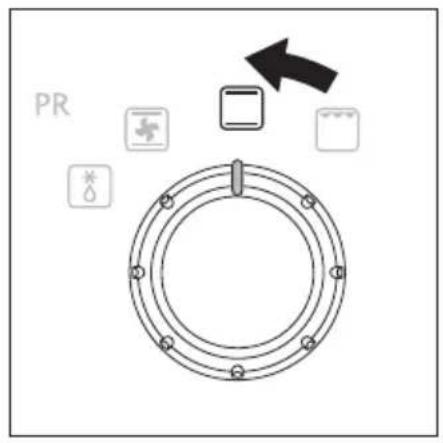

Functions

GRILL FUNCTION ideal for grilling food

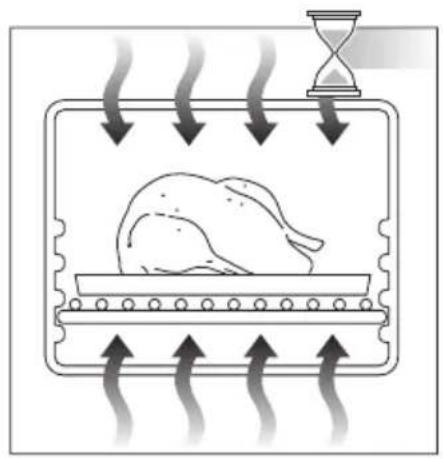

TRADITIONAL OVEN FUNCTION ideal for all types of traditional cooking

DEFROSTING FUNCTION ideal for defrosting all products (certain models only)

CONVECTION ideal for quicker more even cooking (certain models only)

KEEPING FOOD WARM

Thermostat light

The thermostat light (H) lights when the oven is on and turns off when the oven reaches the set temperature.

Important safeguards

Read all the instructions carefully before using the appliance. Keep these instructions.

Please note:

This symbol identifies important advice or information for the user.

- Before using the oven for the first time, remove any paper and other material inside the oven such as protective cardboard, booklets, plastic bags, etc.

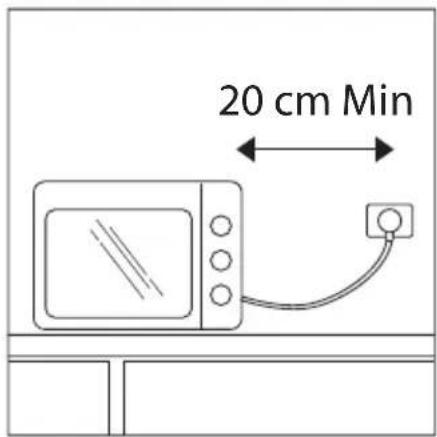

• The appliance must be kept at a distance of at least 20 cm from the mains power socket to which it is connected.
• Before using for the first time, operate the oven empty with the thermostat at maximum for at least 15 minutes to eliminate the "new" smell and any smoke caused by the presence of protective substances applied to the heating elements before transport. Ventilate the room.
  • Wash all accessories before use.

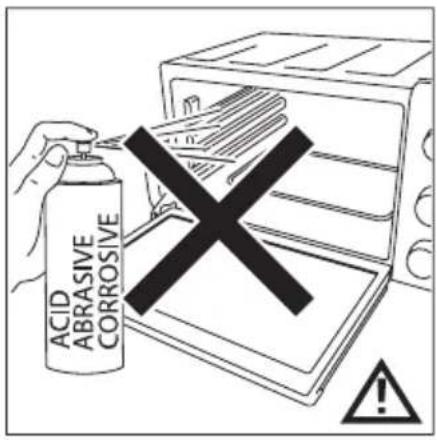

• Never use corrosive or acid or aggressive detergent clean the oven cavity or the accessories.

! Important!

Failure to observe the warning could result in injury or damage to the appliance.

• This oven is designed to cook food. It must never be used for other purposes, modified or tampered with in any way.
  • After unpacking the appliance, make sure the door is undamaged and working correctly.

The door is made from glass and is therefore fragile. If it is visibly chipped, scored or scratched, it should be replaced. While using, cleaning or moving the appliance, avoid slamming or knocking the door violently. Do not pour cold liquid onto the glass while the appliance is hot.

• Place the appliance on a horizontal surface at a height of at least 85 cm and out of reach of children.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should be supervised to ensure that they do not play with the appliance.

Cleaning and user maintenance shall not be made by children, unless they are more than eight years old and under constant supervision.

- Keep the appliance and power cable

away from children under eight years of age.

• Do not move the appliance while in use.
• Do not use the appliance if:
- The power cable is faulty
- The appliance has been dropped, is visibly damaged or malfunctioning.
In these cases, to avoid all risk take the appliance to your nearest authorised customer services.
• Never position the appliance near heat sources.
• Do not use the appliance as a heat source.
- Never place paper, cardboard or plastic inside the oven and never rest anything on top of the appliance (utensils, wire racks, other objects).
- Never insert anything into the ventilation. Make sure they are unobstructed.
• This oven is not designed for built-in installation.
- Do not rest heavy objects, boiling pans or containers on the open door.
Do not pull the handle downwards.

- Professional or inappropriate use, or failure to observe the instruction for use absolves the manufacturer from all responsibility and invalidates the guarantee.

- This is a household appliance only. It is not intended to be used in: staff kitchen areas in shops, offices and other working environments, farm houses, hotels, motels and other residential type environments, bed and breakfast type environments.

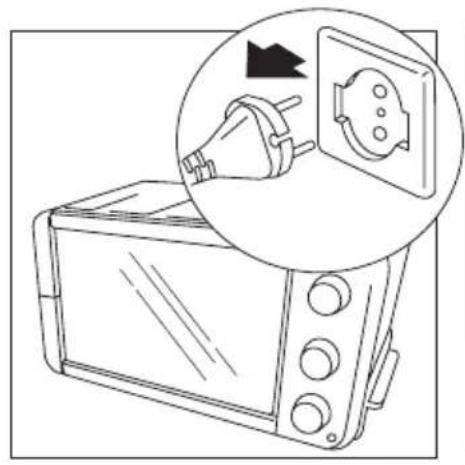

- When not in use and before cleaning, always unplug the appliance.

- This appliance must not be operated by a timer or a separate remote control system.

- The appliance must be placed and operated with the back next to the wall.

- Do not use pointed or sharp metal objects to clean the bread pan.

- Before cleaning, always turn the appliance off by setting the timer to "0" and unplugging it from the mains socket.

Danger of burns!

Failure to observe the warning could result in scalds or burns.

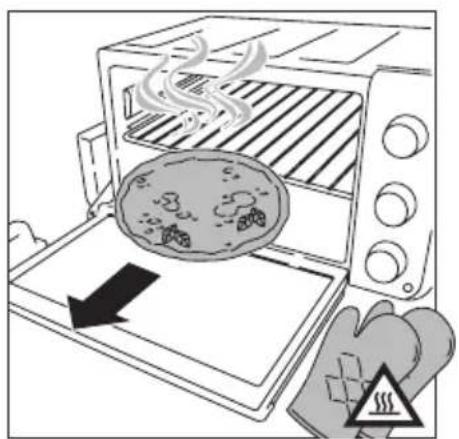

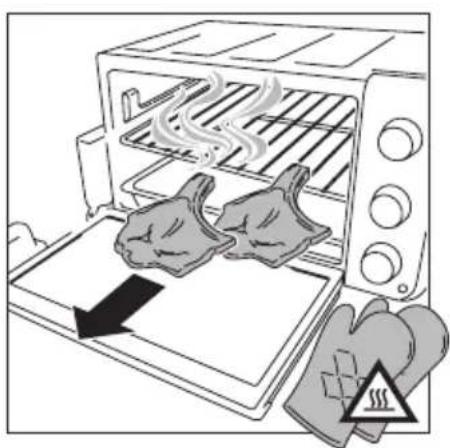

• When in operation, the door and accessible external surfaces could become very hot. Always use the knobs, handles and buttons. Never touch metal parts or the glass. Use oven gloves if necessary.
• This electrical appliance operates at high temperatures which could cause burns.
• Do not leave inflammable products near the oven or under the work surface where it is located.
• Never operate the appliance under a wall cupboard or shelf or near inflammable materials such blinds, etc.
• If food or other parts of the oven catch fire, never try and put out the flames with water.
  Close the door, unplug from the mains and smoother the flames with a damp cloth.

Danger!

Failure to observe the warning may result in life threatening injury by electric shock.

• Before plugging into the mains, make sure that:
- The mains voltage corresponds to the voltage indicated on the rating plate.
- the mains socket is earthed and has a minimum rating of 16A.

The manufacturer declines all liability in the event that this important accident-prevention rule is not respected.

- Do not let the power cable dangle and avoid touching hot parts of the oven.

Never unplug the appliance by pulling on the power cable.

- If you intend to use an extension, make sure it is in good condition, that the plug is earthed and that the cross section of the wires is at least equal to that of the power cable provided with the appliance.

• To avoid all risk of electric shock, never immerse the power cable, plug or appliance itself in water.
• If the power cable is damaged, it must be replaced by the manufacturer, the manufacturer's customer services or a qualified electrician in order to eliminate all risk.
• For your personal safety, never take the appliance to pieces on your own. Always contact customer services.

CE

The appliance complies with the following EU direc- s:

• Low Voltage Directive 2006/95/EC and subsequent amendments;
• EMC Directive 2004/108/EC and subsequent amendments;
• Materials and accessories coming into contact with food conform to European regulation (EC) no. 1935/2004.

Disposal

In compliance with European directive 2002/96/EC, the appliance must not be disposed of with household waste, but taken to an authorised waste separation and recycling centre.

Description appareil

tangdiالها-language.

م Calibration Volatility F

Line drawing of a microwave oven with an open box and a circular arrow indicating rotation (no text or symbols)

Line drawing of a microwave oven with a food item inside (no text or symbols)

Line drawing of a faucet dispensing water into a square kitchen tray (no text or symbols)

Line drawing of a microwave oven with an hourglass icon and '20min' label (no text on device)

Diagram of a circular mechanical component with radial holes and a sun, surrounded by icons (no text or labels)

Diagram of a circular mechanical component with mounting holes and a hanging handle, surrounded by icons (no text or labels)

Line drawing of a fish inside an open kitchen grater with an upward arrow indicating growth (no text or symbols)

Line drawing of a toaster oven with a curved arrow indicating motion (no text or symbols)

Line drawing of a person facing a microwave with an hourglass above, no text or symbols present

Illustration of a hot dog inside a microwave oven with steam rising, no text or symbols present

Line drawing of a microwave oven with a roasted chicken inside, showing steam rising from the tray (no text or symbols)

Line drawing of a toaster oven with a curved arrow indicating motion (no text or symbols)

Diagram of a grain processing machine with directional arrows indicating flow or movement (no text or symbols)

Illustration of a toaster oven with a roasted chicken inside, showing heat transfer arrows (no text or symbols)

Line drawing of a toaster oven with two open cavities, one being opened and one placed on the tray (no text or symbols)

Line drawing of a toaster oven with a black arrow indicating press or scroll (no text or symbols)

Illustration of a person facing a kitchen with an open oven and a handbag above (no text or symbols)

Line drawing of a person facing a kitchen with an open oven and a handbag, no text or symbols present

Illustration of a toaster oven with two chickens inside, one being heated by steam (no text or symbols)

Diagram of a circular ring with internal components and a sun, surrounded by icons (no text or symbols)

Diagram of a circular mechanical component with holes and a hanging square, no text or symbols present

Line drawing of a microwave oven with a dish inside, showing an upward arrow (no text or symbols)

Line drawing of a toaster oven with a curved arrow indicating motion (no text or symbols)

Line drawing of a person viewing a microwave oven with an hourglass above (no text or symbols)

Illustration of a microwave oven with a dish being heated by steam, showing a warning symbol (no text or labels)

Illustration of a toaster oven with a rolled cake inside, showing snowflake symbols below (no text or labels)

Line drawing of a toaster oven with a paper feed and black arrow indicating rotation (no text or symbols)

Line drawing of a person facing a kitchen with an open oven and a handbar, no text or symbols present

Illustration of a toaster oven with a rolled food item being placed, showing hands and a warning symbol (no text or labels)

Line drawing of a microwave oven with an open electrical outlet, showing the blade and plug (no text or symbols)

Line drawing of a microwave oven with a tray holding a food item (no text or symbols)

Line drawing of a hand cleaning a microwave oven with a cloth (no text or symbols)

Illustration of a microwave oven with a tray showing a cooking step, no text or symbols present

	700g			180°C	35-40 min
					30-35 min
	750g		[2H8S]	200°C 30-35 min
***	450g			200°C	20-22 min
					15-18 min
	500g			180°C 35-40 min
	1500g			180°C 35-40 min
	1300g			190°C	100-105 min
					80-85 min
	700g	[SY83]		200°C	70-75 min
					60-65 min
	1000g			190°C	90-95 min
					75-80 min
	800g	[S4G3]		180°C 40-45 min
	2			220°C 25-30 min
	1000g			200°C 25-30 min
***	1000g			200°C
	1000g			200°C
	1000g			200°C 20-25 min
	300g			180°C 15-20 min
***	6			180°C
	850g			180°C
	850g			180°C
	900g			180°C
	12			170°C
	900g			160°C 85-90 min
