USER MANUAL FZ 101 GP.1 IX F/HA HOTPOINT

E N E R GY L A B E L **

* C on controp orta in vetro

** S enza g uid e estraibili

PROGRAMMI MANUALI Operating Instructions

OVEN Contents IT Italiano, 1

Positioning Electrical connection Data plate

Description of the appliance, 18

Overall view Control panel

Start-up and use, 19-20

Control panel lock DEMO mode Setting the clock Setting the timer Starting the oven

FZ 101 P.1/HA FZ 101 P.1 IX/HA FC 101 P.1/HA FC 101 P.1 IX/HA FQ 101 P.1/HA FQ 101 P.1 F/HA FZ 1012 P.1/HA FZ 1012 P.1 IX /HA FZ 1012 P.1 F/HA FZ 1012 P.1 IX F/HA FZ 101 P.1 F/HA FZ 101 P.1 IX F/HA FZ 101 GP.1 F/HA FZ 101 GP.1 IX F/HA FZ 101 GP.1 IX F/HA FZ 1012 GP.1 F/HA FZ 1012 GP.1 IX F/HA FC 101 GP.1/HA FC 101 GP.1 IX/HA FZ 101 GP.1/HA FZ 101 GP.1 IX/HA Cooking modes, 21-24

Manual cooking modes Automatic cooking modes Programming cooking Practical cooking advice Cooking advice table

Precautions and tips, 25

Disposal Respecting and conserving the environment

Care and maintenance, 26-27

Switching the appliance off

Cleaning the appliance Cleaning the oven door Replacing the light bulb Assembling the sliding rack kit Automatic cleaning with the FAST CLEAN function

Before operating your new appliance please read this instruction booklet carefully. It contains important information concerning the safe operation, installation and maintenance of the appliance. Please keep these operating instructions for future reference. Make sure that the instructions are kept with the appliance if it is sold, given away or moved.

To ensure adequate ventilation is provided, the back panel of the cabinet must be removed. It is advisable to install the oven so that it rests on two strips of wood, or on a completely flat surface with an opening of at least 45 x 560 mm (see diagrams).

Keep all packaging materials out of the reach of children. It may present a choking or suffocation hazard (see Precautions and tips). The appliance must be installed by a qualified person in compliance with the instructions provided. Incorrect installation may cause harm to people and animals or may damage property. Built-in appliance Use the appropriate cabinet to ensure that the appliance functions properly. • The panels adjacent to the oven must be made of heat-resistant material.

Position the 4 tabs on the side of the oven so that they are lined up with the 4 holes on the outer frame. Adjust the tabs according to the thickness of the cabinet side panel, as shown below: 20 mm thick: take off the removable part of the tab (see diagram).

• Cabinets with a veneer exterior must be assembled with glues which can withstand temperatures of up to 100°C.

16 mm thick: use the second groove (see diagram).

18 mm thick: use the first groove, which has already been set in the factory (see diagram).

• To install the oven under a counter (see diagram) or in a kitchen unit, the cabinet must have the following dimensions:

The appliance must not come into contact with electrical parts once it has been installed.

The indications for consumption given on the data plate have been calculated for this type of installation.

Secure the appliance to the cabinet by opening the oven door and inserting 4 screws into the 4 holes on the outer frame.

All parts which ensure the safe operation of the appliance must not be removable without the aid of a tool.

Electrical connection

Ovens equipped with a three-pole power supply cable are designed to operate with alternating current at the voltage and frequency indicated on the appliance data plate (see below). Fitting the power supply cable 1. Open the terminal board by inserting a screwdriver into the side tabs of the cover. Use the screwdriver as a lever by pushing it down to open the cover (see diagram). 2. Loosen the cable clamp screw and remove it, using a screwdriver as a lever (see figure). 3. Remove the wire contact screws L-N, then fasten the wires under the screw heads, respecting the colour code: Blue (N), Brown (L) and Yellow-Green Verde ( ). Connecting the supply cable to the mains Install a standardised plug corresponding to the load indicated on the data plate (see table). The appliance must be directly connected to the mains using an omnipolar circuit-breaker with a minimum contact opening of 3 mm installed between the appliance and the mains. The circuit-breaker must be suitable for the charge indicated and must comply with current electrical regulations (the earthing wire must not be interrupted by the circuitbreaker). The supply cable must be positioned so that it does not come into contact with temperatures higher than 50°C at any point. The installer must ensure that the correct electrical connection has been made and that it is fully compliant with safety regulations. Before connecting the appliance to the power supply, make sure that: • The appliance is earthed and the plug is compliant with the law.

• The socket can withstand the maximum power of the appliance, which is indicated on the data plate (see below).

• The voltage is in the range between the values indicated on the data plate (see below). • The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it. Do not use extension cords or multiple sockets. Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible. The cable must not be bent or compressed. The cable must be checked regularly and replaced by authorised technicians only (see Assistance). The manufacturer declines any liability should these safety measures not be observed. T A B L E O F C H A R A C T E R IS T IC S width 43.5 cm height 32 cm D im en s io n s depth 40 cm V o lu m e 56 l width 43.5 cm height 32 cm D im en s io n s * depth 41.5 cm V o lu m e * 58 l voltage: 220-240V ~ 50/60Hz or 60Hz maximum power E le ctrical absorbed 2800 W (see data c o n n e c tio n s plate) Directive 2002/40/EC on the label of electric ovens. Regulation EN 50304 E N E R G Y L A B E L **

Declared energy consumption for Forced convection Class

– heating mode: Gratin This appliance conforms to the following European Economic Community directives: 2006/95/EEC dated 12/12/06 (Low Voltage) and subsequent amendments - 89/336/EEC dated 03/05/89 (Electromagnetic Compatibility) and subsequent amendments 93/68/EEC dated 22/07/93 and subsequent amendments. 2002/96/EEC * W ith g lass p an el fitted to th e in s id e o f th e d o o r ** W ith o u t rem o vable g u id e rails

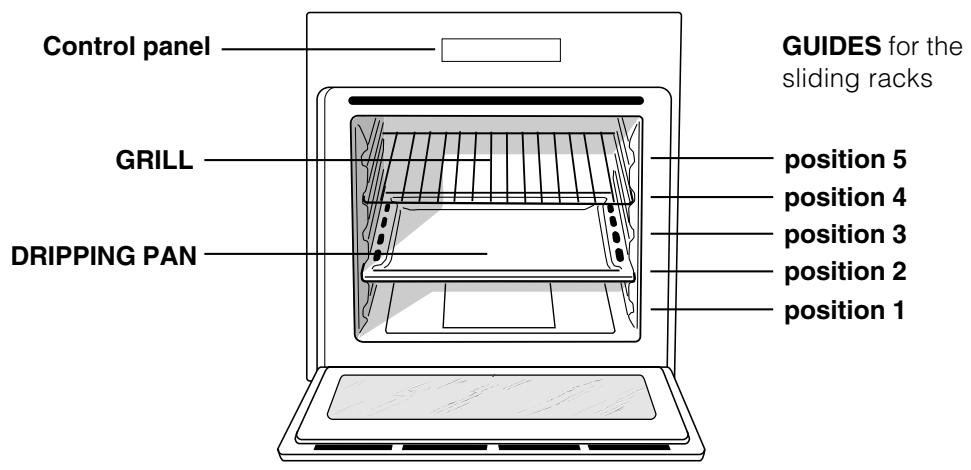

GB Description of the appliance

GUIDES for the sliding racks

position 5 position 4 position 3 position 2 position 1

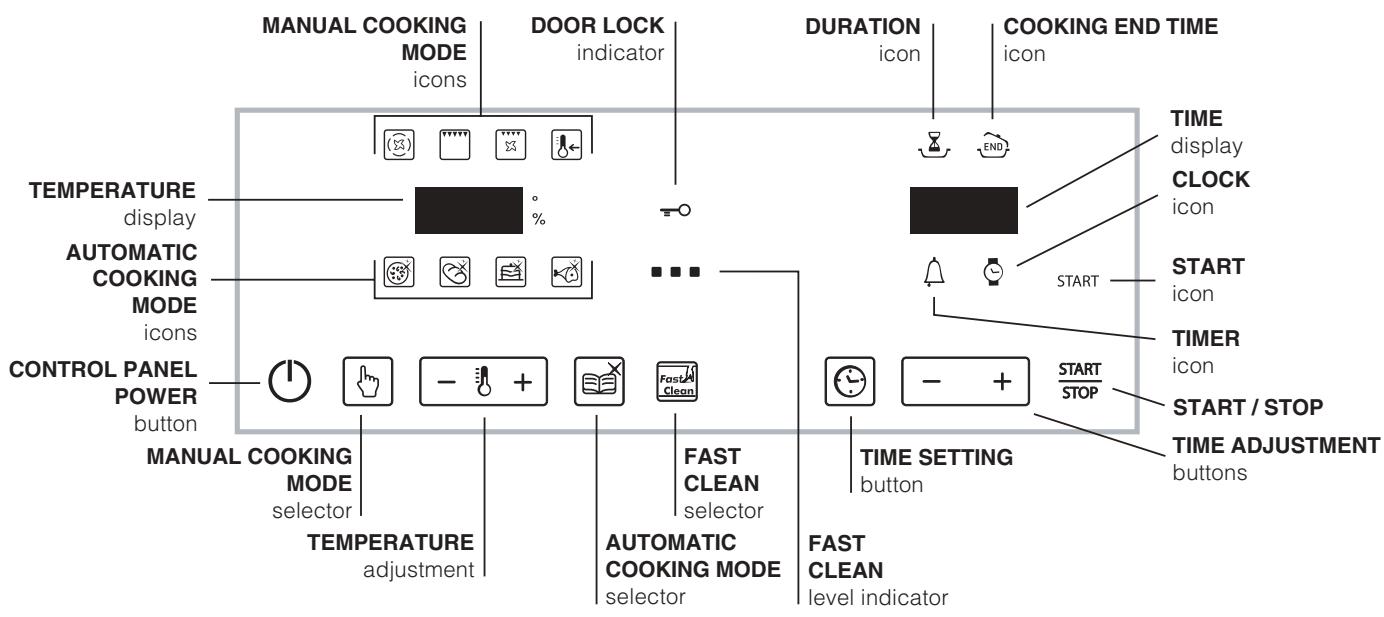

GRILL DRIPPING PAN Control panel

MANUAL COOKING MODE icons

FAST CLEAN level indicator

TIME ADJUSTMENT buttons

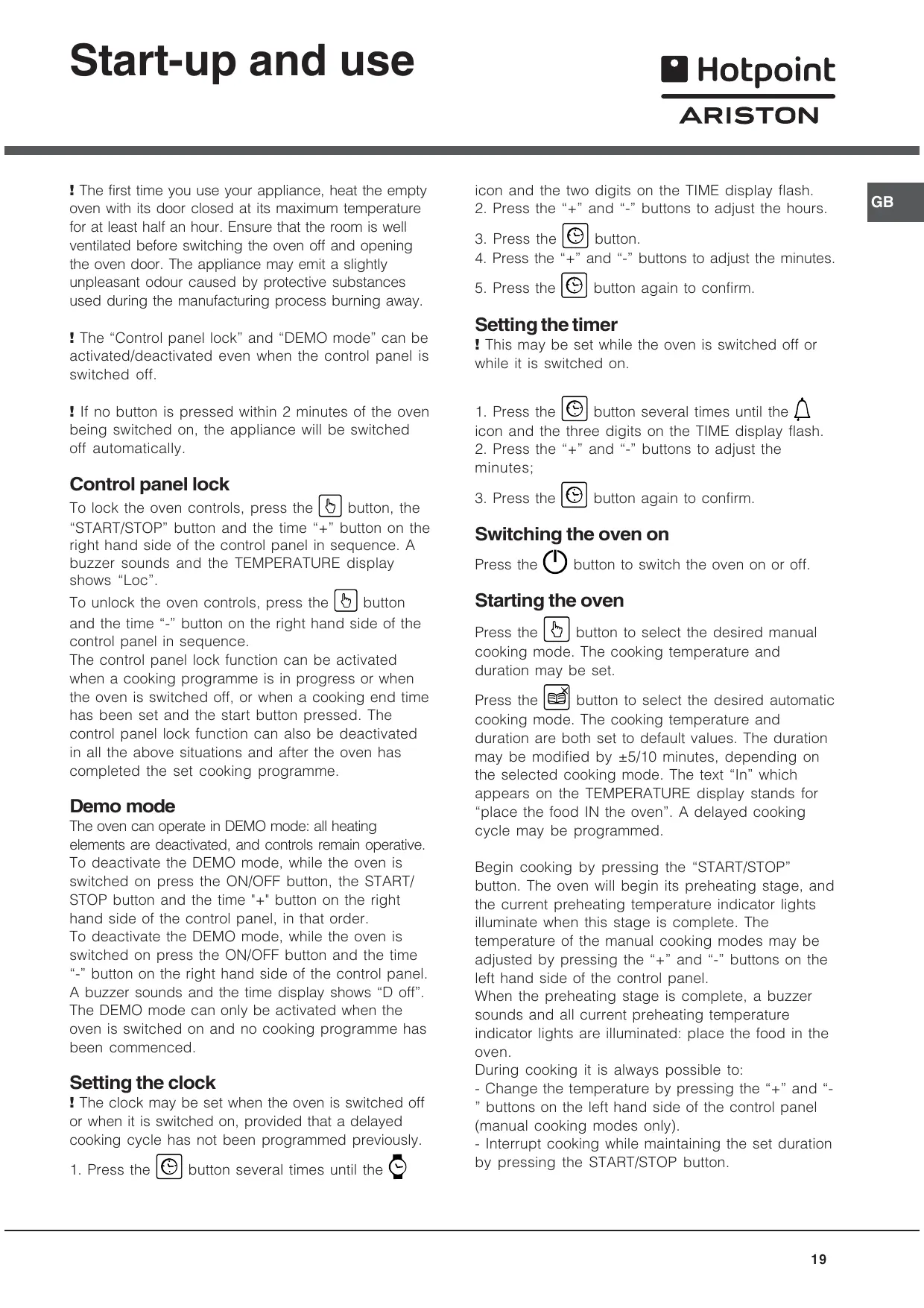

The first time you use your appliance, heat the empty oven with its door closed at its maximum temperature for at least half an hour. Ensure that the room is well ventilated before switching the oven off and opening the oven door. The appliance may emit a slightly unpleasant odour caused by protective substances used during the manufacturing process burning away. The “Control panel lock” and “DEMO mode” can be activated/deactivated even when the control panel is switched off. If no button is pressed within 2 minutes of the oven being switched on, the appliance will be switched off automatically.

To lock the oven controls, press the button, the “START/STOP” button and the time “+” button on the right hand side of the control panel in sequence. A buzzer sounds and the TEMPERATURE display shows “Loc”. button To unlock the oven controls, press the and the time “-” button on the right hand side of the control panel in sequence. The control panel lock function can be activated when a cooking programme is in progress or when the oven is switched off, or when a cooking end time has been set and the start button pressed. The control panel lock function can also be deactivated in all the above situations and after the oven has completed the set cooking programme.

The oven can operate in DEMO mode: all heating elements are deactivated, and controls remain operative.

To deactivate the DEMO mode, while the oven is switched on press the ON/OFF button, the START/ STOP button and the time "+" button on the right hand side of the control panel, in that order. To deactivate the DEMO mode, while the oven is switched on press the ON/OFF button and the time “-” button on the right hand side of the control panel. A buzzer sounds and the time display shows “D off”. The DEMO mode can only be activated when the oven is switched on and no cooking programme has been commenced.

The clock may be set when the oven is switched off or when it is switched on, provided that a delayed cooking cycle has not been programmed previously.

button several times until the

icon and the two digits on the TIME display flash.

2. Press the “+” and “-” buttons to adjust the hours. button. 3. Press the 4. Press the “+” and “-” buttons to adjust the minutes. 5. Press the

button again to confirm.

This may be set while the oven is switched off or while it is switched on.

1. Press the button several times until the icon and the three digits on the TIME display flash. 2. Press the “+” and “-” buttons to adjust the minutes; 3. Press the

button again to confirm.

Switching the oven on

button to switch the oven on or off.

Press the button to select the desired manual cooking mode. The cooking temperature and duration may be set. button to select the desired automatic Press the cooking mode. The cooking temperature and duration are both set to default values. The duration may be modified by ±5/10 minutes, depending on the selected cooking mode. The text “In” which appears on the TEMPERATURE display stands for “place the food IN the oven”. A delayed cooking cycle may be programmed. Begin cooking by pressing the “START/STOP” button. The oven will begin its preheating stage, and the current preheating temperature indicator lights illuminate when this stage is complete. The temperature of the manual cooking modes may be adjusted by pressing the “+” and “-” buttons on the left hand side of the control panel. When the preheating stage is complete, a buzzer sounds and all current preheating temperature indicator lights are illuminated: place the food in the oven. During cooking it is always possible to: - Change the temperature by pressing the “+” and “” buttons on the left hand side of the control panel (manual cooking modes only). - Interrupt cooking while maintaining the set duration by pressing the START/STOP button.

- Press the button to stop cooking.

- Set a new cooking mode (previous settings will be reset). If a blackout occurs while the oven is already in operation, an automatic system within the appliance will reactivate the cooking mode from where it was interrupted as long as the temperature has not dropped below a certain level. Programmed cooking modes which have not started will not be restored and must be reprogrammed. There is no preheating stage for the BARBECUE mode. Never put objects directly on the bottom of the oven; this will avoid the enamel coating being damaged. Always place cookware on the rack(s) provided. Cooling ventilation In order to cool down the external temperature of the oven, a cooling fan generates a stream of air which escapes between the oven control panel and the oven door. At the beginning of the FAST CLEAN mode, the cooling fan operates at low speed. Once the cooking has been completed, the cooling fan continues to operate until the oven has cooled down sufficiently. Oven light When the oven is not in operation, the lamp can be switched on at any time by opening the oven door.

Manual cooking modes

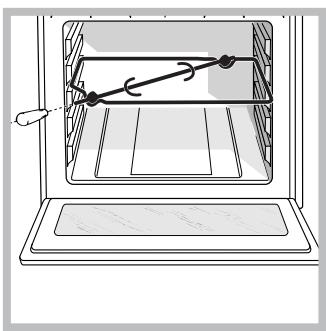

Spit roast (only available in certain models)

To operate the rotisserie spit (see diagram) proceed as follows:

All cooking modes have a default cooking temperature which may be adjusted manually between 40°C and 250°C as desired.

In the BARBECUE mode, the default power level value is indicated as a percentage (%) and may also be adjusted manually. MULTILEVEL mode All heating elements and the fan are activated. Since the heat remains constant throughout the oven, the air cooks and browns food in a uniform manner. A maximum of two racks may be used at the same time. BARBECUE mode The top heating element and the rotisserie spit (where present) are activated. By pressing the “+” and “-” buttons on the left hand side of the control panel, the power levels that may be set will appear on the TEMPERATURE display; these range between 5% and 100%. The high and direct temperature of the grill is recommended for food which requires a high surface temperature. Always cook in this mode with the oven door closed. GRATIN mode The top heating element and the rotisserie spit (where present) are activated and the fan begins to operate. During part of the cycle the circular heating element is also activated. This combination of features increases the effectiveness of the unidirectional thermal radiation of the heating elements through forced circulation of the air throughout the oven. This helps prevent food from burning on the surface and allows the heat to penetrate right into the food. Always cook in this mode with the oven door closed. LOW TEMPERATURE modes This type of cooking can be used for proving, defrosting, preparing yoghurt, heating dishes at the required speed and slow cooking at low temperatures. The temperature options are: 40, 65, 90 °C.

1. Place the dripping pan in position 1.

2. Place the rotisserie support in position 3 and insert the spit into the hole provided on the back panel of the oven. 3. Start the spit roast function by selecting the or

mode is activated, the rotisserie spit

When the will stop if the door is opened.

Automatic cooking modes

The temperature and cooking duration are pre-set values, guaranteeing a perfect result every time automatically. These values are set using the C.O.P.® (Programmed Optimal Cooking) system. The duration may be modified by ±5/10 minutes, depending on the selected cooking mode. The cooking cycle stops automatically and the oven indicates when the dish is cooked. You may start cooking whether the oven has been preheated or not. When the cooking stage has been reached, the oven buzzer sounds. Do not open the oven door to avoid offsetting the cooking time and temperature. ROAST mode Use this function to cook beef, pork and lamb. Place the meat inside the oven while it is still cold. The dish may also be placed in a preheated oven. BAKED CAKES mode This function is ideal for cooking desserts which are made using natural yeast, baking powder and desserts which contain no yeast. Place the dish in the oven while it is still cold. The dish may also be placed in a preheated oven.

Use this function to make pizza. Please see the following chapter for the recipe and further details. BREAD mode Use this function to make bread. Please see the following chapter for the recipe and further details. PIZZA mode To obtain the best results, we recommend that you carefully observe the instructions below: • Follow the recipe. • The weight of the dough should be between 500 g and 700 g. • Lightly grease the dripping pan. Recipe for PIZZA: 1 dripping pan on a low shelf level, hot or cold oven Recipe for 3 pizzas weighing approximately 550 g: 1000 g flour, 500 ml water, 20 g salt, 20 g sugar, 100 ml olive oil, 20 g fresh yeast (or 2 sachets of powder yeast) • Leavening at room temperature: 1 hour. • Place inside hot or cold oven. • Start the

To obtain the best results, we recommend that you carefully observe the instructions below: • Follow the recipe. • Do not exceed the maximum weight of the dripping pan. • Remember to pour 100 ml of cold water into the baking tray in position 5. • The dough must be left to rise at room temperature for 1 – 1 ½ hours (depending on the room temperature) or until the dough has doubled in size. Recipe for BREAD: 1 Dripping pan holding 1000 g Max, lower level 2 Dripping pans each holding 1000 g Max, medium and lower levels Recipe for 1000 g of dough: 600 g flour, 360 g water, 11g salt, 25 g fresh yeast (or 2 sachets of powder yeast) Method: • Mix flour and salt in a large bowl. • Dilute yeast in lukewarm water (approximately 35 degrees). • Make a small well in the mound of flour. • Pour in water and yeast mixture. • Knead dough by stretching and folding it over itself with the palm of your hand for 10 minutes until it has a uniform consistency and is not too sticky. • Form the dough into a ball shape, place it in a large bowl and cover it with transparent plastic wrap to prevent the surface of the dough from drying out. Select the manual LOW TEMPERATURE function on the oven and set the temperature to 40°C. Place the bowl inside and leave the dough to rise for approximately 1 hour (the dough should double in volume). • Cut the dough into equal sized loaves. • Place them in the dripping pan on oven paper. • Cover the loaves with flour. • Make incisions on the loaves. • Remember to pour 100 ml of cold water into the baking tray in position 5. For cleaning purposes, we recommend the use of water and vinegar. • Place the loaves inside the oven while it is still cold. • Start the BREAD cooking mode. • Once baked, leave the loaves on one of the grill racks until they have cooled completely.

Practical cooking advice

A cooking mode must be selected before programming can take place.

Do not place racks in position 1 and 5 during fanassisted cooking. This is because excessive direct heat can burn temperature sensitive foods.

Programming the duration

To set the duration of a manual cooking mode

1. Press the button several times until the icon and the first digit on the TIME display flash.

2. Press the "+" and "-" buttons to adjust the hour value. button again until the other two 3. Press the digits on the TIME display begin to flash. 4. Press the "+" and "-" buttons to adjust the minute value. 5. Press the button again to confirm. • For example: it is 9:00 a.m. and a time of 1 hour and 15 minutes is programmed. The programme will stop automatically at 10:15 a.m. Programming delayed cooking A cooking duration must be selected before delayed programming can take place. 1. Follow steps 1 to 5 to set the duration as detailed above. 2. Then press the button until the icon and the two digits on the TIME display flash. 3. Press the "+" and "-" buttons to adjust the hour value. button again until the other two 4. Press the digits on the TIME display begin to flash. 5. Press the "+" and "-" buttons to adjust the minute value. 6. Press the button again to confirm. • For example: it is 9:00 a.m. and a time of 1 hour and 15 minutes is programmed and the end time is set to 12:30. The programme will start automatically at 11:15 a.m. and Programming has been set when the buttons are illuminated. The TIME display shows the cooking end time and the cooking duration alternately. To cancel a programmed procedure press the “START/STOP” button.

GB In the BARBECUE and GRATIN cooking modes, particularly when using the rotisserie spit, place the dripping pan in position 1 to collect cooking residues (fat and/or grease).

MULTILEVEL • Use positions 2 and 4, placing the food which requires more heat on 2. • Place the dripping pan on the bottom and the rack on top. BARBECUE • Insert the rack in position 3 or 4. Place the food in the centre of the rack. • We recommend that the power level is set to maximum. The top heating element is regulated by a thermostat and may not always operate constantly. PIZZA • Use a light aluminium pizza pan. Place it on the rack provided. For a crispy crust, do not use the dripping pan as it prevents the crust from forming by extending the total cooking time. • If the pizza has a lot of toppings, we recommend adding the mozzarella cheese on top of the pizza halfway through the cooking process.

GB Cooking advice table

Pies on two racks/cakes on 2 racks Sponge cake on 2 racks (on the dripping pan) Roast chicken + potatoes Lamb Mackerel Lasagne Cream puffs on 2 racks Biscuits on 2 racks Cheese puffs on 2 racks Savoury pies Mackerel Sole and cuttlefish Squid and prawn kebabs Cod fillet Grilled vegetables Veal steak Sausages Hamburgers Toasted sandwiches (or toast) Spit-roast chicken using rotisserie spit (where present) Spit-roast lamb using rotisserie spit (where present) Grilled chicken Cuttlefish Spit-roast chicken using rotisserie spit (where present) Spit-roast duck using rotisserie spit (where present) Roast veal or beef Roast pork Lamb Defrosting Proving Dish heating Pasteurisation Pizza (see recipe) Focaccia (bread dough) Bread (see recipe)

Rack position standard guide rails

2 and 4 2 and 4 2 and 4 1 and 2/3 2 1 or 2 2 2 and 4 2 and 4 2 and 4 1 and 3 4 4 4 4 3 or 4 4 4 4 4 2 2 2 2 2 2 or 3 2 or 3 2 or 3 2 or 3 2 2 2

1 and 3 1 and 3 1 and 3 1 and 3 1 1 1 1 and 3 1 and 3 1 and 3 1 and 3 3 3 3 3 2 or 3 3 3 3 3 2 2 2 2 2 2 2 2 2 2 2 2

1 pizza 1 Automatic 1 bread Automatic Cakes made using leavened dough 1 2 or 3 2 No 35-55 baked cakes Automatic Roasts 1 2 or 3 2 No 60-80 roast * The cooking times listed above are intended as guidelines only and may be modified according to personal tastes. Oven preheating times are set as standard and may not be modified manually.

Precautions and tips

This appliance has been designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully.

• The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use. • The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms. • When moving or positioning the appliance, always use the handles provided on the sides of the oven. • Do not touch the appliance with bare feet or with wet or damp hands and feet. • The appliance must be used by adults only for the preparation of food, in accordance with the instructions provided in this booklet. • Do not touch the heating elements and parts of the oven door when the appliance is in use; these parts become extremely hot. Keep children well away from the appliance. • Ensure that the power supply cables of other electrical appliances do not come into contact with the hot parts of the oven. • The openings used for the ventilation and dispersion of heat must never be covered. • Always grip the oven door handle in the centre: the ends may be hot. • Always use oven gloves when placing cookware in the oven or when removing it. • Do not use aluminium foil to line the bottom of the oven. • Do not place flammable materials in the oven: If the appliance is switched on accidentally, it could catch fire. • When unplugging the appliance, always pull the plug from the mains socket; do not pull on the cable. • Never perform any cleaning or maintenance work without having disconnected the appliance from the electricity mains. • If the appliance breaks down, under no circumstances should you attempt to perform the repairs yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance. Contact a Service Centre (see Assistance). • Do not rest heavy objects on the open oven door.

• The appliance should not be operated by people

(including children) with reduced physical, sensory or mental capacities, by inexperienced individuals or by anyone who is not familiar with the product. These individuals should, at the very least, be supervised by someone who assumes responsibility for their safety or receive preliminary instructions relating to the operation of the appliance. • Do not let children play with the appliance.

• When disposing of packaging material: observe local legislation so that the packaging may be reused. • The European Directive 2002/96/EC relating to Waste Electrical and Electronic Equipment (WEEE) states that household appliances should not be disposed of using the normal solid urban waste cycle. Exhausted appliances should be collected separately in order to optimise the cost of re-using and recycling the materials inside the machine, while preventing potential damage to the atmosphere and to public health. The crossed-out dustbin is marked on all products to remind the owner of their obligations regarding separated waste collection. For further information relating to the correct disposal of exhausted household appliances, owners may contact the public service provided or their local dealer.

Respecting and conserving the environment

• You can help to reduce the peak load of the electricity supply network companies by using the oven in the hours between late afternoon and the early hours of the morning. The cooking mode programming options, the “delayed cooking” mode (see Cooking modes) and “delayed automatic cleaning” mode (see Care and Maintenance) in particular, enable the user to organise their time efficiently. • Always keep the oven door closed when using the BARBECUE and GRATIN modes: This will achieve improved results while saving energy (approximately 10%). • Check the door seals regularly and wipe them clean to ensure they are free of debris so that they adhere properly to the door, thus avoiding heat dispersion.

GB Care and maintenance

GB Switching the appliance off

3. Grip the door on the two external sides and close it approximately half way. Pull the door towards you, lifting it out of its slot (see diagram).

Disconnect your appliance from the electricity supply before carrying out any work on it.

Cleaning the appliance

• The stainless-steel or enamel-coated external parts and the rubber seals may be cleaned using a sponge that has been soaked in lukewarm water and neutral soap. Use specialised products for the removal of stubborn stains. After cleaning, rinse and dry thoroughly. Do not use abrasive powders or corrosive substances. • The inside of the oven should ideally be cleaned after each use, while it is still lukewarm. Use hot water and detergent, then rinse well and dry with a soft cloth. Do not use abrasive products. • All accessories - with the exception of the sliding racks - can be washed like everyday crockery, and are even dishwasher safe. • We recommend that detergents are not sprayed directly onto the control panel, but that a sponge is used instead. Never use steam cleaners or pressure cleaners on the appliance.

Cleaning the oven door

Clean the glass part of the oven door using a sponge and a non-abrasive cleaning product, then dry thoroughly with a soft cloth. Do not use rough abrasive material or sharp metal scrapers as these could scratch the surface and cause the glass to crack. For more thorough cleaning purposes, the oven door may be removed: 1. Open the oven door fully (see diagram).

3. (With glass panel fitted to the inside of the door) Grip the door on the two external sides and close it approximately half way. Unlock the door by pressing on the clamps F, then pull the door towards you lifting it out of its seat (see diagram).

F To replace the door, reverse this sequence.

Inspecting the seals Check the door seals around the oven regularly. If the seals are damaged, please contact your nearest Aftersales Service Centre (see Assistance). We recommend that the oven is not used until the seals have been replaced.

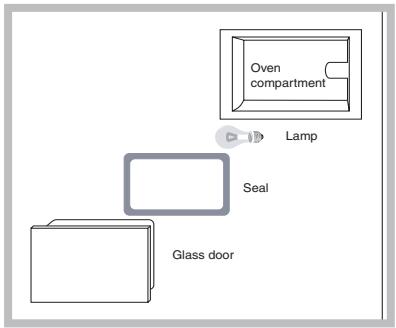

Replacing the light bulb

To replace the oven light bulb: Oven compartment

2. Lift up and turn the small levers located on the two hinges (see diagram).

F With glass panel fitted to the inside of the door

1. Remove the glass cover using a screwdriver.

2. Remove the light bulb and replace it with a similar one: Wattage 15 W, cap E 14. Replace the glass cover, making sure the seal is positioned correctly (see diagram).

Sliding rack kit assembly

To assemble the sliding racks:

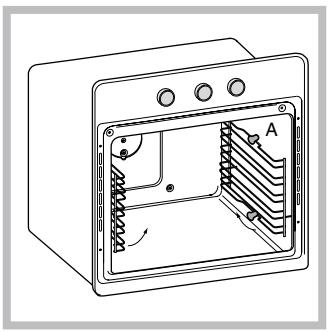

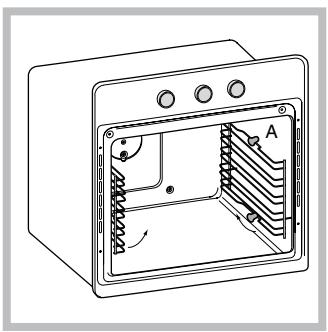

1. Remove the two frames, lifting them away from the spacers

2. Choose which shelf to use with the sliding rack.

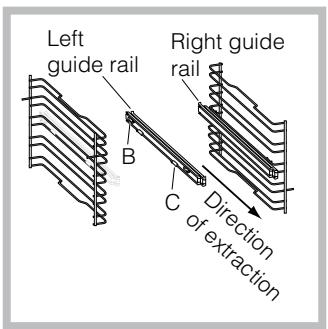

Paying attention to the direction in which the sliding rack is to be extracted, position joint B and then joint C on the frame.

If the oven is too hot, the pyrolytic cycle may not start. Wait for the oven to cool down.

The programme may only be started once the oven door has been closed. To activate the FAST CLEAN mode, press the button and select the desired power level (the mode has three power levels which cannot be modified): 1. Economy (ECO): 1 hour 2. Normal (NOR): 1 hour and 30 minutes 3. Intensive (INT): 2 hours. Safety devices • The door is locked automatically as soon as the temperature exceeds a certain value. • Should a malfunction occur, the heating elements will switch off. • Once the oven door has been locked, you cannot change the duration and end time settings. Programming is possible only after selecting the FAST CLEAN mode. Programming delayed automatic cleaning

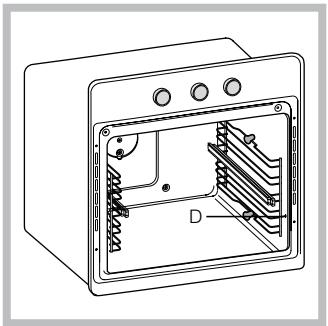

3. Secure the two frames with the guide rails using the holes provided on the oven walls (see diagram). The holes for the left frame are situated at the top, while the holes for the right frame are at the bottom.

4. Finally, fit the frames

Do not place the sliding racks in position 5.

Automatic cleaning with the FAST CLEAN function

With the FAST CLEAN mode, the internal temperature of the oven reaches 500°C. The pyrolytic cycle is activated and burns away food and grime residues. Dirt is literally incinerated. Keep children away from the appliance during the automatic cleaning cycle as surfaces may become very hot. Particles may ignite inside the oven due to the spontaneous combustion process. There is no cause for concern: this process is both normal and hazard-free. Before initiating the FAST CLEAN mode: • Remove large or coarse food residues from inside of the oven using a damp sponge. Do not use detergents. • Remove all accessories. • Do not place tea towels or pot holders over the oven handle.

1. Press the button until the

.icon and the two digits on the TIME display flash. 2. Press the "+" and "-" buttons to adjust the hour value. button again until the other two digits 4. Press the on the TIME display begin to flash. 5. Press the "+" and "-" XXX buttons to adjust the minute value. 6. Press the button again to confirm. • For example: it is 9:00 a.m. and the Economy (ECO) FAST CLEAN mode level has been selected: default set time 1 hour. 12:30 is set as the end time. The programme will start automatically at 11:30 a.m. and buttons Programming has been set when the are illuminated. The TIME display shows the FAST CLEAN end time and duration alternately. To cancel a programmed procedure press the “START/ STOP” button. Once the automatic cleaning cycle is over You will have to wait until the temperature inside the oven has cooled down sufficiently before you can open the oven door. You will notice some white dust deposits on the bottom and the sides of your oven; remove these deposits with a damp sponge once the oven has cooled down completely. Alternatively, you can make use of the already heated oven, in which case it is not necessary to remove the deposits, they are completely harmless and will not affect your food in any way.

The appliance is fitted with an automatic diagnostic system which detects any malfunctions. Malfunctions are displayed by messages of the following type: “ER” followed by numbers. Call for technical assistance if a malfunction occurs. Before calling for Assistance: • Check whether you can fix the problem yourself. • Restart the programme to check whether the malfunction has disappeared. • If it has not, contact the Authorised Technical Assistance Service. Never use the services of an unauthorised technician. Please have the following information to hand: • The message shown on the TEMPERATURE display. • The appliance model (Mod.). • The serial number (S/N). The latter two pieces of information can be found on the data plate located on the appliance.

FZ 101 P.1/HA FZ 101 P.1 IX/HA FC 101 P.1/HA FC 101 P.1 IX/HA FQ 101 P.1/HA FQ 101 P.1 F/HA FZ 1012 P.1/HA FZ 1012 P.1 IX /HA FZ 1012 P.1 F/HA FZ 1012 P.1 IX F/HA FZ 101 P.1 F/HA FZ 101 P.1 IX F/HA FZ 101 GP.1 F/HA FZ 101 GP.1 IX F/HA FZ 101 GP.1 IX F/HA FZ 1012 GP.1 F/HA FZ 1012 GP.1 IX F/HA FC 101 GP.1/HA FC 101 GP.1 IX/HA FZ 101 GP.1/HA FZ 101 GP.1 IX/HA Programmes, 35-38

PROGRAMMES MANUELS FZ 101 P.1/HA FZ 101 P.1 IX/HA FC 101 P.1/HA FC 101 P.1 IX/HA FQ 101 P.1/HA FQ 101 P.1 F/HA FZ 1012 P.1/HA FZ 1012 P.1 IX /HA FZ 1012 P.1 F/HA FZ 1012 P.1 IX F/HA FZ 101 P.1 F/HA FZ 101 P.1 IX F/HA FZ 101 GP.1 F/HA FZ 101 GP.1 IX F/HA FZ 101 GP.1 IX F/HA FZ 1012 GP.1 F/HA FZ 1012 GP.1 IX F/HA FC 101 GP.1/HA FC 101 GP.1 IX/HA FZ 101 GP.1/HA FZ 101 GP.1 IX/HA Programas, 49-52
