Product Type	Beverage Refrigerator
Brand	Liebherr
Model	FKvsl 5413 Premium
Height (mm)	1850
Width (mm)	600
Depth (mm)	650
Weight (kg)	70
Voltage (V)	220-240
Frequency (Hz)	50
Annual Energy Consumption (kWh)	150
Energy Efficiency Class	E
Capacity (cans 0.33L)	Up to 300
Temperature Range (°C)	5 to 20
Climate Class	SN-T
Noise Level (dB)	42
Cooling System	Static with automatic defrost
Controls	Electronic touch display
Interior Light	LED
Shelves Material	Adjustable glass shelves
Door Hinge	Reversible (left/right)
Lock	Integrated door lock with key
Interior Material	Stainless steel
Maintenance	Clean with soft cloth and mild detergent
Spare Parts Availability	Min. 10 years after purchase
Repairability Index (out of 10)	7.8
Warranty (years)	2

Frequently Asked Questions - FKvsl 5413 Premium LIEBHERR

What are the dimensions of the Liebherr FKvsl 5413 Premium drink fridge?

The dimensions are 1850 mm in height, 600 mm in width, and 650 mm in depth.

How many cans does the FKvsl 5413 Premium hold?

It can hold up to 300 standard 0.33L cans.

Can the door be reversed to open from the other side?

Yes, the door hinge is reversible and can be changed from left to right or vice versa.

What is the temperature range of this beverage fridge?

The temperature can be set from 5°C to 20°C, suitable for drinks and wine.

How do I clean the interior?

Use a soft cloth with mild detergent and warm water. Do not use abrasive cleaners.

Is the FKvsl 5413 Premium energy efficient?

It has an energy efficiency class E and consumes approximately 150 kWh per year.

What is the noise level?

The noise level is 42 dB, which is quiet enough for most environments.

Does this fridge have a lock?

Yes, it comes with an integrated door lock and key for security.

What should I do if the fridge is not cooling?

Check that the thermostat is set correctly, ensure proper ventilation, and verify the door is sealed. If problem persists, contact service.

Can this appliance be built into a cabinet?

No, the FKvsl 5413 Premium is a freestanding unit and requires airflow around it.

USER MANUAL FKvsl 5413 Premium LIEBHERR

Operating instructions

Page 8

Refrigerator

Read the operating instructions before switching on for the first time

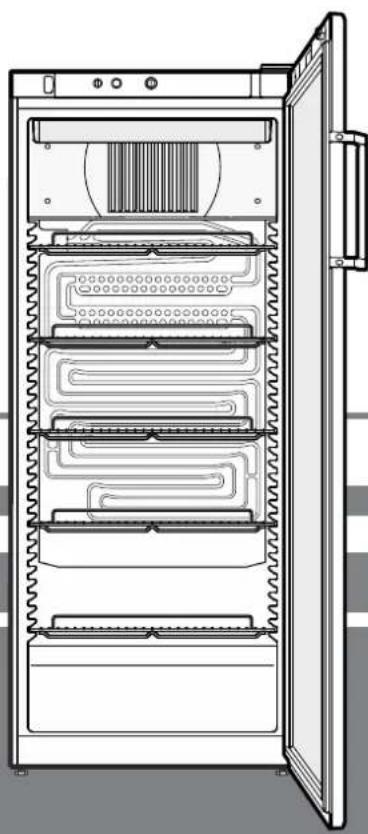

Technical line drawing of an open refrigerator with internal cooling racks (no text or symbols)

7083 573-01

FKv

LIEBHERR

Disposal notes

The appliance contains reusable materials and should be disposed of properly - not simply with unsorted household refuse. Appliances which are no longer needed must be disposed of in a professional and appropriate way, in accordance with the current local regulations and laws.

When disposing of the appliance, ensure that the refrigerant circuit is not damaged to prevent uncontrolled escape of the refrigerant it contains (data on type plate) and oil.

• Disable the appliance.
  • Pull out the mains plug.
  • Cut through the connection cable.

WARNING

Danger of suffocation due to packing material and plastic film!

Do not allow children to play with packaging material.

Take the packaging material to an official collection point.

Range of appliance use

The appliance is suitable solely for cooling food in a domestic environment or similar. This includes, for example, use

• in staff kitchenettes, bed and breakfast establishments,
• by guests in cottages, hotels, motels and other forms of accommodation,
• in catering and similar services in the wholesale trade.

Use the appliance solely as is customary within a domestic environment. All other types of use are inadmissible.

The appliance is not suitable for storing and cooling medicines, blood plasma, laboratory preparations or similar substances and products covered by the 2007/47/EC Medical Devices Directive. Any misuse of the appliance may result in damage to or spoilage of stored goods.

Furthermore, the appliance is not suitable for operation in potentially explosive atmospheres.

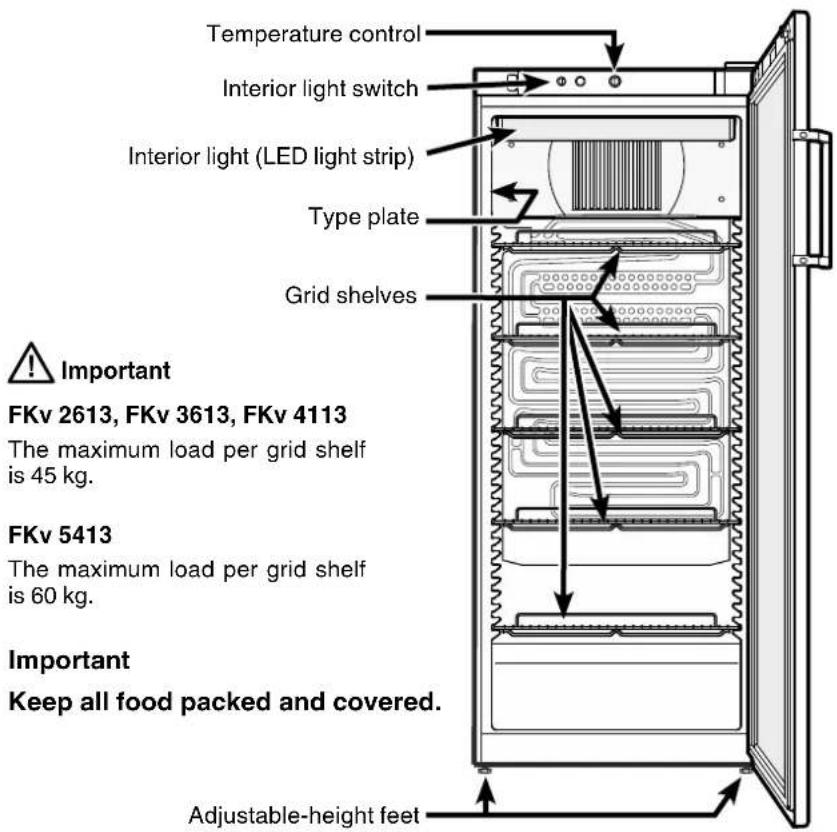

Description of the appliance

Noise emissions from the appliance

The noise level while the appliance is operating is below 70 dB(A) (relative noise level 1 pW).

Safety instructions and warnings

• To prevent injury or damage to the unit, the appliance should be unpacked and set up by two people.
• In the event that the appliance is damaged on delivery, contact the supplier immediately before connecting to the mains.
• To guarantee safe operation, ensure that the appliance is set up and connected as described in these operating instructions.
• Disconnect the appliance from the mains if any fault occurs. Pull out the plug, switch off or remove the fuse.
• When disconnecting the appliance, pull on the plug, not on the cable.
• Any repairs and work on the appliance should only be carried out by the customer service department, as unauthorised work could prove highly dangerous for the user. The same applies to changing the mains power cable.
• Do not allow naked flames or ignition sources to enter the appliance. When transporting and cleaning the appliance, ensure that the refrigerant circuit is not damaged. In the event of damage, make sure that there are no ignition sources nearby and keep the room well ventilated.
• Do not stand on the plinth, drawers or doors or use them to support anything else.
• This appliance can be used by children of 8 years old and over, and also by persons with restricted physical, sensory or mental capacity or lack of experience and knowledge, if they are supervised or have been instructed on safe use of the appliance and understand the resulting risks. Children must not be allowed to play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision.
• Avoid prolonged skin contact with cold surfaces or chilled/frozen food. This could cause pain, numbness and frostbite. In the case of prolonged skin contact, protective measures should be taken, e.g. gloves should be worn.

• Do not consume food which has been stored for too long, as it could cause food poisoning.

• Do not store explosives or sprays using combustible propellants such as butane, propane, pentane, etc. in the appliance. Electrical components might cause leaking gas to ignite. You may identify such sprays by the printed contents or a flame symbol.

• Do not use electrical appliances inside the appliance.
• If you have a lockable appliance, do not keep the key near the appliance or within reach of children.
• The appliance is designed for use in enclosed areas. Do not operate the appliance outdoors or in areas where it is exposed to splash water or damp conditions.
• The LED light strip illuminates the interior of the appliance. It is not suitable for lighting a room.
• When transporting or operating the appliance at an altitude of more than 1500m above sea level, the glass pane in the door can break due to the reduction in air pressure. Broken fragments are sharp-edged and can cause serious injury.

Climate rating

The climate rating indicates the room temperature at which the appliance may be operated in order to achieve full refrigeration performance.

The climate rating is indicated on the type plate.

The position of the type plate is shown in the section entitled Description of the appliance.

Climate rating Room temperature

4 (SN) +10°C to +32°C

4 (N) +16°C to +32°C

4+ (ST) +16°C to +38°C

4+ (SN-ST) +10°C to +38°C

5 (T) +16°C to +43°C

5 (SN-T) +10°C to +43°C

Do not operate the appliance outside the specified room temperature range.

Setting up

• Do not place the appliance in direct sunlight or near cookers, radiators and similar sources of heat.
• The floor on which the appliance stands should be horizontal and level. Compensate for uneven floors with the adjustable feet.

- Do not cover ventilation openings or grille.

- Standard EN 378 specifies that the which you install your appliance must have a volume of 1m^3 per 8 g of R 600 arefrigerant used in the appliance, so as to avoid the formation of inflammable gas/air mixtures in the room where the appliance is located in the event of a leak in the refrigerant circuit. The quantity of refrigerant used in your appliance is indicated on the type plate on the inside of the appliance.

• Always install the appliance directly against the wall.

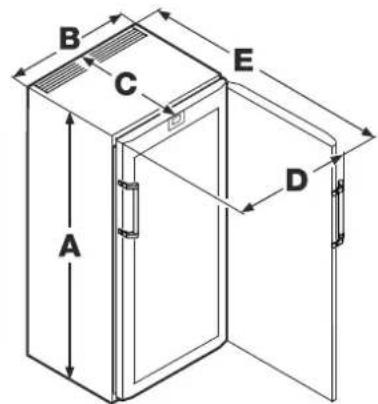

Appliance dimensions

A

B

C

D

E

FKv 26.. 1250 mm 600 mm 610 mm 650 mm 1180 mm

FKv 36.. 1640 mm 600 mm 610 mm 650 mm 1180 mm

FKv 41.. 1800 mm 600 mm 610 mm 650 mm 1180 mm

FKv 54.. 1640 mm 750 mm 730 mm 850 mm 1410 mm

Electrical connection

Only operate the appliance with alternating current (AC).

The permissible voltage and frequency are indicated on the type plate. The position of the type plate is shown in the section entitled Description of the appliance.

The socket must be properly earthed and protected by a fuse.

The tripping current of the fuse must be between 10 A and 16 A.

The socket must not be situated behind the appliance and must be easily accessible.

Do not connect the appliance using an extension cable or extension socket.

Do not use stand-alone inverters (conversion of direct current to alternating current/three-phase current) or energy-saving plugs. Risk of damage to the electronic control system!

Switching the appliance on and off

You are recommended to clean the interior of the appliance before switching it on for the first time (see Cleaning).

Switching the appliance on

Connect the appliance to the mains - the appliance is switched on.

Switching the appliance off

Pull out the mains plug or set the temperature control to 0.

Important

When the temperature control is turned to "0", the refrigeration system is switched off, but the appliance is not completely disconnected from the mains.

Before cleaning, always disconnect the appliance from the mains. Remove the plug.

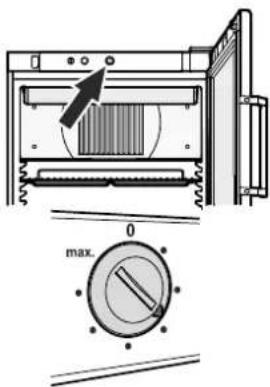

Setting the temperature

Set the temperature inside the appli- ance using the temperature control.

The nearer the temperature control is to the max. setting, the colder the interior temperature.

Set the control between "0" and "max." as required.

Temperature display

The thermometer is located in the upper part of the door.

The temperature display is powered by a battery which is available from your specialist dealer.

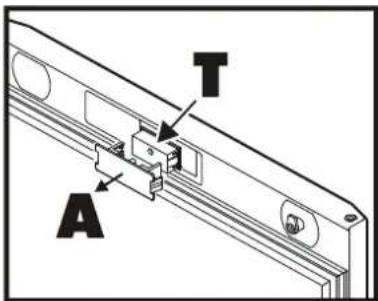

Changing the battery

• Open the door.
• Detach cover A.
  • Pull out thermometer T.

• Open the battery compartment using a small screwdriver.

• Replace the battery.

• Close the battery compartment.
  • Re-install all parts.

Diagram showing a device being inserted into a screen with a tool, no text or symbols present

If Er or HH appears in the display, the appliance has a fault.

Consult the customer service department indicating the fa number displayed.

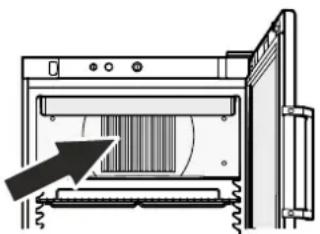

Cooling

The grid shelves can be moved to accommodate different height bottles or packages.

Diagram of an oven with a door and ventilation slots, showing internal structure without any text or symbols

The ventilation slots on the inside must not be covered!

Interior light

The interior light is fitted on the inside at the top.

It can be switched on and off by pressing the switch Light.

The light intensity of the LED light corresponds to laser class 1/1M.

⚠️ Important

The light cover may only be removed by customer service staff.

If the cover is removed, do not look directly at the light through optical lenses from close distance. This can damage your eyes.

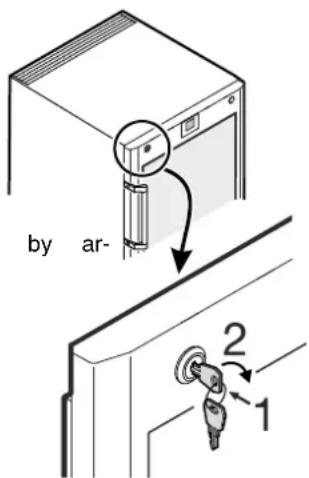

Safety lock

The lock in the appliance door is equipped with a safety mechanism.

Locking the appliance

- Insert the key as shown row 1.

- Turn the key 90^ .

To unlock the appliance, the same procedure must be repeated in the same order.

Defrosting

The refrigerator compartment defrosts automatically.

When operating at a very cold thermostat setting, the interior rear wall may ice up.

In this case, the appliance must be defrosted manually.

- Pull out the mains plug!

• Remove the food from the appliance and store in a cool place.
• Leave the door of the appliance open while defrosting. After defrosting mop up the remaining water and clean the appliance.

Do not use any mechanical devices or other artificial aids for defrosting other than those recommended by the manufacturer.

Cleaning

Clean the appliance at least twice per year.

Before cleaning, always switch off the appliance. Disc from the mains or switch off or unscrew the fuse.

• Clean the inside, equipment and outer walls with water and a little detergent. Do not use chemical solvents or any cleaning agents containing sand or acid.
• Ensure that no cleaning water penetrates into the components or ventilation grille.
• The dust should be removed from the refrigeration unit and heat exchanger - metal grid at the back of the appliance - once a year.
• Do not damage or remove the type plate on the inside of the appliance. It is very important for servicing purposes.

Do not use steam cleaners because of the risk of injury and damage.

Malfunctions

You may be able to rectify the following faults by checking the possible causes yourself:

• Appliance does not function:

- Is the appliance switched on?

- Is the plug correctly fitted in the mains socket?

- Is the fuse intact?

- Loud running noise:

- Is the appliance set up firmly on the floor?

- Does the appliance cause nearby items of furniture or objects to vibrate? Please note that noises caused by the refrigerant circuit cannot be avoided.

• The temperature is not low enough:

- Is the temperature setting correct (see Setting the temperature)?

- Have excessive amounts of fresh food been placed in the appliance?

- Does the separately installed thermometer show the correct reading?

- Is the ventilation system working properly?

- Is the appliance set up too close to a heat source?

If none of the above causes apply and you cannot rectify the fault yourself, contact the nearest customer service department stating the type of appliance ① , service number ② and appliance number ③ as indicated on the type plate.

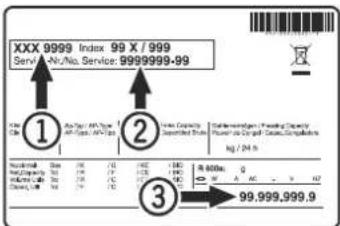

The position of the type plate is shown in the section entitled Description of the appliance.

Changing over door hinges

Door hinges should only be changed by a trained expert. Changing the door hinges must be done by two people.

Simple line drawing of a door frame with a circular arrow pointing to the bottom right corner (no text or symbols)

Simple line drawing of a corner bracket with a small component attached, labeled '1.' (no text or symbols on the diagram itself)

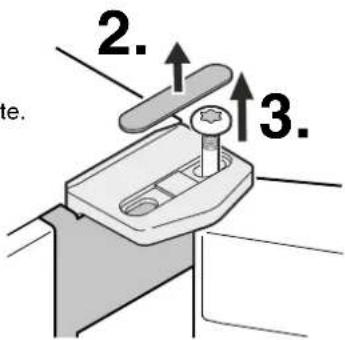

1. Pull out the circlip from the lower hinge bracket.

2. Remove cover plate.

Simple line drawing of a rectangular panel with an arrow pointing to the top-left corner (no text or symbols)

Important

As a result of its heavy weight, the door must be held secure by one person.

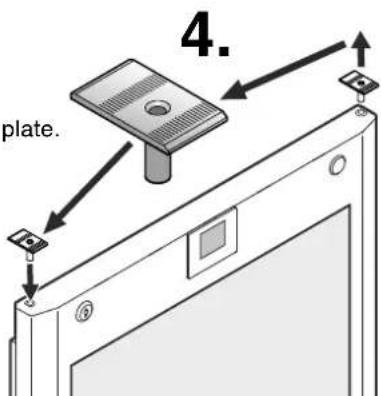

1. Unscrew the hinge pin from the upper hinge bracket.

Remove the door.

Shutting your appliance down

If your appliance is to be shut down for any length of time, switch it off and disconnect the plug or switch off or unscrew the fuse.

Clean the appliance and leave the door open in order to prevent unpleasant smells.

The permissible room temperature for storing the appliance. Transfer clamping plate, after decommissioning is between -10°C and +50°C.

Storing the appliance outside this temperature range can damage the appliance and cause it to malfunction.

The appliance complies with the relevant safety regulations and EC directives 2004/108/EC and 2006/95/EC.

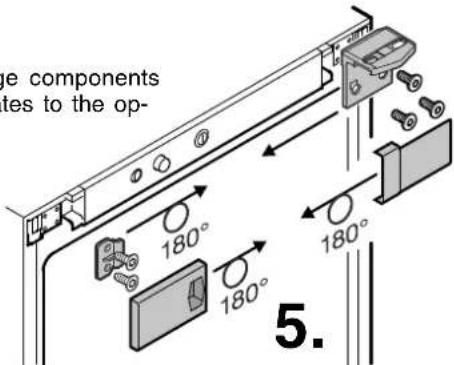

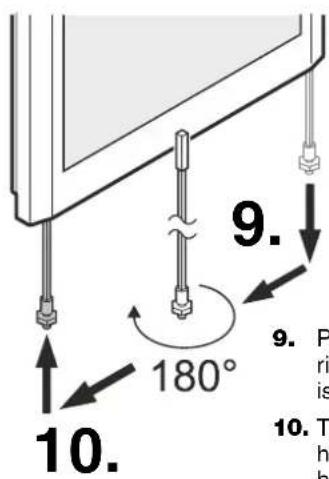

1. Transfer hinge components and cover plates to the opposite side.

1. Transfer lower hinge bracket and cover plate to the opposite side.

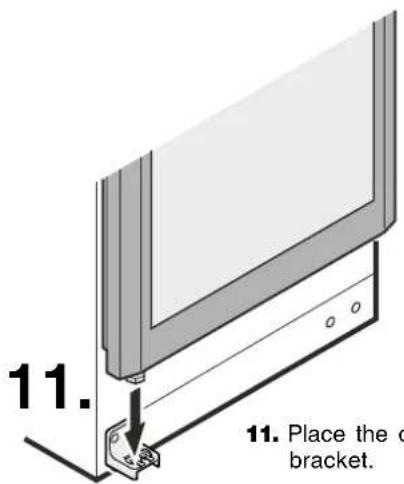

1. Place the door on the lower hinge bracket.

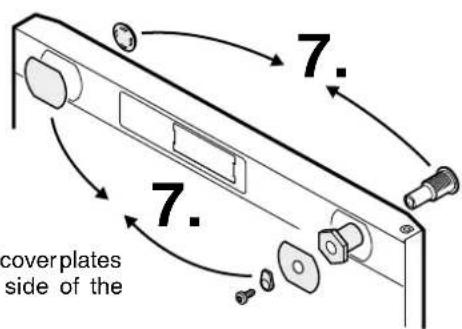

1. Transfer lock and cover plates to the opposite side of the door.

Simple line drawing of a rectangular frame with an arrow pointing to the top-left corner (no text or symbols)

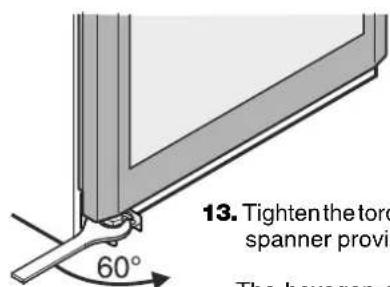

Align the door at the side and tighten the hinge pin.

1. Screw in the hinge pin.

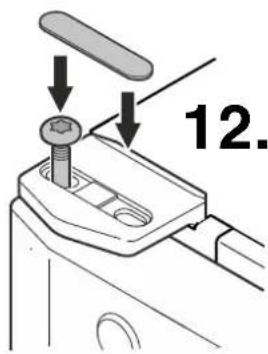

   Replace cover plate.

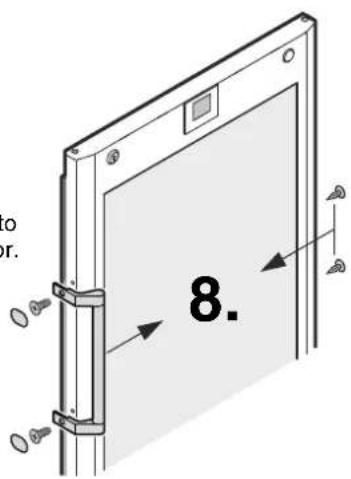

2. Transfer handle and plugs to the opposite side of the door.


1. Tighten the torque rod with the open-ended spanner provided. > 60°
   The hexagon of the torque rod will lock into the lower hinge bracket.

1. Pull out the torque rod from the right-hand door mounting. The rod is approx. 1130 mm long.

2. Turn the torque rod through 180^ horizontally and insert into the left-hand door mounting.

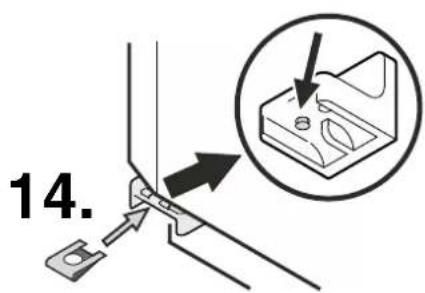

3. Fit the circlip on the lower hinge bracket.


Simple line drawing of a rectangular frame with a circular arrow pointing to its bottom-left corner (no text or symbols)
