Product Type	Flash Memory (USB Key)
Brand	Philips
Model	FM01FD05B
Storage Capacity	16 GB
Interface	USB 2.0
Read Speed	Up to 20 MB/s
Write Speed	Up to 10 MB/s
Dimensions (L x W x H)	58 x 18 x 8 mm
Weight	10 g
Power Supply	Via USB port (5 V, 500 mA max)
Compatibility	Windows, macOS, Linux (with standard drivers)
Connector	USB Type-A
Operating Temperature	0°C to 60°C
Storage Temperature	-20°C to 85°C
Housing Material	ABS Plastic
Protection	Resistant to light shocks and dust
Security	No built-in encryption function
Package Contents	USB Key, user manual (online)
Warranty	2 years
Care and Cleaning	Clean with a dry, soft cloth. Avoid water and solvents.
Spare Parts and Repairability	Not repairable. No spare parts available.

Frequently Asked Questions - FM01FD05B PHILIPS

What is the actual storage capacity of the Philips FM01FD05B USB key?

The announced capacity is 16 GB. Due to formatting and file system, the available space is approximately 14.9 GB.

How do I format my Philips FM01FD05B USB key?

On Windows, right-click the drive and select 'Format'. Choose the file system (e.g., FAT32 for compatibility, exFAT for files >4 GB). On macOS, use Disk Utility.

Why is my USB key not recognized?

Check that the USB port works (test with another device). Try another port. On Windows, open 'Disk Management' to see if the key appears. If necessary, install generic USB drivers.

What is the maximum transfer speed?

This USB 2.0 key offers read speeds up to 20 MB/s and write speeds up to 10 MB/s. Actual performance may vary.

Is the USB key compatible with a TV or car?

Yes, most TVs and car audio systems read USB keys formatted in FAT32. Check the file formats supported by your device.

How do I protect my data on the USB key?

This key does not have hardware encryption. You can use encryption software like VeraCrypt to create an encrypted volume.

Can I use the USB key with an Android smartphone?

Yes, if your smartphone supports USB OTG. Use a USB OTG adapter. The file system must be FAT32 or exFAT.

What should I do if I accidentally delete files?

Stop using the key immediately. Use data recovery software like Recuva to try to restore the files.

Is the USB key waterproof or shockproof?

No, it is not waterproof. It resists light shocks, but avoid drops and moisture. Store it in a protective case.

How do I safely eject the USB key?

On Windows, click the 'Safely Remove Hardware' icon in the taskbar. On macOS, drag the icon to the trash. Wait for the light to stop blinking before removing.

USER MANUAL FM01FD05B PHILIPS

Register your product and get support at

www.philips.com/welcome

EN Vivid Edition	Click here	2
FR Vivid Edition	Cliquez ici	10
DE Vivid Edition	Hier klicken	18
ES Vivid Edition	Haga clic aquí	26
NL Vivid Edition	Klik hier	34
IT Vivid Edition	Fare clic qui	42
PT Vivid Edition	Clique aqui	50
GR Vivid Edition	Kävnte klik eßö	58
SV Vivid Edition	Klicka här	66
FI Vivid Edition	Napsauta tätä	74
PL Vivid Edition	Kliknij tutaj	82
CZ Vivid Edition	Klepněte zde	90
SK Vivid Edition	Kliknite sem	98
HU Vivid Edition	Katüntson ide	106
RU Vivid Edition	Щелкните здесь	114
RO Vivid Edition	Faceți clic aici	122

USB Flash Drive

FMXXFD05B/00

PHILIPS

1 Important

Note

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help. The shielded interface cable and connectors must be used in order to comply with the limits for digital device pursuant to subpart B of Part 15 of FCC Rules.

Electric-, Magnetic- and Electromagnetic Fields (EMF)

1 Philips Royal Electronics manufactures and sells many products targeted at consumers, which, like any electronic apparatus, in general have the ability to emit and receive electro magnetic signals.

2 One of Philips' leading Business Principles is to take all necessary health and safety measures for our products, to comply with all applicable legal requirements and to stay well within the EMF standards applicable at the time of producing products.

3 Philips is committed to develop, produce and market products that cause no adverse health effects.

4 Philips confirms that if its products are handled properly for their intended use, they are safe to use according to scientific evidence available today.

5 Philips plays an active role in the development of international EMF and safety standards, enabling Philips to anticipate further developments in standardization for early integration in its products.

Note

Keep this detailed user manual for future reference.

Warning

• To prevent fire or shock hazard, do not expose the unit to rain or moisture.
• To avoid electric shock, do not open the cabinet. Refer servicing to qualified personal only.
• Keep away from children. If swallowed, promptly see a doctor.

Note

Data is safe in the following environments: In X-ray security systems at airports and in magnetic fields with strengths not exceeding 3,500 Oe.

For customers in the U.S.A.

Changes or modifications made to this equipment not expressly approved by company may void the FCC authorization to operate this equipment.

Operation is subject to the following two conditions:

1 this device my not cause harmful interference, and

2 this device must accept any interference received, including interference that may cause undesired operation.

Caution

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

For customers in Canada

This Class B digital apparatus complies with Canadian ICES-003. This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada.

For customers in Europe

This product conforms to the following European Directives: 89/336/EEC, 2006/95/EEC (safety directive) and 93/68/ECC (EC Marking Directive). This product complies with EN55022 Class B and EN55024 for use in the following areas; residential, commercial, and light-industrial.

Notes on Use

- The USB flash drive may not function correctly if it is connected to the computer when the computer is started up, restarted, or restored from sleep mode. Always disconnect the USB flash drive from the computer before performing any of these operations.

- Do not place the drive in locations that are:

- extremely hot or cold;

- vibrating;

- exposed to corrosive gases;

- dusty or dirty;

- very humid;

- exposed to direct sunlight.

- Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States and other countries.

• Mac and Macintosh are trademarks of Apple Computer, Inc., registered in the U.S. and other countries.

- Other system names and product names that appear in this manual are registered trademarks or trademarks of their respective owners. Note that the ^TM and ^® symbols are not used in this manual.

• Power consumption in standby mode: < 100 mA.

- Our product warranty is limited only to the USB flash drive itself, when used normally in accordance with these operating instructions and with the accessories that were included with this unit in the specified or recommended system environment. Services provided by the Company, such as user support, are also subject to these restrictions.

• The Company cannot accept liability for damage or loss resulting from the use of this unit, or for any claim from a third party.

• The Company cannot accept any liability for: problems with your computer or other hardware arising from the use of this product; the suitability of this product for specific hardware, software, or peripherals; operating conflicts with other installed software; data loss; or other accidental or unavoidable damage.
• The Company cannot accept any liability for financial damages, lost profits, claims from third parties, etc., arising from the use of the software provided with this unit.
• The software specifications may be subject to change without notice.

Environmental information

Disposal of your old product

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products.

Please act according to your local rules and do not dispose of your old products with your normal household waste. The correct disposal of your old product will help prevent potential negative consequences for the environment and human health.

Be responsible Respect copyrights

The making of unauthorized copies of copy-protected material, including computer programmes, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offence.

This equipment should not be used for such purposes.

2 Your USB flash drive

Congratulations on your purchase and welcome to Philips!

To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome

Illustration of a laptop connected to a USB cable (no text or symbols)

Illustration of a laptop keyboard being inserted into a USB drive (no text or symbols)

3 Install

Microsoft® Windows Vista, XP, 2000, ME, MAC OS 9.0 or higher:

- The device driver is installed automatically when the drive is connected to a USB port of the computer. However, with some USB 2.0 cards or boards, you may need to initiate installation manually. In this case, follow the on-screen instructions to search for a suitable driver. Refer to the operating system's Help file if you need any help.

Note

Do not remove USB flash drive from the computer USB port as long as the download process is in progress.

Windows 98SE:

1 Download the device driver at http://www.philips.com/storage
2 Remove the protective cap from the USB connector and turn it backwards (fig.1).

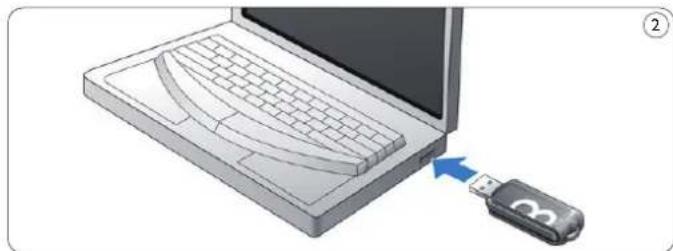

3 Insert the flash drive USB connector into one of the computer's USB ports (fig. 2).

The New Hardware wizard starts and the drive's LED lights up. The light intensity of the LED will gradually increase and then diminish again. This will continue for as long as the drive is connected to the computer.

4 Click the Next button.

5 Click Search for the best driver for your device. Then click the Next button.

Click Specify a location. Then click the Browse button.

6 When the dialog box appears, specify the folder where the installation program is stored.
7 Click the OK button to close the dialog box. Then click the Next button.
8 Click the Next button.
9 Click the Finish button.

Installation of the driver starts.

Once the installation process is complete, a drive icon for the USB flash drive appears in the My Computer window.

10 After confirming that the drive is in standby mode you can remove the drive from the computer's USB port.

4 Connect

Connecting the USB flash drive to your computer

Note

You can use a USB extension cable or an optional USB hub to connect the USB flash drive to your computer.

Illustration of a laptop connected to a USB port, showing internal keyboard layout (no text or symbols)

1 Remove the protective cap from the USB connector and turn it backwards (fig.1).

Illustration of a laptop keyboard being inserted into a USB drive (no text or symbols)

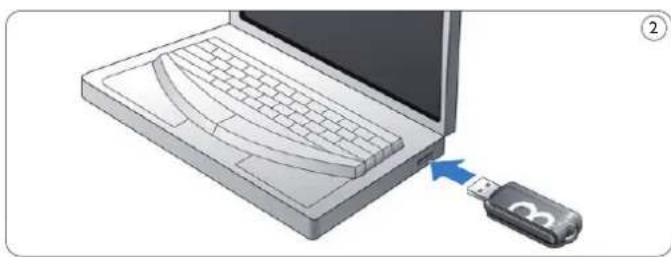

2 Insert the USB flash drive's USB connector into one of the computer's USB ports (fig. 2).

The USB flash drive's LED lights up. The light intensity of the LED will gradually increase and then diminish again. This will continue for as long as the drive is connected to the computer.

5 Enjoy

Operating the USB flash drive

- Once the USB flash drive is connected to the USB port of the computer:

- a software package will automatically start up enabling you to activate various applications. See the software help file for further instructions.

Visit our website www.philips.com/storage for software related questions and software updates.

- the drive icon for the USB flash drive will appear. You can now copy and save data on the drive by dragging files and folders on the drive icon, just like when you copy data to a hard disk, CD-ROM, DVD or floppy disk.

When copying data the LED's light intensity will quickly increase and diminish.

Notes

- Do not remove the USB flash drive from the computer USB port while copying and saving data otherwise the drive will no longer be recognized by your system.

- When operating under Windows the drive name varies, depending on your Windows version.

Disconnecting the USB flash drive from your computer

Windows® 98SE

- After confirming that the USB flash drive is in standby mode you can remove the flash drive from the computer's USB port.

Windows® ME and Windows®2000

1 Double-click the Unplug or eject hardware icon in the task bar in the lower right part of the screen.
2 In the window that appears, select the name of the device that is to be removed, then click the STOP button.
3 When the Stop a hardware device screen appears, make sure the correct information is displayed, then click the OK button.
4 When a message appears, indicating that the USB flash drive can be safely removed, remove the USB flash drive from the computer's USB port.

Windows® Vista, XP

1 Double-click the Safely Remove Hardware icon in the task bar in the lower right part of the screen.
2 In the window that appears, select the name of the device that is to be removed, then click the STOP button.
3 When the Stop a hardware device screen appears, make sure the correct information is displayed, then click the OK button.
4 When the message Safe to Remove Hardware appears, remove the the USB flash drive from the computer's USB port.

Mac OS 9.0 and higher

1 Drag the drive icon to the Trash.
2 After confirming that the the USB flash drive is in standby mode, remove the the USB flash drive from the computer's USB port.

6 Technical specifications

Interface

• High-Speed USB 2.0 (backwards compatible with USB 1.1)

Transfer rate

- Read: max. 14MB per second / Write: max. 5MB per second (High-speed USB 2.0 port required to achieve maximum speed)

Compatible OSs

- Microsoft ^ Windows ^ Vista, XP, 2000, ME and 98SE (with driver)

• Mac OS 9.0 or later

• Linux 2.4.0 or later

7 Need help?

Online help: www.philips.com/support

For interactive help and frequently asked questions.

For software updates and support: www.philips.com/storageupdates

1 Important

Remarque

Be responsible Respect copyrights

Illustration of a laptop connected to a USB cable (no text or symbols)

Illustration of a laptop with a USB drive and a USB flash, showing the keyboard and mouse (no text or symbols)

3 Installation

Microsoft® Windows Vista, XP, 2000, ME, MAC OS 9.0 ou supérieur:

Illustration of a laptop connected to a USB port, showing internal keyboard layout (no text or symbols)

Illustration of a laptop keyboard being inserted into a USB drive (no text or symbols)

Illustration of a laptop connected to a USB drive (no text or symbols)

Illustration of a laptop with a USB drive and a USB flash, showing the keyboard and mouse (no text or symbols)

3 Installation

Illustration of a laptop connected to a USB port, showing internal keyboard layout (no text or symbols)

Illustration of a laptop with a USB drive and a USB flash, showing the keyboard and mouse (no text or symbols)

Illustration of a laptop connected to a USB cable (no text or symbols)

Illustration of a laptop with a USB drive and a USB flash, showing internal keyboard layout (no text or symbols)

3 Instale

Microsoft® Windows Vista, XP, 2000, ME, MAC OS 9.0 o superior:

Illustration of a laptop connected to a USB port, showing internal keyboard layout (no text or symbols)

Illustration of a laptop keyboard being inserted into a USB drive (no text or symbols)

Be responsible Respect copyrights

Illustration of a laptop connected to a USB cable (no text or symbols)

Illustration of a laptop with a USB drive and a USB flash, showing the keyboard and mouse (no text or symbols)

3 Installeren

Microsoft® Windows Vista, XP, 2000, ME, MAC OS 9.0 of hoger:

Illustration of a laptop connected to a USB cable (no text or symbols)

Illustration of a laptop keyboard being inserted into a USB drive (no text or symbols)

• Mac OS 9.0 of later

- Linux 2.4.0 of later

7 Hulp nodig?

Online-ondersteuning: www.philips.com/support

Per i clienti in Canada

Illustration of a laptop connected to a USB cable (no text or symbols)

Illustration of a laptop with a USB drive and a separate USB flash (no text or symbols)

3 Installazione

Microsoft® Windows Vista, XP, 2000, ME, MAC OS 9.0 o superiore:

Illustration of a laptop connected to a USB port, no text or symbols present

Illustration of a laptop keyboard being inserted into a USB drive (no text or symbols)

Illustration of a laptop connected to a USB cable (no text or symbols)

Illustration of a laptop with a USB drive and a USB flash, showing internal keyboard layout (no text or symbols)

3 Instalação

Microsoft® Windows Vista, XP, 2000, ME, MAC OS 9.0 ou posterior:

Illustration of a laptop connected to a USB cable (no text or symbols)

Illustration of a laptop with a USB drive and a USB flash, showing the keyboard and mouse (no text or symbols)

Be responsible Respect copyrights

Illustration of a laptop connected to a USB cable (no text or symbols)

Illustration of a laptop with a USB drive and a USB flash, showing the keyboard and mouse (no text or symbols)

3 Εγκατάσταση

Illustration of a laptop connected to a USB cable (no text or symbols)

Illustration of a laptop keyboard being inserted into a USB drive (no text or symbols)

Illustration of a laptop connected to a USB cable (no text or symbols)

Illustration of a laptop with a USB drive and a blue arrow pointing to the screen (no text or symbols)

3 Installera

Microsoft © Windows © Vista, XP, 2000 eller MACOS 9.0 eller senare:

Illustration of a laptop connected to a USB port, showing internal keyboard layout (no text or symbols)

Illustration of a laptop keyboard being inserted into a USB drive (no text or symbols)

Illustration of a laptop connected to a USB cable (no text or symbols)

Illustration of a laptop with a USB drive and a USB flash, showing the keyboard and mouse (no text or symbols)

3 Asennus

Illustration of a laptop connected to a USB cable (no text or symbols)

Illustration of a laptop keyboard being inserted into a USB drive (no text or symbols)

Be responsible Respect copyrights

Illustration of a laptop with a USB cable inserted, showing the keyboard and mouse (no text or symbols)

①

Illustration of a laptop keyboard being inserted into a USB drive (no text or symbols)

2

3 Instaluj

Illustration of a laptop connected to a USB cable (no text or symbols)

Illustration of a laptop with a USB drive and a blue arrow pointing to the screen (no text or symbols)

Be responsible Respect copyrights

Illustration of a laptop connected to a USB cable (no text or symbols)

Illustration of a laptop keyboard being inserted into a USB drive (no text or symbols)

3 Instalace

Illustration of a laptop connected to a USB port, showing internal keyboard layout (no text or symbols)

Illustration of a laptop with a USB drive and a USB flash, showing the keyboard and mouse (no text or symbols)

Be responsible Respect copyrights

Illustration of a laptop computer with a USB cable inserted (no text or symbols visible)

①

Illustration of a laptop keyboard being inserted into a USB drive (no text or symbols)

2

3 Nainštalujte

Microsoft® Windows Vista, XP, 2000, ME, MAC OS 9.0 alebo lepší:

Illustration of a laptop connected to a USB cable (no text or symbols)

Odpojte ochranný kryt od konektora USB a obrátte ho (obr. 1).

Illustration of a laptop with a USB drive and a USB flash, showing the keyboard and mouse (no text or symbols)

Illustration of a laptop connected to a USB cable (no text or symbols)

Illustration of a laptop with a USB drive and a USB flash, showing the keyboard and mouse (no text or symbols)

3 Telepítés

Illustration of a laptop connected to a USB port, showing internal keyboard layout (no text or symbols)

Illustration of a laptop with a USB drive emitting a blue arrow (no text or symbols)

Illustration of a laptop connected to a USB port, showing internal structure and connection (no text or symbols)

Illustration of a laptop with a USB drive emitting a blue arrow (no text or symbols)

3 Установка

Illustration of a laptop connected to a USB port, showing internal keyboard layout (no text or symbols)

Illustration of a laptop keyboard being inserted into a USB drive (no text or symbols)

Illustration of a laptop connected to a USB cable (no text or symbols)

Illustration of a laptop with a USB drive and a USB flash, showing the keyboard and mouse (no text or symbols)

3 Instalare

Illustration of a laptop connected to a USB cable (no text or symbols)

Illustration of a laptop keyboard being inserted into a USB drive (no text or symbols)

5 Savurati experienta

All rights reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.

The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice. No liability will be accepted by the publisher for any consequence of its use. Publication there of does not convey nor imply any license under patent- or other industrial or intellectual property rights.

July 2008

www.philips.com N'MW/RR/RD/RM/2808

CE FC
