Product type	Condenser dryer with heat pump
Brand	Electrolux
Model	EDH3786GDE
Drying capacity	8 kg
Dimensions (H x W x D)	85 x 60 x 60 cm
Net weight	49 kg
Power supply	230 V, 50 Hz, 10 A
Energy class	A++
Noise level	65 dB (A)
Drying programs	Cotton, Synthetics, Express, Cotton Eco, Delicate, Easy iron, Warm air, Extra dry, Cupboard
Main functions	Delay start, Child lock, Full tank indicator, Adjustable humidity level, End of cycle signal
Sensor type	Electronic humidity sensor
Condensation system	Automatic condenser (heat pump)
Water tank capacity	4 L
Power cord length	1.5 m
Maintenance and cleaning	Clean lint filter after each cycle, clean condenser every 30 cycles, empty tank
Repairability index	7.2/10
Available spare parts	Lint filter, drum belt, heating element, drain pump, electronic board, door, gasket
Safety features	Overheat protection, automatic stop in case of fault, child lock
General information	User manual and instructions available for free on notice-facile.com

Frequently Asked Questions - EDH3786GDE ELECTROLUX

What is the drying capacity of the Electrolux EDH3786GDE?

The maximum drying capacity is 8 kg for cotton and synthetic programs.

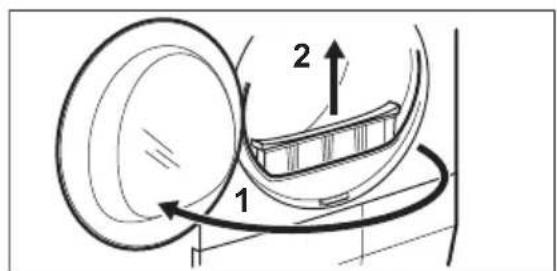

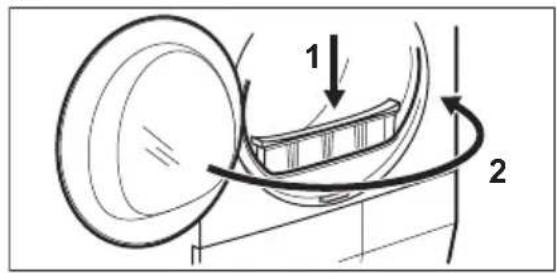

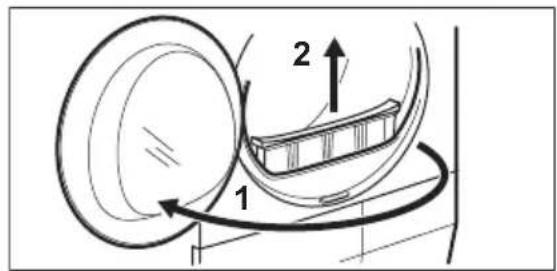

How to clean the lint filter of the dryer?

After each cycle, open the door, remove the lint filter located in the opening, remove the lint by hand or with a vacuum cleaner, then put it back in place. Regular maintenance ensures optimal efficiency.

What to do if the dryer does not heat?

Check that the drying program is set to an appropriate temperature. Ensure the lint filter and condenser are clean. If the problem persists, contact an authorized after-sales service.

How to activate the child lock?

Press the Delay start button and hold it for 3 seconds until the symbol appears on the screen. To deactivate, repeat the operation.

What is the noise level of the Electrolux EDH3786GDE?

The noise level is approximately 65 dB (A) during normal drying, which corresponds to moderate noise.

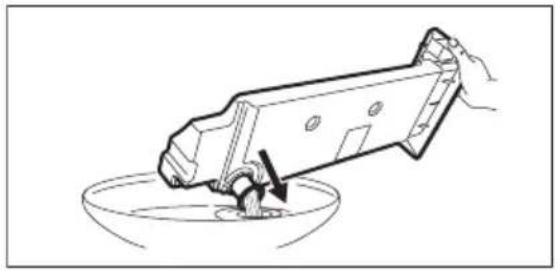

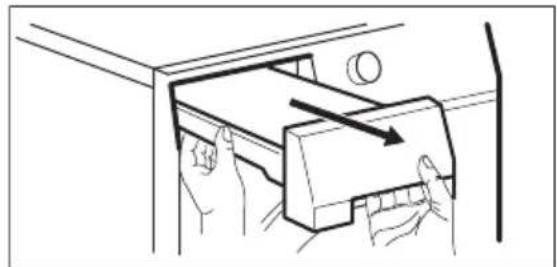

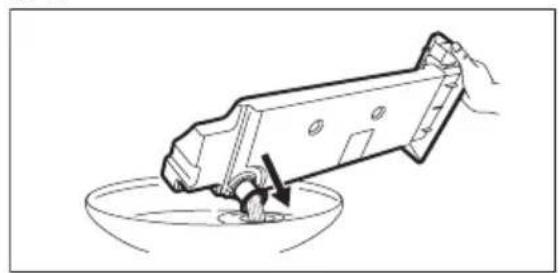

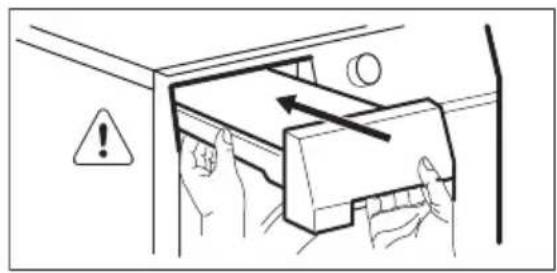

How to empty the water tank?

When the Tank full indicator lights up, pull out the tank located at the bottom right of the appliance, empty it into a sink, then put it back until you hear a click.

Does the dryer have a program for delicate clothes?

Yes, the Delicate program is designed for fragile textiles like wool or silk, with a lower temperature and gentle drum movement.

What does the error code 'E20' on the screen mean?

The E20 code indicates a drainage problem. Check that the water tank is not full and that the pump filter is not clogged. Consult the manual for a complete list of codes.

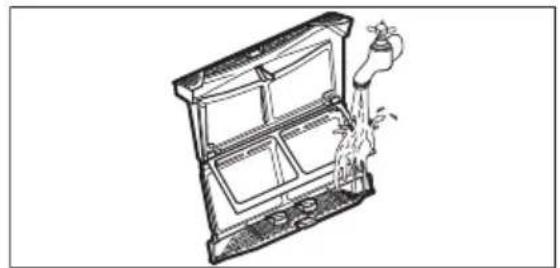

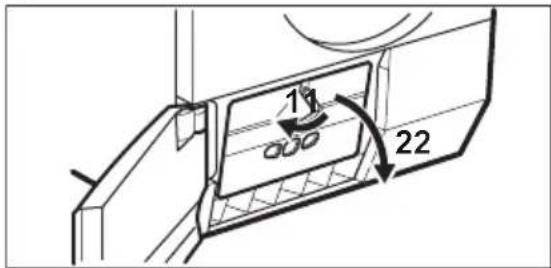

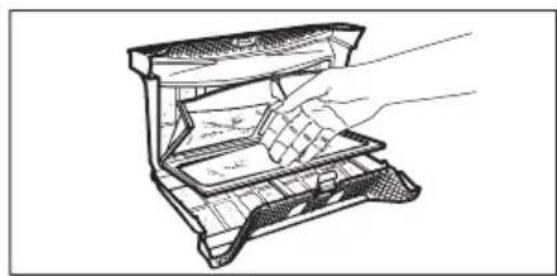

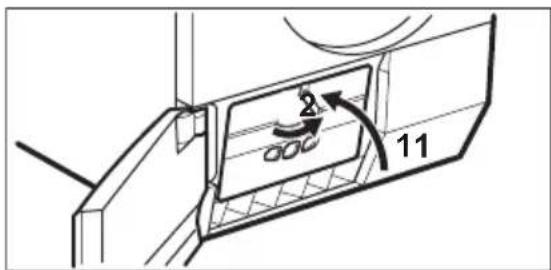

How to clean the condenser of the dryer?

Remove the lower panel, unlock the condenser, take it out and rinse it with warm water on the side opposite the fins. Let it dry before reinserting it. Perform this operation every 30 cycles.

Where to find the user manual for the Electrolux EDH3786GDE?

The complete PDF manual is available for free on the website notice-facile.com. You can download it in French or request a translation into another language.

USER MANUAL EDH3786GDE ELECTROLUX

3.

4.

5.1)

1.

3.4.

1.

5.6.

1.

8.

11.4 De trommel reinigen

WAARSCHUWING!

12. PROBLEEMOPLOSSING

1. SAFETY INFORMATION......21
2. SAFETY INSTRUCTIONS....23
3. PRODUCT DESCRIPTION....25
4. CONTROL PANEL....25
5. PROGRAMME TABLE....26
6. OPTIONS....28
7. SETTINGS....29
8. BEFORE FIRST USE....29
9. DAILY USE....30
10. HINTS AND TIPS....31
11. CARE AND CLEANING....32
12. TROUBLESHOOTING....34
13. TECHNICAL DATA....35

WE'RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time.

Welcome to Electrolux.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information:

www.electrolux.com

Register your product for better service:

www.registerelectrolux.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

1. ⚠SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

Read the supplied instructions.

1.1 Children and vulnerable people safety

WARNING!

Risk of suffocation, injury or permanent disability.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Do not let children play with the appliance.
  • Children of less than 3 years should be kept away unless continuously supervised.
• Keep all packaging away from children.
• Keep all detergents away from children.
• Keep children and pets away from the appliance door when it is open.
• If the appliance has a child safety device, we recommend you activate it.
• Cleaning and user maintenance shall not be made by children without supervision.

1.2 General Safety

• Do not change the specification of this appliance.
• If the tumble dryer is put on top of a washing machine, use the stacking kit. The stacking kit, available from your authorized vendor, can be used only with the appliance specified in the instructions, supplied with the

accessory. Read it carefully before installation (Refer to the Installation leaflet).

- The appliance can be installed as freestanding or below the kitchen counter with correct space (Refer to the Installation leaflet).

- Do not install the appliance behind a lockable door, a sliding door or a door with a hinge on the opposite side, where the appliance door can not be fully opened.

- The ventilation openings in the base (if applicable) must not be obstructed by a carpet.

- Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.

- Ensure you have good ventilation in the installation room to avoid the back flow of gases into the room from appliances burning other fuels, including open fires.

- Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels. (if applicable)

- If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons in order to avoid a hazard.

- Obey the maximum load volume of 8kg (refer to the “Programme chart” chapter).

- Do not use the appliance if industrial chemicals have been used for cleaning.

- Wipe away lint that has accumulated around the appliance.

- Do not run the appliance without a filter. Clean the lint filter before or after each use.

- Do not dry unwashed items in the tumble dryer.

- Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.

• Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.
• Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
• Remove all objects from pockets such as lighters and matches.
• Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.
• The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged.
• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.

2. SAFETY INSTRUCTIONS

2.1 Installation

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Obey the installation instruction supplied with the appliance.
  • Always be careful when you move the appliance because it is heavy. Always wear safety gloves.
• Do not install or use the appliance where the temperature is less than 5°C or higher than 35°C.
• Make sure that the floor where you install the appliance is flat, stable, heat resistant and clean.
• Make sure that there is air circulation between the appliance and the floor.
  • Always move the appliance vertically.
• The rear surface of the appliance must be put against the wall.
• When the appliance is put in its permanent position, check if it is fully level with the aid of a spirit level. If it is not, adjust the feet until it is.

2.2 Electrical connection

WARNING!

Risk of fire and electrical shock.

• The appliance must be earthed.
- Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician.
• Always use a correctly installed shockproof socket.
- Do not use multi-plug adapters and extension cables.
- Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
- Do not touch the mains cable or the mains plug with wet hands.
- Only for UK and Ireland. The appliance has a 13 amp mains plug. If it is necessary to change the fuse in the mains plug, use a 13 amp ASTA (BS 1362) fuse.
- This appliance complies with the E.E.C. Directives.

2.3 Use

WARNING!

Risk of injury, electrical shock, fire, burns or damage to the appliance.

• Use this appliance in a household only.
• Do not dry the damaged items which contain padding or fillings.
• Only dry fabrics which are applicable to dry in the tumble dryer. Follow the instructions on the fabric label.
• If you have washed your laundry with a stain remover start an extra rinse cycle before you start the dryer.
• Do not drink or prepare food with the condensed water/distilled water. It can cause health problems to people and pets.
• Do not sit or stand on the open door.
• Do not dry dripping wet clothes in the tumble dryer.

2.4 Internal light

WARNING!

Risk of injury.

• Visible LED radiation, do not look directly into the beam.
• The type of light bulb or halogen lamp used for this appliance is only for household appliances. Do not use it for house lighting.
• To replace the internal light, contact the Authorised Service Centre.

2.5 Care and cleaning

WARNING!

Risk of injury or damage to the appliance.

• Do not use water spray and steam to clean the appliance.
• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

2.6 Compressor

WARNING!

Risk of damage to the appliance.

- The compressor and its system in the tumble dryer is filled with the special agent which is free from fluoro-chlorohydrocarbons. This system must stay tight. The damage of the system can cause a leakage.

2.7 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent children and pets to get closed in the appliance.

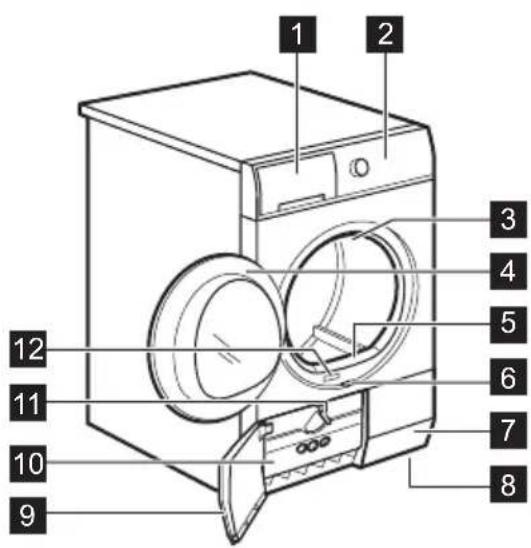

3. PRODUCT DESCRIPTION

1 Water container
2 Control panel
3 Internal light
4 Appliance door
5 Primary Filter

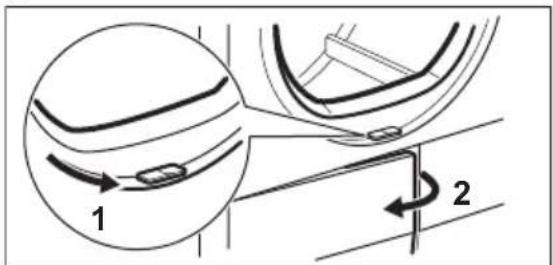

6 The button to open the heat exchanger door
7 Airflow slots
8 Adjustable feet

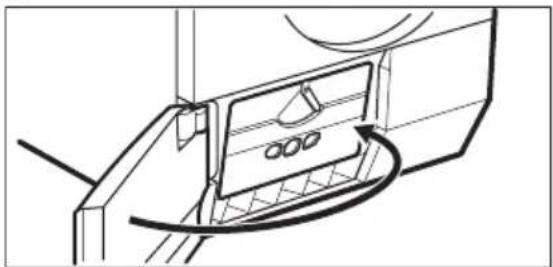

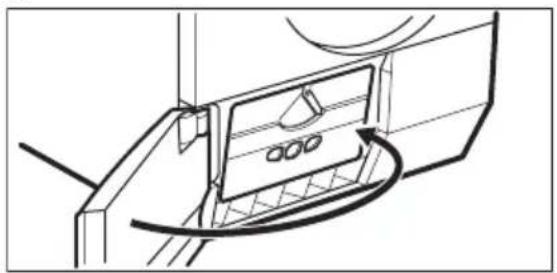

9 Heat exchanger door
10 Heat exchanger cover
11 The knob to lock the heat exchanger cover
12 Rating plate

The load door can be installed by the user in the opposite side. It can help to easily put and remove the laundry or if there is a limit to install the appliance (see separate leaflet).

4. CONTROL PANEL

1 Programme knob
2 Display
3 Tijd (Time) touchpad
4 Startuitstel (Delay) touchpad

5 Zoemer (Buzzer) touchpad

6 Wol Belading (Wool Load) touchpad

7 ▷‖Start/Pauze (Start/Pause) touchpad

8 On/Off button

Touch the touchpads with your finger in the area with the symbol or name of the option. Do not wear gloves when you operate with the control panel. Make sure that the control panel is always clean and dry.

4.1 Indicators

Indicators Description
	Drying phase
	Cooling phase
	Crease guard phase
	Condenser
[50XC]	Water container
	Filter
[0248]	Delay start
	Child lock
	Acoustic signals
[23TD]	Programme duration
	Time Drying duration
	Delay start duration

1. PROGRAMME TABLE

Programmes Type of load			Load (max.)1) / Fabric mark
[6200]Extra Droog (Extra	[OTDS]		[69C7]
[DX03]Kastdrooa + (Cup-			[4K20] [XXDA]

Programmes Type of load		Load (max.)1) / Fabric mark
Kastdroog (Cup-board Dry)2) 3)	Drying level: cupboard dry.	8kg/
Strijkdroog (Iron Dry)2)	Drying level: applicable for iron.	8kg/
Synthetica (Synthetic)
Extra Droog (Extra Dry)	Drying level: extra dry.	3,5kg/
Kastdroog (Cup-board Dry)2)	Drying level: cupboard dry.	3,5kg/
Strijkdroog (Iron Dry)	Drying level: applicable for iron.	3,5kg/
Snel 2kg (Quick)	To dry cotton and synthetic fabrics, uses low temperature.	2kg/
Tijd (Time Drying)	With this programme you can use the option Tijd (Time) and set the programme duration.	8kg/
Opfrissen (Refresh)	Refreshing a textiles that were in storage. Wool fabrics. Gentle drying washable woollens. Remove immediately the items when the programme is completed.	1kg
Wol (Wool)4)		1kg
	For drying sport shoes only with Drying Rack (see separate user manual provided with Drying Rack).	1 pair of sport shoes
Fijne was (Delicates)	Delicate fabrics.	2kg/

Programmes Type of load			Load (max.)1) / Fabric mark
	Dekbed (Duvet)	To dry one or two duvet and pillows (with feather, down or synthetic fillings).
Iron	Strijkvrij (Easy)	Easy care fabrics for which a minimum of ironing is necessary. The drying results can be different from one type of fabric to the other. Shake the items before you put them in the appliance. When the programme is completed, Immediately remove the items and put them on a hang-er.	1kg (or 5 shirts)/

1) The maximum weight refers to dry items.
2) For test institutes only: Standard programmes for tests are specified in the EN 61121 document. Clean the primary filter and heat exchanger filter after each cycle.
3) The Katoen (Cotton) Kastdroog (Cupboard Dry) programme is the "Standard cotton programme" and it is suitable to dry normal wet cotton laundry and it is the most efficient programme in terms of energy consumption for drying wet cotton laundry.
4) The wool drying cycle of this tumble drying machine has been tested and approved by The Woolmark Company. The cycle is suitable to dry wool garments, which are labelled "hand wash" provided that the garments are washed in a Woolmark endorsed hand washing cycle and tumble dried according to the instructions issued by the manufacturer. 1780SW13W.

6. OPTIONS

6.1 Tijd (Time)

This option is applicable to the Tijd (Time Drying) programme and to the Wol (Wool) programme (only with the Drying Rack)..

We recommend that you set a short duration for small quantities of laundry or for only one item.

• Tijd (Time Drying) programme: You can set the programme duration, from a minimum of 10 minutes to a maximum of 2 hours. The setting of the duration is related to the quantity of laundry in the appliance.
• Wol (Wool) programme: You can set the programme duration, from a minimum of 30 minutes to a maximum of 4 hours. The setting of the duration is related to the quantity of laundry in the appliance.

6.2 Wol Belading (Wool Load)

This option is applicable only to the Wool programme. To get laundry more dried press the Wol Belading (Wool Load) touchpad again and again to increase the programme duration.

6.3 Zoemer (Buzzer)

you can hear the buzzer at the:

• cycle end
• start and end of crease guard phase
• cycle interruption
  The buzzer function is by default always on. You can use this function to activate or deactivate the sound.

You can activate the Zoemer (Buzzer) option with all programmes.

6.4 Options table

Programmes1)
[7H3W] Tijd (Time Drying)	###
Wol (Wool)	2)	■

1) Together with the programme you can set 1 or more options. To activate or deactivate them, press the related touchpad.
2) Only with the Drying Rack (standard accessory or optional, depending on model).

7. SETTINGS

A) Tijd (Time) touchpad
B) Startuitstel (Delay) touchpad
C) Zoemer (Buzzer) touchpad
D) Wol Belading (Wool Load) touchpad
E) Start/Pauze (Start/Pause) touchpad

7.1 Child lock function

This option prevents children to play with the appliance while a programme operates. The programme knob and the touchpads are locked.

Only the on/off button is unlocked.

Activating the child lock option:

1. Press the on/off button to activate the appliance.
2. Wait approximately 8 seconds.
3. Press and hold touchpads (A) and (D) at the same time. The child lock indicator comes on.

8. BEFORE FIRST USE

Before you use the appliance for the first time do these operations:

The child lock indicator comes on.

It is possible to deactivate the child lock option while a programme operates. Press and hold the same touchpads until the child lock indicator goes off.

7.2 Adjustment of the remaining laundry moisture degree

To change the default degree of the remaining moisture of the laundry:

1. Press the on/off button to activate the appliance.
2. Wait approximately 8 seconds.
3. Press and hold buttons (A) and (B) at the same time.

One of the these indicators comes on:

• CO_ the maximum dry laundry
- the more dry laundry
• the standard dry laundry

1. Press the button (E) again and again until the indicator of the correct level comes on.
2. To confirm the adjustment, press and hold buttons (A) and (B) at the same time for approximately 2 seconds.

- Clean the tumble dryer drum with a moist cloth.

- Start a short programme (e.g. 30 minutes) with moist laundry.

9. DAILY USE

9.1 Start a programme without delay start

1. Prepare the laundry and load the appliance.

CAUTION!

Make sure that when you close the door, the laundry does not catch between the appliance door and the rubber seal.

1. Press the on/off button to activate the appliance.
2. Set the correct programme and options for the type of load.

The display shows the programme duration.

1. Press the Start/Pauze (Start/Pause) touchpad.

The programme starts.

9.2 Starting the programme with delay start

1. Set the correct programme and options for the type of load.
2. Press the delay start button again and again until the display shows the delay time you want to set.

You can delay the start of a programme from a minimum of 30 minutes to a maximum of 20 hours.

1. Press the Start/Pauze (Start/Pause) touchpad.

The display shows the countdown of the delay start.

When the countdown is completed, the programme starts.

At the beginning of drying cycle (3-5 min.) there could be a slightly higher sound level. It is because of start of the compressor that is normal for compressor powered appliances such: refrigerators, freezers.

9.3 Change a programme

1. Press the on/off button to deactivate appliance
2. Press the on/off button to activate the appliance.
3. Set the programme.

9.4 At the end of the programme

When the programme is completed:

• An intermittent acoustic signal operates.
• The indicator ☐ flashes.
• The indicator flashes.
• The Start/Pauze (Start/Pause) indicator is on.

The appliance continues to operate with the crease guard phase for approximately other 30 minutes.

The crease guard phase removes creases from your laundry.

You can remove the laundry before the crease guard phase is completed. We recommend, for better results, that you remove the laundry when the phase is almost completed or completed.

When the crease guard phase is completed:

• The indicator is on but does not flash.

• The indicator is on but does not flash.

• Start/Pauze (Start/Pause) indicator goes off.

• Press the on/off button to deactivate the appliance.
• Open the appliance door.
• Remove the laundry.
• Close the appliance door.

Always clean the filter and empty the water container when a programme is completed.

10. HINTS AND TIPS

10.1 Preparing the laundry

• Close the zippers.
• Close the fasteners of the duvet covers.
• Do not keep ties or ribbons loose (e.g. apron ribbons). Tie them before you start a programme.
• Remove all items from the pockets.
• If an item has the internal layer made of cotton, turn it inside out. Make sure that the cotton layer is always external
• We recommend that you set the correct programme applicable for the type of fabrics that are in the appliance.

9.5 Stand-by function

To decrease the energy consumption, this function automatically deactivates the appliance:

• After 5 minutes if you do not start the programme.
• After 5 minutes from the end of the programme.

- Do not put fabrics with strong colours together with fabrics with light colours. Strong colours can bleed.

- Use an applicable programme for cotton jersey and knitwear to prevent the items to shrink.

- Make sure that the laundry weight is not more than the maximum weight that is in the programme table.

- Dry only the laundry that is applicable for tumble dryer. Refer to the fabric label on the items.

Fabric label Description
	Laundry that is applicable for tumble dryer.
	Laundry that is applicable for tumble dryer. Set the programme with standard temperature.
	Laundry that is applicable for tumble dryer. Set the programme with low temperature.
	Laundry that is not applicable for tumble dryer.

11. CARE AND CLEANING

11.1 Cleaning the filter

1.2.

3.

4.

1. 1)

6.

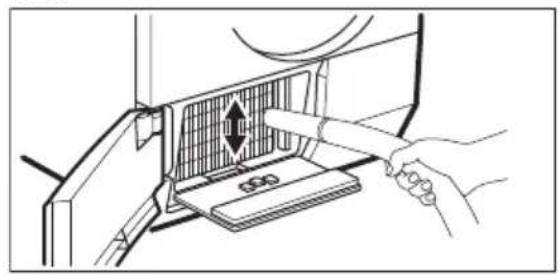

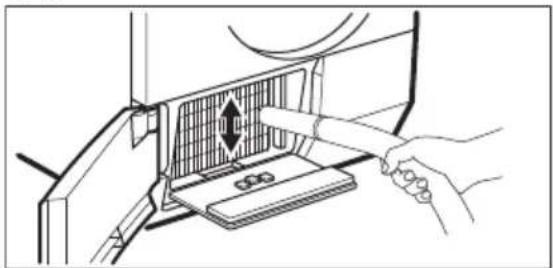

1) If necessary clean the filter with tap warm water using a brush and/or a vacuum cleaner.

11.2 Draining the water container

1.2.

3.4.

You can use the water from the water container as an alternative to distilled water (e.g. for steam ironing). Before you use the water, remove dirt residues with a filter.

11.3 Cleaning the condenser

1.2.

3.

4.

5.6.

8.

11.4 Cleaning the drum

WARNING!

Disconnect the appliance before you clean it.

Use a standard neutral soap detergent to clean the inner surface of the drum and

drum ribs. Dry the cleaned surfaces with a soft cloth.

CAUTION!

Do not use abrasive materials or steel wool to clean the drum.

11.5 Cleaning the control panel and housing

Use a standard neutral soap detergent to clean the control panel and housing.

Use a moist cloth to clean. Dry the cleaned surfaces with a soft cloth.

CAUTION!

Do not use furniture cleaning agents or cleaning agents which can cause corrosion to clean the appliance.

11.6 Cleaning the airflow slots

Use a vacuum cleaner to remove the fluff from the airflow slots.

12. TROUBLESHOOTING

Problem Possible solution
You cannot activate the appliance. Make sure that the mains plug is connected to the mains socket.
Check fuse in fuse box (domestic installation).
The programme does not start. Press Start/Pauze (Start/Pause).
Make sure that the appliance door is closed.
The appliance door does not close. Make sure that the installation of the filter is correct.
Make sure that the laundry does not catch between the appliance door and the rubber seal.
The appliance stops during operation. Make sure that the water container is empty. Press Start/Pauze (Start/Pause) to start the programme again.
The display shows a long programme duration. 1)	Make sure that the weight of the laundry is applicable to the duration of the programme.
Make sure that the filter is clean.
The laundry is too wet. Spin the laundry in the washing machine again.
Make sure that the room temperature is not too warm.
The display shows a short programme duration.	Set the Tijd (Time Drying) or the Extra Droog (Extra Dry) programme.
The display shows Err. If you want to set a new programme, de-activate and activate the appliance.
Make sure that the options are applicable to the programme.
The display shows (e.g. E51). Deactivate and activate the appliance.Start a new programme. If the problem occurs again, contact the Service.

1) After maximum 5 hours, the programme ends automatically

If the drying results are not satisfactory

• The set programme was incorrect.
• The filter is clogged.
  • The condenser is clogged.

• There was too much laundry in the appliance.

• The drum is dirty.

• Incorrect setting of the conductivity sensor.
• The airflow slots are clogged.

13. TECHNICAL DATA

Height x Width x Depth 850 x 600 x 600 mm (maximal 640 mm)
Max. depth with the appliance door open 1090 mm
Max. width with the appliance door open 950 mm
Adjustable height 850 mm (+ 15 mm - feet regulation)
Drum volume 118 l
Maximum load volume 8 kg
Voltage 230 V
Frequency 50 Hz
Necessary fuse 4 A
Total power 900 W
Energy efficiency class	A+
Energy consumption1)	2,56 kWh
Annual energy consumption2)	299 kWh
Left-on mode power absorption 0,11 W
Off mode power absorption 0,11 W
Type of use	Household
Permitted ambient temperature	+ 5°C to + 35°C

Level of protection against ingress of solid particles and moisture ensured by the protective cover, except where the low voltage equipment has no protection against moisture

1) With reference to EN 61121. 8kg of cotton centrifuged at 1000 rpm.
2) Energy consumption per year in kWh, based on 160 drying cycles of the standard cotton programme at full and partial load, and the consumption of the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used (REGULATION (EU) No 392/2012).

13.1 Consumption Data

Programme Spun at / residual humidity Drying time		Energy consumption
Katoen (Cotton) 8 kg
Kastdroog (Cup-board Dry)	1400 rpm / 50% 184 min. 2,25 kWh
1000 rpm / 60% 210 min. 2,56 kWh
Strijkdroog (Iron Dry)	1400 rpm / 50% 127 min. 1,66 kWh
1000 rpm / 60% 145 min. 1,89 kWh
Synthetica (Synthetic) 3,5 kg
Kastdroog (Cup-board Dry)	1200 rpm / 40% 58 min. 0,63 kWh
800 rpm / 50% 66 min. 0,71 kWh

14. ENVIRONMENT CONCERNS

Recycle the materials with the symbol 📊 Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do

not dispose appliances marked with the symbol ☒ with the household waste. Return the product to your local recycling facility or contact your municipal office.

TABLE DES MATIÈRES

1. CONSIGNES DE SÉCURITÉ....38
2. INSTRUCTIONS DE SÉCURITÉ....40
3. DESCRIPTION DE L'APPAREIL....42
4. PANNEAU DE COMMANDE.... 43
5. TABLEAU DES PROGRAMMES.... 44
6. OPTIONS....46
7. RÉGLAGES DE BASE....47
8. AVANT LA PREMIÈRE UTILISATION....47
9. UTILISATION QUOTIDIENNE....48
10. CONSEILS......48
11. ENTRETIEN ET NETTOYAGE.... 49
12. EN CAS D'ANOMALIE DE FONCTIONNEMENT.... 52
13. CARACTÉRISTIQUES TECHNIQUES....53

NOUS PENSONS À VOUS

3.

4.

1. 1)


1.

3.4.

1.

1.

5.6.

1.

3.

4.

1. 1)

6.

3.4.

3.

4.

5.6.

8.
