| Product Type | DLP Projector |
| Brand | Sanyo |
| Model | PDG-DXL2000 |
| Display Technology | Digital Light Processing (DLP) |
| Native Resolution | 1024 x 768 (XGA) |
| Brightness | 2600 ANSI Lumens |
| Contrast Ratio | 2000:1 |
| Lamp Type | 200W UHP |
| Lamp Life | Up to 3000 hours (Standard), Up to 4000 hours (Eco) |
| Projection Distance | 1.2 - 10.0 m |
| Image Size | 0.76 - 7.62 m (100") |
| Aspect Ratio | 4:3 (Native), 16:9 Compatible |
| Keystone Correction | Vertical: ±20° |
| Input Terminals | HDMI, VGA, S-Video, Composite, Audio |
| Dimensions (W x D x H) | 298 x 224 x 85 mm |
| Weight | 3.2 kg |
| Power Supply | AC 100-240V, 50/60Hz |
| Power Consumption | 250W (Standard), <1W (Standby) |
| Noise Level | 30 dB (Standard), 27 dB (Eco) |
| Included Accessories | Remote control, Batteries, Power cord, VGA cable, User manual |
| Cleaning Instructions | Use a soft dry cloth. Do not use solvents. |
| Safety | Overheat protection, auto power-off when no signal |
| Repairability | Lamp replacement accessible via bottom door; other repairs by qualified service |
Frequently Asked Questions - PDG-DXL2000 SANYO
User questions about PDG-DXL2000 SANYO
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Projector in PDF format for free! Find your manual PDG-DXL2000 - SANYO and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PDG-DXL2000 by SANYO.
USER MANUAL PDG-DXL2000 SANYO
Multimedia Projector
MODEL PDG-DXL2000
3D Ready
- DLP® Link and IR format compatible
Network Supported
Refer to the Owner's Manual below for details about network function.
• Network Set-up and Operation
© SANYO Electric Co., Ltd. 2010
Trademarks
- DLP is a registered trademark of Texas Instruments. BrilliantColor and DynamicBlack are trademarks of Texas Instruments.
- HDMI, the HDMI logo and High-Definition Multimedia Interface are the trademarks or registered trademarks of HDMI Licensing, LLC.
- Trademark PJLink is a trademark applied for trademark rights in Japan, the United States of America and other coun-tries and areas.
• NVIDIA, the NVIDIA logo, and 3D VISION are registered trademarks and/or trademarks of NVIDIA Corporation in the United States and other countries.
• Each name of corporations or products in this book is either a registered trademark or a trademark of its respective corporation.
This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use.
◆ Large Screen in Limited Space
Short focus lens allows you to project large images from short distance. (p.15)
◆ 3D Display Function
This projector is capable of displaying 3D video with the Frame Sequential Format*, and you can view the dynamic 3D contents by wearing 3D glasses (pp.29, 48-49, 52).
* The compatible 3D image signal is only Frame Sequential format. The Frame Packing and Side-by-side formats are not supported. Active Shutter format 3D glasses are required to view projected images in 3D. (DLP Link and IR formats are compatible.)
◆ Compact Design
This projector is designed compact in size and weight, and it can be installed overhead without interfering with the view, or can be installed on the floor without much space.

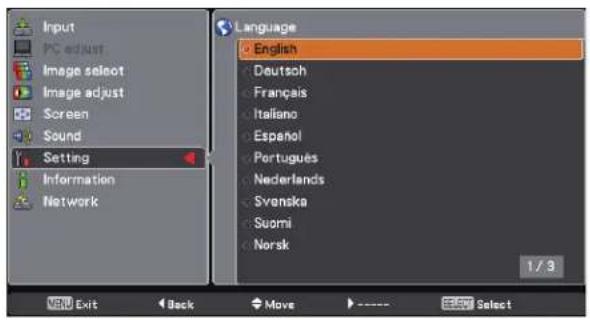

◆ Multilanguage Menu Display
The Operation menu is available in 24 languages: English, German, French, Italian, Spanish, Portuguese, Dutch, Swedish, Finnish, Norwegian, Danish, Polish, Hungarian, Romanian, Russian, Brazilian Portuguese, Turkish, Arabic, Kazakh, Simplified Chinese, Traditional Chinese, Korean, Japanese and Thai. (p.50)
◆ Helpful Maintenance Functions
Lamp and filter maintenance functions provide for better and proper maintenance of the projector.
◆ Direct OFF Function
With the Direct OFF function, you can disconnect the power cord from the wall outlet or turn off the breaker even during projection (p.22).
◆ Auto Setup Function
This function enables Input search and Auto PC adjustment by simply pressing the AUTO SET button (pp.26, 51).
◆ Switchable Interface Terminal
The projector provides a switchable interface terminal. You can use the terminal as computer input or monitor output conveniently. (p.56)
◆ Digital Zoom (for Computer)
The digital zoom function allows you to focus on crucial information during a presentation. You can expand the images approx. 16 times the screen size and compress them to approximately a quarter of the screen size. (p.39)
◆ Colorboard Function
At the time of simple projection on colored wall or school blackboard (The board color is limited to green.), you can get the close color image to the color image projected on a white screen by selecting the similar color to the wall color from the preset colors. (pp.40, 47)

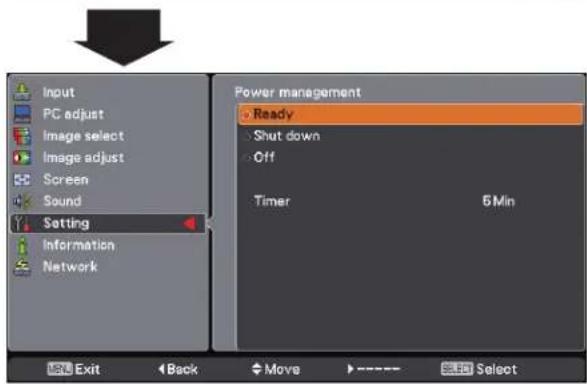

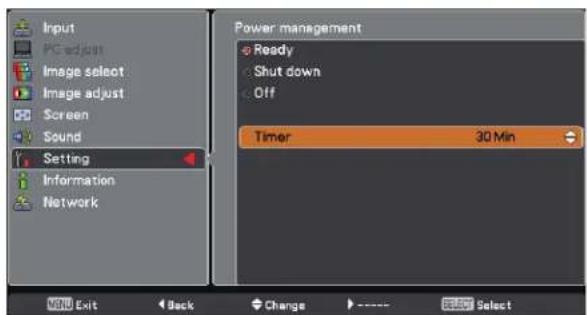

◆ Power Management
The Power management function reduces power consumption and maintains lamp life. (p.57)

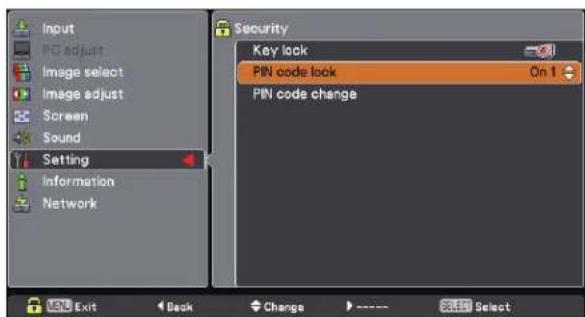

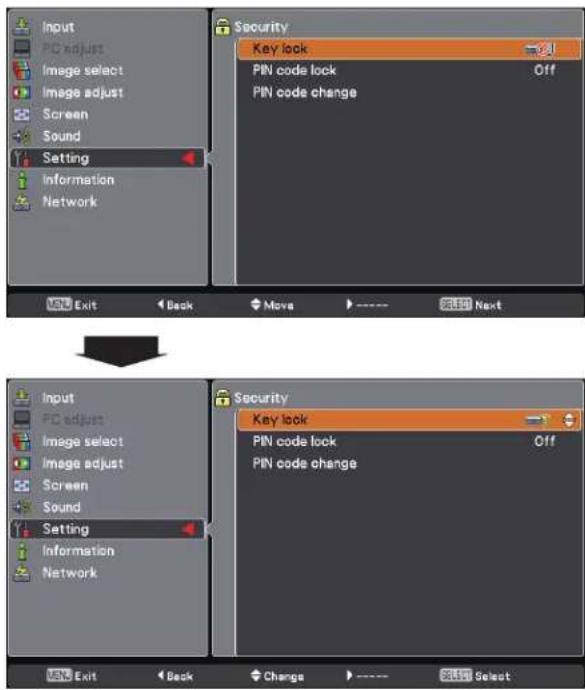

◆ Security Features

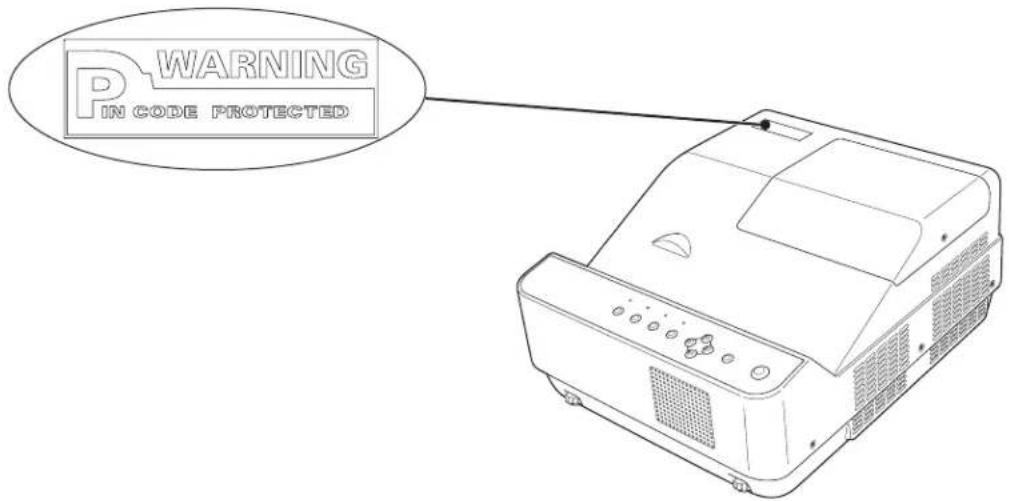

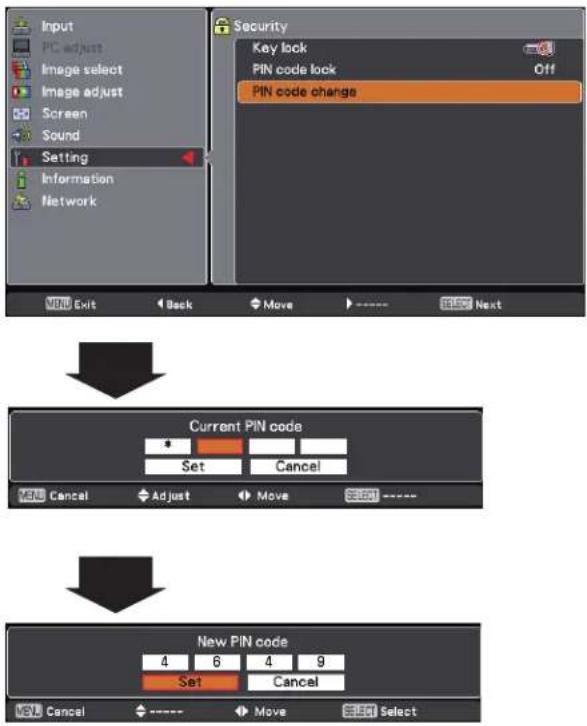

The Security function helps you to ensure security of the projector. With the Key lock function, you can lock the operation on the top control or remote control (p.59). PIN code lock function prevents unauthorized use of the projector (pp.21, 59–60).

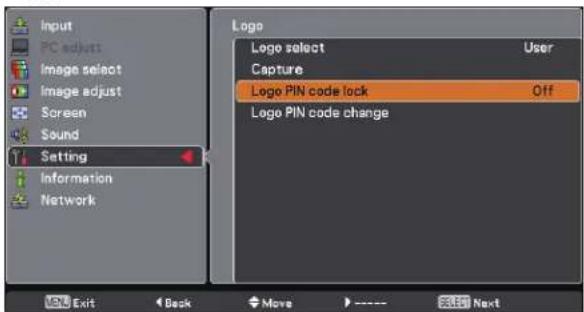

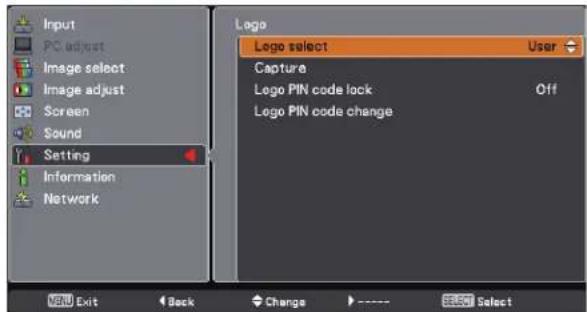

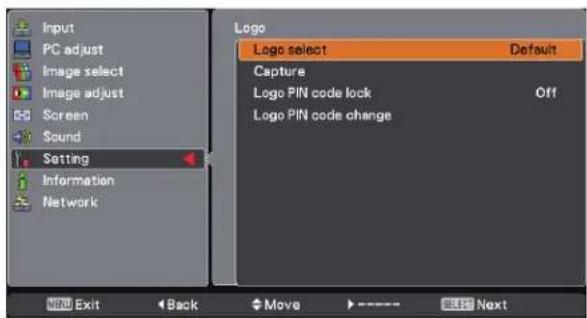

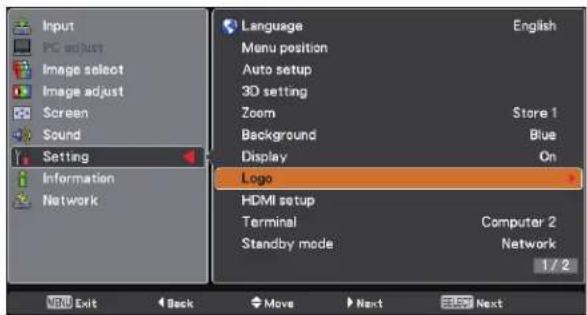

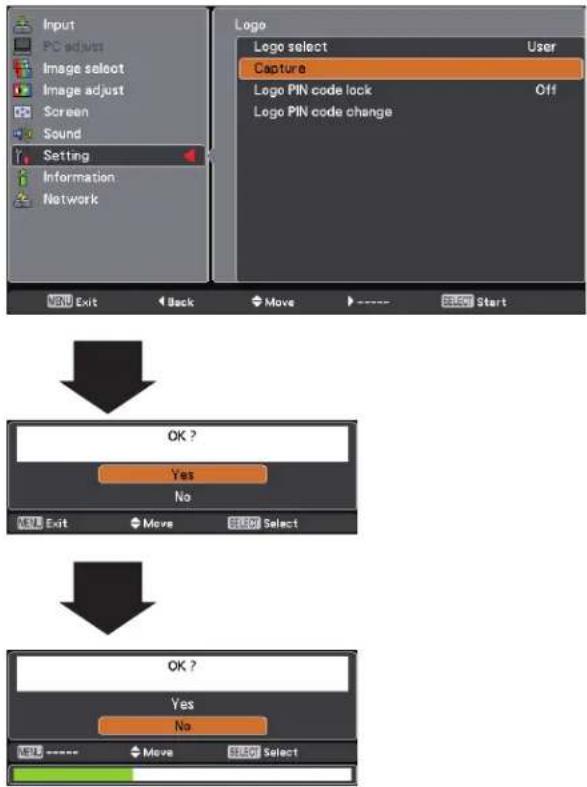

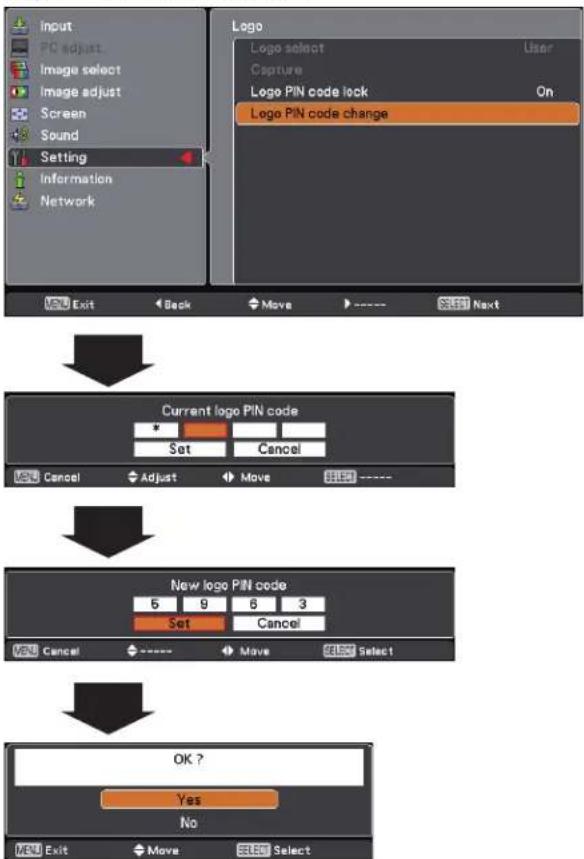

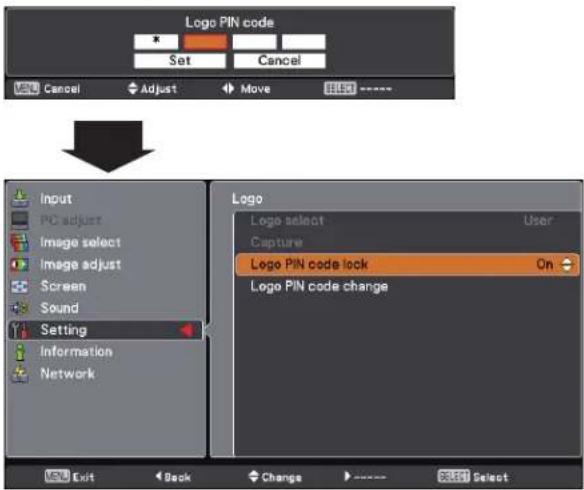

◆ Logo Function
The Logo function allows you to customize the screen logo. The Logo page identifies the owner of the projector. (pp.53-55)
◆ Simple Computer System Setting
The projector has a Multi-scan system to conform to almost all computer output signals quickly. (p.32)

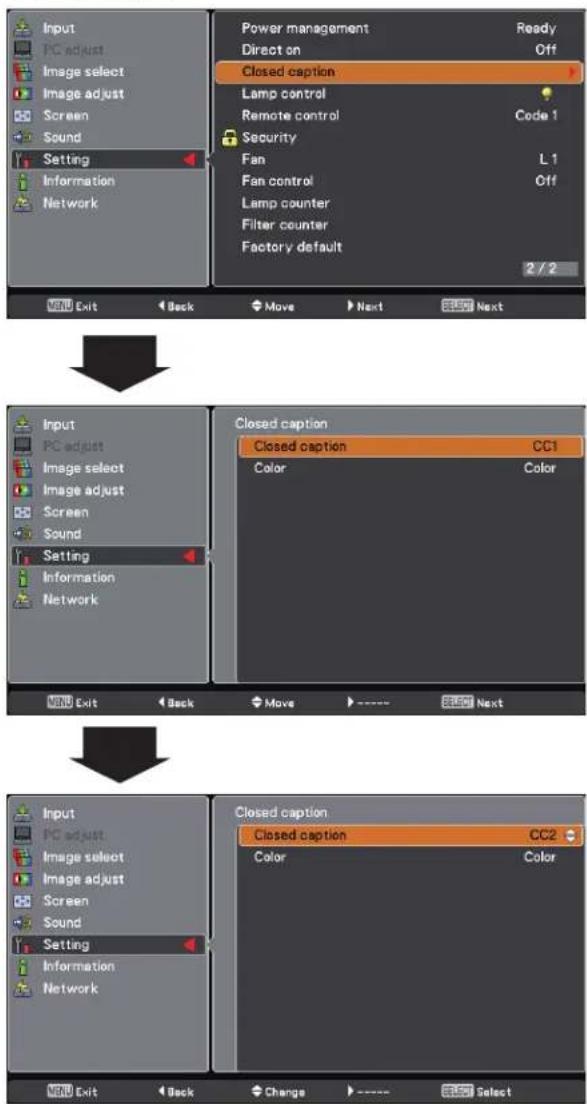

◆ Closed caption
Closed Caption is a function that displays the audio portion of a TV program as text on the screen. The closed captioning service is available mainly in the U.S. You can turn on the feature and switch the channels. (p.58)
♦ LAN Network Function
This projector is loaded with the Wired function. You can manage the projector via network. For details, refer to the owner's manual "Network Setup and Operation."
√Note:
- The On-Screen Menu and figures in this manual may differ slightly from the product.
- The contents of this manual are subject to change without notice.
Features and Design ....3
Table of Contents 4
To the Owner....5
Safety Instructions....6
Air Circulation 7
Filter Maintenance 7
Moving the Projector 7
Installing the Projector in Proper Position 8
Compliance....9
Part Names and Functions .....10

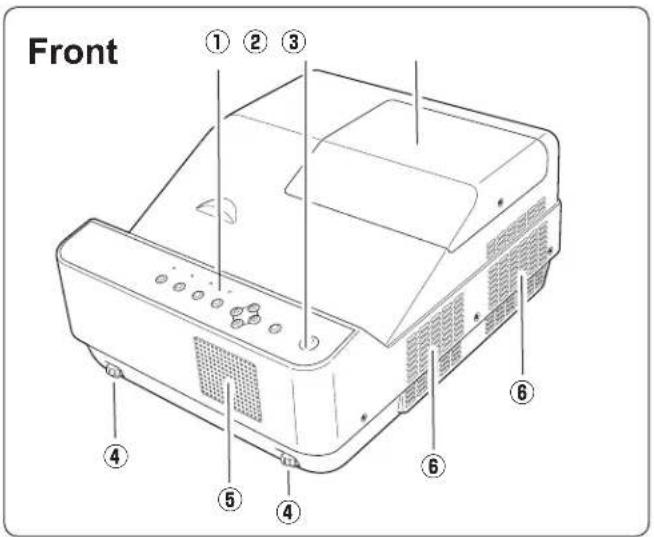

Front 10

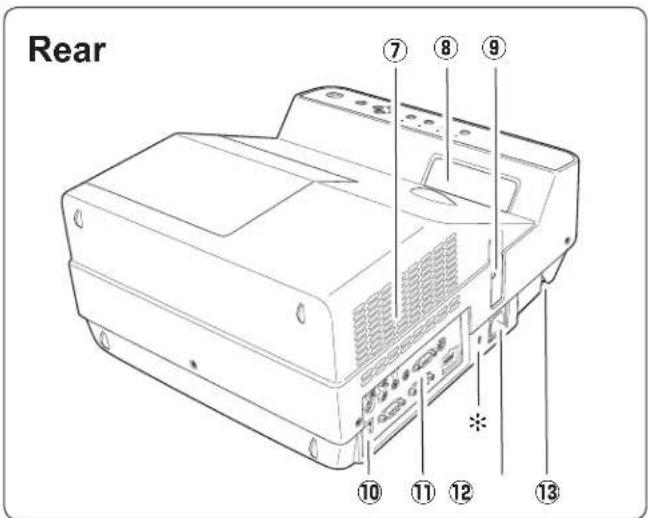

Rear 1 0

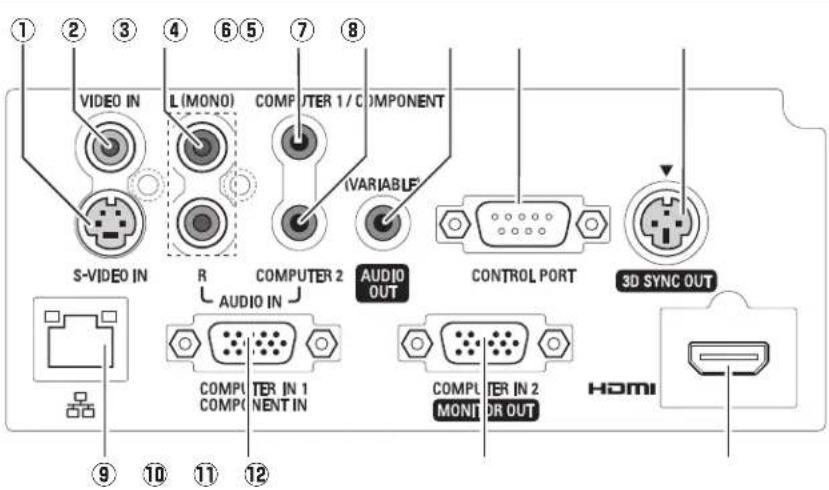

Side Terminal 1 1

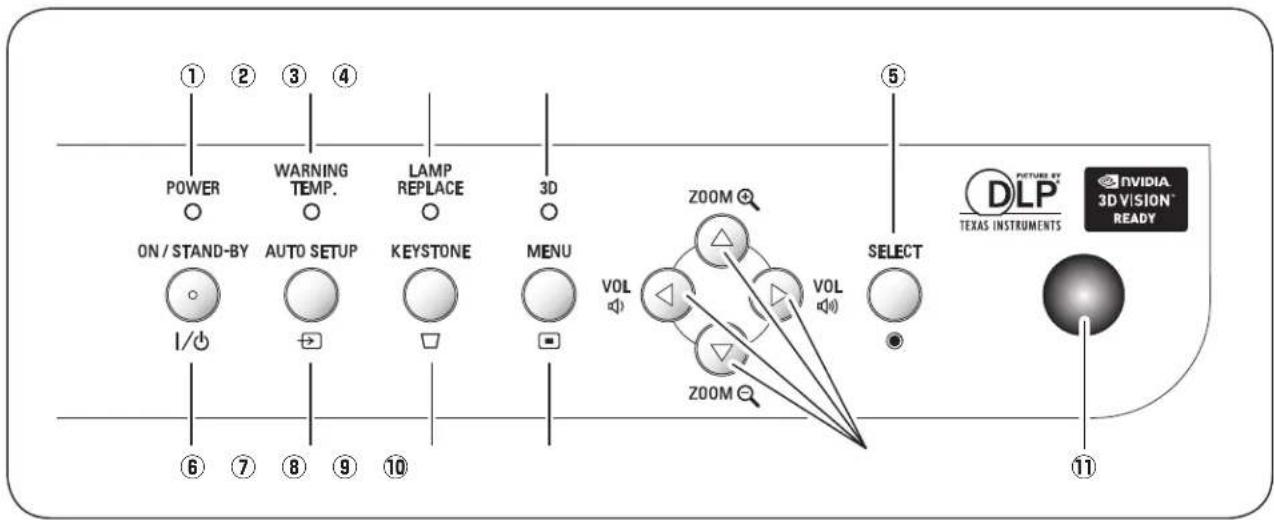

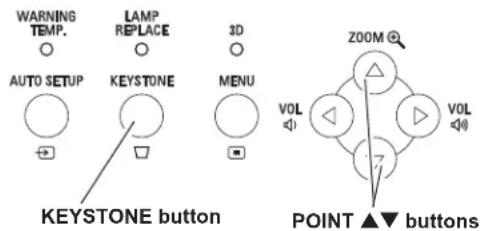

Top Controls and Indicators 1 2

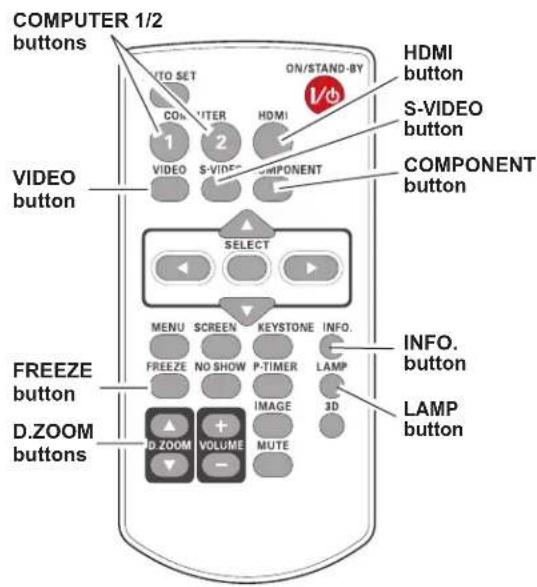

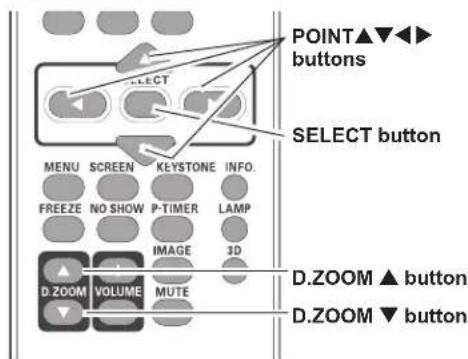

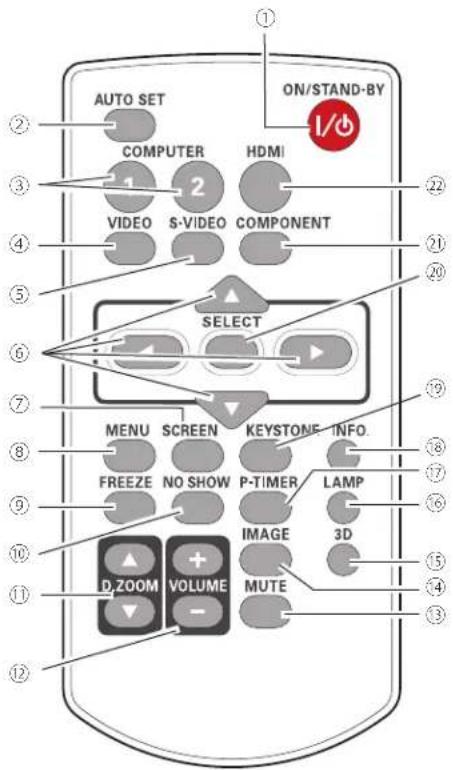

Remote Control 1 3
Remote Control Battery Installation 1 4

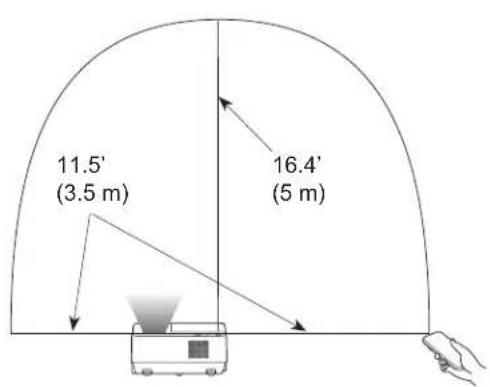

Remote Control Operating Range 1 4

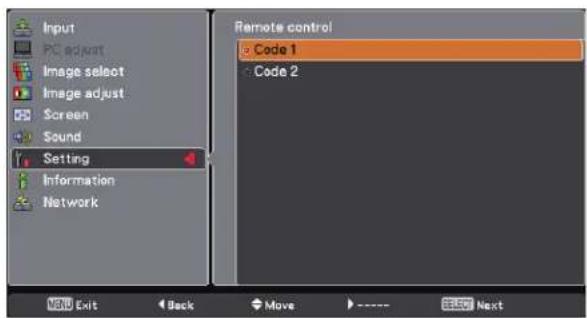

Remote Control Code 1 4
Installation....15
Positioning the Projector 15

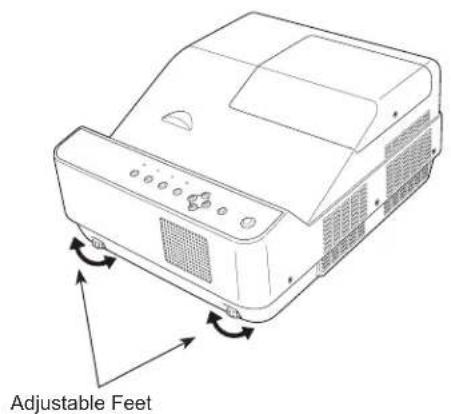

Adjustable Feet 15

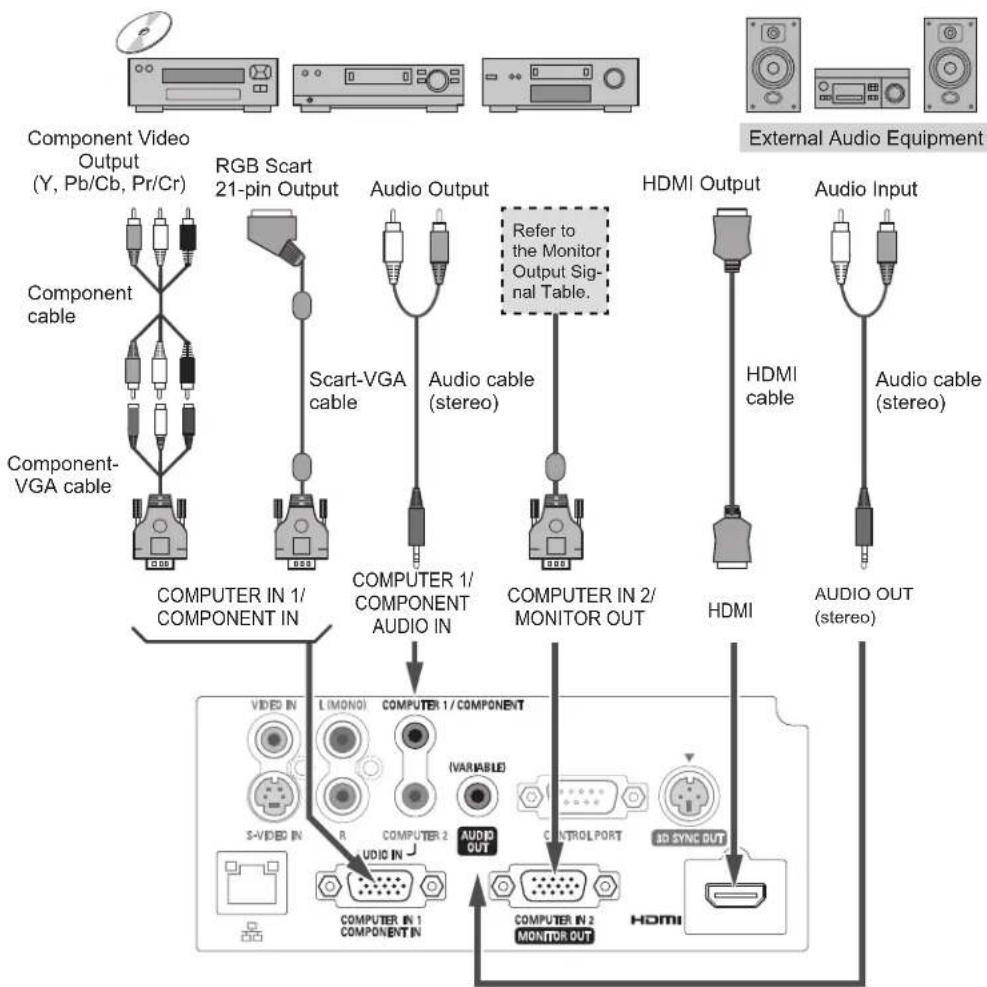

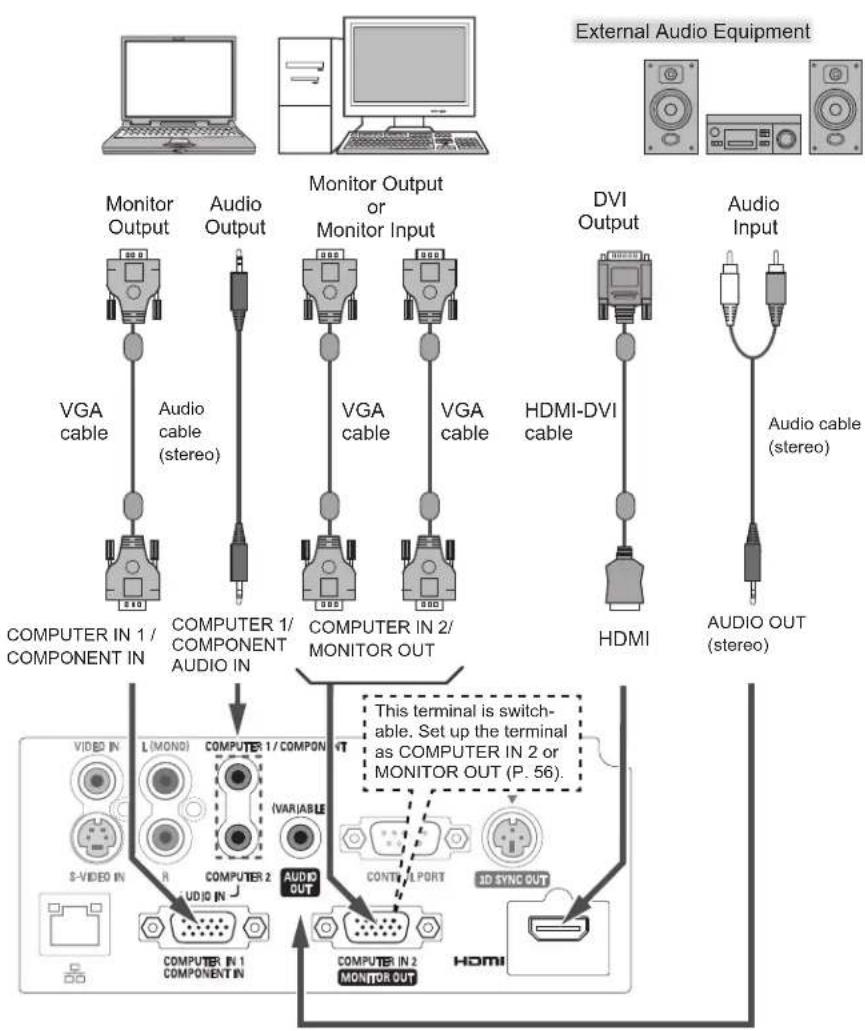

Connecting to a Computer 16

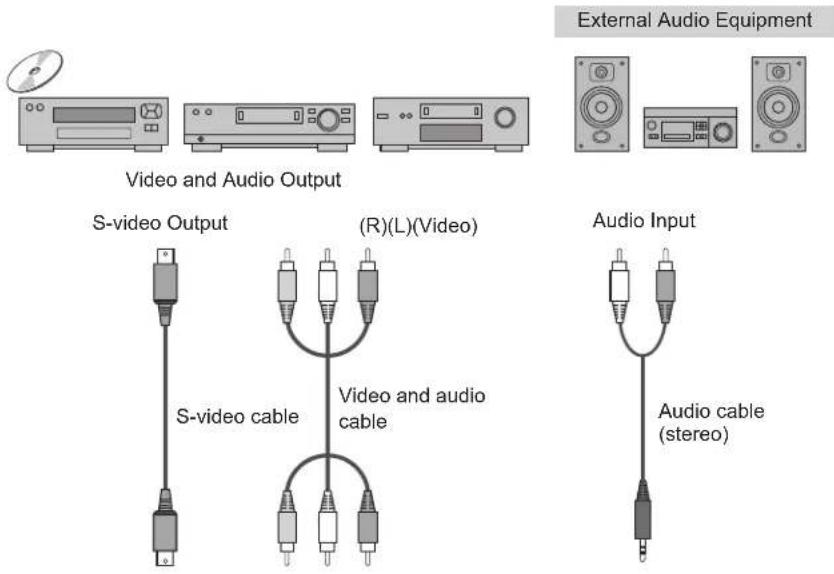

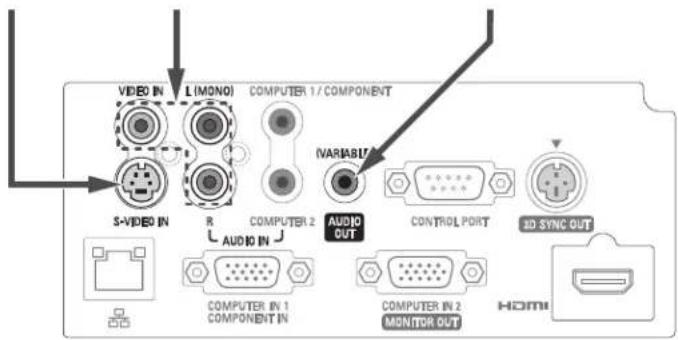

Connecting to Video Equipment 17
Connecting to Component Video Equipment 18

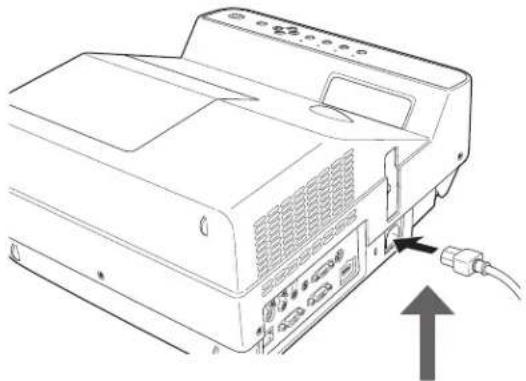

Connecting the AC Power Cord 19
Basic Operation ....20
Turning On the Projector 20
Turning Off the Projector 22

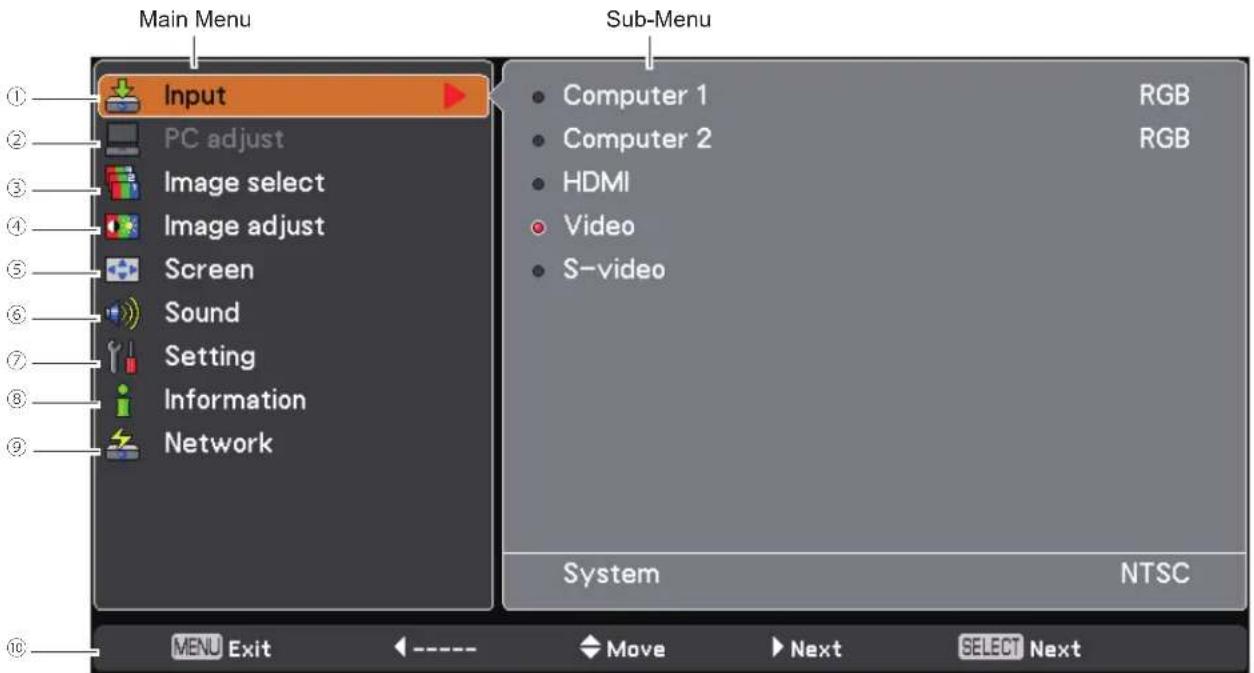

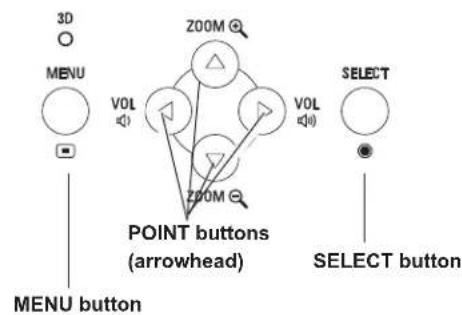

How to Operate the On-Screen Menu 23
Menu Bar 24

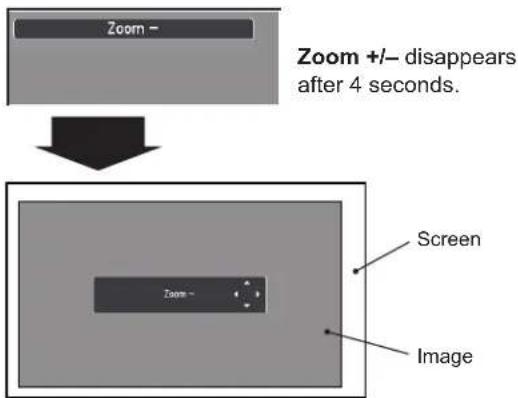

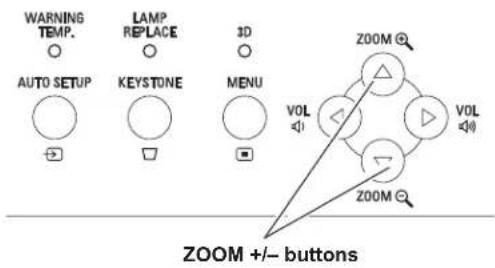

Zoom and Image Position Adjustment 25

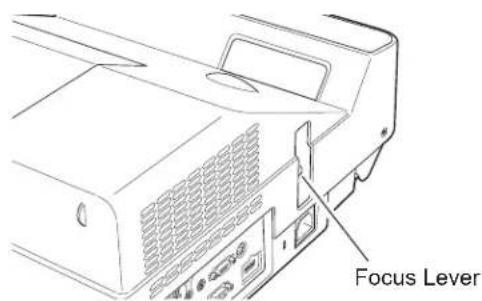

Focus Adjustment 25

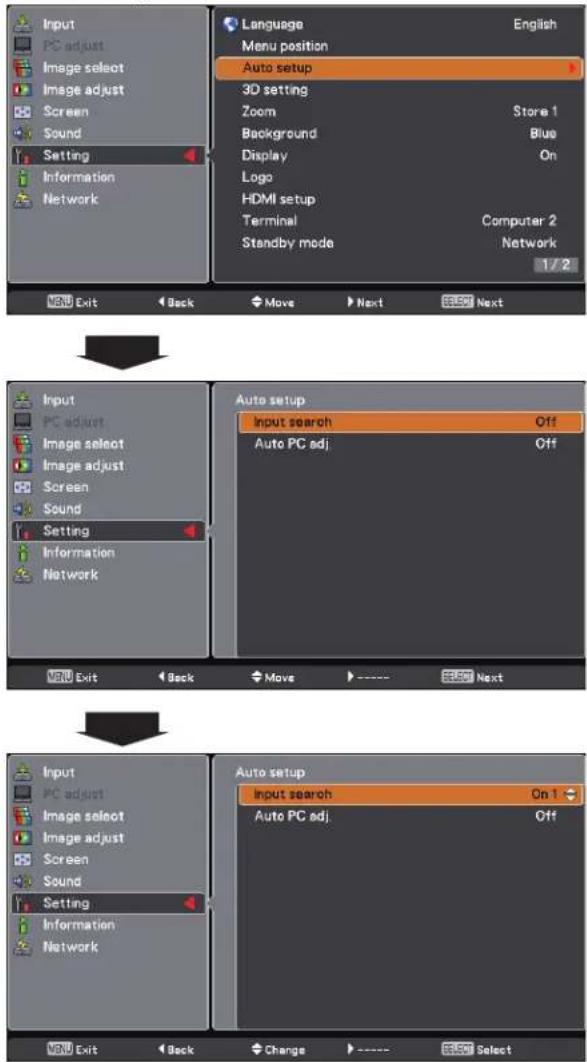

Auto Setup Function 26

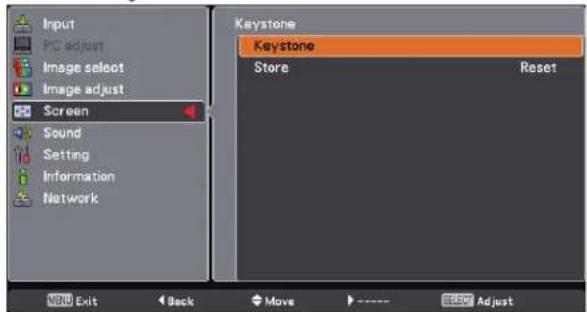

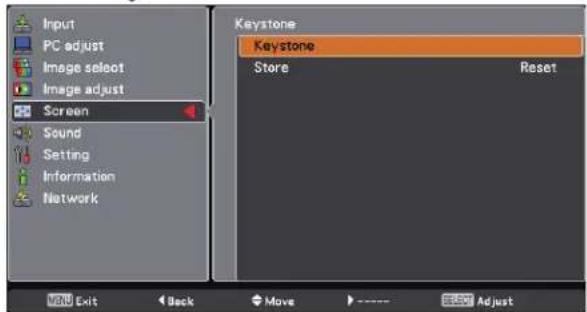

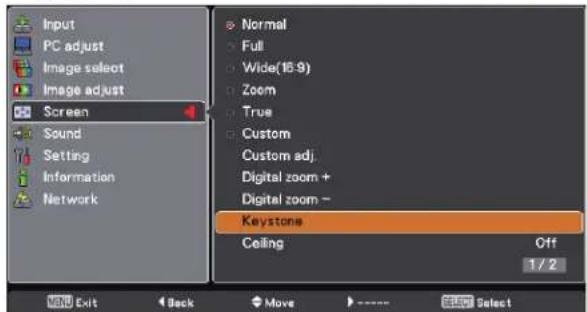

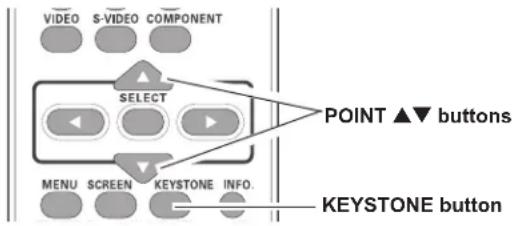

Keystone Correction 26

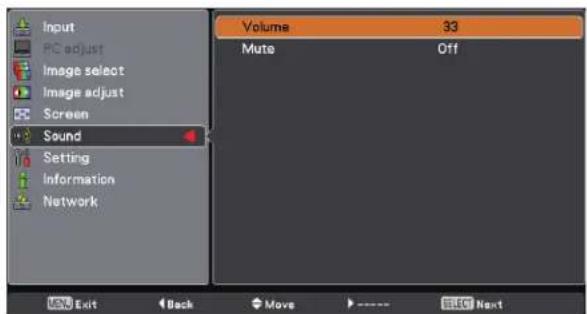

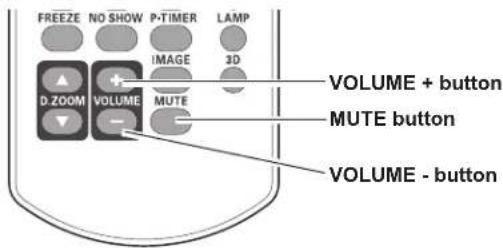

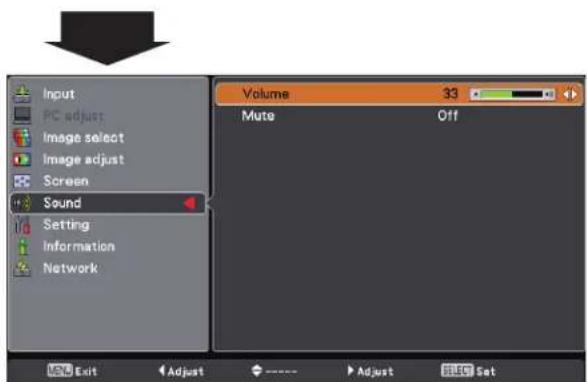

Sound Adjustment 27
Remote Control Operation 28
Computer Input 30

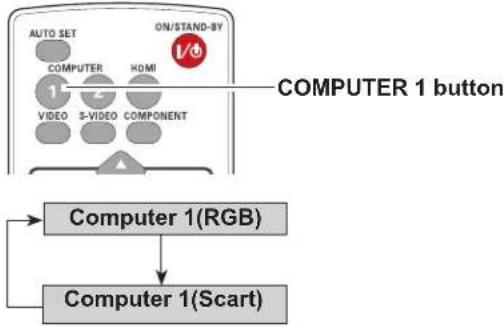

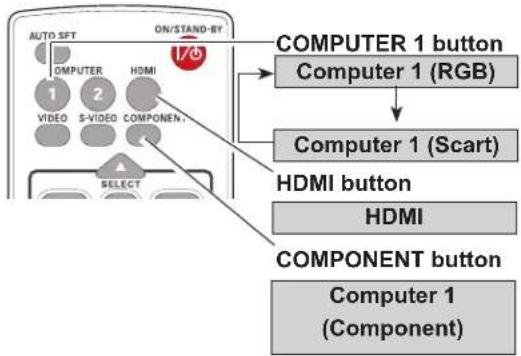

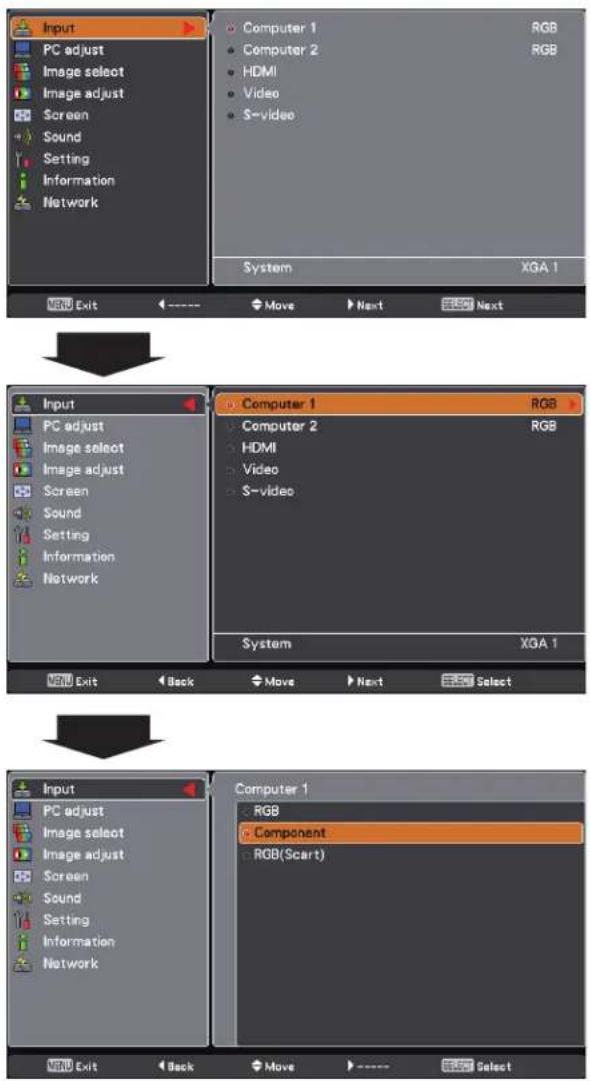

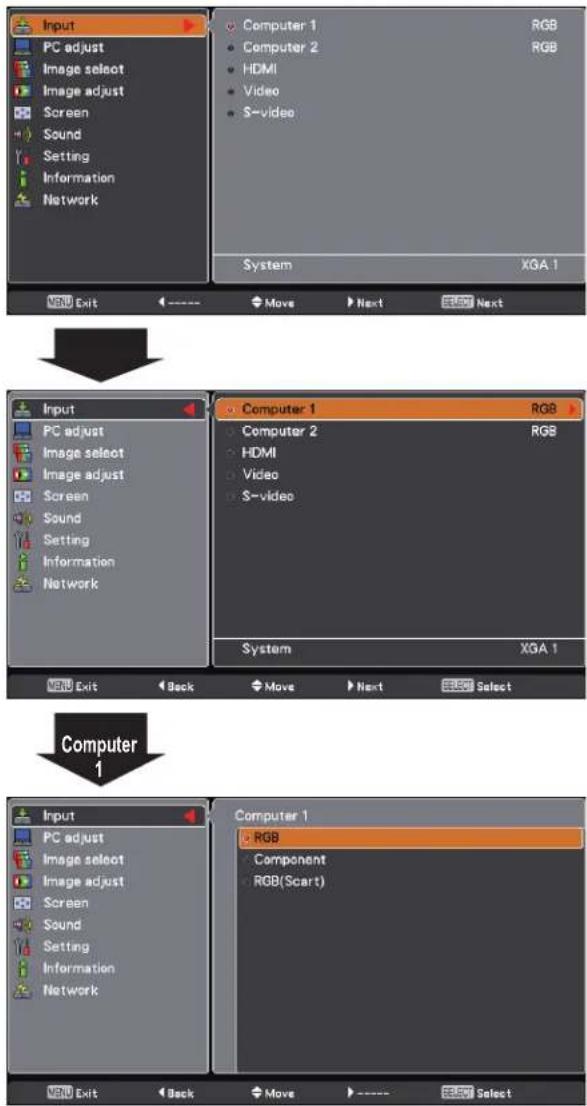

Input Source Selection (Computer 1: RGB) 30

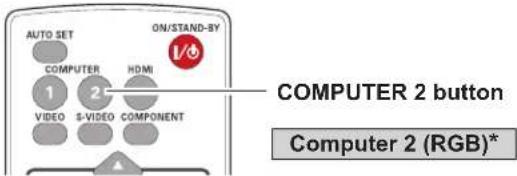

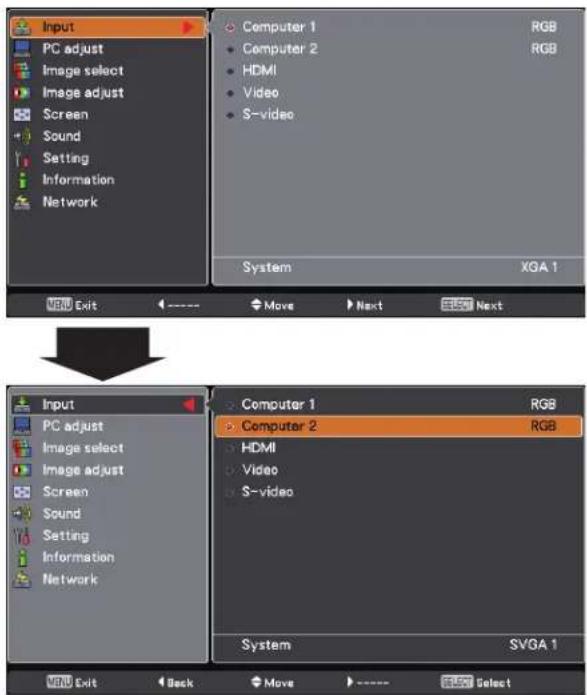

Input Source Selection (Computer 2: RGB) 31

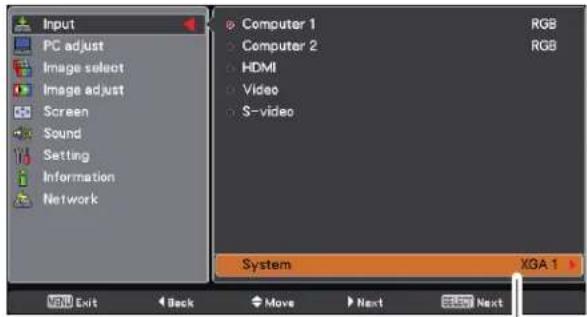

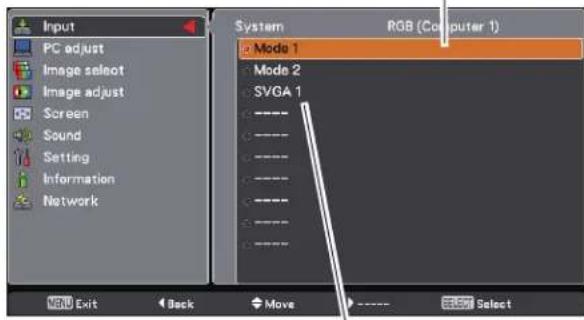

Computer System Selection 32

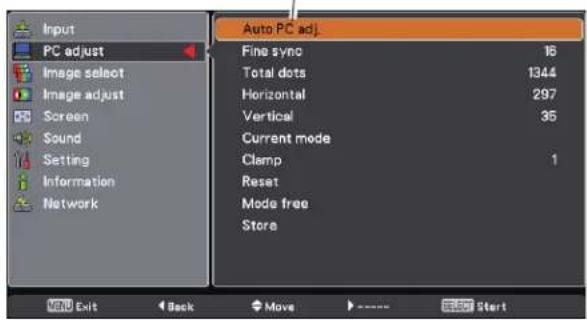

Auto PC adjustment 33

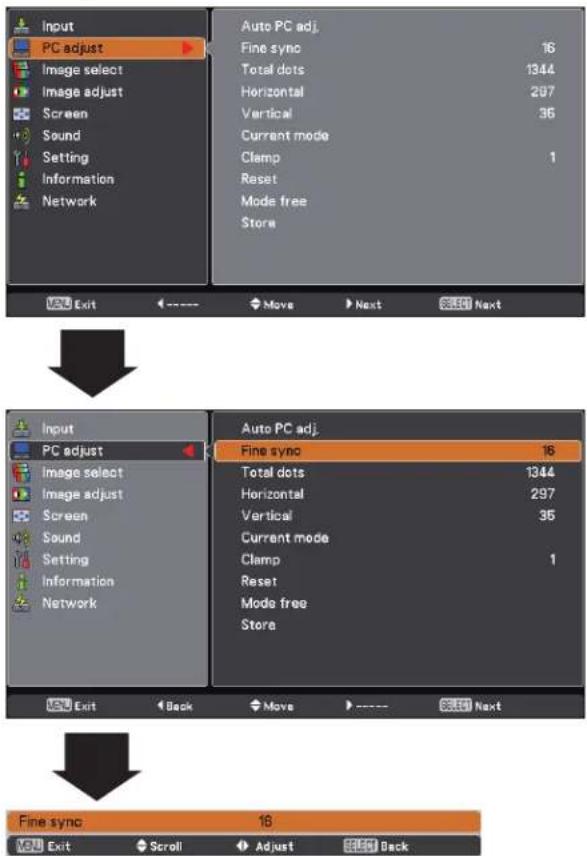

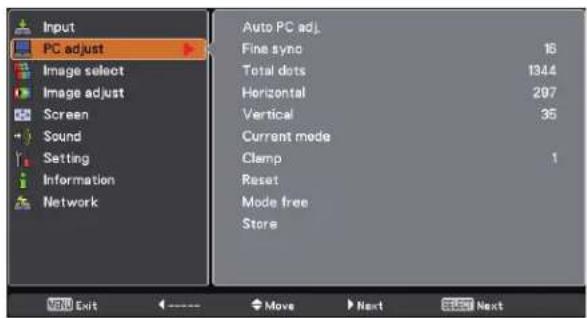

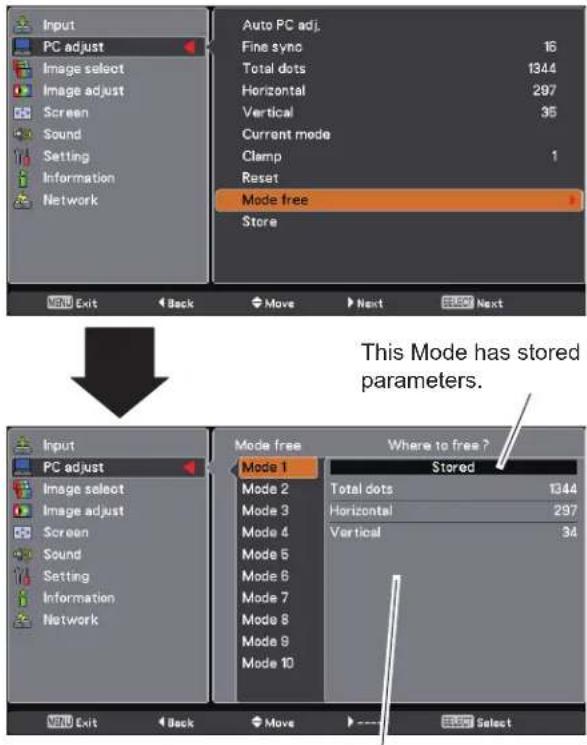

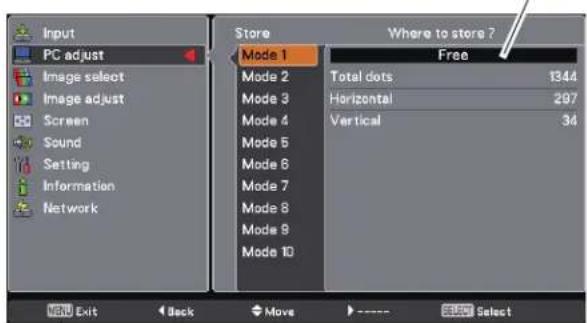

Manual PC adjustment 34

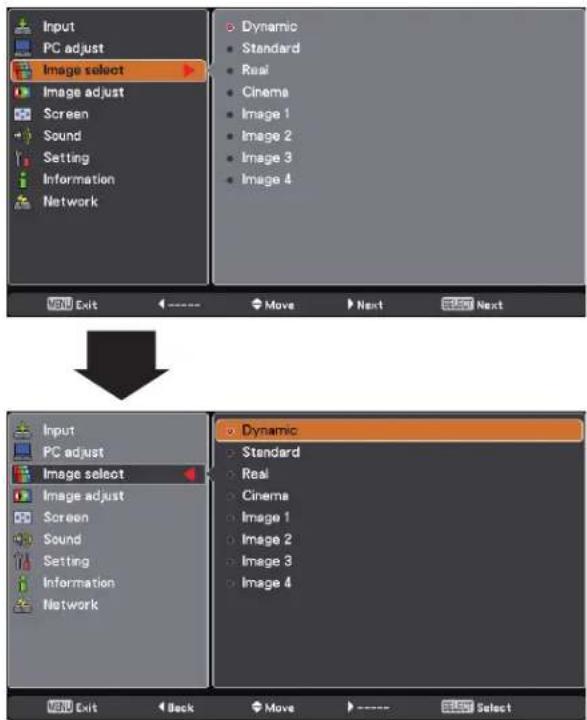

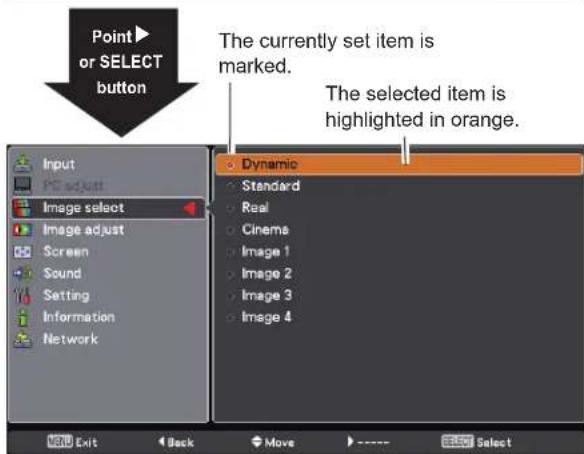

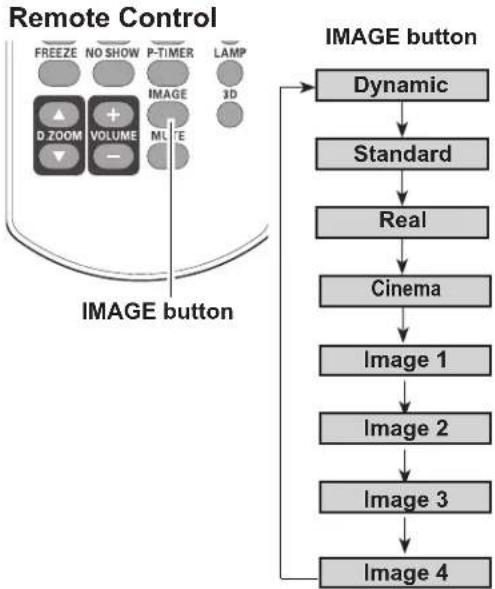

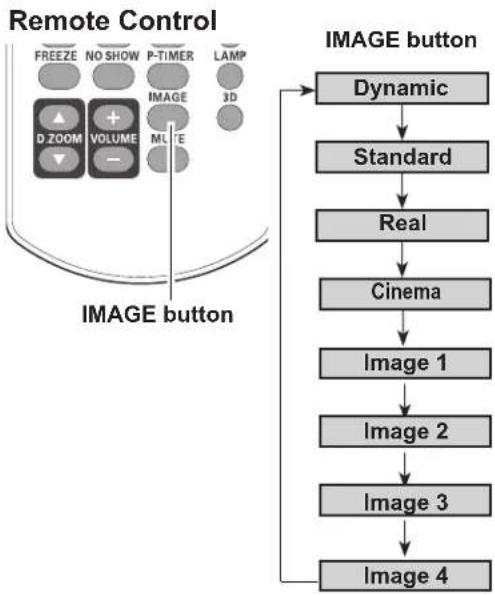

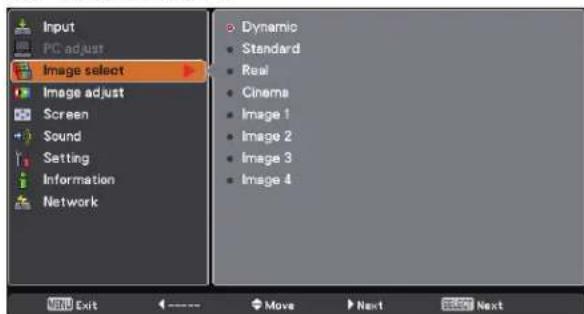

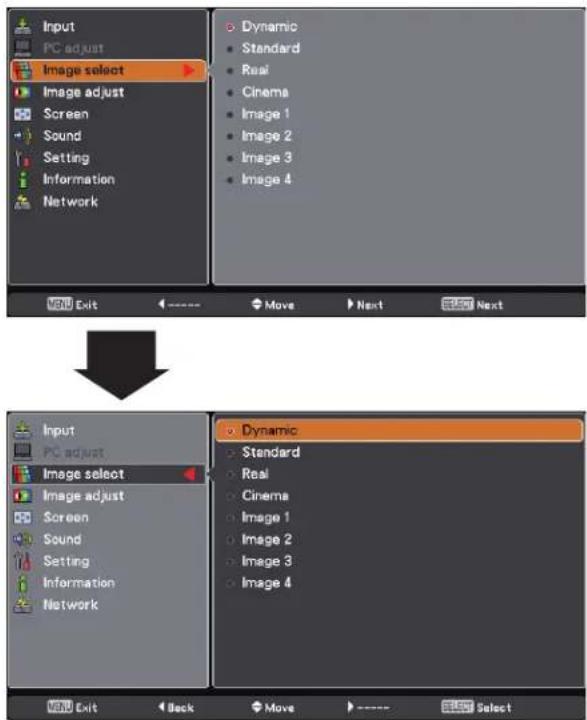

Image Mode Selection 36

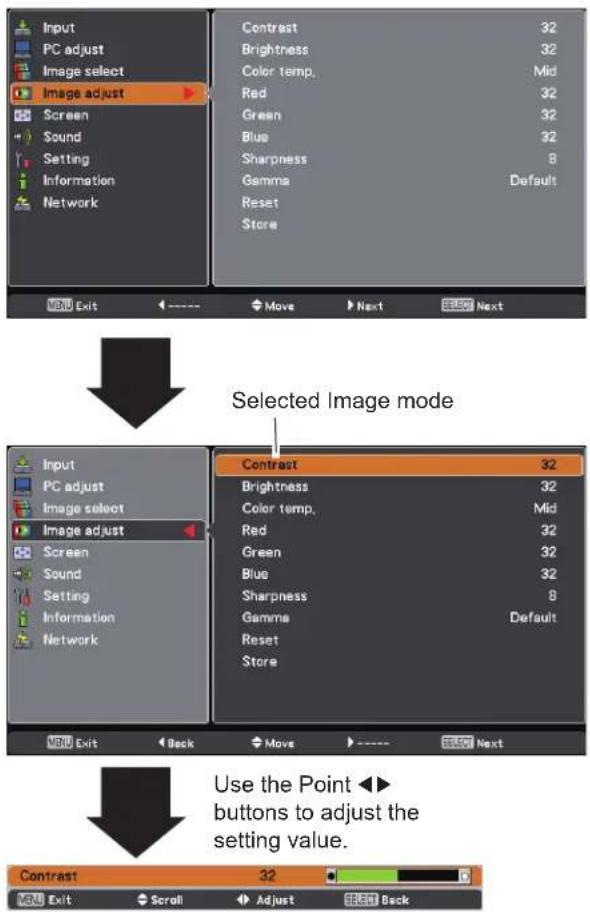

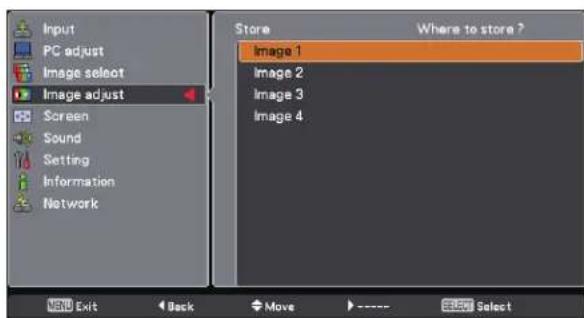

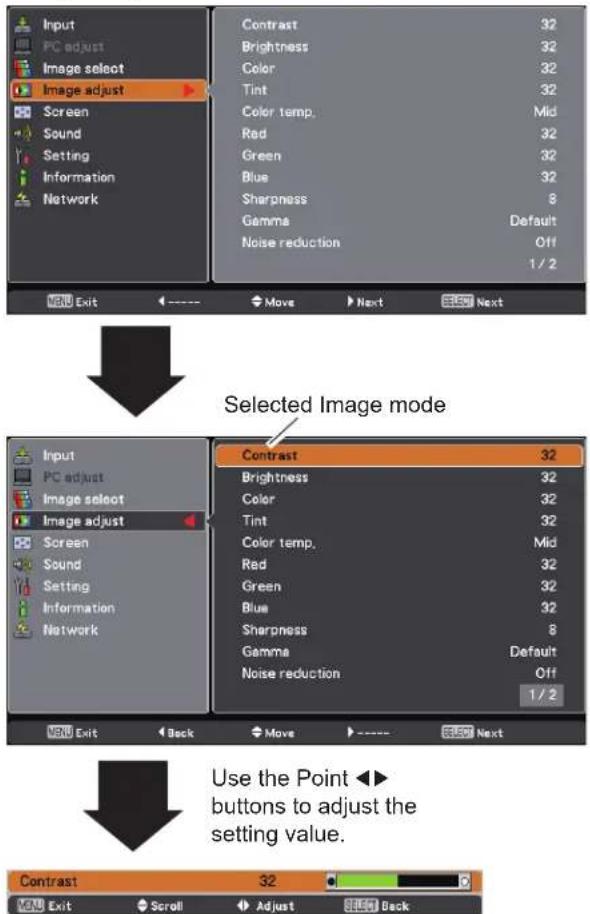

Image Adjustment 37

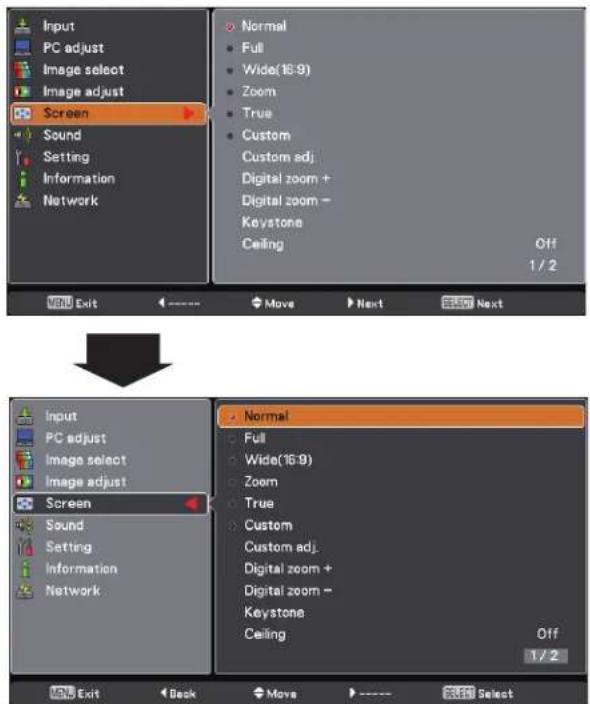

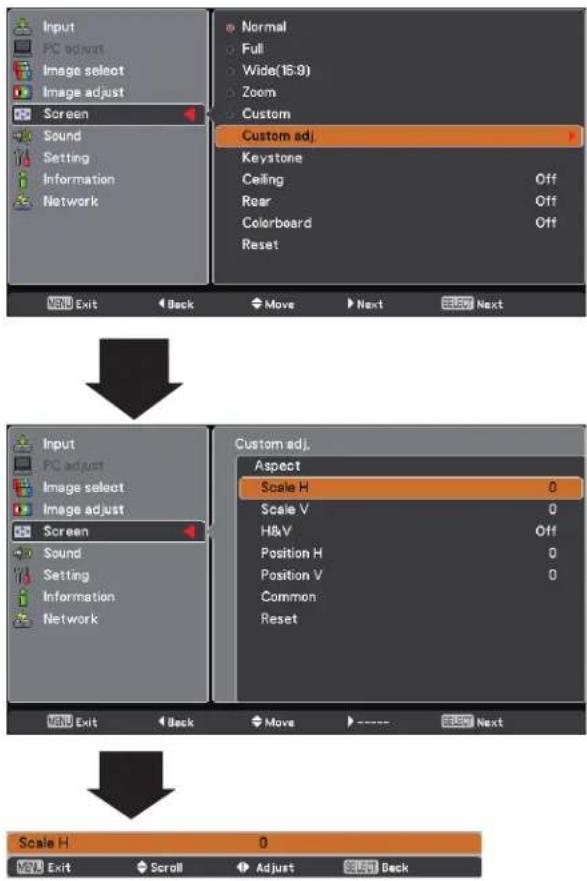

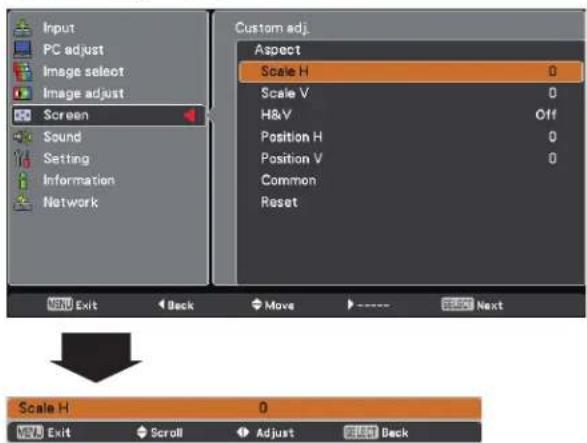

Screen Size Adjustment 38
Video Input ....41

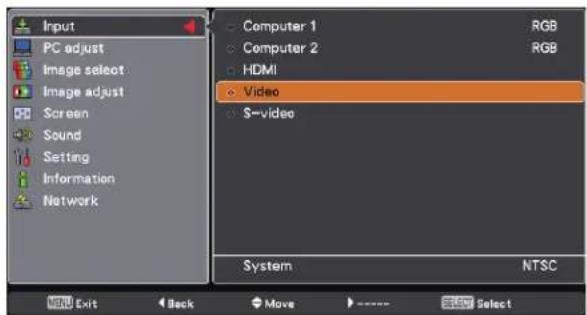

Input Source Selection (Video, S-video) 41
Input Source Selection (Component, Scart, HDMI) 42
Image Mode Selection 43
Image Adjustment 44
Screen Size Adjustment 46
3D Display....48

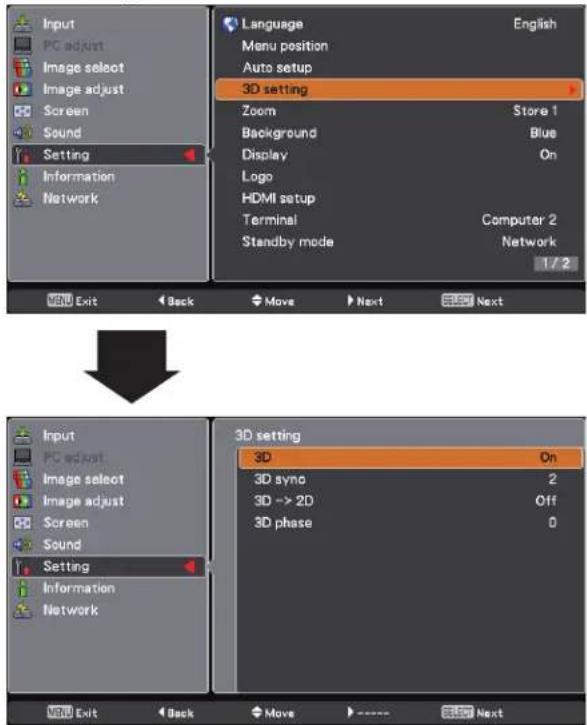

For Viewing 3D Contents 48
Setting....50

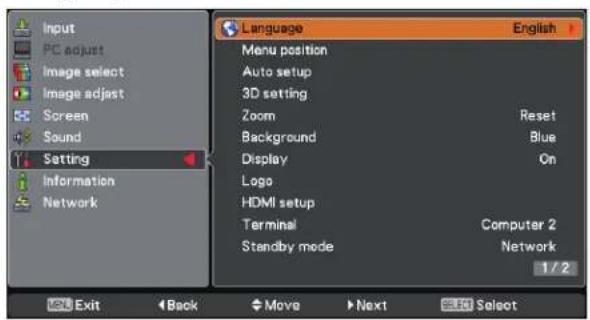

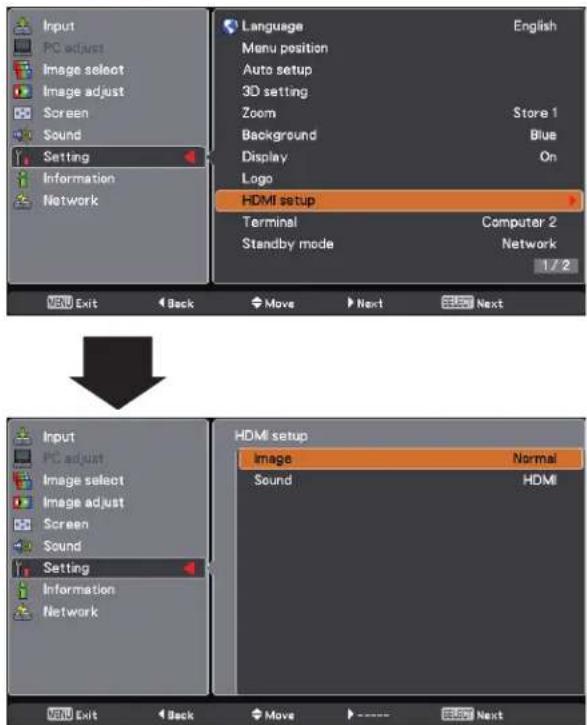

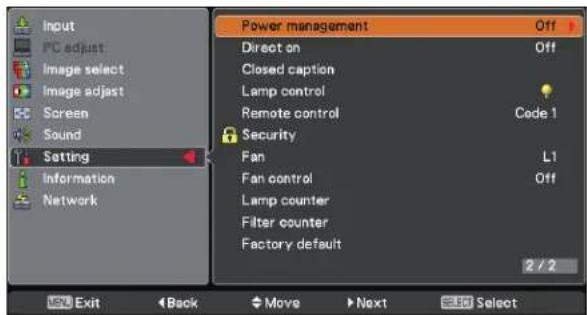

Setting 50

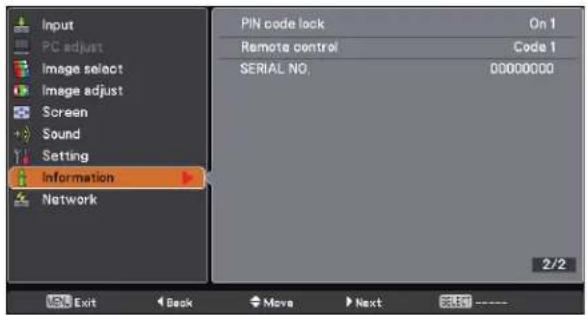

Information 63

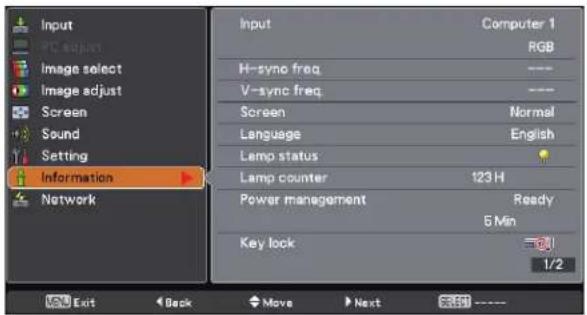

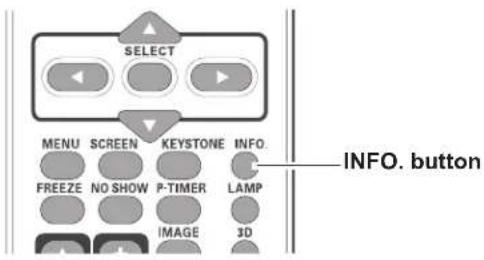

Input Source Information Display 63
Maintenance and Cleaning .....64
WARNING TEMP. indicator 64
Replacing the Filter 65

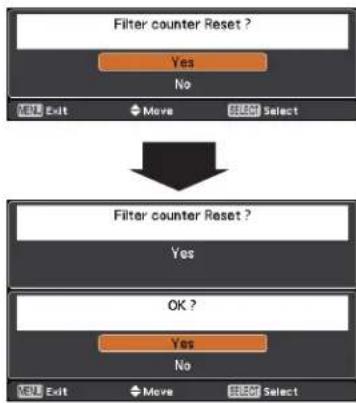

Resetting the Filter Counter 65
Cleaning the Projection Window 66

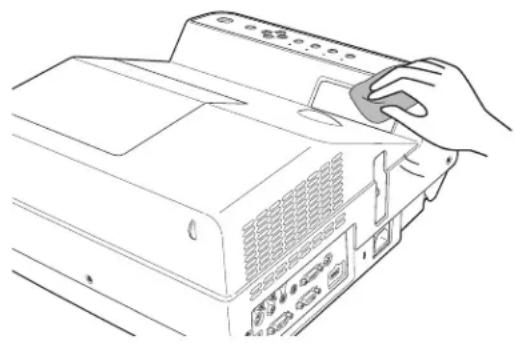

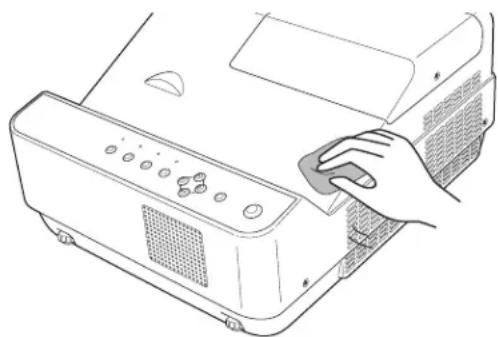

Cleaning the Projector Cabinet 66

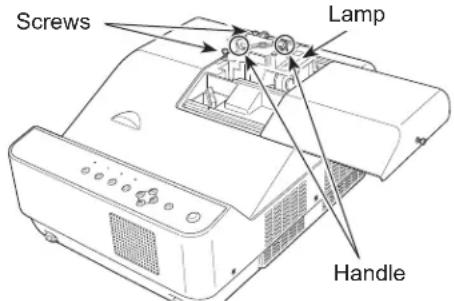

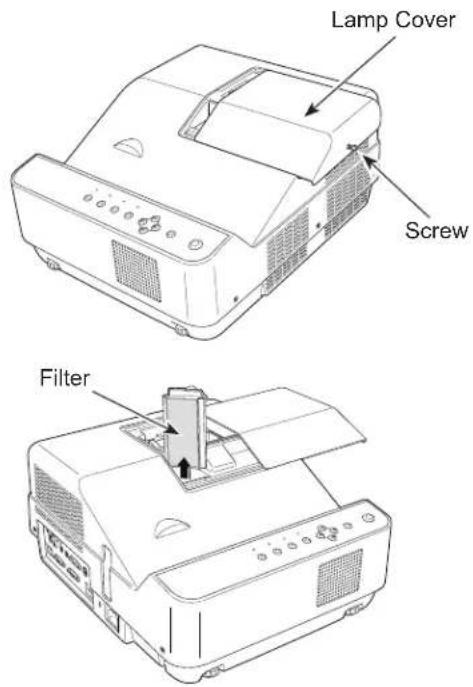

Lamp Replacement 67

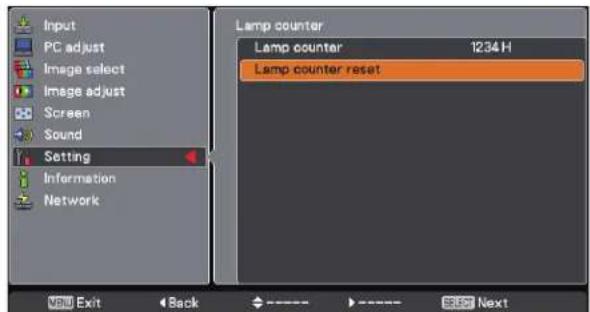

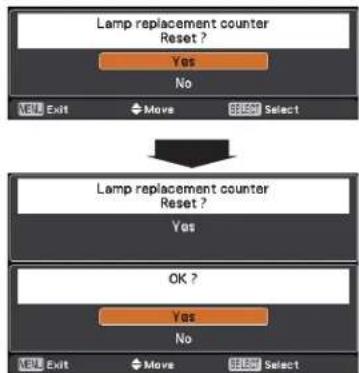

Resetting the Lamp Counter 68
Appendix 69
Troubleshooting 69

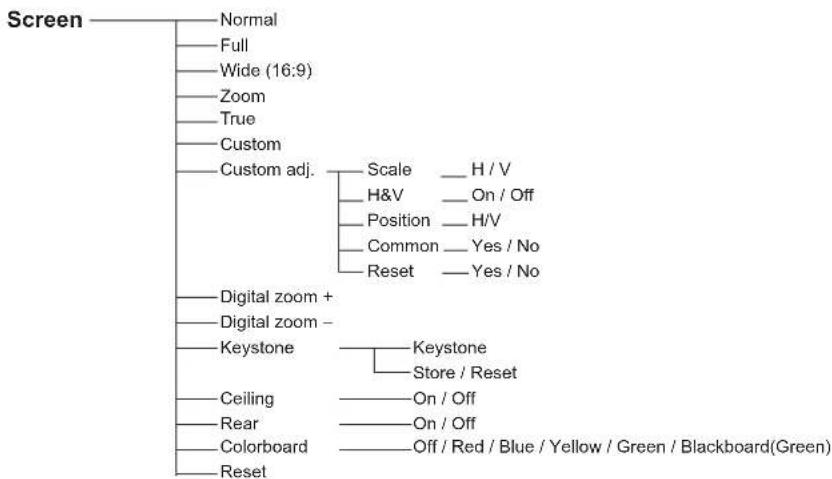

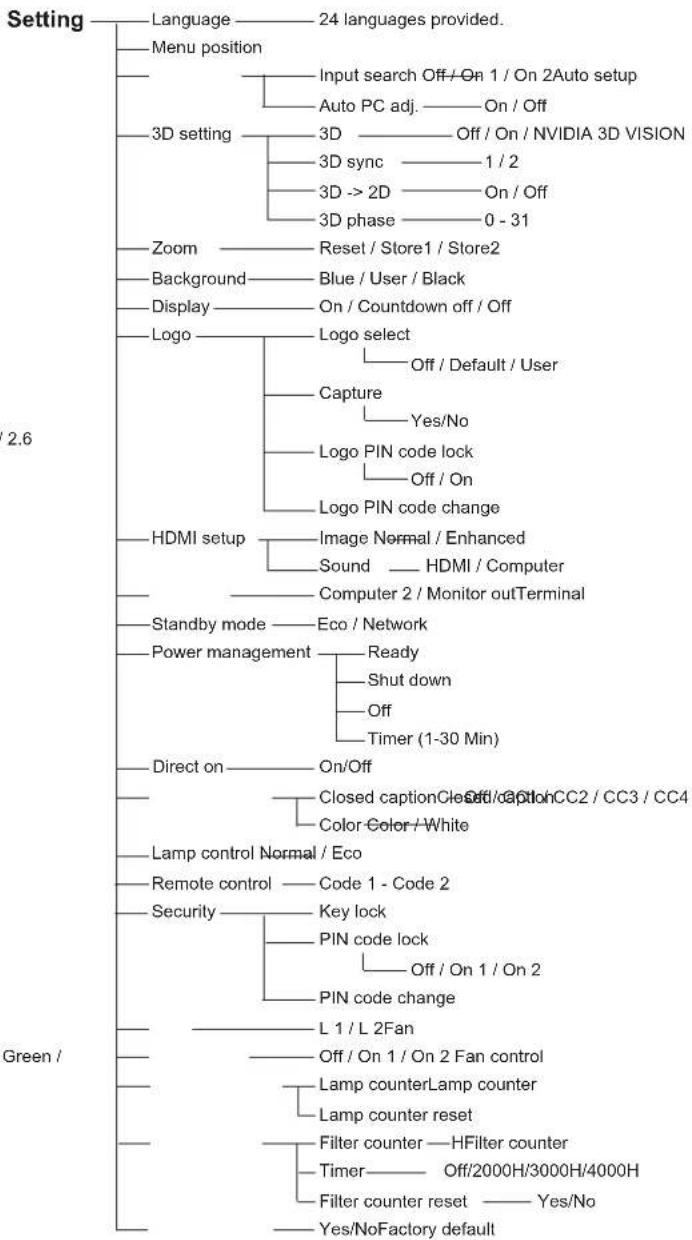

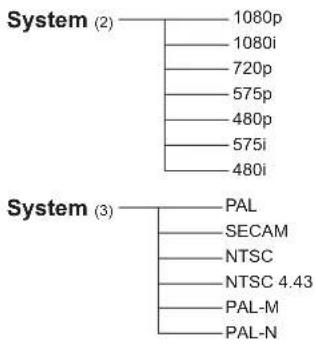

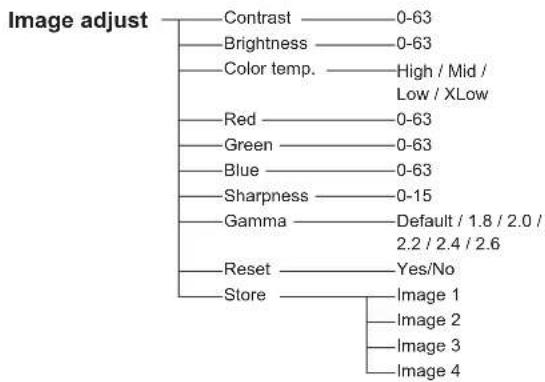

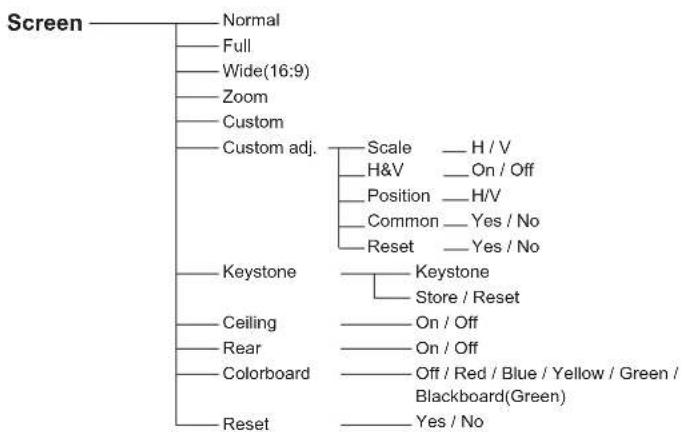

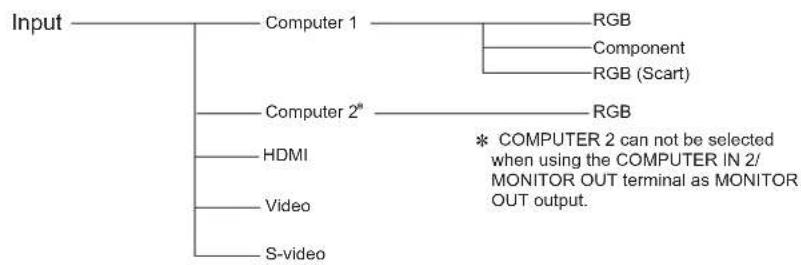

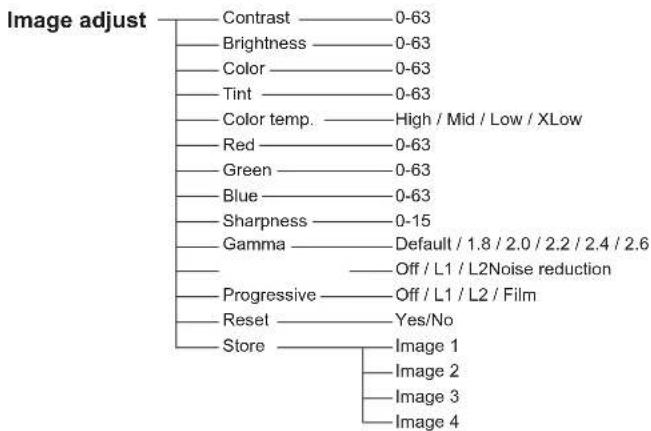

Menu Tree 72
Indicators and Projector Condition 74
Compatible Computer Specifications 75
Technical Specifications 77
Optional Parts 78
PJ Link Notice 78
Configurations of Terminals 79
PIN Code Number Memo 80

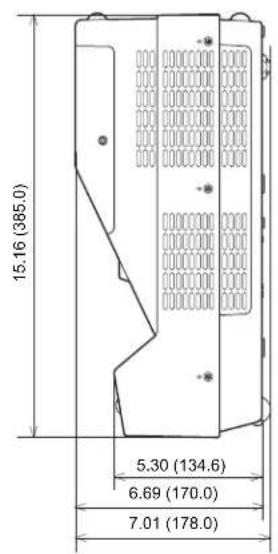

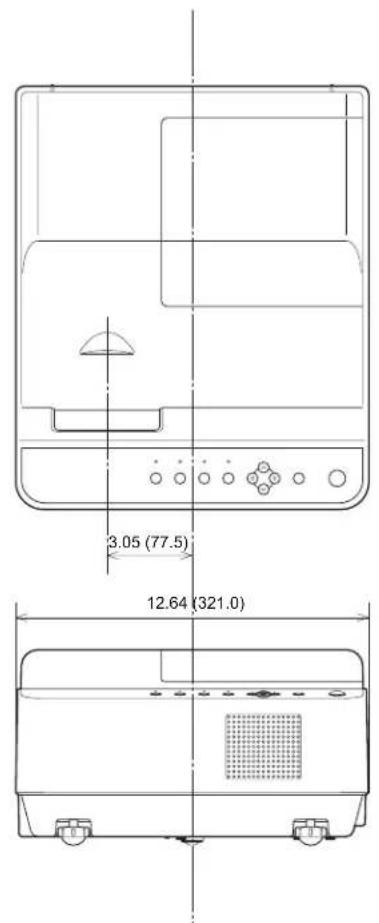

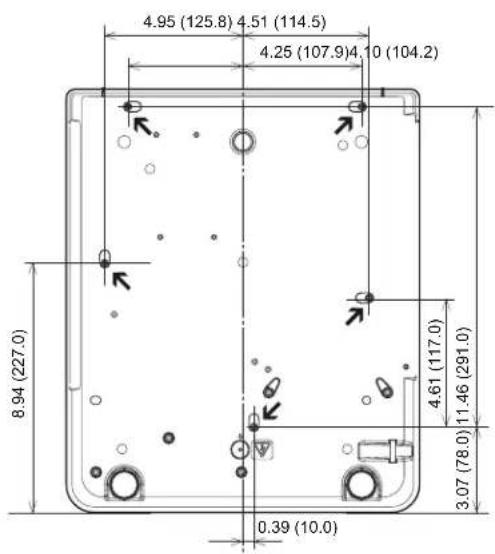

Dimensions 81
Before installing and operating this projector, read this manual thoroughly.
This projector provides many convenient features and functions. Operating the projector properly enables you to manage those features and maintains it in good condition for many years to come.
Improper operation may result in not only shortening the product-life, but also malfunctions, fire hazard, or other accidents.
If your projector seems to operate improperly, read this manual again, check operations and cable connections and try the solutions in the “Troubleshooting” section in the back of this manual. If the problem still persists, contact the dealer where you purchased the projector or the service center.
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE EXCEPT LAMP REPLACEMENT. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.
THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE OWNER'S MANUAL WITH THIS UNIT.
FOR EU USERS
The symbol mark and recycling systems described below apply to EU countries and do not apply to countries in other areas of the world.
Your product is designed and manufactured with high quality materials and components which can be recycled and/or reused.
The symbol mark means that electrical and electronic equipment, batteries and accumulators, at their end-of-life, should be disposed of separately from your household waste.
Note:
If a chemical symbol is printed beneath the symbol mark, this chemical symbol means that the battery or accumulator contains a heavy metal at a certain concentration. This will be indicated as follows: Hg: mercury, Cd: cadmium, Pb: lead
In the European Union there are separate collection systems for used electrical and electronic equipment, batteries and accumulators.
Please, dispose of them correctly at your local community waste collection/recycling centre.
Please, help us to conserve the environment we live in!
Safety Precaution
WARNING: ● THIS APPARATUS MUST BE EARTHED.
● TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
- This projector produces intense light from the projection lens. Do not stare directly into the lens, otherwise eye damage could result. Be especially careful that children do not stare directly into the beam.
- Install the projector in a proper position. Otherwise it may result in fire hazard.
- Allowing the proper amount of space on the top, sides, and rear of the projector cabinet is critical for proper air circulation and cooling of the unit. The dimension shown here indicate the minimum space required.
If the projector is to be built into a compartment or similarly enclosed, these minimum distances must be maintained.
- Do not cover the ventilation slot on the projector. Heat build-up can reduce the service life of your projector, and can also be dangerous.
- If the projector is unused for an extended time, unplug the projector from the power outlet.
CAUTION
DO NOT SET THE PROJECTOR IN GREASY, WET, OR SMOKY CONDITIONS SUCH AS IN A KITCHEN TO PREVENT A BREAKDOWN OR A DISASTER. IF THE PROJECTOR COMES IN CONTACT WITH OIL OR CHEMICALS, IT MAY BECOME DETERIORATED.
CAUTION
Not for use in a computer room as defined in the Standard for the Protection of Electronic Computer/Data Processing Equipment, ANSI/NFPA 75.
READ AND KEEP THIS OWNER'S MANUAL FOR LATER USE.
All the safety and operating instructions should be read before the product is operated.
Read all of the instructions given here and retain them for later use. Unplug this projector from AC power supply before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.
Follow all warnings and instructions marked on the projector.
For added protection to the projector during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage due to lightning and power line surges.
Do not expose this unit to rain or use near water... for example, in a wet basement, near a swimming pool, etc...
Do not use attachments not recommended by the manufacturer as they may cause hazards.
Do not place this projector on an unstable cart, stand, or table. The projector may fall, causing serious injury to a child or adult, and serious damage to the projector. Use only with a cart or stand recommended by the manufacturer, or sold with the projector. Wall or shelf mounting should follow the manufacturer's instructions, and should use a mounting kit approved by the manufacturers.
An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.
Slots and openings in the back and bottom of the cabinet are provided for ventilation, to ensure reliable operation of the equipment and to protect it from overheating.
The openings should never be covered with cloth or other materials, and the bottom opening should not be blocked by placing the projector on a bed, sofa, rug, or other similar surface. This projector should never be placed near or over a radiator or heat register.
This projector should not be placed in a built-in installation such as a book case unless proper ventilation is provided.
Never push objects of any kind into this projector through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the projector.
Do not install the projector near the ventilation duct of air-conditioning equipment.
This projector should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied, consult your authorized dealer or local power company.
Do not overload wall outlets and extension cords as this can result in fire or electric shock. Do not allow anything to rest on the power cord. Do not locate this projector where the cord may be damaged by persons walking on it.
Do not attempt to service this projector yourself as opening or removing Covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
Unplug this projector from wall outlet and refer servicing to qualified service personnel under the following conditions:
a. When the power cord or plug is damaged or frayed.
b. If liquid has been spilled into the projector.
c. If the projector has been exposed to rain or water.
d. If the projector does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the projector to normal operation.
e. If the projector has been dropped or the cabinet has been damaged.
f. When the projector exhibits a distinct change in performance-this indicates a need for service.
When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or injury to persons.
Upon completion of any service or repairs to this projector, ask the service technician to perform routine safety checks to determine that the projector is in safe operating condition.
NOTE FOR CUSTOMERS IN THE US
(Hg)LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE RECYCLED OR DISPOSED OF ACCORDING TO LOCAL, STATE OR FEDERAL LAWS.

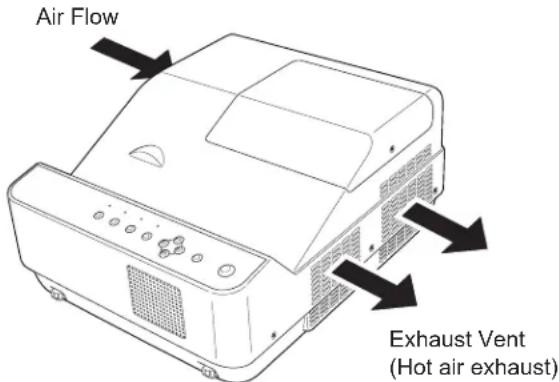

Air Circulation
Openings in the cabinet are provided for ventilation. To ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered.
CAUTION
Hot air is exhausted from the exhaust vent. When using or installing the projector, the following precautions should be taken.
- Do not put any flammable object or spray can near the projector, hot air is exhausted from the air vents.
- Keep the exhaust vent at least 3' (1m) away from any objects.
- Do not touch a peripheral part of the exhaust vent, especially screws and metallic parts. These areas will become hot while the projector is being used.
- Do not put anything on the cabinet. Objects put on the cabinet will not only get damaged but also may cause fire hazard by heat.
Cooling fans are provided to cool down the projector. The fans' running speed is changed according to the temperature inside the projector.
Filter Maintenance
The projector uses a lamp which generates significant heat. The cooling fans and air vents are provided to dissipate the heat by drawing air into the housing and the filter is located in the intake vents to prevent dust from getting inside of the projector.
In order to care for the projector appropriately, regular cleaning is required. Remove any dirt or dust that has accumulated on the projector.
If the projector reaches a time set in the timer setting, a Filter warning icon (Fig. 1) appears on the screen, indicating that the filter replacement is necessary.
Blocking the air vents and leaving the projector uncleaned for a long time may not only damage the projector and may require costly repairs but may also cause accidents or fire.

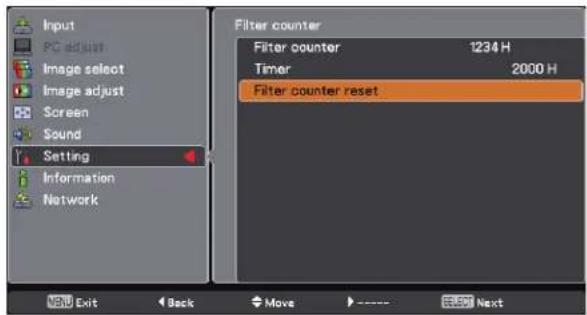

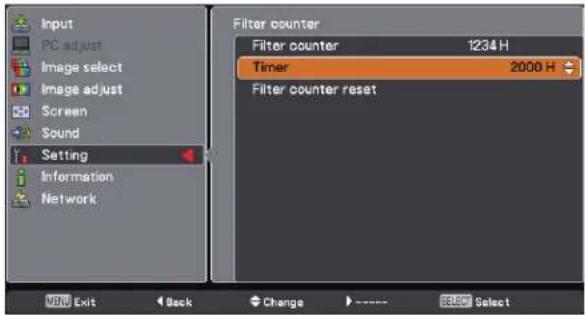

For maintenance of the filter, refer to "Filter counter" on page 62 and "Maintenance and Care" on page 65.
Damages to the projector caused by using an uncleaned filter or improper maintenance will void the warranty on the projector.
Fig.1 Filter warning icon
Moving the Projector
When moving the projector, retract adjustable feet to prevent damage to the cabinet. When the projector is not in use for an extended period, put it into a suitable case.
Handle the projector carefully; do not drop, bump, subject it to strong forces, or put other things on the cabinet.
CAUTION IN CARRYING OR TRANSPORTING THE PROJECTOR
- Do not drop or bump the projector, otherwise damages or malfunctions may result.
- When carrying the projector, use a suitable case.
- Do not transport the projector by courier or any other transport service in an unsuitable transport case. This may cause damage to the projector. For information about transporting the projector by courier or any other transport service, consult your dealer.
- Do not put the projector in a case before it is cooled enough.

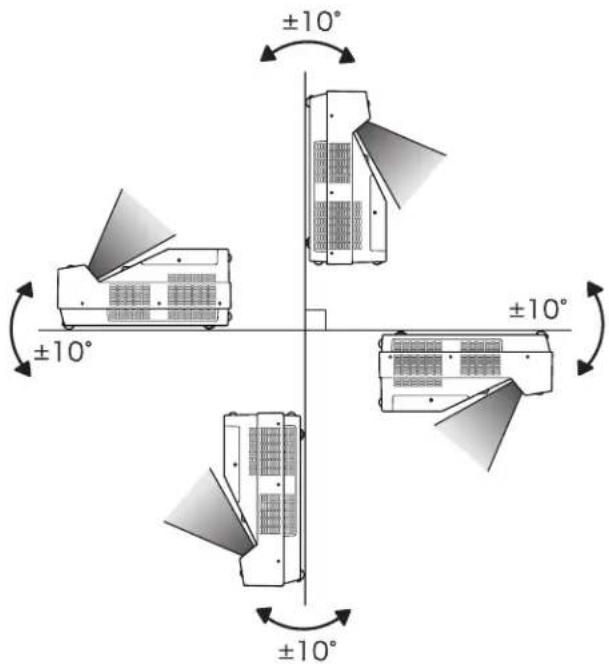

Installing the Projector in Proper Position
Install the projector properly. Improper installation may reduce the lamp life and cause fire hazard.

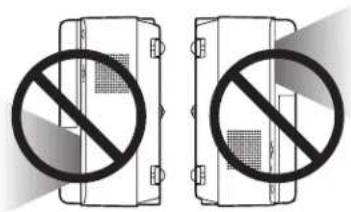

Do not roll the projector more than 10 degrees from side to side.
Do not roll the projector more than 5 degrees from side to side when front or rear is downward.
Do not put the projector on either side to project an image.
√Note:
- Fix the projector when installing it so that the projector would not fall down.
CAUTION
Choose the running speed of cooling fans in the fan control setting according to the altitude in which the projector is being used (p.61). Failure to do so may affect the projector life.
CAUTION ON CEILING MOUNTING
For ceiling mounting, you need the ceiling mount kit designed for this projector. When not mounted properly, the projector may fall, causing hazards or injury. For details, consult your dealer. The warranty on this projector does not cover any damage caused by use of any non-recommended ceiling mount kit or installation of the ceiling mount kit in an improper location.
Cautious use of equipment with laser technology
Do not radiate strong light such as laser light on the projection lens directly, as this may degrade the functionality of the projector, and will void any applicable warranties.
Federal Communications Commission Notice
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules.
Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such changes or modifications should be made, you could be required to stop operation of the equipment.
Model Number : PDG-DXL2000
Trade Name : Sanyo
Responsible party : SANYO NORTH AMERICA CORPORATION
Address : 21605 Plummer Street, Chatsworth, California 91311
Telephone No. : (818)998-7322
AC Power Cord Requirement
The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.
AC Power Cord for the United States and Canada:
AC Power Cord used in the United States and Canada is listed by the Underwriters
Laboratories (UL) and certified by the Canadian Standard Association (CSA).
AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that the plug will fit into the power outlet. Do not try to defeat this safety feature. Should you be unable to insert the plug into the outlet, contact your electrician.
AC Power Cord for the United Kingdom:
This cord is already fitted with a moulded plug incorporating a fuse, the value of which is indicated on the pin face of the plug. Should the fuse need to be replaced, an ASTA approved BS 1362 fuse must be used of the same rating, marked thus ☐. If the fuse cover is detachable, never use the plug with the cover omitted. If a replacement fuse cover is required, ensure it is of the same colour as that visible on the pin face of the plug (i.e. red or orange). Fuse covers are available from the Parts Department indicated in your User Instructions. If the plug supplied is not suitable for your socket outlet, it should be cut off and destroyed.
The end of the flexible cord should be suitably prepared and the correct plug fitted.
WARNING : A PLUG WITH BARED FLEXIBLE CORD IS HAZARDOUS IF ENGAGED IN A LIVE SOCKET OUTLET.
The Wires in this mains lead are coloured in accordance with the following code:
Green-and-yellow .. Earth
Blue.... Neutral
Brown ..... Live
As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows:
The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked by the letter E or by the safety earth symbol or coloured green or green-and-yellow.
The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.
WARNING: THIS APPARATUS MUST BE EARTHED.
THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE.
① Top Controls and Indicators
② Infrared Remote Receiver
CAUTION
The infrared remote receiver sticks out of the cabinet surface. If the infrared remote receiver is put on the wall or floor directly, the infrared remote receiver may damage.

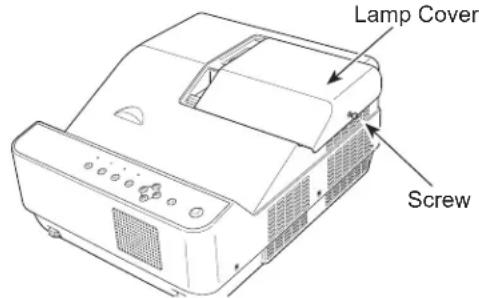

③ Lamp Cover (Lamp and Air Filter)
④ Adjustable feet
⑤ Speaker
⑥ Exhaust vent
CAUTION
Hot air is exhausted from the exhaust vent. Do not put heat-sensitive objects near this side.
⑦ Air Intake vent
⑧ Projection Window
WARNING
The projection window becomes very hot during use. Do not put your hand or objects on the projection window. High temperature from light beam may damage light-blocking objects and result in fire hazard.
√ Note:
Do not touch the projection window, otherwise, the window may be soiled and the image can be smudgy.
⑨ Focus Lever
⑩ LAN Connection Terminal
⑪ Terminals and Connectors
⑫ Power Cord Connector
⑬ Security Bar
√Note:
10 LAN Connection Terminal is for the Network function. Refer to the owner's manual of "Network Set-up and Operation".
\* Kensington Security Slot
This slot is for a Kensington lock used to deter theft of the projector.
* Kensington is a registered trademark of ACCO Brands Corporation.
Side Terminal
① S-VIDEO IN
Connect the S-VIDEO output signal from video equipment to this jack (p.17).
② VIDEO IN
Connect the composite video output signal to this jack (p.17).
③ AUDIO IN
Connect the audio output signal from video equipment connected to ① or ② to this jack. For a monaural audio signal (a single audio jack), connect it to the L (MONO) jack (p.17).
④ COMPUTER 1/COMPONENT AUDIO IN
Connect the audio output (stereo) from a computer or video equipment connected to ⑩ or ⑫ to this jack (pp.16, 18).
⑤ COMPUTER 2 AUDIO IN
Connect the audio output (stereo) from a computer connected to ⑪ to this jack (pp.16, 18).
When controlling the projector with RS-232C, connect the control equipment to this connector with the serial control cable.
⑧ 3D SYNC OUT
Connect a 3D sync. signal cable for an IR wireless emitter to this jack (p.48)
⑨ LAN Connection Terminal
Connect the LAN cable (refer to the owner's manual of "Network Set-up and Operation").
⑩ COMPUTER IN 1/COMPONENT IN
Connect output signal from a computer, RGB scart 21-pin video output or component video output to this terminal (pp.16, 18).
⑪ COMPUTER IN 2/MONITOR OUT
This terminal is switchable and can be used for input from a computer or output to the other monitor.
Set the terminal up as either Computer input or Monitor output properly. [Used for Monitor out, this terminal outputs only incoming signal from COMPUTER IN 1/COMPONENT IN terminal (pp. 16, 56)].
⑫ HDMI
Connect the HDMI signal from computer or video equipment to this terminal (pp.16, 18).
Top Controls and Indicators
① POWER indicator
- Turn red when the projector is in the stand-by mode.
- Turn green while the projector is under operation (pp.20, 74).
– Blink green in the Power management mode (pp.57, 74)
② WARNING TEMP. indicator
Emit a red light when the projector detects abnormal condition. This also blinks red when the internal temperature of the projector exceeds the operating range (pp. 64, 74).
③ LAMP REPLACE indicator
Turn yellow when the life of the projection lamp draws to an end (pp. 67, 74).
④ 3D indicator
Turn blue when the projector is in 3D mode (pp. 48-49, 74).
⑤ SELECT button
- Execute the selected item (p.23).
- Zoom in and out the image in the Digital zoom mode (p.39).
⑥ ON/STAND-BY button
Turn the projector on or off (pp.20-22).
⑦ AUTO SETUP button
Execute the setting of Auto setup (includes Input search function and Auto PC adj. function). (pp.26, 51)
⑧ KEYSTONE button
Correct the keystone distortion (pp.26, 40, 47).
⑨ MENU button
Open or close the On-Screen Menu (p.23).
⑩ Point ▲▼◀▶ buttons
- Select an item or adjust the value in the On-Screen Menu (p.23).
- Pan the image in Digital zoom + mode (p.39).
- Adjust the volume level (with Point ◀▶ buttons) (p.27).
- Adjust the screen size (with Point ▲▼ buttons) (p.25).
⑪ Infrared Remote Receiver
The protruding shape allows wide-angle remote control signal reception.
Remote Control
① ON/STAND-BY button
Turn the projector on or off. (pp.20-22)
② AUTO SET button
Execute the setting of Auto setup (includes Input search function and Auto PC adj. function). (pp.26, 51)
③ COMPUTER 1/2 buttons
Select the COMPUTER 1 or COMPUTER 2 input source. (pp.30-31, 42)

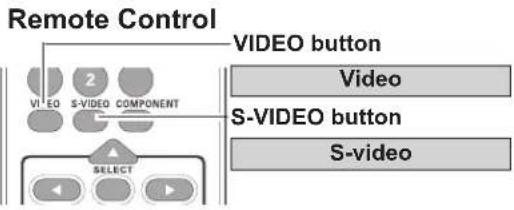

④ VIDEO button
Select the VIDEO input source. (p.41)
⑤ S-VIDEO button
Select the S-VIDEO input source. (p.41)

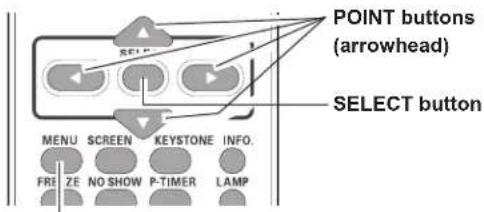

⑥ Point ▲▼◀▶ buttons
- Select an item or adjust the value in the On-Screen Menu. (p.23) - Pan the image in the Digital zoom + mode. (p.39)

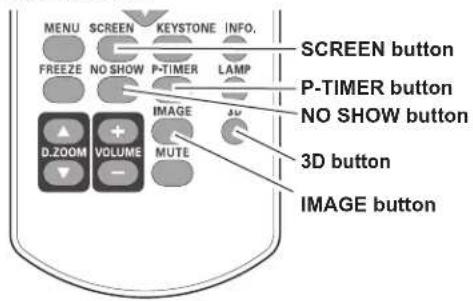

⑦ SCREEN button
Select a screen mode. (pp.29, 38-40, 46-47)
⑧ MENU button
Open or close the On-Screen Menu. (p.23)
⑨ FREEZE button
Freeze the picture on the screen. (p.28)
⑩ NO SHOW button
Temporarily turn off the image on the screen. (p.29)
⑪ D.ZOOM ▲▼ buttons
Zoom in and out the images. (pp.28, 39)
⑫ VOLUME +/- buttons
Adjust the volume level. (p.27)
⑬ MUTE button
Mute the sound. (p.27)
⑭ IMAGE button
Select the image mode. (pp.29, 36)
⑮ 3D button
Operate the 3D function. (pp.29, 48-49)
⑯ LAMP button
Select a lamp mode. (pp.28, 58)
⑰ P-TIMER button
Operate the P-timer function. (p.29)
⑱ INFO. button
Operate the information function. (pp.28, 63)
⑲ KEYSTONE button
Correct the keystone distortion. (pp.26, 40, 47)
⑳ SELECT button
- Execute the selected item. (p.23) - Zoom in and out the image in Digital zoom mode. (p.39)
②1 COMPONENT button
Select the COMPONENT input source. (p.42)
② HDMI button
Select the HDMI input source. (p.42)
√Note:
To ensure safe operation, please observe the following precautions:
- Do not bend, drop, or expose the remote control to moisture or heat.
- For cleaning, use a soft dry cloth. Do not apply benzene, thinner, spray, or any chemical material.
Remote Control Battery Installation
1 2 3 Open the battery compartment lid.
Install new batteries into the compartment.
Replace the compartment lid.
For correct polarity (+ and -), be sure battery terminals are in contact with pins in compartment.
To ensure safe operation, please observe the following precautions :
● Use two (2) AAA or LR03 type alkaline batteries.
● Always replace batteries in sets.
● Do not use a new battery with a used battery.
● Avoid contact with water or liquid.
- Do not expose the remote control to moisture or heat.
- Do not drop the remote control.
- If the battery has leaked on the remote control, carefully wipe the case clean and install new batteries.
● Risk of an explosion if battery is replaced by an incorrect type.
● Dispose of used batteries according to the instructions or your local disposal rule or guidelines.
Remote Control Operating Range
Point the remote control toward the projector (Infrared Remote Receiver) when pressing the buttons. See the below figures indicating Maximum operating range for the remote control.
Remote Control Code
The two different remote control codes (Code 1-Code 2) are assigned to this projector. Switching the remote control codes prevents interference from other remote controls when several projectors or video equipment next to each other are operated at the same time. Change the remote control code for the projector first before changing that for the remote control. See "Remote control" in the Setting Menu on page 58.
Press and hold the MENU and IMAGE buttons for more than five seconds to switch between the Code 1 and Code 2. The initial code is set to Code 1.

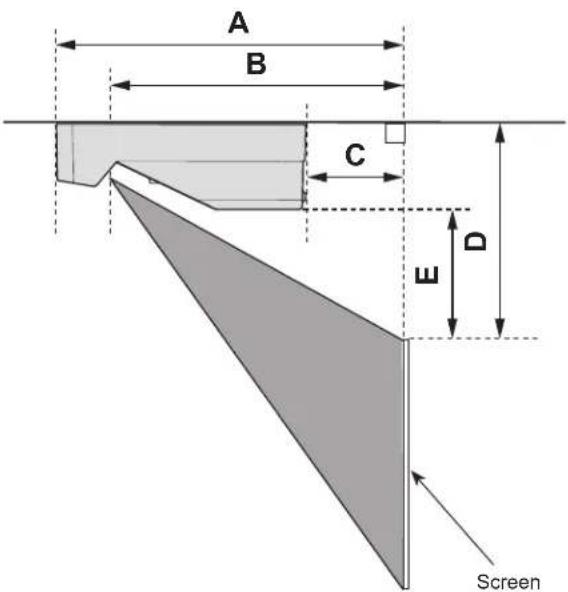

Positioning the Projector
For projector positioning, see the figures below. The projector should be set perpendicularly to the plane of the screen.
√Note:
- This projector is not equipped with an optical zoom. To adjust the screen size, change the throw distance.
- The brightness in the room has a great influence on picture quality. It is recommended to limit ambient lighting in order to obtain the best image.
- All measurements are approximate and may vary from the actual sizes. Make sure to check the position of images by projecting images on the screen before installing the projector and screen, since each projector shows slight variations.
• Make sure to project images on a flat screen.
• Even slight warpage or irregularities of the screen may have an effect on the quality of the projected images.
| Screen Size(W x H) mm4:3 aspect ratio | 55" 70" 90" | ||
| 1118 x 838 1422 | x 1067 1829x 1372 | ||
| A 13.43" (34.1 cm) 16.57" (42.1 cm) | 20.75" (52.7 cm) | ||
| B | 9.88" (25.1 cm) | 13.03" (33.1 cm) | 17.20" (43.7 cm) |
| C -1.77" (-4.5 cm) | 1.38" (3.5 cm) | 5.55" (14.1 cm) | |
| D | 9.92" (25.2 cm) | 11.54" (29.3 cm) | 13.62" (34.6 cm) |
| E | 2.91" (7.4 cm) | 4.53" (11.5 cm) | 6.61" (16.8 cm) |
Adjustable Feet
Projection angle can be adjusted within -1.0 to +1.0 degree with the adjustable feet.
Rotate the adjustable feet and tilt the projector to the proper height; to raise the projector, rotate the both feet clockwise.
To lower the projector or to retract the adjustable feet, rotate the both feet counterclockwise.
To correct keystone distortion, press the KEYSTONE button on the remote control or on the top control or select Keystone from the menu (See pages 26, 40, 47).
Connecting to a Computer
Cables used for connection
• VGA cables (Mini D-sub 15 pin) *
- Audio cables
- HDMI-DVI cable
(*One cable is supplied; other cables are not supplied with the projector.)
√Note:
- Input sound to the COMPUTER 1/COMPONENT AUDIO IN terminal when using the COMPUTER IN 1/COMPONENT IN terminal as input.
- When the cable is of the longer variety, it is advisable to use the COMPUTER IN 1/COMPONENT IN and not the COMPUTER IN 2/MONITOR OUT.
- Analog RGB and component signals can be output from the COMPUTER IN 2/MONITOR OUT terminal when using the COMPUTER IN 2/MONITOR OUT terminal as output.
- When the AUDIO OUT is plugged-in, the projector's built-in speaker is not available.
Unplug the power cords of both the projector and external equipment from the AC outlet before connecting cables.
Connecting to Video Equipment
Cables used for connection
• Video and Audio cable (RCA x 3)
- S-video cable
- Audio cable
(Cables are not supplied with the projector.)
VIDEO IN and AUDIO INS-VIDEO IN AUDIO OUT (stereo)
√Note:
- When the AUDIO OUT is plugged-in, the projector's built-in speaker is not available.
Unplug the power cords of both the projector and external equipment from the AC outlet before connecting cables.
Connecting to Component Video Equipment
Cables used for connection
- Audio cables
- Scart-VGA cable
- Component cable
- Component-VGA cable
- HDMI cable
(Cables are not supplied with this projector.)
Monitor Output Signal Table
| Input Terminal Monitor Out Cable | ||||
| COMPUTER 1/COMPONENT | D-sub15 | RGB (PC analog) YES | ||
| Y, Pb/Cb, Pr/Cr YES | * | |||
| RGB (SCART) NO | ||||
| COMPUTER 2 | D-sub15 | RGB NO | ||
| HDMI | HDMI | HDMI NO | ||
| S-VIDEO | DIN-4 | S-video NO | ||
| VIDEO | RCA | Video NO | ||
* A cable with one end D-sub 15 and the other end (Black box) compatible with each equipment is necessary.
√Note:
- When the AUDIO OUT is plugged-in, the projector's built-in speaker is not available.
• See page 78 for ordering optional cables.
Unplug the power cords of both the projector and external equipment from the AC outlet before connecting cables.
Connecting the AC Power Cord
This projector uses nominal input voltages of 100–240 V AC and it automatically selects the correct input voltage. It is designed to work with single-phase power systems having a grounded neutral conductor. To reduce the risk of electrical shock, do not plug into any other type of power system. If you are not sure of the type of power being supplied, consult your authorized dealer or service center. Connect the projector with all peripheral equipment before turning it on.
CAUTION
The AC outlet must be near this equipment and must be easily accessible.
√ Note:
Unplug the AC power cord when the projector is not in use. When this projector is connected to an outlet with the AC power cord, it is in Stand-by mode and consumes a little electric power.
| NOTE ON THE POWER CORDAC power cord must meet requirement of the country where you use the projector.Confirm the AC plug type with the chart below and proper AC power cord must be used.If supplied AC power cord does not match your AC outlet, contact your sales dealer. | |||
| Projector side | AC outlet side | ||
 To power cordconnector on yourprojector. | For the U.S.A. and CanadaGround To the AC outlet.(120 V AC) | -XZD7]To the AC outlet.(200 - 240 V AC) | For the U.K.For Continental Europe To the AC outlet.(200 - 240 V AC) |
Turning On the Projector
1 Complete peripheral connections (with a computer, VCR, etc.) before turning on the projector.
2 Connect the projector's AC power cord into an AC outlet. The POWER indicator lights red.
3 Press the ON/STAND-BY button on the remote control or on the top control. The POWER indicator lights green and the cooling fans start to operate. The preparation display appears on the screen and the countdown starts.
4 After the countdown, the input source that was selected the last time and the lamp control status icon (See page 58) appear on the screen.
5 If there is no signal input when start on the projector, or the current signal is missed while operating the projector, the Video / PC selection window will be displayed on the screen, please move the pointer to input source desired by pressing the Point ▲▼ buttons and press the SELECT button. And then follow the input signal guidance window to correct the signal and connection.
If the projector is locked with a PIN code, PIN code input dialog box will appear. Enter the PIN code as instructed on the next page.
The preparation display will disappear after 30 seconds.
Selected Input Source and Lamp Control
(See page 58 for Lamp control status.)
√Note:
The Filter warning and Lamp replacement icons may appear on the screen depending on the usage state of the projector.
Video / PC selection window
Input signal guidance window
√ Note:
- When the Logo select function is set to Off, the logo will not be shown on the screen. (p.53)
- When Countdown off or Off is selected in the Display function, the countdown will not be shown on the screen. (p.53)
- During the countdown period, all operations are invalid.
- When the Input search function is set to On 2, the input signal will be searched automatically. (p.51)
- When Off is selected in the Display function, the Video /PC selection window and the input signal guidance window are not shown on the screen. (p.53)
Video / PC selection window
Input signal guidance window
Enter a PIN code
Use the Point ▲▼ buttons to enter a number. Press the Point ▶ button to fix the number and move the red frame pointer to the next box. The number changes to *. If you fixed an incorrect number, use the Point ◀ button to move the pointer to the number you want to correct, and then enter the correct number.
Repeat this step to complete entering a four-digit number.
After entering the four-digit number, move the pointer to "Set". Press the SELECT button so that you can start to operate the projector.
If you entered an incorrect PIN code, PIN code and the number (※※※※) will turn red for a moment. Enter the correct PIN code all over again.
What is PIN code?
PIN (Personal Identification Number) code is a security code that allows the person who knows it to operate the projector. Setting a PIN code prevents unauthorized use of the projector.
A PIN code consists of a four-digit number. Refer to the PIN code lock function in the Setting Menu on pages 59-60 for locking operation of the projector with your PIN code.
CAUTION ON HANDLING PIN CODE
If you forget your PIN code, the projector can no longer be started. Take a special care in setting a new PIN code; write down the number in a column on page 80 of this manual and keep it on hand. Should the PIN code be missing or forgotten, consult your dealer or service center.
PIN Code Input Dialog Box
After the OK icon disappears, you can operate the projector.
OK
√Note:
- If the PIN code number is not entered within three minutes after the PIN code dialog box appeared, the projector will be turned off automatically.
- The "1234" is set as the initial PIN code at the factory.
Turning Off the Projector
1 Press the ON/STAND-BY button on the remote control or on the top control, and Power off? appears on the screen.
2 Press the ON/STAND-BY button again to turn off the projector. The POWER indicator starts to blink red, and the cooling fans keep running. (You can select the level of fans' quietness and speed. See "Fan" on page 61.) At this time, you can unplug the AC power cord even if the fans are still running.
3 When the projector has cooled down enough, the POWER indicator stops blinking and you can turn on the projector.
TO MAINTAIN THE LIFE OF THE LAMP, ONCE YOU TURN THE PROJECTOR ON, WAIT AT LEAST FIVE MINUTES BEFORE TURNING IT OFF.
DO NOT OPERATE THE PROJECTOR CONTINUOUSLY WITHOUT REST. CONTINUOUS USE MAY RESULT IN SHORTENING THE LAMP LIFE. TURN OFF THE PROJECTOR AND LET STAND FOR ABOUT AN HOUR IN EVERY 24 HOURS.
Power off? disappears after 4 seconds.
Direct OFF Function
You can disconnect the power cord from the wall outlet or turn off the breaker even during projection without pressing the on/stand-by button.
√Note:
- When the Direct on function is set to On, the projector will be turned on automatically by connecting the AC power cord to an AC outlet. (p. 57)
- The running speed of cooling fans is changed according to the temperature inside the projector.
- Do not put the projector in a case before the projector is cooled enough.
- If the WARNING TEMP. indicator blinks or lights red, see "WARNING TEMP. indicator" on page 64.
- While the POWER indicator is blinking, the lamp is being cooled down and the projector can not be turned on. Wait until the POWER indicator stops blinking to turn on the projector again.
- The fan rotation will terminate directly if the AC power cord is unplugged immediately after the projector is turned off.
- The projector can be turned on after the POWER indicator turns red. The waiting time to restart will be shortened when the normal power-off processing for fan cooling is completed, compared with the time the AC power cord is immediately unplugged after the power-off.
√Note:
- When using the Direct OFF function, you can not restart the projector immediately after the power is disconnected. If the external power supply is suddenly cut off, the fans stop immediately. The lamp remains high temperature and needs to be cooled.
How to Operate the On-Screen Menu
The projector can be adjusted or set via the On-Screen Menu. The menu has a hierarchical structure, with a main menu that is divided into submenus, which are further divided into other submenus. For each adjustment and setting procedure, refer to respective sections in this manual.
1 Press the MENU button on the remote control or on the top control to display the On-Screen Menu.
2 Use the Point ▲▼ buttons to highlight and select a main menu item. Press the Point ▶ or the SELECT button to access the submenu items. (The selected item is highlighted in orange.)
3 Use the Point ▲▼ buttons to select the desired submenu item and press the SELECT button to set or access the selected item.
4 Use the Point ▲▼◀▶ buttons to adjust the setting or switch between each option and press the SELECT button to activate it and return to the submenu.
5 Press the Point ◀ button to return to the main menu. Press the MENU button to exit the On-Screen Menu.
Remote Control
MENU button
Top Control
On-Screen Menu
Menu Bar
For detailed functions of each menu, see "Menu Tree" on pages 72-73.
① Input Used to select an input source from Computer 1, Computer 2, HDMI, Video or S-video. (pp.30-31, 41-42)

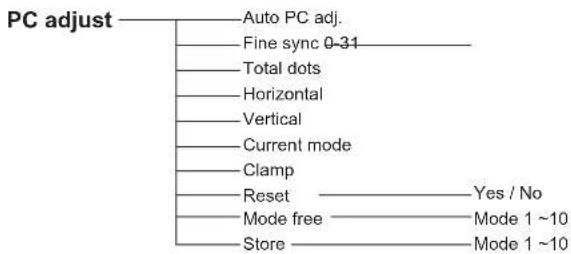

② PC adjust Select Auto PC adj., Fine sync, Total dots, Horizontal, Vertical, Current mode and Clamp to adjust the parameters to match with the PC input signal format. (pp.33-35)
③ Image select Used to select an image mode from among Dynamic, Standard, Real, Cinema and Image 1-4. (p.36)
④ Image adjust For computer source, used to adjust computer image [Contrast, Brightness, Color temp., White balance (Red/Green/Blue), Sharpness and Gamma]. (p.37) For video or HDMI source, used to adjust picture image [Contrast, Brightness, Color, Tint, Color temp., White balance (Red/Green/Blue), Sharpness, Gamma, Noise reduction and Progressive]. (pp.44-45)
⑤ Screen For computer source, used to adjust size of the image [Normal, Full, Wide (16:9), Zoom, True, Custom, Digital zoom +/-, Keystone, Ceiling and Colorboard]. (pp.38-40) For video or HDMI source, used to set size of image [Normal, Full, Wide (16:9), Zoom, Custom, Keystone, Ceiling and Colorboard]. (pp.46-47)
⑥ Sound Used to adjust the volume or mute the sound. (p.27)

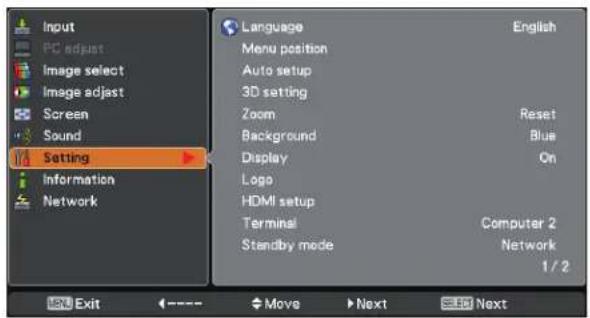

⑦ Setting Used to set the projector's operating configurations. (pp.50-62)
⑧ Information Display the input source information: Input, H-sync freq., V-sync freq., Screen, Language, Lamp status, Lamp counter, Power management, Key lock, PIN code lock, Remote control, and SERIAL NO.. (p.63)
⑨ Network See owner's manual of "Network Set-up and Operation".
⑩ Guide The key operation is displayed.
Zoom and Image Position Adjustment
Press the ZOOM +/- buttons on the top control to adjust the screen size. Screen size can be adjusted 84% to 100% from its maximum screen size.
It is not available when On-Screen menu is displayed.
Zoom adjustment can be memorized. (p.52)
The image position can be adjusted in the Zoom Adjustment.
1 Press the ZOOM+ or ZOOM- button on the top control.
2 While ZOOM+ or ZOOM- is displayed on the screen, press the SELECT button. Arrow marks displayed on the screen.
3 Press the Point ▲▼◀▶ buttons on the top control or the remote control to adjust the image position.
Top Control
Zoom +/-
note["Zoom +/− disappears after 4 seconds."]
√Note:
- Zoom and Image Position Adjustment cannot be operated when Custom is selected in the Screen menu (pp.38, 46).
- The image position adjustment can not be adjusted at ZOOM maximum.
- The white arrows indicate that there is no correction.
- A red arrow indicates the direction of correction.
- An arrow disappears at the maximum correction.
Focus Adjustment
Adjust the lens focus with the focus lever.
Auto Setup Function
Auto setup function is provided to automatically execute the setting of Auto setup (includes Input search and Auto PC adj. functions) in the Setting Menu by just pressing the AUTO SET button on the remote control. Refer to page 51 for the setting of the Auto setup function.
√Note:
Fine sync, Total dots, Horizontal and Vertical position of some computers can not be fully adjusted with the Auto PC adjustment function. When the image is not provided properly with this operation, manual adjustments are required. (pp.34-35)
Remote Control

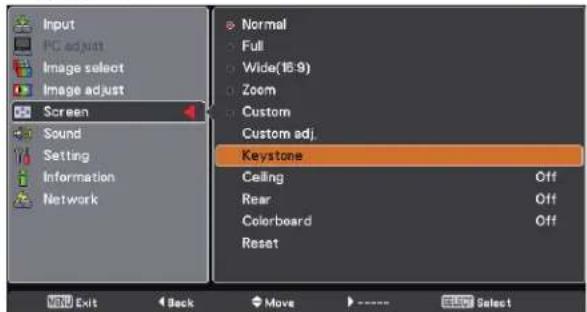

Keystone Correction
Press the KEYSTONE button on the remote control or on the top control. The Keystone dialog box appears. Use the Point ▲▼ buttons to correct keystone distortion. The keystone adjustment can be stored (See pages 40, 47).
Reduce the upper width with the Point ▲ button.
Reduce the lower width with the Point ▼ button.
Keystone
- The white arrows indicate that there is no correction.
- A red arrow indicates the direction of correction.
- An arrow disappears at the maximum correction.
- If you press the KEYSTONE button on the remote control or on the top control once more while the keystone dialog box is being displayed, the keystone adjustment will be canceled.
- The adjustable range is limited depending on the input signal.
Remote Control
Top Control
Sound Adjustment
Direct Operation
Voume
Press the VOLUME+/- buttons on the remote control or on the top control to adjust the volume. The volume dialog box appears on the screen for a few seconds.
Mute
Press the MUTE button on the remote control to select On to temporarily turn off the sound. To turn the sound back on, press the MUTE button again to select Off or press the VOLUME +/- buttons. The MUTE function is also effective for the AUDIO OUT jack.
Menu Operation
1 Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select Sound. Press the Point ▶ or the SELECT button to access the submenu items.
2 Use the Point ▲▼ buttons to select the desired submenu item and press the SELECT button to access the selected item.
Voume
Press the Point ▶ button to turn up the volume; press the Point ◀ button to turn down the volume.
Mute
Press the SELECT button to switch the Mute function On/Off. When the sound is turned off, On is displayed. Press the VOLUME +/- buttons again to turn the sound back on.
Remote Control
Top Control
Volume Dialog Box
Approximate level of the volume.
Press the MUTE button to set the Mute function On or Off. The dialog box disappears after 4 seconds.
Sound Menu
Remote Control Operation
Using the remote control for some frequently used operations is advisable. Just pressing one of the buttons enables you to make the desired operation quickly without calling up the On-Screen Menu.
COMPUTER 1, COMPUTER 2, HDMI buttons
VIDEO, S-VIDEO, COMPONENT buttons
Press the COMPUTER 1/2, HDMI, VIDEO, S-VIDEO and COMPONENT buttons on the remote control to select the input source. See pages 30-31, 41-42 for details.
FREEZE buton
Press the FREEZE button on the remote control to freeze the picture on the screen and turn off the sound. To cancel the Freeze function, press the FREEZE button again or press any other button.
Fig.1 will appear on the Screen menu while the Freeze function is working.
Fig.1
√Note:
When use the MUTE button to release the Freeze function, the mute function can not be operated at the same time.
INFO. button
Display the input source information: Input, H-sync freq., V-sync freq., Screen, Language, Lamp status, Lamp counter, Power management, Key lock, PIN code lock, Remote control and SERIAL NO.. (p.63)
D.ZOOM ▲▼ buttons
Press the D.ZOOM ▲▼buttons on the remote control to enter to the D. zoom +/- mode. See page 39 for details.
LAMP button
Press the LAMP button on the remote control to select the lamp mode for changing the brightness on the screen.
Normal ..... Normal brightness.
Eco .... Lower brightness reduces the lamp power consumption and extends the lamp life.
Remote Control
√Note:
See the next page for the description of other buttons.
3D button
Select 3D mode from 3D Off, 3D(Sync 1), 3D(Sync 2) and 3D VISION. (p.48-49)
* The 3D indicator on the control panel emits blue at 3D (Sync 1), 3D(Sync 2) and 3D VISION. (p.48-49)
NO SHOW button
Press the NO SHOW button on the remote control to black out the image. To restore to normal, press the NO SHOW button again or press any other button. When the projected image is captured and is set as User in the Logo selection (p.53), the screen changes each time you press the NO SHOW button as follows.
black out → the captured image → normal → · · · · ·
√Note:
When use the MUTE button to release the No Show function, the mute function can not be operated at the same time.
P-TIMER button
Press the P-TIMER button on the remote control. The Timer display "00 : 00" appears on the screen and starts to count time (00 : 00–59 : 59).
To stop the P-TIMER, press the P-TIMER button.
To cancel the P-TIMER, press the P-TIMER button again.
IMAGE button
Press the IMAGE button on the remote control to select a desired image mode of the screen. See page 36 for details.
SCREEN button
Select the screen size (See pages 38-40, 46-47 for details).
Remote Control
√Note:
See the previous page for the description of other buttons.
No Show
No show disappears after 4 seconds.
P-Timer
Input Source Selection (Computer 1: RGB)
Direct Operation
Choose Computer 1(RGB) by pressing the COMPUTER 1 button on the remote control.
Before using these buttons, correct input source should be selected through Menu operation as described below.
Remote Control
Menu Operation
1 Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select Input and then press the Point ▶ or the SELECT button.
2 Use the Point ▲▼ buttons to select Computer 1.
3 When Computer 1 is selected, press the Point ▶ to access the submenu items. Use the Point ▲▼ buttons to select the RGB input source and then press the SELECT button.
√Note:
When the Input Search function is set to On 1 or On 2 in the Auto setup function, the input signal will be searched automatically (p.51).
Input Menu
Input Source Selection (Computer 2: RGB)
Direct Operation
Choose Computer 2 (RGB) by press the COMPUTER 2 button on the remote control.
Remote Control
√Note:
* COMPUTER 2 can not be selected when using the COMPUTER IN 2/ MONITOR OUT terminal as MONITOR OUT. "Monitor out" message will appear on the screen when COMPUTER 2 button is pressed while using the COMPUTER IN 2/ MONITOR OUT terminal as MONITOR OUT.
Menu Operation
1 Press the MENU button to display the On-Screen Menu. Press the Point ▲▼ buttons, move the highlight to Input and then press the Point ▶ or the SELECT button.
2 Use the Point ▲▼ buttons to select Computer 2 and then press the SELECT button.
3 When Computer 2 is selected, analog RGB input source will be selected directly.
Input Menu
√Note:
When the Input Search function is set to On 1 or On 2 in the Auto setup function, the input signal will be searched automatically (p.51).
Computer System Selection
This projector automatically tunes to various types of computers with its Multi-scan system and Auto PC adjustment. If a computer is selected as a signal source, this projector automatically detects the signal format and tunes to project a proper image without any additional settings. (Signal formats provided in this projector are shown on pages 75-76.)
One of the following messages may appear when:
Auto
When the projector can not recognize the connected signal conforming to the provided PC Systems, Auto is displayed on the System Menu box and the Auto PC adjustment function works to display proper images. If the image is not projected properly, a manual adjustment is required. (pp.34-35)
......
There is no signal input from the computer. Check the connection between your computer and the projector. (See "Troubleshooting" on page 69.)
Mode 1
The preset system is manually adjusted in the PC adjust Menu. The adjusted data can be stored in Mode 1-10. (pp.34-35)
XGA 1
PC Systems provided in this projector is chosen. The projector chooses a proper system provided in the projector and displays it.
* Mode 1 and XGA 1 are examples.
PC System Menu
Selected system in the PC System Menu is displayed.
Selecting Computer System Manually
PC system can also be selected manually.
1 Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select Input and then press the Point ▶ or the SELECT button.
2 Use the Point ▲▼ buttons to select System and then press the Point ▶ or the SELECT button.
3 Use the Point ▲▼ buttons to select the desired system and then press the SELECT button.
PC System Menu
Customized Mode (1–10) set in the PC adjust Menu (pp.34-35).
Systems in this dialog box can be selected.
Auto PC adjustment
Auto PC adjustment function is provided to automatically adjust Fine sync, Total dots, Horizontal, Vertical and Clamp position to conform to your computer.
Menu Operation
Auto PC adj.
1 Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select PC adjust and then press the Point ▶ or the SELECT button.
2 Use the Point ▲▼ buttons to select Auto PC adj. and then press the SELECT button.
To store adjustment parameters
The adjusted parameters from the Auto PC adjustment can be stored in the projector. Once the parameters are stored, the setting can be done just by selecting a Mode (1–10) in the PC System Menu (See page 32). See also "Store" on page 35.
√Note:
- Fine sync, Total dots, Horizontal and Vertical position of some computers can not be fully adjusted with the Auto PC adjustment function. When the image is not provided properly with this operation, manual adjustments are required (pp.34-35).
- The Auto PC adjustment can not be operated when 480i, 575i, 480p, 575p, 720p or 1080i is selected in the PC System Menu (p.32), or when the signal is coming from the HDMI terminal.
PC adjust Menu
Use Point ▲▼ buttons to select Auto PC adj. and press the SELECT button. Please wait... appears while the Auto PC adjustment is in process.
Manual PC adjustment
Some computers employ special signal formats which may not be tuned by Multi-scan system of this projector. Manual PC adjustment enables you to precisely adjust several parameters to match those signal formats. The projector has five independent memory areas to store those parameters manually adjusted. It allows you to recall the setting for a specific computer.
1 Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select PC adjust and then press the Point ▶ or the SELECT button.
2 Use the Point ▲▼ buttons to select the desired item and then press the SELECT button to display the adjustment dialog box. Use the Point ◀▶ buttons to adjust the setting value.
Fine sync
Use the Point ◀▶ buttons to adjust the value, eliminating a flicker from the image displayed (from 0 to 31).
Total dots
Use the Point ◀▶ buttons to adjust the number of total dots in one horizontal period to match your PC image.
Horizontal
Use the Point ◀▶ buttons to adjust the horizontal picture position.
Vertical
Use the Point ◀▶ buttons to adjust the vertical picture position.
Current mode
Press the SELECT button to show H-sync freq. and V-sync freq. of the connected computer.
Clamp
Use the Point ◀▶ buttons to adjust the clamp level. When the image has dark bars, try this adjustment.
PC adjust Menu
√Note:
Fine sync and Total dots cannot be selected when the input signal is 480i, 480p, 575i, 575p, 720p or 1080i.
Reset
To reset the adjusted data, select Reset and press the SELECT button. A confirmation box appears and then select Yes. All adjustments will return to their previous figures.
Mode free
To clear the stored data, select Mode free and then press the Point ▶ or the SELECT button. Move the highlight to the Mode that you want to clear and then press the SELECT button.
Store
To store the adjusted data, select Store and then press the Point ▶ or the SELECT button. Move the highlight to one of the Modes 1 to 10 in which you want to store, and then press the SELECT button.
√Note:
- When input computer signal to the projector, PC adjust will become available.
Mode free Menu
Values of Total dots, Horizontal, and Vertical.
Store Menu
Press MENU button to close this dialog box.
Press SELECT button to store adjusted data.
Image Mode Selection
Direct Operation
Select the desired image mode among Dynamic, Standard, Real, Cinema, Image 1, Image 2, Image 3, and Image 4 by pressing the IMAGE button on the remote control.
Menu Operation
1 Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select Image select and then press the Point ▶ or the SELECT button.
2 Use the Point ▲▼ buttons to select the desired item and then press the SELECT button.
Dynamic
For viewing pictures in a bright room.
Standard
Normal picture mode preset on the projector.
Real
Picture mode with improved halftone for graphics.
Cinema
Picture mode adjusted with fine tone.
Image 1-4
For viewing with the user preset image mode in the Image adjust Menu (See page 37).
Image Select Menu
Image Adjustment
1 Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select Image adjust and then press the Point ▶ or the SELECT button.
2 Use the Point ▲▼ buttons select the desired item and then press the SELECT button to display the adjustment dialog box. Use the Point ◀▶ buttons to adjust the setting value.
Contrast
Press the Point ◀ button to decrease the contrast; press the Point ▶ button to increase the contrast (from 0 to 63).
Brightness
Press the Point ◀ button to decrease the brightness; press the Point ▶ button to increase the brightness (from 0 to 63).
Color temp.
Use the Point ◀▶ buttons to select the desired Color temp. level (XLow, Low, Mid, or High).
White balance (Red / Green / Blue)
Press the Point ◀ button to lighten R/G/B tone; press the Point ▶ button to deepen R/G/B tone (from 0 to 63).
Sharpness
Press the Point ◀ button to decrease the sharpness of the image; press the Point ▶ button to increase the sharpness of the image (from 0 to 15).
Gamma
Use the Point ◀▶ buttons to adjust the gamma value to obtain a better balance of contrast (Default, 1.8, 2.0, 2.2, 2.4, or 2.6).
Reset
To reset the adjusted data, select Reset and press the SELECT button. A confirmation box appears and then select Yes. All adjustments will return to their previous figures.

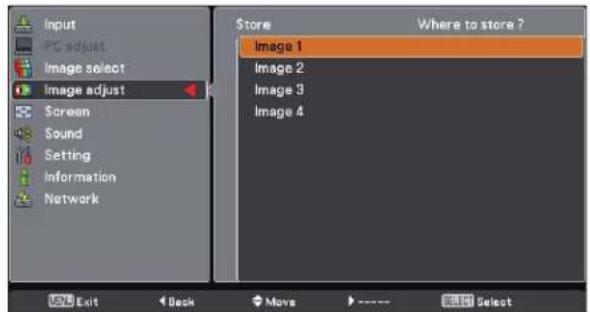

Store
To store the adjusted data, select Store and press the Point ▶ or the SELECT button. Use the Point ▲▼ buttons to select one from Image 1 to 4 and press the SELECT button. A confirmation box appears and then select Yes. Stored data can be called up by selecting an Image (1-4) in the Image Mode Selection on page 36.
Image adjust Menu
√Note:
- When White balance Red, Green or Blue is adjusted, Color temp. will change to User.
Store Menu
A confirmation box appears and then select Yes.
Screen Size Adjustment
This projector has the picture screen resize function, which enables you to customize the image size.
1 Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select Screen and then press the Point ▶ or the SELECT button.
2 Use the Point ▲▼ buttons select the desired item and then press the SELECT button.
Normal
Provide the image to fit the screen size while maintaining the aspect ratio of input signal.
Full
Provide the full screen image.
Wide (16:9)
Provide the image at the 16:9 wide screen ratio.
Zoom
Scale the image proportionally to fit the entire screen. Either side of image may go over the screen.
True
Provide the image in its original size. When the original image size is larger than the screen size (1024 x 768), the projector automatically switches to the panning mode. Use the Point ▲▼◀▶ buttons to pan the image. When adjusted, the arrows turn red. When reached to the correction limit, the arrows disappear.
Custom
Provide the last stored aspect screen image.
Screen Menu
√Note:
- This projector can not display any resolution higher than 1920 x 1200. If your computer's resolution is higher than that, lower the resolution before connecting to the projector.
- The image data other than 1024 x 768 is modified to fit the screen size in initial mode.
- True and Digital zoom +/- can not be selected when 480i, 575i, 480p, or 575p is selected in the PC System Menu (p.32).
- Zoom and Image Position Adjustment (p.25) will be canceled when Custom is selected in the Screen menu.
Custom adj.
Adjust the screen scale and position manually with this function.
Press the Point ▶ button at Custom adj. and the Custom adjustment menu is displayed on the screen, you can use the Point ▲▼ buttons to choose the item you want to adjust.
Scale H/V .... Adjust the Horizontal/Vertical screen scale.
H&V...... When set to On, the aspect ratio is fixed. Scale V appears dimmed and becomes unavailable. Adjust Scale H, then the screen scale is automatically modified based on the aspect ratio.
Position H/V ..... Adjust the Horizontal/Vertical screen position.
Common .... Save the adjusted scale or position to all the inputs. Press the SELECT button at Common to display a confirmation box. To save the scale or position, press the SELECT button at "Yes". When Custom is selected, the saved scale or position is used.
Reset .... Reset the all adjusted values. Press the SELECT button at Reset to display a confirmation box. To reset, press the SELECT button at "Yes".
Digital zoom +
Select Digital zoom +. The On-Screen Menu disappears and D. zoom + appears. Press the SELECT button to expand the image size. Use the Point ▲▼◀▶ buttons to pan the image. The Panning function can work only when the image is larger than the screen size.
A projected image can be also expanded by pressing the D.ZOOM ▲ or the SELECT button on the remote control.
Digital zoom –
Select Digital zoom -. The On-Screen Menu disappears and D. zoom - appears. Press the SELECT button to compress image size.
The projected image can be also compressed by pressing the D.ZOOM ▼ or the SELECT button on the remote control.
To exit the Digital zoom +/- mode, press any button except the D.ZOOM ▲▼ and the SELECT buttons.
To return to the previous screen size, select a screen size from the Screen Size Adjustment Menu or select an input source from the Input Source Selection Menu (See pages 30-31) again, or adjust the screen size with the D.ZOOM
▲▼ buttons.
Custom adj. Menu
√Note:
- When no signal is detected, Normal is set automatically and Custom adj. cannot be selected and the Aspect dialog box disappears.
- The adjustable range for Scale H/V and Position H/V is limited depending on the input signal.
D.ZOOM +/-
Remote Control
√Note:
- The panning function may not operate properly if the stored Mode in the PC adjust Menu is used (p.35).
- The minimum compression ratio is limited depending on the input signal, when the Keystone function is working or when Custom is selected for the screen size.
- True and Digital zoom +/- can not be selected when 480i, 575i, 480p, or 575p is selected in the PC System Menu (p.32).
- Digital zoom +/- can not be selected when True is selected in the Screen menu. (p.38)
Keystone
This function is used to adjust keystone distortion of the projected image. Use the Point ▲▼ buttons to choose the item you want to adjust.
Keystone
To correct keystone distortion, press the SELECT button. Keystone appears on the screen. Use the Point ▲▼ buttons to correct keystone distortion (p.26).
Store or Reset
To store or reset the keystone correction, press the Point button.
Store ..... Keep the keystone correction even when the AC power cord is unplugged.
Reset ..... Release the keystone correction when the AC power cord is unplugged.
Ceiling
When this function is set to On, the picture will be top/bottom and left/right reversed. This function is used to project the image from a ceiling-mounted projector.
Rear
When this function is set to On, the picture will be left/right reversed. This function is used to project the image from rear of the screen.
Colorboard
Press the Point ▶ button at Colorboard, and then use the Point ▲▼ buttons to switch the desired item [Red, Blue, Yellow, Green, Blackboard(Green)] and then press the SELECT button.
At the time of simple projection on the colored wall, you can get the close color image to the color image projected on a white screen by selecting the similar color to the wall color from the preset colors.
Reset
To reset the adjusted data, select Reset and press the SELECT button. A confirmation box appears and then select Yes. All adjustments will return to their previous figures.
Keystone
Ceiling
Rear
Input Source Selection (Video, S-video)
Direct Operation
Choose Video or S-video by pressing the VIDEO button or the S-VIDEO button on the remote control.
Menu Operation
1 Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select Input and then press the Point ▶ or the SELECT button.
2 Use the Point ▲▼ buttons to select either Video or S-video and then press the SELECT button.
Video
When video input signal is connected to the VIDEO jack, select Video.
S-video
When video input signal is connected to the S-VIDEO jack, select S-video.
Input Menu
√Note:
When the Input Search function is set to On 1 or On 2 in the Auto setup function, the input signal will be searched automatically (p.51).
Input Source Selection (Component, Scart, HDMI)
Direct Operation
Choose Computer 1(Component) or Computer 1(Scart) by pressing the the COMPONENT or COMPUTER 1 button on the remote control; choose HDMI by pressing the HDMI button on the remote control.
Before using these buttons, correct input source should be selected through Menu operation as described below.
Remote Control
Menu Operation
1 Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select Input and then press the Point ▶ or the SELECT button.
2 Use the Point ▲▼ buttons to select Computer 1 and then press the Point ▶ button; use the Point ▲▼ buttons to select Component or RGB(Scart) and then press the SELECT button.
OR
Use the Point ▲▼ buttons to select HDMI, and then press the SELECT button;
Component
When the input source is coming from video equipment connected to the COMPUTER IN 1/COMPONENT IN terminal with a Component-VGA Cable, select Component.
RGB (Scart)
When the input source is coming from video equipment connected to the COMPUTER IN 1/COMPONENT IN terminal with a Scart-VGA Cable, select RGB (Scart).
HDMI
When the video signal is connected to the HDMI terminal, select HDMI.
√Note:
When the Input Search function is set to On 1 or On 2 in the Auto setup function, the input signal will be searched automatically (p.51).
Input Menu
Image Mode Selection
Direct Operation
Select the desired image mode among Dynamic, Standard, Real, Cinema, Image 1, Image 2, Image 3, and Image 4 by pressing the IMAGE button on the remote control.
Menu Operation
1 Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select Image select and then press the Point ▶ or the SELECT button.
2 Use the Point ▲▼ buttons to select the desired item and then press the SELECT button.
Dynamic
For viewing pictures in a bright room.
Standard
Normal picture mode preset on the projector.
Real
Picture mode with improved halftone for graphics.
Cinema
Picture mode adjusted with fine tone.
Image 1-4
For viewing with the user preset image mode in the Image adjust Menu (See pages 44, 45).
Image Select Menu
Image Adjustment
1 Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select the Image adjust and then press the Point ▶ or the SELECT button.
2 Use the Point ▲▼ buttons select the desired item and then press the SELECT button to display the adjustment dialog box. Use the Point ◀▶ buttons to adjust the setting value.
Contrast
Press the Point ◀ button to decrease the contrast; press the Point ▶ button to increase the contrast (from 0 to 63).
Brightness
Press the Point ◀ button to decrease the brightness; press the Point ▶ button to increase the brightness (from 0 to 63).
Color
Press the Point ◀ button decrease the intensity of the color; press the Point ▶ button increase the intensity of the color (from 0 to 63).
Tint
Press the Point ◀▶ buttons to adjust the tint value to get a proper color balance (from 0 to 63).
Color temp.
Use the Point ◀▶ buttons to select the desired Color temp. level (Xlow, Low, Mid, or High).
White balance (Red)
Press the Point ◀ button to lighten red tone; press the Point ▶ button to deepen red tone (from 0 to 63).
White balance (Green)
Press the Point ◀ button to lighten green tone; press the Point ▶ button to deepen green tone (from 0 to 63).
White balance (Blue)
Press the Point ◀ button to lighten blue tone; press the Point ▶ button to deepen blue tone (from 0 to 63).
Image adjust Menu
√Note:
- When the White balance Red, Green, or Blue is adjusted, the Color temp. level will change to User.
- Tint can not be selected when the video system is PAL, SECAM, PAL-M, or PAL-N.
Sharpness
Press the Point ◀ button to decrease the sharpness of the image; press the Point ▶ button to increase the sharpness of the image (from 0 to 15).
Gamma
Use the Point ◀▶ buttons to adjust the gamma value to obtain a better balance of contrast (Default, 1.8, 2.0, 2.2, 2.4, or 2.6).
Noise reduction
Noise interference on the screen can be reduced. Select one of the following options to get smoother images.
Off ..... Disabled.
L 1 ...... Lower reduction.
L 2 ...... Higher reduction.
Progressive
An interlaced video signal can be displayed in progressive mode. Select one of the following options.
Off ..... Disabled.
L 1 ...... For an active picture.
L 2 ...... For a still picture.
Film ..... For watching a film. With this function, the projector reproduces pictures faithful to the original film quality.
Reset
To reset the adjusted data, select Reset and press the SELECT button. A confirmation box appears and then select Yes. All adjustments will return to their previous figures.
Store
To store the adjusted data, select Store and press the Point ▶ button or the SELECT button. Use the Point ▲▼ buttons to select one from Image 1 to 4 and press the SELECT button.
A confirmation box appears and then select Yes. Stored data can be called up by selecting an Image (1-4) in the Image Mode Selection on page 43.
Store Menu
A confirmation box appears and then select Yes.
√Note:
- Noise reduction and Progressive can not be selected when the input signal is 480p, 575p, 720p or 3D mode is set to On.
- Film of Progressive cannot be selected when the input signal is 1080i.
- When 480i, 575i, 480p, 575p,720p or 1080i is selected in computer source, the items of Image adjustment are the same as the items in video source, except for Color and Tint.
Screen Size Adjustment
This projector has the picture screen resize function, which enables you to customize the image size.
1 Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select Screen and then press the Point ▶ or the SELECT button.
2 Use the Point ▲▼ buttons select the desired item and then press the SELECT button.
Normal
Provide the image to fit the screen size while maintaining the aspect ratio of input signal.
Full
Provide the full screen image.
Wide(16:9)
Provide the image at the 16:9 wide screen ratio.
Zoom
Pan the horizontal direction of the image and cut the vertical direction of the image to fit the screen size (16:9). Only for 4:3 video aspect ratio signals.
Custom
Provide the last stored aspect screen image.
Custom adj.
Adjust the screen scale and position manually with this function.
Press the Point ▶ button at Custom adj. and the Custom adjustment menu is displayed on the screen, you can use the Point ▲▼ buttons to choose the item you want to adjust.
Scale H/V ...... Adjust the Horizontal/Vertical screen scale.
H&V......When set to On, the aspect ratio is fixed. Scale V appears dimmed and becomes unavailable. Adjust Scale H, then the screen scale is automatically modified based on the aspect ratio.
Position H/V ... Adjust the Horizontal/Vertical screen position.
Common ...... Save the adjusted scale or position to all the inputs. Press the SELECT button at Common to display a confirmation box. To save the scale or position, press the SELECT button at "Yes", When Custom is selected, the saved scale or position is used.
Reset ....... Reset the all adjusted values. Press the SELECT button at Reset to display a confirmation box. To reset, press the SELECT button at "Yes".
Screen Menu
√Note:
- When no signal is detected, Normal is set automatically and the Aspect adjustment menu disappears.
- The adjustable range for Scale H/V and Position H/V is limited depending on the input signal.
Keystone
This function is used to adjust keystone distortion of the projected image. Use the Point ▲▼ buttons to choose the item you want to adjust.
Keystone
To correct keystone distortion, press the SELECT button. Keystone appears on the screen. Use the Point ▲▼ buttons to correct keystone distortion (p.26).
Store or Reset
To store or reset the keystone correction, press the Point button.
Store ..... Keep the keystone correction even when the AC power cord is unplugged.
Reset ..... Release the keystone correction when the AC power cord is unplugged.
Ceiling
When this function is set to On, the picture will be top/bottom and left/right reversed. This function is used to project the image from a ceiling-mounted projector.
Rear
When this function is set to On, the picture will be left/right reversed. This function is used to project the image from rear of the screen.
Colorboard
Press the Point ▶ button at Colorboard, and then use the Point ▲▼ buttons to switch the desired item [Red, Blue, Yellow, Green, Blackboard(Green)] and then press the SELECT button.
At the time of simple projection on the colored wall, you can get the close color image to the color image projected on a white screen by selecting the similar color to the wall color from the preset colors.
Reset
To reset the adjusted data, select Reset and press the SELECT button. A confirmation box appears and then select Yes. All adjustments will return to their previous figures.
Keystone
Ceiling
Rear
For Viewing 3D Contents
To view 3D images, you need to prepare at least the 3D active shutter glasses, 3D content and 3D reproducing equipment. For example, as for computer, when transmitting 3D signals from a computer to the projector, you also need to install the graphic card which has the capability to sequentially output the 3D frames at 120Hz and software in the computer. The 3D signal type which the projector can accept is frame sequential only. Other 3D signal types such as frame packing and side-by-side are not supported.
As for 3D glasses, DLP Link format and IR emitter format are compatible with this projector. Compatibility with any other 3D glasses than the 2 types 3D glasses is not guaranteed.
In a situation of using NVIDIA® 3D glasses, NVIDIA IR emitter, and a computer which NVIDIA graphics card is installed, when you want to view NVIDIA-compatible 3D contents, please set to NVIDIA 3D VISION mode.
* COMPUTER IN 2/MONITOR OUT terminal is not supported NVIDIA® 3D VISION™. Please input the image signals to COMPUTER IN 1/COMPONENT IN or HDMI terminal.
Remote Control
Using 3D Glasses with DLP Link compatible
When using DLP Link compatible glasses, follow these steps:
- Turn on the projector and the 3D glasses.
- Wear the 3D glasses and press the 3D button on the remote control to activate 3D Display function. When 3D mode is in On, 3D indicator turns blue.
- If you see a discrete or overlapping image, 3D Sync Invert function enables you to get the correct image. Press the 3D button to switch 3D Sync signal from among "3D Off", "3D (Sync 1)", "3D (Sync 2)" or "3D VISION".
3D setting can also be selected from the menu (p.52).
LCD Glasses with DLP Link compatible
Stereoscopic Wireless
LCD Glasses
Sync Signal Cable
(Supplied with the IR Emitter)
3D SYNC OUT
OMPONENT
URABLE
CONTROL PORT
3D SYNC OUT
Unplug the power cords of both the projector and external equipment from the AC outlet before connecting cables.
CAUTION FOR PROPERLY VIEWING 3D PICTURES
- The optimum 3D viewing distance from the screen is about 3 m or more and your eyes should be level with the screen.
- Viewing 3D images for an extended period of time or viewing them from an oblique angle can cause eye strain.
- Take breaks when viewing 3D images for an extended period of time. As this may cause eye fatigue.
- Some image sources can cause pseudoscopic image problem. Check the 3D settings to get the 3D effect.
-
If the right-eye image and left-eye image are switched, you may not get the 3D effect, resulting in eye strain or nausea.
-
There are differences in 3D visual perception between individuals.
- If you get double vision or don't get the 3D effect, discontinue using the projector.
- If you experience fatigue or nausea, stop using the projector.
- After viewing the rotating, swinging, or jumping 3D images, you may experience 3D motion sickness.
- If you experience such symptom, immediately stop viewing the 3D images and take a break until the symptom has subsided.
- If you view 3D images in bright ambient light environment, you may not be able to see them clearly. Or if you use the 3D glasses in a room which fluorescent lighting (50Hz), flickering may occur. If these happen, change the room lighting condition by making the room dark or turning off the light.
RESTRICTIONS ON VIEWING 3D IMAGES
- Children who are six year of age or younger should not view 3D images.
-
Parents should accompany and monitor their children as children cannot properly express discomfort with 3D image viewing.
-
Photosensitive patients, patients with heart disease, pregnant women, elderly people, and people with serious illness and/or with a history of epilepsy should not view 3D images
- We advise that you should refrain from viewing 3D images if you are in bad physical condition
- We do not recommend viewing 3D images if you need sleep or have been drinking alcohol.
TROUBLESHOOTING FOR 3D DISPLAY
| Symptoms Possible problems | Solution | |
| 3D contents appear as 2D. The glasses or the projector are set to 2D mode. | Change the setting of the glasses or the projector. | |
| 3D image is inverted. (3D image is not correct.) | 3D mode is out of phase. (The data for right/left eyes is inverted.) | Reverse the 3D sync phase of the projector by using 3D button on the remote control or through the Setting menu of the projector. |
| Image of glasses has flicker. Outside of the recommended viewing zone of the glasses. | Move your position closer to the emitter. | |
| Glasses does not turn on. - The battery of the glasses is exhausted.- The projector is not set to 3D mode. | - Recharge the battery.- Change the setting of the projector. | |
Setting
This projector has a Setting Menu that allows you to set up the other various functions described below.
1 Press the MENU button to display the On-Screen Menu. Press the Point ▲▼ buttons to select the Setting and press the Point ▶ or the SELECT button to access the submenu items.
2 Use the Point ▲▼ buttons to select the desired item and then press the Point ▶ or the SELECT buttons to access the selected item.
3 Use the Point ▲▼ buttons select the desired item and then press the SELECT button.
Language
The language used in the On-Screen Menu is available in English, German, French, Italian, Spanish, Portuguese, Dutch, Swedish, Finnish, Norwegian, Danish, Polish, Hungarian, Romanian, Russian, Brazilian Portuguese, Turkish, Arabic, Kazakh, Simplified Chinese, Traditional Chinese, Korean, Japanese and Thai.
Menu position
This function is used to change the position of the On-Screen Menu. Select Menu position and press the SELECT button.
The Menu position changes each time you press the SELECT button as follows. the center → the bottom left → the bottom right → the top left → the top left → the top right → ....
Setting Menu
Language Menu
Auto setup
This function enables Input search and Auto PC adjustment by pressing the AUTO SET button on the remote control. Settings for those functions can be altered as follows:
Input search
This function detects the input signal automatically. When a signal is found, the search will stop. Use the Point ▲▼ buttons to select one of the following options.
Off ...... Input search dose not work.
On 1..... Input search works under the following situation.
- When pressing the AUTO SET button on the remote control.
On 2..... Input search works under the following situation.
- When turning on the projector by pressing the ON/STAND-BY button.
- When pressing the AUTO SET button on the remote control.
- When the current input signal is cut off.*
* If the No show or Freeze function is active, cancel it to activate the Input search. It is also unavailable when On-Screen Menu is displayed.
Auto PC adj.
On. . . . . . Enables Auto PC adjustment when pressing the AUTO SET button on the remote control.
Off .....Disables Auto PC adjustment.
Auto setup
√Note:
- While Input search function is set to On 1 or On 2, the status of Input and Lamp are displayed every time the signal is switched.
- Only the last selected input source can be detected.
- If the COMPUTER 1/2 button, VIDEO, S-VIDEO, COMPONENT or HDMI button on the remote control, or ON/STAND-BY or MENU button on the top control is pressed during Input search is in progress, Input search will stop and go back to the previous input signal.
- Auto PC adj. and Input search functions can not be set Off at the same time.
- Fine sync, Total dots, Horizontal and Vertical positions of some computers can not be fully adjusted with the Auto PC adjustment function. When the image is not provided properly with this operation, manual adjustments are required (pp.34-35).
3D setting
This function is used to set the 3D display function. (pp.48-49) Press the Point ▲▼ buttons to switch between each option.
3D......Select among Off, On and NVIDIA 3D VISION mode.
* When selecting NVIDIA 3D VISION mode, the other menus 3D sync, 3D->2D, 3D phase setting are not necessary. (displayed in gray)
3D sync .... If you see a discrete or overlapping image, 3D Sync Invert function* enables you to get the correct image. Switch the 3D sync signal to 1 or 2.
3D->2D ..... When viewing the 3D contents without wearing the 3D glasses, set to "On" to convert 3D display format to 2D display format.
3D phase ... Adjust the phase of the 3D sync signal when the 3D SYNC OUT terminal is used. (0 - 31)
* The Frame Sequential Format is a technology that rapidly alternates between left-eye and right-eye images. When right-eye image and left-eye image are switched or you feel like you cannot get 3D effect due to out-of-synchronization state, first try to synchronize the projector with the 3D glasses by using 3D SYNC function.
Zoom
This function is used to memorize the Zoom adjustment with the ZOOM +/- buttons on the top control (p.25). Press the Point ▲▼ buttons to select Reset, Store1 or Store2.
Reset . . . Reset the Zoom adjustment when the projector is turned off or the AC power cord is unplugged.
Store1 .. Store the Zoom setting even when the projector is turned off. Zoom setting is cleared when the AC power cord is unplugged.
Store2 .. Store the Zoom setting even when the AC power cord is unplugged.
3D setting
Background
Select the background screen for when no input signal is detected. Press the Point ▲▼ buttons to switch between each option.
Blue ... Project a blue background.
User . . . Project an image captured in the Logo setting.
Black .. Project a black background.
Display
This function decides whether to display On-Screen Displays.
On .... Show all the On-Screen displays. Use this function when you want to project images after the lamp becomes bright enough. The factory default setting is this option.
Countdown off ..... Show the input image instead of the countdown when turning on the projector. Use this function when you want to project the image as early as possible even when the lamp is not bright enough.
Off ...... Hide the On-Screen Displays except;
● On-Screen Menu
● Power off? (p.22)
● No signal for Power management. (p.57)
- Please wait ...
● Arrows for the True mode in the Screen Menu (p.38)
● P-Timer
Logo (Logo and Logo PIN code lock settings)
This function allows you to customize the screen logo with Logo select, Capture, Logo PIN code lock and Logo PIN code change functions.
√Note:
When On is selected in the Logo PIN code lock function, Logo select and Capture functions can not be selected.
Logo select
This function decides on the starting-up display from among following options.
Off ...... Show the countdown display only.
Default .... Show the factory-set logo.
User ..... Show the image you captured.
Logo select
Capture
This function enables you to capture an image being projected to use it for a starting-up display or interval of presentations.
Select Capture and press the SELECT button.
A confirmation box appears and select Yes to capture the projected image.
After capturing the projected image, go to the Logo select function and set it to User. Then the captured image will be displayed the next time you turn on the projector.
To cancel the capture function, select Yes in the "Quit?" confirmation box.
√Note:
- Before capturing an image, select Standard in the Image select Menu to capture a proper image (p.36).
- A signal from a computer can be captured up to XGA (1024 x 768). A signal from video equipment can be captured except for 720p, 1080i and 1080p.
- When capturing the image that has been adjusted by the Keystone function, the adjusted data is automatically reset and the projector captures an image without keystone correction.
- When Logo PIN code lock function is set to On, Logo select and Capture can not be selected.
- When starting to capture a new image, the previously stored image is cleared even if you cancel the capturing.
- When there is no captured image or it is interrupted while capturing an image, User is not included in Logo Select Menu, you can only switch between Default and Off.
Logo PIN code lock
This function prevents an unauthorized person from changing the screen logo.
Off ...... The screen logo can be changed freely from the Logo Menu (p.53).
On .... The screen logo can not be changed without a Logo PIN code.
If you want to change the Logo PIN code lock setting, press the SELECT button and the Logo PIN code dialog box appears. Enter a Logo PIN code by following the steps below. The initial Logo PIN code is set to "4321" at the factory.
√Note:
When Logo PIN code lock function is set to On, Logo select and Capture can not be selected.
Capture
Logo PIN code lock
Enter a Logo PIN code
Use the Point ▲▼ buttons to enter a number. Press the Point ▶ button to fix the number and move the red frame pointer to the next box. The number changes to *. If you fixed an incorrect number, use the Point ◀ button to move the pointer to the number you want to correct, and then enter the correct number.
Repeat this step to complete entering a four-digit number.
After entering the four-digit number, move the pointer to Set and press the SELECT button.
If you entered an incorrect Logo PIN code, Logo PIN code and the number (***** ) will turn red for a moment. Enter the correct Logo PIN code all over again.
Change the Logo PIN code lock setting
Use the Point ▲▼ buttons to switch On or Off, and then press the SELECT button to make a choice.
Logo PIN code change
Logo PIN code can be changed to your desired four-digit number. Press the SELECT button to select Logo PIN code change. Current logo PIN code dialog box appears, use the Point ▲▼ buttons to enter the correct code. The New Logo PIN code input dialog box appears. Set a new Logo PIN code, confirmation box appears, choose Yes to set the new Logo PIN code.
Be sure to note the new Logo PIN code and keep it on hand. If you lost the number, you could no longer change the Logo PIN code setting.
CAUTION:
WHEN YOU HAVE CHANGED THE LOGO PIN CODE, WRITE DOWN THE NEW PIN CODE IN COLUMN OF THE LOGO PIN CODE NO. MEMO ON PAGE 80, AND KEEP IT SECURELY. SHOULD THE LOGO PIN CODE BE LOST OR FORGOTTEN, THE LOGO PIN CODE SETTING CAN NO LONGER BE CHANGED.
Enter a Logo PIN code
Logo PIN code change
HDMI setup
This function is only used for HDMI input source.
Select Normal or Enhanced to match the video range setting of your HDMI Digital RGB equipment.
Sound
HDMI ...... When using the HDMI cable, select HDMI. Both video and audio* are transferred and you need not to connect any additional cables for audio.
* This HDMI terminal supports Linear PCM (32kHz/44.1kHz/48kHz).
Computer 1 .. When using the DVI-HDMI cable, select Computer and connect the audio cable to COMPUTER/COMPONENT AUDIO IN terminal.
The names for the output setting of Digital RGB vary from equipment to equipment. For details, refer to the owner's manual of your Digital RGB equipment. When the black parts of the image are destroyed or stand out, please switch to Normal or Enhanced, and then switch the output type of the HDMI Digital RGB output equipment.
Terminal
The COMPUTER IN 2/MONITOR OUT terminal on the back of the projector is switchable for computer input or monitor output (p.11).
Computer 2.....Computer input
Monitor out.....Monitor output
Terminal function is not available when Computer 2 to the input source is selected. Change the input source to the others (Computer 1, Video, S-video or HDMI) so that the Terminal function is available (pp.30-31, 41-42).
Standby mode
This function is available when operating the projector via network.
Network .... Supply the power to the network function even after turning off the projector. You can turn on/off the projector via network, modify network environment, and receive an e-mail about projector status while the projector is powered off.
Eco...... Select Eco when you do not use the projector via network. The projector's network function will stop when turning off the projector.
Refer to the owner's manual of "Network Set-up and Operation".
HDMI setup
√Note:
• Factory default is Network.
- When Eco is selected and the projector is in Stand-by, the communication of RS-232C serial port is not available.
Power management
For reducing power consumption as well as maintaining the lamp life, the Power management function turns off the projection lamp when the projector is not operated for a certain period.
Select one of the following options:
Ready .... When the lamp has been fully cooled down, the POWER indicator changes to green blinking. In this condition, the projection lamp will be turned on if the input signal is reconnected or any button on the remote control is pressed.
Shut down .... When the lamp has been fully cooled down, the power will be turned off. Off .... Power management function is off.
Timer .... If the input signal is interrupted and no button is pressed for more than 30 seconds, the timer display with No signal appears. It starts the countdown until the lamp is turned off. Use the Point ▲▼ buttons to set the Timer(1\~30Min).
√Note:
Factory default is Ready: 5 Min.
Direct on
When this function is set to On, the projector will be automatically turned on just by connecting the AC power cord to a wall outlet.
√Note:
Be sure to turn off the projector properly (see "Turning Off the Projector" on page 22). If the projector is turned off in the incorrect sequence, the Direct on function does not work properly.
Power management
Timer left before Lamp is off.
Closed caption
Closed Caption is a function that displays the audio portion of a TV program as text on the screen. If the input signal contains Closed captions, you can turn on the feature and switch the channels. Press the Point ▲▼ buttons to select Off, CC1, CC2, CC3 or CC4.
If the Closed caption is not clear, you can change the text from Color to White.
√Note:
The Closed caption is available only under the situation below.
• The input signal is NTSC of composite video or S-video.
- The item of Closed caption is displayed in gray while it is not available.
- TheClosed caption is unavailable when On-Screen Menu or P-Timer is displayed.
Lamp control
This function allows you to change brightness of the screen.
Normal ..... Normal brightness.
Eco .... Lower brightness reduces the lamp power consumption and extends the lamp life.
Remote control
This projector provides two different remote control codes: the factory-set initial code (Code 1) and the secondary code (Code 2). This switching function prevents remote control interference when operating several projectors or video equipment at the same time.
When operating the projector in Code 2, both the projector and the remote control must be switched to Code 2.
To change the code for the projector:
Select either Code 1 or Code 2 in this Setting Menu.
To change the code for the remote control:
Press and hold both the MENU and IMAGE buttons together for 5 seconds or more. After changing the code, make sure the remote control operates properly.
√Note:
- When different codes are set on the projector and on the remote control, any operation cannot be made. In that case, switch the code on the remote control to fit the code on the projector.
- If the batteries are removed from the remote control for a long period of time, the remote control code will be reset.
Closed caption
Press the Point ▲▼ buttons to select Off, CC1, CC2, CC3 or CC4, and then Press Select button.
Remote control
Security (Key lock and PIN code lock)
This function allows you to use the Key lock and the PIN code lock function to set the security for the projector operation.
Key lock
This function locks the top control and remote control buttons to prevent operation by unauthorized persons.
..... Unlocked.
..... Lock the operation of the top control. To unlock, use the remote control.
..... Lock the operation of the remote control. To unlock, use the top control.
If the top control accidentally becomes locked and you do not have the remote control nearby or there is something wrong with your remote control, contact the dealer where you purchased the projector or the service center.
Key lock
PIN code lock
This function prevents the projector from being operated by unauthorized persons and provides the following setting options for security.
Off .....Unlocked.
On 1 .....Enter the PIN code every time turning on the projector.
On 2 . . . . Enter the PIN code to operate the projector once the power cord is disconnected; as long as the AC power cord is connected, the projector can be operated without a PIN code.
Whenever you change the PIN code lock setting or the PIN code (the four-digit number), you are required to enter the PIN code. The "1234" is set as the initial PIN code at the factory.
If you want to change the PIN code lock setting, Press the SELECT button and the PIN code dialog box appears.
PIN code lock
When the projector is locked with the PIN code, the Security icon appears on the guide.
Enter a PIN code
Use the Point ▲▼ buttons to enter a number. Press the Point ▶ button to fix the number and move the red frame pointer to the next box. The number changes to *. If you fixed an incorrect number, use the Point ◀ button to move the pointer to the number you want to correct, and then enter the correct number.
Repeat this step to complete entering a four-digit number.
After entering the four-digit number, move the pointer to Set. Press the SELECT button so that you can start to operate the projector.
If you entered an incorrect PIN code, PIN code and the number (****) will turn red for a moment. Enter the correct PIN code all over again.
Change the PIN code lock setting
Use the Point ▲▼ buttons to select Off, On 1 or On 2. Press the SELECT button to close the dialog box.
PIN code change
The PIN code can be changed to your desired four-digit number.
Press the Point ▼ button to select PIN code change and press the SELECT button. The Current PIN code dialog box appears.
Use the Point ▲▼ buttons to set the current PIN code. The New PIN code dialog box appears. Set a new PIN code, the confirmation box appears, and choose Yes to set the new PIN code.
CAUTION: WHEN YOU HAVE CHANGED THE PIN CODE, WRITE DOWN THE NEW PIN CODE IN COLUMN OF THE PIN CODE NO. MEMO ON PAGE 80, AND KEEP IT SECURELY. IF YOU FORGET YOUR PIN CODE, THE PROJECTOR CAN NO LONGER BE STARTED.
Enter a PIN code
Change the PIN code
Fan
This function provides the following options in the cooling fans' operation when the projector is turned off (p.22).
L 1 ..... Normal operation
L 2 ..... Slower, lower-sound and longish-time than the normal operation (L1).
Fan control
Choose the running speed of cooling fans from the following options according to the ground elevation under which you use the projector.
Off ...... Normal speed. Set this function to Off when using the projector in non-high altitude environment.
On 1 ...... Faster than Off mode. Select this mode when using the projector in high altitudes (about 1,000 meters or more above the sea level) where the fans have less cooling effect.
On 2 ...... Faster than On 1 mode. Select this mode when using the projector in higher altitudes than above where the fans have lesser cooling effect.
Lamp counter
This function is used to display the cumulative lamp operating time and reset the lamp counter.
When the total lighting time of a lamp exceeds the recommended total hours of use, the Lamp replacement icon (Fig.1) will appear on the screen, indicating that the end of lamp life is reached.
When replacing the projection lamp, reset lamp counter. See "Resetting the Lamp Counter" on page 68.
√Note:
The Lamp replacement icon (Fig.1) will not appear when the Display function is set to Off (p.51), or Freeze (p.28), or No show (p.29).
√Note:
- Fan noise becomes louder in On 1 and On 2.
- Failure to set the running speed of cooling fans properly may affect the projector life.
Fig.1 Lamp replacement icon
This icon appears on the screen when the end of lamp life is reached.
√Note:
At turning on, the icon (Fig.1) will appear.
Filter counter
This function is used to set a frequency for the filter replacement.
Use the Point ▲▼ buttons to select Filter counter and then press the Point ▶ or the SELECT button to access the submenu items.
Filter counter...... Show the total accumulated time of the filter use timer setting.
Timer .... To set a timer, when the projector reaches the time, the Filter warning icon (Fig.1) appears on the screen and the total accumulated time turns red, indicating that the filter replacement is necessary.
Filter counter reset... After replacing the filter, be sure to reset the timer. The Filter warning icon will not turn off until the filter counter is reset. For details about resetting the timer, refer to "Resetting the Filter Counter" on page 65.
Fig.1 Filter warning icon
Filter warning icon appears on the screen at a set time (Off/2000H/3000H/4000H).
√Note:
- The Filter warning icon (Fig.1) will not appear when the Display function is set to Off (p.53), or Freeze (p.28), or No show (p.29).
• This icon also appears at turning on.
Factory default
This function returns all setting values except for the User logo, PIN code lock, Logo PIN code lock, Lamp counter and Filter counter to the factory default settings.
Filter counter
Press the SELECT button to select Timer, and then use the Point ▲▼ buttons to set the timer. Select from (Off/ 2000H/ 3000H/ 4000H) depending on the use environment.

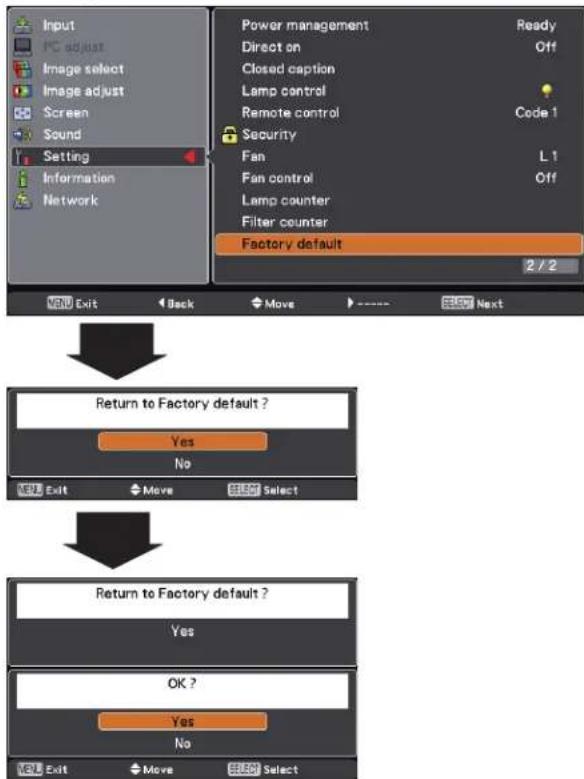

Factory default
Input Source Information Display
The Information Menu is used for checking the status of the image signal being projected and the operation of the projector.
Direct Operation
The information menu changes each time you press the INFO. button on the remote control as follows.
While the information menu is displayed, press the Point
▶ buttons to display the previous or next page.
Menu Operation
Press the Point ▲▼ buttons to select the Information. The Information Menu is displayed.
See below for displayed information.
Remote Control
Information Menu
Input The selected input source is displayed.
H-sync freq. The horizontal frequency of the input signal is displayed in KHz, or - - - -KHz when no signal.
V-sync freq. The vertical frequency of the input signal is displayed in Hz, or - - - - Hz when no signal. Numbers of Hz doubles when during Interlace.
Screen The selected screen size is displayed.
Language The selected language is displayed.
Lamp status The selected lamp mode is displayed.
Lamp counter The cumulative lamp operating time is displayed.
Power management Off, Ready, Shut down or Timer is displayed.
Key lock The selected Key lock icon is displayed.
PIN code lock Off or On 1 or On 2 is displayed.
Remote control The selected remote code is displayed.
SERIAL NO. The serial number of the projector is displayed. The serial number is used to service the projector.
WARNING TEMP. indicator
The WARNING TEMP. indicator shows the state of the function which protects the projector. Check the state of the WARNING TEMP. indicator and the POWER indicator to take proper maintenance.
The projector is shut down and the WARNIN TEMP. indicator is blinking red.
When the temperature inside the projector reaches a certain level, the projector will be automatically shut down to protect the inside of the projector. The POWER indicator is blinking while the projector is being cooled down. When the projector has cooled down enough (to its normal operating temperature), it can be turned on again by pressing the ON/STAND-BY button.
√Note:
The WARNING TEMP. indicator continues to blink even after the temperature inside the projector returns to normal. When the projector is turned on again, the WARNING TEMP. indicator stops blinking.
Then check the matters below:
- Did you provide appropriate space for the projector to be ventilated? Check the installing condition to see if the air vents of the projector are not blocked.
- Has the projector been installed near an Air-Conditioning/ Heating Duct or Vent? Move the installation of the projector away from the duct or vent.
- Is the filter clean? Replace the filter with a new one.
Top Panel
The projector is shut down and the WARNING TEMP. indicator lights red.
When the projector detects an abnormal condition, it is automatically shut down to protect the inside of the projector and the WARNING TEMP. indicator lights red. In this case, unplug the AC power cord and reconnect it, and then turn the projector on once again to verify operation. If the projector can not be turned on and the WARNING TEMP. indicator still lights red, unplug the AC power cord and contact the service center.
CAUTION
DO NOT LEAVE THE PROJECTOR WITH THE AC POWER CORD CONNECTED UNDER AN ABNORMAL CONDITION. IT MAY RESULT IN FIRE OR ELECTRIC SHOCK.
Top Panel
Replacing the Filter
Filter prevents dust from accumulating on the optical elements inside the projector. Should the Filter become clogged with dust particles, it will reduce cooling fans' effectiveness and may result in internal heat buildup and adversely affect the life of the projector. If a "Filter warning" icon appears on the screen, replace the Filter immediately. Replace the filter by following the steps below.
1 Turn off the projector, and unplug the AC power cord from the AC outlet.
2 First, clean up the dust on the projector and around the air vents.
3 Loosen the screw and open the lamp cover and lift the filter out of the projector.
4 Put the new one back into the position, and close the lamp cover and secure the screw.
5 Connect the AC power cord to the projector and turn on the projector.
6 Reset the filter counter.
CAUTION
- Do not operate the projector with the filter removed. Dust may accumulate on the optical elements degrading picture quality.
- Do not put anything into the air vents. Doing so may result in malfunction of the projector.
- Do not wash the filter with water or any other liquid matter. Otherwise the filter may be damaged.
RECOMMENDATION
We recommend avoiding dusty/smoky environments when you operate the projector. Usage in these environments may cause poor image quality.
When using the projector under dusty or smoky conditions, dust may accumulate on a lens or optical elements inside the projector degrading the quality of a projected image. When the symptoms above are noticed, contact your authorized dealer or service center for proper cleaning.
Resetting the Filter Counter
Be sure to reset the Filter counter after replacing the Filter.
1 Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select Setting and then press the Point ▶ or the SELECT button.
2 Use the Point ▲▼ buttons to select Filter counter and then press the SELECT button. Use the Point ▲▼ buttons to select Filter counter reset and then press the SELECT button. Filter counter Reset? appears. Select Yes to continue.
3 Another confirmation dialog box appears, select Yes to reset the Filter counter.
Filter counter
Filter counter
Reset? appears.
Select Yes, then
another confirmation
box appears.
Select Yes again to reset the Filter counter.
Cleaning the Projection Window
CAUTION
This projector is equipped with a projection window.
- Do not rub the projection window with a hard fiber cloth or hit it with a something hard to prevent the projection window from scratching.
- Do not use a chemical cleaner (liquid and solid) to avoid deteriorating the projection window.
Unplug the AC power cord before cleaning.
First, remove the dust with a commercially available air blower. Then gently wipe the projection window surface. Use a cleaning paper moistened with methyl alcohol (methanol). Avoid using an excessive amount of cleaner.
Do not use abrasive cleaners, solvents, or other harsh chemical cleaners to avoid damaging the projection window.
Unplug the AC power cord before cleaning.
Gently wipe the projector body with a soft dry cleaning cloth. When the cabinet is heavily soiled, use a small amount of mild detergent and finish with a soft dry cleaning cloth. Avoid using an excessive amount of cleaner. Abrasive cleaners, solvents, or other harsh chemicals might scratch the surface of the cabinet.
When the projector is not in use, put the projector in an appropriate carrying case to protect it from dust and scratches.
CAUTION
Do not use any flammable solvents or air sprays on the projector and in its vicinity. The explosion or fire hazard may occur even after the AC power cord is unplugged because the temperature inside the projector is extremely high due to the lamps. In addition, there is a risk that the internal parts may be damaged not only by the flammable air spray but also by the cold air.
Lamp Replacement
When the projection lamp of the projector reaches its end of life, the Lamp replacement icon appears on the screen and LAMP REPLACE indicator lights yellow. Replace the lamp with a new one promptly. The timing when the LAMP REPLACE indicator should light is depending on the lamp mode.
WARNING:
TURN OFF THE UV LAMP BEFORE OPENING THE LAMP COVER
Top Panel
This indicator turns yellow when the projection lamp reaches the end of its life.
Lamp replacement icon
√Note:
The Lamp replacement icon will not appear when the Display function is set to Off (p.53), during Freeze (p.28), or No show (p.29).
CAUTION
Allow a projector to cool for at least 45 minutes before you open the Lamp Cover. The inside of the projector can become very hot.
CAUTION
For continued safety, replace with a lamp of the same type. Do not drop a lamp or touch a glass bulb! The glass can shatter and may cause injury.
CAUTION
When replacing the lamp because it has stopped illuminating, there is a possibility that the lamp may be broken. If replacing the lamp of a projector which has been installed on the ceiling, you should always assume that the lamp is broken, and you should stand to the side of the lamp cover, not underneath it. Remove the lamp cover gently. Small pieces of glass may fall out when the lamp cover is opened. If pieces of glass get into your eyes or mouth, seek medical advice immediately.
Follow these steps to replace the lamp.
1 Turn off the projector and unplug the AC power cord. Let the projector cool for at least 45 minutes.
2 Loosen the screw and open the lamp cover.
3 Loosen the two (2) screws that secure the lamp. Lift the lamp out of the projector by using the handle.
4 Replace the lamp with a new one and secure the two (2) screws. Make sure that the lamp is set properly. Close the lamp cover and secure the screw.
5 Connect the AC power cord to the projector and turn on the projector.
6 Reset the lamp counter.
See "Resetting the Lamp Counter" on the next page.
ORDER REPLACEMENT LAMP
Replacement lamp can be ordered through your dealer. When ordering a projection lamp, give the following information to the dealer.
● Model No. of your projector : PDG-DXL2000
● Replacement Lamp Type No. : POA-LMP143
(Service Parts No. 610 351 3744)
Resetting the Lamp Counter
Be sure to reset the Lamp counter after the lamp is replaced. When the Lamp counter is reset, the LAMP REPLACE indicator stops lighting and the Lamp replacement icon disappears.
1 Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select Setting and then press the Point ▶ or the SELECT button.
2 Use the Point ▲▼ buttons to select Lamp counter and then press the SELECT button. Use the Point ▲▼ buttons to select Lamp counter reset and then press SELECT button. Lamp replacement counter Reset? appears. Select Yes to continue.
3 Another confirmation dialog box appears, select Yes to reset the Lamp counter.
√Note:
Do not reset the Lamp counter without implementing lamp replacement. Be sure to reset the Lamp counter only after replacing the lamp.
Lamp replacement counter Reset? appears.
Select Yes, then another confirmation box appears.
Select Yes again to reset the Lamp counter.
LAMP HANDLING PRECAUTIONS
This projector uses a high-pressure lamp which must be handled carefully and properly. Improper handling may result in accidents, injury, or create a fire hazard.
- Lamp life may differ from lamp to lamp and according to the environment of use. There is no guarantee of the same life for each lamp. Some lamps may fail or terminate their life in a shorter period of time than other similar lamps.
- If the projector indicates that the lamp should be replaced, i.e., if the LAMP REPLACE indicator lights up, replace the lamp with a new one IMMEDIATELY after the projector has cooled down. (Follow carefully the instructions in the Lamp Replacement section of this manual.) Continuous use of the lamp with the LAMP REPLACE indicator lighted may increase the risk of lamp explosion.
- A Lamp may explode as a result of vibration, shock or degradation as a result of hours of use as its lifetime draws to an end. Risk of explosion may differ according to the environment or conditions in which the projector and lamp are being used.
IF A LAMP EXPLODES, THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE TAKEN.
If a lamp explodes, disconnect the projector's AC plug from the AC outlet immediately. Contact an authorized service center for a checkup of the unit and replacement of the lamp. Additionally, check carefully to ensure that there are no broken shards or pieces of glass around the projector or coming out from the cooling air circulation holes. Any broken shards found should be cleaned up carefully. No one should check the inside of the projector except those who are authorized trained technicians and who are familiar with projector service. Inappropriate attempts to service the unit by anyone, especially those who are not appropriately trained to do so, may result in an accident or injury caused by pieces of broken glass.
Troubleshooting
Before calling your dealer or service center for assistance, check the items below once again.
- Make sure you have properly connected the projector to peripheral equipment as described on pages 16-18.
- Make sure all equipment is connected to AC outlet and the power is turned on.
- When the projector does not project an image from the connected computer, restart the computer.
| Problem Solutions Pages | |||
| Power | No power | Plug the power cord of the projector into the AC outlet. | |
| See if the POWER indicator lights red. | |||
| Wait until the POWER indicator stops blinking to turn on the projector again. The projector can be turned on after the POWER indicator turns red. | 20 | ||
| Check the WARNING indicator. If the WARNING TEMP. indicator lights red, projector can not be turned on. | 64 | ||
| Check the projection lamp. 67 | |||
| Unlock the Key lock function for the projector. 59 | |||
| PIN code dialog box appears at start-up. | PIN code lock is being set. Enter a PIN code (the “1234” or numbers you have set.) | 21, 59-60 | |
| Opening display | The initial display is not shown. | Make sure Off or Countdown off are not chosen at display function. | 53 |
| The initial display is not same as the default set. | Make sure User or Off are not chosen at Logo (select) function. | 53 | |
| Input signal switches automatically. (or does not switch automatically) | Make sure Input search function is adjusted properly. 51 | ||
| An icon other than Input mode or Lamp mode icon appears | That is the Filter warning icon or the Lamp replacement icon. 62, 67 | ||
| Image | No image | Check the connection between your computer or video equipment and the projector. | 16-18 |
| See if the input signal is correctly output from your computer. Some laptop computers may need to change the setting for monitor output when connecting to a projector. See your computer's instruction manual for the setting. | |||
| It takes about 30 seconds to display an image after turning on the projector. | 20 | ||
| Check the Input signal, color system, video system or computer system mode. | |||
| Make sure the temperature is not out of the specified Operating Temperature (41°F–95°F [5°C–40°C]). | |||
| When No Show is operating, the image can not be displayed. Press the NO SHOW button or any other button on the remote control. | |||
| Image is Left/Right reversed. | Check the Ceiling/Rear function. 40, 47 | ||
| Image is Top/Bottom reversed. | Check the Ceiling function. 40, 47 | ||
| Image | Image is out of focus. | Adjust focus of the projector. 25 | |
| Provide proper distance between the projector and the projection screen. | 15 | ||
| Check the projection window to see if it needs cleaning. | 66 | ||
| Moving the projector from a cool to warm place may result in moisture condensation on the projection lens. In such cases, leave the projector off and wait until condensation evaporates. | |||
| Picture is not bright enough. | Check if the Contrast or Brightness is adjusted properly. 37, 44 | ||
| Check if Image mode is selected properly. 36 | |||
| Check the lamp control function. 28, 58 | |||
| Check the LAMP REPLACE indicator. If it lights, the end of lamp life is approaching. Replace the lamp with a new one promptly. | 67 | ||
| The color is strange. | Check the Input signal, color system, video system or computer system mode. | ||
| Make sure the Colorboard is not selected on Screen Menu. 40, 47 | |||
| The image is distorted or runs off. | Check PC adjustment Menu or Screen and adjust them. 34-35, 38-40 | ||
| Setting and adjustment | Auto PC adjustment function does not work. | Check the Input signal. Auto PC function can not work when 480p, 575p, 720p, 480i, 575i or 1080i is selected, or when the digital signal is input into HDMI terminal. | 32, 33 |
| Some displays are not seen during the operation. | Check the Display function. 53 | ||
| The setting does not remain after turning off power. | Make sure you selected Store after adjusting setting. Some settings can not be stored if not registered with "Store". | 37, 45 | |
| Power management does not work. | Power management function can not work while Freeze or No Show is running. | 57 | |
| Capture function does not work. | Check the connection and the input signal to see if there is signal | 54 | |
| Auto setup does not work properly. | Make sure Off is not selected at any function of Auto setup | 51 | |
| Top control does not work. | The top control is not available if the top control is locked at Key lock under Security of SETTING section. | 59 | |
| Remote control | The remote control does not work. | Check the batteries. | |
| Make sure no obstruction is between the projector and remote control. | |||
| Make sure you are not too far from the projector when using the remote control. Maximum operating range is 16.4'(5 m). | |||
| Make sure the code of the remote control is conformed to the projector's code. | 58 | ||
| Unlock the Key lock function for the remote control function. 59 | |||
| Sound | No sound | ☐ Check the audio cable connection from audio input source. | |
| ☐ Adjust the audio source. | |||
| ☐ Press the Volume + button. 27 | |||
| ☐ Press the Mute button. 27 | |||
| ☐ When the AUDIO OUT is plugged-in, the projector's built-in speaker is not available. | |||
| ☐ Is the image projected? You will hear the sound only when the image is projected. | |||
| Others | Indicator blinks or lights. | ☐ Check the status of the projector with referring to "Indicators and projector Condition". | 74 |
| Computer 2 can not be selected | ☐ Select Computer 2 in the Terminal function. 56 | ||
| The terminal function can not be selected. | ☐ The Terminal function cannot be selected after Computer 2 is selected. Select other input source such as Computer 1, HDMI, S-video or Video so that the Terminal function can be selected. | 30, 40-41, 56 | |
| The exclamation mark appears on the screen. | ☐ Your operation is invalid. Operate correctly. | ||
| Unable to unlock the Logo PIN code lock or Security PIN code lock. | ☐ Contact the dealer where you purchased the projector or the service center. | ||
| 3D | There are some trouble about 3D display function. | ☐ The troubleshooting about 3D display function is described on page 49. | 48, 49 |
WARNING :
High voltages are used to operate this projector. Do not attempt to open the cabinet.
If problems still persist after following all operating instructions, contact the dealer where you purchased the projector or the service center. Specify the model number and explain about the problem. We will advise you how to obtain service.
The CE Mark is a Directive conformity mark of the European Community (EC).
US LISTED
This symbol on the nameplate means the product is Listed by Underwriters Laboratories Inc. It is designed and manufactured to meet rigid U.L. safety standards against risk of fire, casualty and electrical hazards.
Menu Tree
Computer Input/HDMI Input/Video Input
Input
Sound
Computer Input
Video Input
Computer Input/HDMI Input/Video Input
HDMI Input/Video Input
Information——Input Source Information Display
Indicators and Projector Condition
Check the indicators for projector condition.
| Indicators | Projector Condition | ||||
| POWERRed/Green | WARNINGTEMP.Red Yellow Blue | LAMPREPLACE | 3D | ||
| Normal Condition | ● | ● | ● | ● | The projector is off. (The AC power cord is unplugged.) |
| ○red | ● | * | ❖ | The projector is in stand-by mode. Press the ON/STAND-BY button to turn on the projector. | |
| ○green | ● | * | ❖ | The projector is operating normally. | |
| ○red | ● | * | ❖ | The projector is preparing for stand-by or the projection lamp is being cooled down. The projector can not be turned on until cooling is completed and the POWER indicator stops blinking. | |
| ○green | ● | * | ❖ | The projector is in the Power management mode. | |
| ○green | ● | * | ○ | The projector is in 3D display mode. | |
| Abnormal Condition | ○red | ○ | * | ❖ | The temperature inside the projector is abnormally high. The projector can not be turned on. When the projector is cooled down enough and the temperature returns to normal, the POWER indicator stops blinking and the projector can be turned on. (The WARNING TEMP. indicator keeps blinking.) |
| ○red | ○ | * | ❖ | The projector has been cooled down enough and the temperature returns to normal. When turning on the projector, the WARNING TEMP. indicator stops blinking. | |
| ● | ○ | * | ❖ | The projector detects an abnormal condition and can not be turned on. Unplug the AC power cord and plug it again to turn on the projector. If the projector is turned off again, unplug the AC power cord and contact the dealer or the service center for service and checkup. Do not leave the projector on. It may cause an electric shock or a fire hazard. | |
| ○green | ● | ○ | ❖ | The lamp has been used overtime. Replace the lamp immediately and then reset the lamp counter. The indicator will be turned off after resetting the counter. | |
○ · · · on.
○ ••• blinking.
● ··· off
* / ◆ · · · Differs according to conditions.
Compatible Computer Specifications
Basically this projector can accept the signal from all computers with the V-, H- Frequency mentioned below and less than 150 MHz of Dot Clock.
When selecting these modes, PC adjustment can be limited.
| ON-SCREEN DISPLAY | RESOLUTION | H-FREQ. [kHz] | V-FREQ. [Hz] | 3D DISPLAY |
| VGA 1 640 | X480 31.470 59. | 880 | √ | |
| VGA 2 720 | X400 31.470 70. | 090 - | ||
| VGA 2 640 | X400 31.470 70. | 090 - | ||
| VGA 4 640 | X480 37.860 74. | 380 - | ||
| VGA 5 640 | X480 37.860 72. | 810 - | ||
| VGA 6 640 | X480 37.500 75. | 000 - | ||
| VGA 7 640 | X480 43.269 85. | 000 - | ||
| MAC 13 640 | x480 34.970 66. | 600 - | ||
| MAC 13 640 | x480 35.000 66. | 670 - | ||
| SVGA 1 800 | x600 35.156 56. | 250 | √ | |
| SVGA 2 800 | x600 37.880 60. | 320 | √ | |
| SVGA 3 800 | x600 46.875 75. | 000 - | ||
| SVGA 4 800 | x600 53.674 85. | 060 - | ||
| SVGA 5 800 | x600 48.080 72. | 190 - | ||
| SVGA 6 800 | x600 37.900 61. | 030 | √ | |
| SVGA 7 800 | x600 34.500 55. | 380 | √ | |
| SVGA 2 800 | x600 38.000 60. | 510 | √ | |
| SVGA 9 800 | x600 38.600 60. | 310 | √ | |
| SVGA 10 800 | x600 32.700 51. | 090 | √ | |
| SVGA 2 800 | x600 38.000 60. | 510 | √ | |
| SVGA 12 800 | x600 76.302 119. | 972 | √ | |
| MAC 16 832 | x624 49.720 74. | 550 - | ||
| XGA 1 1024 | x768 48.360 60. | 000 | √ | |
| XGA 2 1024 | x768 68.677 84. | 997 - | ||
| XGA 3 1024 | x768 60.023 75. | 030 - | ||
| XGA 4 1024 | x768 56.476 70. | 070 - | ||
| XGA 5 1024 | x768 60.310 74. | 920 - | ||
| XGA 1 1024 | x768 48.500 60. | 020 | √ | |
| XGA 7 1024 | x768 44.000 54. | 580 | √ | |
| XGA 8 1024 | x768 68.480 79. | 350 - | ||
| XGA 10 1024 | x768 62.040 77. | 070 - | ||
| XGA 11 1024 | x768 61.000 75. | 700 - | ||
| XGA 13 1024 | x768 46.900 58. | 200 | √ | |
| XGA 13 1024 | x768 47.000 58. | 300 | √ | |
| XGA 15 1024 | x768 58.030 72. | 000 - | ||
| XGA 16 1024 | x768 97.551 119. | 989 | √ | |
| XGA 5 1024 | x768 60.240 75. | 080 - | ||
| SXGA 1 1152 | x864 64.200 70. | 400 - | ||
| SXGA 2 | 1280x1024 | 62.500 58.600 | √ | |
| SXGA 3 | 1280x1024 | 63.900 60.000 | √ | |
| SXGA 4 | 1280x1024 | 63.340 59.980 | √ | |
| SXGA 3 | 1280x1024 | 63.740 60.010 | √ | |
| SXGA 6 | 1280x1024 | 71.690 67.190 - | ||
| SXGA 7 | 1280x1024 | 81.130 76.107 - | ||
| SXGA 3 | 1280x1024 | 63.980 60.020 | √ | |
| SXGA 9 | 1280x1024 | 79.976 75.025 - | ||
| SXGA 10 | 1280x960 60. | 000 60.000 | √ | |
| SXGA 11 | 1152x900 61. | 200 65.200 - | ||
| SXGA 12 1152 | x900 71.400 75.600 | - | ||
| SXGA 4 | 1280x1024 | 63.370 60.010 | √ | |
| SXGA 16 | 1280x1024 | 76.970 72.000 | - | |
| SXGA 17 1152 | x900 61.850 66.000 | - |
| ON-SCREEN DISPLAY | RESOLUTION | H-FREQ. [kHz] | V-FREQ. [Hz] | 3D DISPLAY |
| SXGA 3 | 1280x1024 | 63.790 60.180 | √ | |
| SXGA 20 | 1280x1024 | 91.146 85.024 | - | |
| SXGA+ 1 | 1400x1050 | 63.970 60.190 | √ | |
| SXGA+ 2 | 1400x1050 | 65.350 60.120 | √ | |
| SXGA+ 2 | 1400x1050 | 65.120 59.900 | √ | |
| SXGA+ 1 | 1400x1050 | 64.030 60.010 | √ | |
| SXGA+ 5 | 1400x1050 | 62.500 58.600 | √ | |
| SXGA+ 6 | 1400x1050 | 64.744 59.948 | √ | |
| SXGA+ 2 | 1400x1050 | 65.317 59.978 | √ | |
| MAC 21 11 | 52x870 68.680 75.060 - | |||
| SXGA 9 | 1280x1024 | 80.000 75.080 | - | |
| WXGA 3 13 | 76x768 48.360 60.000 | √ | ||
| WXGA 6 12 | 80x768 47.776 59.870 | √ | ||
| WXGA 7 12 | 80x768 60.289 74.893 | - | ||
| WXGA 8 12 | 80x768 68.633 84.837 | - | ||
| WXGA 9 12 | 80x800 49.600 60.050 | √ | ||
| WXGA 10 1 | 280x800 41.200 50.000 | √ | ||
| WXGA 11 1 | 280x800 49.702 59.810 | √ | ||
| WXGA 13 1 | 360x768 97.533 119.967 | √ | ||
| WXGA 14 1 | 280x768 97.396 119.798 | √ | ||
| WXGA 15 1 | 280x800 10 1.563 119.909 | √ | ||
| WUXGA 1 | 1920x1200 | 74.556 59.885 | - | |
| WUXGA 2 | 1920x1200 | 74.038 59.950 | √ | |
| WSXGA+ 1 | 1680x1050 | 65.290 59.954 | - | |
| WXGA+ 1 | 1440x900 55 935 59.887 | √ | ||
| UXGA 1 | 1600x1200 | 75.000 60.000 | √ | |
| UXGA 2 | 1600x1200 | 81.250 65.000 - | ||
| UXGA 3 | 1600x1200 | 87.500 70.000 - | ||
| UXGA 4 | 1600x1200 | 93.750 75.000 - | ||
| UXGA 5 | 1600x1200 | 106.250 | 85.000 | - |
| 480p | 720x480 31.469 59.940 | - | ||
| 575p | 768x575 31.250 50.000 | - | ||
| 575i | 768x576 i 15.625 50.000 - | |||
| 480i | 640x480 i 15.734 60.000 - | |||
| 720p | 1280x720 45.000 60.000 | - | ||
| 1280x720 37.500 50.000 | - | |||
| 1080i | 1920x1080 i 3 3.750 60.000 - | |||
| 1920x1080 i 28.125 50.000 - | ||||
| 1080p | 1920x1080 | 33.750 30.000 | - | |
| 1920x1080 | 28.125 25.000 | - | ||
| 1920x1080 | 27.000 24.000 | - | ||
| 1920x1080 | 67.500 60.000 | - | ||
| 1920x1080 | 56.250 50.000 | - |
√ Note:
- The mark "√" indicates that the 3D image can be projected.
- Alphabet letter "i" placed beside some of the resolutions represents interlace signal.
- The specifications are subject to change without notice.
When the input signal is digital from HDMI terminal, refer to the chart below.
| ON-SCREEN DISPLAY | RESOLUTION | H-FREQ. [kHz] | V-FREQ. [Hz] | 3D DISPLAY |
| D-VGA 640 | x480 31.469 59.940 | √ | ||
| D-480i | 720x480 i 15.734 59.940 | √ | ||
| 720x480 i 31.469 119.880 | √ | |||
| D-480p | 720x480 31.469 59.940 | √ | ||
| 720x480 62.937 119.880 | √ | |||
| D-575i | 720x575 i 15.625 50.00 | √ | ||
| 720x575 i 31.250 100.00 | √ | |||
| D-575p | 720x575 31.250 50.000 | √ | ||
| 720x575 62.500 100.00 | √ | |||
| D-SVGA 800 | x600 37.879 60.320 | √ | ||
| D-SVGA 800 | x600 76.302 119.972 | √ | ||
| D-XGA 102 | 4x768 43.363 60.000 | √ | ||
| D-XGA 102 | 4x768 97.551 119.989 | √ | ||
| D-WXGA 3 1 | 376x768 48.360 60.000 | √ | ||
| D-WXGA 6 1 | 280x768 47.776 59.870 | √ | ||
| D-WXGA 7 1 | 280x768 60.289 74.893 - | |||
| D-WXGA 8 1 | 280x768 68.633 84.837 - | |||
| D-WXGA 9 1 | 280x800 49.600 60.050 | √ | ||
| D-WXGA 10 1 | 280x800 41.200 50.000 | √ | ||
| D-WXGA 11 1 | 280x800 49.702 59.810 | √ | ||
| D-WXGA 13 1 | 360x768 97.533 119.967 | √ | ||
| D-WXGA 14 1 | 280x768 97.396 119.798 | √ | ||
| D-WXGA 15 1 | 280x800 101.563 119.909 | √ | ||
| D-SXGA 1 1 | 280x1024 63.980 60.020 | √ | ||
| D-SXGA 2 1 | 280x1024 60.276 58.069 - | |||
| D-SXGA+ 2 1 | 400x1050 65.350 60.120 - |
| ON-SCREEN DISPLAY | RESOLUTION | H-FREQ. [kHz] | V-FREQ. [Hz] | 3D DISPLAY |
| D-SXGA+ 2 1 | 400x1050 65.1 | 20 59.900 | ||
| D-SXGA+ 5 1 | 400x1050 62.5 | 00 58.600 | √ | |
| D-SXGA+ 6 1 | 400x1050 64.7 | 44 59.948 | √ | |
| D-SXGA+ 2 1 | 400x1050 65.3 | 17 59.978 | √ | |
| D-UXGA 1 1 | 600x1200 75.000 | 00 60.000 | √ | |
| D-WUXGA 2 | 1920 x 1200 | 74.038 59.950 - | ||
| D-WSXGA+ 1 | 1680 x 1050 | 65.290 59.954 - | ||
| D-WXGA+ 1 | 1440 x 900 5 | 5.935 59.887 | √ | |
| D-720p | 1280x720 45 | 5.000 60.000 | √ | |
| 1280x720 37 | 5.000 50.000 | √ | ||
| 1280x720 90 | 0.000 120.000 | √ | ||
| 1280x720 75 | 0.000 100.000 | √ | ||
| D-1080i | 1920x1080 i | 33.750 59.94/60 | √ | |
| 1920x1080 i | 28.125 50.000 | √ | ||
| 1920x1080 i | 67.500 | 119.98/120 | √ | |
| 1920x1080 i | 56.250 | 100.000 | √ | |
| D-1080p | 1920x1080 3 | 3.750 30.000 - | ||
| 1920x1080 2 | 8.125 25.000 - | |||
| 1920x1080 2 | 7.000 24.000 - | |||
| 1920x1080 6 | 7.500 60.000 - | |||
| 1920x1080 5 | 6.250 50.000 - |
√Note:
- The mark "√" indicates that the 3D image can be projected.
- Alphabet letter "i" placed beside some of the resolutions represents interlace signal.
- The specifications are subject to change without notice.
- Depending on your PC settings, the digital signals of your PC may not be projected correctly. In such a case, confirm your PC settings.
- When you project a DVI signal, connect the cables, turn the projector on, then select the input. Finally, turn on your PC. Be sure to follow this procedure, otherwise an image may not be projected on the screen. If an image is not projected correctly, restart your PC.
- Do not disconnect the cable while the projector is running. If the cable has been disconnected and then reconnected, an image may not be correctly projected.
Technical Specifications
Mechanical Information
| Projector Type Multi-media Projector | |
| Dimensions (W x H x D) | 12.6" x 6.7" x 15.2" (321.0 mm x 170.0 mm x 385.0 mm) (Not including protrusions) |
| Net Weight 13.7 lbs (6.2 kg) | |
| Feet Adjustment ± 1.0^ | |
DLP Chip
| Projection System 0.55" Single DLP chip, 6 segment Color Wheel Number of Pixels 786,432 pixels (1,024 x 768 dots) |
Signal Compatibility
| Color System | PAL, SECAM, NTSC, NTSC4.43, PAL-M, and PAL-N |
| SD/HDTV Signal Component: 480i, 480p, 575i, 575p, 720p and 1080i | |
| HDMI; 480p, 575p, 720p and 1080i | |
| Input Scanning Frequency H-sync. 15 kHz-93 kHz, V-sync. 50-120 Hz | |
Optical Information
| Projection Image Size (Diagonal) Adjustable from 55" to 90" |
| Throw Distance 0.82' - 1.43' (25.1 cm - 43.7 cm) |
| Projection Lens F 2.5 lens with f 4.83 mm with manual focus |
| Projection Lamp 275 W |
Interface
| Video Input Jack | RCA Type x 1 |
| S-Video Input Jack | Mini DIN 4 pin x 1 |
| Audio Input Jacks | RCA Type x 2 |
| Computer Input 1 / Component Input Terminal | Analog RGB (Mini D-sub 15 pin) Terminal x 1 |
| Computer Input 2 / Monitor Output Terminal | Analog RGB (Mini D-sub 15 pin) Terminal x 1 (In/Out switchable) |
| Computer 1/ Component Audio Input Jack | Mini Jack (stereo) x 1 |
| Computer 2 Audio Input Jack | Mini Jack (stereo) x 1 |
| Audio Output Jack Mini Jack (stereo) x 1 (Variable) | |
| HDMI | HDMI (V.1.3 with Deep Color) x 1 |
| Control port | D-sub 9 pin x 1 |
| LAN Connection Terminal | RJ-45 x 1 |
| 3D Sync Output Mini DIN 3 pin x 1 | |
Audio
| Internal Audio Amp | 10 W RMS |
| Built-in Speaker 1 speaker, 1.46" (37 mm) | |
Power
| Voltage and Power Consumption | AC 100–120 V (4.4 A Max. Ampere), 50/60 Hz (The U.S.A and Canada) |
| AC 100–240 V (4.4 - 2.3 A Max. Ampere), 50/60 Hz (For other countries) | |
Operating Environment
| Operating Temperature | 41°F-104°F (5 °C-40 °C) |
| Storage Temperature | 14°F-140°F (-10°C-60 °C) |
Remote Control
| Battery | AAA or LR03 1.5V ALKALINE TYPE x 2 |
| Operating Range 11.5' (3.5 m)/ ± 90° | |
| Dimensions | 2.0" (W) x 0.7" (H) x 4.3" (D) (52 mm x 18 mm x 110 mm) |
| Net Weight 2.37 oz (67 g) (including batteries) | |
Accessories
| □ Owner's Manual( CD-ROM) |
| □ Quick Reference Guide |
| □ AC Power Cord |
| □ Remote Control and Batterie |
| □ VGA Cable |
| □ PIN Code Label |
● The specifications are subject to change without notice.
- DLP chips are manufactured to the highest possible standards. A tiny fraction of pixels may be ineffective or always lit, but this is not a malfunction.
Optional Parts
The parts listed below are optionally available. When ordering those parts, specify the item name and Model No. to the sales dealer.
Model No.
SCART-VGA Cable
: POA-CA-SCART
COMPONENT-VGA Cable : POA-CA-COMPVGA
VGA Cable (10 m) : KA-MC-DB10
Ceiling Hanger : POA-CHS-PS02 (for low ceiling)
: POA-CHL-PL02 (for high ceiling)
: POA-CHB-DWL2500
Wall Anchor Kit :
POA-CH-EX03A
PJ Link Notice
This projector is compliant with PJLink Standard Class 1 of JBMIA (Japan Business Machine and Information System Industries Association). The projector supports all commands defined by PJLink Class 1 and is verified
| Projector Input PJLink Input Parameter | |||
| Computer 1 RGB (PC analog) RGB 1 11 | |||
| Computer 2 RGB RGB 3 13 | |||
| HDMI (Digital) | DIGITAL 3 | 33 | |
| Video | VIDEO 1 21 | ||
| S-video | VIDEO 5 25 | ||
PJLink is a registered trademark of JBMIA and pending trademark in some countries.
PJLink™
Configurations of Terminals
COMPUTER IN 1 /COMPONENT IN (Mini D-sub 15 pin)
| 1 | Red(R/Cr) Input |
| 2 | Green(G/Y) Input |
| 3 | Blue (B/Cb) Input |
| 4 | ---- |
| 5 | Ground (Horiz.sync.) |
| 6 | Ground (Red) |
| 7 | Ground (Green) |
| 8 | Ground (Blue) |
| 9 | 5V Power |
| 10 | Ground (Vert.sync.) |
| 11 | Ground |
| 12 | DDC Data |
| 13 | Horiz. sync. Input (Composite H/V sync.) |
| 14 | Vert. sync. |
| 15 | DDC Clock |
LAN TERMINAL (RJ-45)
| 1 | TX+ |
| 2 | TX- |
| 3 | RX+ |
| 4 | --- |
| 5 | --- |
| 6 | RX- |
| 7 | --- |
| 8 | --- |
CONTROL PORT CONNECTOR (D-sub 9 pin)
| Serial | |
| 1 | --- |
| 2 | RXD |
| 3 | TXD |
| 4 | --- |
| 5 | SG |
| 6 | --- |
| 7 | --- |
| 8 | --- |
| 9 | --- |
COMPUTER IN 2/MONITOR OUT (ANALOG)
(Mini D-sub 15 pin)
| 1 | Red (R/Cr) Input/Output |
| 2 | Green (G/Y) Input/Output |
| 3 | Blue (B/Cb) Input/Output |
| 4 | ---- |
| 5 | Ground (Horiz.sync.) |
| 6 | Ground (Red) |
| 7 | Ground (Green) |
| 8 | Ground (Blue) |
| 9 | ---- |
| 10 | Ground (Vert.sync.) |
| 11 | ---- |
| 12 | ---- |
| 13 | Horiz. sync. Input/Output |
| 14 | Vert. sync. Input/Output |
| 15 | ---- |
3D SYNC OUT CONNECTOR (Mini DIN 3 pin)
| 1 +5VDC |
| 2 Ground |
| 3 Stereo Sync |
HDMI (19 PIN Type A)
| 1 | TMDS Data 2+ Input | 11 | Ground (TMDS Clock) |
| 2 | Ground (TMDS Data 2) | 12 | TMDS Clock- Input |
| 3 | TMDS Data 2- Input | 13 | --- |
| 4 | TMDS Data 1+ Input | 14 | --- |
| 5 | Ground (TMDS Data 1) | 15 | SCL |
| 6 | TMDS Data 1- Input | 16 | SDA |
| 7 | TMDS Data 0+ Input | 17 | Ground (DDC/CEC) |
| 8 | Ground (TMDS Data 0) | 18 | +5V Power |
| 9 | TMDS Data 0- Input | 19 | Plug insert detection |
| 10 | TMDS Clock+ Input | ||
PIN Code Number Memo
Write down the PIN code number in the column below and keep it with this manual securely. If you forgot or lost the number and unable to operate the projector, contact the service center.
PIN Code Lock No.
Factory default set No: 1 2 3 4*
Logo PIN Code Lock No.
Factory default set No: 4 3 2 1*
*Should the four-digit number be changed, the factory set number will be invalid.
While the projector is locked with the PIN code.
Put the label below (supplied) on in a prominent place of the projector's body while it is locked with a PIN code.
Dimensions
Unit: inch(mm)
Screw Holes for Ceiling Mount Screw: M4 Depth: 0.63(16.0)
- Multimedia Projector
- MODEL PDG-DXL2000
- 3D Ready
- Network Supported
- Owner's Manual
- Trademarks
- ◆ Large Screen in Limited Space
- ◆ 3D Display Function
- ◆ Compact Design
- ◆ Multilanguage Menu Display
- ◆ Helpful Maintenance Functions
- ◆ Direct OFF Function
- ◆ Auto Setup Function
- ◆ Switchable Interface Terminal
- ◆ Digital Zoom (for Computer)
- ◆ Colorboard Function
- ◆ Power Management
- ◆ Security Features
- ◆ Logo Function
- ◆ Simple Computer System Setting
- ◆ Closed caption
- ♦ LAN Network Function
- √Note:
- CAUTION
- RISK OF ELECTRIC SHOCK DO NOT OPEN
- FOR EU USERS
- Safety Precaution
- NOTE FOR CUSTOMERS IN THE US
- Air Circulation
- Filter Maintenance
- Moving the Projector
- CAUTION IN CARRYING OR TRANSPORTING THE PROJECTOR
- Installing the Projector in Proper Position
- CAUTION ON CEILING MOUNTING
- Cautious use of equipment with laser technology
- Federal Communications Commission Notice
- AC Power Cord Requirement
- AC Power Cord for the United States and Canada:
- AC Power Cord for the United Kingdom:
- WARNING : A PLUG WITH BARED FLEXIBLE CORD IS HAZARDOUS IF ENGAGED IN A LIVE SOCKET OUTLET.
- WARNING
- √ Note:
- \* Kensington Security Slot
- Remote Control
- Remote Control Battery Installation
- Remote Control Operating Range
- Remote Control Code
- Positioning the Projector
- Adjustable Feet
- Connecting to a Computer
- Cables used for connection
- Connecting to Video Equipment
- Connecting to Component Video Equipment
- Connecting the AC Power Cord
- Turning On the Projector
- Selected Input Source and Lamp Control
- Enter a PIN code
- What is PIN code?
- CAUTION ON HANDLING PIN CODE
- Turning Off the Projector
- Direct OFF Function
- How to Operate the On-Screen Menu
- Menu Bar
- Zoom and Image Position Adjustment
- Focus Adjustment
- Auto Setup Function
- Keystone Correction
- Keystone
- Sound Adjustment
- Direct Operation
- Voume
- Mute
- Menu Operation
- Remote Control Operation
- COMPUTER 1, COMPUTER 2, HDMI buttons
- VIDEO, S-VIDEO, COMPONENT buttons
- FREEZE buton
- INFO. button
- D.ZOOM ▲▼ buttons
- LAMP button
- 3D button
- NO SHOW button
- P-TIMER button
- IMAGE button
- SCREEN button
- Input Source Selection (Computer 1: RGB)
- Input Source Selection (Computer 2: RGB)
- Computer System Selection
- Auto
- ......
- Mode 1
- XGA 1
- Selecting Computer System Manually
- Auto PC adjustment
- Auto PC adj.
- To store adjustment parameters
- Manual PC adjustment
- Fine sync
- Total dots
- Horizontal
- Vertical
- Current mode
- Clamp
- Reset
- Mode free
- Store
- Image Mode Selection
- Dynamic
- Standard
- Real
- Cinema
- Image 1-4
- Image Adjustment
- Contrast
- Brightness
- Color temp.
- White balance (Red / Green / Blue)
- Sharpness
- Gamma
- Screen Size Adjustment
- Normal
- Full
- Wide (16:9)
- Zoom
- True
- Custom
- Custom adj.
- Digital zoom +
- Digital zoom –
- Store or Reset
- Ceiling
- Rear
- Colorboard
- Input Source Selection (Video, S-video)
- Input Source Selection (Component, Scart, HDMI)
- OR
- Component
- RGB (Scart)
- HDMI
- Color
- Tint
- White balance (Red)
- White balance (Green)
- White balance (Blue)
- Noise reduction
- Progressive
- Wide(16:9)
- For Viewing 3D Contents
- Using 3D Glasses with DLP Link compatible
- CAUTION FOR PROPERLY VIEWING 3D PICTURES
- RESTRICTIONS ON VIEWING 3D IMAGES
- Setting
- Language
- Menu position
- Auto setup
- Input search
- 3D setting
- Background
- Display
- Logo (Logo and Logo PIN code lock settings)
- Logo select
- Capture
- Logo PIN code lock
- Enter a Logo PIN code
- Change the Logo PIN code lock setting
- Logo PIN code change
- CAUTION:
- HDMI setup
- Image
- Sound
- Terminal
- Standby mode
- Power management
- Direct on
- Closed caption
- Lamp control
- To change the code for the projector:
- To change the code for the remote control:
- Security (Key lock and PIN code lock)
- Key lock
- PIN code lock
- Change the PIN code lock setting
- PIN code change
- Fan
- Fan control
- Lamp counter
- Filter counter
- Factory default
- Input Source Information Display
- WARNING TEMP. indicator
- The projector is shut down and the WARNIN TEMP. indicator is blinking red.
- Then check the matters below:
- The projector is shut down and the WARNING TEMP. indicator lights red.
- Replacing the Filter
- RECOMMENDATION
- Resetting the Filter Counter
- Cleaning the Projection Window
- Cleaning the Projector Cabinet
- Lamp Replacement
- ORDER REPLACEMENT LAMP
- Resetting the Lamp Counter
- LAMP HANDLING PRECAUTIONS
- IF A LAMP EXPLODES, THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE TAKEN.
- Troubleshooting
- WARNING :
- Menu Tree
- Computer Input/HDMI Input/Video Input
- Indicators and Projector Condition
- Compatible Computer Specifications
- Technical Specifications
- Optional Parts
- PJ Link Notice
- Configurations of Terminals
- PIN Code Number Memo
- Dimensions
Brand : SANYO
Model : PDG-DXL2000
Category : Projector
