Product Type	Freestanding Washing Machine
Brand	Hotpoint Ariston
Model	WML 601 (EU)
Loading Type	Front Load
Capacity	6 kg
Maximum Spin Speed	1000 rpm
Energy Class	A+
Dimensions (H x W x D)	85 x 59.5 x 53.5 cm
Weight	67 kg
Power Supply	220-240 V, 50 Hz
Main Programs	Cotton, Synthetics, Delicates, Wool, Quick Wash
Additional Features	Delay Timer, Temperature Selector, Spin Speed Selector
Drum Material	Stainless Steel
Noise Level (Wash/Spin)	59 / 76 dB(A)
Water Consumption per Cycle	49 L
Annual Energy Consumption	177 kWh
Annual Water Consumption	9800 L
Child Lock	Yes
Self-Cleaning	Drum Clean Program
Repairability Index	8/10
Spare Parts Availability	7 Years
Included Accessories	Water Inlet Hose, Drain Hose, User Manual

Frequently Asked Questions - WML 601 (EU) Hotpoint Ariston

How do I start a wash cycle on the Hotpoint Ariston WML 601?

Ensure the machine is plugged in and water supply is open. Add detergent, load laundry, close the door, select a program using the knob, adjust temperature or spin speed if needed, and press the Start/Pause button.

What should I do if the machine doesn't drain water?

Check if the drain hose is kinked or clogged. Also clean the drain pump filter located at the bottom front of the machine. Refer to the user manual for detailed instructions.

How can I clean the detergent drawer?

Remove the drawer by pressing the release lever. Wash it under running water, especially the compartments. Use a brush to remove any residue. Reinsert after drying.

Why is the machine making unusual noise during spinning?

Uneven load distribution can cause noise. Try rearranging clothes. Also check if the machine is level and the transport bolts are removed. If noise persists, inspect for foreign objects in the drum.

What does the 'H2O' error code mean?

The H2O error indicates a water supply issue. Ensure the water tap is fully open and the inlet hose is not kinked. Also check that the water pressure is sufficient (minimum 0.1 MPa).

How often should I run a cleaning cycle?

It is recommended to run a drum clean program every 2-3 months to prevent odor and buildup. Use a washing machine cleaner or run at 90°C with vinegar.

Can I delay the start of a wash cycle?

Yes, the WML 601 has a delay timer function. Select your program, then press the delay button and set the desired delay time (up to 24 hours) before starting.

What is the maximum load for the wool program?

For wool, the maximum recommended load is 1 kg to avoid damaging delicate fabrics.

How do I activate the child lock?

Press and hold the Start/Pause button for about 3 seconds until the child lock icon appears on the display. Repeat to deactivate.

Where can I find spare parts for this model?

Spare parts are available from Hotpoint Ariston authorized service centers online or through the brand's customer support. The model number is on the rating plate behind the door.

USER MANUAL WML 601 (EU) Hotpoint Ariston

Unpacking and levelling

Connecting the electricity and water supplies

The first wash cycle

Technical data

Care and maintenance, 4

Cutting off the water or electricity supply

Cleaning the washing machine

Cleaning the detergent dispenser drawer

Caring for the door and drum of your appliance

Cleaning the pump

Checking the water inlet hose

Precautions and tips, 5

General safety

Disposal

Opening the porthole door manually

Description of the washing machine and starting a wash cycle, 6-7

Control panel

Indicator lights

Starting a wash cycle

Wash cycles, 8

Table of wash cycles

Personalisation, 9

Setting the temperature

Setting the spin speed

Functions

Detergents and laundry, 10

Detergent dispenser drawer

Preparing the laundry

Garments requiring special care

Load balancing system

Troubleshooting, 11

Service, 12

GB

! This instruction manual should be kept in a safe place for future reference. If the washing machine is sold, transferred or moved, make sure that the instruction manual remains with the machine so that the new owner is able to familiarise himself/herself with its operation and features.
! Read these instructions carefully: they contain vital information relating to the safe installation and operation of the appliance.

Unpacking and levelling Unpacking

1. Remove the washing machine from its packaging.
2. Make sure that the washing machine has not been damaged during the transportation process. If it has been damaged, contact the retailer and do not proceed any further with the installation process.

Pure technical diagram of a mechanical or electrical component with no visible text, numbers, or symbols.

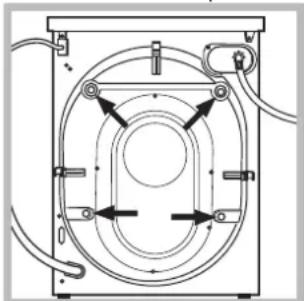

1. Remove the 4 protective screws (used during transportation) and the rubber washer with the corresponding spacer, located on the rear part of the appliance (see figure).

2. Close off the holes using the plastic plugs provided.

3. Keep all the parts in a safe place: you will need them again if the washing machine needs to be moved to another location.
   ! Packaging materials should not be used as toys for children.

Levelling

1. Install the washing machine on a flat sturdy floor, without resting it up against walls, furniture cabinets or anything else.

Line drawing of a car door corner with a circular button and directional arrow (no text or symbols)

1. If the floor is not perfectly level, compensate for any unevenness by tightening or loosening the adjustable front feet (see figure); the angle of inclination, measured in relation to the worktop, must not exceed 2^ .

Levelling the machine correctly will provide it with stability, help to avoid vibrations and excessive noise and prevent it from shifting while it is operating. If it is placed on carpet or a rug, adjust the feet in such a way as to allow a sufficient ventilation space underneath the washing machine.

Connecting the electricity and water supplies

Connecting the water inlet hose

Technical line drawing of a mechanical component with two views: top shows a bolt and ring, bottom shows a flanged base (no text or symbols)

1. Connect the inlet hose by screwing it to a cold water tap using a 3/4 gas threaded connection (see figure).

Before performing the connection, allow the water to run freely until it is perfectly clear.

Mechanical diagram showing a valve mechanism with rotation arrow (no text or symbols)

1. Connect the inlet hose to the washing machine by screwing it onto the corresponding water inlet of the appliance, which is situated on the top right-hand side of the rear part of the appliance (see figure).

2. Make sure that the hose is not folded over or bent.

! The water pressure at the tap must fall within the range of values indicated in the Technical data table (see next page).
! If the inlet hose is not long enough, contact a specialised shop or an authorised technician.
! Never use second-hand hoses.
! Use the ones supplied with the machine.

Connecting the drain hose

Connect the drain hose, without bending it, to a drain duct or a wall drain situated between 65 and 100 cm from the floor;

Diagram of a pipe connection with a bulb and connector (no text or symbols)

alternatively, placed it over the edge of a basin, sink or tub, fastening the duct supplied to the tap (see figure). The free end of the hose should not be underwater.

! We advise against the use of hose extensions; if it is absolutely necessary, the extension must have the same diameter as the original hose and must not exceed 150 cm in length.

Electrical connections

Before plugging the appliance into the electricity socket, make sure that:

• the socket is earthed and complies with all applicable laws;
• the socket is able to withstand the maximum power load of the appliance as indicated in the Technical data table (see opposite);
• the power supply voltage falls within the values indicated in the Technical data table (see opposite);
• the socket is compatible with the plug of the washing machine. If this is not the case, replace the socket or the plug.

! The washing machine must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain, storms and other weather conditions.

! When the washing machine has been installed, the electricity socket must remain within easy reach.

! Do not use extension cords or multiple sockets.
! The cable should not be bent or compressed.
! The power supply cable must only be replaced by authorised technicians.

Warning! The company shall not be held responsible in the event that these standards are not observed.

The first wash cycle

Once the appliance has been installed, and before you use it for the first time, run a wash cycle with detergent and no laundry, using wash cycle number "Auto Clean".

Technical data
Model	WML 601
Dimensions	width 59.5 cmheight 85 cmdepth 54 cm
Capacity	from 1 to 6 kg
Electrical connections	please refer to the technical data plate fixed to the machine
Water connections	maximum pressure1 MPa (10 bar)minimum pressure0.05 MPa (0.5 bar)drum capacity 52 litres
Spin speed	up to 1000 rotations per minute
Test wash cycles in accordance with directives1061/20101015/2010	programme 60°C Cotton Standard 60°C.programme 40°C Cotton Standard 40°C.
	This appliance conforms to the following EC Directives:- 2004/108/EC (Electromagnetic Compatibility)- 2006/95/EC (Low Voltage)- 2002/96/EC

Cutting off the water and electricity supplies

• Turn off the water tap after every wash cycle. This will limit wear on the hydraulic system inside the washing machine and help to prevent leaks.
• Unplug the washing machine when cleaning it and during all maintenance work.

Cleaning the washing machine

• The outer parts and rubber components of the appliance can be cleaned using a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives.
• The washing machine has a “Auto Clean” programme for its internal parts that must be run with no load in the drum.

To help the wash cycle you may want to use either the detergent (i.e. a quantity 10% the quantity specified for lightly-soiled garments) or special additives to clean the washing machine. We recommend running a cleaning programme every 40 wash cycles.

To start the programme press buttons A and B simultaneously for 5 seconds (see figure). The programme will start automatically and will run for about 70 minutes. To stop the cycle press the START/PAUSE button.

Cleaning the detergent dispenser drawer

Remove the dispenser by raising it and pulling it out (see figure). Wash it under running water; this operation should be repeated frequently.

Caring for the door and drum of your appliance

• Always leave the porthole door ajar in order to prevent unpleasant odours from forming.

Cleaning the pump

The washing machine is fitted with a self-cleaning pump which does not require any maintenance. Sometimes, small items (such as coins or buttons) may fall into the pre-chamber which protects the pump, situated in its bottom part.

! Make sure the wash cycle has finished and unplug the appliance.

To access the pre-chamber:

Simple line drawing of a screwdriver inserted into a bracket (no text or symbols)

1. using a screwdriver, remove the cover panel on the lower front part of the washing machine (see figure);

Pure technical line drawing of a mechanical component with no text or symbols

1. unscrew the lid by rotating it anticlockwise (see figure): a little water may trickle out. This is perfectly normal;

2. clean the inside thoroughly;

3. screw the lid back on;
4. reposition the panel, making sure the hooks are securely in place before you push it onto the appliance.

Checking the water inlet hose

Check the inlet hose at least once a year. If there are any cracks, it should be replaced immediately: during the wash cycles, water pressure is very strong and a cracked hose could easily split open.

! Never use second-hand hoses.

! This washing machine was designed and constructed in accordance with international safety regulations. The following information is provided for safety reasons and must therefore be read carefully.

General safety

• This appliance was designed for domestic use only.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
- Do not touch the machine when barefoot or with wet or damp hands or feet.
- Do not pull on the power supply cable when unplugging the appliance from the electricity socket. Hold the plug and pull.
- Do not open the detergent dispenser drawer while the machine is in operation.
- Do not touch the drained water as it may reach extremely high temperatures.
- Never force the porthole door. This could damage the safety lock mechanism designed to prevent accidental opening.
- If the appliance breaks down, do not under any circumstances access the internal mechanisms in an attempt to repair it yourself.
- Always keep children well away from the appliance while it is operating.
- The door can become quite hot during the wash cycle.
- If the appliance has to be moved, work in a group of two or three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy.
- Before loading laundry into the washing machine, make sure the drum is empty.

Disposal

• Disposing of the packaging materials: observe local regulations so that the packaging may be re-used.
• The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment, requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

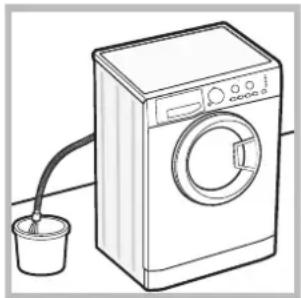

Opening the porthole door manually

In the event that it is not possible to open the porthole door due to a powercut, and if you wish to remove the laundry, proceed as follows:

Line drawing of a washing machine with a bucket beside it (no text or symbols)

1. remove the plug from the electrical socket.
2. make sure the water level inside the machine is lower than the door opening; if it is not, remove excess water using the drain hose, collecting it in a bucket as indicated in the figure.

Simple line drawing of a tool inserted into a bracket with an arrow indicating direction (no text or symbols)

1. using a screwdriver, remove the cover panel on the lower front part of the washing machine (see figure).

Hand holding a device with a black arrow pointing to a component (no text or symbols visible)

Hand inserting a component into a device (no text or symbols visible)

1. pull outwards using the tab as indicated in the figure, until the plastic tie-rod is freed from its stop position; pull downwards and open the door at the same time.
2. reposition the panel, making sure the hooks are securely in place before you push it onto the appliance.

Description of the washing machine and starting a wash cycle

GB

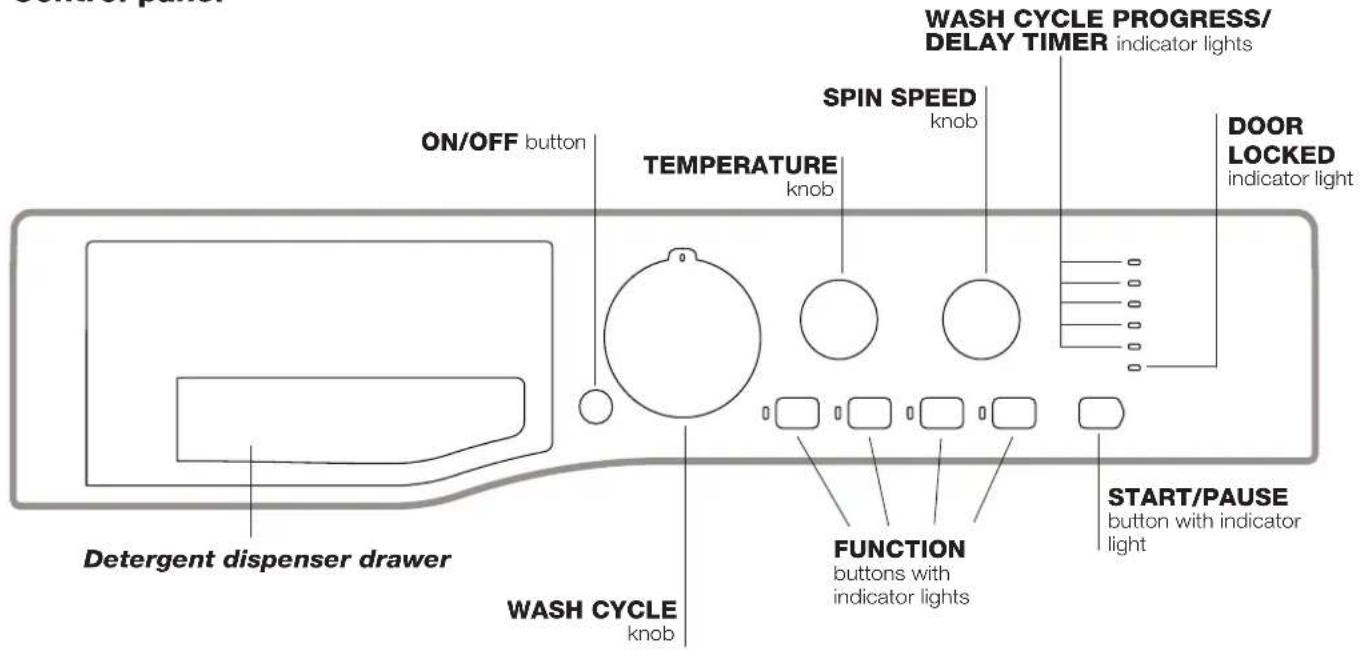

Control panel

Detergent dispenser drawer: used to dispense detergents and washing additives (see "Detergents and laundry").

ON/OFF button: switches the washing machine on and off.

WASH CYCLE knob: programmes the wash cycles. During the wash cycle, the knob does not move.

FUNCTION buttons with indicator light: used to select the available functions. The indicator light corresponding to the selected function will remain lit.

TEMPERATURE knob: sets the temperature or the cold wash cycle (see "Personalisation").

SPIN SPEED knob: sets the spin speed or exclude the spin cycle completely (see "Personalisation").

WASH CYCLE PROGRESS/DELAY TIMER indicator

lights: used to monitor the progress of the wash cycle.

The illuminated indicator light shows which phase is in progress.

If the Delay Timer function has been set, the time remaining until the wash cycle starts will be indicated (see next page).

DOOR LOCKED indicator light: indicates whether the door may be opened or not (see next page).

START/PAUSE button with indicator light: starts or temporarily interrupts the wash cycles.

N.B. To pause the wash cycle in progress, press this button; the corresponding indicator light will flash orange, while the indicator light for the current wash cycle phase will remain lit in a fixed manner. If the DOOR LOCKED 📋 indicator light is switched off, the door may be opened. To start the wash cycle from the point at which it was interrupted, press this button again.

Standby mode

This washing machine, in compliance with new energy saving regulations, is fitted with an automatic standby system which is enabled after about 30 minutes if no activity is detected. Press the ON-OFF button briefly and wait for the machine to start up again.

Consumption in off-mode: 0,5 W

Consumption in Left-on: 0,5 W

Indicator lights

The indicator lights provide important information.

This is what they can tell you:

Delayed start

If the DELAY TIMER function has been activated (see "Personalisation"), after the wash cycle has been started the indicator light corresponding to the selected delay period will begin to flash:

As time passes, the remaining delay will be displayed and the corresponding indicator light will flash:

Once the set delay has elapsed, the flashing indicator light will switch off and the selected wash cycle will begin.

Wash cycle phase indicator lights

Once the desired wash cycle has been selected and has begun, the indicator lights switch on one by one to indicate which phase of the cycle is currently in progress.

Function buttons and corresponding indicator lights

When a function is selected, the corresponding indicator light will illuminate.

If the selected function is not compatible with the programmed wash cycle, the corresponding indicator light will flash and a sound alert (3 beeps); the function will not be activated.

If a function which is incompatible with another function selected previously, only the most recent selection will remain active.

Door locked indicator light

If this indicator light is on, the appliance door is locked to prevent it from being opened accidentally; to avoid any damage, wait for the indicator light to switch off before you open the appliance door.

N.B. If the DELAY TIMER function is activated, the door cannot be opened; pause the machine by pressing the START/PAUSE button if you wish to open it.

! If the START/PAUSE indicator light (orange) flashes rapidly at the same time as the function indicator light, this indicates a problem has occurred (see “Troubleshooting”).

Starting a wash cycle

1. Turn the washing machine on by pressing the ON/OFF button. All the indicator lights will turn on for a few seconds, then only the indicator lights relative to the selected programme settings will remain lit and the START/PAUSE indicator light will flash.
2. Load the laundry and close the door.
3. Set the WASH CYCLE knob to the desired programme.
4. Set the washing temperature (see "Personalisation").
5. Set the spin speed (see "Personalisation").
6. Measure out the detergent and washing additives (see "Detergents and laundry").
7. Select the desired functions.
8. Start the wash cycle by pressing the START/PAUSE button and the corresponding indicator light will remain lit in a fixed manner, in green.

To cancel the set wash cycle, pause the machine by pressing the START/PAUSE button and select a new cycle.

1. At the end of the wash cycle the END indicator light will switch on. The DOOR LOCKED indicator light will switch off, indicating that the door may be opened. Take out your laundry and leave the appliance door ajar to make sure the drum dries completely. Switch the washing machine off by pressing the ON/OFF button.

Table of wash cycles

Wash cycles

Description of the wash cycle

Max. temp. (°C)

Max. speed (rpm)

Detergents

Max. load (kg)

Residual dam-ness%

Energy con-sumptionkWh

Total water it

Cycle duration

Prewash

Wash

Bleach

Fabric softener

1

Anti Stain

40° 100

0

●

●

●

●

4 -

- 180'

2

Whites

60° 100

0

●

●

-

●

4 -

- 180'

60°C

Cotton Standard 60° (1): heavily soiled whites and resistant colours.

60° (Max. 90°)

1000

●(3)

●

●

●

6 62

1.03 49 190'

40°C

Cotton Standard 40° (2): lightly soiled resistant and delicate colours.

40° 100

0 -

●

●

●

6 62

1.09 92 180'

5

Synthetics: heavily soiled resistant colours.

60° 800

●

●

●

●

3.5 44 0.93 47 15'

5

Synthetics (4): lightly soiled resistant colours.

40° 800

●

●

●

●

3.5 44 0.57 46 100'

6

Anti allergy

60°

1000 -

●

-

●

4

--

195'

7

Baby

40°

1000

●

●

●

●

4

--

145'

8

Wool: for wool, cashmere, etc.

40° 800

-

●

-

●

1.5 -

--

70'

9

Delicates

30°

0

-

●

-

●

1

--

80'

10

Fast Wash 60': to refresh normal soiled garments quickly (not suitable for wool, silk and clothes which require washing by hand).

60°

1000 -

●

-

●

3.5 62 0.81 40 60'

11

Cotton Standard 20°: lightly soiled resistant and delicate colours.

20° 100

0 -

●

●

●

6

--

170'

12

Eco Cottons

Cold Water

1000 -

●

-

●

6 62

0.11 60 80'

13

Eco Synthetics

Cold Water

800

-

●

-

●

3 48

0.07 30 70'

14

Eco Fast 30'

Cold Water

800

-

●

-

●

3 71

0.04 34 30'

Rinse

-

1000 -

-

●

●

6

--

36'

Spin and Pump out

-

1000

-

-

-

-

6

-

-

-

16'

The length of cycle shown on the display or in this booklet is an estimation only and is calculated assuming standard working conditions. The actual duration can vary according to factors such as water temperature and pressure, the amount of detergent used, the amount and type of load inserted, load balancing and any wash options selected.

1) Test wash cycle in compliance with directive 1061/2010: set wash cycle 60^ with a temperature of 60^ .

This cycle is designed for cotton loads with a normal soil level and is the most efficient in terms of both electricity and water consumption; it should be used for garments which can be washed at 60^ C. The actual washing temperature may differ from the indicated value.

2) Test wash cycle in compliance with directive 1061/2010: set wash cycle 40°C with a temperature of 40°C.

This cycle is designed for cotton loads with a normal soil level and is the most efficient in terms of both electricity and water consumption; it should be used for garments which can be washed at 40^ C. The actual washing temperature may differ from the indicated value.

3) At 60 "C the "Prewash" function cannot be selected.

For all Test Institutes:

2) Long wash cycle for cottons: set wash cycle 40^ with a temperature of 40^ .

4) Long wash cycle for synthetics: set wash cycle 5 with a temperature of 40^ C.

Anti Stain: the programme 1 is suitable to heavily-soiled garments with resistant colours. It ensures a washing class that is higher than the standard class (A class). When running the programme, do not mix garments of different colours. We recommend the use of powder detergent. Pre-treatment with special additives is recommended if there are obstinate stains.

Whites: use this cycle 2 to wash white clothes. The programme is designed to maintain the brightness of white clothes over time. Use powder detergent for best results.

Anti allergy: use programme 6 to remove major allergens such as pollen, mites, cat's and dog's hair.

Baby: use the special wash cycle 7 to remove the remove the soiling typically caused by babies, while removing all traces of detergent from nappies in order to prevent the delicate skin of babies from suffering allergic reactions. The cycle has been designed to reduce the amount of bacteria by using a greater quantity of water and optimising the effect of special disinfecting additives added to the detergent.

Eco cycles

The Eco Cycles assure energy saving by eliminating the need of heating water and it's an advantage both to your energy bill and the environment! These innovative Eco programmes (12 Eco Cottons, 13 Eco Synthetics and 14 Eco Fast 30') are available for various fabrics and different quantity of garment; they have been designed to guarantee a high cleaning action even at low temperature and can be used for lightly to medium soiled loads. Eco Cycles give the best results thanks to an intensified wash action, water optimization and are carried out in the same average time of a standard cycle. For the best washing results with Eco Cycles we recommend the usage of a liquid detergent.

Cotton Standard 20°: the programme 11 ideal for heavily soiled cotton loads. The effective performance levels achieved at cold temperatures, which are comparable to washing at 40°, are guaranteed by a mechanical action which operates at varying speed, with repeated and frequent peaks.

Setting the temperature

Turn the TEMPERATURE knob to set the wash temperature (see Table of wash cycles).

The temperature may be lowered, or even set to a cold wash (✗)

The washing machine will automatically prevent you from selecting a temperature which is higher than the maximum value set for each wash cycle.

! Exception: if the 60^ programme is selected, the temperature can be increased up to a value of 90^ .

Setting the spin speed

Turn the SPIN SPEED knob to set the spin speed for the selected wash cycle.

The maximum spin speeds available for each wash cycle are as follows:

Wash cycles Maximum spin speed

Cottons 1000 rpm

Synthetics 800 rpm

Wool 800 rpm

Silk drain only

The spin speed may be lowered, or the spin cycle can be excluded altogether by selecting the symbol ☒

The washing machine will automatically prevent you from selecting a spin speed which is higher than the maximum speed set for each wash cycle.

Functions

The various wash functions available with this washing machine will help to achieve the desired results, every time.

To activate the functions:

1. Press the button corresponding to the desired function;

2. the function is enabled when the corresponding indicator light is illuminated.

Note: If the indicator light flashes rapidly, this signals that this particular function may not be selected in conjunction with the selected wash cycle.

Super Wash

This option offers a high-performance wash due to the greater quantity of water used in the initial phase of the cycle, and due to the increased wash cycle duration, is particularly useful for the removal of stubborn stains. It can be used with or without bleach. If you desire bleaching, insert the extra tray compartment (4) into compartment 1. When pouring in the bleach, be careful not to exceed the “max” level marked on the central pivot (see figure pag. 10).

! This function may not be used in conjunction with wash cycles 2, 6, 8, 9, 10, 12, 13, 14,

Easy iron

By selecting this function, the wash and spin cycles will be modified in order to reduce the formation of creases. At the end of the cycle the washing machine will perform slow rotations of the drum; the EASY IRON indicator light will flash and the END phase will remain lit in a fixed manner. To end the cycle, press the START/PAUSE button or the EASY IRON button.

! This function may not be used in conjunction with wash cycles 1, 2, 6, 8, 12, 13, 14, 📁, 🌐.

If this function is selected, the pre-wash cycle will run; this is useful for removing stubborn stains.

N.B.: Put the detergent in the relevant compartment.

! It cannot be used in conjunction with wash cycles 60^ ( 60^ ), 40^ , 6, 8, 9, 10, 11, 12, 13, 14,

This timer delays the start time of the wash cycle by up to 12 hours.

Press the button repeatedly until the indicator light corresponding to the desired delay time switches on. The fifth time the button is pressed, the function will be disabled.

N.B. Once you have pressed the START/PAUSE button, the delay time may only be decreased if you wish to modify it.

! This option is enabled with all programmes.

Detergent dispenser drawer Good washing results also depend on the correct dose of detergent: adding too much detergent will not necessarily result in a more efficient wash, and may in fact cause build up on the inside of your appliance and contribute to environmental pollution.

Detergent dispenser drawer Good washing results also depend on the correct dose of detergent: adding too much detergent will not necessarily result in a more efficient wash, and may in fact cause build up on the inside of your appliance and contribute to environmental pollution.

! Use powder detergent for white cotton garments, for pre-washing, and for washing at temperatures over 60°C. ! Follow the instructions given on the detergent packaging ! Do not use hand washing detergents because these create too much foam.

Open the detergent dispenser drawer and pour in the detergent or washing additive, as follows.

compartment 1: Pre-wash detergent (powder)

Before pouring in the detergent, make sure that extra compartment 4 has been removed.

compartment 2: Detergent for the wash cycle (powder or liquid)

If liquid detergent is used, it is recommended that the removable plastic partition A (supplied) be used for proper dosage.

If powder detergent is used, place the partition into slot B.

compartment 3: Additives (fabric softeners, etc.)

The fabric softener should not overflow the grid.

extra compartment 4: Bleach

Preparing the laundry

• Divide the laundry according to:
• the type of fabric/the symbol on the label
• the colours: separate coloured garments from whites.
• Empty all garment pockets and check the buttons.
• Do not exceed the listed values, which refer to the weight of the laundry when dry: see “Table of wash cycles”.
• Empty all garment pockets and check the buttons.
• Do not exceed the listed values, which refer to the weight of the laundry when dry: see “Table of wash cycles”.

How much does your laundry weigh?

How much does your laundry weigh?

1 sheet 400-500 g 1 pillow case 150-200 g

1 towel 150-250 g

Garments requiring special care

Wool: the wool wash cycle on this Hotpoint-Ariston machine has been tested and approved by The Woolmark Company for washing wool garments labelled as hand washable provided that the garments are washed according to the instructions on the garment label and those issued by the manufacturer of this washing machine. Hotpoint-Ariston is the first washing machine brand to be approved by The Woolmark Company for Apparel Care- Platinum for its washing performance and consumption of energy and water. (M1126)

Delicates: use programme 9 to wash very delicate garments having strasses or sequins.

We recommend turning the garments inside out before washing and placing small items into the special bag for washing delicates.

Use liquid detergent on delicate garments for best results. To wash silk garments and curtains select cycle 9 and then function the machine will end the cycle while the laundry is soaking and the indicator light will flash. To drain the water so that the laundry may be removed, press the START/PAUSE button or the button.

Load balancing system

Before every spin cycle, to avoid excessive vibrations and to distribute the load in a uniform manner, the drum rotates continuously at a speed which is slightly greater than the washing rotation speed. If, after several attempts, the load is not balanced correctly, the machine spins at a reduced spin speed. If the load is excessively unbalanced, the washing machine performs the distribution process instead of spinning. To encourage improved load distribution and balance, we recommend small and large garments are mixed in the load.

1 sheet 400-500 g
1 pillow case 150-200 g
1 tablecloth 400-500 g
1 bathrobe 900-1200 g
1 towel 150-250 g

How much does your laundry weigh? 1 sheet 400-500 g 1 pillow case 150-200 g 1 tablecloth 400-500 g 1 bathrobe 900-1200 g 1 towel 150-250 g

Your washing machine could fail to work. Before contacting the Technical Assistance Centre (see “Assistance”), make sure that the problem cannot be solved easily using the following list.

GB

Problem:	Possible causes / Solutions:
The washing machine does not switch on.	· The appliance is not plugged into the socket fully, or is not making contact.· There is no power in the house.
The wash cycle does not start.	· The washing machine door is not closed properly.· The ON/OFF button has not been pressed.· The START/PAUSE button has not been pressed.· The water tap has not been opened.· A delayed start has been set (see “Personalisation”).
The washing machine does not take in water (the indicator light for the first wash cycle stage flashes rapidly).	· The water inlet hose is not connected to the tap.· The hose is bent.· The water tap has not been opened.· There is no water supply in the house.· The pressure is too low.· The START/PAUSE button has not been pressed.
The washing machine continuously takes in and drains water.	· The drain hose is not fitted at a height between 65 and 100 cm from the floor (see “Installation”).· The free end of the hose is under water (see “Installation”).· The wall drainage system is not fitted with a breather pipe. If the problem persists even after these checks, turn off the water tap, switch the appliance off and contact the Assistance Service. If the dwelling is on one of the upper floors of a building, there may be problems relating to water drainage, causing the washing machine to fill with water and drain continuously. Special anti-draining valves are available in shops and help to avoid this inconvenience.
The washing machine does not drain or spin.	· The wash cycle does not include draining: some wash cycles require the drain phase to be started manually.· The EASY IRON function has been activated: To complete the wash cycle, press the START/PAUSE button (“Personalisation”).· The drain hose is bent (see “Installation”).· The drainage duct is clogged.
The washing machine vibrates a lot during the spin cycle.	· The drum was not unlocked correctly during installation (see “Installation”).· The washing machine is not level (see “Installation”).· The washing machine is trapped between cabinets and walls (see “Installation”).
The washing machine leaks.	· The water inlet hose is not screwed on properly (see “Installation”).· The detergent dispenser drawer is blocked (for cleaning instructions, see “Care and maintenance”).· The drain hose is not fixed properly (see “Installation”).
The START/PAUSE indicator light (orange) and the function indicator lights flash rapidly.	· Switch off the machine and unplug it, wait for approximately 1 minute and then switch it back on again. If the problem persists, contact the Technical Assistance Service.
There is too much foam.	· The detergent is not suitable for machine washing (it should display the text “for washing machines” or “hand and machine wash”, or the like).· Too much detergent was used.

Before calling for Assistance:

• Check whether you can solve the problem alone (see "Troubleshooting");
• Restart the programme to check whether the problem has been solved;
• If this is not the case, contact an authorised Technical Assistance Centre using the telephone number provided on the guarantee certificate.

! Always request the assistance of authorised technicians.

Have the following information to hand:

• the type of problem;
  • the appliance model (Mod.);
  • the serial number (S/N).
  This information can be found on the data plate applied to the rear of the washing machine, and can also be found on the front of the appliance by opening the door.

Съдържание

BG

BG

Български

Монтиране, 14-15

Pure technical diagram of a mechanical or electrical component with no text, numbers, or symbols

1. Свалете

Line drawing of a door corner with a spiral button and directional arrow (no text or symbols)

Technical line drawing of a mechanical component with two views: top shows a bolt and ring, bottom shows a flanged base (no text or symbols)

Diagram of a mechanical valve or pump assembly with directional arrow indicating rotation (no text or symbols)

Diagram of a pipe connection with a magnified inset showing a component (no text or symbols)

Simple line drawing of a screwdriver inserted into a bracket (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Line drawing of a washing machine with a bucket beside it (no text or symbols)

Simple line drawing of a tool interacting with a bracket (no text or symbols)

Hand pressing a button on a device component (no text or symbols visible)

Hand inserting a component into a device (no text or symbols visible)

Technical diagram of a mechanical or electrical component with concentric circular and oval shapes, no visible text or symbols.

Line drawing of a car door corner with a scroll wheel and directional arrow (no text or symbols)

Technical line drawing of two mechanical components: a hexagonal bolt and a flanged knob (no text or symbols)

Diagram of a mechanical device with a valve and handle, showing rotational motion (no text or symbols)

Diagram of a pipe connection with a magnified inset showing a device (no text or symbols)

Simple line drawing of a screwdriver inserted into a bracket (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Line drawing of a washing machine with a bucket and outlet pipe (no text or symbols)

Simple line drawing of a screwdriver inserted into a bracket (no text or symbols)

Hand pressing a button on a device component (no text or symbols visible)

Hand inserting a plug into a device (no text or symbols visible)

Pure technical diagram of a mechanical or electrical component with no visible text, numbers, or symbols.

Line drawing of a door corner with a circular button and an arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical component with two views: top shows a hexagonal nut and curved handle, bottom shows a flanged bolt (no text or symbols)

Line drawing of a mechanical component with a valve and handle (no text or symbols)

Simple line drawing of a pipe with a bulb above it, no text or symbols present

Simple line drawing of a tool inserted into a bracket with an arrow indicating direction (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Line drawing of a washing machine with a bucket beside it (no text or symbols)

Simple line drawing of a tool interacting with a bracket (no text or symbols)

Hand holding a device with a black arrow pointing to a component (no text or symbols visible)

Hand inserting a USB into a device (no text or symbols visible)

Consumo in off-mode: 0,5 W

Consumo in Left-on: 0,5 W

Spie
