Product Type	CD Player/Recorder
Brand	Memorex
Model	MP3851SP
Dimensions (W x D x H)	430 x 280 x 100 mm
Weight	2.5 kg
Power Supply	AC 120 V, 60 Hz
Power Consumption	15 W
Disc Compatibility	CD, CD-R, CD-RW
Playback Formats	Audio CD, MP3 CD
Recording Source	CD to CD, AUX input
Audio Outputs	RCA (L/R) analog, Headphone 3.5mm
Audio Inputs	RCA (L/R) AUX
Recording Speed	1x, 2x, 4x
Playback Functions	Programmable, Repeat, Random, Intro Scan
Remote Control	Included
Display	Dot-matrix LCD with backlight
Maintenance	Clean lens with dry cloth; wipe exterior with damp cloth
Safety Warnings	Do not disassemble; avoid moisture; use only specified power
Spare Parts & Repairability	Contact authorized service center for parts and repair
General Information	Top-loading CD mechanism; includes user manual and remote

Frequently Asked Questions - MP3851SP MEMOREX

How do I record a CD?

Insert a source CD, then press the REC button. The device will copy tracks to a blank CD-R/RW. You can select tracks using the PROGRAM function.

Can I play MP3 CDs?

Yes, the MP3851SP supports MP3 CD playback. Simply insert the disc and it will read the files automatically.

How do I clean the CD lens?

Use a dry, soft cloth or a CD lens cleaning disc. Do not use liquids directly on the lens.

Why is my CD not playing?

Check if disc is inserted correctly (label side up). Ensure disc is not scratched or dirty. Try cleaning the disc or lens.

How do I connect to speakers?

Use the RCA line outputs (red/white) to connect to an amplifier or powered speakers. Alternatively, use the headphone jack.

Can I record from external sources?

Yes, connect an audio source to the AUX input (RCA) and press the RECORD button to start recording to a blank CD.

What type of CDs should I use?

Use standard CD-R or CD-RW discs designed for audio recording. Avoid using CD-RW with high-speed recording.

How do I program tracks?

Press PROGRAM, then use the number buttons to select tracks. Press PLAY to start programmed playback.

The remote control doesn't work. What should I do?

Replace the batteries (typically two AAA). Check for obstacles between remote and the device. Point directly at the IR sensor.

How do I reset the device?

Unplug the power cord for about 30 seconds, then plug it back in. This will reset the system without losing settings.

USER MANUAL MP3851SP MEMOREX

Portable CD Player with AM/FM Stereo Radio

Line drawing of a portable electronic device with front, back, and top panels (no text or symbols)

Before operating this product, please read these instructions completely.

Dear Customer,

Please read this manual thoroughly before operating the unit to become more familiar with it and obtain the performance that will bring you continued enjoyment for many years. Keep these instructions handy for future reference.

PLEASE KEEP ALL PACKAGING MATERIAL FOR AT LEAST 90 DAYS IN CASE YOU NEED TO RETURN THIS PRODUCT TO YOUR PLACE OF PURCHASE OR MEMOREX.

For future reference, record the serial number of the unit printed on the rear of the cabinet.

Serial Number ____

SAFETY PRECAUTIONS

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. (This Caution Marking is located at the bottom enclosure of the unit.)

DANGEROUS VOLTAGE:

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

ATTENTION:

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

DANGER:

Invisible and hazardous laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

FCC WARNING:

This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

SAFETY PRECAUTIONS

INFORMATION:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

LASER SAFETY: This unit employs a laser. Only qualified service personnel should attempt to service this device due to possible eye injury.

CAUTION: USE OF CONTROLS, ADJUSTMENTS OR PERFORMANCE PROCEDURE HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

SURGE PROTECTORS:

It is recommended to use a surge protector for AC connection. Lightning and power surges ARE NOT covered under warranty for this product.

ATTENTION:

POUR ÉVITER LES CHOC ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISES ET POUSSER JUSQU'AU FOND.

This Class B digital apparatus complies with Canadian ICES-003.

Selecting fine audio equipment such as the unit you've just purchased is only the start of your musical enjoyment. Now it's time to consider how you can maximize the fun and excitement your equipment offers. This manufacturer and the Electronic Industries Association's Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion and, most importantly, without affecting your sensitive hearing.

Sound can be deceiving. Over time your hearing “comfort level” adapts to higher volumes of sound. So what sounds “normal” can actually be loud and harmful to your hearing. Guard against this by setting your equipment at a safe level BEFORE your hearing adapts.

To establish a safe level:

• Start your volume control at a low setting.
• Slowly increase the sound until you can hear it comfortably and clearly, and without distortion.

Once you have established a comfortable sound level:

- Set the dial and leave it there.

Taking a minute to do this now will help to prevent hearing damage or loss in the future. After all, we want you listening for a lifetime.

We Want You Listening For A Lifetime

Used wisely, your new sound equipment will provide a lifetime of fun and enjoyment. Since hearing damage from loud noise is often undetectable until it is too late, this manufacturer and the Electronic Industries Association's Consumer Electronics Group recommend you avoid prolonged exposure to excessive noise. This list of sound levels is included for your protection.

Decibel

Level Example

30 Quiet library, soft whispers
40 Living room, refrigerator, bedroom away from traffic
50 Light traffic, normal conversation, quiet office
60 Air conditioner at 20 feet, sewing machine
70 Vacuum cleaner, hair dryer, noisy restaurant
80 Average city traffic, garbage disposals, alarm clock at two feet

THE FOLLOWING NOISES CAN BE DANGEROUS UNDER CONSTANT EXPOSURE:

90 Subway, motorcycle, truck traffic, lawn mower
100 Garbage truck, chain saw, pneumatic drill
120 Rock band concert in front of speakers, thunderclap
140 Gunshot blast, jet engine
180 Rocket launching pad

Information courtesy of the Deafness Research Foundation.

SAFETY INSTRUCTIONS

Before using the unit, be sure to read all operating instructions carefully. Please note that these are general precautions and may not pertain to your unit. For example, this unit may not have the capability to be connected to an outdoor antenna.

1. READ INSTRUCTIONS

All the safety and operating instructions should be read before the product is operated.

2. RETAIN INSTRUCTIONS

The safety and operating instructions should be retained for future reference.

3. HEED WARNINGS

All warnings on the product and in the operating instructions should be adhered to.

4. FOLLOW INSTRUCTIONS

All operating and use instructions should be followed.

5. CLEANING

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.

Use a dry cloth for cleaning.

6. ATTACHMENTS

Do not use attachments not recommended by the product's manufacturer as they may cause hazards.

7. WATER AND MOISTURE

Do not use this product near water—for example: near a bathtub, washbowl, kitchen sink or laundry tub; in a wet basement; or near a swimming pool.

8. ACCESSORIES

Do not place this product on an unstable cart, stand, tripod, bracket or table. The product may fall, causing serious injury and serious damage to the product. Use only with a cart, stand, tripod, bracket or table rec-

ommended by the manufacturer or sold with the product. Any mounting of the product should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer.

8A. An appliance and cart combination should be moved with care. Quick stops, excessive force and uneven surfaces may cause the appliance and cart combination to overturn.

9. VENTILATION

Slots and openings in the cabinet and in the back or bottom are provided for ventilation, to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by

PORTABLE CART WARNING (symbol provided by RETAC)

placing the product on a bed, sofa, rug or other similar surface. This product should never be placed near or over a radiator or heat source. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

10. POWER SOURCES

This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

11. GROUNDING OR POLARIZATION

This product is equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

12. POWER-CORD PROTECTION

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

13. LIGHTNING

To protect your product from a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

14. POWER LINES

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

SAFETY INSTRUCTIONS (CONTINUED)

15. OVERLOADING

Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

16. OBJECT AND LIQUID ENTRY

Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short out parts that could result in fire or electric shock. Never spill or spray any type of liquid on the product.

17. OUTDOOR ANTENNA GROUNDING

If an outside antenna is connected to the product, be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electric Code, ANSI/NFPA 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge product, size of grounding conductors, location of antenna discharge product, connection to grounding electrodes and requirements for grounding electrodes.

S2898A
EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE

18. SERVICING

Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

19. REPLACEMENT PARTS

When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer or those that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

20. SAFETY CHECK

Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

21. WALL OR CEILING MOUNTING

The product should be mounted to a wall or ceiling only as recommended by the manufacturer.

22. DAMAGE REQUIRING SERVICE

Unplug the product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled or objects have fallen into the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions, as an adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.

e. If the product has been dropped or the cabinet has been damaged.

f. When the product exhibits a distinct change in performance—this indicates a need for service.

23. HEAT

The product should be situated away from heat sources such as radiators, heat registers, stoves or other products (including amplifiers) that produce heat.

24. NOTE TO CATV SYSTEM INSTALLER

This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

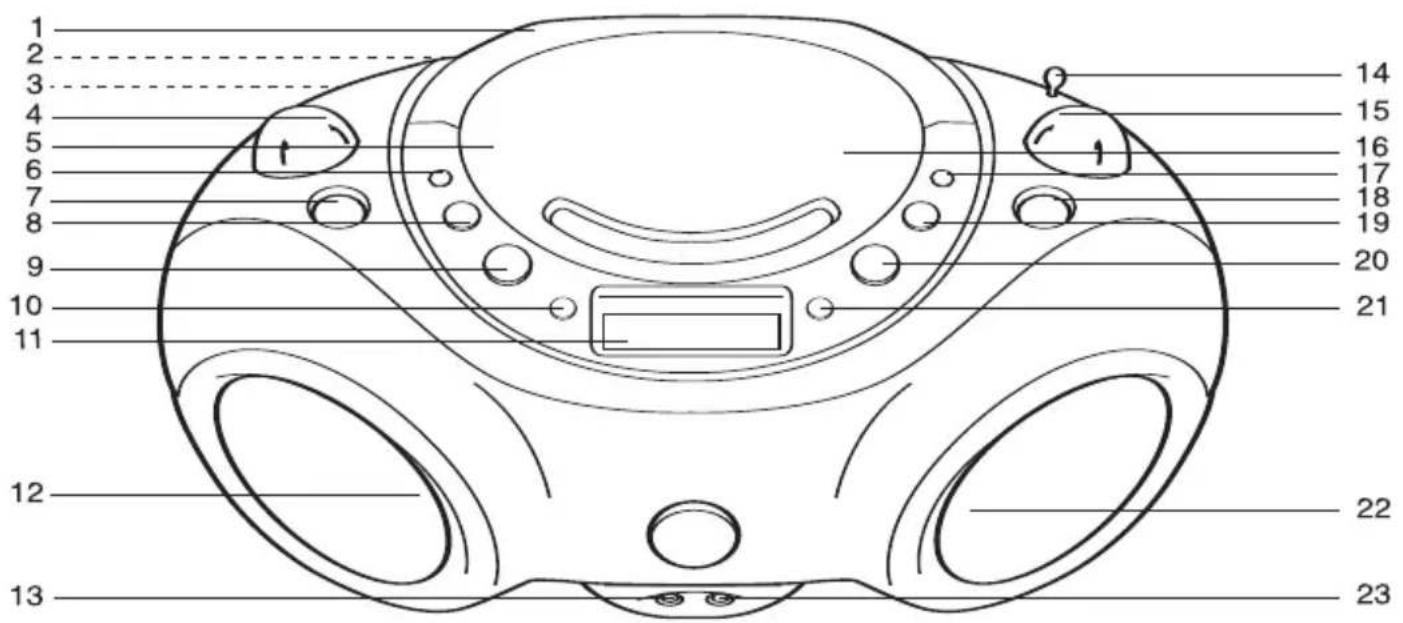

1. Carrying Handle
2. Battery Compartment (Bottom of Unit)
3. AC Power Jack (Rear of Unit)
4. VOLUME Control
5. CD Compartment
6. CLK SET (Clock Set) Button
7. Bass Boost Button
8. MIN/Skip/Search Button
9. HR/Skip/Search ▶Button
10. Random Button
11. Display
12. Left Speaker

13. PHONES (Headphones) Jack

14. FM Antenna

15. TUNING Control
16. CD Door OPEN Area
17. MEMORY/PROGRAM Button
18. Function (POWER OFF/AM/FM/CD) Control
19. STOP ( ■ ) Button
20. PLAY/PAUSE (▶II) Button
21. REPEAT Button
22. Right Speaker
23. LINE IN Jack

This unit is designed to operate on AC household current or DC (batteries).

AC

Use the AC polarized line cord included with the unit for operation on AC power. Insert one end of the AC line cord into the AC power jack on the rear of the unit and the other end (with the 2 blades) into a conveniently located AC outlet having 120V, 60Hz. When the AC cord is plugged in, the batteries will be disconnected.

NOTE: The AC plug supplied with the unit is polarized to help minimize the possibility of electric shock. If the AC plug does not fit into a nonpolar-

ized AC outlet, do not file or cut the wide blade. It is the user's responsibility to have an electrician replace the obsolete outlet.

BATTERY INSTALLATION

To use this unit with battery power, remove the battery door on the bottom of the unit by sliding the battery door off. Insert eight (8) 'C', size batteries following the diagram in the compartment.

NOTE: The AC power cord must be disconnected from the AC power jack on the rear of the unit in order for the unit to operate on battery power.

BATTERY PRECAUTIONS

Follow these precautions when using batteries in this device:

1. Use only the size and type of batteries specified.
2. Be sure to follow the correct polarity when installing the batteries as indicated in the battery compartment. Reversed batteries may cause damage to the device.
3. Do not mix different types of batteries together (e.g. Alkaline, Rechargeable and Carbon-zinc) or old batteries with fresh ones.
4. If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.
5. Do not try to recharge batteries not intended to be recharged; they can overheat and rupture. (Follow battery manufacturer's directions.)

PHONES (Headphones) JACK (FRONT OF UNIT)

For private listening, connect 3.5mm (32 ohm) stereo headphones (not included) to this jack. The speakers are automatically disconnected when the headphone plug is inserted in the jack.

OPERATION

SETTING THE CLOCK

Line drawing of a portable electronic device with control buttons and a black arrow pointing to a button (no text or symbols)

With the power off, press and hold the CLK SET button.

While holding the CLK SET button, press the MIN/Skip/Search ◀ button ① to set the minute and the HR/Skip/Search ▶ button ② to set the hour.

Line drawing of a portable electronic device with control buttons and a black arrow pointing to the left side (no text or symbols)

Release the CLK SET button and the time will be set.

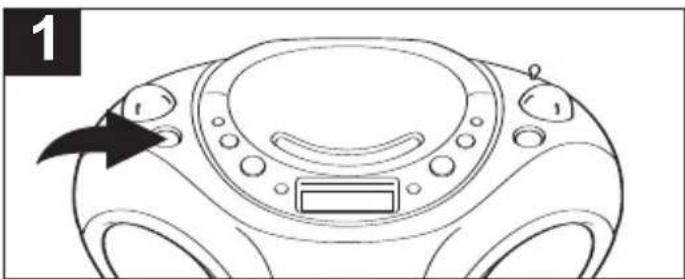

BASS BOOST

Line drawing of a portable electronic device with control buttons and a black arrow pointing to the left side (no text or symbols)

With the power on, press the Bass Boost button to the "in" position to enhance the overall bass sound. Press to the "out" position for normal bass.

LINE IN Jack (FRONT OF UNIT)

By using a home audio connection cable (not included), you can listen to an external audio unit through this unit's speakers. Before making any connections, turn off the power to all equipment.

Plug a connection cable (not included) between the LINE OUT jack on the external audio unit and this unit's LINE IN jack. (Do not connect it to this unit's PHONES jack.)

Then, simply rotate the Function control on this unit to the AM or FM position to turn the unit on. This will allow you to broadcast the external unit's sound through this unit.

NOTE: Once you have connected an external unit to LINE IN jack, when the unit is on the external sound will be the first polarity broadcasting. If you want to listen to the AM/FM radio, make sure you have removed the audio connection cable from the LINE IN jack.

BACKLIGHT

When the unit is on, the backlight will also be on.

OPERATION (CONTINUED)

Line drawing of a portable electronic device with control buttons and a black arrow pointing to the side (no text or symbols)

Rotate the Function control to the AM or FM position to turn the unit on and select a radio band. The radio frequency will appear in the display.

Line drawing of a portable electronic device with control buttons and a black arrow pointing to the right side (no text or symbols)

Rotate the TUNING control to select a station.

Adjust the VOLUME control ① and Bass Boost button ② as desired. Press the Bass Boost button to the "in" position to enhance the overall bass sound. Press to the "out" position for normal bass sound.

Line drawing of a CD or DVD disc with control buttons and a black arrow pointing to the disc (no text or symbols)

To turn the radio off, rotate the Function control to the POWER OFF position.

ANTENNAS

AM-This unit has a built-in ferrite rod antenna, which provides adequate reception in most areas. If reception is weak, turn the unit to improve reception.

FM—The FM Antenna is for FM reception only. If reception is weak, adjust the length and the angle of the antenna.

OPERATION (CONTINUED)

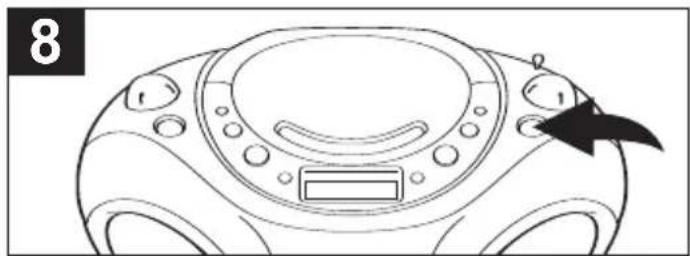

TO PLAY A CD

Rotate the Function control ① to the CD position to turn the unit on and select CD. Open the CD compartment door by pressing the CD Door OPEN area ②. Place a CD on the center spindle, with the printed label side facing up. Close the CD compartment door.

Line drawing of a portable electronic device with control buttons and a black arrow pointing to the front panel (no text or symbols)

Press the PLAY/PAUSE (▶II) button; playback will start automatically and the Play indicator will appear in the display.

Adjust the VOLUME control ① and Bass Boost button ② as desired. Press the Bass Boost button to the "in" position to enhance the overall bass sound. Press to the "out" position for normal bass sound.

Line drawing of a CD or DVD device with control buttons and a black arrow pointing to the front panel (no text or symbols)

Press the PLAY/PAUSE (▶II) button again to pause playback; the Play indicator will blink. Press the PLAY/PAUSE (▶II) button once again to continue playback; the Play indicator will stop blinking.

To skip forward or backward through the tracks on the disc, press the MIN/Skip/Search 🔊 ① or HR/Skip/Search 🔊 ② button.

To search forward or backward through the music on a disc, press and hold the MIN/Skip/Search 🔊 ① or HR/Skip/Search 🔊 ② button, a chattering noise will be heard.

CONTINUED ON THE NEXT PAGE

OPERATION (CONTINUED)

TO PLAY A CD (CONTINUED)

Line drawing of a CD or DVD device with a black arrow pointing to its side panel (no text or symbols)

When the disc is through playing, it will stop rotating. Press the STOP (■) button to stop the disc before it is finished.

Line drawing of a CD or DVD with a cartoon character pointing at the front panel (no text or symbols)

To turn the unit off, rotate the Function control to the POWER OFF position.

NOTES:

• If a disc is inserted incorrectly, dirty or damaged, "--" will appear in the display.
• As each track is played, the track number is shown in the display.
• To prevent damage to the disc, never open the CD door while the disc is rotating. Wait for the disc to stop before opening the CD door. Never touch the lens when the CD door is open.
• DO NOT use the carrying handle when playing a CD. The CD should only be used on a steady surface.

TO REPEATEDLY PLAY BACK ONE TRACK/ALL TRACKS

To repeat a single track, press the Repeat button ① once while in the Stop mode; "REP" will appear in the display. Press the MIN/Skip/Search ◀ or HR/Skip/Search ▶ button to select the specific track that you wish to repeat. Press the PLAY/PAUSE (▶) button ④ and the specific track you selected will be repeated continuously.

To repeat all of the tracks on a disc continuously, press the Repeat button ① twice; “REP ALL” will light in this display. Press the PLAY/PAUSE (▶Ⅱ) button ② and all tracks will be repeated continuously.

To stop and cancel Repeat playback, press the STOP (■) button once.

OPERATION (CONTINUED)

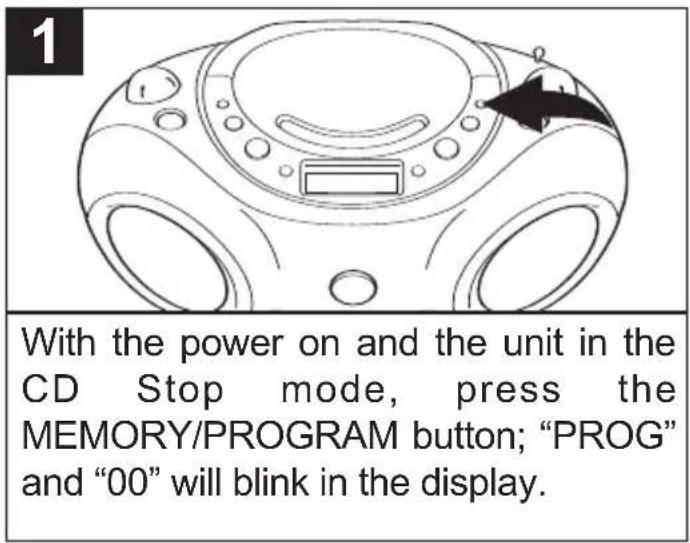

TO PROGRAM THE MEMORY (UP TO 20 TRACKS)

Line drawing of a CD or DVD device with a black arrow pointing to its side panel (no text or symbols)

Line drawing of a CD or DVD device with control buttons and a black arrow pointing to the front panel (no text or symbols)

Press the MEMORY/PROGRAM button again; the selected track has now been programmed and counted as program 1.

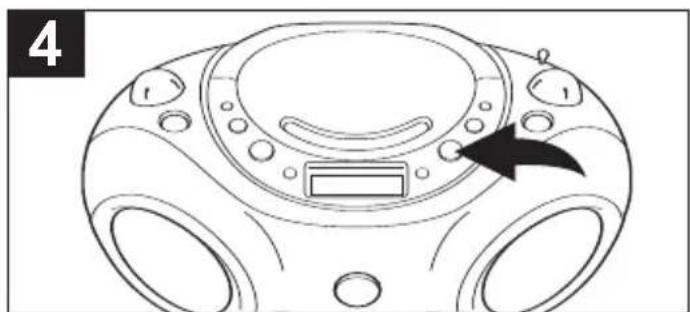

Repeat steps 2 and 3 to program the other desired tracks in sequence, up to 20 tracks. After you attempt to program more than 20 tracks, the program memory will be full and “--” will appear in the display. Press the PLAY/PAUSE (▶/II) button to begin playback; “PROG” will blink and the tracks will play in the order programmed.

NOTES ON PROGRAMMED PLAY:

• Programming is the ability to preselect the order in which a series of tracks will be played.
  • Each track may be stored in the program memory as many times as desired.
• As each track is played, its track number will be displayed. You can move forward or backward through the programmed tracks with the MIN/Skip/Search ◀ or HR/Skip/Search ▶ button.

- The unit will stop after all programmed tracks have been played or the STOP ( ■) button is pressed.

- To stop Program playback, press the STOP ( ■) button. To playback the program again, while in the Stop mode press the MEMORY/PROGRAM button followed by the PLAY/PAUSE (▶II) button.

- To clear the program memories, while in the Stop mode press the MEMORY/PROGRAM button followed by the STOP (■) button.

OPERATION (CONTINUED)

PROGRAMMED REPEAT

Line drawing of a portable electronic device with control buttons and a black arrow pointing to the button (no text or symbols)

It is also possible to use the Program and Repeat functions together to repeat a specific program indefinitely. First, program the tracks you wish to hear in the order you wish to hear them, as described on page 12. Press the PLAY/PAUSE (▶II) button to begin programmed playback.

Line drawing of a handheld electronic device with circular ports and a central control panel (no text or symbols)

Then, press the REPEAT button twice. The "PROG" (Program) indicator will blink and the "REP ALL" indicator will light. The player will repeatedly play back the tracks you selected in the order in which you programmed them. When the last track in the program has been played, the entire program will begin again.

NOTE:

Program Repeat operation will continue indefinitely until you press the STOP (■) button.

RANDOM PLAYBACK

Line drawing of a CD or DVD device with no text or symbols

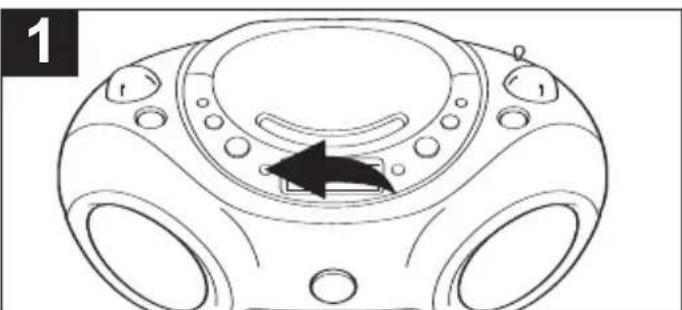

With the power on and the unit in the CD Stop mode, press the RANDOM button; "RAND" indicator will light in the display. The unit will automatically start playing back the tracks on the CD in random order.

Line drawing of a CD or DVD device with a black arrow pointing to its side panel (no text or symbols)

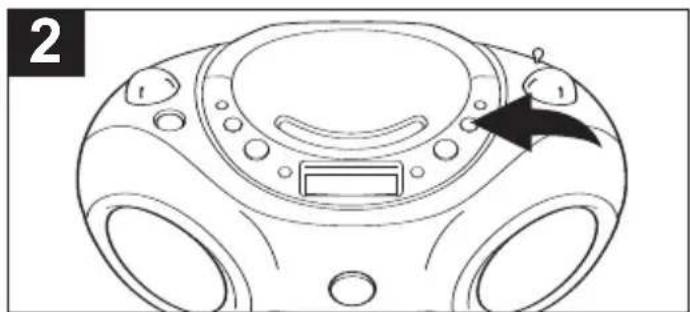

The unit will stop when all tracks have been randomly played or the STOP (■) button is pressed.

CARE AND MAINTENANCE

Caring for Compact Discs

• Treat the compact disc carefully. Handle the compact disc only by its edges. Never allow your fingers to come in contact with the shiny, unprinted side of the compact disc.
• Do not attach adhesive tape, stickers, etc. to the disc label.
• Clean the compact disc periodically with a soft, lint-free, dry cloth. Never use detergents or abrasive cleaners to clean the compact disc. If necessary, use a CD cleaning kit.
• If a disc skips or gets stuck on a section of the compact disc, it is probably dirty or damaged (scratched).
• When cleaning the compact disc, wipe in straight lines from the center of the compact disc to the outer edge of the compact disc. Never wipe in circular motions.
• This unit is designed to play only compact discs bearing the identification logo as shown here. Other discs may not conform to the CD standard and may not play properly.
• Compact discs should be stored in their cases after each use to avoid damage.
• Do not expose compact discs to direct sunlight, high humidity, high temperatures or dust, etc. Prolonged exposure or extreme temperatures can warp the compact disc.
• Do not stick or write anything on either side of the compact disc. Sharp writing instruments, or the ink, may damage the surface.

Line drawing of two hands holding a circular object (no text or symbols)

Cleaning the Unit

• To prevent fire or shock hazard, disconnect your unit from the AC power source when cleaning.
• The finish on your unit may be cleaned with a dust cloth and cared for as other furniture. Use caution when cleaning and wiping the plastic parts.
• Mild soap and a damp cloth may be used on the front panel.

TROUBLESHOOTING GUIDE

If you experience a problem with this unit, check the chart below before calling for service.

SYMPTOM CAUSE SOLUTION
Unit will not AC cord turn on. connected. connection.	not Check AC cord connection.
Disc will not play. CD	compartment Close CD door not closed. door.	compartment
	Disc inserted Reinsert incorrectly.	disc correctly.
	Dirty or defective CD.	Try another disc.
	Moisture Wipe disc with condensation on disc.	with soft cloth.
No sound. Volume is set Increase volume. to minimum.
Erratic playback.	Dirty or defective disc.	Clean or replace disc.
AM or FM, no sound.	Power is not on.	Rotate the Function control to the AM or FM position.
	Volume is set Increase volume. to minimum.	volume.
AM/FM, poor sound.	Station is not tuned properly. broadcast station.	Retune the AM or FM
	FM: Telescopic ant-antenna is not properly adjusted.	Reorient FM telescopic antenna.
	AM: Unit is not positioned correctly.	Rotate unit until best reception is obtained.

GENERAL:

Power Source 120V, 60Hz AC

Battery....12V DC (8 x 1.5V 'C' size batteries)

Alkaline is recommended for longer life

Speaker....2 x 3W

Output Power 2 x 2W

RADIO SECTION:

Frequency Range (FM) 87.5–108 MHz

Frequency Range (AM) 530-1710 KHz

CD SECTION:

Disc Diameter 4.72" (120mm)

3.15" (80mm) Single CD

Optical Source. ......Semiconductor Laser

Specifications are subject to change without notice.

FOR ADDITIONAL SET-UP OR OPERATING ASSISTANCE, PLEASE VISIT OUR WEBSITE AT WWW.MEMOREXELECTRONICS.COM OR CONTACT CUSTOMER SERVICE AT [phone].

PLEASE KEEP ALL PACKAGING MATERIAL FOR AT LEAST 90 DAYS IN CASE YOU NEED TO RETURN THIS PRODUCT TO YOUR PLACE OF PURCHASE OR MEMOREX.

FOR PARTS AND ACCESSORIES, CONTACT FOX INTERNATIONAL AT 1-800-321-6993.

Memcorp, Inc.

Weston, FL

Printed in Hong Kong

Visit our website at www.memorexelectronics.com

MP3851SP

User's Guide

Guía del Usuario

Portable CD Player with

AM/FM Stereo Radio

Line drawing of a portable electronic device with front, side, and top panels (no text or symbols)

Estimado Cliente:

PORTABLE CART WARNING (symbol provided by RETAC)

PRECAUCIONES CON LA PILA

Line drawing of a portable electronic device with control buttons and a black arrow pointing to the left side (no text or symbols)

Line drawing of a portable electronic device with control buttons and a black arrow pointing to the left side (no text or symbols)

Line drawing of a CD or DVD player with control buttons and a black arrow pointing to the front panel (no text or symbols)

Line drawing of a portable electronic device with control buttons and a black arrow pointing to the side (no text or symbols)

Line drawing of a portable electronic device with control buttons and a black arrow pointing to the right side (no text or symbols)

Line drawing of a CD or DVD disc with control panel and buttons (no text or symbols)

Line drawing of a portable electronic device with control buttons and a black arrow pointing to the front panel (no text or symbols)

Line drawing of a CD or DVD device with control buttons and a black arrow pointing to the front panel (no text or symbols)

Line drawing of a CD or DVD device with a black arrow pointing to its side panel (no text or symbols)

Line drawing of a CD or DVD with a black arrow pointing to the front panel (no text or symbols)

Line drawing of a CD or DVD device with no visible text, numbers, or symbols

Line drawing of a CD or DVD device with control buttons and a black arrow pointing to the front panel (no text or symbols)

Line drawing of a portable electronic device with control buttons and a black arrow pointing to the front panel (no text or symbols)

Line drawing of a handheld electronic device with circular ports and a central control panel (no text or symbols)

Line drawing of a CD or DVD device with no text or symbols

Line drawing of a CD or DVD device with a black arrow pointing to its side (no text or symbols)

Line drawing of two hands holding a circular object (no text or symbols)

Hand cleaning a circular object with a cloth, no text or symbols present

GUÍA DE DIAGNÓSTICO
