USER MANUAL LT7-M19WB FUNAI

Line drawing of a flat-screen computer monitor with 'FUNAI' branding on the front panel (no additional text or symbols)

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the apparatus’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the apparatus.

POWER SUPPLY

The main power supply is engaged when the main plug is plugged in a 220-240 V\~, 50 Hz AC outlet. To operate the unit, press [∅ (standby-on)] to turn on the unit.

WARNING: LIVE PARTS INSIDE. DO NOT REMOVE ANY SCREWS.

CAUTION

1) Do not attempt to open the cabinet. There are no user serviceable parts inside. Refer all servicing to qualified service personnel.
2) Slots and openings in the cabinet and the sides or bottom are provided for ventilation. To ensure reliable operation and to protect the unit from overheating, these openings must not be blocked or covered. Avoid installation in enclosed spaces such as bookcases unless proper ventilation is provided.
3) Keep the unit away from radiators and other heat sources.
4) Do not push objects of any kind into the unit through the cabinet slots or openings as they could touch electrically live parts or short circuit parts resulting in a fire or electric shock.
5) To prevent fire or shock hazard, do not expose this unit to dripping or splashing, no objects filled with liquids, such as vases, should be placed on the unit.
6) Use the unit on a horizontal (flat) surface only.
7) Do not place any combustible objects on the unit (candles, etc.).
8) The LCD panel used in this product is made of glass. Therefore, it can break when the product is dropped or applied with impact. Be careful not to be injured by broken glass pieces in case the LCD panel breaks. The LCD panel is a very high technology product with 921,600 thin film transistors, giving you fine picture details. Occasionally, a few non-active pixels may appear on the TV screen as a fixed point of blue, green or red. Please note that this does not affect the performance of your product.
9) Disconnect the mains plug to switch off when the unit becomes faulty or not in use.
10)The mains plug shall remain readily operable.
11) Read the manual instructions to ensure correct and safe installation and interconnection of the unit in multimedia systems.
12) Keep a distance of 20 cm around the ventilation openings of the unit.
13) Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

Do not place the unit on the furniture that is capable of being tilted by a child or an adult leaning, pulling, standing or climbing on it. A falling unit can cause serious injury or even death.

PRECAUTIONS....2
THINGS TO DO FOR THE FIRST TIME 4
OPERATING CONTROLS AND FUNCTIONS ....5
PREPARATION FOR USE 8
SETUP FOR USE....12
OPERATIONS 13
OTHER SETTINGS....17
MAINTENANCE....29
TROUBLESHOOTING GUIDE 29
SPECIFICATIONS....30
DECLARATION OF CONFORMITY 31

Features

• Integrated Digital Terrestrial Tuner (DVB-T)
  • EPG (Electronic Programme Guide)
• Stereo Sound System
• On-Screen Display
• Sleep Timer
• Teletext
  • TV Screen Mode Selection
• Auto Shut Off
• Parental Lock
  • HDMI Input x 2, SCART x 1
• COMPONENT Input
• S-VIDEO Input
• PC Input

Supplied Accessories

• Remote control
• Batteries (R6/AA) x 2
• Owner's Manual
  • Phillips pan screw for attaching the stand x 3

Trademark Information

• HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
  • DVB is a registered trademark of the DVB Project.
• The "HD ready" Logo is a trademark of DIGITALEUROPE.

Symbols Used in this Manual

The followings are the description for the symbols used in this manual.

Model/Serial Number

To aid reporting in case of loss or theft, please record the unit's model and serial numbers in the space provided. The numbers are located at the rear of the unit.

Model number: ____

Serial number: ____

A Note about Recycling

This unit's packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations. This product consists of materials which can be recycled and reused if disassembled by a specialised company.

Following information is only for EU-member states:

The use of the symbol indicates that this product may not be treated as household waste.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Following information is only valid EU-member States: Disposal of batteries and/or accumulators

The crossed out wheeled dust bin symbol indicates that batteries and/or accumulators must be collected and disposed of separately from household waste.

If the battery or accumulator contains more than the specified values of lead (Pb), mercury (Hg), and/or cadmium (Cd) defined in the Battery Directive (2006/66/EC), then the chemical symbols for lead (Pb), mercury (Hg) and/or cadmium (Cd) will appear below the crossed out wheeled dust bin symbol.

By participating in separate collection of batteries, you will help to assure the proper disposal of products and batteries and thus help to prevent potential negative consequences for the environment and human health.

For more detailed information about the collection and recycling programmes available in your country, please contact your local city office or the shop where you purchased the product.

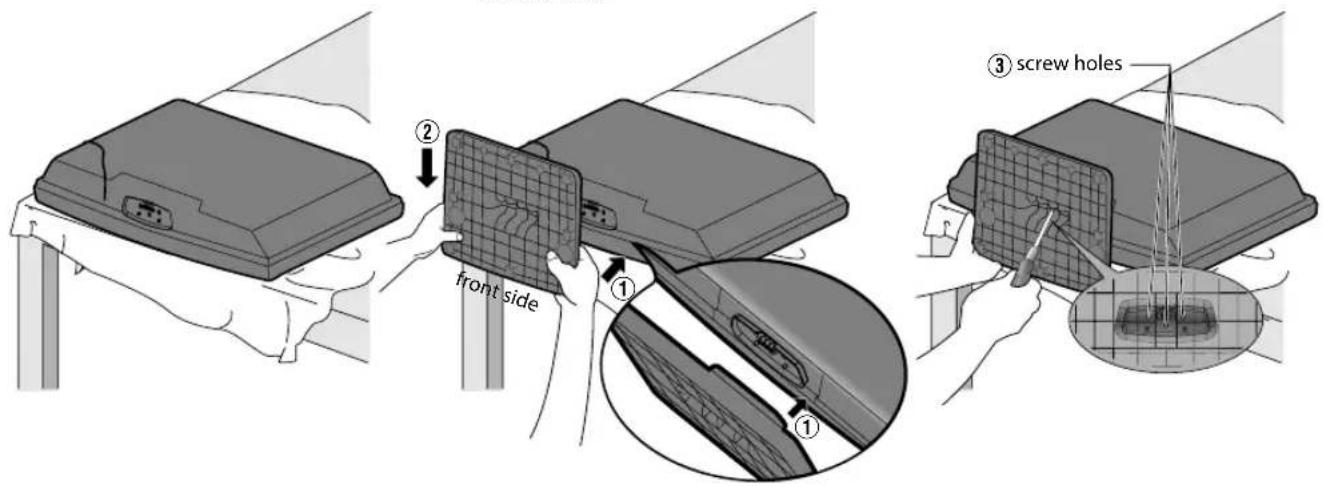

ATTACHING THE STAND

You need to attach the stand to the unit to display upright. Make sure the front and rear of the stand match the proper direction.

1) Place the unit face down onto the soft stuff such as a cloth on a table. Be careful not to damage the unit screen.

2) Hang the hook under the bottom of the main unit to the stand's hole (shown arrow ①), then slide down the stand in the direction of the screen (shown arrow ②). Make sure not to put the AC power cord between the stand and the unit.

3) Drive Phillips pan screws in the 3 threaded holes at the bottom of the stand with a screwdriver tightly.

To remove the stand from this unit

Unscrew the Phillips pan screws indicated by “③”. Pull up the stand in the direction of the rear of the unit. Be careful not to drop the stand when you remove it.

Note: • When attaching the stand, make sure that all the screws are tightly fastened. If the stand is not attached properly, the unit may fall down, resulting in injuries as well as damage to the unit.
- Make sure to use the table which can support the weight and size of the unit.
- Make sure that the table is in a stable location.

All operations described are based on the use of the remote control. Some operations can be carried out using the buttons on the control panel.

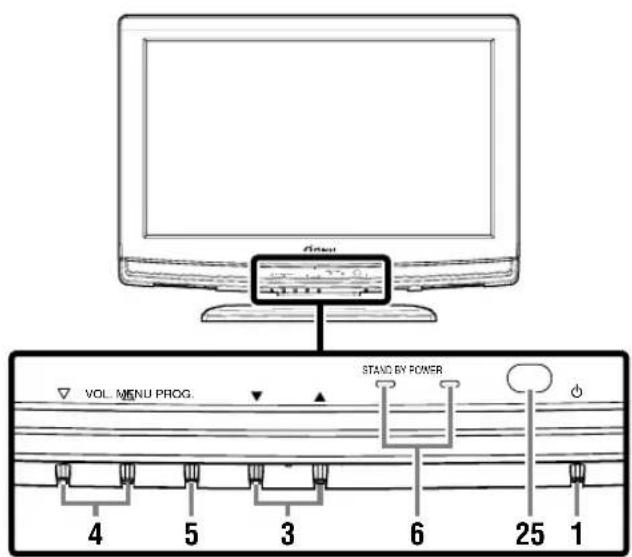

CONTROL PANEL

1. ⏻(standby-on)

Press to turn on or off (standby) the unit.

1. INPUT

Press to switch TV or external input mode.

1. PROG. ▲ / ▼ (control panel)

Press to select the setting on the menu.

Press to select the item you want to adjust in the picture control mode.

Press to go to the next page or the previous page of teletext.

Same function as Cursor ▲ / ▼ (remote control) on the menu.

PROG. ▲ / ▼ (control panel) / P (remote control)

Press to select memorised channel or other modes.

1. VOL. △ / ▽ (control panel) / ▶ +/− (remote control)

Press to control the volume level.

VOL. △ (control panel)

Same function as Cursor ▶ (remote control) on the menu.

VOL. ▽ (control panel)

Same function as Cursor ◀ (remote control) on the menu.

5.MENU

Press to display the menu.

6.STAND BY / POWER indicator

Lights up in green when power is on.

Lights up in red when power is in standby mode.

7.Number buttons

Press three digits to directly access the desired channel in TV mode.

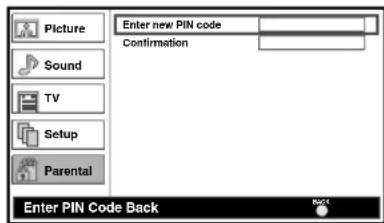

Press to enter the password in the password input field.

1. Cursor ▲ / ▼ / ◀ / ▶ buttons

Press to select the setting on the menu.

Press to select item you want to adjust in the picture control mode.

Press to go to the next page or the previous page of teletext.

9.BACK

Press to return to the previous display.

10.(mute)

Press to mute the sound.

Press this button again or press VOL. △ / ∨ on the control panel or ↓ on the remote control to restore sound.

11.(reveal)

Press to call up the hidden information of teletext.

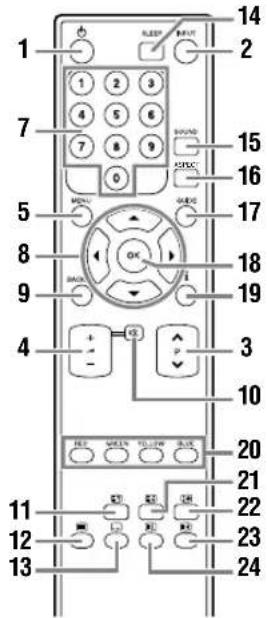

REMOTE CONTROL

12.(text)

Press to display the teletext information.

13.(subtitle)

Press to change the available subtitle languages.

14.SLEEP

Press to set the sleep timer.

Press to hide the teletext.

15.SOUND

Press to change the sound modes.

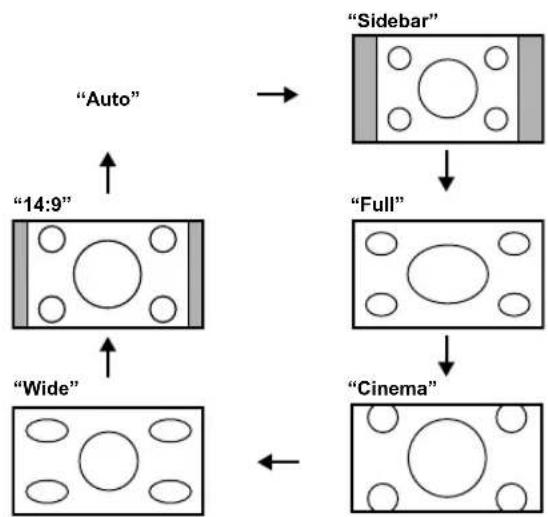

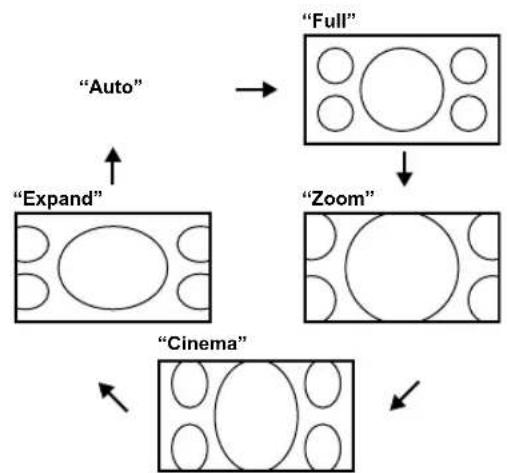

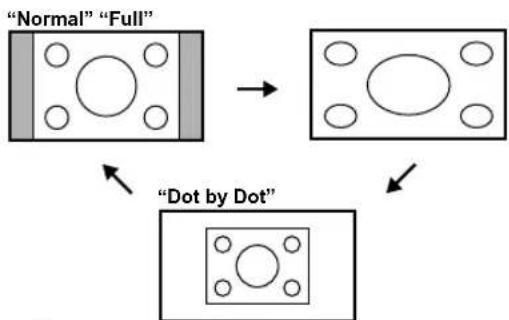

16.ASPECT

Press to switch the aspect ratio available for the TV screen.

17.GUIDE

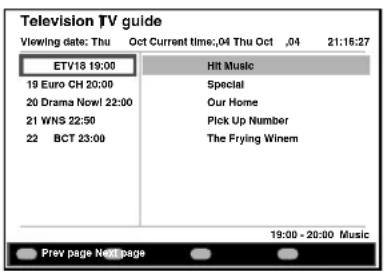

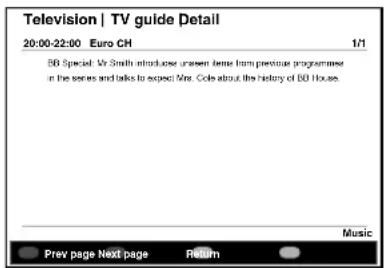

Press to display EPG (Electronic Programme Guide) in digital mode.

18.0K

Press to determine the setting on the menu.

Press to select or adjust from a particular menu.

Press to display the channel list while watching a programme.

1. i (information)

Press to display the TV screen information.

20.RED/GREEN/YELLOW/BLUE

Press to directly select the page numbers of teletext.

21.(expand)

Press to enlarge fonts of teletext.

22.(subpage)

Press to select subpages of teletext.

23.(hold)

Press to hold the current page of teletext.

24.(index)

Press to go back to the start page of teletext.

1. Infrared sensor window

Receives the infrared rays transmitted from the remote control.

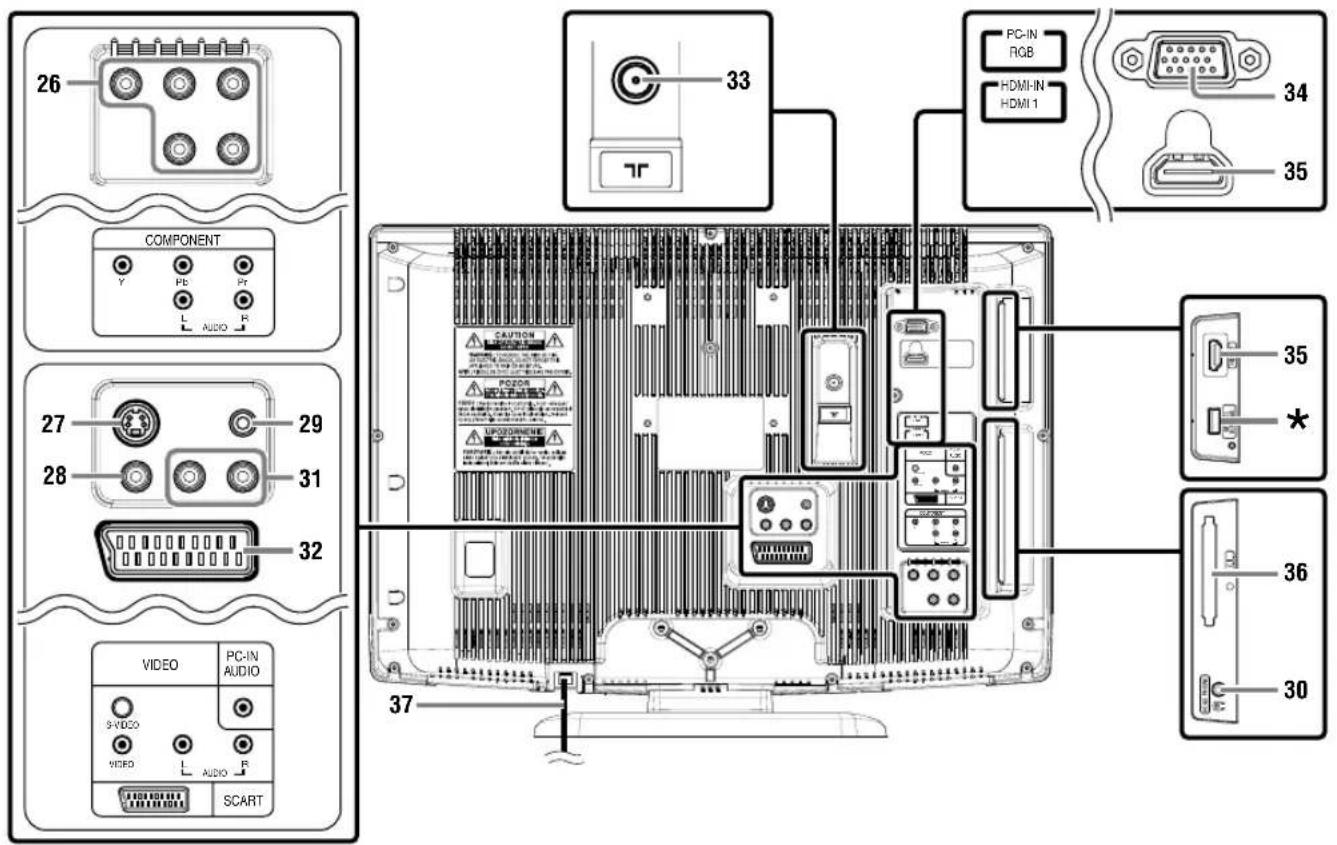

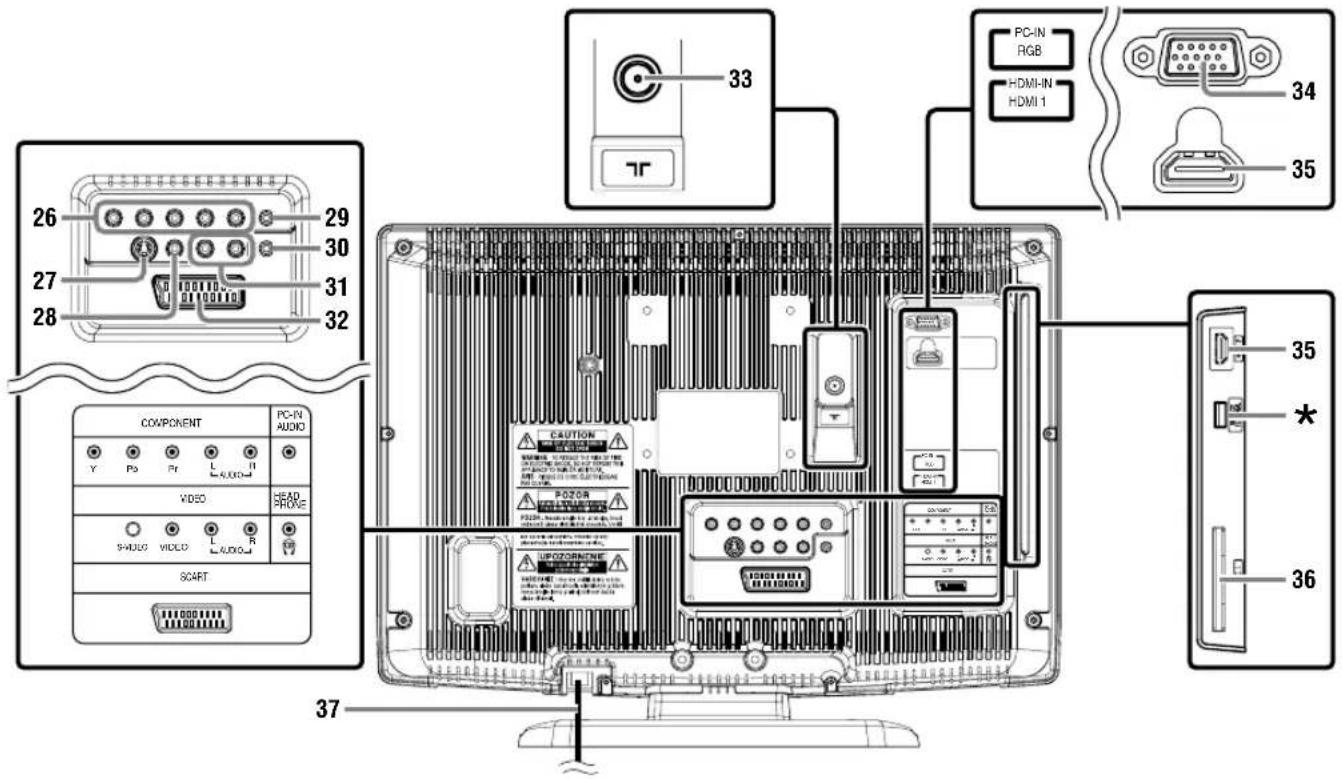

REAR PANEL

26.COMPONENT (Y/Pb/Pr) / AUDIO (L/R) input jack

Connect an RCA component video and an RCA audio cable (not supplied) to the component video and audio output jack of an external device.

27.S-VIDEO input jack

Connect an S-Video cable (not supplied) to the S-Video output jack of an external device.

28. VIDEO input jack

Connect an RCA video cable (not supplied) to the video output jack of an external device.

29.PC-IN AUDIO input jack

Connect a mini-plug audio cable (not supplied) to the audio line out jack of a PC.

30. HEAD PHONE jack

Connect a headphone.

31. AUDIO (L/R) input jack

Connect an RCA audio cable (not supplied) to the audio output jack of an external device.

Note: The AUDIO (L) jack is for monaural input. The sound is heard from both speakers. Use this jack for a monaural audio device.

32.SCART jack

Connect a scart cable (not supplied) to the scart jack of an external device.

33.(Aerial) input jack

Connect an RF coaxial cable (not supplied) to an antenna or RF output jack of a cable system.

34.PC-IN (RGB) input jack

Connect a VGA cable (not supplied) to the monitor jack of a PC.

35.HDMI (HDMI 1 / HDMI 2) input jack

Connect an HDMI cable (not supplied) to the HDMI output jack of an external device.

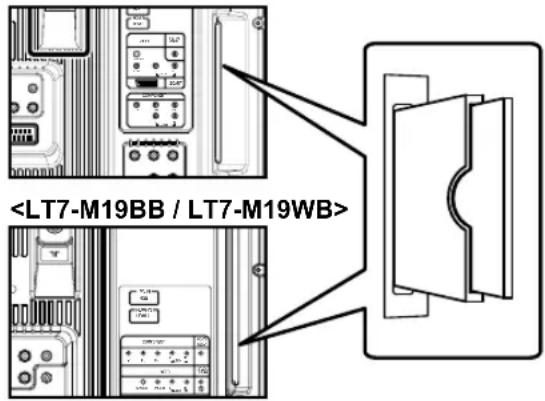

36.C.I. (Common Interface) slot

Common Interface (CI) Module: Insert the CI module.

37.AC power cord

Connect to a standard AC outlet to supply power to this unit.

Note: \* service terminal (service use only)

- Use this terminal only when a software update is necessary.

- User should not connect any devices to the service terminal such as digital camera, keyboard, mouse, etc. (because these will not work).

- The software update is, in most cases, handled by an authorized service person or in some circumstances the user may be asked to do the software upgrade themselves.

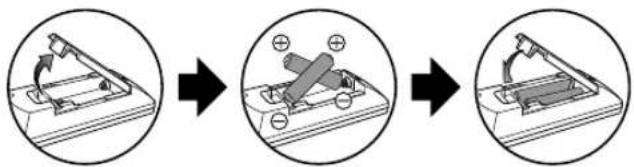

Installing the Batteries

1) Open the battery compartment cover.
2) Insert "R6/AA" penlight batteries into battery compartment in the direction as indicated by the polarity (+/-) markings. Batteries installed with incorrect polarity may damage the remote unit.
3) Close the cover.
4) Push the cover on its top side until it clicks in order to fit the cover completely to the compartment.

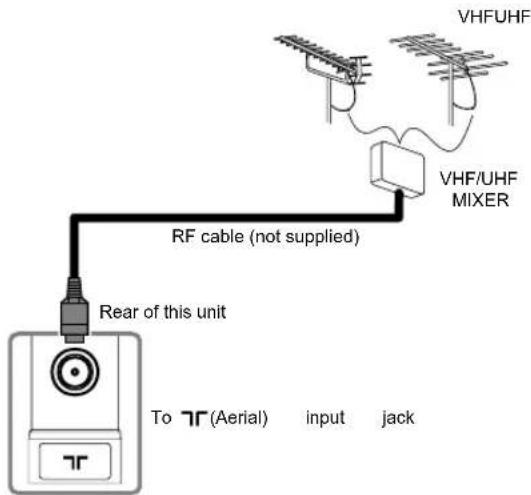

Antenna Connection

1) Connect an RF cable (not supplied) to (Aerial) input jack at the rear of this unit.
2) Plug this unit into an AC outlet.
3) The STAND BY / POWER indicator on the front panel lights red, then press [☐ (standby-on)] to turn on the unit.

Note: If you like to connect an active DVB-T antenna, the antenna must have its own power supply.

It is not possible to power the antenna from the TV.

External Connection

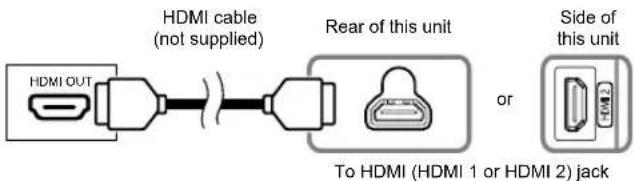

[HDMI CONNECTION]

HDMI connection offers the highest picture quality. HDMI (High Definition Multimedia Interface) transports high definition video and multi-channel digital audio through a single cable.

Connect the HDMI output jack of your video device and the HDMI-IN (HDMI 1 or HDMI 2) jack of this unit. Use an HDMI cable (not supplied).

Dear Customer,

By connecting an HDMI cable to your Funai LCD TV, you have to use only a certified HDMI cable to guarantee a sufficient immunity against parasitic frequency radiation.

A certified HDMI cable can be identified by the HDMI logo on the cable or the cable package.

Note:

• This unit accepts 480i / 480p / 576i / 576p / 720p / 1080i / 1080p video signals and 32 kHz / 44.1 kHz / 48 kHz audio signals.
• This unit accepts only 2 channel audio signals (LPCM).
• You need to select "PCM" for the digital audio output of the device you connect. Make sure the device outputs the digital audio. Audio sometimes makes no sound if you select "Bitstream", etc.

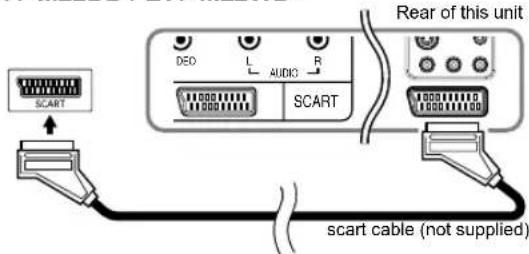

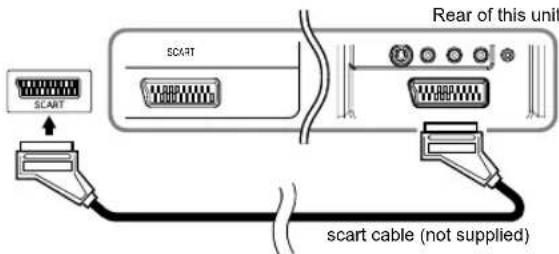

[SCART CONNECTION]

Scart connection offers better picture quality.

Connect the scart jack of your video device and the SCART jack of this unit. Use a scart cable (not supplied).

INPUT OUTPUT
S-VIDEO	AUDIO (L/R)	CVBS	RGB V	IDEO and AUDIO (L/R)
No Yes	Yes Yes			only ATV or DTV output is available.

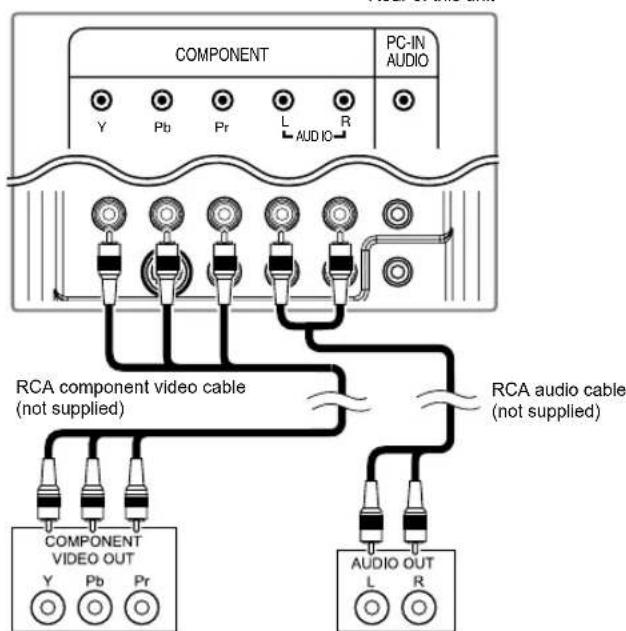

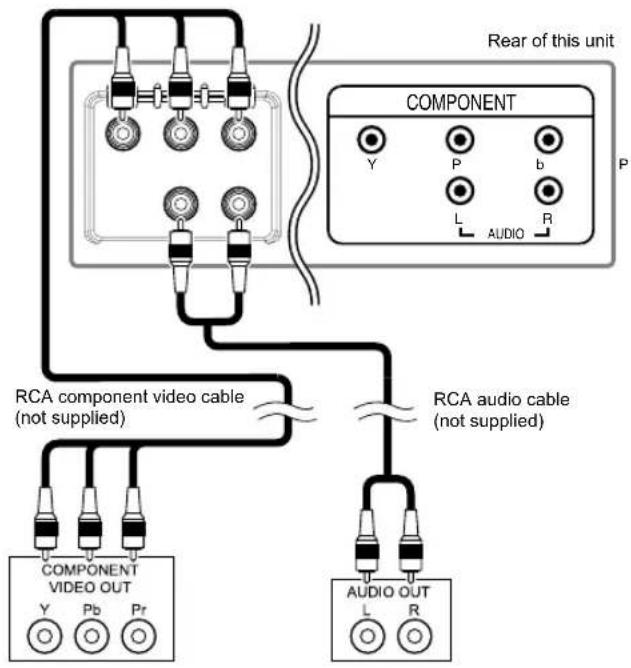

[COMPONENT CONNECTION]

RCA component video connection offers better picture quality.

1) Connect the component video output jack (Y, Pb, Pr) of your video device and the COMPONENT video (Y, Pb, Pr) input jack of this unit. Use an RCA component video cable (not supplied).
2) Connect the audio output jack of your device and the AUDIO (L/R) input jack of this unit. Use an RCA audio cable (not supplied).

Note: This unit accepts 480i / 480p / 576i / 576p / 720p / 1080i video signals.

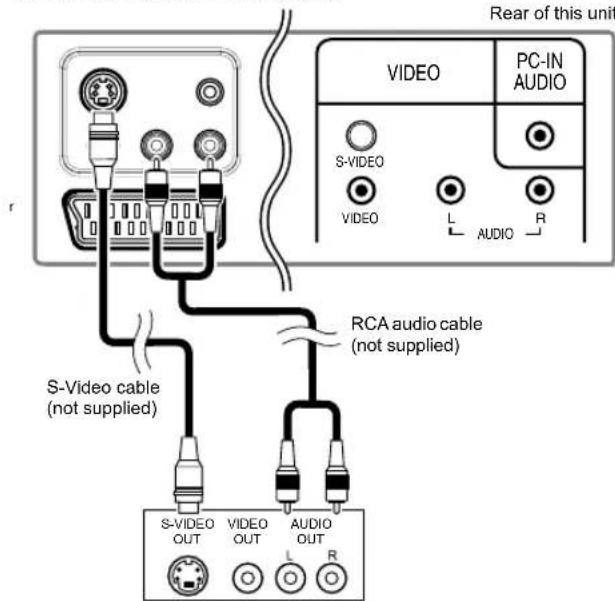

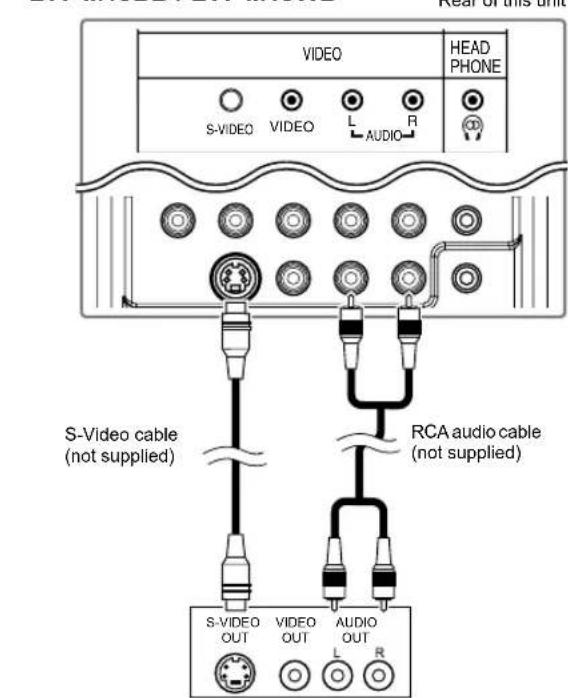

[S-VIDEO CONNECTION]

S-Video connection offers good picture quality.

1) Connect the S-Video output jack of your video device and the S-VIDEO input jack of this unit. Use an S-Video cable (not supplied).
2) Connect the audio output jack of your device and the AUDIO (L/R) input jack of this unit. Use an RCA audio cable (not supplied).

Note: If you connect to the S-VIDEO jack and the VIDEO jack at the same time, S-Video connection will have priority.

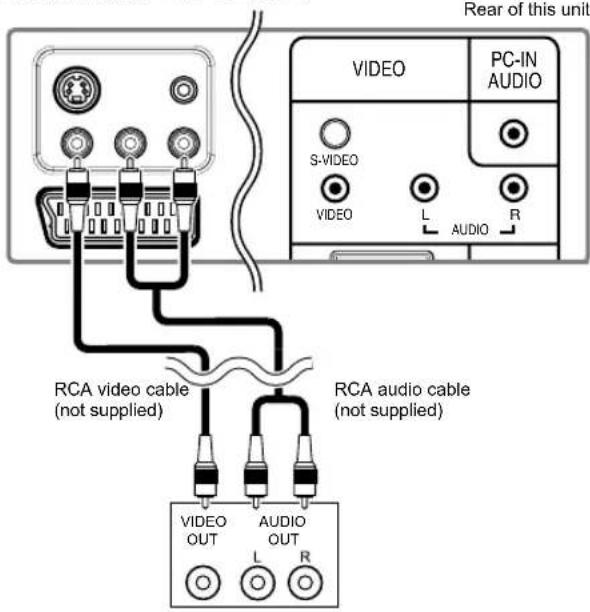

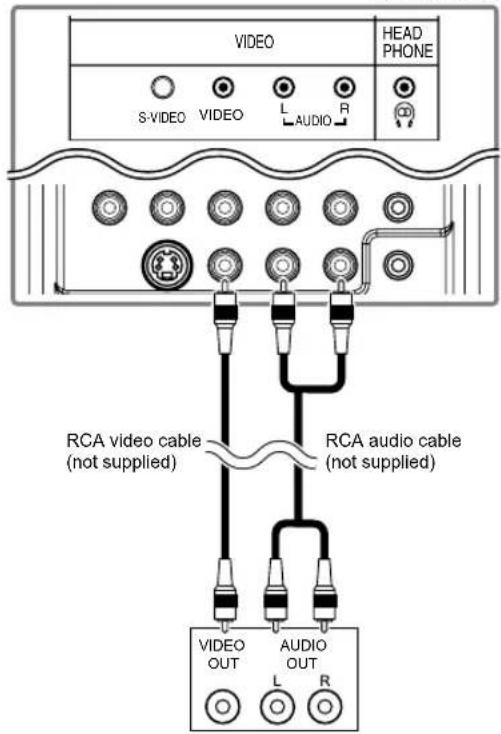

[VIDEO CONNECTION]

RCA video connection offers standard picture quality.

1) Connect the video output jack of your video device and the VIDEO input jack of this unit. Use an RCA video cable (not supplied).

2) Connect the audio output jack of your video device and the AUDIO (L/R) input jack of this unit. Use an RCA audio cable (not supplied).

Rear of this unit

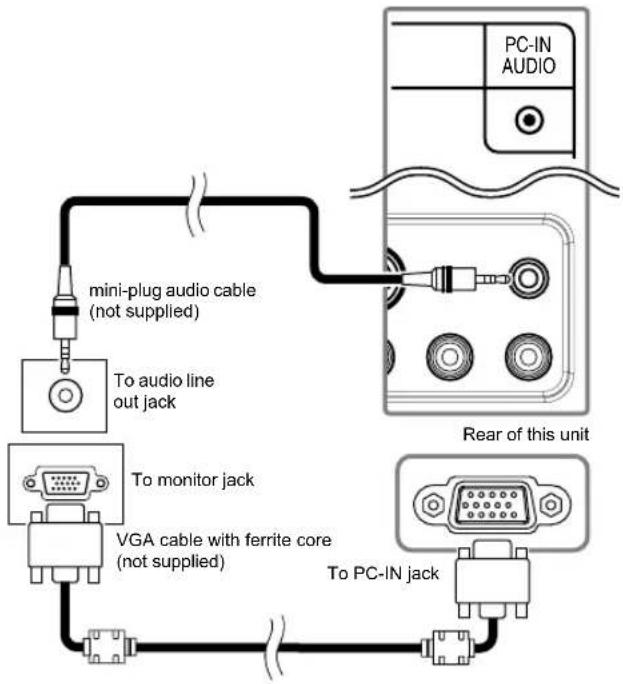

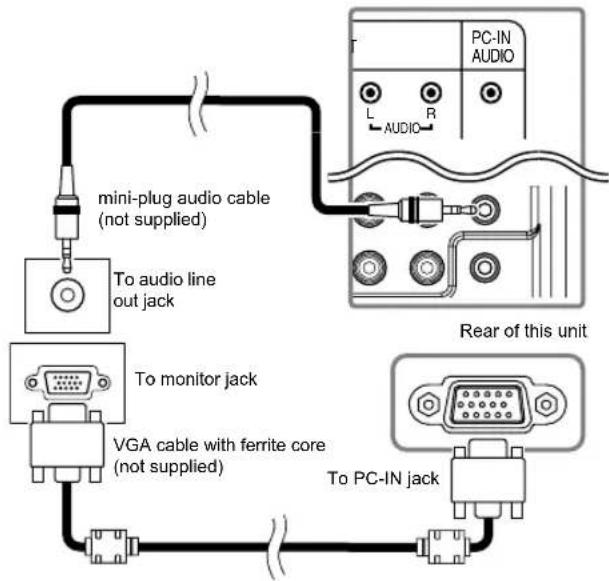

[PC CONNECTION]

If you connect this unit and your PC, you can use this unit as a computer monitor.

1) Connect the monitor jack of your PC and the PC-IN (RGB) jack of this unit. Use a VGA cable with ferrite core (not supplied).

2) Connect the audio line out jack of your PC and the PC-IN (AUDIO) jack of this unit. Use a mini-plug audio cable (not supplied).

Precautions for the connection to other devices:

- Please use the VGA cable that has a ferrite core.

The following signals can be displayed:

Format Resolution Refresh rate
VGA 640 x 480 60 Hz
SVGA 800 x 600 60 Hz
XGA 1,024 x 768 60 Hz
WXGA	1,280 x 768 60 Hz
	1,360 x 768 60 Hz

Note: Other formats or non-standard signals will not be displayed correctly.

Initial Setting

DTV AT

You need to set the followings to use the unit appropriately for the first time you turn on the unit.

1) Press [⏻ (standby-on)] to turn on the unit.

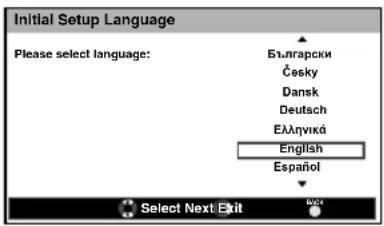

- "Initial Setup" language menu will appear.

Note: The settings may be limited by the location you purchased.

2) Press [▲ / ▼] repeatedly to select the menu language you want, then press [OK].

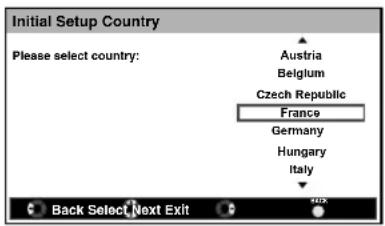

3) Press [▲ / ▼] to select the country you want, then press [OK].

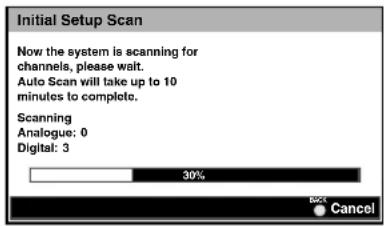

- Scan confirmation menu will appear.

4) Press [▲ / ▼] to select "Scan", then press [OK].

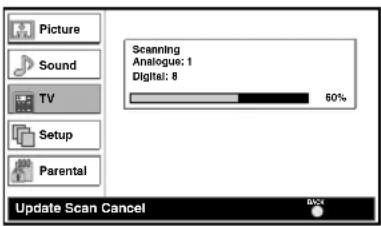

- Channel scanning will start automatically.

- When the scanning is completed “Congratulations !!” message will appear.

Note: • If you select "Skip" in scan confirmation menu, the operation will be cancelled.

- If you press [BACK] during auto scanning, the operation will be cancelled.

Watching a TV Programme

DTV AT

To select a channel

Press [P /] repeatedly to select your desired channel.

or

Press [the Number buttons] to enter a channel number then [OK] for quicker access.

- If you want to select the channel 24 without pressing [OK], press [2] first, then press [4] within 3 seconds.

To adjust the volume

Press [▲+ / - ] to adjust the audio volume.

- You can see the volume bar while adjusting the volume.

Press [minute] to turn on or off the sound right away.

- You can recover the original volume by pressing [OK (mute)] again or [▲ + / - ] .

Sleep Timer

DTV AT

You can set the unit to be turned off automatically after a set time period (from 10 to 120 minutes).

1) Press [SLEEP].

- Sleep timer display will appear.

2) Press [SLEEP] repeatedly to change the sleep time period.

- Between Off and 60 minutes, the interval of time is 10 minutes. After 60 minutes, the timer increases by 30 minutes until Off.

Sleep

min

To cancel the sleep timer

1) Press [SLEEP].

- Sleep timer display will appear.

2) Press [SLEEP] repeatedly until "Sleep Off" appears.

Sleep Off

Note: If you disconnect the unit from the AC outlet or if a power failure occurs, the sleep timer will be cancelled.

Switching the Input Mode

DTV AT

You can switch the input mode to TV mode or external input mode.

1) Press [INPUT].

- "Select Input" menu will appear.

2) Press [▲ / ▼] to select the input mode you want, then press [OK].

Note: • To watch TV, select "TV".

• To use the video or S-VIDEO input jack on the unit, select "VIDEO".
• To use the COMPONENT (Y/Pb/Pr) input jack on the unit, select "COMPONENT".
• To use the SCART jack on the unit, select "SCART".
• To use the PC-IN (RGB) jack on the unit, select "PC".
• To use the HDMI-IN (HDMI 1) jack on the unit, select "HDMI 1".
• To use the HDMI-IN (HDMI 2) jack on the unit, select "HDMI 2".

DTV

1) Press [SOUND] to display the currently selected audio language and the number of available languages.
2) Press [SOUND] repeatedly to cycle through the available audio languages.

ATV

1) Press [SOUND] to display the currently selected audio mode.
2) Press [SOUND] repeatedly to cycle through the available audio mode.
- The display image can be found on the “TV Screen Information” at the right column.

1. Nicam Stereo Mono
2. Nicam Dual1 Nicam Dual2 Mono

1. Nicam Mono Mono
2. Stereo Mono
3. Dual1 Dual2
4. Mono

DTV AT

You can see the broadcasting information.

1) Press [i (information)].
- Fewer information menu will appear.
2) Press [i (information)] again to display more informations.

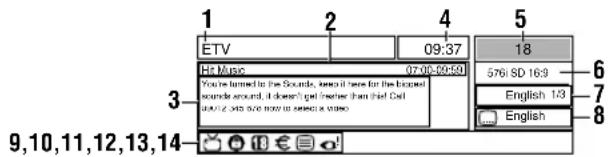

1Channel name
2Present programme name / time
3Programme information
4Current time
5Channel number
6Resolution / Format / TV aspect ratio
7Audio language (DTV) / Audio mode (ATV)
8Subtitle
9TV / Radio
10Lock status
11Parental rating
12Pay TV
13Teletext
14Audio Description

Note: When the programme information consists of more than 3 lines, press [▲ / ▼] to scroll.

3) Press [BACK] to exit.

- TV Screen information menu will automatically disappear in a few seconds.

DTV

You can easily find a channel or see the detailed channel information. EPG gives you scheduled information of the TV programmes.

1) Press [GUIDE].

- EPG will appear.

2) Press [▲ / ▼] to select a channel, then press [▶].

• Press [RED] or [GREEN] to move the channel list to the previous or next page.
• Press [OK] to watch the selected channel.

3) Press [▲ / ▼] to select a programme.

• Press [RED] or [GREEN] to move the programme list to the previous or next day.
• Press [OK] to watch the selected programme if it is currently available.

4) Press [YELLOW] to display more detailed programme information.

Note: When the programme information consists of more than 2 pages, press [RED] or [GREEN] to move to the previous or next page.

5) Press [GUIDE] to exit.

Changing the TV Screen Display Mode

DTV AT

You can select your favourite TV screen size.

Press [ASPECT] repeatedly to switch the TV screen display mode.

For SD (Standard Definition) video signal

"Auto"

Selects the TV screen display mode automatically. This is the default.

"Sidebar"

Displays a 4:3 picture at its original size. Sidebars appear on both edge of the TV screen.

"Full"

Displays a 4:3 picture at a 16:9 size; the picture is stretched horizontally to fill the TV screen.

"Cinema"

Displays a 4:3 picture at a 16:9 size; the picture is stretched horizontally and vertically to fill the TV screen. This crops out the top and bottom of the picture.

"Wide"

Displays a 4:3 picture at a 16:9 size; the centre of the picture is at its original size and the edges stretched horizontally to fill the TV screen.

"14:9"

Displays a 4:3 picture at a 14:9 size. Sidebars will be displayed on both edge of the TV screen.

For HD (High Definition) video signal

"Auto"

Selects the TV screen display mode automatically. This is the default.

"Full"

Displays a 16:9 picture at its original size.

"Zoom"

Displays a 16:9 picture at its maximum size without changing its horizontal and vertical ratio.

"Cinema"

Displays a vertically stretched picture.

"Expand"

Displays a horizontally stretched picture.

For PC input signal

"Normal"

Displays a proportionally stretched picture. Mainly sidebars appear on both edges of the TV screen.

"Full"

Displays a picture that is stretched out of proportion to fill the TV screen.

"Dot by Dot"

Displays a picture at its original size.

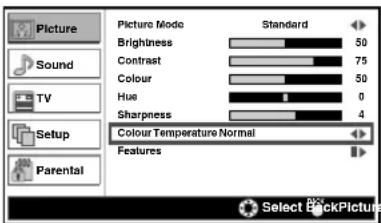

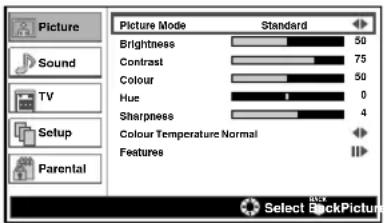

Picture Adjustment

DTV AT

You can adjust the picture settings according to your personal preference. These settings are automatically stored after exiting the picture menu.

1) Press [MENU] to display the menu.
2) Press [▲ / ▼] to select "Picture", then press [OK].

"Picture Mode"

3) Press [▲ / ▼] to select "Picture Mode".
4) Press [◀/▶] to select the setting (“Standard, Dynamic, Movie, News, Personal”) you want.

"Colour Temperature"

3) Press [▲ / ▼] to select "Colour Temperature".
4) Press [◀/▶] to select the setting (“Cool, Normal, Warm”) you want.

5) Press [MENU] to exit.

"Brightness, Contrast, Colour, Hue, Sharpness"

3) Press [▲ / ▼] to select the item you want, then press [OK].

Note: Press [▲ / ▼] to change the items.

4) Press [◀/▶] to adjust, then press [OK].

Note: • When this unit is connected to PC, you can not select "Colour", "Hue" and "Sharpness".
- If you adjust the settings in other than “Personal” mode, “Picture Mode” will be changed to “Personal”.

Setting	[◀]	[
Brightness	decrease brightness	increase brightness
Contrast	decrease contrast	increase contrast
Colour	decrease colour	increase colour
Hue	add red add green
Sharpness	make soft make clear

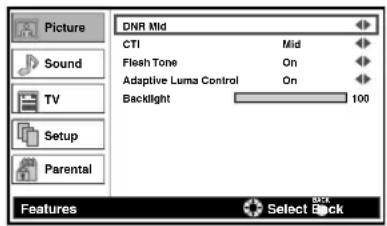

DTV AT

You can adjust the detailed picture settings according to your personal preference.

1) Press [MENU] to display the menu.
2) Press [▲ / ▼] to select "Picture", then press [OK].
3) Press [▲ / ▼] to select "Features", then press [OK].
- "Features" menu will appear.

"DNR (Digital Noise Reduction)"

You can adjust to reduce the appearance of digitizing error caused by the compression.

4) Press [▲ / ▼] to select "DNR".
5) Press [◀ / ▶] to select the setting (“Low, Mid, High”) you want.

"CTI (Colour Transient Intensity)"

You can adjust the picture for colour errors.

4) Press [▲ / ▼] to select "CTI".
5) Press [◀ / ▶] to select the setting (“Low, Mid, High”) you want.

"Flesh Tone"

You can set to activate the flesh colours or not.

4) Press [▲ / ▼] to select "Flesh Tone".
5) Press [◀/▶] to select the setting ("On, Off") you want.

"Adaptive Luma Control"

You can adjust changes in the luminance of the picture.

4) Press [▲ / ▼] to select "Adaptive Luma Control".
5) Press [◀/▶] to select the setting ("On, Off") you want.

"Backlight"

4) Press [▲ / ▼] to select "Backlight", then press [OK].
5) Press [◀/▶] to adjust, then press [OK].

6) Press [MENU] to exit.

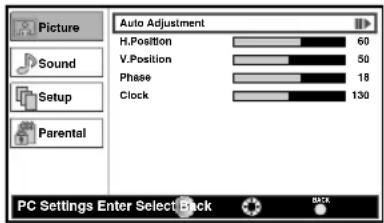

PC Settings

You can adjust the PC screen position, clock and phase. Make sure your PC is connected.

1) Press [MENU] to display the menu.
2) Press [▲ / ▼] to select "Picture", then press [OK].
3) Press [▲ / ▼] to select "PC Settings", then press [OK].

"Auto Adjustment"

4) Press [▲ / ▼] to select "Auto Adjustment", then press [OK].

• Each setting will be adjusted automatically.

"H.Position, V.Position, Phase, Clock"

4) Press [▲ / ▼] to select the item you want, then press [OK].

Note: Press [▲ / ▼] to change the items.

5) Press [◀/▶] to adjust, then press [OK].

Setting	[◀]	[
H.Position	move PC screen left	move PC screen right
V.Position	move PC screen down	move PC screen up
Phase	decrease setting value	increase setting value
Clock

6) Press [MENU] to exit.

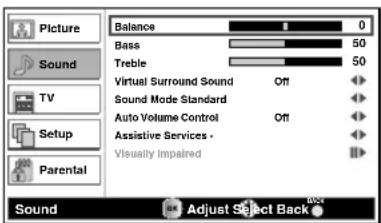

Sound Adjustment

DTV ATV

You can adjust the sound settings according to your personal preferences. These settings are automatically stored after exiting the sound menu.

1) Press [MENU] to display the menu.
2) Press [▲ / ▼] to select “Sound”, then press [OK]. • “Sound” menu will appear.

"Balance, Bass, Treble"

3) Press [▲ / ▼] to select the item you want, then press [OK].
Note: Press [▲ / ▼] to change the items.
4) Press [◀/▶] to adjust, them press [OK].

Setting	[◀]	[	▶]
Balance Balance 0	decrease increase
Bass Bass 50
Treble Treble 50

"Virtual Surround Sound"

Virtual Surround Sound gives you the stereo phonic virtual space through your existing 2-channel stereo system.

3) Press [▲ / ▼] to select "Virtual Surround Sound".
4) Press [◀/▶] to select the setting ("On, Off") you want.

"Sound Mode"

3) Press [▲ / ▼] to select "Sound Mode".
4) Press [◀/▶] to select the setting ("Standard, Movie, Music, News") you want.

Country Setting

"Auto Volume Control"

You can set to keep a constant loudness differential between the TV commercials and the programs.

3) Press [▲ / ▼] to select "Auto Volume Control".
4) Press [◀ / ▶] to select the setting ("On, Off") you want.

"Assistive Services"

DTV

You can adjust the audio type.

3) Press [▲ / ▼] to select "Assistive Services".
4) Press [◀/▶] to select the setting (“-, Hearing Impaired, Visually Impaired”) you want.

Visually Impaired : provides additional audio description for visually impaired.

Hearing Impaired : provides audio service for hearing impaired.

Note: If you select "Visually Impaired", you can adjust the audio volume for "Visually Impaired".

5) Press [MENU] to exit.

"Visually Impaired"

DTV

Make sure “Visually Impaired” is selected at “Assistive Services” setting.

3) Press [▲ / ▼] to select “Visually Impaired” then press [OK].
4) Press [▲ / ▼] to select "Volume" then press [OK].
5) Press [◀/▶] to adjust, then press [OK].

6) Press [MENU] to exit.

Note: You may not select the country depending on the location you purchased.

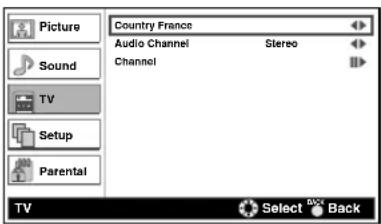

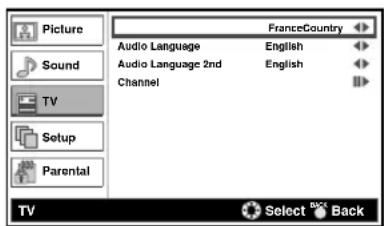

DTV AT

You can select the channels according to the country you select.

1) Press [MENU] to display the menu.
2) Press [▲ / ▼] to select "TV", then press [OK].
3) Press [▲ / ▼] to select "Country".
4) Press[◀/▶] to select the country you want.

DTV

ATV

5) Press [MENU] to exit.

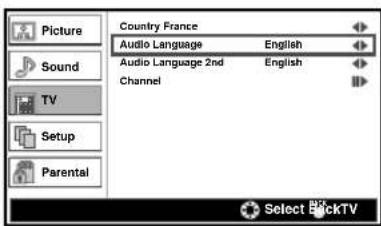

Audio Language Selection

DTV AT

You can select the main language.

1) Press [MENU] to display the menu.
2) Press [▲ / ▼] to select "TV", then press [OK].

DTV

"Audio Language"

3) Press [▲ / ▼] to select "Audio Language".
4) Press [◀/▶] to select the language you want.

"Audio Language 2nd"

3) Press [▲ / ▼] to select "Audio Language 2nd".
4) Press [◀/▶] to select the language you want.

5) Press [MENU] to exit.

Note: While watching a programme, you can change the audio language easily using [SOUND] when it is available.

ATV

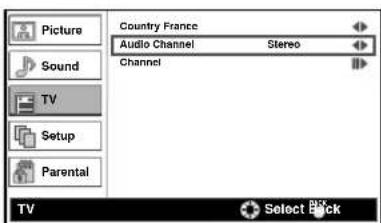

"Audio Channel"

3) Press [▲ / ▼] to select "Audio Channel".
4) Press [◀/▶] to select the setting ("Dual1, Dual2, Stereo, Mono") you want.

Note: While watching a programme, you can change the audio mode easily using [SOUND] when it is available.

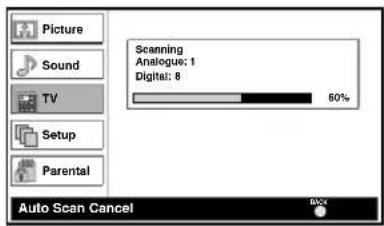

Auto Scan

DTV AT

You can scan the channels receivable in your area automatically.

1) Press [MENU] to display the menu.
2) Press [▲ / ▼] to select "TV", then press [OK].
3) Press [▲ / ▼] to select "Channel", then press [OK].
4) Press [▲ / ▼] to select "Auto Scan", then press [OK]. • Scanning will start automatically.

• When the scanning is completed, "Scan Completed" message will appear.
• If you press [MENU] during the scanning, this operation will be stopped and the lowest memorised digital channel will be displayed.
• Please note that after tuning, the analogue channels will be stored in the order that they are broadcast by your local transmitter. This may not be in the same order in which you would like them to be stored. If this is the case, you can change the order according to your preference. To do this, see "Channel Sort" on page 23.

ATV

You can adjust an analogue channel individually.

1) Press [MENU] to display the menu.
2) Press [▲ / ▼] to select "TV", then press [OK].
3) Press [▲ / ▼] to select "Channel", then press [OK].

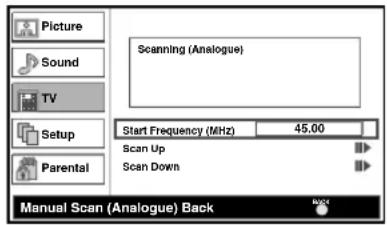

4) Press [▲ / ▼] to select “Manual Scan (Analogue)”, then press [OK].
5) Press [the Number buttons] to enter the frequency.
• To select 24, enter [0] first, then press [2] and [4].
6) Press [▲ / ▼] to select “Scan Up” or “Scan Down”, then press [OK].
- Scanning will start automatically.

- When this scanning is completed, "Scan Completed" message will appear.

7) Press [MENU] to exit.

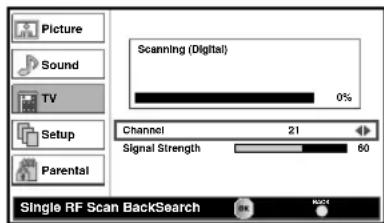

Single RF Scan

DTV

You can adjust a digital channel individually.

1) Press [MENU] to display the menu.
2) Press [▲ / ▼] to select "TV", then press [OK].
3) Press [▲ / ▼] to select "Channel", then press [OK].
4) Press [▲ / ▼] to select "Single RF Scan", then press [OK].
5) Press [◀/▶] to select the channel number you want to scan, then press [OK].
- Scanning will start automatically.

- When this scanning is completed, "Scan Completed" message will appear.

6) Press [MENU] to exit.

Update Scan

DTV AT

You can scan the updated channels automatically.

1) Press [MENU] to display the menu.
2) Press [▲ / ▼] to select "TV", then press [OK].
3) Press [▲ / ▼] to select "Channel", then press [OK].
4) Press [▲ / ▼] to select "Update Scan", then press [OK].
- Scanning will start automatically.

- When this scanning is completed, "Scan Completed" message will appear.

5) Press [MENU] to exit.

Channel List

DTV AT

You can easily find a channel you want.

1) Press [OK] while watching a programme.

- "Channel List" will appear.

	ATV
	Digital radio service
no icon	DTV

2) Press [▲ / ▼] to select the channel you want to watch.

• Press [RED] or [GREEN] to move to the previous or next page.
• Press [OK] to watch the selected programme if it is currently available.

3) Press [BACK] to exit.

Note: You can edit the channel list. Refer to page 23 to page 24.

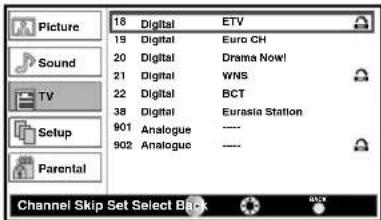

Channel Skip

DTV AT

When using [P /] , the channel you selected will be skipped.

1) Press [MENU] to display the menu.
2) Press [▲ / ▼] to select "TV", then press [OK].
3) Press [▲ / ▼] to select "Channel", then press [OK].
4) Press [▲ / ▼] to select "Channel Skip", then press [OK]. • "Channel List" will appear.

5) Press [▲ / ▼] to select the channel you want to skip, then press [OK]. • “? will appear on the right of the channel.

6) Press [MENU] to exit.

If you want to cancel

5) Press [▲ / ▼] to select the channel set to be skipped, then press [OK].
• “will disappear.
6) Press [MENU] to exit.

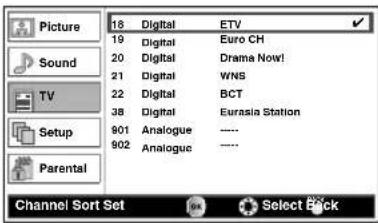

Channel Sort

DTV AT

You can change the channel order.

1) Press [MENU] to display the menu.
2) Press [▲ / ▼] to select "TV", then press [OK].
3) Press [▲ / ▼] to select "Channel", then press [OK].
4) Press [▲ / ▼] to select "Channel Sort", then press [OK]. • "Channel List" will appear.
5) Press [▲ / ▼] to select the channel you want to move, then press [OK]. • “ √” will appear on the right of the channel.

6) Press [▲ / ▼] to select the channel you want to switch, then press [OK].
• The channel order will be changed.

7) Press [MENU] to exit.

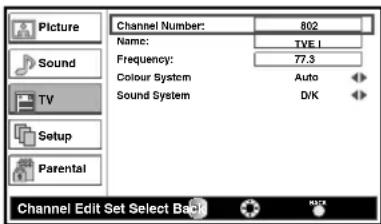

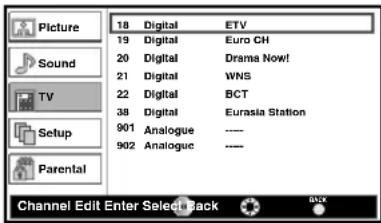

Channel Edit

DTV AT

You can edit channel information.

1) Press [MENU] to display the menu.
2) Press [▲ / ▼] to select "TV", then press [OK].
3) Press [▲ / ▼] to select "Channel", then press [OK].
4) Press [▲ / ▼] to select "Channel Edit", then press [OK]. • "Channel List" will appear.

5) Press [▲ / ▼] to select the channel you want to edit, then press [OK].

6) Press [▲ / ▼] to select your desired item.

"Channel Number"

7) Press [the Number buttons] to enter a channel number you want, then press [OK].

"Name"

7) Press [the Number buttons] to enter a channel name you want, then press [OK]. (Refer to the following character table.)

1	A	B	C	1
2	D	E	F	2
3	G	H	I	3
4	J	K	L	4
5	M	N	O	5
6	P	Q	R	6
7	S	T	U	7
8	V	W	X	8
9	Y	Z	9
0	+	-	.	0

"Frequency"

ATV

7) Press [the Number buttons] to enter a frequency you want, then press [OK].

"Colour System, Sound System"

ATV

7) Press [◀/▶] to select the setting you want.

8) Press [MENU] to exit.

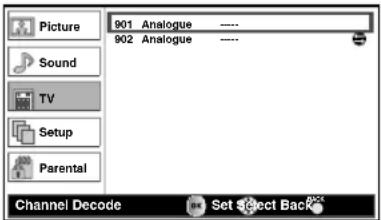

Channel Decode

ATV

Some TV stations transmit encoded TV signals which can only be viewed with a purchased or hired decoder. You can connect such a decoder to SCART jack of the unit. This function will automatically activate the connected decoder for the channel.

1) Press [MENU] to display the menu.
2) Press [▲ / ▼] to select "TV", then press [OK].
3) Press [▲ / ▼] to select "Channel", then press [OK].
4) Press [▲ / ▼] to select “Channel Decode”, then press [OK]. • “Channel List” will appear.
5) Press [ / ] to select the channel you want to allocate the decoder, then press [OK].
- “”will appear on the right of the channel.

6) Press [MENU] to exit.

If you want to cancel

5) Press [▲ / ▼] to select the channel set to decoder off. • “?” will disappear.

6) Press [MENU] to exit.

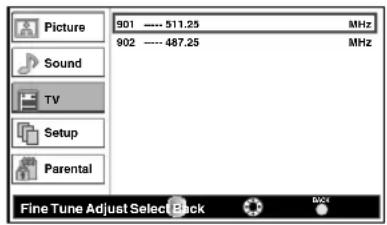

Fine Tune

ATV

1) Press [MENU] to display the menu.
2) Press [▲ / ▼] to select "TV", then press [OK].
3) Press [▲ / ▼] to select "Channel", then press [OK].
4) Press [▲ / ▼] to select "Fine Tune", then press [OK]. • "Channel List" will appear.

5) Press [▲ / ▼] to select a channel you want, then press [OK].

6) Press [◀/▶] to select a frequency you want, then press [OK]. 7) Press [MENU] to exit.

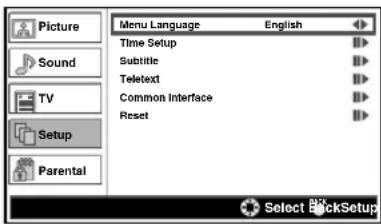

Menu Language Selection

DTV AT

You can select the menu language.

1) Press [MENU] to display the menu.
2) Press [▲ / ▼] to select "Setup", then press [OK].
3) Press [▲ / ▼] to select "Menu Language".
4) Press [◀/▶] to select the language you want.

5) Press [MENU] to exit.

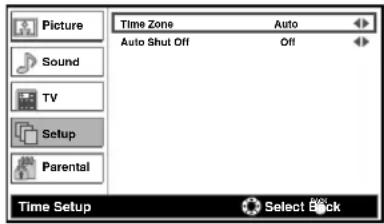

Time Zone

DTV AT

You can set the time zone according to the resident area.

1) Press [MENU] to display the menu.
2) Press [▲ / ▼] to select "Setup", then press [OK].
3) Press [▲ / ▼] to select "Time Setup", then press [OK].
4) Press [▲ / ▼] to select "Time Zone".
5) Press [◀ / ▶] to select the time difference you want.

Auto : Automatically selects the time zone of your area to ensure the proper performance of the clock.

6) Press [MENU] to exit.

Auto Shut Off

DTV AT

You can set the unit to be shut down automatically if no activity is detected after the power is turned on for 3 hours.

1) Press [MENU] to display the menu.
2) Press [▲ / ▼] to select "Setup", then press [OK].
3) Press [▲ / ▼] to select "Time Setup", then press [OK].
4) Press [▲ / ▼] to select "Auto Shut Off".
5) Press [◀/▶] to select ("On, Off"), then press [OK].

6) Press [MENU] to exit.

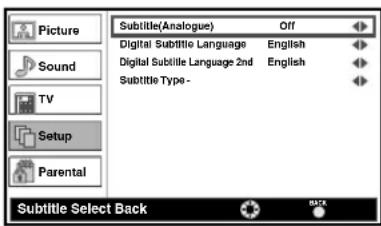

Subtitle Settings

DTV AT

1) Press [MENU] to display the menu.
2) Press [▲ / ▼] to select "Setup", then press [OK].
3) Press [▲ / ▼] to select "Subtitle", then press [OK]. • "Subtitle" menu will appear.

"Subtitle(Analogue)"

ATV

4) Press [▲ / ▼] to select "Subtitle(Analogue)".
5) Press [◀/▶] to select the setting ("Muting, On, Off") you want.

"Digital Subtitle Language, Digital Subtitle Language 2nd"

DTV

4) Press [▲ / ▼] to select the item you want.
5) Press [◀/▶] to select the language you want.

Note: While watching a programme, you can change the subtitle language easily using [☐ (subtitle)] when it is available.

"Subtitle Type"

DTV

4) Press [▲ / ▼] to select "Subtitle Type".
5) Press [◀/▶] to select the setting (“-, Hearing Impaired”) you want.
6) Press [MENU] to exit.

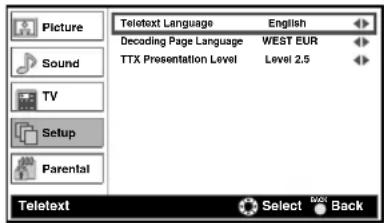

Teletext

DTV AT

You can change the teletext settings.

1) Press [MENU] to display the menu.
2) Press [▲ / ▼] to select "Setup", then press [OK].
3) Press [▲ / ▼] to select "Teletext", then press [OK]. • "Teletext" menu will appear.

"Teletext Language"

4) Press [▲ / ▼] to select "Teletext Language".
5) Press [◀/▶] to select the language you want.

"Decoding Page Language"

You can adjust the decoding paging language.

4) Press [▲ / ▼] to select "Decoding Page Language".
5) Press [◀/▶] to select the language you want.

"TTX Presentation Level"

You can adjust the teletext presentation level. Level 2.5 offers more colours and better graphics than Level 1.5.

4) Press [▲ / ▼] to select "TTX Presentation Level".
5) Press [◀/▶] to select the setting ("Level 2.5, Level 1.5") you want.

6) Press [MENU] to exit.

To show the teletext

1) Press [≡ (text)] to turn on the teletext decoder.
- “Teletext” information will appear.
2) Press [☐ (text)] repeatedly to show the teletext in transparent mode or picture and teletext mode.

Note: • If you want to select other pages, press [the Number buttons] or [▲ / ▼].
- To enlarge fonts, press [图标 (expand)].
- To select the teletext subpages, press [(subpage)] , then press [the Number buttons] to enter the subpage number.
- To directly select the page numbers shown at the bottom of the TV screen, use [RED/GREEN/YELLOW/BLUE].
- To call up the hidden information, press [ (reveal)].
- To hold the current page, press [☐ (hold)].
• To go back to the start page, press [index].
- To hide the teletext, press [SLEEP].

3) Press [☐ (text)] to turn off the teletext decoder.

C.I. (Common Interface)

DTV

This unit is equipped with a C.I. slot. You can enjoy additional services with this function, for example Pay TV. The access restrictions menu will appear on the TV screen when a CI module is installed.

1) Turn off the unit and unplug from an AC outlet.
2) Insert the CI module straight to the C.I. slot of this unit.
- Some CI modules may be a two-piece design consisting of a card reader with the viewing card. When using this kind of card, insert the card reader firmly into the C.I. slot on the unit first. Then, insert the viewing card into the reader.

3) Plug this unit into an AC outlet and press [☐ (standby-on)] to turn on the unit.
4) Press [MENU] to display the menu.
5) Press [▲ / ▼] to select "Setup", then press [OK].
6) Press [▲ / ▼] to select “Common Interface”, then press [OK].
7) Follow the instructions on the TV screen.

Note: • In case of failure, you need to call your CI service provider.

- Menu operations may vary depending on the viewing card. Refer to the manual accompanying the viewing card.

Reset Default

You can restore all the settings to the default except the memorised channels and parental settings.

1) Press [MENU] to display the menu.
2) Press [▲ / ▼] to select "Setup", then press [OK].
3) Press [▲ / ▼] to select "Reset", then press [OK].
- Confirm message box will appear.
4) Press [◀/▶] to select [OK].
- All the settings are restored to the default except the memorised channels and parental settings.
5) Press [MENU] to exit.

Parental Setting

DTV AT

You can set the maturity rating, lock the channel, or set the password.

1) Press [MENU] to display the menu.
2) Press [▲ / ▼] to select "Parental", then press [OK].
3) Press [the Number buttons] to enter the 4-digit number.

• If you have not set up your password, enter 0000.
• After entering the password, "Parental" menu will appear.

Note: If you select "Reset", all the settings (except the memorised channels) are reset to the default.

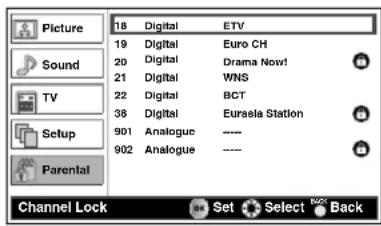

"Channel Lock"

You can set particular channels to be invisible.

4) Press [▲ / ▼] to select "Channel Lock", then press [OK].
- "Channel List" will appear.
5) Press [▲ / ▼] to select the channel you want to lock, then press [OK].
• “”will appear on the right of the channel.

6) Press [MENU] to exit.

- When you select the locked channel, you need to enter the password to watch.

If you want to unlock

4) Press [▲ / ▼] to select "Channel Lock", then press [OK].
- “Channel List” will appear.
5) Press [▲ / ▼] to select the channel you want to unlock, then press [OK].
• “will disappear.

6) Press [MENU] to exit.

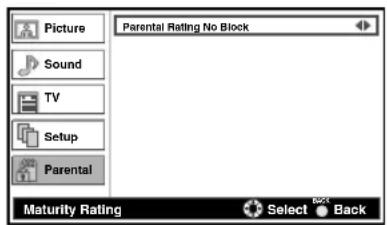

"Maturity Rating"

You can set the parental rating to avoid watching an inappropriate programme for your children.

4) Press [▲ / ▼] to select "Maturity Rating", then press [OK].
5) Press [▲ / ▼] to select "Parental Rating".
6) Press [◀/▶] to select the age restriction.

7) Press [MENU] to exit.

"Enter PIN Code"

You can set your own password.

4) Press [▲ / ▼] to select "Enter PIN Code", then press [OK].
5) Press [the Number buttons] to enter the new 4-digit number.
6) Press [the Number buttons] to enter the same 4-digit number again.

7) Press [MENU] to exit.

DTV

You can update the current software when this unit detects a new version of software.

1) When this unit receives software updates automatically, the following message will appear.

2) Press [▲ / ▼] to select "Accept", then press [▶].

- Updating will start automatically.

Note: This process may take up to 60 minutes.

3) After the "Software Download" is completed, press [▶] to restart this unit.

Panel Cleaning

- If the LCD panel should require cleaning, wipe it with a cotton or soft cloth. Before cleaning the panel, disconnect the power cord.

Servicing

- Should your unit become inoperative, do not try to correct the problem by yourself. There are no user-serviceable parts inside. Turn the unit off, unplug the power cord, and take the unit to a Service Centre for servicing.

Cabinet Cleaning

- Wipe the front panel and other exterior surfaces of the unit with a soft cloth immersed in lukewarm water and wrung dry.

- Never use a solvent or alcohol. Do not spray insecticide liquid near the unit. Such chemicals may cause damage and discoloration to the exposed surfaces.

TROUBLESHOOTING GUIDE

Sometimes a performance problem can be easily solved by checking seemingly apparent but often overlooked possibilities. Before arranging for service, check these items. It could save you time and money.

QUICK SERVICE CHECK LIST

PROBLEM

Remote Control Doesn't Work

Bars On TV Screen

Picture Distorted

Picture Rolls Vertically

No Colour

Poor Reception on Some Channels

Weak Picture

Lines or Streaks in Picture

Ghosts in picture

Picture Blurred

Sound OK, Picture Poor

Picture OK, Sound Poor

No Picture or Sound

Different colour marks on TV screen

Black or Luminous point on TV screen

Forget the password

POSSIBLE REMEDY

T r y a n e w c h a n n e l , i f O K , t

h

e

n

p

o

s

s

i

b

l

y

d

u

e

t

o

Is unit plugged in?Power at outlet?

x

x

Is unit's [∅ (standby-on)] on?

x

Is antenna connected to terminal on the back of the unit? x x x x x x

I f o u t s i d e a n t e n n a i s b e i n

g

u

s

e

d

,

c

h

e

c

k

f

o

r

b

r

Check for local interference. x x x x x x x

Turn off with [∅ (standby-on)] and then turn it on after about a minute.

x

Adjust “Colour” control.

x

Adjust “Contrast” & “Brightness” control.

x

x

Check batteries in remote control.

x

Surrounding temperature is too low.

x

x

x

Life of the Back Light is approximately 50,000 hours. Ask the Service Centre to replace.

x

x

It is quality of the LCD Panel.

x

Enter the default password “4737”.

x

General Specifications Other Specifications

Television system: PAL B/G TV standard

PAL D/K TV standard

SECAM L TV standard

SECAM L' TV standard

SECAM B/G TV standard

SECAM D/K TV standard

Terminals

S-Video input: Mini DIN 4-pin jack x 1

Video input: RCA jack x 1

Audio input: RCA jack x 4

PC input: D-Sub 15pin x 1 (RGB)

Mini jack ∅3.5 mm x 1 (AUDIO)

AUDIO/VIDEO: 21 pin scart jack x 1

Component Video

input: RCA jack x 3

HDMI input: HDMI 19pin x 2

Headphone: 1/8 inches x 1 (3.5 mm)

Stereo Sound System

2 speakers

Sound output: 3 W, 8 ohm x 2

Remote control: Digital encoded infrared light system

Power requirements: AC 220-240 V\~, 50 Hz

Power consumption: 70W (Standby: less than 1W)

LCD: 21.6 inches

Dimensions (H x W x D)

(without stand): 373.6 mm x 542.8 mm x 107.2 mm

(with stand): 411.2 mm x 542.8 mm x 210.0 mm

Weight

(without stand): 4.5 kg

(with stand): 4.8 kg

Power consumption: 55W (Standby: less than 1W)

LCD: 18.5 inches

Dimensions (H x W x D)

(without stand): 330.4 mm x 477.5 mm x 104.0 mm

(with stand): 365.8 mm x 477.5 mm x 210.0 mm

Weight

(without stand): 3.7 kg

(with stand): 4.0 kg

- Designs and specifications are subject to change without notice and without our legal obligation.

This product complies with the requirement of the directives

EMC-Directive: 2004 / 108 / EC

Low Voltage Directive: 2006 / 95 / EC

We: Funai Electric (Polska) Sp. z o.o.

ul. Inżynierska 1

Nowa Sól, 67-100 / Poland

declare that the following product:

LCD Television

Model LT7-M22BB / LT7-M22WB

Model LT7-M19BB / LT7-M19WB

Trade Name: Funai

is in compliance with following regulations.

EN55013: 2001+A1: 2003+A2: 2006

EN55020: 2007

EN61000-3-2: 2006 Class A

EN61000-3-3: 1995+A1: 2001+A2: 2005

EN60065: 2002+A1: 2006

EN55022: 2006 Class B

EN55024: 1998+A1: 2001+A2: 2003
