Product Type	Motorcycle
Brand	Kawasaki
Model	Concours 14 ABS
Engine Type	4-stroke, liquid-cooled, DOHC, 4-valve per cylinder, inline-four
Displacement	1,352 cc
Bore x Stroke	84.0 x 61.0 mm
Maximum Power	156 hp (116 kW) @ 8,800 rpm
Maximum Torque	136 N·m @ 6,200 rpm
Transmission	6-speed, return shift
Final Drive	Shaft drive
Fuel System	Fuel injection with dual 40 mm throttle bodies
Ignition	Digital TCBI with electronic advance
Front Suspension	43 mm inverted fork with adjustable compression and rebound damping
Rear Suspension	Bottom-Link Uni-Trak with adjustable preload and rebound damping
Front Brakes	Dual 310 mm petal discs with radial-mount monobloc calipers, ABS
Rear Brakes	Single 270 mm petal disc with single-piston caliper, ABS
Anti-lock Braking System	Kawasaki Advanced Coactive-braking Technology (K-ACT) with ABS
Fuel Capacity	22 L (5.8 US gal)
Curb Weight	306 kg (675 lb)
Seat Height	815 mm (32.1 in)
Overall Length	2,270 mm (89.4 in)
Overall Width	790 mm (31.1 in)
Overall Height	1,345 mm (53.0 in)
Wheelbase	1,520 mm (59.8 in)
Maintenance	Refer to owner's manual for service intervals; regular oil changes, chain/shaft maintenance, brake fluid flush
Spare Parts Availability	Genuine Kawasaki parts available through authorized dealers; high reparability.

Frequently Asked Questions - Concours 14 ABS KAWASAKI

What type of fuel is recommended for the Kawasaki Concours 14 ABS?

The Kawasaki Concours 14 ABS requires premium unleaded gasoline with an octane rating of 91 or higher (Ron method). Using lower octane fuel may cause engine knocking and reduce performance.

How often should I change the engine oil?

Kawasaki recommends changing the engine oil and filter every 6,000 miles (9,600 km) or 12 months, whichever comes first. Use API SG, SH, SJ, SL or SM grade oil with viscosity 10W-40.

What is the proper tire pressure for the Concours 14 ABS?

Recommended tire pressure is 36 psi (250 kPa) for the front and 42 psi (290 kPa) for the rear when cold. Always check pressure when tires are cold for accurate readings.

How do I adjust the suspension on my Concours 14?

The front suspension has adjustable compression and rebound damping via dials on the fork tops. The rear shock has adjustable preload (via a remote knob) and rebound damping. Refer to the owner's manual for recommended settings based on load and riding style.

Does the Concours 14 ABS have a fuel gauge?

Yes, the instrument panel includes a digital fuel gauge with low fuel warning light. The tank capacity is 22 liters (5.8 US gallons), and the reserve is typically engaged when the light comes on, leaving about 3.5 liters.

What is the correct spark plug gap?

The recommended spark plug is NGK CR9EIA-9 or equivalent, with a gap of 0.8-0.9 mm (0.031-0.035 in). Check and adjust gap during replacement.

How do I activate the K-ACT braking system?

The K-ACT (Kawasaki Advanced Coactive-braking Technology) operates automatically. When you apply the front brake, the system also applies a portion of the rear brake for stable braking. No manual activation is needed; just use the brake controls normally.

What type of coolant does the Concours 14 use?

Use a high-quality ethylene glycol-based coolant specifically designed for aluminum engines, mixed 50/50 with distilled water. Kawasaki recommends a silicate-free coolant to prevent water pump seal damage. Capacity is approximately 3.4 liters.

How do I check and adjust the drive shaft oil?

The final drive shaft uses a hypoid gear oil. Check level via the fill plug on the rear drive housing. Recommended oil is SAE 80W-90 GL-5. Drain and replace every 12,000 miles (19,200 km).

Where can I find replacement parts and accessories?

Genuine Kawasaki parts and accessories are available through authorized Kawasaki dealers. Online sources include the official Kawasaki parts portal and reputable aftermarket suppliers. Always use OEM or equivalent quality parts for safety and performance.

USER MANUAL Concours 14 ABS KAWASAKI

Read this manual carefully. It contains safety information.

Kawasaki

QuickReferenceGuide

ThisQuickReferenceGuidewill assistyouinfindingtheinformation you'relookingfor.

SAFETYINFORMATION

GENERALINFORMATION

ATableofContentsisincludedafter theForeword.

Wheneveryouseethesymbols shownbelow,heedtheirinstructions! Alwaysfollowsafeoperatingandmaintenancepractices.

DANGER

DANGERindicatesahazardous situationwhich,ifnotavoided, willresultindeathorseriousinjury.

WARNING

WARNING indicates ahazardous situation which, if not avoided, could result in deathor serious injury.

NOTICE

NOTICEisusedtoaddressprac- ticesnotrelatedtopersonalin- jury.

NOTE

○NOTEindicatesinformationthatmay helporguideyouintheoperationor serviceofthevehicle.

WARNING

Engineexhaust, some of its constituents, and certain vehicle components contain a remit chemicals known to the State of Californiatocause cancer and birth defects or other reproductive harm.

NOTICE

THISPRODUCTHASBEEN MANUFACTUREDFORUSEINA REASONABLEANDPRUDENT MANNERBYAQUALIFIEDOPERATORANDASAVEHICLE ONLY.

This is productcontainsthe encryption algorithm "MISTY" developedbyMITSUBISHIELECTRIC CORPORATION.

Foreword

Congratulations on your purchase of a new Kawasaki motorcycle. Your new motorcycle is the product of Kawasaki's advanced engineering, exhaustive testing, and continuous striving for superior reliability, safety and performance.

PleasereadthisOwner'sManualcarefullybeforeridingsothatyouwillbe thoroughlyfamiliarwiththeproperoperationofyourmotorcycle'scontrols,itsfeatures, capabilities, and limitations. This manual offers many safe riding tips, but its purpose is not to provide instruction in all the techniques and skills required to ride amotorcyclesafely.Kawasakistronglyrecommendsthatalloperatorsofthisvehicleenrollinamotorcycleridertrainingprogramtoattainawarenessofthemental andphysicalrequirementsnecessaryforsafemotorcycleoperation.

Toensurealong, trouble-freelifeforyourmotorcycle, giveitthepropercare and maintained described in this manual. For those how would likemoredetailed information on their Kawasaki Motorcycle, a Service Manual is available for purchase from any authorized Kawasaki motorcycle cycle dealer. The Service Manual contains detailed disassembly and maintenance information. Those who plant todo their own work should, of course, be competent mechanics and possess the special tools described in the Service Manual.

KeepthisOwner'sManualaboardyourmotorcycleatalltimessothatyoucan refertoitwheneveryouneedinformation.

Thismanualshouldbeconsideredapermanentpartofthemotorcycleandshould remainwiththemotorcyclewhenitissold.

Allrightsreserved. Nopartofthispublicationmaybereproducedwithoutour priorwrittenpermission.

This publication includes the latest information available at the time of printing. However, there may be minor differences between the actual product and illustrations and text in this manual.

Allproductsaresubjecttochangewithoutpriornoticeorobligation.

KAWASAKIHEAVYINDUSTRIES,LTD. Motorcycle&EngineCompany

©2017KawasakiHeavyIndustries,Ltd.May17,2017.(1)

EmissionControllInformation

Toprotecttheenvironmentinwhichwealllive,Kawasakihasincorporated crankcaseemission(1)andexhaustemission(2)controlsystemsincompliance withapplicableregulationsoftheUnitedStatesEnvironmentalProtectionAgency andCaliforniaAirResourcesBoard.Additionally,Kawasakihasincorporated anevaporativeemissioncontrolsystem(3)incompliancewithapplicableregulationsoftheUnitedStatesEnvironmentalProtectionAgencyandCaliforniaAir ResourcesBoard.

1. CrankcaseEmissionControlSystem

This system eliminates the release of crank case vapors into the atmosphere. Instead, the vaporsarerouted through an oil separator to the intakeside of the engine. While the engine is operating, the vapors are drawn into the combustion chamber, where they are burned along with the fuel and air supplied by the fuel injection system.

2. ExhaustEmissionControlSystem

This system reduces the amount of pollutants discharged into the atmosphere bytheexhaustofthismotorcycle. The fuel, ignition and exhaust system so this motorcycle have been carefully designed and constructed to ensure an efficient engine with low exhaust pollutant levels. The exhaust system of this model motor-cycle includes acatalytic convertersystem.

3.EvaporativeEmissionControlSystem

Theevaporativeemissioncontrolsystemforthisvehicleconsistsoflowperme-ationfuelhosesandfueltank.

3.EvaporativeEmissionControlSystem(California)

Vaporscausedbyfuelevaporationinthefuelsystemarenotventedintothe atmosphere. Instead, fuelvaporsareroutedintotherunningenginetobeburned, orstoredinacanisterwhentheengineisstopped.

HighAltitudePerformanceAdjustmentInformation

HighAltitudeadjustmentisnotrequired.

MaintenanceandWarranty

Propermaintenanceisnecessarytoensurethatyourmotorcyclewillcontinueto havelowemissionlevels. ThisOwner'sManualcontainsthosemaintenancerecommendationsforyourmotorcycle. ThoseitemsidentifiedbythePeriodicMaintenanceChartarenecessarytoensurecompliancewiththeapplicablestandards.

As the owner of this motorcycle, you have the responsibility to make sure that therecommended maintenance is carried out according to the instructions in this Owner's Manual at your own expense.

TheKawasakiLimitedEmissionControlSystemWarrantyrequiresthatyoureturnyourmotorcycletoanauthorizedKawasakidealerforremedyunderwarranty. Pleasereadthewarrantycarefully, and keepitvalidbycomplyingwiththeowner's obligationsitcontains.

Youshouldkeepamaintenancerecordforyourmotorcycle.Toassistyouin keepingthisrecord,wehaveprovidedspaceonpages266through273ofthis manualwhereanaauthorizedKawasakidealer,orsomeoneequallycompetent,can recordthemaintenance.Youshouldalsoretaincopiesofmaintenanceworkorders, bills,etc.,asverificationofthismaintenance.

TamperingWithNoiseControlSystemProhibited

Federallawprohibitsthefollowingactsorthecausingthereof:(1)theremovalor renderinginoperativebyanypersonotherthanforpurposesofmaintenance,re-pair,orreplacement,ofanydeviceorelementofdesignincorporatedintoanynew vehicleforthepurposeofnoisecontrolpriortoitssaleordeliverytotheultimate purchaser or while it is in use, or (2) the use of the vehicle after such device or elementofdesignhasbeenremovedorrenderedinoperativebyanyperson.

Amongthoseactspresumedtoconstitutetamperingaretheactslistedbelow:

*Replacementoftheoriginalexhaustsystemormufflerwithaccomponentnotin compliancewithFederalregulations.

*Removalofthemuffler(s)oranyinternalportionofthemuffler(s).

*Removaloftheairboxorairboxcover.

* Modifications to the muffler(s) or air intake system by cutting, drilling, or other meansifsuchmodificationsresultinincreasednoiselevels.

TABLEOFCONTENTS

SAFETYINFORMATION....13

ReadOwner'sManual....13

Training....13

DailyChecksandPeriodic Maintenance....13

Loading and Accessories Information....14

Passenger....15

BaggageandLuggage......16

Accessories......16

OtherLoad....17

If You are Involved in an Accident....17

SafeOperation....18

CarbonMonoxideHazard......18

Fueling....19

NeverRidewithDrugsorAlcohol.19

ProtectiveGearandClothing.....19

SafeRidingTechniques......20

AdditionalConsiderationsforHigh SpeedOperation....23

GENERALINFORMATION......25

Specifications....25

SerialNumberLocations......29

LocationofLabels....30

LocationofParts......43

MeterInstruments....46 Indicators....47

Speedometer/Tachometer......66

CoolantTemperatureGauge......67

DisplaySetting......68

Features......83

KIPASS(Kawasaki's Intelligent Proximity Activation Start System)89

SpareFOB....104

IgnitionSwitch....106

RightHandlebarSwitches......112

LeftHandlebarSwitches......113

GripWarmer....115

HeadlightAimingAdjusterKnob.....117

AccessorySocket/Connectors......118

BrakeLeverAdjuster......121

ClutchLeverAdjuster......121

Fuel....122

FuelRequirements......122

FillingtheTank....125

SideStand....128

CenterStand....128

Seat....129

SpecialWarningontheUseof StorageCaseandSaddlebags (Accessory)....131

Saddlebags(Accessory)....133

StorageCase....139

RearCarrier....141

ToolKitCompartment......143

AirCleanerIntake....143

Windshield....143

HOWTORIDETHEMOTORCYCLE. 1 4 7

Break-In....147

StartingtheEngine....148

MovingOff....151

ShiftingGears....151

Braking....153

KawasakiAdvanced Coactive-brakingTechnology (K-ACT)-Anti-lockBrakeSystem (ABS)....154

StoppingtheEngine....156

StoppingtheMotorcycleinan Emergency....157

Parking....158

KawasakiTRactionControl(KTRC).160

MAINTENANCEANDADJUSTMENT164

DailyChecks....166

PeriodicMaintenance....169

EngineOil....174

FinalGearCaseOil....178

Coolant....181

AirCleaner....184

ThrottleControlSystem......206

IdleSpeed....209

Clutch....210

Brakes....211

BrakeLightSwitches......213

SuspensionSystem......215

FrontFork......215

RearShockAbsorber......217

SettingTables......220

Wheels....224

Battery....227

Headlight....239

Fuses....240

GeneralLubrication....243

Cleaning....244

GeneralPrecautions....244

WheretobeCareful....248

WashingYourVehicle......248

APPENDIX....250

Storage....250

TroubleshootingGuide......253

Your Warranty/Owner Satisfaction...258

ReportingSafetyDefects......264

EnvironmentalProtection....265

ReadthisOwner's Manualcarefullybeforeridingsothatyouwillbe thoroughlyfamiliarwiththeproperoperationofyourmotorcycle'scontrols, itsfeatures,capabilities,andlimitations.Thismanualoffersmanysafe ridingtips,butitspurposeisnottoprovideinstructioninallofthetechniques andskillsrequiredtorideamotorcycle safely.

Training

Kawasakistronglyrecommendsthat alloperatorsofthisvehiclecompletea suitablemotorcyclerider training program to learn the proper skills and techniques necessary for safe motorcycle operation.

Daily Checks and Periodic Maintenance

It is important to keep your motorcycle-cle properly maintained and safer id-ing condition. Inspect your motorcycle before every ride and carry out all periodic maintenance. See the Daily Checks section and the Periodic Maintenance section in the MAINTENANCE AND ADJUSTMENT chapter form more information.

WARNING

Failuretoperformthesechecks orto correcta problembefore operation may result in serious damageoranaccident.Always performdailychecksbeforeoperation.

14SAFETYINFORMATION

To ensure your motorcycle is serviced using the latest servicing information, it is recommended that an authorized Kawasaki Dealer performs the periodic maintenance as directed in the Owner's Manual.

If you notice any irregular operating condition, have your motorcycle thoroughly checked at an authorized Kawasaki idealer as soon as possible.

Loading and Accessories Information

WARNING

Incorrectloading, improperinstallationoruse of accessories, ormodificationof your motorcycle may result in an unsafe riding condition. Beforeyouridethe motorcycle,makesureitisnot overloadedandthatyouhave followedtheseinstructions.

Maximum Load

Weightofrider, passenger, baggage, and accessories must not exceed 228 kg (503lb).

With the exception of genuine Kawasaki Parts and Accessories, Kawasakihasnocontroloverthe designor application of accessories. Insomecases,improperinstallation

SAFETYINFORMATION15

oruseofaccessories,ormotorcycle modification,willvoidthemotorcycle warranty;cannegativelyaffectperformance,stabilityandsafety;andcan evenbeillegal.

Inselecting and using accessories, and in loading the motorcycle, you are personally responsible for your own safety and the safety of other persons involved.

NOTE

○KawasakiPartsandAccessories havebeenspeciallydesignedfor useonKawasakimotorcycles. We stronglyrecommendthatallparts and accessories you motorcycle be genuine Kawasaki components.

Becauseamotorcycleissensitiveto changesin weight and aerodynamic forces, you must take extremecare in carrying cargo, passengers and/orin

fittingadditionalaccessories. The followinggeneralguidelineshavebeen preparedtoassistyouinmakingyour determinations.

Passenger

1. Never carry more than one passenger.
2. The passenger should only sit on the pillion.
3. Anypassengers should be thoroughly familiar with motorcycle operation. The passenger can affect control of the motorcycle by improper positioning during cornering and sudden movements. It is important that the passengers still while the motorcycle is in motion and not interfered with the operation of the motorcycle. Donot carry animals on your motorcycle.

16SAFETYINFORMATION

1. Donotcarrypassengersunless passengerfootpegsareinstalled. Instructanypassengerbeforeriding tokeephisorherfeetonthepas-sengerfootpegsandholdontothe operatororgrabrail. Donotcarry apassengerunlessheorsheistall enoughtoreachthefootpegswith theirfeet.

BaggageandLuggage

1. Allbaggageshouldbecarriedas lowaspossibletoreducetheeffect onthemotorcycle'scenterofgravity.Baggageweightshouldalsobe distributedequallyonbothsidesof themotorcycle.Avoidcarryingbag-gagethatextendsbeyondtherear ofthemotorcycle.
2. Baggages should be securely attached. Makes sure that the baggage

will not move around while you are riding. Recheck bagages security as often as possible (not while the motorcycle is in motion) and adjust as necessary.

1. Donotcarryheavyorbulkyitems onaluggagerack. It is designed for light items, and overloading can affect handling dueto changes in weight distribution and aerodynamic forces.

Accessories

1. Donotinstallaccessoriesorcarry baggage that impairs the performanceofthemotorcycle. Make surethatyouhavenotadversely affectedanylightingcomponents, road clearance,banking capability (i.e.,leanangle),controloperation, wheeltravel, frontforkmovement,

oranyotheraspectsofthemotorcycle'soperation.

1. Weightattachedtothehandlebars orfrontforkwillincreasethemass ofthesteeringassemblyandcan resultinanunsaferidingcondition.
2. Fairings, windshields, backrests, and other large item shavethecapability of adversely affecting stability and handling of the motorcycle, not only dueto their weight, but also dueto the aerodynamic force acting on these surfaces while the motorcycle is in operation. Poorly designed or installed item scan result in an unsaferiding condition.

OtherLoad

1. This motorcycle is not intended to be equipped with aside carortobe

SAFETYINFORMATION17

usedtotowanytrailersorotherve- hicles. Kawasakidoesnotmanu- facturesidecarsortrailersformo- torcyclesandcannotpredicttheef- fectsofsuch accessories on han- dlingorstability,butcanonlywarn thattheeffectscanbeadverseand that Kawasaki cannot assume re- sponsibilityfortheresultsofsuch unintendeduseofthemotorcycle.

1. Furthermore, any adverse effects on motorcyclecomponentscausedby theuseofsuchaccessorieswillnot beremediedunderwarranty.

If You are Involved in an Accident

Makesureofyouownsafetyfirst. Determinetheseverityofanyinjuries andcall foremergency assistance if needed. Alwaysfollowapplicablelaws

18SAFETYINFORMATION

andregulationsifanyotherperson,vehicleorpropertyisinvolved.

Donotattempttocontinueriding withoutfirstevaluatingyourmotorcycle'scondition.Inspectforfluidleaks, checkcriticalnutsandbolts,andcheck thehandlebars,controllevers,brakes, andwheelsfordamageandproper function.Rideslowlyandcautiously -yourmotorcyclemayhavesuffered damagethatisnotimmediatelyapparent.Haveyourmotorcyclethoroughly checkedataKawasakidealerassoon aspossible.

SafeOperation

The followings should be carefully observed for safe and effective vehicle operation.

CarbonMonoxideHazard

DANGER

Exhaustgascontainscarbon monoxide, acolorless, odorlesspoisonousgas. Inhaling carbon monoxide can cause serious brain injury or death. DONOTruntheengineinen-closedareas. Operateonlyina well-ventilatedarea.

Fueling

WARNING

Gasolineisextremelyflammable and can be explosive under certain conditions. To avoid a possible fireorex-plosion, turn the ignitions switch off. Donotsmoke. Makesure the area is welliven free from any source of flame or sparks; this includes any appliance with apilotlight.

NeverRidewithDrugsorAlcohol

Alcoholanddrugsimpairyourjudgmentandreactiontime.Neverconsumealcoholordrugsbeforeorwhile ridingmotorcycles.

ProtectiveGearandClothing

t i |Helmetd a n d

Kawasakistrongly recommends both the operator and passenger wear a DOT-approved helmet even if this is not a legal requirement.

• Make sure that your helmet fits correctly and improperly fastened.
• Chooseamotorcyclehelmetthat meetsDOTsafetystandards.Ask yourmotorcycledealertoadvise youifnecessary.

20SAFETYINFORMATION

EyeProtection

Alwaysuseeyeprotection.Ifyour helmetdoesnothaveadvisorinstalled, weargoggles.

Gloves

Weargloveswhichhavesuitable protectionforyourhands,especially againstabrasion.

Clothing

Weartheridingwearwhichhave protectorsforeachpartsofthebody (chest,shoulders,back,elbowsand knees,etc.)asmuchaspossible,or wearprotectorsforthem.

-Alwayswearalong-sleevedjacket andlongtrouserswhichareabrasionresistantandkeepyouwarm.
-Wearclothingthatallowsfreedom ofmovement.
-Avoidwearingclotheswhichhave loosecuffsorotherfastenings

which could interfere with the control so of your motorcycle. -Wearbright, highly visible clothing.

Boots

Wearproperprotectivebootsthatfit properlyandonotinterferewithgear shiftingorbraking.

SafeRidingTechniques

KeepHandsonHandlebars

Whenridingalwayskeepbothhands onthehandlebarsandbothfeetonthe footpegs.Removing yourhands from thehandlebarsor feetfromthe foot- pegswhileridingcanbehazardous.If you remove even one hand or foot, you reduceyourabilitytocontrolthemotorcycle.

SAFETYINFORMATION21

LookOverYourShoulder

Beforechanginglanes,lookover yourshouldertomakesuretheway isclear.Donotrelysolelyontherear viewmirror;youmaymisjudgeavehicle'sdistanceandspeed,oryoumay notseeitatall.

AccelerateandBrakeSmoothly

Ingeneralyouractionsshouldbe smoothassuddenacceleration,brakingorturningmaycauselossofcontrol, especiallywhenridinginwetconditions oronlooseroadsurfaces,whenthe abilitytomaneuverwillbereduced.

SelectCorrectGearSpeeds

Whengoingupsteepslopes, shift to alower gear so that there is powerto sparer rather than overloading the engine.

UseBothFrontandRearBrakes

When applying the brakes, use both the front and rear brakes. Applying only one brake for sudden braking may cause them motor cycle to sit and lose control.

UseEngineBrake

Whengoingdownlongslopes, help controlvehiclespeedbyclosingthe throttlesothattheenginecanactasan auxiliarybrake. Usethefrontandrear brakesforprimarybraking.

RidinginWetConditions

Relymoreonthethrottletocontrol vehiclespeedandlessonthefrontand rearbrakes. Thethrottleshouldalsobe usedjudiciouslytoavoidskiddingthe rearwheelfromtoorapidacceleration ordeceleration.

Brakingperformanceisalsoreduced inwetconditions. Carefullyrideata

22SAFETYINFORMATION

slowspeedandapplythebrakesseveraltimestohelpdryandrestoresthem tonormaloperatingperformance.

RidePrudently

Ridingattheproperspeedandavoidingunnecessarilyfastaccelerationare importantnotonlyforsafetyandlow fuelconsumptionbutalsoforlongvehiclelifeandquieteroperation.

RidingonRoughRoads

Exercisecaution, slowdown, and gripthefueltankwiththekneesfor betterstability.

Acceleration

When quick acceleration is necessary topassanother vehicle, shift to alower gear to obtain the necessary power.

Downshifting

To avoidenginedamage and rear wheellock-updonotdownshift at high rpm.

Avoid Unnecessary Weaving

Unnecessaryweavingjeopardizes thesafetyofboththeriderandother motorists.

SAFETYINFORMATION23

Additional Considerations for HighSpeed Operation

WARNING

Handlingcharacteristicsofa motorcycleathighsp varyfromthoseyouarefamiliar withatlegalhighwayspeeds. Donotattempthighspeedoper- ationunlessyouhavereceived sufficienttrainingandhavethe requiredskills. Donotoperateathighspeedson publicroads.

Brakes

The importance of the brakes, especially during high speed operation, cannot be overemphasized. Check to

seethattheyarecorrectlyadjustedand functioningproperly.

Steering

Loosenessinthesteeringcancause lossofcontrol.Checktoseethatthe handlebarsturnsfreelybuthasnoplay.

e e Tiresn a y

Highspeedoperationishardontires, andgoodtiresarecrucialforsaferiding.Examinetheiroverallcondition,inflatethemtotheproperpressure,and checkthewheelbalance.

Fuel

Havesufficientfuelforthehighfuel consumptionduringhighspeedoperation.

EngineOil

To avoidenginese seizure and resulting loss of control, makes sure that the oil level is at the upper levelline.

24SAFETYINFORMATION

Coolant

To avoid overheating, check that the coolant level is at the upper levelline.

Electrical Equipment

Makesurethattheheadlight, tail/brake light, turn signals, horn, etc., allworkproperly.

Miscellaneous

Makesurethatallnutsandboltsare tightandthatallsafetyrelatedpartsare ingoodcondition.

GENERALINFORMATION

Specifications

PERFORMANCE

MinimumTurningRadius 3.2m(10.5 ft)

DIMENSIONS

Overall length 2 2 3 0 mm 7.80in.)

OverallW idth 790mm(31 .1in.)

(withsad dlebags) [1000mm( 39.37in.)]

Overall Height/HighPosition 1345mm(52.95in.)/1465mm(57.68in.)

Wheelbase 1520m n59.84in.)

RoadCle arance 125mm(4 .92in.)

CurbMas s 305kg(73b)

(withs addlebags) [313kg (690lb)]

ENGINE

Type DOHC,4-cylinder,4-stroke,liquid-cooled

Displacement 1352cm ³ (82.50cuin.)

26GENERALINFORMATION

Bore×Stroke84.0×61.0mm(3.3×2.4in.)

CompressionRatio10.7:1

StartingSystemElectricstarter

CylinderNumberingMethodLefttoright,1-2-3-4

FiringOrder1-2-4-3

FuelSystemFI(FuelInjection)

IgnitionSystemBatteryandcoil(transistorizedignition)

Ignition Timing 10°BTDC@1100r/min(rpm)\~ 36.8°BTDC@3800 (Electronicallyadvanced) r/min(rpm)

SparkPlug: Type NGKCR9EIA-9

Gap 0.8 \~ 0.9 mm (0.031 \~ 0.035 in.)

LubricationSystemForcedlubrication(wetsump)

EngineOil: Type APISG,SH,SJ,SLorSMwithJASOMA,MA1orMA2

Viscosity SAE10W-40

Capacity 4.7L(5.0USqt)

CoolantCapacity 3.4L(3.6USqt)

GENERALINFORMATION27

TRANSMISSION

TransmissionType6-speed, constantmesh, returnshift

ClutchTypeWet, multidisc

DrivingSystemShaftdrive

PrimaryReductionRatio1.556(84/54)

FinalReductionRatio2.036(14/22×32/10)

OverallDriveRatio3.402(Topgear)

GearRatio:1st3.538(46/13)

2nd2.412(41/17)

3rd1.900(38/20)

4th 1.545(34/22)

5th 1.292(31/24)

6th 1.074(29/27)

FRAME

Caster 26°

Trail 112mm(4.41in.)

28GENERALINFORMATION

TireSize:Front120/70ZR17M/C(58W)

Rear190/50ZR17M/C(73W)

RimSize:Front17M/C×MT3.50

Rear17M/C×MT6.00

FuelTankCapacity22L(5.8USgal)

BrakeFluid:FrontDOT4

RearDOT4

ELECTRICALEQUIPMENT

Battery 12V14Ah(10HR)

Headlight:HighBeam12V60W×2

LowBeam 12V55W×2

Brake/TailLight

LED

Even if one of LED (Light Emitting Diode) brake/tail light does not go on, consult with an authorized Kawasakiidealer.

Specificationsaresubjecttochangewithoutnotice.

SerialNumberLocations

Theengineandframeserialnumbersareusedtoregisterthemotorcycle. They aretheonlymeansofidentifyingyourparticularmachinefromothersofthesame modeltype. Theseserialnumbersmaybeneededbyyourdealerwhenordering parts. Intheeventoftheft, theinvestigatingauthoritieswillrequirebothnumbers aswellasthemodeltypeandanypeculiarfeaturesofyourmachinethatcanhelp themidentifyit.

EngineNo.

A. EngineNumber

FrameNo.

A.FrameNumber

30GENERALINFORMATION

LocationofLabels

Allwarninglabelswhichareonyour vehiclearerepeatedhere.Readlabels onyourvehicleandunderstandthem thoroughly.Theycontaininformation whichisimportantforyoursafety and thesafetyofanyoneelsewhomayoperateyourvehicle.Therefore,itisvery importantthatallwarninglabelsbeon yourvehicleinthelocationsshown.If anylabelismissing,damaged,orworn, getareplacementfromyourKawasaki dealerandinstallitinthecorrectposition.

NOTE

○ Thesamplewarninglabelsinthis sectionhavepartnumberstohelp youandyourdealerobtainthecorrectreplacement.

○ Refertotheactualvehiclelabelfor modelspecificdatagrayedoutinthe illustration.

1. ClutchFluid
2. BrakeFluid(Front)

GENERALINFORMATION31

1. BrakeFluid(Rear)
2. BatteryPoison/Danger
3. RearShockAbsorberWarning

32GENERALINFORMATION

6.RadiatorCapDanger
7.FuelNotice
8. Vehicle Emission Control Information
9.TireandLoadData

GENERALINFORMATION33

10.FOBStorageNotice
11.RearCarrierLoadLimitWarning
12.RearCarrierLoadWarning
13.SaddlebagLockWarning

34GENERALINFORMATION

14.SaddlebagNotice
15. SaddlebagLoadLimitWarning (attachedinsideofthesaddlebag)
16. SaddlebagLoadWarning(attached insideofthesaddlebag)
17. Saddlebag Lid Notice (attached inside of the saddlebag)
18. WeightandManufacture
19. NoiseEmissionControlInformation

GENERALINFORMATION35

*20.FuelLevel
*21.VacuumHoseRoutingDiagram

*:onlyonCaliforniamodel

36GENERALINFORMATION

1)

2)

3)

GENERALINFORMATION37

4)5)

TE03294D S

WARNING

This unit contains high pressure nitrogen gas.

Wishandling can cause explosion.

- Do not incinerate, puncture or open.

AVERTISSEMENT

1. ReadOwner's Manual, seepage 13
2. Donot storage FOB, seepage 139

GENERALINFORMATION39

11)

12)

TE03132E S

40GENERALINFORMATION

13)

14)

15)

16)

TE03136E S

17)

18)

GENERALINFORMATION41

19)

20)onlyonCaliforniamodel

42GENERALINFORMATION

21)onlyonCaliforniamodel

59464-0706
TE03176E S

LocationofParts

This manual is based on the vehicle equipped with the saddlebags of the accessories.

1. ClutchLever
2. StarterLockout Switch
3. ClutchFluid Reservoir
   4.HeadlightAiming AdjusterKnobs
   5.MeterInstruments

4. AccessorySocket

5. BrakeFluidReservoir (Front)
   8.FrontBrakeLever
   9.ThrottleGrip
   10.RightHandlebar Switches
   11.SpringPreload Adjusters
   12.ReboundDamping ForceAdjusters

13.KeyKnob
14. AccessoryConnector
15.LeftHandlebar Switches
16.GripWarmer Temperature AdjustmentDial
17.StorageCase

44GENERALINFORMATION

TD01373B G

1. AirCleanerIntake

2.Headlight

3.TurnSignalLights

4.SparkPlugs

5.AirCleaner

6.FuelTank

7.Seat

8.SeatLock

9.ToolKitCompartment

10.RearCarrier

11.Tail/BrakeLight

1. LicensePlateLight

13.FinalGearCase

14.SpringPreload Adjuster

15.ReboundDamping ForceAdjuster

16.SideStand

17.ShiftPedal

18.IdleAdjustingScrew

19.CoolantReserveTank

20.BrakeCaliper

21.BrakeDisc

22.FrontFork

GENERALINFORMATION45

TD013748 G

1.Saddlebag
(Accessory)
2.FuseBoxes
3.Battery
4.FuelTankCap
5.Windshield

6.OilLevelInspection Window
7. Rear Brake Pedal
8.RearShockAbsorber
9. RearBrakeLight Switch

1. CenterStand
   11.Swingarm
2. BrakeFluidReservoir (Rear)
   13.Muffler

46GENERALINFORMATION

MeterInstruments

1. MultifunctionMeter
   2.Tachometer
2. UpperMeterButton
3. LowerMeterButton
   5.Speedometer
   6.CoolantTemperatureGauge
   7.EconomicalRidingIndicator
   8.GearPositionIndicator

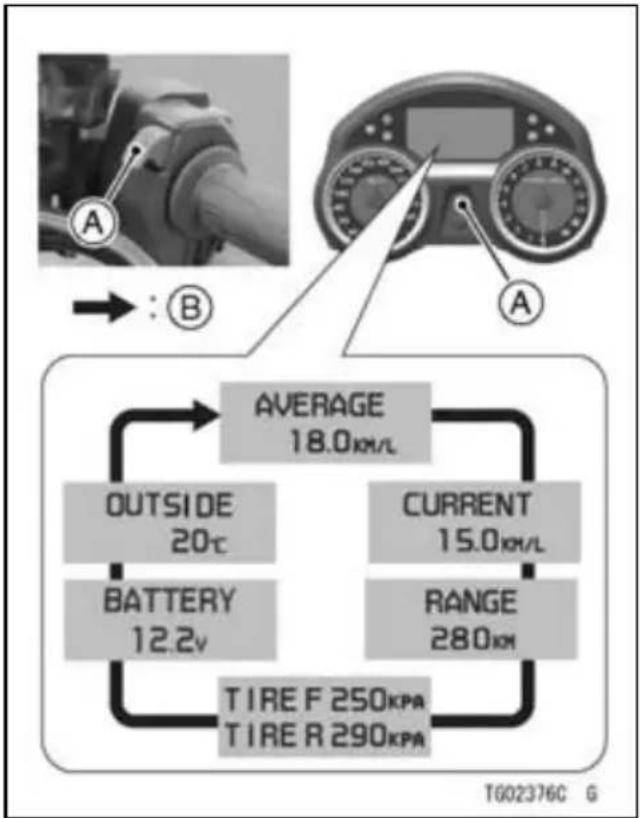

4. MultifunctionDisplay

-AverageMileage/CurrentMileage/Cruising Range
-TireAirPressure
-BatteryVoltage
-OutsideTemperature

10.FuelGauge
11.K-ACTABSModelIndicator(Mode1/2)
12. Clock
13.FuelEconomyAssistanceIndicator

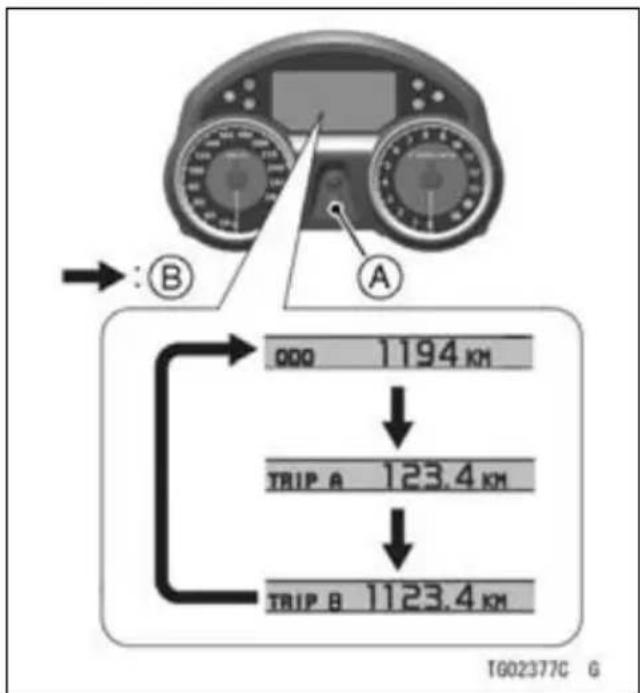

14.Odometer/TripMeters(TripMeterA/B)

Whentheignitionswitchisturnedon, "Kawasaki" isdisplayedforthreeseconds, thenthemultifunction meterturnstooperationalmode.

TG02367C G

Indicators

1. LeftTurnSignal Indicator(Gree
2. N NeutralIndicator (Green)
3. Warning Indicator/Immobilizer Indicator(Red)
4. OilPressureWarning Indicator(Red)
5. ☑ HighBeamIndicator (Blue)
6. RightTurnSignal Indicator(Green)
7. (AIS) K-ACTABSIndicator (Yellow)
8. KTRCKTRCIndicator (Yellow)
9. CoolantTemperature WarningIndicator
10. FuelLevelWarning Indicator
11. FI FIWarningIndicator

TG02550C G

48GENERALINFORMATION

12.

-ImmobilizerWarning Indicator

-ECUIDWarningIndicator

-SteeringLockWarning Indicator

-SteeringLockIDWarning Indicator

-SubkeyIDWarningIndicator

13.

-TireAirPressureWarning Indicator

-TireAirPressureSensor WarningIndicator

-TireAirPressureSensor BatteryWarningIndicator

14.

-K-ACTABSWarning Indicator

-KTRCWarningIndicator

1. -⑪: FOBWarning Indicator

2. TransponderLow BatteryWarningIndicator

3. BatteryWarning Indicator

TG02551C G

GENERALINFORMATION49

IndicatorInitialOperationWhentheignitionswitchisturnedon,

allindicatorsgoon/offasshowninthe table.Ifanyindicatordoesnotoperate asshown,haveitcheckedbyanauthorizedKawasakidealer.

ON			Indicators
			N (ARS)*
			KTRC

ON:Whenignitionswitchisturnedon.

Afterafewseconds

:Whenenginestarts.

□ :Goeson.

■ :Goesoff.

* : (AIS) goesoffshortyafterthe motorcyclestartsmoving.

50GENERALINFORMATION

NOTE

○ Whenotherthanaboveindicators appear,therecouldbeaproblem withvehiclefunction.Refertothe

"WhenWarningIndicatorsGoOnor BlinkandWarningMessagesDisplay."

GENERALINFORMATION51

WhenWarningIndicatorsGoOn orBlinkandWarningMessages Display

When warning indicators and warning messages appear, there could be problem with vehicle function.

Followactionsinthetableafterstoppingthevehicleinasafeplace.

*:Thenumbersinthiscolumncorrespondstoreferencenumbersonpage47 and48.

*No.	Indicators	Status	MessagesActions
3		Blink	– ( None )	Ifthisindicatorblinkswhilepushingthestarter button,thevehicle-downsensorhasbeen trippedandtheenginecannotbestarted.Turn the ignition switchoff and then ba theengine.

52GENERALINFORMATION

*No.	Indicators	Status	MessagesActions
4		ON-(None)		Thisindicatorgoesonwhenevertheoilpressure isdangerouslyloworthekeyknobisinthe “ON”positionwiththeenginenotrunning.If thisindicatorgoesonwhentheenginespeed isaboveidle,stoptheengineimmediatelyand checktheengineoillevel.Iftheamountof engineoilisinsufficient,addengineoil.Iftheoil levelisgood,havetheenginecheckedbyan authorizedKawasakidealer.
7		Blink	-(None)	TheK-ACTsystemhasmalfunctioned.K-ACT systemwillnotworkbutABSfunction.Ifthis indicatorblinks,chargethebattery.Ifitstill blinksafterchargingthebattery,havetheK-ACT systemcheckedbyanauthorizedKawasaki dealer.

GENERALINFORMATION53

*No.	Indicators	Status	MessagesActions
9	[SDWD]	ON	HIGH TEMP	Theall6segmentsaredisplayedandstart blinking,andthecoolanttemperaturewarning indicatorandmessagearedisplayedalternately inthemultifunctionmeter,stoptheengineand checkthecoolantlevelinthereservetank aftertheenginecoolsdown.Iftheamountof thecoolantisinsufficient,addcoolanttothereservetank.Ifthecoolantlevelisgood,have thecoolingsystemcheckedbyanauthorized Kawasakidealer.
	[DAOK][AT&T]	Blink (including all segments)
10	[STXY]	ON	FUEL LOW	Thelowestsegment(E)blinkandfuellevel warningindicatorandmessagearedisplayed alternatelyinthemultifunctionmeterwhen approximately4.0L(1.1USgal)ofusablefuel remains.Refuelattheearliestopportunity.If thevehicleisonthesidestand,thewarning indicatorandwarningmessagecannotestimate theamountoffuelinthetank.Standthevehicle uprighttocheckthefuellevel.
	[SKYY]	Blink

54GENERALINFORMATION

*No.	Indicators	Status	MessagesActions
113	[T8TW]	ON	FIERROR	Ifthewarningindicator/immobilizerindicator goesonandtheFlwarningindicatorand messagearedisplayedalternatelyinthe multifunctionmeter,theDFIsystemhas malfunctioned.HavetheDFIsystemchecked byanaauthorizedKawasakidealer.
123	[DTBK]	ON	IMMOBILIZERERROR	Ifthewarningindicator/immobilizerindicator goesonandtheimmobilizerwarningindicator andmessagearedisplayedalternatelyinthe multifunctionmeter,theimmobilizersystemhas malfunctioned.Havetheimmobilizersystem checkedbyanaauthorizedKawasakidealer.
123Blink		ON	ECUIDERROR	Ifthewarningindicator/immobilizerindicator blinksandtheECUIDwarningindicatorand messagearedisplayedalternatelyinthe multifunctionmeter,theFIECUisnotcorrectly communicated.HavetheFIECUcheckedby anauthorizedKawasakidealer.

GENERALINFORMATION55

*No.	Indicators	Status	MessagesActions
123		ON	STEERING LOCK ERROR	Ifthewarningindicator/immobilizerindicator goesonandthesteeringlockwarningindicator andmessagearedisplayedalternatelyinthe multifunctionmeter,theignitionswitchunithas malfunctioned.Havetheignitionswitchunit checkedbyanauthorizedKawasakidealer.
123Blink		ON	STEERING LOCKID ERROR	Ifthewarningindicator/immobilizerindicator blinksandthesteeringlockIDwarningindicator andmessagearedisplayedalternatelyinthe multifunctionmeter,theignitionswitchunitis notcorrectlycommunicated.Havetheignition switchunitcheckedbyanauthorizedKawasaki dealer.
12ON			SUBKEYID ERROR	Ifthewarningindicator/immobilizerindicator blinksandthesubkeyIDwarningindicator andmessagearedisplayedalternatelyinthe multifunctionmeter,theFOBisnotcorrectly communicated.UsetheregisteredFOBor registeredspareFOB.Iftheystilldisplayed, consultanauthorizedKawasakidealer.
3Blink	[3KY6]

56GENERALINFORMATION

*No.	Indicators	Status	MessagesActions
133		ON	LOW PRESSURE TIREF	Ifthewarningindicator/immobilizerindicator goesonandthetireairpressurewarning indicatorandmessagearedisplayedalternately inthemultifunctionmeter, thefronttireair pressureisapproximately220kPa(32psi)or less.Adjustthetireairpressureretostandard value.RefertotheWheelssectioninthe MAINTENANCEANDADJUSTMENTchapter. Whentireairpressureisapproximately230kPa (33psi)ormore, indicatorandmessageisnot displayed.
133		ON	LOW PRESSURE TIRER	Ifthewarningindicator/immobilizerindicator goesonandthetireairpressurewarning indicatorandmessagearedisplayedalternately inthemultifunctionmeter, thereartireair pressureisapproximately220kPa(32psi)or less.Adjustthetireairpressureretostandard value.RefertotheWheelssectioninthe MAINTENANCEANDADJUSTMENTchapter. Whentireairpressureisapproximately230kPa (33psi)ormore, indicatorandmessageisnot displayed.

GENERALINFORMATION57

*No.	Indicators	Status	MessagesActions
133		ON	TIRE PRESSURE SENSOR:F ERROR	Ifthewarningindicator/immobilizerindicator goesonandthetireairpressuresensorwarning indicatorandmessagearedisplayedalternately inthemultifunctionmeter,thefronttireair pressuresensorhasmalfunctioned.Havethe fronttireairpressuresensorcheckedbyan authorizedKawasakidealer.
133		ON	TIRE PRESSURE SENSOR:R ERROR	Ifthewarningindicator/immobilizerindicator goesonandthetireairpressuresensorwarning indicatorandmessagearedisplayedalternately inthemultifunctionmeter,thereartireair pressuresensorhasmalfunctioned.Havethe reartireairpressuresensorcheckedbyan authorizedKawasakidealer.
13		ON	TIRE PRESSURE SENSOR:F LOW BATTERY	Thisindicatorandmessagearedisplayed alternatelyinthemultifunctionmeter,ifthe batteryvoltageofthefronttireairpressure sensorislow.Havethebatteryreplacedby anauthorizedKawasakidealer.Whentireair pressuresensorbatteryisdischarged,indicator andmessageisnotdisplayed.

58GENERALINFORMATION

*No.	Indicators	Status	MessagesActions
13		ON	TIRE PRESSURE SENSOR:R LOW BATTERY	Thisindicatorandmessagearedisplayed alternatelyinthemultifunctionmeter,ifthe batteryvoltageofthereartireairpressure sensorislow.Havethebatteryreplacedby anauthorizedKawasakidealer.Whentireair pressuresensorbatteryisdischarged,indicator andmessageisnotdisplayed.
143	[DS76]	ON	KTRC ERROR	Ifthewarningindicator/immobilizerindicator goesonandtheKTRCwarningindicator andmessagearedisplayedalternatelyinthe multifunctionmeter,theKTRCsystemhas malfunctioned.HavetheKTRCsystemchecked byanauthorizedKawasakidealer.
147	[CS42]	ON*2	K-ACTABS ERROR	IftheK-ACTABSindicatorgoesonandthe K-ACTABSwarningindicatorandmessageare displayedalternatelyinthemultifunctionmeter, theK-ACTABSsystemhas malfunctioned. K-ACTABSwillnotworkbutconventional brakesfunction.HavetheK-ACTABSsystem checkedbyanauthorizedKawasakidealer.

GENERAL INFORMATION 59

*No.	Indicators	Status	MessagesActions
153		ON*3	NOTRANSPON-DER*4	Thewarningindicator/immobilizerindicator goesonandtheFOBwarningindicatorand messagearedisplayedalternatelyinthe multifunctionmeterwhentheenginestops(The motorcyclegoesawaywithoutcarryingthe FOB,FOBbatteryisdischarged,ortheFOB cannotcorrectlycertified.).Usetheregistered spareFOB.Iftheystilldisplayed,consultan authorizedKawasakidealer.

60GENERALINFORMATION

*No.	Indicators	Status	MessagesActions
16		ON	TRANSPON-DER LOW BATTERY	Thisindicatorandmessagearedisplayed alternatelyinthemultifunctionmeter,ifthe batteryvoltageoftheFOBislow.Replaceethe FOBbattery.RefertotheBatteryReplacement intheKIPASSsectioninthischapter.
17		ON	LOW BATTERY	Thisindicatorandmessagearedisplayed alternatelyinthemultifunctionmeter,ifthe batteryvoltageislessthan10Vormorethan 16V.Ifthevoltageislessthan10V,charethe battery.Ifthevoltageismorethan16V,orif theystilldisplayafterchargingthebattery,have thebatteryand/orchargingsystemcheckedby anauthorizedKawasakidealer.

GENERALINFORMATION61

*1:WarningIndicator/ImmobilizerIndicatorNote

When pushing the lower meter button with the upper meter button held in while the warningmessageandwarningindicatorwithoutthewarningindicator/immobilizer indicatoraredisplayedalternatelyinthemultifunctionmeter,thedisplay inthemultifunctionmeterisshiftedtothepreviousdisplayandwarning indicator/immobilizerindicatorgoesonfornoticingthewarningmessageleaves.
○ The warning message and warning indicator are displayed by rolling the message in the multifunction meter when more than two warning messages and warning indicatorsinthemultifunctionmeteraredisplayed.Whenrollingthewarning messageandwarningindicator,thewarningmessageshiftstotheotherwarning messagebypushingtheuppermeterbutton.

*2: K-ACTABSindicatormaygoon:

○ Aftercontinuousridingonaroughroad.
○ Whentheengineisstartedwiththestandraisedandthetransmissionengaged, andtherearwheelturns.
○ When accelerating so abruptly that the front wheel leaves the ground.
○ WhentheK-ACTABShasbeensubjectedtostrongelectricalinterference.
○ Whentirepressureisabnormal.Adjusttirepressure.
○ Whenatiredifferentinsizefromthestandardsizeisbeingused.Replacewith standardsize.
○ Whenthewheelisdeformed.Replacethewheel.

62GENERALINFORMATION

Ifthishappens, firstturntheignitionswitchoff, and thenbackon, andridethe motorcycle at 5 km/h (3.1 mph) or more. The K-ACT ABS indicator should then go off. If it does not, havetheK-ACTABS checked by an authorized Kawasakidealer.

*3: FOBwarnin gindicatorisdisplayedinthemultifunctionmeterfor10seconds.

○ FOBisnotnearthemotorcycleandtheenginecanbestartedagainwhile displayingtheFOBwarningindicator.
○ The engine cannot be started when the FOB warning indicator displays became to offafter10secondspassed.
○ If the motorcycle cannot be started after the FOB warning indicator is displayed for 10 seconds, usethespareFOBorconsultanaauthorizedKawasakidealer for starting the engine.

*4: If the motorcycle goes away with the FOB left, the FOB warning message is displayed. Ifitisdisplayed, checkwheretheFOBisafterthemotorcyclestops. TheFOBwarningmessageisdisplayedwhenthemotorcyclegoesawaywiththe FOBleft,andthevehiclespeedisover20km/h(12mph),moreoverthevehicle speedhasthestableacceleration.

GENERALINFORMATION63

OtherIndicators

*No.	Indicators	Status
1	[TCDC]	Whenteturnsignalswitchispushedtotheleft,thisindicatorblinks.
2	[CXBV]	When the transmission is in neutral, this indicator goes on.
3	[CCBW]	Whentheignitionswitchisturnedoff,thisindicatorwillstartblinking *1, whichindicatesthattheimmobilizersystemisfunctioning.After24 hours, the red warning indicator/immobilizer indicator will stop blinking. However,theimmobilizersystemisstillfunctioning.
5	[62x7]	Whentheheadlightisonhighbeam,thisindicatorgoeson.
6	[088V]	Whenteturnsignalswitchispushedtotheright,thisindicatorblinks.

64GENERALINFORMATION

*1: Theredwarningindicator/immobilizerindicatorblinkingmodecanbesettoeither onoroff.

○ Tostoptheredwarningindicator/immobilizerindicatorblinking,turntheignition switch off and then, within twenty seconds, push and hold the upper and lower meterbuttonssimultaneouslyformorethantwoseconds.
○ Whenthebatteryisconnected, redwarningindicator/immobilizerindicator defaultstoblinkingmode.
○ Whenthebatteryvoltageislow(below12V),theredwarning indicator/immobilizerindicatorautomaticallystopsblinkingtopreventexcessive batterydischarge.

GENERALINFORMATION65

OtherIndicatorsandMessages

*No.	Indicators	Status	MessagesActions
8	KTRC	OFF- ( None)		TheKTRCfunctionisturnedon.
		ON- ( None)		TheKTRCfunctionisturnedoff.
		Blink (slowly)	- ( None)	TheKTRCself-diagnosishasnotbeen completed.RefertotheKawasakiTRactionControl(KTRC)sectionintheHOWTORIDETHEMOTORCYCLEchapter.
		Blink (quickly)	KTRC WORKING	TheKTRCisoperating.
			KTRC SLOW DOWN	WhentheriderpurposelyoperatestheKTRCfor extendedtimeperiods,thismessageisdisplayed inthemultifunctionmeterandtheengineoutput isfurtherrestricted.Whenthiscoccurs,release thethrottlegripuntilthisindicatorstopsblinking. Keepingthethrottleopenedinspiteofthe warningcouldcausemotorcyclefailure.

Speedometer/Tachometer

A.Speedometer

B.Tachometer

C.RedZone

Speedometer

Thespeedometershowsthespeed ofthevehicle.

Tachometer

Thetachometershowstheengine speedinrevolutionsperminute(r/min, rpm).

NOTICE

Enginespeedshouldnotbeallowedtoentertheredzone;operationintheredzonewilloverstresstheengineandmaycause seriousenginedamage.

Whentheignitionswitchisturnedon, thespeedometerandtachometerneedlesmomentarilysweepfromthemiminumtothemaximumreading, then backtheminimumreadingtocheck themoperation. If theydonotoperate correctly, havethemcheckedbyanauthorizedKawasakidealer.

CoolantTemperatureGauge

Thecoolanttemperatureoftheenginecoolantisshownbythenumberof segmentsdisplayedbetweenC(cold) andH(hot).

A.Segments
B.C(Cold)
C.H(Hot)
D. WarningIndicator/ImmobilizerIndicator

GENERALINFORMATION67

NOTICE

Stoptheengineiftheallsegmentsblinkandcoolanttemperaturewarningindicatorandmessagearedisplayed.Prolongedengineoperationwill resultinsevereenginedamage fromoverheating.

NOTE

○ Whenthecoolantoftheengineis cold, the lowest segmentis displayed. Asthecoolanttemperature goeshot, thesegmentsdisplayfrom C(cold) to H(hot).
○ Whentheall6segmentsaredis-playedandstartblinking, and the coolanttemperaturewarningmessage and indicator are displayed alternatelyinthemultifunctionmeter, refertothe "WhenWarningIndicatorsGoOnorBlinkandWarning

68GENERALINFORMATION

MessagesDisplay"intheIndicators sectioninthischapter.

○ Ifthe3segmentsblinkingalternately, thecoolanttemperaturewarningsystemhasmalfunctioned. Havethe coolanttemperaturewarningsystem checkedbyanauthorizedKawasaki dealer.
Whenpushingthelowermeterbuttonwiththeuppermeterbuttonheldinwhilethecoolanttemperaturewarningmessageandindicatoraredisplayedalternatelyinthemulti-functionmeter,thedisplayinthemultifunctionmeterisshiftedtothepreviousdisplayandthenthe warning indicator/immobilizer indicator goeson.
○ Thecoolanttemperaturewarning messageandindicatoraredisplayed byrollingthemessageinthemulti-functionmeterwhenmorethantwo

warningmessagesandwarningindicators in the multifunction meter are displayed. When rolling the warning messageandwarningindicator, the warningmessageshiftstothe other warningmessagebypushingthe uppermeterbutton.

Display Setting

MeterButtonsandMeterMode Button

Themeterbuttonsandmetermode buttononthelefthandlebarswitches areusedtooperatethevariousfunctionsdisplayinthemultifunctionmeter.

WARNING

Forsafety, donotoperatethe meterbuttonswhileridingthe motorcycle.

A. UpperMeterButton
B. LowerMeterButton
C.MetermodeButton

With these buttons you can select desired functions. Refertoeach section for procedure for selection.

GENERALINFORMATION69

Functions	MeterButtons		Meter Mode Button
	UpperL	Lower
Multifunction DisplayMode	●	-	●
Odometer	-	●	-
TripMeters(Trip MeterA/B)	-	●	-
Language/Unit/Wind-shield/ClockSetting	●	●	-
FuelEconomy AssistanceMode	-	-	●

MultifunctionDisplay

- Push the upper meter but lectthedisplaymodes. Thedisplay modescanbeshiftedinthefollowing order.

70GENERALINFORMATION

NOTE

○ Themultifunctiondisplayisdis-playedintheunitdependingonthe unitsetting.
○ Youcanalsoselectdesireddisplay modeswithmetermodebuttonon thelefthandlebarswitches.

A. UpperMeterButton/MeterModeButton
B. Flowwhenpushinguppermeterormeter modebutton

- Pushthelowermeterbuttontosselectthedisplaymodes. Thedisplay modescanbeshiftedinthefollowing order.

NOTE

○ Themultifunctiondisplayisdis-playedintheunitdependingonthe unitsetting.

GENERALINFORMATION71

A. LowerMeterButton
B.Flowwhenpushinglowermeterbutton

72GENERALINFORMATION

AverageMileage(AVERAGE)

Thisdisplayshowstheaveragefuel consumptionfromthereset.Theaveragemileagedisplayisrenewedevery 5seconds.
- Pushtheuppermeterbuttonorthe metermodebuttontodisplaytheaveragemileage.

A.AverageMileage

Toresettheaveragemileage:

- Pushtheuppermeterbutton and holditinuntiltheaveragemileage valuesresetsto“—.—.”

NOTE

○ Whenthebatteryisdisconnected, theaveragemileageresetsto“—.-.”
○ Afterresettingtheaveragemileage, thenumericalvalueisnotdisplayed untilthevehiclehastravelled100m (328ft).

CurrentMileage(CURRENT)

The current mileaged display is renewed every 4 seconds.

- Pushtheuppermeterbuttonorthe metermodebuttontodisplaythecurrentmileage.

A.CurrentMileage

NOTE

○ Whentheignitionswitchisturnedon, thenumericalvalueshows“—.-.” Afterafewsecondsofridingthenumericalvalueisdisplayed.

CruisingRange(RANGE)

Thisdisplayshowsthecruisingrange bynumericalvalue, andindicate the cruising range from theremaining fuel in the fueltank. Thiscruising range display is renewed every 10 seconds.

- Pushtheuppermeterbuttonorthe metermodebuttontodisplaythe cruisingrange.

A. CruisingRange

GENERALINFORMATION73

- Whenthefueltankisfull, all these segments (6 segments) in the fuel gauge are displayed, and then, (+) is added to the numerical value of the cruising range.

A. “(+)” Display

NOTE

○ Thecruisingrangevalueisnolonger shownifthefuellevelgetstoolow afterthelowestsegment(E)blinks andthefuellevelwarningindicator andmessagedisplaysalternatelyin themultifunctionmeter.
○ Torecoverthecruisingrangevalue displayaddfueltoatleastthelevel neededforthelowestsegment(E)to

74GENERALINFORMATION

stopblinkingandthefuellevelwarningindicatorandmessagegetostop displaying. Thecruisingrangemay stillbedisplayedwithalowfuellevel, butitwillnotbeaccurateuntilenough fuelisaddedtostopthelowestsegment(E)fromblinkingandthefuel levelwarningindicatorandmessage fromdisplaying.

TireAirPressure(TIREF,TIRER)

Thisdisplayshowsthetireairpressure. Thisvaluedisplayedinthismeter is shownbyridingatapprox.20km/h (12mph)ormoreand1 minutepassed. Thisdisplayisforindicatorifthetire airpressureisnotlowwhileriding.

TIRREF:FrontTireAirPressure

TIRER: Rear Tire Air Pressure

- Pushtheuppermeterbuttonorthe metermodebuttontodisplaythetire airpressure.

A. TireAirPressure

NOTE

○The tire air pressure c playedupto350kPa(50psi).
○ Donotrefertothevalueofthetire airpressuredisplayedinthismeter form measuringthetireairpressure. Because this value may not show the value of the actual time air pressure. This values should be referred only whileeriding.
○ Thevalueofthetireairpressuredisplayedinthismetermayshowhigher orlowervaluethanthestandardtire airpressure. Whenmeasuringthe tireairpressure,refertotheWheels

GENERALINFORMATION75

sectionintheMAINTENANCEAND ADJUSTMENTchapter.

○ Whenreplacingthewheel, checkthe tireairpressureisdisplayed.
○ Thetireairpressuresensorhasthe radiowave.Innoisyareaorhigh-intensityradiowavearea,thetireair pressuremaynotdisplaycorrectly.
○ Ifthetireairpressureisnotcorrectly displayedwhileriding,havethetire airpressuresensorcheckedbyan authorizedKawasakidealer.

BatteryVoltage(BATTERY)

Thisdisplayshowsthebatteryvoltage.

- Pushtheuppermeterbuttonorthe metermodebuttontodisplaythebatteryvoltage.

A. Battery Voltage

NOTE

○ Thebatteryvoltagemaynotbedis-playedcorrectlyinthismeterwhen the battery voltage is less thormorethan16V.
○ Thebatteryvoltageshowninthisdisplaymay differfromthe numerical valuemeasuredbytheanotherdevice.

Outside Temperature(OUTSIDE)

Thisdisplayshowstheoutsidetemperaturebynumericalvalue. Theoutsidetemperaturedisplayis renewed every5seconds.

76GENERALINFORMATION

- Pushtheuppermeterbuttonorthe metermodebuttontodisplaytheoutsidetemperature.

A. Outside Temperature

NOTE

○ Theoutsidetemperaturecanbedisplayedfrom-20°C(-4°F)to60°C (140°F).
○ Theoutsidetemperaturemaynot bedisplayedcorrectlyinthismeter whenthevehiclestops,orthespeed is20km/h(12mph)orless,orimmediatelyafterenginestart.

Odometer/TripMeters(Trip MeterA/B)

Odometer

Theodometershowsthetotaldistance. Thismetercannotbereset.

NOTE

○ Whenthefigurescometo999999, thedisplayisstoppedandlocked.

TripMeter

GENERALINFORMATION77

Toresetthetripmeter:

- Pushthelowermeterbuttonandhold itinuntilthedisplayturnsto0.0.

NOTE

○ Whenthetripmeterreaches999.9 (TRIPA), or 9999.9 (TRIPB) while riding, themeterresetsto0.0 and continuescounting.

Language/Unit/Windshield/Clock Setting

NOTE

○ Thesesettingscannotbeshifted whileriding. Operatethesesetting withthevehiclestopped.
○ Theunitsettinginthemultifunction displaycanbechangedaccordingto localregulations.Makesuretheunit settingiscorrectlydisplayedbefore riding.

LanguageSetting: Language (ENGLISH, FRANCAIS, DEUTSCH, ITALIANO)

Thelanguagedisplayedinthemulti-functionmetercanbechangedamong English, French, GermanandItalianin thisLanguageSettingMenu.

• Pushtheupperandlowermeterbuttonssimultaneouslyfor2seconds.
• Alignthecursorandselectlanguage to display bypassing the lower meter button.
• Pushtheuppermeterbutton,ifadvancingtotheunitsettingforchangingtheunitofthetireairpressure, mileageandoutsidetemperature,or settingthewindshieldandtheclock.
• Pushtheupperand lowermeterbuttonssimultaneouslyfor2seconds,if notadvancingtotheotherunitsetting.

78GENERALINFORMATION

A.LanguageSetting
B.Cursor
C.Flowwhenpushinglowermeterbutton
D.Flowwhenpushinguppermeterbutton

UnitSetting: TIREPRESSURE(KPA, PSI)

• Pushtheuppermeterbuttonontoalign thecursorto"TIREPRESSURE"aftersettingthelanguage.
• Push the upper meter button and holdituntil“TIREPRESSURE”displayblinks.
• Selecttheunittodisplaybypushingthelowermeterbutton. Theunit shiftsasthefollowingorder.

A. Flowwhenpushinglowermeterbutton

- Pushtheuppermeterbuttontoset thedisplayunitaftersetting.

NOTE

○ Donotoperatethevehiclewiththe multifunctionmeterdisplayinginthe wrongunit.
○ Afterchangingtheunitsetting, the tireairpressureunitinthemultifunctionmeterisalsochanged.

UnitSetting:MILEAGE(KM/L, L/100KM,MPGUSA,MPGUK)

• Pushtheuppermeterbuttonontoalign thecursoro "MILEAGE" aftersetting thelanguage.
• Pushtheuppermeterbutton and holdituntil"MILEAGE" display blinks.
• Selecttheunittodisplaybypushingthelowermeterbutton. The unit shiftsasthefollowingorder.

GENERALINFORMATION79

A. Flowwhenpushinglowermeterbutton

- Pushtheuppermeterbuttontoset thedisplayunitaftersetting.

80GENERALINFORMATION

NOTE

○ Donotoperatethevehiclewiththe multifunctionmeterdisplayinginthe wrongunit.
○ Afterchangingtheunitsetting, the odometer, tripmetersandmileage unitinthemultifunctionmeter are alsochanged.

UnitSetting: OUTSIDETEMP(°C, °F)

• Pushtheuppermeterbuttonontoalign thecursoro to "OUTSIDETEMP" after settingthelanguage.
• Pushtheuppermeterbutton and holdituntil"OUTSIDETEMP"displayblinks.
• Selecttheunittodisplaybypushingthelowermeterbutton.Theunitshiftsasthefollowingorder.

A. Flowwhenpushinglowermeterbutton

- Pushtheuppermeterbuttontoset thedisplayunitaftersetting.

NOTE

○ Donotoperatethevehiclewiththe multifunctionmeterdisplayinginthe wrongunit.
○ Afterchangingtheunitsetting, the outsidetemperatureunitinthemultifunctionmeterisalsochanged.

WindshieldSetting:WINDSHIELD SET(1,2,3,4)

The initial position of the windshield can be selected from 4 standard positions.

1BottomPosition(BasicPosition)

2MiddlePosition

33/4fromBottomPosition

4TopPosition

• Pushtheuppermeterbuttonontoalign thecursoro to "WINDSHIELDSET" after setting the language.
• Pushtheuppermeterbutton and holdituntil"WINDSHIELDSET"displayblinks.
• Selecttheinitialpositionofthewindshieldfromanyofthestandard4positionsbypushingthelowermeter button. Thesettingpositionshiftsin thefollowingorder.

GENERALINFORMATION81

A.Flowwhenpushinglowermeterbutton

- Push theupper meterbutton toset thedisplayunitaftersetting.

82GENERALINFORMATION

NOTE

○ When the engine start shieldmovestothesetpositionautomatically.
○ Ifthekeyknobisturnedto"ON"soon afteritisturnedto"OFF,"thewindshieldmaynotmovecorrectly. Turn thekeyknobto"OFF"againtomove thewindshieldtoacorrectposition.

WARNING

Windshieldmovement can trap thehandsandfingersandcause injury. Whentheignitionswitch is turned to the “OFF” position, the windshield automaticallymovestothebottomposition. Keephands and fingers awayfromthewindshieldwhen switchingtheignitionto“OFF.”

ClockSetting: CLOCK

Toadjusttheclock:d -

• Pushtheuppermeterbuttonontoalign the cursor to "CLOCK" after setting the language.
• Push the upper meter button and holdituntilboththehourandminute displaysblink.

TG02392C G

• Pushthelowermeterbuttontoselect thehourorminutedigits.
• Push the upper meter button to adjust the hour or minute digits.
• To finish the adjustment, push the up-permeterbuttonwhenboththehour andminutedigitsblink.

NOTE

○ Whenthebatteryisdisconnected, theclockisresetto1:00andstarts workingagainwhenthebatteryis connected.

Features

FuelGauge

Thefuelinthefueltankisshownby thenumberofsegmentsdisplayedbetweenE(empty)andF(full).

GENERALINFORMATION83

A.Segments

B.E(Empty)

C.F(Full)

D. WarningIndicator/ImmobilizerIndicator

NOTE

○ Whenthefueltankisfull, all these segments are displayed. Asthefuel level in the tank goes down, these segments disappear one by one from F (full) to E (empty).
○ Whenthelowestsegment(E)start blinking, and the fuel level warning

84GENERALINFORMATION

messageandindicatoraredisplayed alternatelyinthemultifunctionmeter, refertothe“WhenWarningIndicatorsGoOnorBlinkandWarningMessagesDisplay”intheIndicators sectioninthischapter.

○ Ifthe3segmentsblinkingalternately, thefuellevelwarningsystemhas malfunctioned. Havethefuellevel warningsystemcheckedbyanauthorizedKawasakidealer.
Whenpushingthelowermeterbuttonwiththeuppermeterbuttonheldinwhilethefuellevelwarningmessageandindicatoraredisplayedalternatelyinthemultifunctionmeter,thedisplayinthemultifunctionmeterisshiftedtothepreviousdisplayandthenthewarningindicator/immobilizerindicatorgoeson.

○ Thefuellevelwarningmessageand indicatoraredisplayedbyrollingthe

messageinthemultifunctionmeter whenmorethantwowarningmessagesandwarningindicatorsinthe multifunctionmeteraredisplayed. Whenrollingthewarningmessage andwarningindicator,thewarning messageshiftstotheotherwarning messagebypushingtheuppermeterbutton.

GearPositionIndicator

Thisdisplayshowsthecorrespondinggearpositionwhenthetransmissionisshifted. Asthetransmissionis shifted, thecorrespondinggearposition(1st\~ 5th, OD) is shown in this display. Whenthetransmissionisinneutral, "N" is displayed, and then eutral indicator goes on.

1	Whenthetransmissionisin1st gear,“1”isdisplayed.
2	Whenthetransmissionisin2nd gear,“2”isdisplayed.
3	Whenthetransmissionisin3rd gear,“3”isdisplayed.
4	Whenthetransmissionisin4th gear,“4”isdisplayed.
5	Whenthetransmissionisin5th gear,“5”isdisplayed.
OD	WhenthetransmissionisinOver Drivegear,“OD”isdisplayed.

A. GearPositionIndicator B. NeutralIndicator

GENERALINFORMATION85

NOTE

○ If the gear position display in them multifunction meters shows “☐,” the transmission is not properly shifted to 1st. Besuretoshift the transmission.

K-ACTABSModeIndicator (Mode1/2)

TherearetwoK-ACTABSmodes (mode1, mode2) wherebrakingeffortisdifferentdependingonindividual tasteorrunningconditions. Formore detailedinformationabouttheK-ACT ABSsystem, refertotheKawasaki AdvancedCoactive-brakingTechnology(K-ACT)-Anti-lockBrakeSystem (ABS)sectionintheHOWTORIDE THE MOTORCYCLE chapter.

StandardMode(Mode1):

Linkeffectonthefrontbrakeislower thanmode2fromtheinitialtomidrear

86GENERALINFORMATION

brakepedalstroke.Bestsuitableon windingroads.

HighCombinedMode(Mode2):

Linkeffectonthefront/rearbrakeis heightenedfromthebeginningofthe rearbrakepedalstroke.Bestsuitable fortouring,carryingapassenger,and theexpressway.

- PushandholdtheK-ACTABSbutton toswitchtheK-ACTABSMode.

A.K-ACTABSButton

B.K-ACTABSModelIndicator(Mode1)

C.K-ACTABSModelIndicator(Mode2)

D.FlowwhenpushingK-ACTABSbutton

NOTE

○ Themodecanonlybechangedwhen thevehiclestopped.
○ Themodesettingismaintainedthe ignitionswitchisturnedoff.
○ WhentheK-ACTABSindicatoris blinking, theK-ACTABShasbeen inthelowvoltagemode(thebattery

GENERALINFORMATION87

voltagedrecreases). Whenitisinthe lowvoltagemode, the K-ACT system does not function, but the ABS functions. The ignitionswitchisturned offtorecover the K-ACT system. At thistime, the battery must be in the normal condition. If the low voltage mode continues, you should have the K-ACT ABS checked by an authorized Kawasakiidealer.

○ Whenthebatteryvoltageislow, the K-ACTABSmodemaynotbeable tobechanged. Theignitionswitch mustbeturnedofftorecoverthe function.
○ K-ACTABSmodeindicators(mode 1/mode2)displayedonmultifunctionmetergooffifK-ACTfunctionis

suspended(forexample, lowbattery modeetc.).

EconomicalRidingIndicator

Whenridingthemotorcycleefficiently, the economical riding indicator appears on them multifunction meterto indicate favorable fuel consumption. Monitoring the economical riding indicator can help theider maximumize fuel efficiency.

A. Economical Riding Indicator

88GENERALINFORMATION

WARNING

Failingtoproperlyobservethe roadaheadincreasesthechance ofanaccidentresultinginse- vereinjuryordeath.Donotcon- centrateontheeconomicalrid- ingindicatorbytakingyoureyes offtheroad;observeusingpe- ripheralvision.

FuelEconomyAssistance Indicator

Thismotorcycleisequippedwitha fueleconomyassistancemodethat helpsmaximizefuelefficiency.Activatingthefueleconomyassistance modechangestoaleanerfuelinjection mapthatprioritizesfueleconomyover ride-ability. The fuel economy assistancemodecanbeactivatedusingthe metermodebuttononthelefthandlebarswitcheswhenrpmislessthan6

000, throttlepositionislessthan30 percentandvehiclespeedislessthan 250km/h(155mph). Whenthefuel economyassistancemodefunctionis effective, thefueleconomyassistance indicatorappearsonthemultifunction meter.

- Push and hold the meter mode buttontoswitchthefueleconomyassistancemode"ON/OFF."

A.MeterModeButton
B.FuelEconomyAssistanceIndicator
C.Flowwhenpushingmetermodebutton

NOTE

○ Riderinput affects vehicle fuel efficiency. Fuel consumption may

changeduetosuddenstartorquick acceleration.

○ Activating the fueleconomy assistancemodedecreaseshorsepower.
○ If "knocking" or "pinging" occurs, use adifferentbrandofgasolineorhigher octanerating.

NOTICE

Useminimumof90octanegasolineonlytopreventsevereen-ginedamage.

GENERALINFORMATION89

KIPASS(Kawasaki's Intelligent Proximity Activation Start System)

Thismotorcyclehas the KIPASS, which can start the engine and lock the steering without taking out the ignition key by only carrying the FOB (portable key).

ThissystemcontainsoftheFOB, KIPASSECU, KeyKnob.

NOTE

○ Whenthebatteryisdischargedor takenofffromthemotorcycle, this systemcannotlockorunlockthe steeringlock.

90GENERALINFORMATION

A.FOB(PortableKey)
B.KIPASSECU
C.KeyKnob

Startingtheengine

This system can start the engine by the user ID certification (mutual certification between themotorcycle and

FOBisperformedbyradiowave, and certifiesiftheFOBisproperlycodedfor themotorcycle).

A.FOB(PortableKey)

GENERALINFORMATION91

WARNING

KIPASSmayinterferewiththe operationofcertainmedical devices suchasimplanted pacemakersandimplantedcardiacdefibrillators.TheFOBor KIPASSECUmustbekeptmore than22cm(9in.)fromthese typeofmedicaldevicestoavoid interference.Donotcarrythe FOBinyourbreastpocket.Operatorswithmedicaldevices suchaspacemakersandimplantedcardiacdefibrillators shouldconsult with theirdoctorsbeforeuse.

A.FOB(PortableKey) B.KIPASS ECU (Under Seat)

FOB(PortableKey)

TheFOBofthismotorcyclehas the emergency ignition key (mechanical key). The emergency ignition key should be inserted into the FOB. When thekeyknobislost,etc,theignition key can be used as the emergency key.

92GENERALINFORMATION

UptosixFOBscanberegistered withtheKIPASSatonetime.RegisteringadditionalFOBshouldbedoneby anauthorizedKawasakidealer.Ifall FOBsarelost,registeringnewcodes forreplacementFOBintoelectronic controlunitisimpossible.Tomake additionaluserkeys,takethevehicle alongwiththeallFOBstoanauthorizedKawasakidealertohavethem re-registered.

A. Emergency Ignition Key (Mechanical Key) B. FOB

InformationforUseofFOB

• IftheFOBisputontheothermetal surface,ortouchtotheothermetal materials, incorrectcommunication betweenECUandFOBmaybeoccurred.
• WhentheFOBiswithinthepossible areaoftheradiowavestartingthe engine,notethatanyonecanstart

GENERALINFORMATION93

theengine(evenifthepersondoes notpossesstheFOB).

• Whenparkingthemotorcycleacross theglasswindow,orhousewall,the locationmaybewithinthepossible areaoftheradiowave.
• TheridershouldpossesstheFOB whileriding, donotleavetheFOBin thesaddlebag, orstoragecase, etc, forantitheft, andm akesuretocheck thatthereistheFOBbeforestopping theengine.
• FOBtransmitsandreceivestheradiowave,sothebatteryintheFOB discharges.Thenormalbatterylife isforabout1yeardependingonthe

situationoftheuse.IftheFOBis closetothemanufacturedeveloping thestrongradiowave(TV, Personal Computer),thebatterylifemaydischargeearlier.TheFOBiscommunicatedwhenthesteeringisunlocked, turnedto"ON,"andthemotorcycleis movedoff.

- IfthebatteryoftheFOBisdischarged,keyknobcannotbeoperated.RemovetheemergencyignitionkeyfromFOBandfitthehollow oftheFOBontheprojectionofthe ignition switch, then key knob can beoperatedafterabout2seconds passedwhenkeyknobispushed.

94GENERALINFORMATION

A.FOB

B.Hollow

C.Projection

- When possessing these several registered FOB, the engine can be started if anyone FOB is correctly certified. If the communication is failed, move one of the FOB to other location.

- EveniftheFOBiswithinthepossible areaoftheradiowavestartingthe engine,theFOBmaynotbecorrectly certified.Movethemotorcycleorthe FOBtootherplace.

GENERALINFORMATION95

NOTICE

DonotexposetheFOBtoexcessivelyhightemperatureormore humidplace.

DonotputanymagneticmaterialswiththeFOBonthesamekey ring.

DonotputtheFOBclosetothe otherelectricappliance(TV, Audiosystem, PersonalComputer, etc)ormedicalappliance.

DonotsubmergeFOBinwater.

DonotdisassembletheFOBexceptofreplacingthebattery.

DonotdroptheFOBorapply shockstoit.

IfFOBislost,re-registryat dealerissecurelyrequiredto preventthepossibilityoftheft. IfallFOBsarelost,anaauthorized Kawasakidealerwillhavetore-placetheECU,andre-register thenewFOB.

BatteryReplacement

TheFOBhasthebattery.Ifthebatteryisdischarged,thereplacementof thebatteryshouldbedonebyanauthorizedKawasakidealerorreplaceit asfollows.

- Inserttheflattipscrewdriverintothe grooveoftheFOB, and disassemble theFOB by turningtheflattipscrew-driver lightly.

96GENERALINFORMATION

A.Groove

B.Turn

C.FlatTipScrewdriver

NOTE

○ WhenseparatingtheFOBhalves, protecttopsurfacewithtowelwhile applyingwithproperlysizescrew-driver.

- Replacethebattery, and installitsecurely.

NOTE

○ Installthebatterywith(+)sideofthe batteryfacingtodown.

A.Battery

Batteryshallnotbeexposed toexcessiveheatsuchassunshine,fireorthelike.

- WhenassemblingtheFOB, align eachgroove and projection of the upper and lowercase case of the FOB and insert them securely.

A.Grooves
B.Projections

WARNING

TheFOBcontainsacoin-style batteryandothersmallparts thatcouldbeingestedbyachild andresultinsevereinjury.To prevent accidental ingestion, keep the FOB battery and other smallpartsoutofthereachof children.

98GENERALINFORMATION

NOTICE

Becarefulnottodamagethe FOBwhenreplacingtheFOB battery.

Be sure to install the (+) side of battery-tothecorrect installation.

Donottouchtheelectricalparts, orelectricalcircuitontheinside oftheFOB.

A void to replace whereheavydustisblowing.

Donotmakethedustinsertinto theFOB.

Donotforcetodisassemblethe FOBwhenreplacingthebattery.

DonottouchthebatteryorterminaloftheFOBwiththebare handswhenreplacingthebattery.

NOTE

○ WhenthebatteryvoltageoftheFOB isdischarged, "TRANSPONDER LOWBATTERY" warningmessage isnotdisplayedinthemultifunction meter.
○ Ifthekeyknobisturnedto"ON" positionbybringingtheFOBtothe ignition switch within 2 cm (0.8 in.) with the battery of the FOB discharged "NOTRANSPONDER" and "TRANSPONDERLOWBATTERY" warningmessageisnotdisplayedin themultifunctionmeterwhenturningthekeyknobto"OFF"position, and "NO TRANSPONDER" warningmessageisnotdisplayedinthe multifunction meterevenif themotorcyclegoesawaywiththeFOBleft.

EmergencyKeyRemoval

The emergency key can be used as the substitutekey forkeyknobwhen

thekeyknobislost,oretc.Remove theemergencykeybypullingoutitwith slidingtheknobtothearrowmark.Be suretoinserttheemergencykeyinto FOBwhenusingthenormaluse.

NOTE

○ Theemergencykeyshouldbeused withtheFOB. Theonlyemergency keycannotoperatetheignition switch.

GENERALINFORMATION99

A. EmergencyKey
B.Knob
C.Slide

Thereisakeynumberinthi gencykey.Recordthenumberfrom yourkey.

100GENERALINFORMATION

A.KeyNumber

FOBPossibleRadioWaveArea

Thepossiblecommunicationareaof theradiowavebetweentheFOBand antennaisabout80cm(31.5in.).This KIPASSusestheweakradiowave,so, thepossiblecommunicationareamay

bedifferent.Incorrectcommunication mayoccurbythelocationoftheFOB, eveniftheFOBislocatedwithinthe possiblecommunicationarea.

A.Area
B.About80cm(31.5in.)

A.Area
B.About80cm(31.5in.)

KIPASSDoesNotOperate

If KIPASS does not operate correctly excluding the following item, KIPASS should have been checked by an authorized Kawasaki idealer.

- Asincorrectcommunicationoc-cursinsuchenvironmentasthe high-intensityradiowaveandnoisy

GENERALINFORMATION101

area(closetosuchtheplacedevelopingstrongradiowave,broadcastingstation,electricpowerstation,cellularphone,personalcomputer,etc,andcloseorcoveredbymetal material).

- Batteryisnotcorrectlyinstalledor discharged (see Battery Replacement).

SpecialWarningonKIPASS

ThismotorcyclehastheKIPASS, which develops and receives the radiowave between FOBandantenna. Makesure that atheriderorpassenger applying themedical appliances of the cardiac pacemaker, implantable car-dioverter defibrillator, and etc, confirm the antenna location and FOB (portable key) location before or hiding, and besure to read the following warning.

102GENERALINFORMATION

WARNING

KIPASSmayinterferewiththe operationofcertainmedical devices such as implanted pacemakersandimplanted cardiac defibrillators.TheFOBor KIPASSECUmustbekeptmore than22cm(9in.)fromthese typeofmedicaldevicestoavoid interference.Donotcarrythe FOBinyourbreastpocket.Operatorswithmedicaldevices such as pacemakers and implanted cardiac defibrillators shouldconsultwiththeirdoctorsbeforeuse.

A.FOB (Portable Key)
B. KIPASS ECU (UnderSeat)

HerebyMITSUBISHIELECTRIC CORP. JAPAN declares that this KIPASSisincompliancewiththeessential requirements and other relevant provisionsofDirective1999/5/EC.

Hereby ASAHIDENSOCORPORA-TION declares that this IMMOBILIZER (KM191) is in compliance with the essential requirements and other relevant provisionsofDirective1999/5/EC.

CE

TE03690B P

GENERALINFORMATION103

Attachthelabelintothisspaceifyour countryrequiresattachingtheradiowave certificationlabel.Thecertificationlabel shouldbeconsultedbyanauthorized Kawasakiidealer.

104GENERALINFORMATION

SpareFOB

ThismotorcyclehasaspareFOBin additiontotheprimaryFOB(portable key).IftheprimaryFOBislost,the spare FOB can be used as a gencykey.ThespareFOBhasthe emergencyignitionkey(mechanical key) which should be inserted into the spare FOB. If the key knob is lost, etc, the ignition key can be used as the emergency key.

A.SpareFOB
B. Emergency Ignition Key (Mechanical Key)

ThespareFOB hastheimmobilizerfunction, butitdoesnothavethe KIPASSfunction. Therefore, when usingthespareFOB, performthefollowingprocedures.

- Fitthe "TriangleMark" cornerofthe spareFOBontheprojectionofthe ignition switch so that the "Kawasaki" logo of the spare FOB faces the front,

thenkeyknobcanbeoperatedafter about2secondswhenthekeyknob ispushed.

A.SpareFOB
B.Projection
C."Kawasaki"Logo
D.TriangleMark

A. CorrectPosition
B.IncorrectPosition

GENERALINFORMATION105

106GENERALINFORMATION

A. Incorrect Position

IgnitionSwitch

Thismotorcyclehas the KIPASS, which can start the engine and lock the steering without taking out the key knobby only carry (portablekey).

Thisisafour-position,keyknoboperatedswitch.Thekeyknobcanbere-moved when it is in the "FSS" position.

NOTE

○ Forcibleoperationoftheignition switchmaycausetheanymalfunction. Ifanyunexpectedmessageis displayed, turn the key knob to "OFF" position, andthenturnthekeyknob to "ON," "LOCK" or "FSS" position slowlyagain.

GENERALINFORMATION107

ON	● Enginecanbestarted.● Electricalequipmentcanbe used.● Keyknobcannotbe removed.
OFF	● Engineoff.● Electricalequipmentisoff.● Keyknobcannotbe removed.
LOCK	● Steeringlocked.● Engineoff.● Electricalequipmentisoff.● Keyknobcannotbe removed.
FSS	● Steeringisnotlocked.● Engineoff.● Electricalequipmentisoff.● Keyknobcanberemoved.

Forlocking:

1. Turnthehandlebarfullytotheleft.
2. PushthekeyknobdownintheOFF positionandturnittoLOCK.

ForFSS:

1. PushthekeyknobdownintheOFF positionandturnittoFSSthrough theONposition.

108GENERALINFORMATION

WARNING

Turningtheignitionswitchto the“OFF”positionwhileriding themotorcycleshutsdownthe entireelectricalsystem(headlight,brakelight,turnsignal light,etc)andtheenginewill stop,whichcouldcauseanaccidentresultinginsevereinjury ordeath.Neveroperatethe ignitionswitchwhileridingthe motorcycle;onlyoperateitwhen themotorcycleisatastandstill.

NOTE

○ Thetail, city and license platelights are on whenever the key knob is in the “ON” position. The headlight

goesonwhenthestarterbuttonisreleasedafterstartingtheengine.

○ Donotleavethekeyknobatthe "ON" position for an extended time with the enginestopped, orthebatterymay becometotallydischarged.

WARNING

Windshield movement can trap the handsandfingers and cause injury. Whentheignitionswitch isturned to the "OFF" position, the windshield automatically moves to the bottom position. Keep handsandfingers away from the windshield when switching the ignition to "OFF."

NOTICE

Donotleavethekeyknobatthe "FSS"positionfornomischief orantitheft. Thekeyknobshouldbeleftat the "LOCK"positionwhenparkingthemotorcycle. Kawasakiirecommendsthatthe keyknobisremovedatthe "FSS"positiononlywhenopeningthefueltank,saddlebag,and removingtheseat. IftheFOBisnotcorrectlycommunicatedwhenthekeyknobis pushedin,pushthekeyknob againafterseveralseconds (about10seconds).

Whenpushingthekeyknob,thekey knobcanbeturnedto"ON,"OFF,"LOCK,"FSS"positionwhilethekey

GENERALINFORMATION109

knobindicatorisdisplayinthemultifunctionmeter. Whenthekeyknobis pushedin, then, whenturningto "ON," turnsignalindicatorsandturnsignal lightsblinktwotimes, thekeyknobindicatorisdisplayinthemultifunction meterfor5seconds. KeyknobindicatordisplaymeansthattheFOBiscorrectlycertificated.

A.KeyKnob
B.KeyKnoblndicator
C. TurnSignalIndicatorsandTurnSignal LightsBlinkTwoTimes

110GENERALINFORMATION

Whenturningthekeyknobto“OFF” or“FSS,”theturnsignalindicatorsand turnsignallightsblinkonetimeand thekeyknobindicatorisdisplayedin themultifunctionmeterfor5seconds, andthentheignitionswitchcannotbe turned.Whenleavingthemotorcycle, makesuretheignitionswitchcannotbe turnedtoanyposition.

A.KeyKnob

B.KeyKnoblndicator

C. TurnSignalIndicators and TurnSignal LightsBlinkOneTime

Thewarningindicator/immobilizerindicatorgoesonandtheFOBwarning messageandindicatoraredisplayed alternatelyinthemultifunctionmeter whentheenginestopswithoutcarrying theFOB(portablekey).

TheFOBwarningmessage“NO TRANSPONDER”isdisplayedinthe multifunctionmeterwiththewarning indicator/immobilizer indicator, then FOBwarningindicatorisdisplayedin themultifunctionmeterfor10seconds. ThiswarnsthattheFOBisnotnear themotorcycleandtheenginecanbe startedagainwhiledisplayingtheFOB warningindicatorinthemultifunction meter.UsetheregisteredspareFOB byturningthekeyknobto“ON”again whiledisplayingtheFOBwarningindicatorinthemultifunctionmeter.

NOTE

○ Theenginecannotbestartedwhen theFOBwarningindicatordisplays becametooffafter10seconds passed.
○ Ifthemotorcyclecannotbestarted aftertheFOBwarningindicatoris displayedfor10seconds,use the spareFOBorconsultanaauthorized Kawasakidealerforstartingtheengine.
○ Donotleavethemotorcyclewiththe keyknobturnedtothe"ON"position forantitheft.

A.FOBWarningMessage"NO TRANSPONDER"

B. WarningIndicator/ImmobilizerIndicator

GENERALINFORMATION111

A.FOBWarningIndicator

B. WarningIndicator/ImmobilizerIndicator

NOTE

○ IfKIPASSisfailure,steeringmay notbelocked. HavetheKIPASS checkedbyanauthorizedKawasaki dealer.

112GENERALINFORMATION

RightHandlebarSwitches

A.StarterButton

B. EngineStopSwitch

C.HazardSwitch

StarterButton

RefertotheStartingtheEngine sectionintheHOWTORIDETHE MOTORCYCLEchapterforstarting instructions.

EngineStopSwitch

Tostoptheengineinanemerge movetheenginestopswitch to the

position.

Ordinarily, the enginestop switch must be in the ⏻ position for the motorcycle to operate.

NOTE

○Ordinarily, theignition switch should be used to stop the engine.
○ Although the engine stop switch stops the engine, it does not turn off all the electrical circuits and eventually the battery will be discharged.

Hazard Switch

Push in the hazard switch with the ignition switch in the "ON" position. All the turn signal lights and turn signal indicators will blink.

NOTE

○ Becarefulnottousethehazard lightsforanextendedperiodoftime, otherwisethebatterymaybecome totallydischarged.

GENERALINFORMATION113

LeftHandlebarSwitches

A. DimmerSwitch/PassingButton
B. TurnSignalSwitch
C.HornButton
D.MetermodeButton
E.K-ACTABSButton
F.KTRCButton
G. Electric Windshield Adjusting Button

DimmerSwitch

Highorlowbeamcanbeselected withthedimmerswitch.

114GENERALINFORMATION

Highbeam...(Highbeamindicator:seeMeterInstrumentssection) Lowbeam... 📋 (Doublelightsgoon)

NOTE

○ Donotallowanythingtocoverthe headlightlenswhentheheadlightis on. Ifcovered, heatcanbuildupin theheadlightlenscausinglensdis-colorationormelting, aswellasdam-agetotheitemcoveringthelens.

PassingButton

Thehighbeamturnsononlywhile thepassingbuttonispushed.

TurnSignalSwitch

When the turn signals switch is to the left( ⇔ ) or right ( ), the corresponding turn signallights and turnsignal indicatorblinks. Tocancel the turn signal, push the switch in.

HornButton

Whenthehornbuttonispushed, the hornsounds.

MeterModeButton

Themetermodebuttonisusedfor settingthemetermode. Refertothe DisplaySettingsectioninthischapter.

K-ACT ABSButton

TheK-ACTABSbuttonisusedfor settingtheK-ACT ABS.Refertothe Featuressectioninthischapter.

KTRC Button KTRC

The KTRC button is used for setting the KTRC. Refer to the Kawasaki TRactionControl(KTRC)sectioninthe HOWTORIDETHEMOTORCYCLE chapter.

ElectricWindshieldAdjusting

Button

Windshieldheightcanbechangedby electricwindshieldadjustingbutton.

Whenmovingthewindshieldupor downasthearrowmark, pushandhold theadjustingbutton.

Windshieldup...

Windshielddown...

A. Windshield

GENERALINFORMATION115

NOTICE

Makesureallbodyparts,clothingorotherobjectsarenotnear themovablepartsofthewindshieldwhenitisbeingmovedto avoidsuchitemsfrombecoming pinchedorcaught.

GripWarmer

Thismotorcycleisequipped with temperature-adjustablegripwarmers designed to heat the handle bargrips. The temperature adjustmentdialis stepless between "LO" and "HI" so the rider has a wide choice of temperature settings.

To raise the temperature, turn the dial towards "HI."

To lower the temperature, turn the dialtowards“LO.”

116GENERALINFORMATION

Adjustthegripwarmertemperature accordingtotheambienttemperature orfeelingtemperature.Toturnthegrip warmeroff,alignthetrianglemarkon the temperatureadjustmentdialwith "OFF."

A. Temperature Adjustment Dial
B.OFFPosition
C.LOPosition
D.HIPosition
E.TriangleMark

WARNING

Releasingyourhand(s)from thehandlebarwhileridingmay causeacrashresultinginseriousinjuryordeath.Donot operate the grip warmer while riding.

NOTICE

Alwaysweargloveswhenusing thegripwarmer.Ifthehandlebar gripbecomeswornordamaged, stopusingthegripwarmerand replacethegripwithanewone. Usingthegripwarmerwithworn ordamagedgripsmaycause burns.Onawarmday(ambienttemperature20°C(68°F)or higher),refrainfromusingthe gripwarmer.Inwarmerweather, keepthetemperatureadjustmentdialnearthe“LO”position.

BatteryProtection

- Thisgripwarmerisequippedwiththe automaticshiftswitchtopreventthe batteryfrom runningdown.Therefore,whenthemotorcycleisatastop orisslowingdown,theswitchmay beturnedoffautomatically.Oncethe

GENERALINFORMATION117

motorcyclereturnstonormaloperatingspeed,theswitchisturnedonautomatically.

• Duringthemotorcycleistravelingat extremelylowspeed,theautomatic shift switch may not be turned on dependingonthebatterycondition.
• Batteriesareconsumablegoods. If the lifetime of the battery is at the end, the gripwarmercannotoperate. Inspect the battery and replace it with anewone.

HeadlightAimingAdjuster Knob

Theheadlightaimingisadjustedverticallybytheadjusterknobonthenear of the meter. Refer to the Headlight sectionintheMAINTENANCEAND ADJUSTMENTchapterforadjusting theheadlightaiming.

118GENERALINFORMATION

A. VerticalAdjusters(AdjusterKnobs)

NOTE

○ Ifyoucarryaheavierorlighterthan normalload,youmayneedtoadjust yourheadlightbeamsoyoucanbetterseetheroadaheadanddonot blindoncomingdrivers.

Accessory Socket/Connectors

Theelectricpowerofthebatterycan beusedthroughtheelectricaccessory socketorconnectors.Observeandfollowthenoteslistedbelow.

A. AccessorySocket

GENERALINFORMATION119

ElectricAccessoryConnectors

LocationPolarity		LeadColor
UnderLeft InnerCover	(+)	Black
	(-)Black/Yellow
UnderSeat Latch	(+)Black
	(-)Black/Yellow

NOTICE

Ifusinganaccessoryinthe socket,unlessithasawater-proofconnectiondonotoperate thismotorcycleintherainor washit.Always put the capon the socket when the accessory is not used.

A. ElectricAccessoryConnectors(Under LeftInnerCover)

120GENERALINFORMATION

A. ElectricAccessoryConnectors(Under SeatLatch)

NOTE

○ Whenusingtheelectricaccessory connectors, theelectricaccessory connection to the connector should be done by an authorized Kawasaki dealer.

NOTICE

The vehicle has an electrical accessory circuit (5Afuse) for the socket and connectors. Always install a fuse 5A or less for the circuit.

Donotconnectmorethan60W ofloadtothisaccessorycircuit orthebatterymaybecomedischarged,evenwiththeengine running.

WARNING

Takecarenottopinchanywire betweentheseatandtheframe orbetweenotherpartstoavoid ashortcircuit.

BrakeLeverAdjuster

Whilepushingthebrakeleverforward,rotatetheadjusterandchoosea suitableleverpositionfromthesixpositions.

[BrakeLeverAdjustment]

Adjuster Position	123	4			5	6
LeverPositionF	ar ← — → Near

GENERALINFORMATION121

A.Adjuster
B.Mark

ClutchLeverAdjuster

Whilepushingtheclutchleverforward, rotattheadjusterandchoosea suitableleverpositionfromthefivepositions.

122GENERALINFORMATION

[ClutchLeverAdjustment]

Adjuster Position	123	45
Lever Position	Far ← → Near

A. Adjuster B. Mark

Fuel

WARNING

Gasolineisextremelyflammable and can be explosive under certain conditions, creating the potential for serious burns. Turn the ignition switchoff.

Donotsmoke.

Make sure the area is well ventilatedandfreefromanysource offlameorsparks;thisincludes anyappliancewithapilotlight.

FuelRequirements

Use clean, fresh unleaded gasoline with the following conditions.

• AntiknockIndexof90ormore
• Upto 10 % ofethanolcontained

GENERALINFORMATION123

NOTICE

Useonlyunleadedgasoline. Neveruseleadedgasoline. Leadedgasolinesignificantly reducesthecapabilityofthecatalyticconverterintheexhaust system.

NOTICE

Useminimumof90octanegasolineonlytopreventsevereen-ginedamage.

NOTICE

Ifengine“knocking”or“ping-ing”occurs,useadifferent brandofgasolineofahigher octanerating.Ifthisconditionis allowedtocontinueitcanlead tosevereenginedamage.Gaso-linequalityisimportant.Fuels oflowqualityornotmeeting standardindustryspecifications mayresultinunsatisfactoryperformance.Operatingproblems thatresultfromtheuseofpoor qualityornonrecommendedfuel maynotbe coveredunderyour warranty.

124GENERALINFORMATION

NOTICE

Avoidusingblendsofunleaded gasolineandmethanol(woodalcohol)wheneverpossible,and neveruse"gasohol"containing morethan5%methanol. Fuelsystemdamageandperformanceproblemsmayresult.

NOTE

○Otheroxygenatesapprovedforuse inunleadedgasolineincludeTAME (up to 16.7%) and E 17.2%).Fuelcontainingtheseoxy-genatescanalsobeusedinyour Kawasaki.

NOTICE

NeverusegasolinewithanoctaneratinglowerthantheminimumspecifiedbyKawasaki.

Neveruse “gasohol” with more than 10% ethanol, or more than 5% methanol.

Gasolinecontainingmethanol mustalsobeblendedwithcosolventsandcorrosioninhibitors.

Certainingredientsofgasoline maycausepaintfadingordamage.Beextra carefulnot to spill gasolineorgasolineoxygenate blendsduring refueling.

When not operating your Kawasakifor30to60days,mixa fuel stabilizer (suchas STA-BIL) with the gasoline in the fuel tank. Fuelstabilizeradditivesinhibit oxidation of the fuel which minimizesgummy deposits.

FuelTypeandOctaneRating

Useclean, freshunleaded gasoline. The AntiknockIndexispostedonservicestationpumps. The octanerating of gasoline is same as a measure of its resistance to detonation or “knocking.” The AntiknockIndexisan average of the Research Octane Number (RON) and the Motor Octane Number (MON) as shown in the table.

FuelType	UnleadedGasoline
EthanolContent	E10orless
AntiknockIndex90	ormore

GENERALINFORMATION125

NOTICE

Donotuseanyfuelthatcontainsmoreethanolorotheroxy-genatesthanspecifiedforE10 fuel*inthisvehicle.Damage totheengineandfuelsystem, orenginestartingand/orperformanceproblemsmayresult fromtheuseofimproperfuel.

*E10meansfuelcontainingupto10% ethanol.

FillingtheTank

Avoidfillingthetankintherainor whereheavydustisblowingsothatthe fueldoesnotgetcontaminated.

126GENERALINFORMATION

WARNING

Gasolineisextremelyflammable and can be explosive under certain conditions, creating the potential for serious burns. Turn the key knob to "FSS." Donot smoke.

Makesuretheareaiswellventilatedandfreefromanysource offlameorsparks;thisincludes anyappliancewithapilotlight.

Neverfillthetankcomple thetop.

If the tank is filled complete, the top, heat may cause the fuel to expand and overflow through the events in the tank cap.

Afterrefueling, makesurethe tankcapisclosedsecurely. If gasoline isspilledonthefuel tank, wipeitoffimmediately.

• Liftthekeyholecover.
• Insertthekeyknobintothefueltank cap.
• Turn thekeyknob clockwise while pushingdownthefueltankcap.

A. Key Hole Cover

B.KeyKnob

C.FuelTankCap

• Openthefueltankcap.
• Addfuel.

A.TankCap
B.FuelTank
C.TopLevel
D. BottomofFillerNeck(MaximumFuel Level)

NOTE

○ Donotexceedthemaximumfuel levelasshown.
- Pushthefueltankcapdowninto placewiththekeyknobinserted.

GENERALINFORMATION127

• Thekeyknobcanberemovedby turningcounterclockwisetotheoriginalposition.
• Closethekeyholecover.

NOTICE

Neverfillthetankcompletely to thetop.

If the tank is filled completely, the top, heat may cause the fuel to expand and overflow through the events in the tank cap. After refueling, makes sure the tank cap is closed securely. If gasoline is spilled on the fuel tank, wipe it off immediately.

NOTE

○ Thefueltankcapcannotbeclosed withoutthekeyknobinserted, and

128GENERALINFORMATION

thekeyknobcannotberemovedun- lessthecapislockedproperly.
○ Donotpushonthekeyknobtoclose thecap,orthecapcannotbelocked.

SideStand

Alwayskickthestandfullyupbefore movingthemotorcycle. Theenginewill stopautomaticallyifthemotorcycleis ingearandclutchisreleasedwiththe sidestanddown.

NOTE

○ Whenusingthesidestand, turnthe handlebartotheleft.

○ Makesurethesidestandisdownsecurelybeforeleavingthemotorcycle.
○ Donotsitonthemotorcyclewhileit isonitssidestand.

CenterStand

Tosetthecenterstand

- Stepdownfirmlyonthestand, and thenliftthemotorcycleupandtotherearusingthegripasahandhold.

NOTE

○ Donotpullupontheseattoliftas thiswilldamagetheseat.

A. CenterStand
B. Stepdown.
C.Grip
D.Liftup.

Seat

Theseatcanberemovedusingthe keyknob.

SeatRemoval

- Insertthekeyknobintotheseatlock.

GENERALINFORMATION129

• Lifttherearofseatwhileturningthe keyknobcounterclockwise.
• Removetheseatbackwards.
• Removethekeyknob.

A.KeyKnob
B.Seat

NOTE

○ If the seat removal is hard, be sure to insertthekeyknobfullyintotheseat

130GENERALINFORMATION

lock, thenturnthekeyknobcounterclockwisewhilestronglypushing downtherearpartoftheseat.

A.Pushdown.

SeatInstallation

- Insertthebracketsofthefueltank intotheslotsonthefrontoftheseat.

A.Seat
B.Slots
C.Brackets

- Insertthehooksonthemiddleofthe seatundertheframe, and thehook ontherearoftheseatintotheslotof theframe.

GENERALINFORMATION131

A.Hooks

B.Frame

C.Hook

D.Slot

- Pushdowntherearpartoftheseat untilthelockclicks.

- Pullupthefrontandrearendsofthe seattomakesuretheyaresecurely locked.

SpecialWarningonthe UseofStorageCaseand Saddlebags(Accessory)

Whenpreparingtoridethismotorcycle,alwayscheckthesaddlebags forsecuremountingintheirrespective holders.Becertainthesaddlebagsare securelyengagedontheirholdersand aresecurelylockedbyattemptingto pullthemfromtheholders.Makesure thesaddlebaglidsandstoragecase aresecurelylocked.

132GENERALINFORMATION

WARNING

Thesuddendetachmentorloss ofasaddlebagcoulddistractor alarmthemotorcyclerider,and theconsequentlossofattention toroadandtrafficconditions couldcauselossofcontroland aseriousaccident.Alsothe suddenchangeofvehiclebalanceresultingfromthelossof asaddlebagcouldcauselossof controlandaseriousaccident. Adislodgedsaddlebagcould physicallyobstructthemotorcycle'spath,orinterfereinthe path of a following motorcycle or othervehicle.Thiscouldcause a loss of control by one of the motorcycleridersoranothervehicledriverwithaconsequent accident. Besurethe saddlebagsaresecurelyfastenedto themotorcyclebefore each ride.

WARNING

Riding with an open saddle- baglidcould allowclothingor otherobjectstofallintotherear wheel,resultinginrearwheel lockup and loss of control. Keep bothsaddlebagcoverssecurely lockedwhenriding.

GENERALINFORMATION133

WARNING

Looseobjectscaninterferewith thesteeringmechanism, vehicle controlsand/ordiverttherider's attentionfromtheroadandtrafficconditionsandcauseanaccidentresultinginserious injury ordeath.Besurethestorage caseistightlyclosedbeforerid-ingtopreventanyobjectsstored initfromgettingloose.Donot rest,store,orattachobjectsin theareabetweenthemovable partsofthesteeringmechanism (includinghandlebar,frontfork, etc.)andthefixedpartsofthe chassis(includingfairing,fuel tank,frameetc.)

Saddlebags(Accessory)

Thesaddlebagsareprovidedatboth sidesoftherearwheeltocarrybaggage.

Toopenthesaddlebaglid

• Insertthekeyknobintothelidlock.
• Turnthekeyknobtoleversidefrom the"LOCK"mark.
• Pulluptheleveronthetopofthe saddlebag.

134GENERALINFORMATION

A.Saddlebag

B.Lever

C.LidLock

D."LOCK"Mark

Toclosethesaddlebaglid

- Whileholdingtheleverpulledfully up, pushthelidbackagainstthesaddlebagalltheway.

• Pushbackthelevertotheoriginal position.
• Turnthekeyknobtothe"LOCK" markandpullitout.
• Makesurethatthelidissecurely lockedbypullingthelidandthelever.

Toremovethesaddlebag

• Insertthekeyknobintothelidlock.
• Turnthekeyknobtoleversidefrom the"LOCK"mark.
• Pullupthehandleonthetopofthe saddlebag.
• Removethesaddlebagbypullingit up.

GENERALINFORMATION135

A.Holders

• Holdthehandlepulledfullyup.
• Whilealigningtheholdersonthe frontbelowofthesaddlebagwiththe projectionontherearofthepassengerfootpeg,insertthehooksonthe topofthesaddlebagintotheholders ofthehookbracket.

136GENERALINFORMATION

A.HoldersoftheSaddlebag

B.Projection

C.Hooks

D.HoldersoftheHookBracket

- Seethatthehooksareinsertedinto theendasshown.

A.Hooks

• Pushbackthehandletotheoriginal position.
• Turnthekeyknobtothe"LOCK" markandpullitout.
• Makesurethatthesaddlebagand saddlebaglidaresecurelylockedby pullingthehandle,thesaddlebag, thelidandthelever.

GENERALINFORMATION137

56071-0033

TE0317IE S

138GENERALINFORMATION

WARNING

Overloadingthemotorcyclewithcargoand/orpassengers,and/ornotbalancingtheweightofitemscarriedineachsaddlebagmaycauseadverse handling,lossofcontrolandanaccidentresultinginseriousinjuryor death.Donotcarryloadsofmorethan10kg(22lb)ineachsaddlebag. Distributetheloadequallyonbothsidesofthemotorcycletominimize imbalance.Donotexceedthetotalpayloadlimitof228kg(503lb),includingrider,passenger,baggage,andaccessories.Donotexceedthe vehiclespeedof130km/h(80mph)whencarryingapassengerand/or cargo.Alsoreducespeedaccordingtoroadorweathercondition,etc. Failuretoadjustthespeedtocompensateforaddedweightandother conditionsmayresultinalossofcontrolandsubsequentaccident.

WARNING

Ridingwithanopensaddle-baglidcouldallowclothingor otherobjectstofallintotherear wheel,resultinginrearwheel lockupandlossofcontrol.Keep bothsaddlebagcoverssecurely lockedwhenriding.

NOTICE

Donotsitonthesaddlebagsand theirlids. Donotputloadonthelids.

GENERALINFORMATION139

StorageCase

The storage case is located leftinnercover.

The compartment is used to store lightitems.

• Openthestoragecaselidbypushing thereleasebutton.
• Thelidwillopenautomatically.
• Closethestoragecaselidbypushing downuntilclicks.
• Makesurethelidissecurelylocked byattemptingtoopenitwithoutpushingthereleasebutton.

140GENERALINFORMATION

A.StorageCaseLid B.ReleaseButton

ElectricLock

This storage case is equipped with an electric clock. When the ignition switch is turned to "OFF" or "FSS," the lidlock is locked automatically. When the ignition switch is turned to "ON," the lidlock is unlocked automatically. Additionally, Whenspeed reaches 40 km/h (25 mph) or more, the lidlock is locked automatically. And then, when the speed

isreachedto3km/h(2mph)orless, thelidlockisunlockedautomatically.

NOTE

○ Inanycase, donotstoretheFOB and spareFOBinthestoragecase. If theFOB battery is "rundown" in the storage case, it is impossible to restart the vehicle.
○ Thiscaseisintendedfortemporary storageduringvehicleoperation. To avoidtheft, donotstorevaluablesin thecompartmentwhenleavingthe motorcycle.
○ Donotleavethemotorcyclewithout startingtheenginewhentheignition switchisturnedto"ON."Thesole-noidvalveoftheelectriclockrepeats "ON/OFF"toppreventthebatteryfrom runningdown.

GENERALINFORMATION141

WARNING

Looseobjectscaninterferewith thesteeringmechanism,vehicle controlsand/ordiverttherider's attentionfromtheroadandtrafficconditionsandcauseanaccidentresultinginserious injury ordeath.Besurethestorage caseistightlyclosedbeforeridingtopreventanyobjectsstored initfromgettingloose.

A.RearCarrier

RearCarrier

Thismotorcycleisequippedwithcarrierontherear.

142GENERALINFORMATION

WARNING

Overloadingthemotorcyclewithcargoand/orpassengers,and/ornotbalancingtheweightofitemscarriedontherearcarriermaycauseadverse handling,lossofcontrolandanaccidentresultinginseriousinjuryor death. Do not carry loads of more than 10 kg (22 lb) on the rear carrier. Donotexceedthetotalpayloadlimitof228kg(503lb),includingrider, passenger,baggage,andaccessories.Donotexceedthevehiclespeed of130km/h(80mph)whencarryingapassengerand/orcargo.Alsoreducespeedaccordingtoroadorweathercondition,etc.Failureretoadjustthespeedtocompensateforaddedweightandotherconditionsmayresultinalossofcontrolandsubsequentaccident.

ToolKitCompartment

Thetoolkitcompartmentislocated undertheseat.

Keepthetoolkitinthiscase.

A. ToolKitCompartment
B.ToolKit

AirCleanerIntake

Theaircleanerintakeallowsairto enterthefuelsystem.Neverallowanythingtorestricttheflowofairintothe

GENERALINFORMATION143

aircleaner. A restricted air cleaner will reduce performance and increase exhaustemissions.

A. AirCleanerIntakes

Windshield

Theintakepositionofwindshieldcan be adjusted within 3 positions.

Adjustment

- Turnthekeyknobto"ON"position.

144GENERALINFORMATION

• Setthewindshieldpositiontotop bypassingtheelectricwindshield adjustingbutton(seeElectricWindshieldAdjustingButtonintheLeft HandlebarSwitchessection).
• Turntheknobstoadjusttheintake positionofwindshield.

A.Knobs

- Turnthekeyknobto"OFF"position.

WARNING

Windshieldmovementcantrap thehandsandfingersandcause injury. Whentheignitionswitch is turned to the "OFF" position, the windshield automaticallymovestothebottomposition. Keephandsandfingers awayfromthewindshieldwhen switchingtheignitionto"OFF."

GENERALINFORMATION145

IntakePosition1(Close)

A. Intake Position

IntakePosition2(Low)

A. Intake Position

146GENERALINFORMATION

IntakePosition3(High)

A.IntakePosition

The first 1600 km (1000 mile) that the motorcycle is ridden is designated as the break-in period. If the motorcycle is not used carefully during this period, you may very well end up with a “broken down” instead of a “broken in” motorcycle after a few thousand kilometers.

The following rule should be observed during the break-in period.

- Thetableshowsmaximumrecommendedenginespeedduringthe break-inperiod.

Distancetraveled	Maximumengine speed
0~ 800km(0~500mile)	4000r/min(rpm)
800~ 1600km (500 ~ 1000 mile)	6000r/min(rpm)

NOTE

○ Whenoperatingonpublicroadways, keepmaximumspeedundertraffic lawlimits.
- Donotstartmovingorracethe engine immediately after starting it, even if the engine is already warm. Runtheenginefortwoorthreeminutesatidlespeedtogivetheoila chancetoworkupintoalltheengine parts.

Inadditiontotheabove,at1000 km(600mile)itisextremelyimportant thatthe ownerhas theinitialmaintenanceserviceperformedbyanaauthorizedKawasakidealer.

StartingtheEngine

- Check that the engine stop switch is in the position.

A. EngineStopSwitch B. StarterButton

• Pushdownthekeyknobandrelease itwhilecarryingtheFOB.
• Turnthekeyknobto"ON"whilethe keyknobindicatorisdisplayedfor5 seconds.

NOTE

○ Theturnsignalindicatorsandturn signallightsblinktwotimeswhenthe keyknobispushedinandturnedto "ON."
- Makesurethetransmissionisinneutral.

A. NeutralIndicator(Green)
B.KeyKnob
C.ONPosition

○ Whiletheengineiscold, thefastidle systemautomaticallyraisestheengineidlingspeed. Atthistime, the warningindicator/immobilizerindicatormaygoonandtheFlwarningindicatorandmessagearedisplayedalternatelyinthemultifunctionmeterify ouoperatethethrottlegessarily.
○ Themotorcycleisequippedwitha vehicle-downsensorwhichcauses theenginetostopautomaticallyifthe motorcyclefallsdown. Thewarning indicator/immobilizerindicatorblinks whenthestarterbuttonispressedif theenginecannotbestarted. After rightingthemotorcycle,firstturnthe key knob to "OFF" and then back to "ON"beforestartingtheengine.
- Withoutholdingthethrottlegrip, push thestarterbuttontostarttheengine.

Donotoperatethestartercontinuouslyformorethan5seconds,orthestarterwilloverheat andthebatterypowerwilldrop temporarily.Wait15seconds betweeneachoperationofthe startertoletitcoolandthebatterypowerrecover.

NOTE

○Themotorcycleisequippedwitha starterlockoutswitch. This switch is designed so that the engine does not start if the transmission is eingear and the sidestandis down. However, the engine can be started if the clutch lever is pulled and thus sidestand is fully up.

A.ClutchLever B.StarterLockoutSwitch

NOTICE

Donotlettheengineidlelonger than five minutes, or engine overheating and damage may occur.

MovingOff

• Checkthatthesidestandorcenter standisup.
• Pullintheclutchlever.
• Shiftinto1stgear.
• Openthethrottlealittle, and start to let out the clutch lever very slowly.
• Astheclutchstartstoengage, open thethrottlealittlemore, givingtheenginejustenoughfueltokeepitfrom stalling.

NOTE

○ Themotorcycleisequippedwitha sidestandswitch. This switch is designed so that the engine does not start if the transmission is in gear and these is stand is down.

• Openthethrottlepartway, whilere-leasingtheclutchlever.
• Forsmoothriding, each gear position should cover the proper rate of speed shown in the table.

Vehiclespeedwhenshifting

Shiftingupkm/h (mph)
1st→ 2nd15(9)
2nd → 3rd	25 (15)
3rd → 4th	35 (21)
4th → 5th	45 (27)
5th → 6th	55 (34)

Shiftingdown	km/h(mph)
6th→ 5th	30(19)
5th→ 4th	25(15)
4th → 3rd	20 (12)
3rd→ 2nd	15(9)
2nd→ 1st15(9)

NOTE

○ Thetransmissionisequippedwitha positive neutral finder. Whenthe motorcycle is standing still, the transmissioncannotbeshiftedpastneutral from1stgear. Tousethe positive neutralfinder, shiftdownto1stgear, then lift up on the shift pedal while standingstill. Thetransmissionwill shiftonlyintoneutral.

Braking

• Closethethrottlecompletely, leavingtheclutchengaged(exceptwhen shiftinggears)sothattheenginewill helpslowdownthemotorcycle.
• Shiftdownonegearatatimesothat youarein1stgearwhenyoucome toacompletestop.
• Whenstopping, always apply both brakes at the same time. Normally the front brakes should be applied little more than therear. Shiftdownor fully disengagethe clutch as necessary to keep the engine from stalling.
• Neverlockthebrakes,oritwillcause thetirestoskid.Whenturningacorner,itisbetternottobrakeatall.Reduceyourspeedbeforeyougetinto thecorner.
• Foremergencybraking, disregard downshifting, and concentrate on

applyingthebrakesashardaspossiblewithoutskidding.

- EveninmotorcyclesequippedwithK-ACTABS,brakingduringcornering maycausewheelslip.Whenturning acorner,itisbettertolimitbraking tothelightapplicationofbothbrakes ornottobrakeatall. Reduceyour speedbeforeyougetintothecorner.

A.FrontBrakeLever

A.RearBrakePedal

Kawasaki Advanced Coactive-braking Technology(K-ACT)-Anti-lock Brake System (ABS)

K-ACTsystemsupportshedistributionofthefront/rearbrakeforceinanoptimumbalancetomaintainastablevehicleposition.Whenusingthe

frontbrakelever,therightandleftfront calipersandtherearbrakeoperate. Whenusingtherearbrakepedal,the rearbrakeandtherightfrontcaliper operate.Thecooperativebrakebalanceiscontrolledoptimallyinresponse tothevehiclestatussuchasthebrake inputandthevehiclespeed.

ABSisdesigned to helpprevent thewheelsfromlockingupwhenthe brakesareappliedhardwhilerunning straight.TheABS automatically regulatesbrakeforce. Intermittentlygaining gripping force and braking force helps prevent wheel lock-up and allows stablesteeringcontrolwhilestopping.

Although K-ACT systems supports the distribution of the front/rear brake force in an optimum balance. The ABS provides stability while stopping by preventing wheellock-up, remember the following characteristics:

• Toapplythebrakeeffectively, use thefrontbrakeleverandrearbrake pedalsimultaneouslyinthesame mannerasconventionalmotorcycle brakesystem.
• K-ACTABScannotcompensate foradverseroadconditions,mis-judgmentorimproperapplicationof brakes.Youmusttakethesamecare aswithmotorcyclesnotequipped withK-ACTABS.
• ABSisnotdesignedtoshortenthe brakingdistance. Onloose,uneven ordownhillsurface,the stopping distanceof amotorcyclewithABSmay belongerthanthatofequivalentmotorcyclewithoutABS.Usespecial cautioninsuchareas.
• ABSwillhelppreventwheellock-up when braking in a straight line, but it cannot controlwheel slipwhich may be caused by brakingduring cornering.When turningthe corner,it is

better to limitbreakingtothelight applicationofbothbrakesornotto brake at all. Reduce your speed beforeyou getintothe corner.
- Sameasconventionalbrakesystem, an excessive suddenbrakingmay cause wheel lock up that makes it harder to control a motorcycle.
- Duringbraking, K-ACTABSwillnot prevent the rear wheel lifting.

WARNING

K-ACT ABScannotprotectthe rider from all possible hazards and is not a substitute for safe riding practices. Beaware of how the K-ACTABS system operates and its limitations. It is therider's responsibility to ride at appropriates speeds and man-ner for weather, roadsurface and traffic conditions.

- Thecomputersintegratedinthe K-ACTABScomparesvehicle speedwithwheelspeed.Since non-recommendedtirescanaffect wheelspeed,theymayconfusethe computers,whichcanextendbrakingdistance.

WARNING

Useofnon-recommendedtires maycausemalfunctioningof K-ACTABSandcanleadtoextendedbrakingdistance. The ridercouldhaveanaccidentas a result. Always use recommendedstandard tiresfor this motorcycle.

NOTE

○ When K-ACT system is functioning, you may feel a pulsing in the brake

lever or pedal and feel a change of thebrakingtouch. WhentheABSis functioning, you may feel apulsing in thebrakeleverorpedal. These are normal. Maintain braking pressure.

○ K-ACTsystemdoesnotfunctionat thespeedofapprox. 20km/h(12 mph)orbelowwhenthebrakestarts tobeapplied.ABSdoesnotfunction atthespeedofapprox.5km/h(3.1 mph)orbelow.
○ K-ACTABSdoesnotfunctionifthe batteryisdischarged. Whendriving with an insufficiently charged battery, K-ACTABSmaynotfunction. Keep thebatteryingoodconditionaccording to the “Battery Maintenance” section.

Stopping the Engine

• Closethethrottlecompletely.
• Shiftthetransmissionintoneutral.

- Turnthekeyknobto"OFF."

NOTE

○ Whenturningthekeyknobto“OFF” or“FSS,” theturnsignalindicators andturnsignallightsblinkonetime andthekeyknobindicatorisdisplayinthemultifunctionmeterfor5 seconds. RefertothelgnitionSwitch sectionintheGENERALINFORMATIONchapterforthedetailedinformationofignitionswitch.

• Supportthemotorcycleonafirm, levelsurfacewiththesidestandor centerstand.
• Lockthesteering.

StoppingtheMotorcyclein anEmergency

YourKawasakiMotorcyclehasbeen designedandmanufacturedtoprovideyouoptimumsafetyandconvenience.However,inordertofullybenefitfromKawasaki'ssafetyengineering andcraftsmanship,itisessentialthat you,theownerandoperator,properly maintainyourmotorcycleandbecome thoroughlyfamiliarwithitsoperation. Impropermaintenance can create a dangeroussituationknown as throttlefailure. Twoofthemostcommon causesofthrottlefailureare:

1. Animproperlyservicedorclogged aircleanermayallowdirtanddust toenterthethrottlebodyandstick thethrottleopen.
2. During removal of the air cleaner, dirt is allowed to enter and jam the fuel injection system.

Inanemergencysituationsuchas throttlefailure,yourvehiclemaybe stoppedbyapplyingthebrakesand disengagingtheclutch.Oncethis stoppingprocedureisinitiated,theenginestopswitchmaybeusedtostop theengine.Iftheenginestopswitchis used,turnofftheignitionswitchafter stoppingthemotorcycle.

Parking

WARNING

Operatingorparkingthevehiclenearflammablematerialscan causeafire,andcanresultin propertydamageor severe personalinjury. Do not idle or park your vehicle in an area where tall or dry vegetation,orotherflammablematerialscouldcomeintocontact withthemufflerorexhaustpipe.

WARNING

Theengineandexhaustsystem getextremelyhotduringnormal operationandcancauseserious burns.

Nevertouchahotengine, ex-haustpipe, ormufflerduringoperationorafterstoppingtheengine.

• Shiftthetransmissionintoneutral and turnthekeyknobto"OFF
• Supportthemotorcycleonafirm, levelsurfacewiththesidestandor centerstand.

NOTICE

Donotparkonasoftorsteeply inclined surface, orthemotorcycle may fallover.

Gasolineisextremelyflammable and can be explosive under certain conditions, creating the potential for serious burns. Turn the ignition switch off. Do not smoke. Makes sure the area is well ventilated and free from any source of flame or sparks; this includes any appliance with a pilot light.

- Lockthesteeringtohelpprevent theft.

TheKTRCcalculatesthesliplevelof therearwheelandmayadjustengine outputautomatically.TheKTRCisdesignedtofunctiononpublicroads.Accelerationmaybedelayedundercertaincircumstancesdependingonroad conditions.TheKTRCcannotrespond toeverycondition.

WARNING

KTRC cannot protect the rider from all possible hazards and is not as substitute for safer id-ing practices. Be aware of how the KTRC system operates and its limitations. It is the rider's responsibility to ride at appropriates speeds and manner for weather, roadsurface and traffic conditions.

Some conditions may cause the KTRCtoautomaticallyturnoff. The function can be activated again by turning the key knob to "OFF," then turning thekeyknobto"ON"andrunningthe motorcycle at more than 5 km/h (3.1 mph).AlwaysverifytheKTRCfunction isinthedesiredpositionbychecking theKTRCindicator.

WARNING

Releasingthethrottlegripwithoutdisengagingtheclutchonaslippery roadsurfacemaycausetherearwheeltolockup,whichcouldleadto acrashresultinginseriousinjuryordeath.Onaslipperyroadsurface, neversuddenlyfullyreleasethethrottlegripwithoutthedisengagingthe clutch.Usingtheclutchratherthanthethrottletocontrolengineoutput onaslipperyroadcouldcausetheenginetostallwhic crashresultinginseriousinjuryordeath.Usethethrottletocontrolengineoutputwhennegotiatingslipperyroads.Useofnon-recommended tirescouldcausemalfunctioningorimproperoperationofKTRC,which couldleadtoacrashresultinginseriousinjuryordeath.Alwaysuserecommendedstandardtiresforthismotorcycle.

When getting out of as slippery road while the KTRC is operating, closest the throttle first, and then open it again.

Self-diagnosisUncompleted

When the KTRC self-diagnosis has not been completed, the KTRC indicator blink slowly. The KTRC function cannot be used until the self-diagnosis has been completed. To complete the self-diagnosis, start the engine and run the motor cycle at as speed above 5 km/h (3.1 mph). When the self-diagnosis, start the motor-cycle carefully since the KTRC does not function until the properspeed is reached.

KTRCMalfunction

If the KTRC system failure occurs, the warning indicators and warning messagearedisplayed, theKTRC stopsfunctioning.

NOTE

○ Inunusualrunningconditions, the KTRCmaydetectabnormality, and theKTRCindicatorgoeson.
○ RememberthattheKTRCdoesnot functionwhen the KTRCindicator goeson,butiftheKTRCfails,the conventionalridingstillworksnormally completing

TosettheKTRC

- DepresstheKTRCbuttonontheleft handlebar switches for more than onesecondbutlessthanthreesecondstoswitchtheKTRCfunctionon andoff.

A.KTRCButton

• WhentheKTRCfunctionisoff, the KTRCindicatorgoeson.
• WhentheKTRCfunctionison, the KTRCindicatorgoesofforblinks slowly.

○ DepressingtheKTRCbuttonfor morethanthreesecondswillnotaffecttheKTRCmode.Afteroperating theKTRCbutton,checktheKTRC indicator to verify that the KTRC function has been switched to the desired position.
○ Whenturningthekeyknobto "ON" from "OFF," theKTRCfunctionison automatically.
○ WhentheKTRCindicatorblinks, the KTRCfunctioncannotbeturnedoff.

MAINTENANCEANDADJUSTMENT

Themaintenance and adjustments outlined in this chapter must be carried out in accordance with the Daily Checks and Periodic Maintenance to keep them motor cycle in good running condition and to reduce air pollution. The initial maintenance is vitally important and must not be neglected.

WARNING

Failuretoperformthesechecksortocorrectaproblembeforeoperationmayresultinseriousdamageoranaccident.Alwaysperformdaily checksbeforeoperation.

Withabasicknowledgeofmechanicsandtheproperuseoftools,youshouldbe abletocarryoutmanyofthemaintenanceitemsdescribedinthischapter.Ifyou lack proper experience or doubt your ability, all adjustments, maintenance, and repairworkshouldbecompletedbyaqualifiedtechnician.

Please note that Kawasaki cannot assume any responsibility for damage resulting from incorrect or improper adjustment made by the owner.

DANGER

Exhaustgascontainscarbonmonoxide,acolorless,odorlesspoisonous gas.Inhalingcarbonmonoxidecancauseseriousbraininjuryor death.DONOTruntheengineinenclosedareas.Operateonlyina well-ventilatedarea.

WARNING

Thecoolingfanspinsathighspeedandcancauseseriousinjuries.Keep yourhandsandclothingawayfromthecoolingfanbladesatalltimes.

NOTE

○Ifatorquewrenchisnotavailable,themaintenanceitemswhichrequireaspecific torquevaluesshouldbeservicedbyanauthorizedKawasakidealer.

166MAINTENANCEANDADJUSTMENT

DailyChecks

Checkthefollowingitemseachdaybeforeyouride. Thetimerequiredisminimal, andhabitualperformanceofthesecheckswillhelpensureyouasafe,reliableride.

If any irregularities are found during these checks, referto the MAINTENANCE AND ADJUSTMENT chapter or see your dealer for the action required to return the motorcycle to safe operating condition.

Operation	See Page
FuelAdequatesupplyintank,noleaks	-
EngineoilOillevelbetweenlevellines	174
TiresAirpressure(whencold),installtheairvalvecapTirewear225	224
Bolts,nutsandfastenersCheckforlooseand/ormissingbolts,nutsandfasteners	-

MAINTENANCEANDADJUSTMENT167

Operation	See Page
SteeringActionsmoothbutnotloosefromlocktolockNobindingofcontrolcables	--
BrakesBrakepadwear212BrakefluidlevelNobrakefluidleakage	211-
ThrottleThrottlegripfreeplay	206
ClutchClutchfluidlevelNoclutchfluidleakage	210-
CoolantNocoolantleakageCoolantlevelbetweenlevellines(whenengineiscold)	-181

168MAINTENANCEANDADJUSTMENT

Operation	See Page
FinalgearcaseNooilleakage	-
ElectricalequipmentAlllights(head,city,tail/brake,turnsignal,licenseplate,warning/indicator)and hornwork	-
EnginestopswitchStopsengine	-
SidestandcenterstandReturntoitsfullyuppositionbyspringtensionReturnspringnotweakornotdamaged	--
RearviewmirrorsRearviewsight	-

PeriodicMaintenance

*A: Service at number of years shown or indicated odometer reading intervals, whichever comes first.
*B:Forhigherodometerreadings,repeatatthefrequencyintervalestablishedhere.
*C:Servicemorefrequentlywhenoperatinginsevereconditions:dusty,wet,muddy,highspeed,orfrequentstarting/stopping.
*D:Californiamodelonly
○ :EmissionRelatedItem

Q: Inspection

DealerInspection

ChangeorReplace

DealerChangeorReplace

Lubrication

DealerLubrication

170MAINTENANCEANDADJUSTMENT

Items		year (*A)	OdometerReading(*B) × 1000km (×1000m i See Page
			1(0.6)	6(3.8)	12(7.6)	18(11.4)	24(15.2)
○	Aircleanerelement(*C)184
○	Idlespeed209
○	Throttlecontrolsystem( play, smooth return, nodrag)	[BWHA]						207
○	Enginevacuumsynchronization							-
	Fuelsystem							-
	Fuelhose	[YACS]						-
○	Evaporativeemissioncontrolsystem (*D)							-
	Coolantlevel							181
	Coolingsystem							-

MAINTENANCEANDADJUSTMENT171

Items		year (*A)	OdometerReading(*B) ×1000km(×1000mile)					See Page
			1 (0.6)	6 (3.8)	12 (7.6)	18 (11.4)	24 (15.2)
	Coolant,waterhosesandO-rings		every36000km (22500mile)					-
○	Valveclearance							-
○	Airsuctionsystem							-
	Clutchoperation(play,engagement, disengagement)						[YSZ2]	-
	Clutchflui dlevel							210
	Clutchfluid ,hoseandpipe				[8SGW]			-
	Clutchfluid							-
	Clutchhose/ rubberpartsofclutch mastercylinderandslavecylinder		: e v r y 4 8 0 (3000mile)					0_k m
	Engineoilandoilfilter(*C)							174

172MAINTENANCEANDADJUSTMENT

Items		year (*A)	OdometerReading(*B) × 1000km (×1000m i See Page
			1(0.6)	6(3.8)	12(7.6)	18(11.4)	24(15.2)
	Tireairpressure				Q		Q	224
	Wheelsandtires	Q:1						224
	Wheelbearingdamage				[GYBS]			-
	Finalgearcaseoillevel178				Q		Q
	Finalgearcaseoil179
	Brakesystem							-
	Brakeoperation(effectiveness,play, nodrag)	[DECA]					[DBHD]	-
	Brakefluidlevel							211
	Brakefluid(frontandrear)							-
	Brakehose	:4						-

MAINTENANCEANDADJUSTMENT173

Items		year (*A)	OdometerReading(*B) ×1000km(×1000mile)					See Page
			1 (0.6)	6 (3.8)	12 (7.6)	18 (11.4)	24 (15.2)
	Rubberpartsofbrakemastercylinder andcaliper		every48000km (30000mile)					-
	Brakepadwear(*C)			[6T8S]	[2TD3]	[X6H0]		212
	Brakelightswitchoperation213		[2442]
	Suspensionsystem						[WHYS]	-
	Steeringplay						[87KK]	-
	Steeringstembearings							-
	Electricalsystem						[6C40]	-
○	Sparkplugs							-
	Chassisparts						[9AD8]	-
	Conditionofbolts,nutsandfasteners							-

174MAINTENANCEANDADJUSTMENT

EngineOil

OilLevelInspection

• Iftheengineiscold,starttheengine andrunitforseveralminutesatidle speed.
• Stoptheengine, then wait several minutes until the oil settles.

NOTICE

Racingtheenginebeforetheoil reaches every part can cause en-gineseizure.

- Checktheengineoillevelthrough theoillevelinspectionwindow. With themotorcycleheldlevel, theoillevel shouldcomeupbetweentheupper andlowerlevellinesnexttotheoil levelinspectionwindow.

A.OilLevelInspectionWindow

B.OilFillerCap

C. UpperLevelLine

D. LowerLevelLine

• Iftheoillevelistoohigh,removethe excessoilthroughtheoilfilleropeningusingasyringeorsomeother suitabledevice.
• Iftheoillevelistoolow, addoilto reachthecorrectlevel. Use the sametype and brandofoil that is already in the engine.

Oiland/orOilFilterChange

● Warmuptheenginethoroughly, and thenstopit.
- Placeanoilpanbeneaththeengine.
- Removetheengineoidrainbolt.

WARNING

Engineoilisatoxicsubstance. Disposeofusedoilproperly. Contactyourlocalauthorities forapproveddisposalmethods orpossiblerecycling.

MAINTENANCEANDADJUSTMENT175

A. EngineOilDrainBolt

• Lettheoilcompletelydrainwith themotorcycleperpendiculartothe ground.
• Iftheoilfilteristobereplaced, removetheoilfiltercartridgeandreplaceitwithanewone.

176MAINTENANCEANDADJUSTMENT

NOTE

○ Ifatorquewrenchorrequired Kawasakispecialtoolisnotavailable, thisitemshouldbeservicedby anauthorizedKawasakidealer.

A.OilFilter

- Applyathinfilmofgreasetothe packingandtightentheoilfiltertothe specifiedtorque.

A.Packing

- Installthedrainboltwithanewgasket.Tightenittothespecifiedtorque.

NOTE

○Replacethegasketwithanewone.

TighteningTorque

OilFilter:

17N·m(1.7kgf·m,13ft·lb)

EngineOilDrainBolt:

30N·m(3.1kgf·m,22ft·lb)

- Filltheengineuptotheupperlevel linewithagoodqualityengineoil specifiedinthetable.

RecommendedEngineOil

Type:

KawasakiPerformance4-Stroke

MotorcycleOil*

KawasakiPerformance4-Stroke

Semi-SyntheticOil*

KawasakiPerformance4-StrokeFull

SyntheticOil*

orother4-strokeoilswithAPISG,SH,

SJ,SLorSMwithJASOMA,MA1

MA2

Viscosity:

SAE10W-40

MAINTENANCEANDADJUSTMENT177

*KawasakiPerformanceOilsandLubricantshavebeenspecificallyengineeredforyourvehicle.Consistent useoftheseproductsmeetsorexceedswarrantyand servicerequirements and can help to extend the life ofyourKawasaki.

NOTE

○ Donotaddanychemicaladditiveto theoil. Oilsfulfillingtheabovere-quirementsare fullyformulatedand provideadequatelubricationforboth theengineandtheclutch.

EngineOilCapacity

4.0L(4.2USqt)

[whenfilterisnotremoved]

4.4L(4.7USqt)

[whenfilterisremoved]

178MAINTENANCEANDADJUSTMENT

Although 10W-40engineoilisthe recommended oil form most conditions, the oil viscosity may need to be changed to accommodate atmospheric conditions in your riding area.

• Starttheengine.
• Checktheoillevelandoilleakage.

FinalGearCaseOil

OilLevelInspection

• Usethecenterstandbyholdingthe motorcycleverticalonlevelground.
• Removethefillercap.

NOTICE

Becarefulnottoallowanydirt orforeignmaterialstoenterthe gearcase.

- Checktheoillevel.Ifitislow,add oilasnecessary.Theoillevelshould cometothebottomofthefilleropening with the motorcycle held vertical onlevelground.

A. BottomofFillerOpening
B.FillerCap

NOTE

○ Usethesametypeandbrandofoil thatisalreadyinthefinalgearcase.
- InstallthefillercapwithanewO-ring. Tightenittothespecifiedtorque.

NOTE

○ReplacetheO-ringwithanewone.

MAINTENANCEANDADJUSTMENT179

TighteningTorque

FillerCap: 6.0 N·m (0.61 kgf·m, 53 in·lb)

OilChange

NOTE

Finalgearcaseoildrainseasily and picksupanysedimentwhentheoil iswarmedupbyrunningthemotorcycle.
○ Ifatorquewrenchisnotavailable, thisitemshouldbeservicedbyan authorizedKawasakidealer.

• Putthemotorcycleonitssidestand.
• Placeanoilpanbeneaththegear case.
• Removethefillercapanddrainbolt.

180MAINTENANCEANDADJUSTMENT

WARNING

Gearcaseoilisatoxicsubstance.Disposeofusedoil properly.Contactyourlocalauthoritiesforapproveddisposal methodsorpossiblerecycling.

A.DrainBolt
B.FillerCap

WARNING

Oilontirescanmakethemslip-perywhichcancauseanacci-dentandinjury.Whendraining orfillingthegearcase,becare- fulthatnooilgetsonthetiresor rims.Cleanoffanyoilthatinad- vertentlygetsonthemwithsoap andwater.

- Aftertheoilhascompletelydrained out, installthedrainboltwithanew gasket. Tightenittothespecified torque.

NOTE

○Replacethegasketwithanewone.

TighteningTorque

FinalGearCaseOilDrainBolt: 17N·m(1.7kgf·m,13ft·lb)

• Withthemotorcycleheldverticalon levelground, fillthegearcaseupto thetopthreadofthefilleropening withtheoilspecifiedbelowwithout turningthereartire.
• Ifthereartireisturned,itisnecessarytoleaveitforaboutsixminutes.

FinalGearCaseOil

OilCapacity	About160mL(5.41US oz.)
OilType	API“GL-5”Hypoidgearoilabove5°C(41°F)SAE90below5°C(41°F)SAE80

NOTE

• “GL-5”indicatesaqualityandaddi-tiverating.“GL-6”ratedhypoidgear oilscanalsobeused.
• InstallthefillercapwithanewO-ring. Tightenittothespecifiedtorque.

MAINTENANCEANDADJUSTMENT181

NOTE

○ ReplacetheO-ringwithanewone.

TighteningTorque

FillerCap: 6.0 N·m (0.61 kgf·m, 53in·lb)

Coolant

CoolantLevelInspection

• Positionthemotorcyclesothatitis perpendicular to the ground.
• Check the coolant level through the coolant level gauge on the reserve tank located to the left of the engine. The coolant level should be between the F(Full) and L(Low) levellines.

182MAINTENANCEANDADJUSTMENT

A.F(Full)LevelLine

B.L(Low)LevelLine

C.ReserveTank

NOTE

○ Checkthelevelwhentheengineis cold(roomoratmospherictemperature).

- If the amount of coolant antisufficient, add coolant into a three reserve tank.

CoolantFilling

• Removetheleftrearmiddlefairing (seeAirCleanersectioninthischapter).
• Removethecapfromthereserve tankandaddcoolantthroughthe filler opening to the F (Full) level line.

A. ReserveTankCap

NOTE

○ Inanemergencyyoucanaddwateralonetothecoolantreservetank, howeveritmustbereturnedtothe correctmixtureratiobytheaddition ofantifreezeconcentrateassoonas possible.

NOTICE

Ifcoolantmustbeaddedoften,orthereservetankcompletelyrunsdry,thereisprobablyleakageinthesystem.Have thecoolingsysteminspected byyourauthorizedKawasaki dealer.

• Installthereservetankcap.
• Installtheremovedparts.

MAINTENANCEANDADJUSTMENT183

CoolantChange

HavethecoolantchangedbyanauthorizedKawasakidealer.

CoolantRequirement

WARNING

Coolantcontainingcorrosioninhibitorsforaluminum engines and radiators include harmful chemicals for human body. Drinkingcoolantcan resultin serious injury or death. Use coolantinaccordancewiththe instructions of the manufacturer.

Useapermanenttypeofantifreeze (soft water and ethylene glycol plus corrosionandrustinhibitorchemicalsfor aluminum enginesandradiators) inthe coolingsystem.Onthemixtureratio ofcoolant,choosethesuitableonereferringtotherelationbetweenfreezing

184MAINTENANCEANDADJUSTMENT

pointandstrengthdirectedonthecontainer.

NOTICE

Ifhardwaterisusedinthesystem, itcausesscaleaccumulationinthewaterpassages, and considerablyreducetheefficiencyofthecoolingsystem.

NOTE

○Apermanenttypeofantifreezeisinstalledinthecoolingsystemwhen shipped. It is mixed at 50% and has the freezing point of -35°C (-31°F).

AirCleaner

Thismotorcycle'saircleanerelement consistsofawetpaperfilterwhichcan-notbecleaned.

AirCleanerElementRemoval

• Removetheboltswithwashers.
• Removethefrontfueltankcover.

A.BoltswithWashers B.FrontFuelTankCover

• Turnthekeyknobto"ON"position.
• Setthewindshieldpositiontotopby pushingtheelectricwindshieldadjustingbutton.

WARNING

Windshieldmovementcantrap thehandsandfingersandcause injury. Whentheignitionswitch isturnedtothe "OFF" position, thewindshieldautomatically movestothebottomposition. Keephandsandfingers awayfromthewindshieldwhen switchingtheignitionto "OFF."

- Removethequickrivet.

MAINTENANCEANDADJUSTMENT185

A. QuickRivet

NOTE

○ Theinnercoverusesthequickrivet. Thequickrivetcanberemovedby pushingthecenterpinintothequick rivet, andwheninstallingit, pullthe center pin fully up first, and then push intothecenterpinafterinsertingit.

186MAINTENANCEANDADJUSTMENT

QuickRivetRemoval

A.QuickRivet
B. CenterPin
C.Pushin.

QuickRivetInstallation

A.QuickRivet
B.CenterPin
C.Pullupfully.
D.Pushin.

- Openthestoragecaselidbypushing thereleasebutton.

- Removethebolts.

MAINTENANCEANDADJUSTMENT187

A.StorageCaseLid
B.Bolts

- Pulltheinnercoverforwardtoclear thehookoftheinnercover.

A. InnerCover
B.Hook

- Pulltheinnercoverupwardtoclear thetabsoftheinnercover.

188MAINTENANCEANDADJUSTMENT

A. InnerCover
B.Tabs

- Pulltheinnercoverupwardtoclear thetabsoftheinnercover.

A. InnerCover
B.Tabs

- Disconnecttheconnectors.

A. Connectors

• Removetheinnercover.
• Turnthekeyknobto"OFF"position.

NOTE

○ If the ignitions witchison fo tendedtime, the batterymaybecome totallydischarged.

MAINTENANCEANDADJUSTMENT189

• Removethequickrivets.
• Removetheboltswithwashers.

A.QuickRivets
B.BoltswithWashers

- Pulltherearmiddlefairingoutwardto cleartheprojectionoftherearmiddle fairing.

190MAINTENANCEANDADJUSTMENT

A.RearMiddleFairing
B.Projection

- Pulltherearmiddlefairingbackward toclearthetaboftherearmiddle fairing.

A.RearMiddleFairing
B.Tab

• Pulltherearmiddlefairingupward toclearthetabsoftherearmiddle fairing.
• Pulltherearmiddlefairingbackward toclearthehooksandprojectionof thefrontmiddlefairing.

MAINTENANCEANDADJUSTMENT191

A.RearMiddleFairing

B.Tabs

C.Hooks

D.Projection

E.FrontMiddleFairing

- Pulltherelayswithpadforwardto cleartherivetsandrelaysfromthe bracket.

A.Relays

B.Pad

C.Rivets

D.Bracket

- Removethebolts.

- Clearthebracketwithpad.

192MAINTENANCEANDADJUSTMENT

A.Bolts

• Removethebolts.
• Removetheaircleanerelement cover.

A.Bolts

B.AirCleanerElementCover

- Pullouttheaircleanerelement.

MAINTENANCEANDADJUSTMENT193

A.AirCleanerElement

A. NewElement B. ScreenSide

AirCleanerElementInstallation

- Installanewelementsothatscreen sidefacesupward.

- Check that these aisinplace on the aircleanerelement cover.

194MAINTENANCEANDADJUSTMENT

A.Seal

B.AirCleanerElementCover

• Installtheaircleanerelementcover sothatarrowmarkfacesforward.
• Tightentheboltssecurely.

A. AirCleanerElementCover

B.ArrowMark

C.Bolts

• Installthebracketwithpadtothe originalposition.
• Tightentheboltssecurely.

MAINTENANCEANDADJUSTMENT195

A.BracketwithPad

B.Bolts

• Inserttherivetsintotheholesofthe bracket.
• Inserttheslitofeachrelaytothe bracket.

- Check that theepadisinplace on the rearmiddle fairing.

196MAINTENANCEANDADJUSTMENT

A.Pad

B.RearMiddleFairing

- Fitthegroovesoftherearmiddlefairingtothehooksandprojectionofthe frontmiddlefairing.

A.Grooves

B.RearMiddleFairing

C.Hooks

D.Projection

E.FrontMiddleFairing

- Insertthetabsoftherearmiddlefairingintotheslotsofthelowerfairing.

MAINTENANCEANDADJUSTMENT197

A.Tabs

B.RearMiddleFairing

C.Slots

D. LowerFairing

- Fitthegrooveoftherearmiddlefairingtothehookoftheradiatorcover.

- Inserttherearmiddlefairingintothe grooveoftheleftinnerrubbercover.

A.Groove

B.RearMiddleFairing

C.Hook

D.RadiatorCover

E.Groove

F.LeftInnerRubberCover

- Insertthetaboftherearmiddlefairingintotheinsideoftheupperfairing.

198MAINTENANCEANDADJUSTMENT

A.Tab

B.RearMiddleFairing

C. UpperFairing

- Check that the grom meti onthefueltank.

- Insert the projection of therearm middle fairing into the grommeton the fuel tank.

A.Grommet

B.FuelTank

C.Projection

D.RearMiddleFairing

s in place

- Check that the grooves of therear middle fairing are in place into the hooks and projection of the front middle fairing.

MAINTENANCEANDADJUSTMENT199

A.Hooks

B.Projection

C.FrontMiddleFairing

- Check that the groove of therear middle fairing in placeto the hook of theradiator cover.

- Check that there are a middle fairing is in place into the groove of the left innerrubber cover.

A. RearMiddleFairing

B.Hook

C.Groove

D.LeftInnerRubberCover

- Tightentheboltswithwasherssecurely.

• Installthequickrivets.

200MAINTENANCEANDADJUSTMENT

A.BoltswithWashers

B.QuickRivets

- Check that the collarrivetisin place on the inner cover.

A.CollarRivet

B. InnerCover

- Connecttheconnectorssecurely.

A. Connectors

• Turnthekeyknobto"ON"position.
• Setthewindshieldpositiontotopby pushingtheelectricwindshieldadjustingbutton.

MAINTENANCEANDADJUSTMENT201

WARNING

Windshieldmovementcantrap thehandsandfingersandcause injury. Whentheignitionswitch isturnedtothe "OFF" position, the windshieldautomatically movestothebottomposition. Keephandsandfingers away from the windshield when switching the ignition to "OFF."

- Insertthetabsoftheinnercoverinto theinsideoftheupperfairing.

202MAINTENANCEANDADJUSTMENT

A.Tabs

B. InnerCover

C. UpperFairing

- Insertthetabsoftheinnercoverinto theinsideoftherearmiddlefairing.

A.Tabs

B. InnerCover

C.RearMiddleFairing

- Insertthehookoftheinnercoverinto theinsideoftherearmiddlefairing.

MAINTENANCEANDADJUSTMENT203

A.Hook

B.InnerCover

C.RearMiddleFairing

• Openthestoragecaselidbypushing thereleasebutton.
• Inserttheprojectionoftheinner coverintotheholeofthebracket.

NOTE

○ Inthisphoto, theinnercoverhas beenremovedforclarity.

A.Projection

B. InnerCover

C.Hole

D.Bracket

- Tightentheboltssecurely.

204MAINTENANCEANDADJUSTMENT

A.StorageCaseLid B.Bolts

• Installthequickrivet.

A. QuickRivet

- Turnthekeyknobto"OFF"position.

NOTE

○If the ignitions witchison fora tendedtime, the battery may become totally discharged.

- Check that therubber trimisin place on the front fueltank cover.

A.RubberTrim
B.FrontFuelTankCover

• Installthefrontfueltankcover.
• Tightentheboltswithwasherssecurely.

MAINTENANCEANDADJUSTMENT205

A.FrontFuelTankCover
B.BoltswithWashers

OilDraining

• Removetheleftrearmiddlefairing (seeAirCleanerElementRemoval).
• Inspectthetransparentreservoirlocatedtotheleftoftheenginetosee ifanyoilhasrundown.

206MAINTENANCEANDADJUSTMENT

A. TransparentReservoir

- Ifthereisanyoilinthetransparentreservoir,removethetransparent reservoirfromthelowerendofthe drainhoseanddraintheoil.

WARNING

Oilontireswillmakethemslip-peryandcancauseanaccident andinjury.Besuretoinstallthe reservoirinthedrainhoseafter draining.

ThrottleControlSystem

ThrottleGrip

ThrottleGripFreePlayInspection

• Check that the thethrottle grip moves smoothly from fullopento close, and the throttle closes quickly and completely by thereturn spring in all steering positions.
• Ifthethrottlegripdoesnotreturn properly, havethe throttlecontrol systemchecked by an authorized Kawasakiidealer.

MAINTENANCEANDADJUSTMENT207

- Check the throttle grip turning back and forth.

A.ThrottleGrip B.ThrottleGripFreePlay

ThrottleGripFreePlay

2 \~ 3 mm (0.08 \~ 0.12 in.)

- efthepelisimpropyerplay,adjustit.

ThrottleGripFreePlayAdjustment

• Slidethedustcovers.
• Loosenthelocknutsattheupper endsofthethrottlecables, and screwboththrottlecableadjusters completelysoastogivethethrottle griplentyofplay.
• Turnthedeceleratorcableadjuster untilthereisnoplaywhenthethrottle gripiscompletelyclosed. Tightenthe locknut.

208MAINTENANCEANDADJUSTMENT

A.DustCovers

B.DeceleratorCable

C.AcceleratorCable

D. Adjusters

E.Locknuts

• Turntheacceleratorcableadjuster until 2 \~ 3 mm (0.08 \~ 0.12 in.) of throttlegripplayisobtained.Tighten thelocknut.
• Slidethedustcoverstotheoriginal position.
• Ifthethrottlecablescannotbeadjustedwiththeadjusterattheupper

endofthethrottlecable, furtheradjustmentofthethrottlecablesshould bedonebyanauthorizedKawasaki dealer.

- Withtheengineidling,turnthehandlebartoeachside.Ifhandlebar movementchangestheidlespeed, thethrottlecablesmaybeimproperly adjustedorincorrectlyrouted,orthey maybedamaged.Besuretocorrect anyoftheseconditionsbeforeriding.

WARNING

Operationwithimproperlyadjusted, incorrectly routed, or damagedcablescouldresultin anunsaferidingcondition. Be surethecontrolcables areadjustedandroutedcorrectly,and arefreefromdamage.

IdleSpeed

IdleSpeedAdjustment

• Starttheengine, andwarmitupthoroughly.
• Adjust the idlespeed by turning the idle adjustingscrew.

NOTE

○ Whiletheengineiscold, thefastidle systemautomaticallyraisestheengineidlingspeed.

IdleSpeed

1050\~ 1150r/min(rpm)

MAINTENANCEANDADJUSTMENT209

A.IdleAdjustingScrew

• Openandclosethethrottleleafw timestomakesuret speeddoesnotchange.Readjustif necessary.
• Withtheengineidling,turnthehandlebartoeachside. Ifhandlebar movementchangestheidlespeed, thethrottlecablesmaybeimproperly adjustedor incorrectly routed, orthey maybedamaged.Besuretocorrect anyoftheseconditionsbeforeriding.

210 MAINTENANCE AND ADJUSTMENT

WARNING

Operation with damaged cables could result in an unsafe riding condition. Replace damaged control cables before operation.

Clutch

ClutchFluidLevelInspection

- With the clutch fluid reservoir held horizontal, the clutch fluid level must be kept between the upper and lower levellines.

A. Clutch Fluid Reservoir
B. Upper Level Line
C. Lower Level Line

- Ifthefluidlevelislowerthanthe lowerlevellineitmayindicatethat thefluidisleaking. Inthiscase, have theclutchsysteminspectedbyan authorizedKawasakidealer.

NOTE

○ Usethesamefluidasisusedinthe brakesandkeepthesamerequirementsmentionedintheBrakessection.

Brakes

If you feel there is something wrong when applying the brakes, have the brakes system checked by an authorized Kawasaki idealizer immediately.

MAINTENANCEANDADJUSTMENT211

WARNING

Airinthebrakelinesdiminish brakingperformanceandcan causeanaccidentresultingin injuryordeath.Ifthebrakelever orpedalfeelsmushywhenit isapplied,theremightbeairin thebrakelinesorthebrakemay bedefective.Havethebrake checkedimmediatelybyanauthorizedKawasakidealer.

BrakeFluidLevelInspection

- Withthebrakefluidreservoirsheld horizontal,thebrakefluidlevelmust bekeptbetweentheupperandlower levellines.

212MAINTENANCEANDADJUSTMENT

A.FrontBrakeFluidReservoir

B. UpperLevelLine

C. LowerLevelLine

A. Rear Brake Fluid Reservoir

B. UpperLevelLine

C. LowerLevelLine

- Ifthefluidlevelislowerthanthe lowerlevellineitmayindicatethat thefluidisleaking. Inthiscase, have thebrakesysteminspectedbyanauthorizedKawasakidealer.

BrakePadWearInspection

Inspectthebrakesforwear. Foreach frontandreardiscbrakecaliper, if the

thicknessofeitherpadliningisless than1mm(0.04in.),replacebothpads inthecaliperasaset.Padreplacementshouldbedonebyanaauthorized Kawasakidealer.

A. FrontBrakePads
B. LiningThickness
C. 1mm(0.04in.)

MAINTENANCEANDADJUSTMENT213

A. RearBrakePads
B. LiningThickness
C. 1mm(0.04in.)

BrakeLightSwitches

BrakeLightSwitchInspection

• Turntheignitionswitchon.
• The brake light should go on when thefrontbrakeisapplied.

214MAINTENANCEANDADJUSTMENT

• Ifitdoesnot, ask your authorized Kawasaki ideal to inspect the front brakelight switch.
• Checktheoperationoftherearbrake lightswitchbydepressingthebrake pedal.Thebrakelightshouldgoon aftertheproperpedaltravel.

A.BrakePedal B.10mm(0.39in.)

- Ifthelightdoesnotcomeon,adjust therearbrakelightswitch.

BrakePedalTravel

10mm(0.39 in.)

BrakeLightSwitchAdjustment

- Toadjusttherearbrakelightswitch, movetheswitchupordownbytu ingtheadjustingnut.

A.RearBrakeLightSwitch B.AdjustingNut C.Lightssooner D.Lightslater

NOTICE

Toavoiddamagingtheelectrical connectionsinsidetheswitch, besurethattheswitchbody doesnotturnduringadjustment.

SuspensionSystem

FrontFork

WARNING

Improperforklegadjustment cancausepoorhandlingand lossofstability,whichcould leadtoanaccident.Alwaysad- just the fork leg son the rightsideto thesame setting.

MAINTENANCEANDADJUSTMENT215

NOTICE

Afterridingonthenormalroad, the unpaved road and in the rainyweather,cleanoffanydirt (grit, mud or insect etc.) that stucktoinnertube beforeit hardens.If the motorcycle keeps runningwiththedirtstucktothe inner tube, the oil seal will be damaged and it causes the oil leak.

SpringPreloadAdjustment

Theadjusterislocatedatthetopof each front fork leg.

Standard

14mm (0.55in.)

eftand Turn

Turn the adjuster clockwise to increasespringpreloadandstiffenthe suspension.

216MAINTENANCEANDADJUSTMENT

- Turntheadjustercounterclockwise todecreasespringpreload and softenthesuspension.

NOTICE

Donotturntheadjusterbeyond thefullyseatedpositionorthe adjustingmechanismmaybe damaged.

A.SpringPreloadAdjuster B.AdjustingRange

ReboundDampingForceAdjustment

Theadjusterislocatedatthetopof eachfrontforkleg. Standard

5clicks

Outfromthefullyseatedposition(turned fullyclockwise).

● Turn the adjustment clock creasedampingforce.
- Turntheadjustercounterclockwise todecreasedampingforce.

NOTICE

Donotturntheadjusterbeyond thefullyseatedpositionorthe adjustingmechanismmaybe damaged.

A. ReboundDampingForceAdjuster

RearShockAbsorber

SpringPreloadAdjustment

Theadjusterislocatedontheleft passengerfootpegbracket.

MAINTENANCEANDADJUSTMENT217

Standard

10clicks

Infromthefullyseatedposition(turned fullycounterclockwise).

• Turntheadjusterclockwisetoin-creasespringpreload.
• Turntheadjustercounterclockwise todecreasespringpreload.

NOTICE

Donotturntheadjusterbeyond thefullyseatedpositionorthe adjustingmechanismmaybe damaged.

218MAINTENANCEANDADJUSTMENT

A.SpringPreloadAdjuster

ReboundDampingForceAdjustment

Theadjusterislocatedatthelower endoftherearshockabsorber.

Standard

11/4turns out

Outfromthefullyseatedposition(turned fullyclockwise).

• Turntheadjusterclockwisewithaflat tipscrewdrivertoincreasedamping force.
• Turntheadjustercounterclockwise todecreasedampingforce.

NOTICE

Donotturntheadjusterbeyond thefullyseatedpositionorthe adjustingmechanismmaybe damaged.

MAINTENANCEANDADJUSTMENT219

A. ReboundDampingForceAdjuster

SettingTables

FrontForkSpringPreloadSetting

	SoftestsettinglimitStandard		Hardestsettinglimit
AdjusterPosition	19mm(0.75in.)*	14mm(0.55 in.)**	4mm(0.16in.)**
SpringActionWeak		←→	Strong
SettingSoft		←→	Hard
LoadLight		←→	Heavy
RoadGood		←→	Bad
SpeedLow		←→	High

*: This position is the fully seated position (turned fully counterclockwise).

**:Infromthefullyseatedposition(turnedfullycounterclockwise).Thisadjustment range may not exactly match the number shown in the table due to small tolerance ofproduction.

MAINTENANCEANDADJUSTMENT221

FrontForkReboundDampingForceSetting

	Softestsettinglimit	Standard	Hardestsettinglimit
AdjusterPosition	11clicks* *	5clicks**0*
DampingForceWeak		←→	Strong
SettingSoft		←→	Hard
LoadLight		←→	Heavy
Road	Good	←→	Bad
Speed	Low	←→	High

*: Thispositionisthefullyseatedposition(turnedfullyclockwise).

**: Out from the fully seated position (turned fully clockwise). This adjustment range may not exactly match then numbers shown in the table due to small tolerance of production.

222MAINTENANCEANDADJUSTMENT

RearShockAbsorberSpringPreloadSetting

	Softestsettinglimit	Standard	Hardestsettinglimit
AdjusterPosition	0*10clicks*	*	24clicks* *
SpringAction	Weak		Strong
SettingSoft			Hard
LoadLight			Heavy
Road	Good		Bad
Speed	Low		High

*: This position is the fully seated position (turned fully counterclockwise).

**:Infromthefullyseatedposition(turnedfullycounterclockwise).Thisadjustment rangemaynotexactlymatchthenumbershowninthetableduetosmalltolerance ofproduction.

MAINTENANCEANDADJUSTMENT223

RearShockAbsorberReboundDampingForceSetting

	Softestsettinglimit	Standard	Hardestsettinglimit
AdjusterPosition	22/4turnsout**	1 1 / 4 turns out**	0*
DampingForceWeak		←→	Strong
SettingSoft		←→	Hard
LoadLight		←→	Heavy
Road	Good	←→	Bad
Speed	Low	←→	High

*: Thispositionisthefullyseatedposition(turnedfullyclockwise).

**:Outfromthefullyseatedposition(turnedfullyclockwise).Thisadjustmentrange maynotexactlymatchthenumbershowninthetableduetosmalltoleranceof production.

224MAINTENANCEANDADJUSTMENT

Wheels

TirePressureInspection

• Removetheairvalvecap.
• Checkthetirepressureoften, using anaccurategauge.
• Makesuretoinstalltheairvalvecap securely.

NOTE

○ Measure the tire pressure when the tires are cold (thatis, when the motorcycle has not been ridden more than a miled during the past 3 hours).
○ Tirepressureisaffectedbychanges inambienttemperatureandaltitude, andsothetirepressureshouldbe checkedandadjustedwhenyourridinginvolveswidevariationsintemperatureoralatitude.

A. TirePressureGauge

TireAirPressure(whencold)

Front	290kPa( 2.90kgf/cm2,42psi)
Rear	290kPa( 2.90kgf/cm2,42psi)

TireWear, Damage

Asthetiretreadwearsdown, the tire becomesmoresusceptibletopuncture and failure. An acceptedes that 90% of all tire failures occurduring the last 10% oftreadlife (90% worn).

Soitisfalseeconomyandunsafeto usethetiresuntiltheyarebald.

TireWearInspection

- Measurethedepthofthetreadwith adepthgauge,andreplaceanytire thatasworndowntotheminimum allowabletreaddepth.

A. TireDepthGauge

MAINTENANCEANDADJUSTMENT225

MinimumTreadDepth

Front	—	1 mm (0.0m4)i
Rear	Under130km/h(80mph)	2 mm (0.08i
	Over130km/h(80mph)	3 mm (0.12i

1.)

- Visuallyinspectthetireforcracks andcuts, replacing the tire in case of baddamage. Swelling or high spots indicate internal damage, requiring tirereplacement.

226MAINTENANCEANDADJUSTMENT

A.CrackorCut

B.Nail

C.SwellingorHighSpot

D.Stone

- Removeanyimbeddedstonesor otherforeignparticlesfromthetread.

NOTE

○ Havethewheelbalanceinspected wheneveranewtireisinstalled.

WARNING

Tiresthathavebeenpunctured andrepaireddonothavethe samecapabilitiesasundamagedtiresandcansuddenlyfail, causinganaccidentresulting inseriousinjuryordeath. Replacedamaged tiresas soonas possible. Toensuresafehandling andstability,use onlythe recommendedstandardtiresfor replacement,inflated to thestandardpressure. Ifitisnecessary torideon arepairedtire,donot exceed100km/h(60mph)until the tire is replaced.

NOTE

○Whenoperatingonpublicroadways, keep maximumspeed under traffic law limits.

StandardTire(Tubeless)

Front	Make,Type:BRIDGESTONE,BATTLAXBT021FUSize:120/70ZR17M/C(58W)
Rear	Make,Type:BRIDGESTONE,BATTLAXBT021RUSize:190/50ZR17M/C(73W)

WARNING

Mixingtirebrandsandtypescan adversely affect handling and cause an accident resulting in injury or death. Always use the same manufacturer's tires on both front and rear wheels.

MAINTENANCEANDADJUSTMENT227

WARNING

Newtiresareslipperyandmay causelossofcontrolandinjury. Abreak-inperiodof160km(100 miles)isnecessarytoestab-lishnormaltiretraction.During break-in,avoidsuddenandmax-imumbraking and acceleration, andhardcornering.

Battery

The battery installed in this motorcycle is a sealed type, so it is not necessary to check the battery electrolyte level or add distilled water.

228MAINTENANCEANDADJUSTMENT

NOTICE

Neverremovethesealingstrip,orthebatterycanbedamaged.Donotinstallaconventional batteryinthismotorcycle,orthe electricalsystemcannotwork properly.

MakeFurukawaBattery

TypeFTZ14-B$

BatteryMaintenance

Itistheowner's responsibility to keep the battery fully charged. Failure todo so can lead to battery failure and leave you stranded.

If you are riding your vehicle infrequently, inspect the battery voltage weekly using a voltmeter. If it drops below 12.6 volts, the battery should be charged using an appropriate charger (check with your Kawasakidealer).

If you will not be using the motorcycle for longer than two weeks, the batteryshouldbecharged using an appropriatecharger.Donotuseanautomotive-typequickchargerthatmay overchargethebatteryanddamageit.

NOTE

○Leaving the battery connected causestheelectricalcomponents (clocketc)tomakethebatterydischarged,resultingthe over discharge ofthebattery. Inthiscase,therepair or replacement of the battery is not includedinthewarranty. Ifyoudo not drive for four weeks or more, disconnectthebatteryfromthevehicle.

Kawasaki-recommendedchargersare:

BatteryMate150-9

OptiMate4

YuasaMB-2040/2060

ChristieC10122S

If the above chargers are not available, use equivalentone.

Formoredetails, ask your Kawasaki dealer.

BatteryCharging

• Chargethebatteryfollowingtheinstructionsofyourbatterycharger.
• Thechargerwillkeepthebatteryfully chargeduntilyouarereadytore-installthebatteryinthemotorcycle (seeBatteryInstallation).

MAINTENANCEANDADJUSTMENT229

DANGER

• Batteryacidgenerateshydro-gengaswhichisf andexplosiveundercertain conditions.Itispresentwithin abatteryatalltimes,evenina dischargedcondition.Keepall flamesandsparks(cigarettes) awayfromthebattery.
• Weareyeprotectionwhen workingwithabattery. Inthe event of battery acid contact withskin, eyes, orclothing, washtheaffectedareasimmediatelywithwaterforatleast fiveminutes.Seekmedicalattention.

230 MAINTENANCE AND ADJUSTMENT

WARNING

Battery posts, terminals and re- lated accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and reproductive harm. Wash hands after handling.

Battery Removal

● Make sure the ignition switch is turned off.
- Remove the bolt and washer.
- Pull the right cover outward to clear the projection of the right cover.

A. Bolt and Washer
B. Rig ht Cover
C. Projection

- Pull the right cover downward to clear the tabs of the right cover.

MAINTENANCEANDADJUSTMENT231

A.RightCover
B.Tabs

• Removethebolts.
• Pullthebatterycompartmentcover outward to clear the projections batterycompartmentcover.

A.Bolts
B.BatteryCompartmentCover
C.Projections

• Removethebolt.
  of the battery negative(−)lead from the hook of the battery tray.

232MAINTENANCEANDADJUSTMENT

A.Bolt

B.BatteryNegative(−)Lead

C.Hook

D.BatteryTray

- Slightlypulloutthebatterywiththe batterytray.

- Slidetheredcapfromthepositive(+) terminal.

- Disconnectthebatterypositive(+) cable.

- Removethebatterywiththebattery tray.

A.BatteryTray

B.RedCap

C.BatteryPositive(+)Cable

NOTICE

Becarefulnottodropthebat- teryfromthemotorcyclewhen pullingoutit.

Donotgivethebatterytraya strongpull,orthecablesmaybe damaged.

• Unhookthestoppersandremovethe batterycover.
• Disconnectthebatterynegative(−) cablefromthebattery.
• Removethebatteryfromthebattery tray.

A.Stoppers
B.BatteryCover
C.BatteryNegative(−)Cable
D.BatteryTray

MAINTENANCEANDADJUSTMENT233

- Cleanthebatteryusingasolutionof bakingsodaandwater.Besurethat thecableconnectionsareclean.

BatteryInstallation

- Checkthatthepadsareinplaceon thebatterycover.

A.Pads

B.BatteryCover

- Check that the grommets are in place on the battery tray.

234MAINTENANCEANDADJUSTMENT

• Placethebatteryinthebatterytray asshown.
• Connectthebatterynegative(−)cableasshown.
• Putalightcoatofgreaseonthenegative(−)terminaltopreventcorrosion.

A.Grommets
B.Battery
C.BatteryTray
D.BatteryNegative(−)Cable

- Putthebatterycoveronthebattery andhookthestoppersintotheslots ofthebatterytray.

A.BatteryCover
B.Stoppers
C.Slots
D.BatteryTray

- Insert the projection of the battery tray into the holes of the battery compartment.

A.Projections

B.BatteryTray

C.Holes

D.BatteryCompartment

- Connectthebatterypositive(+)cable tothepositive(+)terminal,andthen installthebatterynegative(−)lead andbatterynegative(−)cabletothe frame.

- Tightenthebolttothespecified torque.

MAINTENANCEANDADJUSTMENT235

TighteningTorque

FrameGroundTerminalBolt:

8.0N·m(0.82kgf·m,71in·lb)

A.BatteryPositive(+)Cable

B.BatteryNegative(−)Lead

C.BatteryNegative(−)Cable

D.Outside

E.FrameGroundTerminalBolt

236MAINTENANCEANDADJUSTMENT

NOTICE

Installingthenegative(−)cable tothepositive(+)terminalofthe batteryorthepositive(+)cable tothenegative(−)terminalof thebatterycanseriouslydam- agetheelectricalsystem.

• Putalightcoatofgreaseonthepositive(+)terminaltopreventcorrosion.
• Coverthepositive(+)terminalwith theredcap.
• Runthebatterynegative(−)lead throughthehookofthebatterytray.
• Runthebatterypositive(+)cable throughthedentofthebatterytray.

A.BatteryNegative(−)Lead

B.Hook

C.BatteryTray

D.BatteryPositive(+)Cable

E.Dent

- Check that the grommetisin place on the battery compartment cover.

A.Grommet
B.BatteryCompartmentCover

• Insert the projection of the battery compartment cover into the grom-met sof the battery tray.
• Tightentheboltssecurely.

MAINTENANCEANDADJUSTMENT237

A.Projections
B.BatteryCompartmentCover
C.Grommets
D.BatteryTray
- Check that the padisin placebo on the right cover.

238MAINTENANCEANDADJUSTMENT

A.Pad

B.RightCover

• Insertthetabsoftherightcoverinto theslotsoftherearmiddlefairing.
• Insert the projection of the right cover into the grommet.

A.Tabs

B.RightCover

C.Slots

D.RearMiddleFairing

E.Projection

F.Grommet

- Tightentheboltwithwashersecurely.

Headlight

Headlightaimingsshouldbedoneby anauthorizedKawasakidealer.

HorizontalAdjustment

Theheadlightbeamisadjustable horizontally. If not properly adjusted horizontally, the beam will point to one siderather than straight ahead.

- Turnthehorizontaladjusterinorout untilthebeampointsstraightahead.

MAINTENANCEANDADJUSTMENT239

A. Horizontal Adjusters
B. Vertical Adjusters (Adjuster Knobs)

VerticalAdjustment

Theheadlightbeamisadjustablevertically. Ifadjustedtoolow, neither low norhighbeamwillilluminatetheroadfarenoughahead. Ifadjustedtoohigh, thehighbeamwillfailtoilluminatetheroadcloseahead, andthelowbeamwillblindoncomingdrivers.

- Turntheverticaladjusterinoroutto adjusttheheadlightvertically.

240MAINTENANCEANDADJUSTMENT

NOTE

○ Onhighbeam, the brightestpoints should be slightly below horizontal. The proper angle is 0.4 degrees below horizontal. This is a 50 mm (2.0 in.) drop at 7.6 m (25 ft) measured from the center of the headlight, with the motorcycle on its wheels and the rider seated.

A.50mm(2.0in.)
B. CenterofBrightestSpot
C.7.6m(25ft)
D.HeightofHeadlightCenter

Fuses

Fusesarearrangedinthefuseboxes locatedundertheseat. Theregulator fuseislocatedunderthefueltank. The

mainfuseislocatedatthebatterycompartment. If a fuse fails during operation, inspect the electrical system to determine the cause, and then replace it with anew fuse of proper amperage.

Ifthefusefailsrepeatedly, thereis somethingwrongwiththeelectrical system.Havethemotorcyclechecked byanauthorizedKawasakidealer.

Theregulatorfuseandmainfusere- movalshouldbedonebyanaauthorized Kawasakidealer.

MAINTENANCEANDADJUSTMENT241

A.FuseBoxes

242MAINTENANCEANDADJUSTMENT

A. RegulatorFuse A. MainFuse

WARNING

Substitutingfusescancause wiringtooverheat, catchfire and/orfail. Donotuseanysub- stituteforthestandardfuse. Replacetheblownfusewitha newoneofthecorrectcapacity, asspecifiedonthefuseboxes andmainfuse.

A.Normal
B. Failed

GeneralLubrication

Lubricatethepointsshownbelow, witheitherengineoilorregulargrease, inaccordancewiththePeriodicMaintenanceChartorwheneverthevehicle hasbeenoperatedunderwetorrainy conditions.

MAINTENANCEANDADJUSTMENT243

Beforelubricatingeachpart,cleanoff anyrustyspotswithrustremoverand wipeoffanygrease,oil,dirt,orgrime.

Applymotoroiltothefollowing pivots

• SideStand
• CenterStand
• ClutchLever
• FrontBrakeLever
• RearBrakePedal

Lubricatethefollowingcables withapressurecableluber

• (K)ThrottleInnerCables

Applygreasetothefollowing points

• (K)ThrottleInnerCableUpperEnds

(K): Shouldbeservicedbyanauthorized Kawasakidealer.

244MAINTENANCEANDADJUSTMENT

NOTE

○ Afterconnectingthecables, adjust them.

Cleaning

GeneralPrecautions

Frequentandpropercareofyourvehiclewillenhanceitsappearance,optimizeoverallperformance,andextend itsusefullife.Coveringyourvehicle withahighquality,breathablevehicle coverwillhelpprotectitsfinishfrom harmfulUVrays,pollutants,andreducetheamountofdustreachingits surfaces.

WARNING

Build-upofdebrisorflammable materialinandaroundthevehiclechassis,engine,andexhaust cancausemechanicalproblems and increase the risk of fire. Whenoperatingthevehiclein conditionsthatallowdebrisor flammablematerialtocollectin andaroundthevehicle,inspect the engine, electrical component andexhaustareasfrequently.If debris or flammable materials havecollected, park thevehicleoutsideandstoptheengine. Allowtheenginetocool,then removeanycollecteddebris.Do notparkorstorethevehiclein anenclosedspacepriortoin-spectingforbuild-up of debris orflammablematerials.

• Besuretheengineandexhaustare coolbeforewashing.
• When washing the vehicle, always use a mild neutral detergent and water.
• Avoidapplyingallharshchemicals, solvents, degreaser, oilre-mover, electricalcontactcleaner, andhouseholdcleaningproducts suchasammonia-basedwindow cleaners. Theywilldamageordeterioratepaintedparts, plasticparts, rubberpartsandothersynthetic partsincludingcoversandheadlight lens.
• Avoidapplyingdegreasertoseals, brakepads,andtires.
• Gasoline,brakefluid,andcoolant willdamagethefinishofpaintedand plasticsurfaces: washthemoff immediately.
• Avoid wire brushes, steel wool, and allotherabrasivepadsorbrushes.

MAINTENANCEANDADJUSTMENT245

- Takecarewhen washingthehead-light lens and other plastic parts as theycaneasilybescratched.

NOTE

○ After riding in an area where the roads are salted or near the ocean, immediately wash your vehicle with cold water. Do not use warm water as it accelerates the chemical reaction of the salt. After drying, apply acrosionprotectionsprayonall metal and chrome surfaces to prevent corrosion.
○ Condensation may form on the inside of the headlight lens after riding in the rain, washingthevehicleorinhumid weather. Toremovethemoisture, start the engine and turn on the headlight. Graduallythecondensationon theinsideofthelenswillclearoff.

246MAINTENANCEANDADJUSTMENT

Radiator

Cleanoffanyobstructionswitha streamoflow-pressurewater.

NOTICE

Using high-pressure water, as from acar wash facility, could damage the radiator fins and impair the radiator's effectiveness. Donotobstructor deflect airflow through the radiator by installing unauthorized access stories in front of the radiator or behind the cooling fan. Interference with the radiator airflow can lead to overheating and consequentengined damage.

MattePaintParts

• When washing the vehicle, always use amild neutral detergent and water, or cleaners formatte paint.
• Themattepainteffectmaybelost when the paint is excessively rubbed.
• Ifany doubt, consult anauthorized Kawasakiidealer.

PlasticParts

After washing, use a soft cloth to gently dry plastic parts. Whendry, treat the headlight lens and other non-painted plastic parts with an approved plastic cleaner/polisher product.

NOTICE

Plasticpartsmaydeteriorate andbreakiftheycomeincontactwithchemicalsubstances orhouseholdcleaningproducts suchas gasoline,brakefluid, windowcleaners,thread-locking agents,orotherharshchemicals.Ifaplasticpartcomesin contactwithanyharshchemical substance,washitoffimmediatelywithwaterandamildneutraldetergent,andtheninspect fordamage.Avoidusingabrasive pads or brushes to clean plastic parts, as they will damagethepart's finish.

ChromeandAluminum

Chrome and uncoatedaluminum partscanbetreatedwithachrome/alu-minumpolish. Coatedaluminum

MAINTENANCEANDADJUSTMENT247

should bewashedwithamild neutraldetergentandfinishedwithaspray polish.Aluminumwheels,bothpainted andunpaintedcanbecleanedwith specialnon-acidbasedwheelspray cleaners.

Leather, Vinyl, and Rubber

If your vehicle has leather accessories, special care must be taken. Use aleather cleaner/treatment to clean and care for leather accessories. Washing leather part with detergent and water will damage them, shortening their life.

Vinyl parts should be washed with the rest of the vehicle, then treated with a vinyltreatment.

Thesidewalls oftiresandotherrub-bercomponentsshouldbetreatedwith a rubber protectant to help prolong their useful life.

248MAINTENANCEANDADJUSTMENT

WheretobeCareful

Avoidsprayingwaterwithanygreat forcenearthefollowingplaces.

• Discbrakemastercylinder and caliper.
• Undertheseat-ifwatergetsintothe fuseboxorbattery, itcangroundout thespark. Whenthishappensthe vehiclewillnotoperateproperly and theaffectedpartsmustbewipeddry.

NOTICE

Coinoperated, high pressure spraywashers are not recommended. Water may be forced into bearings and other components causing eventual failure from rust and corrosion. Some soaps are highly alkaline and may leave a residue or cause spotting.

NOTE

○ Abrasive cleanser or high pressure washer will damage the surface finish on the bodywork.

WashingYourVehicle

- Before washing, precautions must be takentokeepwateroffthefollowing parts.

Mufflerrearopening-coverwitha plasticbag.

Ignitionswitch-coverthekeyhole withtape.

• Rinseyourvehiclewithcoldwater fromagardenhosetoremoveany loosedirt.
• Mixamildneutraldetergent(de-signedformotorcyclesorautomobiles)andwaterinabucket. Use asoftclothorspongetowashyour vehicle.
• Afterwashing, rinse your vehicle thoroughly with clean watertore-move any residue (residue from the

MAINTENANCEANDADJUSTMENT249

detergentcandamagepartsofyour vehicle).

• Removetheplasticbagandtape.
• Useasoftclothtodryyourvehicle. Asyoudry,inspectyourvehiclefor chipsandscratches.Donotletthe waterairdryasthiscandamagethe paintedsurfaces.
• Carefullyrideyourvehicleataslow speedandapplythebrakesseveral times. Thishelpsdrythebrakes andrestoresthemtonormaloperatingperformance.

APPENDIX

Storage

Whenever your motorcycle will not be in use for a long period, proper storage is essential.

It consists of checking and replacing missing or worn parts; lubricating part to ensure that they donot corrode and, ingeneral, preparing themotor cycles so that when the time comestouse it again, it will be into top condition.

SeeyourauthorizedKawasakidealerforthisserviceordothefollowing.

PreparationforStorage

Makesuretheareaiswellventilatedandfreefromanysourceofflame.

DANGER

Exhaustgascontainscarbonmonoxide,acolorless,odorlesspoisonous gas.Inhalingcarbonmonoxidecancauseseriousbraininjuryor death.DONOTruntheengineinenclosedareas.Operateonlyina well-ventilatedarea.

WARNING

Gasolineisextremelyflammable and can be explosive under certain conditions, creating the potential for serious burns.

●Turntheignitionswitchoff.
- Donotsmoke.
- Makesuretheareaiswellventilatedandfreefromanysourceofflameorsparks; thisincludesanyappliancewithapilotlight.

WARNING

Gasolineisatoxicsubstance.Disposeofgasolineproperly.Contactyour localauthoritiesforapproveddisposalmethods.

• Cleantheentirevehiclethoroughly.
• Runtheengineforaboutfiveminutestowarmtheoil,shutitoff,anddrainthe engine oil. (see Engine Oil section in the MAINTENANCE AND ADJUSTMENT chapter)

252APPENDIX

WARNING

Engineoilisatoxicsubstance.Disposeofusedoilproperly.Contact yourlocalauthoritiesforapproveddisposalmethodsorpossiblerecycling.

• Putinfreshengineoil.
  ● Emptythefuelfromthefueltankusingapumporsyphon.
• Removethesparkplugsandaddfoggingoilintothecombustionchamber. If the spark plugs can not be removed, take the motorcycle to an authorized Kawasaki dealer.
• Setthemotorcycleonastandsothatbothwheelsareraisedofftheground.(If thiscannotbedone,putboardsunderthefrontandrearwheelstokeepdampnessawayfromthetirerubber.)
• Sprayoilonallunpaintedmetalsurfacestopreventrusting.Avoidgettingoilon rubberpartsorinthebrakes.
• Lubricateallthecables.
• Removethebattery, and store it where it will not be exposed to direct sunlight, moisture, or freezing temperatures. During storage it should begin as low charge (one ampereor less) about once a month. Keep the battery well charged especially during cold weather.
• Tie plastic bag over the muffler to prevent moisture from entering.
• Putacoveroverthemotorcycletokeepdustanddirtfromcollectingonit.

APPENDIX253

PreparationafterStorage

• Removetheplasticbagfromthemuffler.
• Chargethebatteryifnecessaryandinstallthebatteryinthemotorcycle.
• Fillthefueltankwithfreshfuel.
• CheckallthepointslistedintheDailyCheckssection.
• Lubricatethepivots,bolts,andnuts.

TroubleshootingGuide

IfaProblemOccurs

Performingdailychecksandperiodicmaintenancepreventsunexpectedtroubles fromoccurring.Incaseofabreakdown,takeemergencymeasuresandcontact yourKawasakidealertorequestrepair.Forsafety,inspectionandmaintenance shouldbedonewithinyourknowledgeandability.Ifyouarenotconfidentincom- pletinganinspectionormaintenance,askanauthorizedKawasakidealertodothe work.

254APPENDIX

WARNING

• Whencarryingoutaninspection,followtheprecautionsbelow.
• Secureaplacewhereyoucanworkinsafetywithoutobstructingtrafficaroundyou.Donotcarryoutanyinspectionunlessitissafe.
• Supportthemotorcycleonafirm, levelsurfacewiththestand.
• Theengineandmufflerwillbecomehotduringoperation.Toavoid burns, donottouchthehotengineormufflerjustaftertheenginehas stopped.
• Exhaustgascontainsharmfulsubstancesuchascarbonmonoxide. Donotruntheengineinanenclosedgarageorpoorlyventilatedarea.
• Waituntiltheenginecoolsdownbeforecarryingoutinspectionand maintenanceorreplenishingfuel.Makesuretheareaiswellventilated andfreefromanysourceofflameorsparks.Donotplaceanyappliance withapilotlightnearby.
• If a t e s t r i d e i s n e e d e d , ride i n a s a f e a r e a a n d p a y c l o s trafficaroundyou.

When any warning indicators go on or blink, have the motorcycle inspected by anauthorizedKawasakidealerimmediately.

If the Engine Does Not Start

Whentheengineturnsoverbuttheenginedoesnotstart,inspectasfollows.

APPENDIX255

• Checkthefuellevelinthefueltank. If only a small quantity off fuel remains in the bottom, replenish the fueltank. (Fuelinthetank cannot be completely consumed.)
• Leavingthemotorcycleunusedforalongtimemaycausefuelinthetankto deteriorate.Inthatcase,askanauthorizedKawasakidealerforinspection.
• WhentheFlwarningmessageandindicatoraredisplayedwiththewarningindicator/immobilizer indicator, there may be a problem with the fuel injection system. AskanaauthorizedKawasakidealerforinspectionandmaintenance.
• Themotorcycleisequippedwithvehicle-downsensorwhichstopstheengine automaticallywhenthemotorcyclefallsdown.Whenthestarterbuttonispressed after the motorcycle has fallen down, the warning indicator/immobilizer indicator blinksandtheenginedoesnotstart.Tostarttheengine,switchthekeyknobto "OFF"positionandthenbacktothe"ON"position.
• Make sure that your FOBs are registered by the immobilizer system. If you need additionalspareFOBs, askanaauthorizedKawasakidealertoregisterthem.

If the engine will not start after completing the above inspection and maintenance, there may be something wrong with another systems such as the ignition system. Ask an authorized Kawasaki dealer for inspection and maintenance.

Whenthesterermotordoesnotrotate, inspectasfollows.

- Checkthepositionoftheenginestopswitch.Pushtheenginestopswitchinthe positionifitisintheposition.

256APPENDIX

• Makesurethathegearpositionisintheneutralposition. If not, shift the transmission intoneutral.
• Inspectthefusecondition.Ifanyfusehasblown,replaceitwithanewoneofthe sameamperage.

WARNING

Substituting fuses can cause wiring to overheat, catch fire and/or fail. Use only standard fuses of the correct capacity and specifications.

• Checkthebatterycableconnectionsetc.(seepage233).Ifnecessary,tighten theconnectingboltstosecurelyconnectthem.
• Incaseofslowblinkingoftheturnsignallights,lowvolumeofthehornsound,orwhenyoupressthestartermotorbuttonandhearaclickbutthestartermotordoesnotrotate,batterychargingstatusisnotgood.Refreshthebattery'scharge(seepage229)andcheckifthestartermotorrotates.
• Evenafterarefreshcharge,ifthestartermotorstopsrotatingtheengineproperly thebatterymayhavedeteriorated.Havethebatteryinspectedbyanaauthorized Kawasakidealer.

If the starter motor will not start after completing the above inspection and maintenance, theremay besomething wrong with another parts such as the starter motor. Ask an authorized Kawasaki dealer for inspection and maintenance.

If the Engine Stall or Runs Poorly

• Checkthefuellevelinthefueltank. If only asmall quantity off fuel remains, replenish the fueltank. (Fuelinthetank cannot be completely consumed.)
• Raisethesidestandfullyupbeforestartingtheengine.(Ifyoutrytomoveoff withthesidestandisstilldown,theenginewillstop.)
• Makesurethatcorrectfuelisused. If not, replacethefuelthecorrecttype (see page125).
• Iftheclutchleverfeelsspongy,theremaybesomethingwrongwiththehydraulic circuit.AskanaauthorizedKawasakidealerformaintenance.
• Incaseofslowblinkingoftheturnsignallights,lowvolumeofthehornsound,orwhenyoupressthestartermotorbuttonandhearaclickbutthestartermotordoesnotrotate,thebatteryisdischarged.Checktheconnectionsofthebatteryterminalsforlooseness(seepage233).Ifnecessary,tightentheboltstoremovethelooseness.Iftheabovemethodscannotsolvetheproblems,askanauthorizedKawasakidealerforinspectionandmaintenance.
• Iftheall6segmentsaredisplayedandstartblinking,andthecoolanttemperature warningmessageandindicatoraredisplayedalternatelyinthemultifunctionmeter,theenginemayhaveoverheated.Checkthecoolantlevelinthereservetank aftertheenginecoolsdown.Ifthecoolantquantityislessthanthelowerlevel, replenishthecoolantorsoftwateruptotheupperlevel(seepage181).Askan authorizedKawasakidealertoidentifythecauseoftheoverheatimmediately.

258APPENDIX

- WhentheFlwarningmessageandindicatoraredisplayedwiththewarningindicator/immobilizer indicator, there is something wrong with the fuel injection system.AskanaauthorizedKawasakidealerforinspectionandmaintenance.

If the engine installs after completing the above inspection and maintenance, there may be something wrong with others system. As an authorized Kawasaki dealer for inspection and maintenance.

Your Warranty/Owner Satisfaction

WelcometotheKawasakifamily!

Congratulations buying your Kawasaki vehicle. You've chosen a great, high-quality product with state-of-the-art features and built to Kawasaki' high standards. Yours satisfaction is important to your authorized Kawasaki idealer and to Kawasaki Motors Corp., U.S.A. Here is some important information regarding your vehicle's limited warranty.

FrequentlyAskedQuestions

WhatisaLimitedWarranty?

Themostimportantthingtoknowaboutyourwarrantyisthatitprotectsyou frommanufacturingdefectsinmaterialorworkmanshipduringthewarrantyperiod.YoucanfindthewarrantyperiodintheKawasakiLimitedWarrantyCertificate yourKawasakidealerprovidedtoyouatthetimeofsale.Thewarrantydoesnot

APPENDIX259

coverthecostofregularly-scheduledmaintenance. Thewarrantyalsodoesnotapplytothenormalwearofitemssuchastires,brakepads,transmissiondrivebelts,chains,sprockets,etc.

WhatistheKawasakiProtectionPlus?

Muchofthewarrantycoverageofferedbythelimitedwarrantycanbeextended bypurchasingtheKawasakiProtectionPlus(KPP).SeeyourKawasakidealeror gotoKawasaki.comformoreinformationifyoudon'talreadyhavetheKPP.

WhatAmlResponsibleFor?

Youareresponsibleformaintainingyourvehicleaccordingtothemaintenance scheduleshowninthisowner'smanual.

Youareresponsiblefornotifyingyourdealerimmediatelyifthereisaproblem, andyou,astheowner,willneedtoauthorizethedealertoinspecttheunit.

Youwillberesponsibleforpayingforroutinemaintenance,includingthefirst scheduledservice.YoucanhavetherequiredservicingdonebyyourKawasaki dealer (recommended) or an equally-qualified service facility. You can also do your ownmaintenanceworkifyouhavethepropertools,servicereferences,andmechanicalskills.However,ifafailureisfoundtobecausedbyimproperservicing,it wouldnotbecoveredythelimitedwarranty.

260APPENDIX

YoumaypurchaseaKawasakiServiceManualandanynecessaryspecialtools directlyfromyourKawasakidealer.

Youwillberesponsibleforpayingforrepairsneededbecauseofanaccident,to replacewornpartssuchastires,chains,brakes,andforrepairsneededbecause ofalackofmaintenance,misuseorracing.

Whether you do it yourself or take your vehicle to a Kawasaki dealer, be sure to record your service in the Maintenance Record section of this Owner's Manual. Keep all receipts for the service and/or items necessary to perform them maintenance so that in the event of a failure you can document the service history.

WhatAreTheDealership'sResponsibilities?

YourKawasakidealeroffersawiderangeofservices,parts,accessories,and informationonyourproductandonKawasaki.

Each dealer is independently owned and operated and responsible for the dealership's operations, its repair, warranty, and servicework, and its personnel.

APPENDIX261

Yourdealerisresponsibleforcompletingthesetupandpre-deliveryserviceof yournewKawasakivehicle. Thedealershipshouldalsoexplainitsoperation, maintenance, and warrantyprovisionssoyouunderstandthematthetimeofpurchase oratanyothertimeyouhavequestions.

ThedealershipisresponsibleforinspectingyourKawasakivehicleifthereisa failure,investigatingthecauseoftheproblem,andgettinganyneededauthorization from Kawasaki if the repair is one that will be covered by the limited warranty. Thedealershipwillalsofileallnecessarypaperwork.Thedealershipisresponsibleforcorrectlycompletinganynecessaryrepairs,whethertheyarecoveredby thelimitedwarrantyornot.

HowDoIGetWarrantyService?

If thereisaproblemwithyourvehiclewithinthelimitedwarrantyperiod,youwill needtoscheduleaserviceappointmentandprovideanymaintenancerecordsto an authorized Kawasaki dealer for inspection and diagnosis. You can go to any Kawasakidealerforwarrantyrepairs.YourKawasakidealerwillinspectyourvehicleandgiveyoutheresultsoftheinspection.Thedealerwillperformtherepairs atnocosttoyouifitisdeterminedthattheproblemiscoveredbythewarranty.

262APPENDIX

Kawasakiwillworkwithyourdealertoresolveanywarrantyissues.Noauthorizationforwarrantyworkcanbegivenuntilyourvehiclehasbeeninspectedbya Kawasakidealer.

WhatiflamnotSatisfiedWithMyWarrantyService?

If you aren't satisfied with your dealership's repair work or operations, it is best to discuss the situation with the appropriate dealership manager. If you have already done this, then contact the dealership's owner or general manager to request a review of the issue.

If you are unable to resolve a problem after consulting with the dealership management and need further assistance, contact Kawasaki Motors Corp., U.S.A. at the address below. Please becertaintoprovidethemodel, vehicle identification number (VIN), mileage or hour of use, accessories, date that events occurred and what action has been taken by both you and your dealer. Include the name and address of the dealership. To assist in resolving your inquiry, please include copies of related receipts and any other pertinent information including the name of the dealership personnel with whom you have been working. Upon receipt of your correspondence, Kawasaki Motors Corp., U.S.A. will contact the dealership and work within resolving your problem.

APPENDIX263

WanttoContactKawasaki?

Thisowner's manual should answer most of your questions about your Kawasaki. Your Kawasaki idealers should either be able to answer any other questions you might have immediately or be able to find the answer for you.

Please send your correspondenceto:

ConsumerServices

KawasakiMotorsCorp., U.S.A.

P.O.Box25252

SantaAna,CA92799-5252

[phone]

264APPENDIX

ReportingSafetyDefects

(ForProductsSoldintheUnitedStatesofAmerica,DistrictofColumbia,and U.S.TerritoriesOnly)

If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying Kawasaki Motors Corporation, U.S.A.

IfNHTSAreceivessimilarcomplaints, it may open an investigation, and if it finds that as safety defect exists in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved in individual problems between you, your dealer, or Kawasaki Motors Corporation, U.S.A.

TocontactNHTSA,youmayeithercalltheAutoSafetyHotlinetoll-freeat1-800-424-9393(or366-0123inWashington,D.C.area)orwriteto:NHTSA,U.S.DepartmentofTransportation,Washington,D.C.20590.YoucanalsoobtainotherinformationaboutmotorvehiclesafetyfromtheHotline.

EnvironmentalProtection

Tohelppreservetheenvironment,properlydiscardusedbatteries,tires,oilsand fluids,orothervehiclecomponentsthatyoumightdisposeofinthefuture.ConsultyourauthorizedKawasakidealerorlocalenvironmentalwasteagencyfortheir properdisposalprocedure.Thisalsoappliestodisposaloftheentirevehicleatthe endofitslife.

MAINTENANCERECORD

Owner Name......

Address ....

PhoneNumber......

Engine Number ....

Vehicle Number......

Key Code......

Selling Dealer Name......

PhoneNumber......

Warranty Start Date ....

Note: Keep this information and as spare key in a secure location.

Date	Odometer Reading	MaintenancePerformed	DealerNameDealerAddress

MAINTENANCERECORD267

Date	Odometer Reading	MaintenancePerformed	DealerNameDealerAddress

Date	Odometer Reading	MaintenancePerformed	DealerNameDealerAddress

MAINTENANCERECORD269

Date	Odometer Reading	MaintenancePerformed	DealerNameDealerAddress

270MAINTENANCERECORD

Date	Odometer Reading	MaintenancePerformed	DealerNameDealerAddress

MAINTENANCERECORD271

Date	Odometer Reading	MaintenancePerformed	DealerNameDealerAddress

Date	Odometer Reading	MaintenancePerformed	DealerNameDealerAddress

MAINTENANCERECORD273

Date	Odometer Reading	MaintenancePerformed	DealerNameDealerAddress

ZG1400EJ

Kawasaki Heavy Industries, Ltd. Motorcycle & Engine Company

Printed in Japan

GB
