Product Type	Refrigerator with freezer compartment
Brand	Sharp
Model	SJF-77 PCBE
Energy class	A+ (estimate)
Total capacity	200 L (estimate)
Refrigerator volume	160 L
Freezer volume	40 L
Dimensions (H x W x D)	1400 x 540 x 600 mm
Net weight	40 kg
Power supply	220-240 V, 50 Hz
Annual consumption	250 kWh (estimate)
Noise level	40 dB (estimate)
Main functions	Electronic temperature control, automatic defrost, LED lighting
Shelves	Adjustable tempered glass
Vegetable drawer	Yes
Refrigerant gas type	R600a
Maintenance and cleaning	Cleaning with a soft cloth and soapy water
Safety	Adjustable feet for stability, protected electrical system
Spare parts and repairability	Available from Sharp after-sales service
General information	Built-in appliance? No, freestanding

Frequently Asked Questions - SJF-77 PCBE SHARP

How to set the refrigerator temperature?

Use the adjustment wheel located inside the cold compartment. Set it to a number between 1 (moderate cold) and 7 (maximum cold). The standard recommendation is 3 or 4 for a temperature of 4°C.

Why is my refrigerator making noise?

A slight hum is normal (compressor and fan). If the noise is excessive, check that the appliance is level and does not touch furniture. The adjustable feet allow you to adjust stability.

How to clean the inside of the refrigerator?

Unplug the appliance, remove the shelves and drawers. Clean with a soft cloth soaked in warm water and a little white vinegar or mild soap. Rinse and dry before putting the items back.

What is the ideal temperature inside the refrigerator?

The recommended temperature for the cold compartment is 4°C (between 0°C and 5°C). For the freezer, aim for -18°C to safely preserve food.

How to defrost the freezer?

Turn off the appliance, remove food and place it in a cooler. Leave the door open to let the ice melt naturally. Use a plastic spatula to remove ice, never a metal object. Clean and dry before restarting.

Why is water accumulating at the bottom of the refrigerator?

This is often due to a blocked drain hole. Clean it with a cotton swab or a small brush. Also check that food is not blocking air circulation and that the door closes properly.

How to reverse the door opening direction?

Unscrew the top and bottom hinges, remove the door and replace it on the desired side. Reverse the hinge parts according to the manual instructions. This operation requires two people and a screwdriver.

What to do if the refrigerator stops cooling?

Check the power outlet and fuse. Make sure the thermostat is not set to '0' or 'Off'. Clean the condenser at the back of the appliance (dust). If the problem persists, contact after-sales service.

How long after installation can I plug in the refrigerator?

Wait at least 2 hours after transport to let the refrigerant gas settle. Then plug in and wait 24 hours before placing food to reach the set temperature.

How to change the light bulb?

Unplug the appliance. Locate the bulb in its housing (usually covered by a cap). Unclip or unscrew the cap depending on the model. Replace with a bulb of same type and wattage (for example 25W, E14). Plug back in.

USER MANUAL SJF-77 PCBE SHARP

Plasmacluster is a trademark of SHARP Corporation.

REFRIGERATOR-FREEZER

REFRIGERATOR-FREEZER

REFRIGERATOR-FREEZER

REFRIGERATOR-FREEZER

REFRIGERATOR-FREEZER

REFRIGERATOR-FREEZER

REFRIGERATOR-FREEZER

REFRIGERATOR-FREEZER

REFRIGERATOR-FREEZER

REFRIGERATOR-FREEZER

REFRIGERATOR-FREEZER

REFRIGERATOR-FREEZER

REFRIGERATOR-FREEZER

REFRIGERATOR-FREEZER

LEDUSSKAPIS - SALDËTÄJKAMERA

KÜLMIK-SÜGAVKÜLMIK

HLADILNIK-ZAMRZOVALNIK

Thank you very much for buying this SHARP product. Before using your SHARP refrigerator, please read this operation manual to ensure that you gain the maximum benefit from it.

All persons using the cabinet must be thoroughly familiar with its operation and safety features. Keep this operation manual with the refrigerator if you move or if the cabinet changes owners so that whoever uses it can read about the various features and safety rules.

WARNING

1. This refrigerator contains flammable refrigerant (R600a: isobutane) and insulation blowing gas (cyclopentane). Observe the following rules to prevent ignition and explosion.
2. The refrigeration system behind and inside the refrigerator contains refrigerant. Do not allow any sharp objects to come into contact with the refrigeration system.
3. Do not use mechanical devices or other means to accelerate the defrosting process. (This refrigerator has adopted automatic defrosting system.)
4. Do not use electric appliances inside the refrigerator.
5. Use only the specified lamp for the refrigerator compartment.
6. Do not block the openings on the circumference of the refrigerator.
7. If the refrigeration system should get punctured, do not touch the wall outlet and do not use open flames. Open the window and air out the room. Then ask a service agent approved by SHARP for servicing.
8. This refrigerator should be disposed appropriately. Take the refrigerator to a recycling plant for flammable refrigerant and insulation blowing gases.
9. This refrigerator is airtight. TO PREVENT FATAL ACCIDENTS TO CHILDREN, please completely remove the door prior to discarding the refrigerator.
10. Highly volatile and flammable materials such as ether, petrol, propane gas, adhesive agents and pure alcohol etc. are liable to explode. Do not store these materials in the refrigerator.

Important:

• This refrigerator is for domestic use only, with an ambient temperature between +5°C and +38°C. The refrigerator should not be subjected to temperatures of -10°C for long periods.
• To be used on 220-240V mains voltage.

CAUTION

1. If the power supply is accidentally disconnected, please wait for at least 5 minutes before re-connecting the power, as back pressure in the compressor may trip the overload relay.
2. Do not touch foods or metal containers in the freezer compartment with your wet hands. This may cause frostbite.
3. To prevent accidental power disconnection, plug the refrigerator directly to the source. Do not use a double adaptor as loss of power could lead to the spoiling of the stored food.
4. Do not place bottles in the freezer as they may crack when frozen.
5. Keep the door securely closed. If the door is left ajar, the controlled inner temperature will rise, resulting in food spoilage and increase in electricity costs.
6. Do not install the refrigerator in a damp or wet location as this may cause damage to the insulation and a leak. Condensation may also build on the outer cabinet and cause rust.
7. When installing or moving the refrigerator, make sure that you do not nip or kink the power cord. Damage of the power cord may cause electric shock or fire.
8. Do not use this refrigerator when the power cord or plug is damaged, or the outlet attachment is loose, as they may cause electric shock or fire.
9. To prevent damage to the outer cabinet, avoid contact with lacquer, and paint, etc.
10. When cleaning your refrigerator, do not splash water directly on the outer cabinet or the interior. This may lead to rusting and deterioration of the electrical insulation.
11. When cleaning any areas adjacent to electrical components, unplug the refrigerator first to prevent electric shock.
12. Should electrical components be accidentally immersed in water, unplug the refrigerator, dry the parts and contact your nearest service agent approved by SHARP.
13. When disconnecting the power plug, do not touch the pin of plug. This may cause electric shock.
14. This refrigerator is designed solely for the purpose of storing foodstuff for domestic use in accordance with the instructions given in this manual. Using the refrigerator for other purposes might be harmful to persons or property.
15. This refrigerator is not suitable for the storage of materials requiring precise temperatures. Deterioration of these materials will be dangerous.
16. Dust deposited on the power plug may cause fire. Wipe it off carefully.
17. Do not attempt to change or modify this refrigerator. This may result in fire, electric shock or injury.
18. Disconnect from the mains electricity supply by removing the mains plug from the electricity supply socket. Do not remove by pulling the mains lead. This may cause electric shock or fire.
19. Make sure that you leave adequate ventilation space around the refrigerator to prevent the compressor from overheating and stopping. Please follow the instructions given for installation.
20. Should the flexible supply cord be damaged, it must be replaced by service agent approved by SHARP as a special cord is required.
21. In case of gas leak, ventilate the area by opening a window, etc. Do not touch the refrigerator or the power outlet.
22. Do not place heavy or easily broken objects on top of the refrigerator. Objects may fall when opening or closing the refrigerator, causing injury.
23. Do not place objects containing liquid on top of the refrigerator. Spillage may cause electric shock or fire.
24. Do not drop objects inside the refrigerator or strike the inner wall. This may cause the inner surface to crack.
25. This refrigerator is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the refrigerator by a person responsible for their safety. Young children should be supervised to ensure that they do not play with the refrigerator.

INSTALLATION

1. This refrigerator is free standing type. Please keep adequate ventilation space around the refrigerator.
2. The figure shows minimum space necessary to maintain the cooling capability.
3. It is possible to use the refrigerator with less power consumption by keeping greater space.

1. Using the two front adjustable feet, ensure that the refrigerator is positioned firmly and level on the floor.

1. When the right and left doors are not properly aligned, adjust using the adjustable feet.

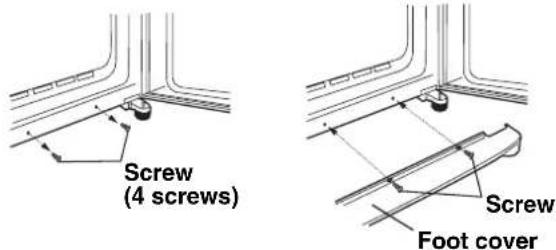

1. Remove the 4 screws of the cabinet lower part, and then set the foot cover (supplied inside the refrigerator compartment) with the removed 4 screws.

NOTE:

• Position your refrigerator so that the plug is accessible.
• Keep your refrigerator out of direct sunlight.
• Do not place next to heat generating appliances.
• Do not place directly on the ground. Provide a suitable stand.
• When the power plug is inserted while the door is opened, the door alarm sounds, but this is not abnormal. The sound stops when the door is closed.

When transporting

• Using the casters, it is possible to move back and forth.

- Carry the refrigerator by holding the handles located on the rear and bottom.

Before using your refrigerator

Clean the inside parts with a cloth soaked in warm water. If soapy water is used, wipe it off thoroughly.

Information on Disposal for Users (private households)

Attention:

Your product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collection system for these products.

1. In the European Union

Attention: If you want to dispose of this equipment, please do not use the ordinary dust bin! Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment.

Following the implementation by member states, private households within the EU states may return their used electrical and electronic equipment to designated collection facilities free of charge*. In some countries* your local retailer may also take back your old product free of charge if you purchase a similar new one.

*) Please contact your local authority for further details.

If your used electrical or electronic equipment has batteries or accumulators, please dispose of these separately beforehand according to local requirements.

By disposing of this product correctly you will help ensure that the waste undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health which could otherwise arise due to inappropriate waste handling.

2. In other Countries outside the EU

If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal.

For Switzerland: Used electrical or electronic equipment can be returned free of charge to the dealer, even if you don't purchase a new product. Further collection facilities are listed on the homepage of www.swico.ch or www.sens.ch.

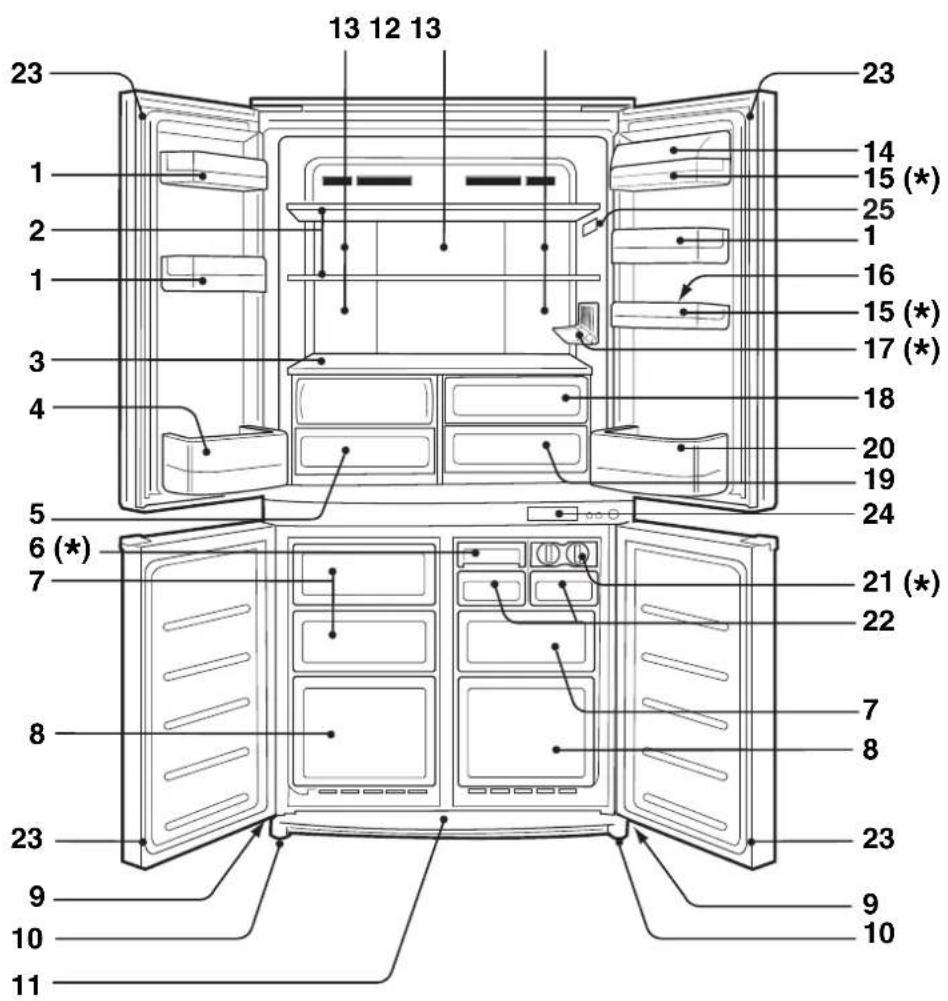

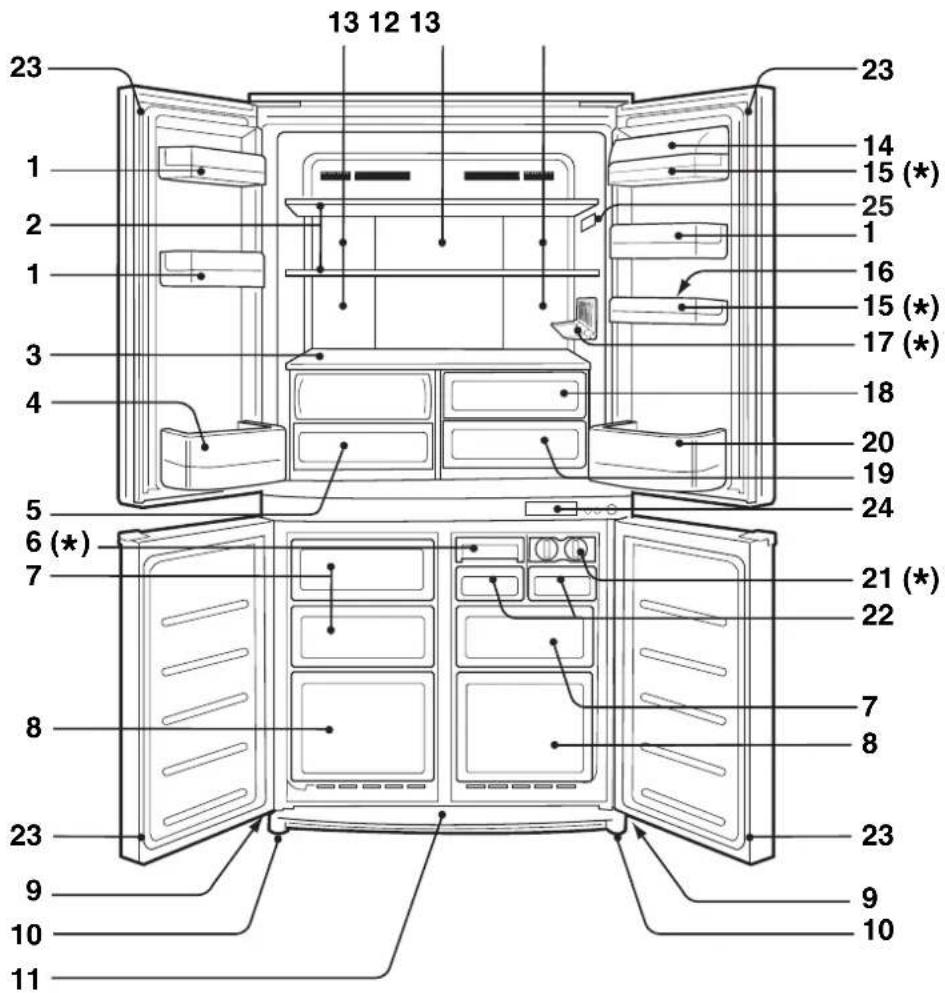

SJ-F77PC, SJ-F78PE, SJ-F79PS

1. Door pocket
2. Refrigerator shelf
3. Shelf
4. Bottle pocket (left)
5. Vegetable crisper

The cover of the vegetable crisper opens as the case is pulled.

1. Quick ice maker

The bottom of the tray contains refrigerant material used in ice packs to speed up the ice making process. The tray can also be used to freeze small food items such as meat and fruits by removing the ice making partition.

1. Freezer case (small)
2. Freezer case (large)
3. Casters
4. Adjustable feet
5. Foot cover
6. Aluminum panel

The panel is cooled from the rear, thus indirectly cooling the refrigerator compartment. In this way, food is refrigerated gently, without exposing it to cold air flow.

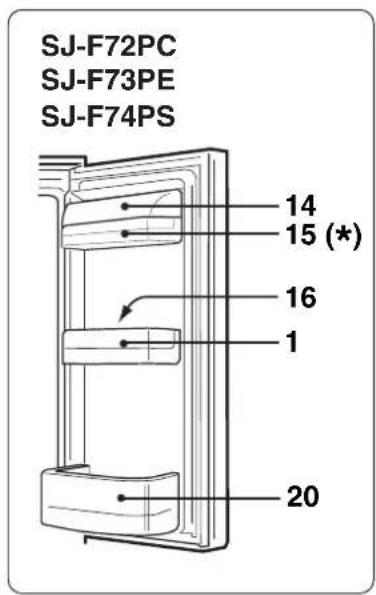

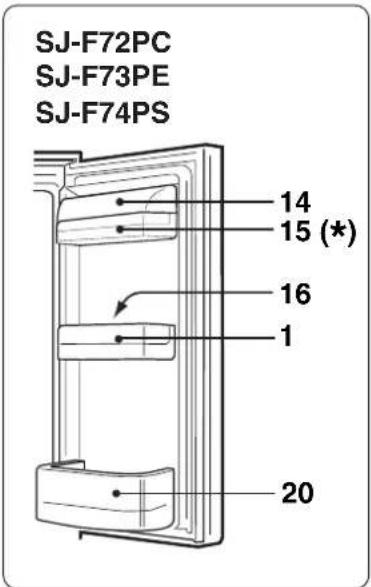

1. Light
2. Utility pocket cover
3. Utility pocket
4. Egg holder
5. Bottle rack

1. Fruit case
2. Fresh case
3. Bottle pocket (right)

To store large-size bottles, move the partition all the way back.

Partition 21. Ice cube maker - Do not overfill the tray; otherwise, the ice cubes will be joined together when frozen. - When the ice cubes are made, turn the lever clockwise to empty the ice into the ice cube box.

1. Ice cube box: To prevent damage to the ice cube box, do not make ice in the ice cube box or pour oil into it.

1. Magnetic door seal
2. Control panel
3. Thermometer

*

	SJ-F72PC	SJ-F73PE	SJ-F74PS	SJ-F77PC	SJ-F78PE	SJ-F79PS
6. Quick ice maker	0	0	1	0	0	1
15. Utility pocket	1	1	1	2	2	2
17. Bottle rack 0 1 1 0 1 1
21. Ice cube maker	2	2	1	2	2	1

CONTROL PANEL

Plasmacluster

Express Ice Making (*)

Express Freezing (*)

Timer

Refrigerator temp. control

Freezer temp. control

Door alarm

Child lock

Vacation mode (*)

- Marks of features in operation are displayed.

- Features that start automatically when inserting the power plug.

- When the refrigerator stops with power failure and the like, display at the time of re-power distribution shows similarly as before having a power failure. However, when it has a power failure during operation of Express Ice Making, Express Freezing, and Timer, operation is stopped at the time of re-power distribution.

NOTE:

• When no operation is made for 30 seconds, the display will automatically return to the initial content. The backlight will become dark when there is no operation for 3 minutes. The backlight will turn off when there is no operation for 6 minutes.
• Do not hit or apply sharp object on to the LCD panel.

* : Only for SJ-F73PE, SJ-F74PS, SJ-F78PE, SJ-F79PS

THERMOMETER

This refrigerator is provided with a THERMOMETER in the refrigerator compartment to allow you to control the average temperature in the coldest zone.

COLDEST ZONE

The symbol indicates the coldest zone in the refrigerator compartment. The coldest zone goes from the Shelf at the bottom of the refrigerator compartment to the symbol. (The door pocket positioned at the same height isn't the coldest zone.)

CHECKING THE TEMPERATURE IN THE COLDEST ZONE

You can carry out regular checks to ensure the temperature in the coldest zone is correct and, if necessary, adjust the refrigerator temperature control as indicated in the chapter "Controlling Temperature".

To maintain a correct temperature inside the appliance, check that the thermometer is always BLUE. If the thermometer turns WHITE, the temperature is too high; in this case, increase the refrigerator temperature control setting and wait for 6 hours before checking the thermometer again.

NOTE:

• The internal temperature of the refrigerator depends on various factors such as the ambient temperature of the room, the amount of food stored, and the frequency of door opening.
• When fresh food has been introduced or the door has been left open for some time, it is normal for the thermometer to turn WHITE.

DEFROSTING

• Defrosting is fully automatic due to a unique energy-saving system. The defrost cycle start time is proportional to the running time of your refrigerator compressor, i.e., the less time the refrigerator compressor operates (during the winter season or when you're away on holidays), the longer the time between each defrost cycle.
• The defrost water collects in the evaporating pan, where it is evaporated by the heat of the compressor, etc.
• The evaporating pan does not require cleaning or maintenance.

BLUE Correct setting

WHITE Temperature too high, adjust the refrigerator temperature control

DEODORIZING UNIT

A built-in unit that requires no manual operation because it automatically starts operating when the refrigerator is powered on.

OPERATION (USING THE CONTROL PANEL)

Controlling Temperature

The refrigerator controls its temperature automatically. However, if needed, adjust the temperature as follows.

Refrigerator compartment

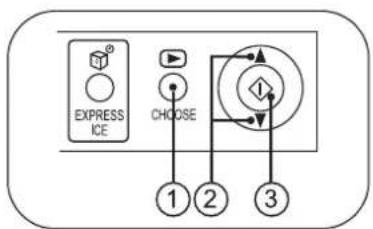

① Press the "CHOOSE" button and select the "Refrigerator temp." mark.

② Press the ▲ button and set the temperature. [ ▲ increase, : decrease ]

③ Press the "Button.

Adjustable between 0°C and 6°C in steps of 0.5°C.

6°C	When the refrigerator provides excessive cooling.
3°C	For normal operation.
0°C	For keeping foods fresher tasting. When the refrigerator does not provide sufficient cooling.

NOTE:

• If the refrigerator is operated for a long time with Refrigerator Temp. Control set at 0°C, foods stored in the refrigerator compartment may also freeze.
• Low ambient temperature may cause placed foods to freeze even if Refrigerator Temp. Control is set to 6°C.

Freezer compartment

① Press the "CHOOSE" button and select the "Freezer temp." mark.

② Press the ▲ button and set the temperature. [ ▲ increase, : decrease ]

③ Press the "button.

Adjustable between -13°C and -21°C in steps of 0.5°C.

↑-13°C	When frozen food or ice cream is not stored.
-18°C	For normal freezing.
↓-21°C	For making ice rapidly or fast freezing.

Express Ice Making ( Only for SJ-F73PE, SJ-F74PS, SJ-F78PE, SJ-F79PS )

Ice cubes can be made quicker than normal.

- This feature cannot be used simultaneously with Express Freezing.

① Press the "EXPRESS ICE" button.

The mark appears and operation starts.

② When the ice is completed, remove the ice.

To cancel operation

Press the "EXPRESS ICE" button again.

NOTE:

• Express Ice Making ends automatically in about 1 hour regardless of ice condition. (The mark disappears.)
• Express Ice Making may require more than 1 hour in the case operation overlaps with defrosting as operation is started after defrosting is completed.
• Avoid opening the door as much as possible during operation of this feature.

How to use the Quick ice maker (Only for SJ-F74PS, SJ-F79PS)

• Cool the Quick ice maker beforehand in the freezer (for at least 1 day). - When the ice cubes are made, remove the partition from the tray, after that twist the both ends of the partition and drop the ice.

- Standard time until the ice is completed: approx.20 minutes

• When using the water stored in the refrigerator compartment, at a room temperature of 30°C and with the refrigerator set to 3°C and the freezer to -18°C .
• Ice making time may become longer than above description depending upon room temperature and water temperature and the opening and closing frequency of the door etc.
• Ice making cannot be completed in approx. 20 minutes if pouring the water exceeding the water level line. Also it becomes difficult to remove the ice.

Plasmacluster

The Plasmacluster automatically starts operating when the refrigerator is powered on.

To cancel operation

① Press the "CHOOSE" button and select the "Plasmacluster" mark.

② Press the /▲button and select "OFF".

③ Press the "button.

To start operation

Select "ON" in step ②

Notes about Plasmacluster operation

The ionizer inside your refrigerator releases clusters of ions, which are collective masses of positive and negative ions, into the freezer and refrigerator compartments. These ion clusters inactivate airborne mold fungus.

- There may be a slight odors in the refrigerator. This is the smell of ozone generated by the ionizer. The amount of ozone is minimal, and quickly decomposes in the refrigerator.

Timer

Up to 99 minutes 30 seconds can be set in interval of 30 seconds.

① Press the "CHOOSE" button and select the "Timer" mark. The previously set time is displayed.

② Press the ▲/▼ buttons to set the time.

[▲ increase, ▼ decrease]

Press and hold the button to change the setting quickly.

③ Press the "button".

The timer starts. The remaining time is displayed.

When the set time is reached, an end tone will sound (about 30 seconds).

To stop the end tone, press "I".

To cancel the timer:

① Press "CHOOSE" to select the "Timer" mark.

② Press the "button".

NOTE:

While the timer is operating, it is not possible to set the timer a second time.

Express Freezing (Only for SJ-F73PE, SJ-F74PS, SJ-F78PE, SJ-F79PS)

This feature allows you to make high-quality frozen foods and is convenient for home freezing.

- This feature cannot be used simultaneously with Express Ice Making.

① Press the "CHOOSE" button and select the "Express freezing" mark.

② Press the /▲ button and select "ON".

③ Press the "button.

Express Freezing ends automatically in about 2 hours. (The mark disappears.)

To cancel operation

Select "OFF" in step ②

NOTE:

• Large foods cannot be frozen in a single operation. - Express Freezing may require more than 2 hours in the case operation overlaps with defrosting as operation is started after defrosting is completed. - Avoid opening the door as much as possible during operation of this feature.

Door Alarm

When the refrigerator or freezer door is left open, the door alarm will sound.

• The door alarm will sound 1 minute after opening the door and again after 1 minute (once in each case).
• If the door is left open for approx. 3 minutes, the alarm will sound continuously.

To cancel operation

① Press the "CHOOSE" button and select the "Door alarm" mark.

② Press the ▲ button and select "OFF".

③ Press the button.

To start operation

Select "ON" in step ②.

Child Lock

Key operations of the control panel can be disabled. Use this feature to prevent children or someone from tampering with the panel.

① Press the "CHOOSE" button and select the "Child lock" mark.

② Press the ▲ button and select "ON".

③ Press the button.

To cancel operation

① Press the "CHOOSE" button continuously for 2 seconds or more.

② Select "OFF" with the button and press the button.

Vacation Mode (Only for SJ-F73PE, SJ-F74PS, SJ-F78PE, SJ-F79PS)

Use this feature when going on a trip or leaving the house for a long time.

① Press the "CHOOSE" button and select the "Vacation mode" mark.

② Press the ▲ button and select "ON".

③ Press the "button.

The temperature inside the refrigerator compartment will be adjusted to 10°C. This temperature cannot be modified.

To cancel operation

Select "OFF" in step ②

NOTE:

Food storage period in the refrigerator compartment becomes approx. 1/2 - 1/3 of normal operation, because the temperature of the refrigerator compartment inside becomes 10°C. Please utilize only when there is no perishable food.

Refrigeration reduces the rate of food spoilage. To maximize the shelf life of perishable food products, ensure that the food is of the freshest possible quality. The following is a general guide to help promote longer food storage.

Fruit / Vegetables

To minimize moisture loss, fruit and vegetables should be loosely enclosed in a plastic material e.g. wrap, bags (do not seal) and place in the Vegetable crisper or the Fruit case. Those fruits and vegetables with thick skins e.g. oranges do not require wrapping.

Dairy Products & Eggs

• Most dairy products have a use by date on the outer packaging which informs the recommended temperature and shelf life of the product.
• Eggs should be stored in the Egg holder.

Meats / Fish / Poultry

• Place on a plate or dish and cover with paper or plastic wrap.
• For larger cuts of meat, fish, or poultry, place to the rear of the shelves.
• Ensure all cooked food is wrapped securely or placed in an airtight container.

NOTE:

• Evenly place the food on the shelves to allow the cooling air to circulate efficiently. - Hot foods should be cooled before storing. Storing hot foods increases the temperature in the unit and increases the risk of food spoilage. - Do not block the outlet and inlet of the cool air circulating circuit with foods or containers; otherwise the foods will not be evenly cooled throughout the refrigerator. - Do not place food directly in front of cold air outlet. This may lead to the food freezing.

FOR BEST FREEZING

• Quality of foods should be fresh. - Freeze small quantities of food at a time to freeze them quickly. - Food should be properly stored or covered and the air should be removed to seal tightly. • Evenly place the food in the freezer. - Label bags or containers to keep an inventory of freezing food.

CARE AND CLEANING

Some household cleaning chemicals may affect the inside surfaces and plastic shelves resulting in splitting or cracks occurring.

When cleaning all plastic parts inside this refrigerator, only use diluted dishwashing liquid (soapy water). Make sure that all plastic parts are thoroughly rinsed with water after cleaning.

The alkaline detergent affects on the aluminum section of the door handle, becomes cause of tarnish.

1. Remove the shelves and pockets from the cabinet and door. Wash them in warm soapy dishwashing water; rinse in clean water and dry.
2. Clean the inside with a cloth soaked in warm soapy dishwashing water. Then, use cold water to wipe off soapy water.
3. Wipe the exterior with a soft cloth each time it is soiled.
4. Clean the Magnetic door seal with a toothbrush and warm soapy dishwashing water.
5. Wipe the control panel with the dry cloth.

NOTE:

• Do not use polishing powder, benzine, hot water, etc.
• If undiluted detergent is used or soapy water is not wiped off thoroughly, cracking of plastic parts can result.
• Wipe any food oils adhered to plastic components as they can cause cracking of the plastic surface.
• The glass shelves weigh approximately 3 kg each. Hold firmly when removing from the cabinet or carrying.
• When dropped, wipe off juice and the like near the control panel immediately. It can cause failure of the control panel.

When the compartment light is blown

Contact the SHARP Service Center to request a replacement compartment bulb. The compartment bulb is not to be removed other than by qualified service personnel.

Switching off your refrigerator

If you switch your refrigerator off when you are going away for an extended period, remove all food, clean the interior thoroughly. Remove the power cord plug from the power socket and leave all doors open.

WHAT TO DO BEFORE YOU CALL FOR SERVICE

Before you call for service, check the following points.

IT IS NORMAL for the refrigerator to produce the following sounds.

• Loud noise produced by the compressor when operation starts --- Sound becomes quieter after a while.
• Loud noise produced once a day by the compressor --- Operating sound produced immediately after automatic defrost operation.
• Sound of flowing fluid (gurgling sound, fizzing sound) --- Sound of refrigerant flowing in pipes (sound may become louder from time to time).
• Cracking or crunching sound --- Sound produced by expansion and contraction of inner walls and internal parts during cooling.
• Squeaking sound --- Sound produced by expansion and contraction of internal parts.

IT IS NORMAL that the outside of a cabinet may be hot when touched. The hot pipe is in the cabinet in order to prevent dew generation.

IF YOU STILL REQUIRE SERVICE

Refer to your nearest service agent approved by SHARP.

SJ-F77PC, SJ-F78PE, SJ-F79PS

Plasmacluster Ionizer

Door alarm

NOTE:

Swivel castors

SJ-F77PC, SJ-F78PE, SJ-F79PS

Door alarm

SJ-F77PC, SJ-F78PE, SJ-F79PS

"Plasmacluster" ionizer

Door alarm

SJ-F77PC, SJ-F78PE, SJ-F79PS

"Plasmacluster" ionizer

Door alarm

Adjustable foot

NOTE:

SJ-F77PC, SJ-F78PE, SJ-F79PS

Refrigerator compartment

Plasmacluster ionizer

Door alarm

SJ-F77PC, SJ-F78PE, SJ-F79PS

"Plasmacluster" ionizer

Door alarm

SJ-F77PC, SJ-F78PE, SJ-F79PS

1. Door compartment
2. Refrigerator shelf
3. Shelf
4. Bottle holder (left)
5. Vegetable drawer

Correct setting

Refrigerator section

"Plasmacluster" ionizer

Select "ON" in step ②

Notes on the operation of the "Plasmacluster" ionizer

Select "OFF" in step ②

N.B.:

Door alarm

Select "ON" in step ②

Child lock

Select "OFF" in step ②

Note:

SJ-F77PC, SJ-F78PE, SJ-F79PS

Refrigerator compartment

Plasmacluster ionizer

Door alarm

SJ-F77PC, SJ-F78PE, SJ-F79PS

Freezer compartment

"Plasmacluster" ionizer

Door alarm

Before using the refrigerator

SJ-F77PC, SJ-F78PE, SJ-F79PS

(Only for SJ-F73PE, SJ-F74PS, SJ-F78PE, SJ-F79PS)

(Only for SJ-F73PE, SJ-F74PS, SJ-F78PE, SJ-F79PS)

Door alarm

(For SJ-F73PE, SJ-F74PS, SJ-F78PE, SJ-F79PS only)

FOR PROPER FREEZING

SJ-F77PC, SJ-F78PE, SJ-F79PS

Refrigerator compartment

Plasmacluster ionizer

SJ-F77PC, SJ-F78PE, SJ-F79PS

1. Door shelf
2. Refrigerator shelf
3. Shelf
4. Bottle holder (left)
5. Vegetable drawer

1. Fruit holder
2. Fresh food compartment
3. Bottle holder (right)

Starting operation

- A slight aroma may be noticeable in the refrigerator. This is the smell of ozone produced by the ionizer. The amount of ozone in the refrigerator is minimal and it quickly decomposes.

Timer

Express freezing automatically ends after about 2 hours. (The indication disappears.)

Cancelling operation

CARE AND CLEANING

SJ-F77PC, SJ-F78PE, SJ-F79PS

Ionized "Plasmacluster"

Door alarm

SJ-F77PC, SJ-F78PE, SJ-F79PS

1. Door compartment
2. Refrigerator shelf
3. Shelf
4. Bottle compartment (left)
5. Vegetable compartment

SJ-F77PC, SJ-F78PE, SJ-F79PS

Ionizer "Plasmacluster"

Refrigerator compartment

Ionizer "Plasmacluster"

Door alarm

SJ-F77PC, SJ-F78PE, SJ-F79PS

1. Door shelf
2. Refrigerator shelf
3. Shelf
4. Bottle holder (left)
5. Vegetable drawer

Ionizer "Plasmacluster"

Door alarm

To cancel ice making

SJ-F77PC, SJ-F78PE, SJ-F79PS

Door signal

Caution:

SJ-F77PC, SJ-F78PE, SJ-F79PS

Plasmacluster ionizer
