Product type	Canister vacuum
Brand	Samsung
Model	SC9540
Rated power	2000 W
Dust collection type	Bagless, cyclone
Tank capacity	1.5 L
Filtration	Washable HEPA filter
Noise level	78 dB(A)
Cable length	6 m
Operating radius	8 m
Included accessories	Hard floor nozzle, crevice tool, upholstery brush
Dimensions (L × W × H)	30 × 25 × 40 cm
Weight	4.5 kg
Power supply	Mains plug 220-240 V, 50/60 Hz
Maintenance and cleaning	Clean the filter every month, empty the dustbin after each use
Safety	Auto shut-off in case of overheating
Spare parts and repairability	Replacement filter, dustbin, battery (not applicable), nozzles available
General information	Designed for domestic use, powerful and quiet suction

Frequently Asked Questions - SC9540 SAMSUNG

How to empty the dustbin of the Samsung SC9540 vacuum cleaner?

Press the release button on the dustbin, remove it, then empty the contents into a trash can. Close the dustbin and replace it until you hear a click.

How often should I clean the HEPA filter?

It is recommended to clean the HEPA filter every month. Remove the filter, tap it to remove dust, and wash it with warm water if necessary. Let it dry completely before putting it back.

What if the vacuum cleaner loses suction power?

Check if the dustbin is full or the filter is clogged. Empty the dustbin and clean the filter. Also inspect the hoses and brush for any blockages.

The power cord does not retract completely, what to do?

Unplug the vacuum, gently pull the cord to release it, then press the rewinding pedal. If the problem persists, the mechanism may be dirty; consult the manual.

Can I use the Samsung SC9540 vacuum on hard floors?

Yes, the vacuum comes with a special hard floor nozzle. Use it to avoid scratching delicate surfaces.

How to replace the HEPA filter?

Buy a compatible replacement filter (Samsung part DJ97-00917A). Remove the old filter, insert the new one following the instructions in the manual.

The vacuum stops suddenly, what to check?

The auto shut-off may be due to overheating. Turn off the appliance, unplug it, and let it cool for 30 minutes. Also check that the dustbin is not full and the filter is not clogged.

What accessories are included with the Samsung SC9540?

The vacuum comes with a hard floor nozzle, a crevice tool, an upholstery brush, and a hose. Refer to the manual for the full list.

How to maintain the main brush?

Regularly remove hair and tangled threads around the brush. You can disassemble the brush for deeper cleaning. Refer to the manual for disassembly.

Where can I download the manual for the Samsung SC9540?

You can download the manual for free in PDF format on the website notice-facile.com by searching for model SC9540.

USER MANUAL SC9540 SAMSUNG

Line drawing of a vacuum cleaner device with control panel and ventilation slots (no text or symbols)

* Before operating this unit, please read the instructions carefully.

* Indoor use only.

Register your product at www.samsung.com/global/register

IMPORTANT SAFEGUARDS

1. Read all instructions carefully. Before switching on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate on the bottom of the cleaner.
2. WARNING : Do not use the vacuum cleaner when rug or floor is wet.
   Do not use to suck up water.
3. Close supervision is necessary when any appliance is used by or near children. Do not allow the vacuum cleaner to be used as a toy. Do not allow the vacuum cleaner to run unattended at any time. Use the vacuum cleaner only for its intended use as described in these instructions.
4. Do not use the vacuum cleaner without a dust bin. Empty the dust bin before it is full in order to maintain the best efficiency.
5. Do not use the vacuum cleaner to pick up matches, live ashes or cigarette butts. Keep the vacuum cleaner away from stoves and other heat sources. Heat can deform and discolour the plastic parts of the unit.
6. Avoid picking up hard, sharp objects with the vacuum cleaner as they may damage the cleaner parts. Do not stand on the hose assembly. Do not put weight on the hose. Do not block the suction or the exhaust port.
7. Switch the vacuum cleaner off on the body of the machine before unplugging from the electrical outlet. Disconnect the plug from the electrical outlet before changing the dust bag or dust container. To avoid damage, please remove the plug by grasping the plug itself, not by pulling on the cord.
8. This appliance is not intended for use by young children or infirm persons without supervision unless they are adequately supervised by a responsible person to ensure that they can use the appliance safely.
   Young children should be supervised to ensure that they do not play with the appliance.
9. The plug must be removed from the socket outlet before cleaning or maintaining the appliance.
10. The use of an extension cord is not recommended.
11. If your vacuum cleaner is not operating correctly, switch off the power supply and consult an authorized service agent.
12. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
13. Don't carry the vacuum cleaner by holding the hose.
    Use the handle on the vacuum cleaner set.
14. Unplug the cleaner when not in use. Turn off the power switch before unplugging.

1 ASSEMBLING THE CLEANER

▶ Features may vary according to model. Refer to 5,6 page.

Technical illustration of a vacuum cleaner with two views (front and side), showing internal components and mounting brackets (no text or symbols)

CAUTION

Please do not press the button of dust bin handle when carrying machine.

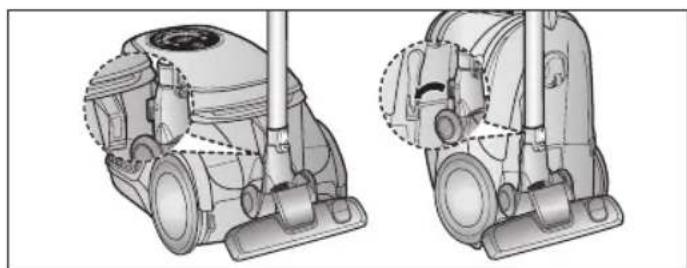

For storage, park the floor nozzle.

When removing the plug from the electrical outlet, grasp the plug, not the cord.

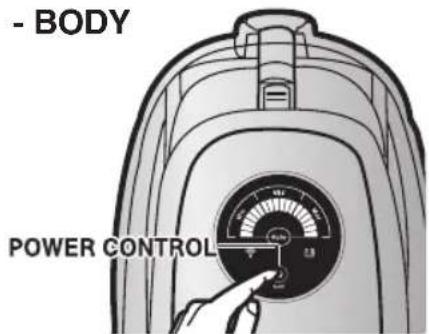

2-2. POWER CONTROL (INFRARED CONTROL)

• HOSE

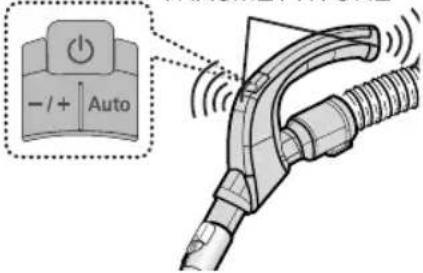

HANDLE CONTROL
[The cleaner is controlled by using infrared signals.]

1. Vacuum cleaner ON/OFF (☐)

Press the ON/OFF button to operate the vacuum cleaner. Press again to stop the vacuum cleaner.

2. Vacuum cleaner MODE (-/+)

Press the MODE button repeatedly to select the correct mode.

(ON) MIN → MID → MAX

3. Using Auto mode

Press the Auto button to operate the vacuum cleaner automatically.

Press the power control button repeatedly to select the correct mode.

(ON(MAX) → OFF)

NOTE : If the remote handle control is not working, the cleaner can be operated using the control button on the body of the machine.

The filter light is illuminated when the dust pack requires checking or emptying. An audio signal will also sound.

This indicates that the automatic suction mode is selected. The level of suction is indicated by the LED display.

The IR light indicates the part that receives the infra-red signal from the handle control.

2-3. HOW TO USE AND MAINTAIN THE ACCESSORIES

▶ Features may vary according to model.

PIPE

Line drawing of a cylindrical tool or probe with a handle and spout (no text or symbols)

Simple line drawing of a cylindrical tool with a handle and internal structure, no text or symbols present.

Adjust the length of the telescopic pipe by sliding the length control button located in the center of the telescopic pipe back and forth.

Illustration of a hand holding a cylindrical tool with a flame, emitting vapor (no text or symbols)

To check for blockages, separate the telescopic pipe and adjust to shorten. This allows for easier removal of waste clogging the tube.

ACCESSORY

All in one Accessory

Illustration of a robotic arm with directional arrows indicating movement (no text or symbols)

Push the accessory on to the end of the hose handle.

Pull out and turn the dust- ing brush for cleaning deli- cate areas.

To use the upholstery tool, push the accessory on to the end of the hose handle in the opposite direction.

ELBOW EXTENDING TUBE (OPTION)

Illustration of two mechanical components with numbered callouts (3 and 4), no visible text or symbols.

Illustration of a person cleaning a wall with a hose and armchair (no text or symbols)

1. Connect the elbow extending tube to connecting part for hose knob and telescopic pipe.
2. Fit the telescopic pipe to the lower part of the elbow extending tube.
3. Press the PUSH button.
4. With the PUSH button pressed, the elbow extending tube is folded.
5. Using the elbow extending tube allows hard to reach areas (e.g. under furniture) to be cleaned without having to kneel down.

OPTION

Illustration of a vacuum cleaner with attached circuit board (no text or symbols)

▶ Carpet Cleaning

▶ Floor Cleaning

Adjust the inlet lever according to the floor surface.

Illustration of a hand using a vacuum cleaner to clean or store floor panels (no text or symbols visible)

Remove waste matter completely if the inlet is blocked.

OPTION

Vacuum dust in wide area at once

Illustration of a hand using a cutting tool to cut a metal sheet (no text or symbols visible)

Remove waste matter completely if the inlet is blocked.

OPTION

Illustration of a vacuum cleaner (no text or symbols visible)

For improved pick-up of pet hair and fibre on carpets

Frequent vacuuming of hair or pet fur may cause a falling-off of the rotation due to matters tangled around the drum. In this case, clean the drum with care.

Diagram of a mechanical device with two views showing internal components (no text or symbols)

Push the Open button of the transparent screen cover to separate the cover.

Illustration of a vacuum cleaner with handle and base (no text or symbols)

Remove the brushbar from the transparent screen.

Line drawing of a hand holding a cylindrical object with a small black object inserted (no text or symbols)

Remove waste matter such as dust and hair tangled around the brushbar using scissors.

Illustration of a manual tool with handle and lever (no text or symbols)

Remove dust inside the brush housing using a dry duster or crevice tool.

Technical illustration of a mechanical component with a handle and base, shown in two views (no text or symbols)

Insert brushbar into rotating belt and assemble.

Mechanical component diagram showing a lever and adjustment mechanism (no text or symbols)

Click the transparent screen cover back into place to reassemble.

OPTION

Brush for blanket

For picking up pet hair and fibre on upholstery and bed linen.

Clogs on turbine keeps brush from turning, and in this case, take care of it.

Remove waste matter completely when inlet is blocked.

Turn the lock button to 'UNLOCK', and remove waste matter.

Mechanical assembly diagram showing a hand holding a device with a magnified inset view (no text or symbols)

To reassemble, align the cover to the front of the main body and close. After closing the cover, ensure that the lock button is turned to the 'LOCK' position.

Warning : Use for bedclothes only. Be cautious not to damage brush during unclogging.

3 EMPTYING THE DUST BIN

123

Illustration of a portable kitchen fan with a label 'MAX' and a magnified view of its lid (no text or symbols on the fan itself)

Illustration of a kitchen appliance with a dial and a magnified inset showing a grid of dots (no text or symbols)

Once dust reaches the DUST FULL mark, empty the dust bin

Illustration of a hand holding a small cylindrical device and a vacuum cleaner inside a container (no text or symbols visible)

Take the dust bin out by pressing the button.

Illustration of two hands operating a mechanical device with a tool inserted (no text or symbols visible)

Separate the dust bin cover.

456

Illustration of a hand using a portable device to press small objects into a trash bin (no text or symbols)

Throw the dust away in the bin.

Illustration of a hand using a tool to adjust a mechanical component, with an inset showing the close-up of the gear mechanism (no text or symbols present)

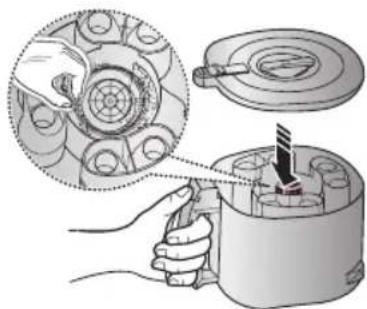

After emptying the DUST BIN, remove the obstacles like hair, fur on the cap of the DUST BIN.

Before use, push the dust bin into the main body of the vacuum cleaner until you hear the "click" sound.

• Empty into a plastic bag (recommended for asthma/allergy sufferers)


Illustration of hands holding a rope above a container with a handle and contents (no text or symbols visible)

Illustration of a medical device with hands and internal components (no text or symbols)

Illustration of a hand pouring liquid into a bag with a container (no text or symbols)

Illustration of hands using a tool to spray water from a container (no text or symbols)

NOTE

You may rinse the dust bin with cold water.

4 CLEANING THE DUST PACK

4-1. WHEN TO CLEAN THE DUST PACK

- Please, check the dust bin and dust pack if suction is noticeably reduced or the filter check indicator lamp turns on after emptying the dust bin.

The lamp will illuminate to signal when suction is reduced. If the light comes on, please clean the DUST BIN as shown.

4-2. CLEANING THE DUST BIN

1

Illustration of a hand holding a small cylindrical device next to an open industrial vacuum cleaner (no text or symbols visible)

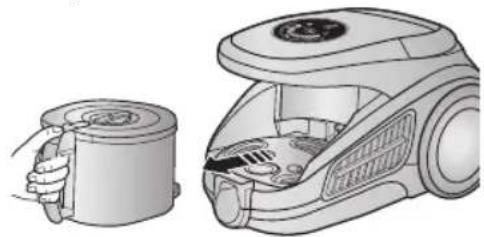

Detach the DUST BIN.

Illustration of a mechanical assembly with a close-up view of a gear mechanism (no text or symbols)

After emptying the DUST BIN, remove the obstacles like hair, fur on the cap of the DUST BIN.

NOTE :

Please, check the filter check indicator lamp (4-3) as shown in the following illustrations if the lamp is still illuminated even after cleaning the dust bin.

4-3. CHECKING THE FILTER CHECK INDICATOR LAMP

Turn the vacuum power to 'MAX'

Technical illustration of a mechanical clamp or fixture with a 10cm scale indicator (no text or symbols present)

If the filter check indicator turns red with the inlet floating 10cm above flat floor, clean the DUST PACK.

4-4. CLEANING THE DUST PACK

1

Illustration of two hands holding a cylindrical device with a lid, labeled ① and ② (no text or symbols on the device itself)

Technical illustration of a vacuum cleaner's internal components (no text or symbols)

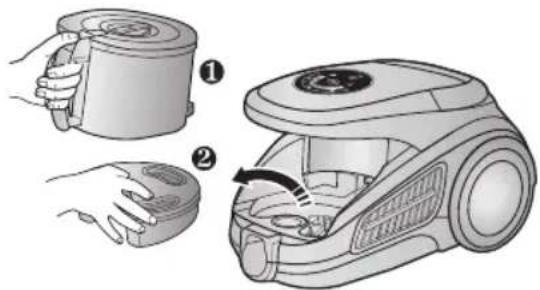

Remove the dust bin and dust pack as shown.

2

Illustration of hands performing a medical procedure on a patient's abdomen, with an inset showing magnified view (no text or symbols)

Remove the fixed frame of the dust pack cover.

3

Illustration of a hand washing a sink with a faucet above (no text or symbols)

Remove the sponge pad from the dust pack.

Illustration showing two hands washing a faucet and pouring liquid from a pan (no text or symbols)

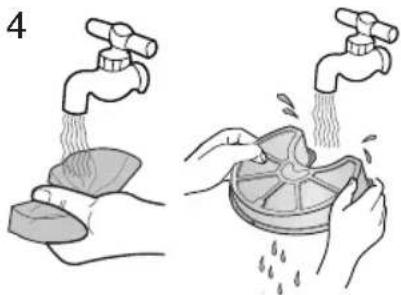

Wash the sponge and the filter of the dust pack with water.

5

Illustration of a sun shining on a brick wall next to a fan and a circular object (no text or symbols)

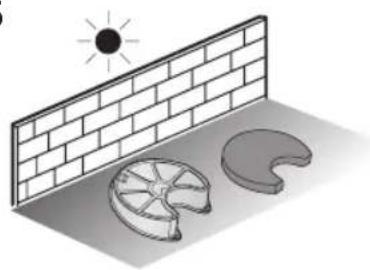

Let the sponge and dust pack dry in the shade for more than 12 hours.

6

Illustration of hands performing a manual tool on a shoe (no text or symbols visible)

Put the sponge into the dust pack.

Illustration of a hand holding a mechanical component with an inset showing a gear mechanism (no text or symbols)

Before reassembly, align the dust pack cover and dust pack correctly.

8

Illustration of a hand holding a small electronic device next to a vacuum cleaner (no text or symbols visible)

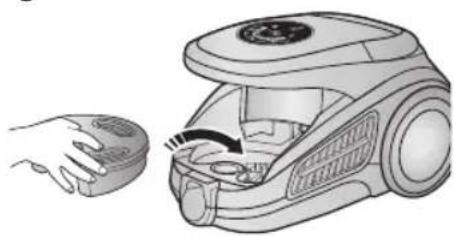

Put the assembled dust pack into the main body.

NOTE : Make sure the filter is completely dry before putting it back into the vacuum cleaner. Allow 12 hours for it to dry.

5 CLEANING THE MOTOR PROTECTION FILTER

Take out both the dust bin and the dust pack.

Illustration of a hand using a tool to adjust or install a small electronic device (no text or symbols visible)

Remove the motor protection filter from the vacuum cleaner. Shake and tap the dust from it and put back in machine.

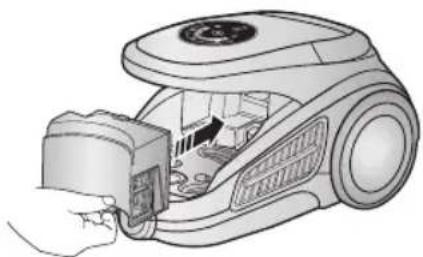

6 CLEANING THE OUTLET FILTER

1

Illustration of a hand holding a cylindrical device next to an open vacuum cleaner (no text or symbols visible)

Remove the dust bin.
2

Illustration of a hand inserting a component into a vacuum cleaner's air vent (no text or symbols visible)

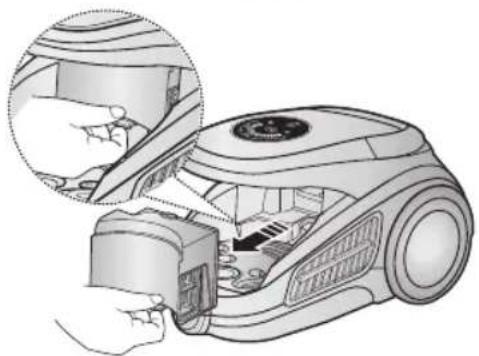

Pull out the HEPA Filter as shown.

3

Illustration of a hand using a tool to lift a cylindrical object into a trash bin (no text or symbols)

Dust the HEPA filter.

4

Illustration of a robotic vacuum cleaner with attached device (no text or symbols)

Put the HEPA filter into the main body until you hear a 'click' sound.

NOTE : Replacement filters are available at your local Samsung distributor.

7 CHANGE THE BATTERY(OPTIONAL)

Technical illustration of a handheld device with internal components (no text or symbols)

BATTERY TYPE : AAA Size

NOTE

1. When the vacuum cleaner does not work, replace the batteries. If the problem persists, please contact our authorized dealer.
2. Use 2 batteries of size AAA.

WARNING

1. Never disassemble or recharge the batteries.

2. Never heat up the batteries or throw them into fire.

3. Do not reverse (+), (-) poles.

4. Dispose of the batteries properly.

- IF YOU HAVE A PROBLEM

PROBLEM CAUSE REMEDY
Motor does not start.	No power supply. Thermal cut-out.	Check cable, plug and socket. Leave to cool.
Suction force is gradually decreasing.	Nozzle, suction hose or tube is blocked.	Check for blockage and remove it.
Cord does not rewind fully. Check that the cord is not twisted or wound unevenly.		Pull the cord out 2-3m and push the cord rewind button.
Vacuum cleaner does not pick up dirt.	Crack or hole in hose.	Check hose and replace if required.
Low or decreasing suction	Filter is full of dust.	Please check filter and, if necessary, clean as illustrated in the instructions.

This Vacuum cleaner is approved the following.

EMC Directive : 89/336/EEC, 92/31/EEC and 93/68/EEC

Low Voltage Safety Directive : 73/23/EEC and 93/68/EEC

If you have any comments or questions regarding a Samsung products, contact the SAMSUNG customer care center.

Country	Customer Care Center ☎	Web Site
SWITZERLAND	0800-7267864	http://www.samsung.com/ch

SAMSUNG

SAMSUNG

Line drawing of a vacuum cleaner device with control panel and ventilation slots (no text or symbols)

Technical illustration of a vacuum cleaner with two views (front and side), showing internal components and mounting brackets (no text or symbols)

VORSICHT

(EIN) MIN → MIT → MAX

1. Automatikbetrieb

Line drawing of a cylindrical tool or plunger with a handle and central grip (no text or symbols)

Illustration of a cylindrical tool with a handle and a blue arrow indicating direction (no text or symbols)

Illustration of a hand holding a soldering iron with a flame (no text or symbols)

Illustration of a robotic arm with directional arrows indicating movement (no text or symbols)

AUSFAHRBARES WINKELROHR (OPTIONAL)

3

Illustration of a mechanical device with two views (labeled 3 and 4), showing no text or symbols on the device itself.

Illustration of a person using a walking walkie-talkie to interact with a sofa (no text or symbols)

Illustration of a vacuum cleaner with handle and mounting base (no text or symbols)

Illustration of a hand using a handheld device to cut a cylindrical component (no text or symbols visible)

Illustration of a hand using a cutting tool to cut a metal sheet (no text or symbols visible)

Illustration of a vacuum cleaner (no text or symbols visible)

Mechanical component diagram showing a lever mechanism with two views of the lever (no text or symbols present)

Illustration of a vacuum cleaner with a handle and blade (no text or symbols)

Line drawing of a hand holding a cylindrical object with a small black object attached (no text or symbols)

Illustration of a mechanical clamp or tool with a handle and base (no text or symbols)

Technical illustration of a mechanical component with a handle and base, shown in 3D (no text or symbols)

Mechanical component diagram showing a lever and handle assembly with two circular arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a hand holding a device with a magnified inset view (no text or symbols)

Illustration of a hand holding a cylindrical device with a magnified inset showing the internal components (no text or symbols)

Illustration of two hands operating a mechanical device with a tool inserted (no text or symbols visible)

Illustration of a hand pouring liquid into a container with granular contents (no text or symbols)

Illustration of a hand using a tool to adjust a mechanical component, with an inset showing the close-up of the gear mechanism (no text or symbols present)

Three-step illustration showing hands holding a container with a bag, one open and one pouring liquid into a bag (no text or symbols)

Illustration of hands using a water tap to clean or store items in a container (no text or symbols)

HINWEIS

Illustration of a hand holding a cylindrical device next to an open vacuum cleaner (no text or symbols visible)

Illustration of a mechanical assembly with a magnified inset showing hands assembling a gear (no text or symbols present)

HINWEIS :

Technical illustration of a mechanical clamp or bracket with a 10cm scale indicator (no text or symbols present)

Illustration of two hands operating a cylindrical device with a lid, labeled ① and ② (no text or symbols on the device itself)

Technical illustration of a vacuum cleaner's internal structure (no text or symbols)

Illustration of hands performing a medical procedure on a patient's abdomen, with an inset showing magnified view (no text or symbols)

Illustration of a hand washing a tooth in a sink with a faucet above (no text or symbols)

Illustration showing two hands washing a faucet and pouring liquid from a pan (no text or symbols)

Isometric illustration of a sun shining on a brick wall next to a wheel and a curved object (no text or symbols)

Illustration of hands performing a manual tool on a shoe (no text or symbols visible)

Illustration of a hand holding a mechanical component with an inset showing a close-up of a gear mechanism (no text or symbols present)

Illustration of a hand holding a small electronic device with a circular button, next to an open device with internal components (no text or symbols visible)

Illustration of a hand using a tool to adjust or install a vacuum cleaner's air gap (no text or symbols present)

Illustration of a hand holding a cylindrical device next to an open vacuum cleaner (no text or symbols visible)

Illustration of a hand inserting a component into a vacuum cleaner's air gap (no text or symbols visible)

Illustration of a hand using a hammer to press down a trash can (no text or symbols present)

Illustration of a robotic vacuum cleaner with attached electrical outlet (no text or symbols)

Technical illustration of a handheld device with attached parts (no text or symbols)

Line drawing of a vacuum cleaner device with control panel and ventilation slots (no text or symbols)

Technical illustration of a vacuum cleaner with two views (front and side), showing internal components and mounting brackets (no text or symbols)

ATTENTION

(ON) MIN → MID → MAX [(MARCHE) MIN → MOY → MAX]

COMMANDE SITUÉE SUR LA POIGNÉE

Press the Auto button to operate the vacuum cleaner automatically.

- CORPS DE L'APPAREIL

Line drawing of a cylindrical tool or plunger with a handle and central grip (no text or symbols)

Simple line drawing of a cylindrical object with a handle and a small protrusion, no text or symbols present.

Line drawing of a hand holding a cylindrical tool with a flame, emitting vapor (no text or symbols)

Illustration of a robotic arm joint with directional arrows indicating movement (no text or symbols)

Illustration of two mechanical components with numbered callouts (3 and 4), no visible text or symbols.

Illustration of a person cleaning a wall with a hose and armchair (no text or symbols)

Illustration of a vacuum cleaner with attached screw and base (no text or symbols)

▶ Nettoyage des tapis
▶ Nettoyage des planchers.

Illustration of a hand using a tool to cut or mark a mechanical component on a wooden surface (no text or symbols visible)

Illustration of a hand using a cutting tool to cut a metal sheet (no text or symbols visible)

Illustration of a vacuum cleaner (no text or symbols visible)

Mechanical assembly diagram showing a component being adjusted with arrows, no text or symbols present

Illustration of a vacuum cleaner with handle and clamped parts (no text or symbols)

Line drawing of a hand holding a cylindrical object with a small protrusion (no text or symbols)

Illustration of a mechanical clamp or lever device with a handle and base (no text or symbols visible)

Technical illustration of a mechanical component with a handle and base, shown in two views (no text or symbols)

Diagram of a vacuum cleaner with two views of the component (no text or symbols present)

Mechanical assembly diagram showing a hand holding a device with a magnified inset (no text or symbols)

Illustration of a hand using a vacuum cleaner to lift a cylindrical device, showing the process (no text or symbols present)

Illustration of two hands operating a mechanical device with a tool, no text or symbols present

Illustration of a hand using a portable device to clean food items from a trash bin (no text or symbols visible)

Illustration of a hand using a tool to adjust a mechanical component, with an inset showing the gear mechanism (no text or symbols present)

Illustration of three steps of a coffee cup being handled, showing different shapes and colors (no text or symbols)

Illustration of hands using a water tap to clean or store items from a steaming cup (no text or symbols)

REMARQUE

Illustration of a refrigerator with a digital display showing temperature and battery (no text or symbols)

Illustration of a vacuum cleaner with a hand inserting a component into it (no text or symbols present)

Illustration of a mechanical assembly with a close-up view of a gear mechanism (no text or symbols)

REMARQUE :

Technical illustration of a mechanical clamp or fixture with a 10cm scale indicator (no text or symbols present)

Illustration of two hands operating a cylindrical device with a lid, labeled ① and ② (no text or symbols on the device itself)

Technical illustration of a vacuum cleaner's internal components (no text or symbols)

Illustration of hands performing a medical procedure on a patient's abdomen, showing anatomical positioning (no text or symbols present)

Illustration of hands cleaning a faucet with liquid, no text or symbols present

Illustration showing two hands washing a faucet and pouring liquid from a bowl (no text or symbols)

Illustration of a sun shining on a brick wall next to a metallic fan and a circular object (no text or symbols)

Illustration of hands using a tool to apply material to a smooth, curved object (no text or symbols visible)

Illustration of a hand holding a mechanical component with an inset showing a close-up of a gear mechanism (no text or symbols)

Illustration of a hand holding a small electronic device with a handle, next to an open device with internal components (no text or symbols visible)

Illustration of a hand using a tool to adjust or install a small electronic device (no text or symbols visible)

Illustration of a hand holding a cylindrical device next to an open vacuum cleaner (no text or symbols visible)

Illustration of a hand inserting a component into a vacuum cleaner's air vent (no text or symbols visible)

Illustration of a robotic vacuum cleaner with attached device (no text or symbols)

7 CHANGEMENT DES PILES (EN OPTION)

Technical illustration of a handheld device with internal components (no text or symbols)

TYPE DE PILE : Taille AAA.

REMARQUE

Directive EMC : 89/336/EEC, 92/31EEC et 93/68/EEC

Line drawing of a vacuum cleaner device with control panel and ventilation slots (no text or symbols)

Technical illustration of a vacuum cleaner with two views (front and side), showing internal components and mounting brackets (no text or symbols)

ATTENZIONE

2-2. ACCENSIONE (CONTROLLO A INFRAROSSI)

- TUBO FLESSIBILE

TRASMETTITORE

CONTROLLO SULL'IMPUGNATURA

(ON) MIN → MID → MAX

Line drawing of a cylindrical tool or probe with a handle and spout (no text or symbols)

Simple line drawing of a cylindrical tool with a handle and internal structure, no text or symbols present.

Illustration of a robotic arm with directional arrows indicating movement (no text or symbols)

Technical illustration of two mechanical components with numbered parts (3 and 4), no visible text or symbols.

Illustration of a person using a long-handled tool to lift a small object, next to a sofa (no text or symbols)

3D rendering of a mechanical clamp or bracket component (no text or symbols visible)

▶ Pulizia tappeti

▶ Pulizia pavimenti

Illustration of a hand using a handheld device to cut a cylindrical component (no text or symbols visible)

Illustration of a hand using a tool to cut or mark a mechanical component (no text or symbols visible)

Illustration of a vacuum cleaner (no text or symbols visible)

Mechanical assembly diagram showing a component being inserted into a housing, with two views of the tool (no text or labels visible)

Illustration of a mechanical device with lever and handle (no text or symbols)

Technical illustration of a mechanical component with a cylindrical shaft and base plate (no text or symbols)

Technical illustration of a mechanical component with two views showing internal features (no text or symbols)

Mechanical assembly diagram showing a device with rotating arms and a close-up inset of the component (no text or symbols)

Illustration of a hand using a vacuum cleaner to lift a cylindrical device, showing the process with no text or symbols.

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a hand using a portable device to clean food items from a trash bin (no text or symbols visible)

Illustration of a mechanical assembly with a hand holding a tool, showing a close-up of a gear mechanism (no text or symbols present)

Illustration of hands holding a piece of dough next to a container filled with granular material (no text or symbols)

Illustration of hands holding a container with food items, no text or symbols present

Illustration of hands using a tool to clean or spray liquid from a water heater (no text or symbols)

4 PULIZIA DEL SACCHETTO POLVERE

Illustration of a refrigerator with a digital display showing a grid and control buttons (no text or symbols)

Technical illustration of a vacuum cleaner with a hand inserting a component into it (no text or symbols present)

Technical illustration of a vacuum cleaner with 10cm height measurement (no text or symbols)

Illustration of hands performing a medical procedure on a patient's abdomen, with an inset showing magnified view (no text or symbols)

Illustration of hands cleaning a sink with a faucet, showing water level and surface (no text or symbols)

Illustration showing two hands washing a faucet and pouring liquid from a bowl (no text or symbols)

Illustration of a sun shining on a brick wall next to a metallic fan and a circular object (no text or symbols)

Illustration of hands performing a manual tool on a shoe (no text or symbols visible)

Illustration of a hand holding a mechanical component with an inset showing a close-up of a gear mechanism (no text or symbols present)

Illustration of a hand holding a small electronic device with a handle, next to an open device with internal components (no text or symbols visible)

Illustration of a hand using a tool to clean or adjust the interior space of a vacuum cleaner (no text or symbols present)

Illustration of a vacuum cleaner with a hand inserting a component into its side, shown from two different angles (no text or symbols present)

Illustration of a hand inserting a component into a vacuum cleaner's air vent (no text or symbols visible)

Illustration of a hand pressing down on a trash can (no text or symbols)

Illustration of a vacuum cleaner with internal components and a hand inserting a cable (no text or symbols)

Technical illustration of a handheld vacuum cleaner with internal components (no text or symbols)

TIPO BATTERIA: FORMATO AAA

ATTENZIONE
