Product Type	Canister Vacuum Cleaner
Model	SC4187
Brand	Samsung
Dimensions (L x W x H)	400 x 250 x 300 mm
Weight	5.5 kg
Power Supply	220-240V, 50Hz
Rated Power	1600 W
Dust Capacity	2.0 L (bagged)
Filtration System	HEPA filter
Cord Length	6 m
Noise Level	80 dB
Suction Control	Variable power settings
Accessories Included	Crevice tool, dusting brush, upholstery nozzle
Bag Type	Disposable dust bag
Filter Cleaning	Replacement recommended every 6 months
Safety Features	Thermal overload protection
Spare Parts	Dust bags, HEPA filter, hose, brush head
Repairability	Easy access to main components; spare parts available
General Information	For dry vacuuming only; not suitable for liquids

Frequently Asked Questions - SC4187 SAMSUNG

How do I change the dust bag?

Open the bag compartment, remove the full bag, and insert a new Samsung dust bag (type SC4187). Ensure it clicks into place.

What type of filter does the SC4187 use?

It uses a HEPA filter. Replace every 6 months or when dirty.

How can I clean the filter?

Tap the filter gently to remove dust. Do not wash. Replace if damaged.

Why is the suction weak?

Check if the dust bag is full, the filter is clogged, or the hose is blocked. Also ensure the suction control is set to maximum.

Can I use the vacuum for wet spills?

No, this model is for dry vacuuming only. Using it on liquids can damage the motor.

How often should I replace the dust bag?

Replace when the bag is full or when suction drops. Typically every 1-2 months for regular use.

What is the cord length?

The power cord is 6 meters long, allowing a 9-meter cleaning radius.

How do I store the vacuum?

Wrap the cord around the hooks, and store the vacuum upright in a dry place. Attach the hose to the unit.

What accessories are included?

It comes with a crevice tool, dusting brush, and upholstery nozzle for different surfaces.

Where can I purchase spare parts?

Spare parts like dust bags, filters, and hoses are available at Samsung service centers or online retailers.

USER MANUAL SC4187 SAMSUNG

EN Operating Instructions

VACUUM CLEANER

Line drawing of a vacuum cleaner device with no visible text or symbols

* Before operating this unit, please read the instructions carefully.
* For indoor use only.

Register your product at www.samsung.com/register

IMPORTANT SAFEGUARDS

1. Read all instructions carefully. Before switching on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate on the bottom of the cleaner.

2. WARNING : Do not use the vacuum cleaner when rug or floor is wet. Do not use to suck up water.

3. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

4. Do not use the vacuum cleaner without a dust bag. Replace the dust bag before it is full in order to maintain the best efficiency.

5. Do not use the vacuum cleaner to pick up matches, live ashes or cigarette butts. Keep the vacuum cleaner away from stoves and other heat sources. Heat can deform and discolour the plastic parts of the unit.

6. Avoid picking up hard, sharp objects with the vacuum cleaner as they may damage the cleaner parts. Do not stand on the hose assembly. Do not put a weight on the hose. Do not block the suction or the exhaustion part.

7. Switch the vacuum cleaner off at the machine before unplugging from the electrical outlet. Do not pull on the cord to disconnect the plug from the electrical outlet. Ensure that it is disconnected before attending to the filter.

8. The plug must be removed from the socket outlet before cleaning or maintaining the appliance.

9. The use of an extension cord is not recommended.

10. If your vacuum cleaner is not operating correctly, switch off the power supply and consult an authorized service agent.

11. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

12. The vacuum cleaner is provided with a self-resetting thermal cut-out which automatically shuts off on over-heating. Overheating can be caused by blockage in the filter, nozzle, tube or hose. After removing the cause and allowing the motor to cool, the vacuum cleaner will automatically restart.

1 ASSEMBLING THE CLEANER

▶ Features may vary according to model.

Technical illustration of two different vacuum cleaner components, shown from top and side views (no text or symbols present)

▶ For storage, park the floor nozzle.

Technical illustration of a vacuum cleaner with internal components and mounting bracket (no text or symbols)

▶ Tool storage

Illustration of a vacuum cleaner with a power button icon (no text or symbols)

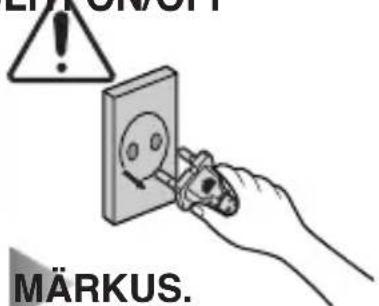

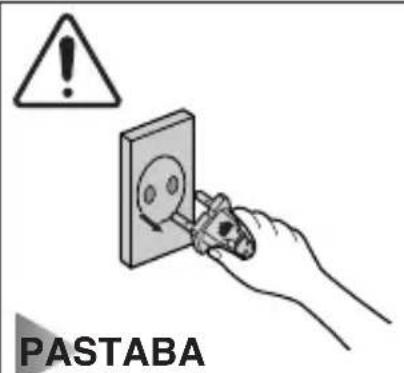

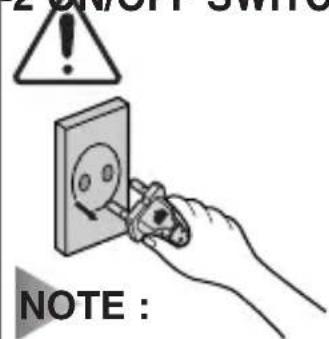

When removing the plug from the socket, please take care to grasp the plug, not the cord in order to avoid undue stress.

Illustration of a vacuum cleaner with a hand operating the valve (no text or symbols present)

2-3 POWER CONTROL(VOLUME TYPE ONLY)

MIN = For delicate fabrics, e.g. net curtains.

MAX = For hard floors and heavily soiled carpets.

2-4 SUCTION CONTROL

To reduce suction for cleaning draperies, small rugs and other light fabrics, slide the air vent until the hole is open.

Diagram of a flexible hose with coiled tubing and a directional arrow (no text or symbols)

2-5 USING THE BLOWER

Located on the left rear side of the cleaner.

1) Disconnect the hose from the body of the cleaner.

2) Connect the hose clamper to the blow hole.

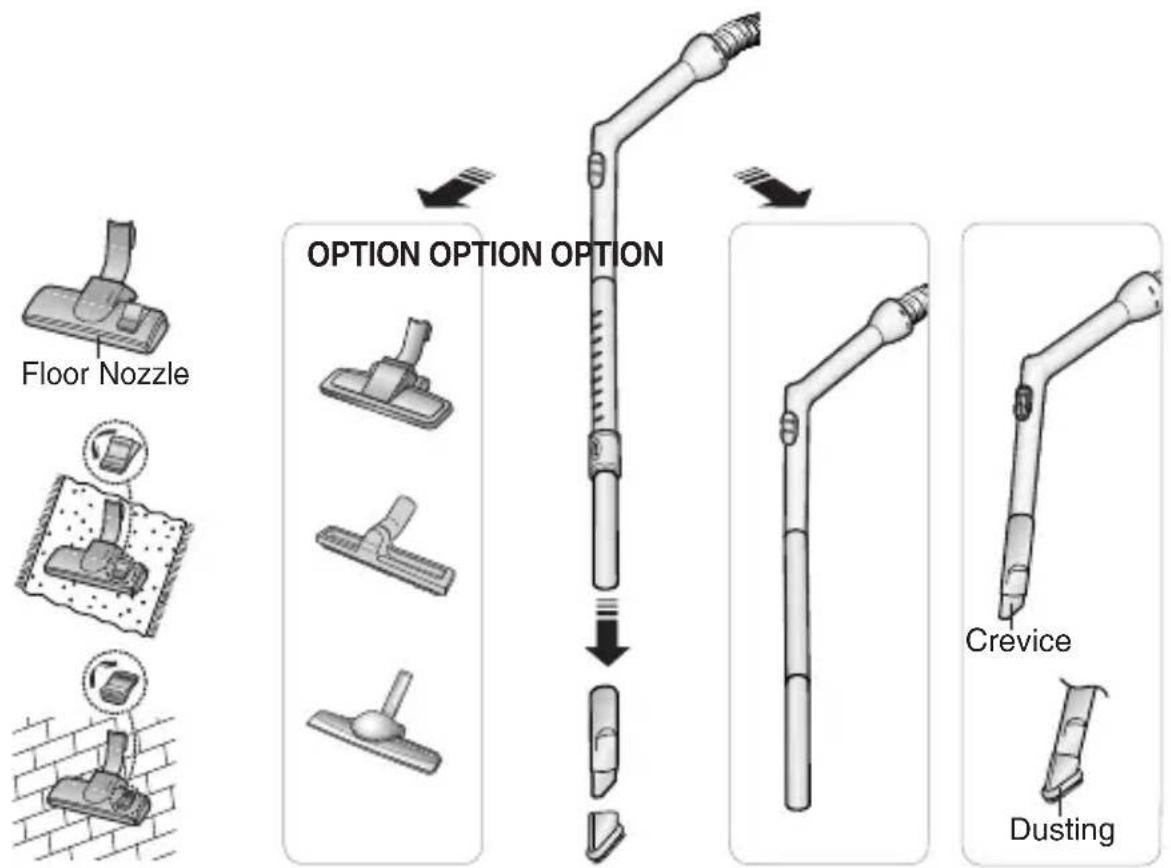

2-6 USING FLOOR TOOLS

OPTION Detach transparent drum cover for easy cleaning.

Sequence of five mechanical assembly diagrams showing a lever mechanism with tool manipulation (no text or symbols)

OPTION

Blanket brush Bedclothes or Blanket

Illustration of a mechanical component with a cylindrical shaft and flange, resting on a textured surface (no text or symbols)

Illustration of a hand holding a medical device with an inset close-up showing internal components (no text or symbols)

Illustration of a mechanical device with a cylindrical component and a hand holding a cable (no text or symbols visible)

Cut off pet hairs or threads surrounding brush by using scissors.

▶ Features may vary according to model.

DUSTING BRUSH CREVICE TOOL

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

• Dusting brush for furniture. shelves, books, etc.

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

• Crevice tool for radiators, crevices, corners, between cushions.

Technical line drawing of a mechanical component with a tool inserted (no text or symbols)

• For efficiency. clean Floor Nozzle with Crevice Tool.

3 INDICATOR LIGHTS

Close-up of a mechanical component with a highlighted section and a dotted line indicating a detail (no text or symbols)

When the indicator color has changed Please replace the dust bag.

3-1 CHANGING THE DUST BAG

1

Illustration of a hand holding a small vacuum cleaner (no text or symbols)

2

Illustration of a hand holding a device with an arrow indicating rotation (no text or symbols)

3

Illustration of a hand pouring liquid into a cylindrical container (no text or symbols)

4

Illustration of a hand holding a device with a circular component, no text or symbols visible

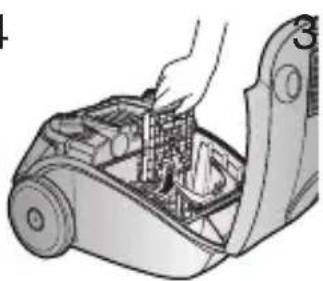

3-2 FOR CLOTH BAG (OPTION)

After using, if the cloth bag is full of dust, clean the cloth bag and use it again.

WARNING : Please do not attempt to operate the cleaner without a dust bag fitted.

4 CYCLONIC FILTER(ONLY CYCLONIC FILTER TYPES)

You can use a dust bag in your cleaner for a long time thanks to the Cyclonic Filter system and it maintain the maximum cleaning efficiency.

The larger particle of dust filtered from Cyclonic Filter remain in Dust Barrel when suctioned air and dust revolves in the Cyclonic Filter. So the dust bag contains only smaller ones.

When the Dust Barrel is filled with dust up to the indicating line, it needs disposing and cleaning. Dust Barrel can be cleaned in water.

1. Turn the Dust Barrel to the left and pull it.
2. Disconnect the Cyclonic Filter from extension wand and handle.
3. Remove thread and hair tangled around the net.
4. After cleaning the Dust Barrel and Cyclonic Filter, connect the Cyclonic Filter with extension wand and handle (washed part should be dried in the shade throughly before assembling).
   5.Push and turn the Dust Barrel to the right.

Adjust indicating marks each other carved on Dust Barrel and Cyclonic Filter.

5 CLEANING THE INLET FILTER(OPTION)

1

Illustration of a hand holding a vacuum cleaner (no text or symbols present)

Illustration of a hand operating a mechanical device with internal components (no text or symbols visible)

4

Illustration of a hand operating a vacuum cleaner with internal components (no text or symbols visible)

3

NOTE: Do not allow the filter to become clogged as this may cause power reduction or may damage the motor.

• IF YOU HAVE A PROBLEM

PROBLEM CAUSE REMEDY
Motor does not start.	No power supply. Thermal cut-out.	Check cable, plug and socket.Leave to cool.
Suction force is gradually decreasing.	Nozzle, suction hose or tube is blocked.	Remove the object.
Cord does not rewind fully.	Check that the cord is not twisted or wound unevenly.	Pull the cord out 2-3m and push down the cord rewind button.
Vacuum cleaner does not pick up dirt.	Crack or hole in hose.	Check hose and replace if required.

This Vacuum cleaner is approved the following.

EMC Directive : 2004/108/EEC

Low Voltage Safety Directive : 2006/95/EC

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.

Country Customer Care Center Web Site
LITHUANIA	8-800-77777	www.samsung.com/lt
LATVIA	8000-7267	www.samsung.com/lv
ESTONIA	800-7267	www.samsung.com/ee

Line drawing of a vacuum cleaner device (no text or symbols)

Technical illustration of two different vacuum cleaner components, shown from top and side views (no text or symbols)

Technical line drawing of a vacuum cleaner with open lid and internal components (no text or symbols)

Illustration of a vacuum cleaner with a hand inserting a plug into the air gap (no text or symbols present)

2-2 ВЫКЛЮЧАТЕЛЬ

ПРИМЕЧАНИЕ:

Illustration of a vacuum cleaner with a hand operating it, no text or symbols present

Diagram of a flexible hose with coiled tubing and a directional arrow (no text or symbols)

Sequence of five mechanical assembly diagrams showing progressive assembly steps (no text or labels)

ОПЦИЯ

Illustration of a robotic arm with a magnified inset showing the hand and torso (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Pure technical line drawing of a welding joint (no text or symbols)

Illustration of a mechanical tool interacting with a component (no text or symbols visible)

Diagram of a device's front panel with a magnified inset showing a button (no text or symbols)

Illustration of a hand holding a vacuum cleaner (no text or symbols)

▶ Откройте крышку

2

Illustration of a hand using a handheld device to adjust or install a component (no text or symbols visible)

Illustration of a hand pouring liquid into a trash can (no text or symbols)

Illustration of a hand operating a mechanical device with no visible text or symbols

Illustration of a hand holding a small vacuum cleaner (no text or symbols present)

Illustration of a hand inserting a component into a device (no text or symbols visible)

4

Illustration of a hand inserting a component into a device (no text or symbols visible)

Line drawing of a vacuum cleaner device with control knobs and ventilation slots (no text or symbols)

Technical illustration of two different vacuum cleaner components, shown from top and side views (no text or symbols present)

Technical illustration of a vacuum cleaner with internal components and mounting bracket (no text or symbols)

Illustration of a vacuum cleaner with a hand inserting a plug into the air (no text or symbols present)

Illustration of a vacuum cleaner with a hand operating the air gap (no text or symbols)

2-3 GALIOS REGULIATORIUS (TIK MODELIAMS SU GALIOS REGULIATORIUMI)

Diagram of a flexible hose with coiled tubing and a directional arrow (no text or symbols)

2-5 NAUDOJIMASIS PÜTIMO FUNKCIJA

Diagram of a vacuum cleaner with labeled parts and a magnified inset showing the engine component (no text or symbols present)

2-6 GRINDU VALYMO IRANKIU NAUDOJIMAS

Sequence of five technical illustrations showing a mechanical component being adjusted, with no visible text or symbols.

Illustration of a mechanical component mounted on a textured surface (no text or symbols)

Illustration of a hand holding a camera with an inset close-up showing the camera's lens (no text or symbols present)

Illustration of a mechanical device with a cylindrical component and a hand holding a tool (no text or symbols visible)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Pure mechanical diagram showing a bent pipe or rod with a coiled spring attached, no text or symbols present.

Mechanical component with a tool inserted into a housing (no visible text or symbols)

Top-down view of a car's front panel showing grille and side-mounted buttons, with a magnified inset highlighting a button (no text or symbols present)

Illustration of a hand holding a small vacuum cleaner (no text or symbols visible)

2

Illustration of a hand using a handheld device to adjust or install a component (no text or symbols visible)

3

Illustration of a hand pouring liquid into a cylindrical container (no text or symbols)

4

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

3-2 MEDŽIAGINIS DULKIŲ SURINKIMO MAIŠELIS (VARIANTAS)

Illustration of a hand holding a small vacuum cleaner (no text or symbols present)

Illustration of a mechanical device with a hand inserting a spring into a housing (no text or symbols visible)

Line drawing of a vacuum cleaner device with control knobs and vent slots (no text or symbols)

Technical illustration of two different vacuum cleaner components (no text or symbols present)

Technical illustration of a vacuum cleaner with internal components and housing (no text or symbols)

Illustration of a vacuum cleaner with a circular icon and arrow indicating airflow or control (no text or symbols present)

Illustration of a vacuum cleaner with a handle and control panel, no text or symbols present

2-3 JAUDAS KONTROLE (TIKAI APJOMA VEIDA)

Diagram of a flexible hose with a curved tube and directional arrow (no text or symbols)

2-5 GAISA PÜTËJA LIETOŠANA

2-6 GRĪDAS UZGAŁU LIETOŠANA

Mechanical assembly diagram showing a tool and a mechanical component with a magnified inset (no text or symbols)

Illustration of a mechanical device with a magnified inset showing internal components (no text or symbols)

Illustration of a mechanical device with a hand pulling a tool (no text or symbols visible)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Pure technical line drawing of a welding joint (no text or symbols)

Illustration of a mechanical tool interacting with a component (no text or symbols visible)

Diagram of a car's front panel with a magnified inset showing a cylindrical component (no text or symbols)

Illustration of a hand holding a vacuum cleaner (no text or symbols present)

2

Illustration of a hand operating a mechanical device with no visible text or symbols

3

Illustration of a hand pouring liquid into a trash can (no text or symbols)

4

Illustration of a hand using a handheld device to adjust or install a component (no text or symbols visible)

3-2 AUDUMA PUTEKLU MAISAM (OPCIJA)

Line drawing of a hand holding a vacuum cleaner (no text or symbols)

Illustration of a hand inserting a component into a device (no text or symbols visible)

4

Mechanical device diagram showing internal components and a hand operating it (no text or symbols visible)

Technical line drawing of a vacuum cleaner device (no text or symbols)

Technical illustration of two different vacuum cleaner assemblies (no text or symbols present)

Technical illustration of a vacuum cleaner with internal components and housing (no text or symbols)

Tarvikute hoiukoht.

2 TOLMUIMEJA KASUTAMINE

2-1 TOITEJUHE 2-2 LÜLITI ON/OFF

Illustration of a vacuum cleaner with a hand inserting a plug into the air (no text or symbols present)

MÄRKUS.

Illustration of a vacuum cleaner with a numbered label (1) and mechanical components, no text or symbols present.

2-3 VÕIMSUSE REGULEERIMINE (AINULT VÕIMSUSREGULEERITAVAT TÜÜPI)

2-4 IMEMISTUGEVUSE REGULEERIMINE

Diagram of a flexible hose with coiled tubing and a directional arrow (no text or symbols)

2-5 PUHURI KASUTAMINE

Paikneb tolmuimeja taga vasakul pool.

2-6 PÕRANDATARVIKUTE KASUTAMINE

Illustration of a mechanical component being adjusted, showing five sequential steps from assembly to disassembly (no text or symbols present)

VÕIMALUS

Simple line drawing of a door handle with a clip, no text or symbols present

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Illustration of a mechanical tool interacting with a component (no text or symbols visible)

Diagram of a mechanical component with a highlighted section and arrow, no visible text or symbols

Line drawing of a hand holding a vacuum cleaner (no text or symbols)

2

Illustration of a hand holding a device with a circular button, no text or symbols visible

3

Illustration of a hand pouring liquid into a trash can (no text or symbols)

4

Illustration of a hand operating a mechanical device with a circular component (no text or symbols visible)

3-2 RIIDEST TOLMUKOTT (LISAVÕIMALUSENA)

4 KEERISFILTER (AINULT KEERISFLITRI TÜÜBID)

5 SISSELASKEFILTRI (LISATARVIK) PUHASTAMINE

1

Line drawing of a vacuum cleaner (no text or symbols)

2

Illustration of a mechanical device with hands operating it, showing internal components and no visible text or symbols.

4

Illustration of a hand operating a mechanical device with no visible text or symbols
