USER MANUAL Viotech 3200+ BIOSTAR

FCC Information and Copyright

This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. There is no guarantee that interference will not occur in a particular installation.

The vendor makes no representations or warranties with respect to the contents here and specially disclaims any implied warranties of merchantability or fitness for any purpose. Further the vendor reserves the right to revise this publication and to make changes to the contents here without obligation to notify any party beforehand.

Duplication of this publication, in part or in whole, is not allowed without first obtaining the vendor's approval in writing.

The content of this user's manual is subject to be changed without notice and we will not be responsible for any mistakes found in this user's manual. All the brand and product names are trademarks of their respective companies.

Table of Contents

Chapter 1: Introduction ...... 1

1.1 Before You Start 1
1.2 Package Checklist....1
1.3 Motherboard Features....2
1.4 Rear Panel Connectors 3
1.5 Motherboard Layout....4

Chapter 2: Hardware Installation .... 5

2.1 Installing Central Processing Unit (CPU) 5
2.2 FAN Headers....5
2.3 Installing System Memory 6
2.4 Connectors and Slots 8

Chapter 3: Headers & Jumpers Setup ...... 11

3.1 How to Setup Jumpers 11
3.2 Detail Settings 11

Chapter 4: Useful Help ...... 15

4.1 Driver Installation Note.... 15
5.2 Extra Information....16
5.3 Troubleshooting....17

Appendix: SPEC In Other Languages 18

German....18
French 20
Italian....22
Spanish 24
Portuguese 26
Polish 28
Russian 30
Arabic....32
Japanese 34

CHAPTER 1: INTRODUCTION

1.1 B EFORE YOU START

Thank you for choosing our product. Before you start installing the motherboard, please make sure you follow the instructions below:

■ Prepare a dry and stable working environment with sufficient lighting.
■ Always disconnect the computer from power outlet before operation.
■ Before you take the motherboard out from anti-static bag, ground yourself properly by touching any safely grounded appliance, or use grounded wrist strap to remove the static charge.
■ Avoid touching the components on motherboard or the rear side of the board unless necessary. Hold the board on the edge, do not try to bend or flex the board.
■ Do not leave any unfastened small parts inside the case after installation. Loose parts will cause short circuits which may damage the equipment.
- Keep the computer from dangerous area, such as heat source, humid air and water.
■ Do not squeeze or touch CPU Cooler (Fan/Heatsink)
■ The operating temperatures of the computer should be 0 to 45 degrees Celsius.

1.2 PACKAGE CHECKLIST

Rear I/O Panel Shield X 1
+ Fully Setup Driver CD X 1 (full version manual files inside)
Serial ATA Cable X 2
Quick Installation Guide X 1

1.3 MOTHERBOARD FEATURES

SPEC
CPU VIA C7-D 1.8G Processor		NanoBGA2VIA CPU On-boardExecute Disab le Bit
FSB VIA V4	BUS 800MHz
Chipset	VX900
Graphics Chrome9 HD		Max Shared Video Memory is 512MBSupport DirectX 9.0 and Pixel Shader (SM2.0)
Super I/O ITE 8728		Low Pin Count InterfaceEnvironment ControlH/W MonitorFan Speed Controller
MainMemory	DDR3 Slots x 2	Each DIMM supports 512MB/1GB/2GB/4GB DDR3Max Memory Capacity 8GBSupports DDR3 800 / 1066Sing le Chann el Mode DDR3 memory modu leRegistered D IMM and ECC DIMM is not supported
SATA Integrated Serial ATA Controller		Data transfer rates up to 3.0 Gb/s.SATA Version 2.0 specification co mp liant
LAN Realtek RTL8103EL 10 / 100 Mb/s auto negotiation
SoundCodec	VIA VT1708S	5.1 channels audio outHigh-Definition Audio support
Slot	PCI slot x1 Supports PCI expansion cardPCI Express Gen2 x 16 slot x1	Supports PCI-E x16 expansion card (x8-Lane only)
On BoardConnector	SATA Connector x2Front Panel Connector x1Front Audio Connector x1CPU Fan Header x1System Fan Header x1	Each connector supports 1 SATA devicesSupports front panel facilitiesSupports front panel audio functionCPU Fan power supplySystem Fan Power supply
	Clear CMOS Header x1 Restore CMOS data to factory defaultUSB Connector x2 Each connector supports 2 front panel USB portsPrinter Port Connector x1 Each connector supports 1 Printer portSerial Port Connector x1 Connects to RS-232 PortPower Connector (24pin) x1 Connects to Power supplyPower Connector (4pin) x1 Connects to Power supply
Real PanelI/O	PS/2 Keyboard x1PS/2 Mouse x1VGA Port x1LAN Port x1USB Port x4Audio Jack x3	Connects to PS/2 KeyboardConnects to PS/2 MouseConnects to monitorConnects to RJ-45 ethernet cableConnects to USB devicesProvide Audio-In/Out and microphone connection
Board Size	170 (W) x 220 (L) mm
OS Support	Windows XP/Vista/7	Biostar reserves the right to add or remove support for any OS with or without notice.

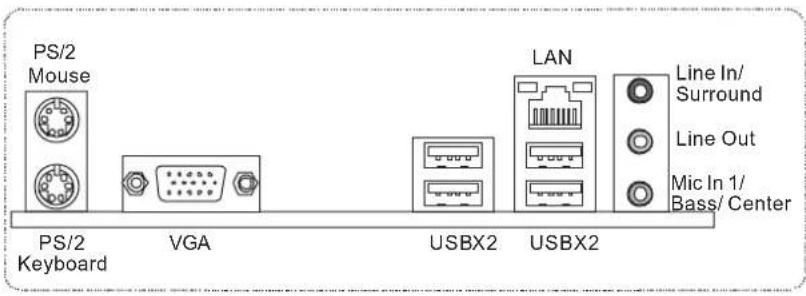

1.4 REAR PANEL CONNECTORS

Since the audio chip supports High Definition Audio Specification, the function of each audio jack can be defined by software. The input / output function of each audio jack listed above represents the default setting. However, when connecting external microphone to the audio port, please use the Mic In (Pink) audio jack.

1.5 MOTHERBOARD LAYOUT

Note: ■ represents the 1^st pin.

CHAPTER 2: HARDWARE INSTALLATION

2.1 INSTALLING CENTRAL PROCESSING UNIT (CPU)

The motherboard includes an embedded VIA C7-D or Nano processor, and a heatsink has been installed to provide sufficient cooling.

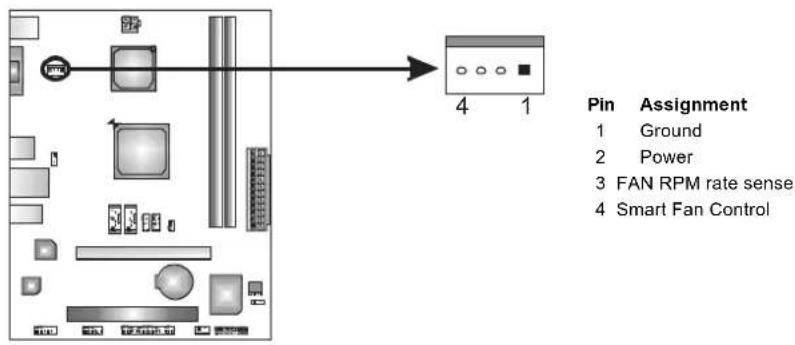

2.2 FAN HEADERS

These fan headers support cooling-fans built in the computer. The fan cable and connector may be different according to the fan manufacturer. Connect the fan cable to the connector while matching the black wire to pin#1.

CPU_FAN1: CPU Fan Header

SYS_FAN1: System Fan Header

Note:

CPU_FAN1 supports 4-pin head connector; SYS_FAN1, 3-pin head one. When connecting with wires onto connectors, please note that the red wire is the positive and should be connected to pin#2, and the black wire is Ground and should be connected to GND.

2.3 INSTALLING SYSTEM MEMORY

A. DDR3 Module

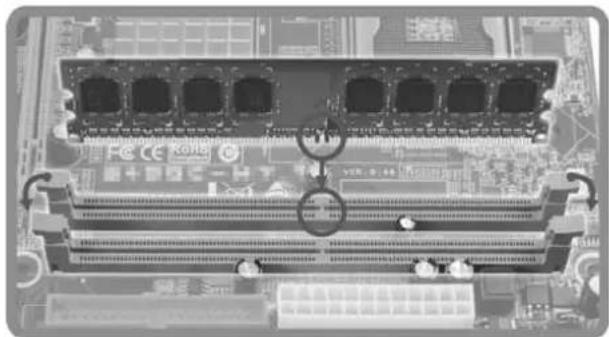

1. Unlock a DIMM slot by pressing the retaining clips outward. Align a DIMM on the slot such that the notch on the DIMM matches the break on the Slot.

Close-up of a computer motherboard showing multiple RAM slots and CPU socket (no visible text or labels)

1. Insert the DIMM vertically and firmly into the slot until the retaining chip snap back in place and the DIMM is properly seated.

Close-up of a computer motherboard showing multiple RAM slots and drive bays (no visible text or labels)

B. Memory Capacity

DIMM Socket Location	DDR3 Module	Total Memory Size
DIMMA1	512MB/1GB/2GB/4GB	Max is 8GB.
DIMMA2	512MB/1GB/2GB/4GB

2.4 CONNECTORS AND SLOTS

SATA1/SATA2: Serial ATA Connectors

The motherboard has a PCI to SATA Controller with 2 channels SATA interface, it satisfies the SATA 2.0 spec and with transfer rate of 3Gb/s.

Pin Assignment

1	Ground
2	TX+
3	TX-
4	Ground
5	RX-
6	RX+
7	Ground

ATXPWR2: AT X Power Source Connector

This connector provides +12V to CPU power circuit. Please make sure this connector has been plugged in perfectly.

Pin	Assignment
1	+12V
2	+12V
3	Ground
4	Ground

ATXPWR1: ATX Power Source Connector

This connector allows user to connect 24-pin power connector on the ATX power supply.

Pin	Assignment			Pin	Assignment
13	+3.3V		1	+3.3V
14	-12V		2	+3.3V
15	Gro	und		3	Gro	und
16	PS_ON		4	+5V
17	Gro	und		5	Gro	und
18	Ground		6	+5V
19	Gro	und		7	Gro	und
20	NC		8	PW_OK
21	+5V		9	Standby Voltage+5V
22	+5V			10	+12V
23	+5V			11	+12V
24	Ground			12	+3.3V

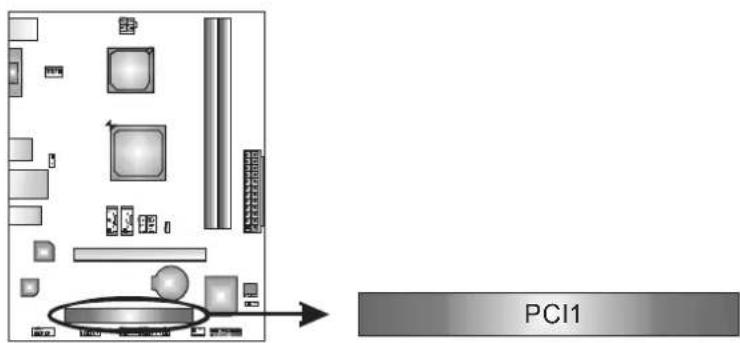

PCI1: Peripheral Component Interconnect Slot

The motherboard is equipped with 1 standard PCI slot. PCI stands for Peripheral Component Interconnect, and it is a bus standard for expansion cards. This PCI slot is designated as 32 bits.

PEX16\_1: PCI-Express x16 Slot

- PCI-Express 2.0 compliant (x8-Lane only).

- Maximum theoretical realized bandwidth of 4GB/s simultaneously per direction, for an aggregate of 8GB/s totally.

CHAPTER 3: HEADERS & JUMPERS SETUP

3.1 HOW TO SETUP JUMPERS

The illustration shows how to set up jumpers. When the jumper cap is placed on pins, the jumper is "close", if not, that means the jumper is "open".

Pin
opened

Pin
closed

Pin1-2
closed

3.2 DETAIL SETTINGS

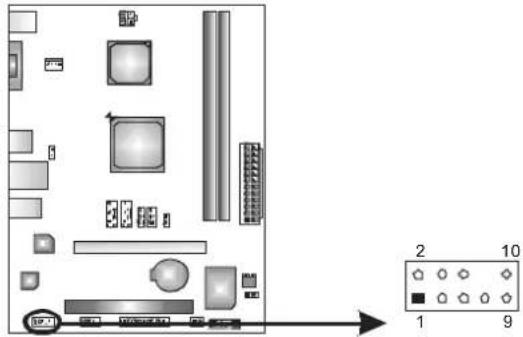

PANEL1: Front Panel Header

This 16-pin connector includes Power-on, Reset, HDD LED, Power LED, and speaker connections. It allows user to connect the PC case's front panel switch functions.

Pin	Assignment			Function		Pin	Assignment		Function
1	+5V	9	N/ASpeaker Connector						N/A
2	N/A			10		N/A
3	N/A			1		1	N/A		N/A
4	Speaker			12		Power LED (+)			Power LED
5	HDD LED (+)		Hard drive LED	13		Power LED (+)
6	HDD LED (-)			14		Power LED (-)
7	Ground		Reset button	15		Power button			Power-on button
8	Reset control			16		Ground

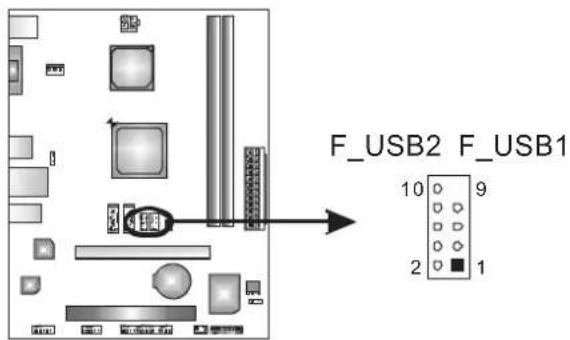

F\_USB1/F\_USB2: Headers for USB 2.0 Ports at Front Panel

This motherboard provides 2 USB 2.0 headers, providing user to connect additional USB cable on the PC front panel, and also can be connected with internal USB devices, like USB card reader.

Pin	Assignment
1	+5V	(fused)
2	+5V	(fused)
3	USB-
4	USB-
5	USB+
6	USB+
7	Ground
8	Ground
9	Key
10	NC

JUSBV1/JUSBV2: Power Source Headers for USB Ports

Pin 1-2 Close:

JUSBV1: +5V for USB ports at front panel (F_USB1/F_USB2).

JUSBV2: +5V for USB ports at USB3/RJ45USB1.

Pin 2-3 Close:

JUSBV1: +5V STB for USB ports at front panel (F_USB1/F_USB2).

JUSBV2: +5V STB for USB ports at USB3/RJ45USB1.

Pin 1-2 close

Pin 2-3 close

Note:

In order to support this function "Power-On system via USB device," user should place "JUSBV1/ JUSBV2" jumper cap on Pin 2-3 individually.

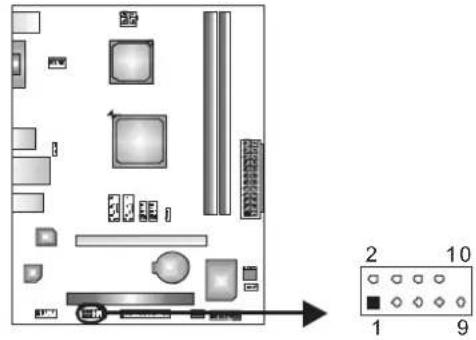

F AUDIO1: Front Panel Audio Header

This header allows user to connect the front audio output cable with the PC front panel.

Pin Assignment

1 Mic Left in

2 Ground

3 Mic Right in

4 GPIO

5 Right line in

6 Jack Sense

7 Front Sense

8 Key

9 Left line in

10 Jack Sense

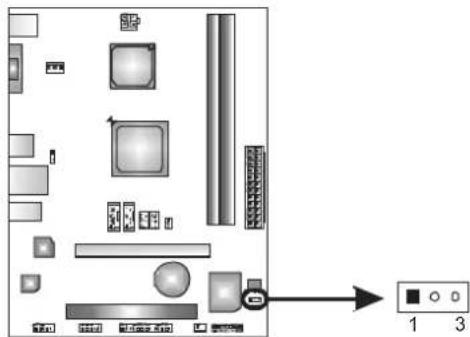

JCMOS1: Clear CMOS Header

Placing the jumper on pin2-3 allows user to restore the BIOS safe setting and the CMOS data. Please carefully follow the procedures to avoid damaging the motherboard.

Pin 1-2 Close:

Normal Operation (Default).

Pin 2-3 Close:

Clear CMOS data.

1. Remove AC power line.
2. Set the jumper to "Pin 2-3 close".
3. Wait for five seconds.
4. Set the jumper to "Pin 1-2 close".
5. Power on the AC.
6. Load Optimal Defaults and save settings in CMOS.

J\_COM1: Serial port Connector

The motherboard has a Serial Port Connector for connecting RS-232 Port.

Pin Assignment

1	Carrier	detect
2	Received	data
3	Transmitted	data
4	Data terminal ready
5	Signal	ground
6	Data	set ready
7	Request to send
8	Clear to send
9	Ring	indicator
10	NC

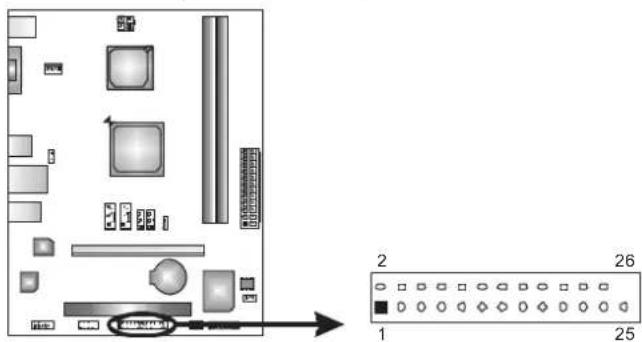

J\_PRINT1: Printer Port Connector

This header allows you to connector printer on the PC.

Pin	Assignment			Pin	Assignment
1	-Strobe	14		Ground
2	-ALF	15	Data	6
3	Data 0		16	Ground
4	-Error	17	Data	7
5	Data 1		18	Ground
6	-Init	19	-ACK
7	Data 2		20	Ground
8	-Scltin	21	Busy
9	Data 3		22	Ground
10	Ground	23	PE
11	Data 4			24	Ground
12	Ground	25	SCLT
13	Data 5			26	Key

CHAPTER 4: USEFUL HELP

4.1 DRIVER INSTALLATION NOTE

After you installed your operating system, please insert the Fully Setup Driver CD into your optical drive and install the driver for better system performance.

You will see the following window after you insert the CD

The setup guide will auto detect your motherboard and operating system.

Note:

If this window didn't show up after you insert the Driver CD, please use file browser to locate and execute the file SETUP.EXE under your optical drive.

A. Driver Installation

To install the driver, please click on the Driver icon. The setup guide will list the compatible driver for your motherboard and operating system. Click on each device driver to launch the installation program.

B. Software Installation

To install the software, please click on the Software icon. The setup guide will list the software available for your system, click on each software title to launch the installation program.

C. Manual

Aside from the paperback manual, we also provide manual in the Driver CD. Click on the Manual icon to browse for available manual.

Note:

You will need Acrobat Reader to open the manual file. Please download the latest version of Acrobat Reader software from http://www.adobe.com/products/acrobat/readstep2.html

5.2 EXTRA INFORMATION

CPU Overheated

If the system shutdown automatically after power on system for minutes, that means the CPU protection function has been activated.

When the CPU is over heated, the motherboard will shutdown automatically to avoid a damage of the CPU, and the system may not power on again.

In this case, please double check:

1. The CPU cooler surface is placed evenly with the CPU surface.
2. CPU fan is rotated normally.
3. CPU fan speed is fulfilling with the CPU speed.

After confirmed, please follow steps below to relief the CPU 0protection function.

1. Remove the power cord from power supply for seconds.
2. Wait for seconds.
3. Plug in the power cord and boot up the system.

Or you can:

1. Clear the CMOS data.
   (See "Close CMOS Header: JCMOS1" section)
2. Wait for seconds.
3. Power on the system again.

5.3 TROUBLESHOOTING

Probable	Solution
1. There is no power in the system.Power LED does not shine; the fan of the power supply does not work2. Indicator light on keyboard does not shine.	1. Make sure power cable is securely plugged in. (Both ATXPWR1 and ATXPWR2 power connectors are plugged in, perfectly.)2. Replace cable.3. Contact technical support.
System is inoperative. Keyboard lights are on, power indicator lights are lit, and hard drives are running.	Using even pressure on both ends of the DIMM, press down firmly until the module snaps into place.
System does not boot from a hard disk drive, but can be booted from optical drive.	1. Check cable running from disk to disk controller board. Make sure both ends are securely plugged in; check the drive type in the standard CMOS setup.2. Backing up the hard drive is extremely important. All hard disks are capable of breaking down at any time.
System only boots from an optical drive. Hard disks can be read, applications can be used, but system fails to boot from a hard disk.	1. Back up data and applications files.2. Reformat the hard drive.Re-install applications and data using backup disks.
Screen message shows “Invalid Configuration” or “CMOS Failure.”	Review system’s equipment. Make sure correct information is in setup.
System cannot boot after user installs a second hard drive.	1. Set master/slave jumpers correctly.2. Run SETUP program and select correct drive types. Call the drive manufacturers for compatibility with other drives.

APPENDIX: SPEC IN OTHER LANGUAGES

GERMAN
