TL-WA730RE - Wi-Fi repeater TP-LINK - Free user manual and instructions

Product type	Wi-Fi Repeater
Brand	TP-Link
Model	TL-WA730RE
Wi-Fi Standard	IEEE 802.11n, 2.4 GHz
Maximum speed	300 Mbps
Ports	1x Ethernet 10/100 Mbps
Buttons	WPS, Reset
Antenna	2 internal antennas
Power supply	5V DC, 1A (power adapter included)
Power consumption	Approximately 5W
Dimensions	110 x 55 x 35 mm
Weight	130 g
Operating temperature	0 °C to 40 °C
Operating humidity	10% to 90% RH
Wireless security	WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise
Operating mode	Repeater, access point
Configuration	Via web browser or WPS
Maintenance and cleaning	Unplug the device, clean with a soft dry cloth. Do not use liquids or aerosols.
Spare parts and repairability	Spare parts are not available individually. In case of failure, contact customer support.

Frequently Asked Questions - TL-WA730RE TP-LINK

How to configure the TP-Link TL-WA730RE repeater?

Plug the repeater into a power outlet, press the WPS button on your router then on the repeater (within 2 minutes). You can also configure via the web interface by connecting a computer to the repeater's WiFi network (default SSID: TP-LINK_XXXXXX) and open 192.168.0.254.

What is the maximum range of the TL-WA730RE?

Indoors, the range can reach approximately 30 to 50 meters depending on obstacles. Use the WPS button or the interface to optimize placement.

Why is my repeater not connecting to the router?

Check that the repeater is within range of the router, that the Wi-Fi password is correct, and that WPS is enabled on the router. Restart both devices.

How to reset the TL-WA730RE to factory settings?

Press and hold the Reset button on the back of the device for about 10 seconds until the indicator blinks. The settings return to default values.

What are the LED indicators and their meanings?

The Power LED lights up when the device is powered on. The WLAN LED blinks during wireless activity. The WPS LED blinks during pairing. The Ethernet LED lights up if a cable is connected.

Does the TL-WA730RE support 5 GHz Wi-Fi?

No, this model works only on the 2.4 GHz band. For dual-band extension, choose a model compatible with 5 GHz.

How to secure my network with this repeater?

Configure a strong password (WPA2-PSK) via the web interface. Disable WPS if not used. Update the firmware regularly.

Can I use the Ethernet port on the repeater?

Yes, the Ethernet port allows connecting a wired device (PC, console) to the extended Wi-Fi network. It works in bridge or client mode.

How to update the firmware of the TL-WA730RE?

Download the latest version from the TP-Link website, log in to the web interface (192.168.0.254), go to System Tools -> Firmware Upgrade, select the file and click Upgrade. Do not turn off power during the update.

The repeater loses connection frequently, what to do?

Move the repeater away from sources of interference (microwaves, phones). Check for firmware updates. Try a less congested Wi-Fi channel via the web interface. Restart the devices.

USER MANUAL TL-WA730RE TP-LINK

TP-Link Technologies Co., Ltd. South Building(floors 1,3,4,5) and 28(floors 1-4), Central Science & Technology Park, Shennan Rd, Nanshan, Shenzhen, China

TP-Link UK Limited Unit 2 & 3 Riverview (142-144), Cardiff Road, Reading, RG1 8EW

TP-Link France SARL 16-18 avenue Morane Saulnier 78140 Vélizy-Villacoublay France

TP-Link Hellas Ltd. Marathonodromou 77, Marousi 151 24, Greece

Specifications are subject to change without notice. 📋tp-link is a registered trademark of TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-Link Technologies Co., Ltd. Copyright © 2020 TP-Link Technologies Co., Ltd. All rights reserved.

For technical support, the user guide and other information, please visit https://www.tp-link.com/support/, or simply scan the QR code.

7106508577 REV3.0.0

Quick Installation Guide

Wi-Fi Range Extender

*Images may differ from actual products.

Contents

Deutsch----1

English 4

Español 7

Ελληνικά----10

Français----13

Italiano 16

Português 19

Suomi 22

Nederlands 25

Svenska----28

Norsk----31

Dansk 34

1 Einschalten

oder

→

Methode 2: Per Webbrowser

Plug the extender into an electrical outlet near your router and press the power button if it has one.

2 Connect your computer to the extender

Via Wireless

Disconnect your Ethernet connection from your computer and connect to the extender's network (e.g. TP-Link_Extender or TP-Link_Extender_XXXX).

Via Ethernet Cable (If the extender has an Ethernet port)

Disable the Wi-Fi on your computer. Connect your computer to the extender via an Ethernet cable.

3 Configure

Set up your extender via one of the methods.

Method 1: Via TP-Link Tether App

Get the up-to-date Tether app, and follow the app instructions to complete the setup.

Method 2: Via a Web Browser

1 Launch a web browser and enter http://tplinkrepeater.net or

http://192.168.0.254 in the address bar.

Create a password to log in.

2 Follow the instructions on the web page to complete the initial configuration.

4 Relocate

To achieve better signal quality, plug in the extender halfway between your router and the Wi-Fi dead zone.

Enjoy!

Connect your device to the extender using the extended SSID and Wi-Fi password that you've set during the configuration. The default Wi-Fi password is the same as your host network.

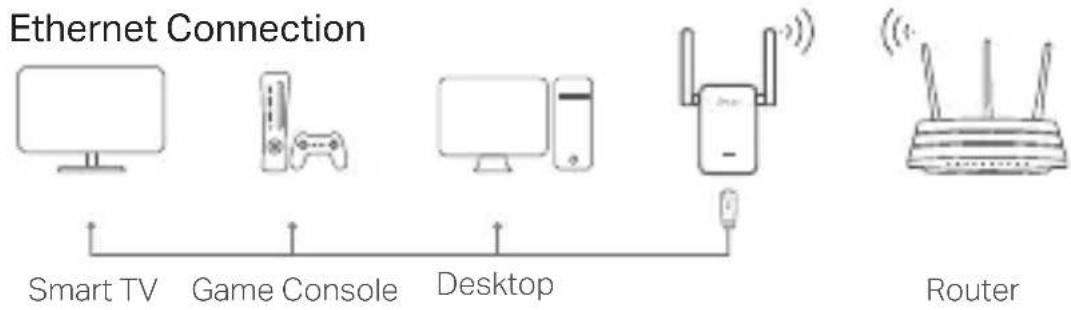

Entertainment Adapter

If your extender has an Ethernet port, it can be used as a wireless adapter to connect any Ethernet-only device such as a Blu-ray player, game console, DVR, or smart TV to your Wi-Fi network.

First, connect the extender to your router, then connect your Ethernet-only device to the extender via an Ethernet cable.

FAQ (Frequently Asked Questions)

Q1 Why can't I see the login page after entering http://tplinkrepeater.net in the browser?

A1: Make sure your computer is connected to the extender either via the extended SSID or via an Ethernet cable (if the extender has an Ethernet port).

A2: Make sure your computer is set to obtain an IP address automatically.

A3: Use the IP address to access the extender. The default IP is 192.168.0.254. If the extender is connected to the router, you should go to your router's DHCP client list to obtain the extender's current IP address.

A4: Reset the extender and connect to its wireless network, enter http://tplinkrepeater.net or http://192.168.0.254 in a web browser and press Enter.

Q2 How do I reset the extender?

A: With the extender powered on, press the RESET button until the LEDs turn on momentarily, then release the button.

1 Encender

Metodo 2: tramite Browser Web

Ou

→

Eller

→

Metode 2: Via a nettleser

- Keep the device away from water, fire, humidity or hot environments.

- Do not attempt to disassemble, repair, or modify the device.

- Do not use the device where wireless devices are not allowed.

- The socket-outlet shall be installed near the equipment and shall be easily accessible.

- For passthrough devices, plug the power strips into the integrated electrical sockets of the devices, but devices of the same or another type not be stacked in normal use.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

TP-Link Three Years Limited Product Warranty

For TP-Link Branded Products Only.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for a period of THREE YEARS form the date of original retail purchase by the end-user purchaser.

Español

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives (EU)2015/863, 2014/53/EU, 2009/125/EC and 2011/65/EU.

The original EU declaration of conformity may be found at http://www.tp-link.com/en/ce.
