Product type	Lawn mower
Brand	Güde
Model	PM 460 Deluxe
Cutting width	46 cm
Adjustable cutting height	Yes, from 25 to 75 mm
Motor power	1800 W
Power supply type	Electric, corded
Grass catcher capacity	50 L
Weight	15 kg
Dimensions (L x W x H)	80 x 46 x 35 cm
Sound level	85 dB(A)
Safety	Automatic engine stop when handle is released
Maintenance	Clean after each use, sharpen blade regularly
Spare parts available	Blade, grass catcher, belt
Repairability	Repairability index not provided

Frequently Asked Questions - PM 460 Deluxe GUDE

How to start the Güde PM 460 Deluxe lawn mower?

Make sure the power cable is plugged in and the safety switch is pressed. Then pull the start lever towards the handle.

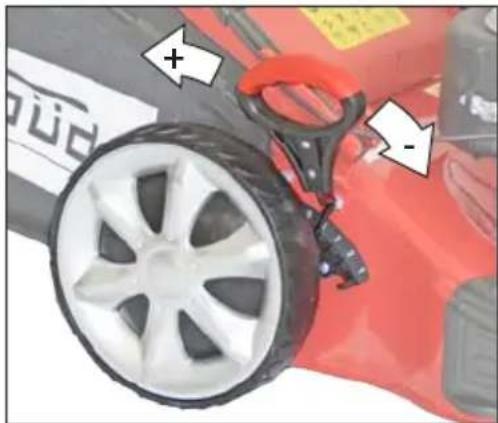

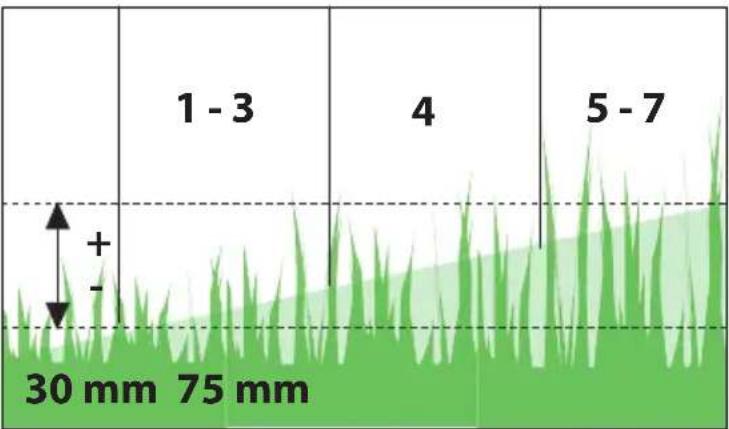

How to adjust the cutting height?

Use the central height adjustment lever. It allows you to select 5 different positions, from 25 to 75 mm.

When should the blade be sharpened?

Sharpen the blade at least once a season or as soon as the grass blades are torn. Use a file or call a professional.

How to clean the mower after use?

Unplug the appliance, remove the grass catcher, and clean the housing with a gentle water jet. Dry thoroughly before storing.

The grass catcher does not fill completely, why?

Check that the catcher is not blocked and that the mower is not used on too tall grass. Proceed in successive passes.

How to store the mower in winter?

Clean it thoroughly, drain the gasoline if applicable (gasoline model), and store it in a dry place protected from frost.

The mower vibrates abnormally, what to do?

Stop the appliance immediately. Check that the blade is well balanced and properly tightened. Replace it if necessary.

What type of extension cord to use?

Use a H07RN-F type cable with a minimum cross-section of 1.5 mm² and a maximum length of 25 m to avoid power loss.

Where to find spare parts for this model?

Contact Güde after-sales service or check authorized retailers. Common parts like blades are available online.

Is the warranty included?

Yes, the mower comes with the legal 2-year warranty. Keep your invoice and follow the usage conditions.

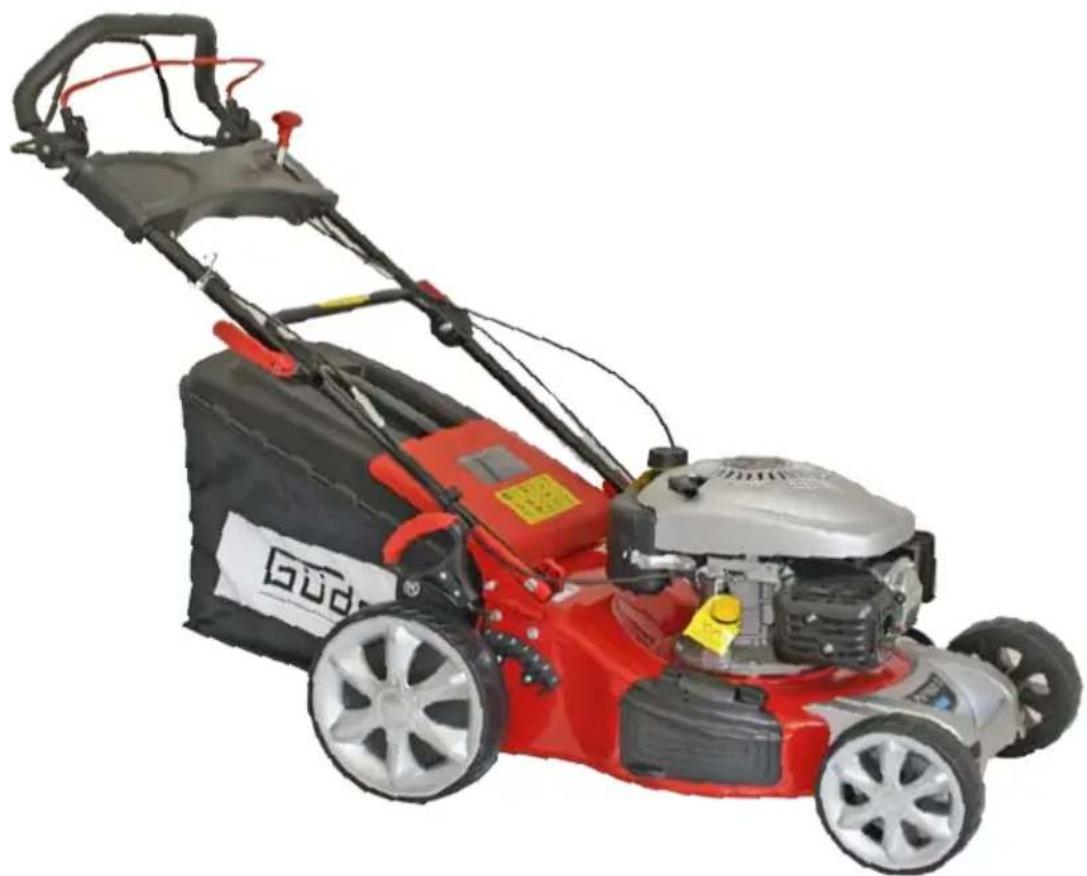

USER MANUAL PM 460 Deluxe GUDE

GB Translation of the original instructions

Red and silver lawn mower with 'Deluxe PV+600' branding, no visible text or symbols on the motor itself.

PM 460 D

06010

PM 510 D

06012

PM 560 D

06014

ENGLISH Please read the instructions carefully before starting the machine.

Service international

85

Red and silver lawn mower with attached battery pack (no visible text or symbols)

LIEFERUMFANG | DELIVERED ITEMS | ARTICLES DÉLIVRÉS | VOLUME DELLA FORNITURA | LEVERINGSOMVANG | OBJEM DODÁVKY | ROZSAH DODÁVKY | SZÁLLÍTÁSI TERJEDELEM | OBSEG DOBAVE | OPSEG ISPORUKE | ОБЕМ НА ДОСТАВКАТА | VOLUMUL LIVRĂRII | OPSEG ISPORUKE | TESLIMAT KAPSAMI | ZAKRES DOSTAWY

2-3

Red lawn mower with silver frame and black handle (no visible text or symbols)

DE MONTAGE

SI MONTAŽA

GB ASSEMBLY

HR MONTAŽA

FR MONTAGE

BG MOHTAJK

IT MONTAGGIO

RO MONTAJ

NL MONTAGE

BA MONTAŽA

CZ MONTÁŽ

SK MONTÁŽ

HU SZERELÉS

4-5

Close-up of a red and white lawn mower with a visible oil drop symbol (no text or labels)

DE ÖLSTAND KONTROLLIEREN SI KONTROLA STANJA OLJA

GB OIL LEVEL INSPECTION HR KONTROLA RAZINE ULJA

FR CONTRÔLE DU NIVEAU D'HUILE BG KONTROL HA СЪСТОЯНИЕТО НА МАСЛОТО

IT CONTROLLO LIVELLO D'OLIO RO VERIFICAREA STĂRII ULEIULUI

NL OLIEPEIL CONTROLEREN BA

KONTROLA NIVOA ULJA

CZ KONTROLA STAVU OLEJE

SK KONTROLA STAVU OLEJA

HU OLAJSZINT ELLENÓRZÉSE

6

Close-up of a lawn mower with red and silver wheels, no visible text or symbols

DE TANKEN SI DOLIVANJE GORIVA

GB FUEL TANK FILLING HR DOPUNJAVANJE GORIVA

FR RAVITAILLEMENT BG ЗАРЕЖДАНЕ

IT RABBOCCO

RO ALIMENTAREA CU COMBUSTIBIL

NL TANKEN

BA DOPUNJAVANJE GORIVA

CZ TANKOVÁNÍ

SK TANKOVANIE

HU TANKOLÁS

7

Close-up of a car tire with attached black plastic clip against red background (no text or symbols visible)

Illustration of a lawn mower with a wheel and grassy ground (no text or symbols)

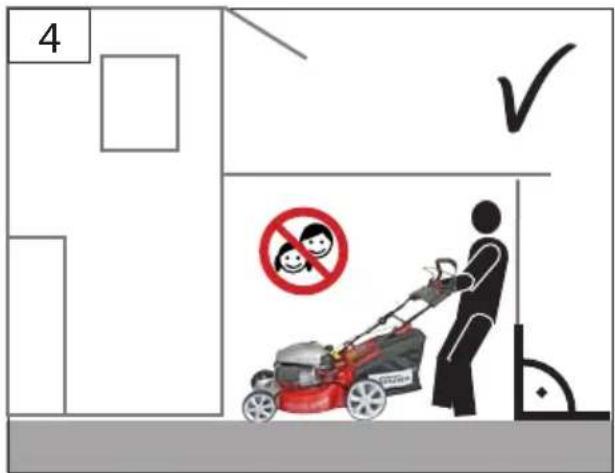

DE EINSATZGEBIETE

GB AREA OF USE

SI PODROČJE UPORABE

FR DOMAINES D'UTILISATION

HR PODRUČJE UPORABE

SK POKYNY NA KOSENIE

Silhouette of a person pushing a lawn mower with a checkmark (no text or symbols)

11

DE BETRIEB SI DELOVANJE

GB OPERATION HR RAD

FR FONCTIONNEMENT BG PABOTA

IT ESERCIZIO RO FUNCTIONARE

NL GEBRUIK BA RAD

CZ PROVOZ

SK PREVÁDZKA

HU ÜZEMELTETÉS

12

DE REINIGUNG SI ČIŠČENJE

GB CLEANING HR ČIŠĆENJE

FR NETTOYAGE BG ЧИСТЕНЕ

IT PULIZIA RO CURĂȚARE

NL SCHOONMAKEN BA ČIŠĆENJE

CZ ČISTĚNÍ

SK ČISTENIE

HU TISZTÍTÁS

Simple line drawing of a bucket with a faucet and a hand holding a cloth (no text or symbols)

13

DE WARTUNG SI VZDRŽEVANJE

GB MAINTENANCE HR ODRŽAVANJE

FR ENTRETIEN BG ПОДДРЬЖКА

IT MANUTENZIONE RO ÎNTRETINERE

NL ONDERHOUD BA ODRŽAVANJE

CZ ÚDRŽBA

SK ÚDRZBA

HU KARBANTARTÁS

Silhouette of a wrench tool against a white background (no text or symbols)

14-18

2

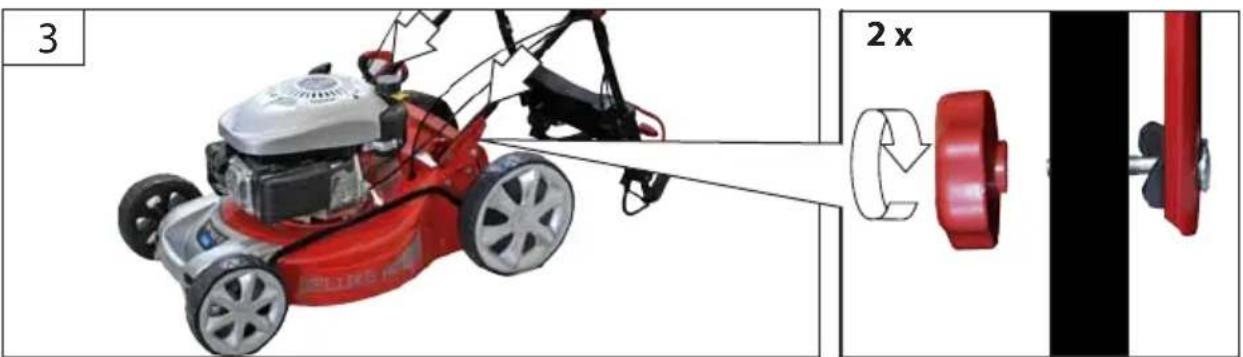

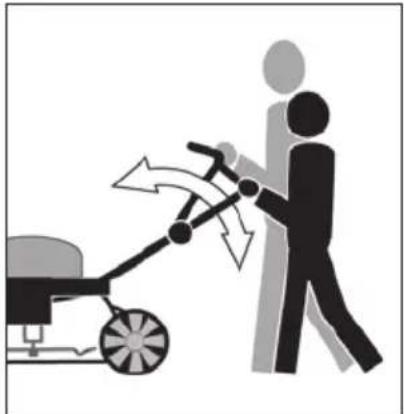

	DE MONTAGE SI MONTAŽA
	GB ASSEMBLYHR MONTAŽA
	FR MONTAGEBG MOHTAJK
	IT MONTAGGIORO MONTAJ
	NL MONTAGEBA MONTAŽA
	CZ MONTÁŽ
	SK MONTÁŽ
	HU SZERELÉS

Red and silver lawn mower with blue and silver wheels, mounted on a black handle (no visible text or symbols)

Illustration of a red lawn mower with attached black frame and blade, showing mechanical components and motion arrows (no text or symbols)

DEMONTAGESIMONTAŽA

GBASSEMBLYHRMONTAŽA

FRMONTAGEBGMOHTAJK

ITMONTAGGIOROMONTAJ

NLMONTAGEBAMONTAŽA

CZMONTÁŽ

SKMONTÁŽ

HUSZERELÉS

Red lawn mower with mounted grass and a black bow (no visible text or symbols)

4

Red and silver lawn mower with attached black tool, shown with a close-up of the motor handle (no text or symbols visible)

Illustration of a person pushing a plow with directional arrows indicating movement (no text or symbols)

Close-up of a mechanical component with red and black parts, featuring a white arrow pointing to a yellow component (no visible text or symbols)

Close-up of a black, symmetrical, flower-like object with curved edges (no text or symbols visible)

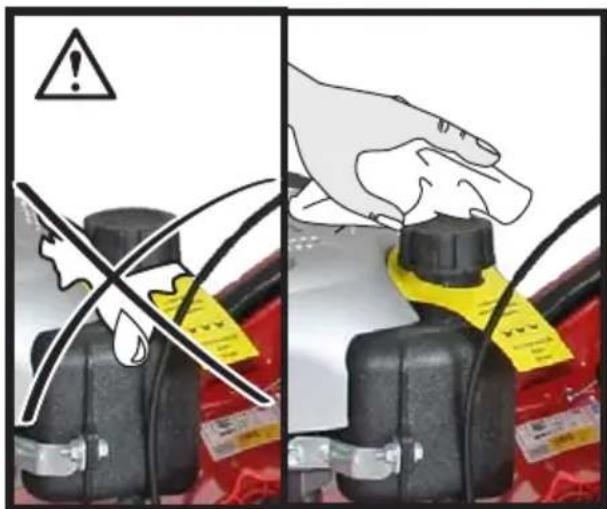

DE ÖLSTAND KONTROLLIEREN SI KONTROLA STANJA OLJA

GB OIL LEVEL INSPECTION HR KONTROLA RAZINE ULJA

FR CONTRÔLE DU NIVEAU D'HUILE BG

Simple line drawing of a lawn mower with a checkmark indicating right-hand rule (no text or symbols)

2

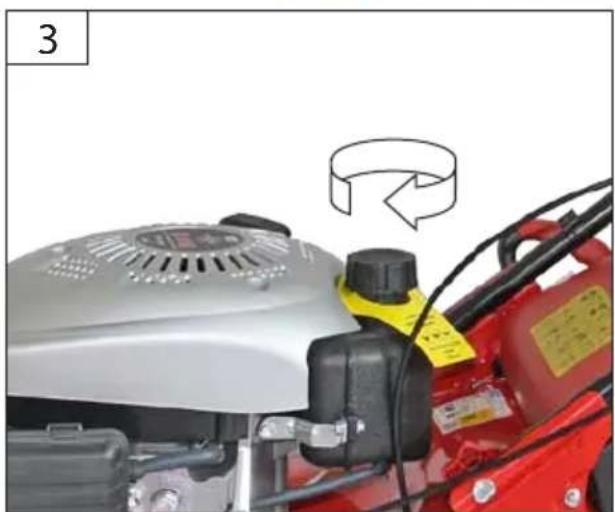

DE ÖLSTAND KONTROLLIEREN SI KONTROLA STANJA OLJA

GB OIL LEVEL INSPECTION HR KONTROLA RAZINE ULJA

FR CONTRÔLE DU NIVEAU D'HUILE BG KONTPOL NA СЪСТОЯНИЕТО НА МАСЛОТО

IT CONTROLLO LIVELLO D'OLIO RO VERIFICAREA STĂRII ULEIULUI

NL OLIEPEIL CONTROLEREN BA KONTROLA NIVOA ULJA

CZ KONTROLA STAVU OLEJE

SK KONTROLA STAVU OLEJA

HU KONTROLA STAVU OLEJA

Close-up of a red and silver lawn mower with a visible oil drop icon (no text or symbols on the main subject)

Line drawing of a hand holding a small object with a pipette inserted, no text or symbols present

Close-up of a red and silver lawn mower with visible wheels and mechanical components (no text or symbols)

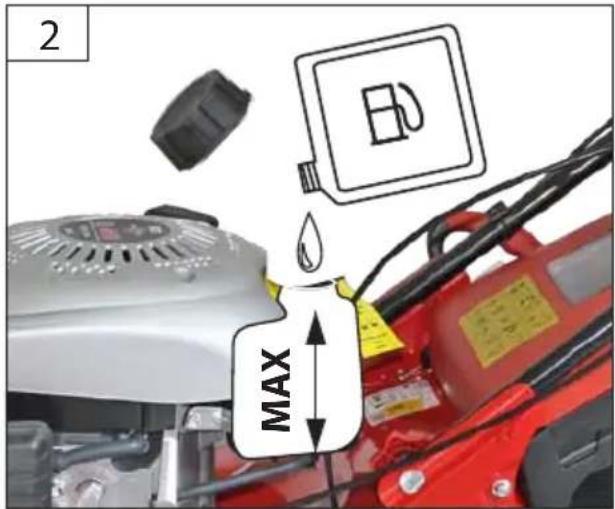

DE TANKEN SI

DOLIVANJE GORIVA

GB FUEL TANK FILLING HR DOPUNJAVANJE GORIVA

FR RAVITAILLEMENT BG ЗАРЕЖДАНЕ

IT RABBOCCO RO ALIMENTAREA CU COMBUSTIBIL

NL TANKEN BA DOPUNJAVANJE GORIVA

CZ TANKOVÁNÍ

SK TANKOVANIE

HU TANKOLÁS

Close-up of a red automotive engine bay with a white roof and black valve, showing a circular arrow indicating rotation (no text or symbols)

Close-up of a car wheel with black plastic clip attached, against a red and white background (no text or symbols visible)

Close-up of a red car tire with black-handled clips, no visible text or symbols

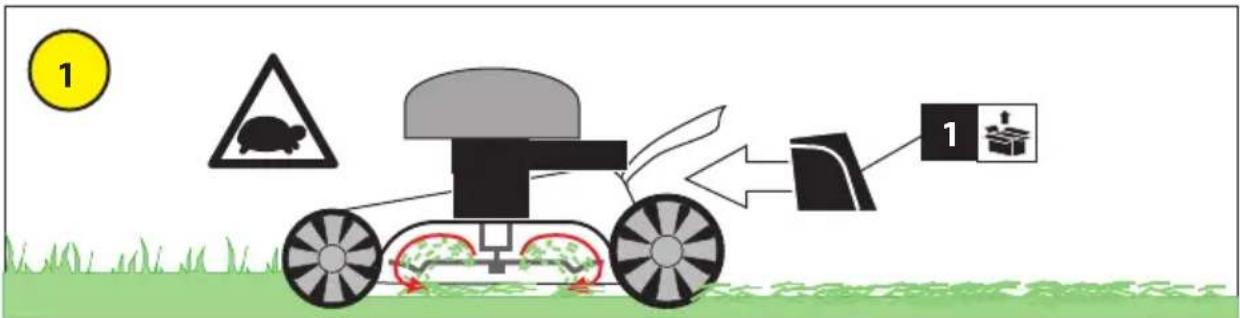

	DE MÄHEN - MULCHEN SI KOSITE - MULČENJE
	GB MOW - MULCHING HR KOSITI - ZAGRTANJE BILJAKA
	FR TONDRE - PAILLAGE BG KOÇA - HATOPЯВАНЕ
	IT FALCIARE - PACCIAMATURA RO COSI - MULCIRE
	NL MAAIEN - MULCHING BA KOSITI - ZAGRTANJE BILJAKA
	CZ SEKAT - MULČOVÁNÍ
	SK KOSIT - MULČOVANIE
	HU SZÉNABOGLYA - TALAJTAKARÁS

Red manual lawn mower with visible wheels and a yellow label (no text or symbols on the main body)

Close-up of a red and black lawn mower with a black cover and arrow indicating motion (no text or symbols visible)

Red and silver lawn mower with black wheels and a yellow tag (no visible text or symbols)

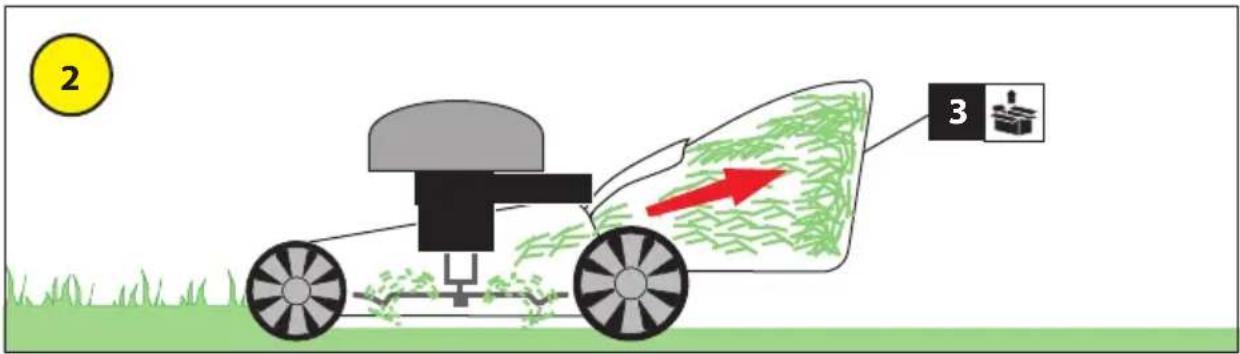

DE MÄHEN - SAMMELN SI KOSITE - ZBIRATI

GB MOW - COLLECT HR KOSITI - PRIKUPITI

FR TONDRE - COLLECTER BG KOCSY - СЪБИРАНЕ HA

IT FALCIARE - RACCOGLIERE RO COSI - COLECTA

NL MAAIEN - VERZAMELEN BA

KOSITI - PRIKUPITI

CZ SEKAT - SBÍRAT

SK KOSIČ - ZBIERAČ

HU SZÉNABOGLYA - GYÜJT

Illustration of a grassy field with a small tractor and a wheel, no text or symbols present

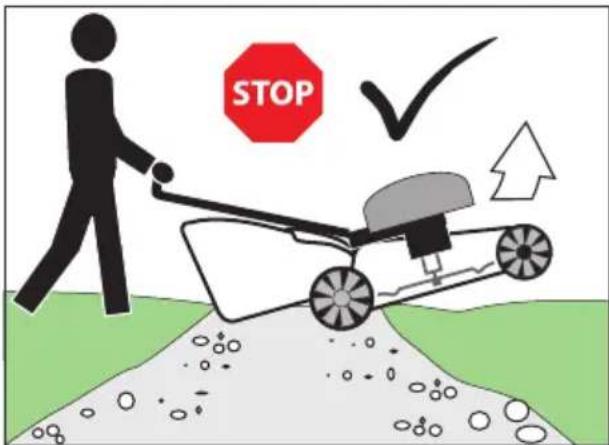

STOP

Red and black lawn mower with a compact battery nearby, no visible text or symbols

Close-up of a red lawn mower with attached black plastic bag (no visible text or symbols)

Black and white photo of a bag labeled 'GLIDE' dumping green leaves, with page number 2 in corner (no other text or symbols)

Red lawn mower with a Guide box attached, no visible text or symbols on the machinery itself

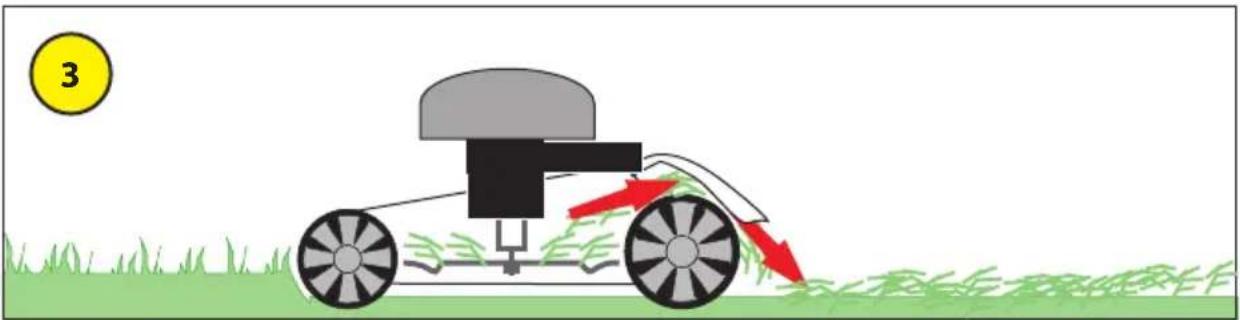

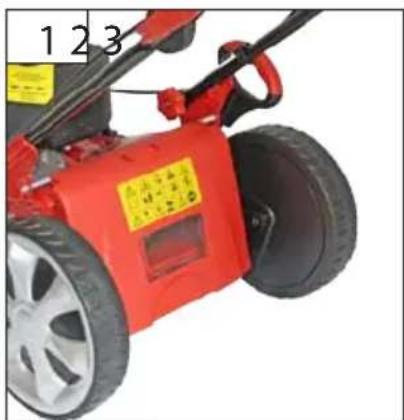

	DE MÄHEN - AUSWERFEN SI KOSITE - IZMET
	GB MOW - EJECT HR KOSITI - IZBACITI
	FR TONDRE - ÉJECTER BG KOCSY - ИЗХВЪРЛЯМ
	IT FALCIARE - ESPELLERE RO COSI - EVACUA
	NL MAAIEN - UITWERPEN BA	KOSITI - IZBACITI
	CZ SEKAT - VYHNAT
	SK KOSIT - VYHNAÏT
	HU SZÉNABOGLYA - KIADÁSA

Illustration of a tractor with red arrows indicating motion, set in grass on a field (no text or symbols)

Two-panel image showing a red toy car with mechanical components and a blue safety belt, no visible text or symbols.

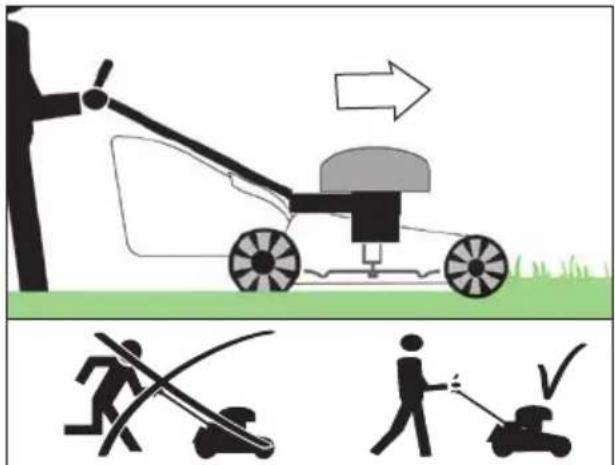

DEMÄHANWEISUNGENSINAPOTKI ZA KOŠNJO

GBCUTTING INSTRUCTIONS HRUPUTE ZA SJEČENJE

FRCONSIGNES DE TONTE BGINHCTPYKЦИИ ЗА СЕЧЕНЕ

ITISTRUZIONI PER TAGLIO ROINSTRUCTIUNI PENTRU COSIT

SK POKYNY NA KOSENIE

HU POKYNY NA KOSENIE

Silhouette of a person pushing a motorcyclist on a green hillside, with a checkmark indicating the correct direction (no text or symbols present)

Illustration of a person crossing a road with a traffic cone and a robot, no text or symbols present

Silhouette of a person using a lawn mower on a green hillside, with a checkmark indicating the motion (no text or symbols)

Illustration of a person pulling a cart with a curved ramp, set against a green background (no text or symbols)

Illustration of a person using a manual lawn tool with a warning sign (no text or symbols on the diagram itself)

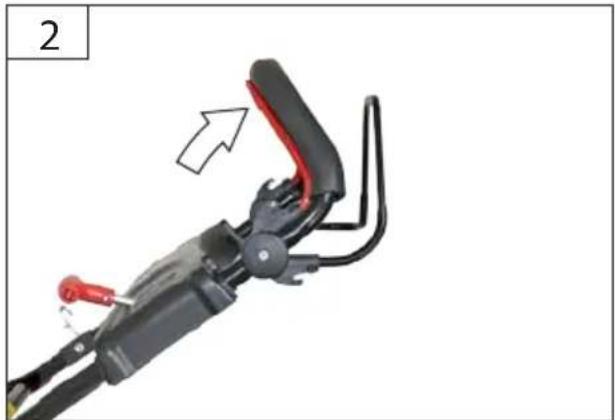

START STOP	DEBETRIEBSIDELOVANJE
	GBOPERATIONHRRAD
	FRFONCTIONNEMENTBGPABOTA
	ITESERCIZIOROFUNCTIONARE
	NLGEBRUIKBA	RAD
	CZPROVOZ
	SKPREVÁDZKA
	HU ÜZEMELTETÉS

Mechanical device with red clamping lever and black handle, showing a white arrow indicating motion (no text or symbols)

Illustration of a hand pouring liquid into a bucket with a wrench nearby (no text or symbols)

Black bag labeled 'Glide' with green leaves at the bottom, no visible text or symbols on the bag itself

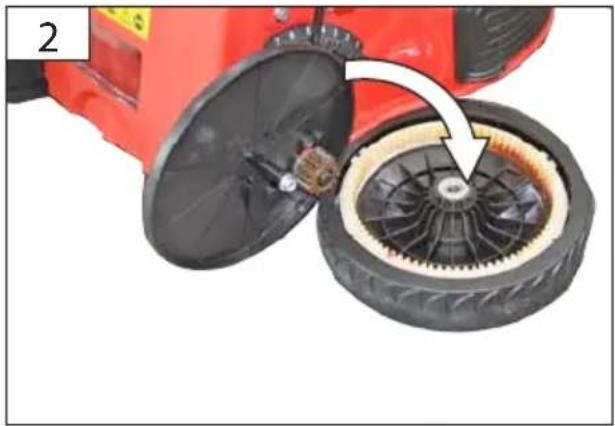

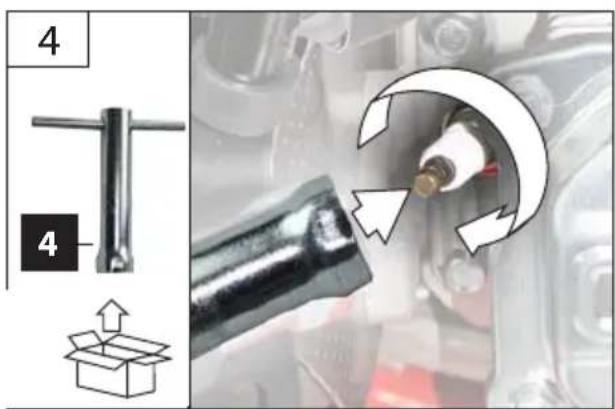

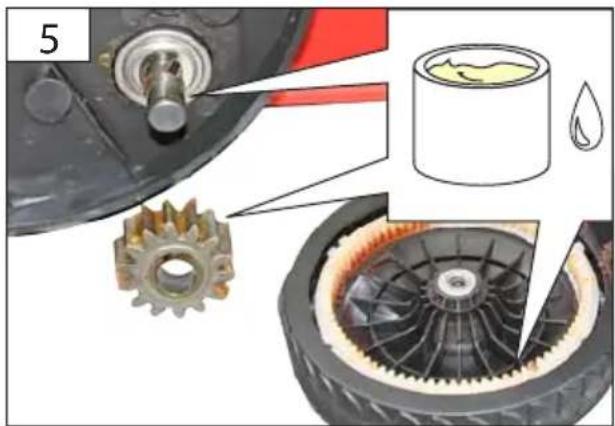

DE WARTUNG - REINIGUNG SI VZDRŽEVANJE - ČIŠČENJEGB MAINTENANCE - CLEANING HR ODRŽAVANJE - ČIŠČENJEFR ENTRETIEN - NETTOYAGE BG ПОДДРЪЖКА - ЧИСТЕНЕIT MANUTENZIONE - PULIZIA RO ÎNTRETINERE - CURĂTARENL ONDERHOUD - SCHOONMAKEN BA ODRŽAVANJE - ČIŠČENJECZ ÚDRŽBA - ČIŠTĚNÍSK ÚDRZBA - ČISTENIEHU KARBANTARTÁS - TISZTÍTÁS

Close-up of a red tractor wheel with a 2x magnified view showing the wheel rim and tire (no text or symbols on the diagram itself)

Close-up of a red tractor wheel rim and disc, showing tire and wheel assembly (no text or symbols)

Close-up of a red industrial machine showing internal components and a gear mechanism (no text or symbols visible)

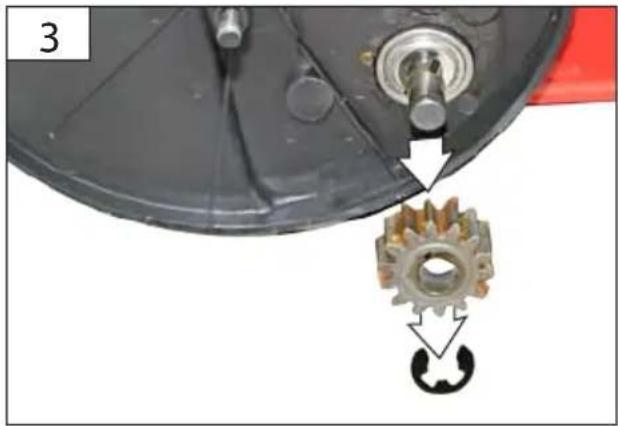

Close-up of mechanical gear assembly with a gear and shaft (no text or symbols visible)

Two mechanical components: a wooden brush and a spark plug, shown side by side with no visible text or symbols.

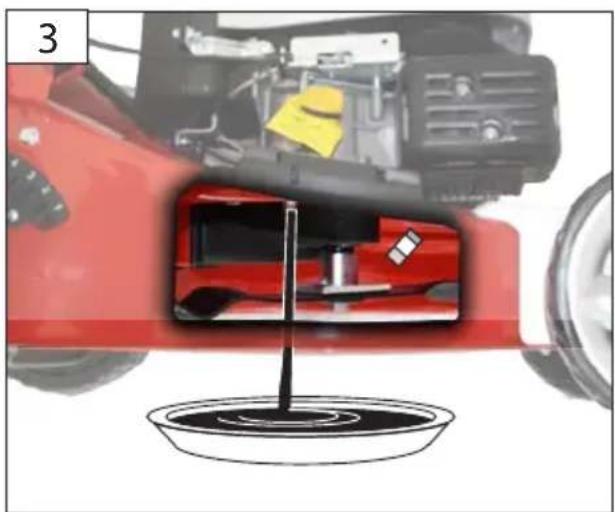

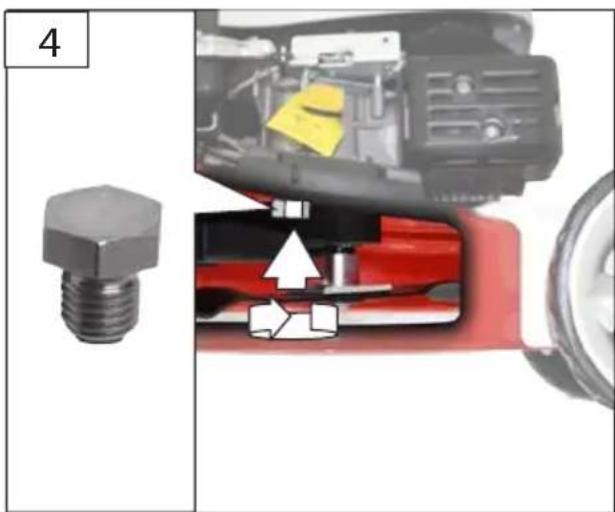

	DE WARTUNG - ÖLWECHSEL SI		VZDRŽEVANJE - MENJAVA OLJA
	GB MAINTENANCE - OIL CHANGE HR		ODRŽAVANJE - ZAMJENA ULJA
	FR ENTRETIEN - REMPLACEMENT D’HUILE	BG	ПОДДРЬЖКА - СМЯНА НА МАСЛОТО
	IT MANUTENZIONE - CAMBIO DELL’OLIO	RO	ÎNTRETINERE - ÎNLOCUIREA ULEIULUI
	NL ONDERHOUD - OLIEVERVERSING BA		ODRŽAVANJE - ZAMJENA ULJA
	CZ ÚDRŽBA - VÝMĚNA OLEJE
	SK ÚDRZBA - VÝMENA OLEJA
	HU KARBANTARTÁS - OLAJCSERE

Close-up of a bolt and internal components with no visible text or symbols

Interior view of a red tractor showing engine compartment and wheel assembly (no text or symbols)

Close-up of a mechanical component with a hexagonal bolt and internal assembly (no visible text or symbols)

Top-down view of a red lawn mower with visible engine and wheels (no text or symbols)

Close-up of a red car's front bumper with internal components and a white arrow pointing to a component (no visible text or symbols)

Close-up of a red automotive lawn mower with a black plastic component and a white arrow pointing to a textured area (no visible text or symbols)

Illustration showing a hand pouring water from a leaf to a sun, with a rock nearby (no text or symbols)

Close-up of a red motorcycle seatbelt with black plastic components and white arrows indicating parts of the lock (no text or symbols visible)

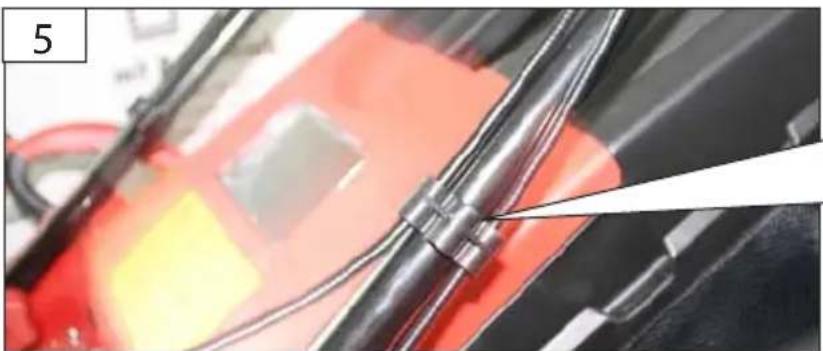

	DE WARTUNG - BOWDENZÜGE SI	ODRŽAVANJE - VŽIGALNA VRVICA
	GB MAINTENANCE - BOWDEN CABLES HR	ПОДДРЪЖКА - STARTNO UŽE
	FR ENTRETIEN - CÂBLES BOWDEN BG	ÎNTRETINERE - БОВДЕНОВИ ВЪЖЕНЦА
	IT MANUTENZIONE - FUNICELLE BOWDEN RO	ODRŽAVANJE - CABLURI BOWDEN
	NL ONDERHOUD - BOWDENTREKKEN BA	ODRŽAVANJE - STARTNO UŽE
	CZ ÚDRŽBA - BOVDENOVÁ LANKA
	SK ÚDRZBA - BOVDENOVÉ LANKÁ
	HU KARBANTARTÁS - BOWDEN KÁBEL

Technische Daten

Benzin-Rasenmäher PM 460 D PM 510 D PM 560 D

97/68/EG & 2004/26/EC

Cutting width....460 mm....510 mm....560 mm

Collection bag capacity....60 l....60 l....70 l

Fuel ....Unleaded petrol....Unleaded petrol ....Unleaded petrol

Weight....36,7 kg....39,4 kg....41,1 kg

Dimensions....1300 x 570 x 990 mm.....1400 x 570 x 1000 mm ..... 1500 x 650 x 1000 mm

Noise and Vibration Information

Sound pressure level L_nA¹⁾ 79,0 dB (A) 81,9dB (A) 80,5 dB (A)

Sound power level L_WA^f) 96 dB (A) 98 dB (A) 98 dB (A)

Wear ear protectors!

Vibration emission value a_h^2j 3,1 m/s ² 3,4 m/s ² 4,3 m/s ²

¹⁾ Uncertainty K=3 dB (A), ²⁾ Uncertainty K=1,5 m/s ²

Warning: The vibration emission level will vary because of the ways in which a power tool can be used and may increase above the level given in this information sheet.

The vibration emission level may be used to compare one tool with another.

It may be used for a preliminary assessment of exposure.

An accurate estimate of the vibratory load should also take into account the times when the tool is shut down or when it is running but not actually in use. This may significantly reduce the vibratory load over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Read and understand the operating instructions before using the appliance. Familiarise with the

control elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties.

The operator is responsible for accidents or risks to third parties.

In case of any doubts about connection and operation refer please to our customer center

delivered items

1 Mulching wedge

2 Side ejection

3 Collection bag

4 Spark plug wrench

5 Bowden clamps

Specified Conditions Of Use

The mower has been designed for cutting grass and grass areas with a maximum climb of 20^irc in private gardens around the house and in garden colonies.

Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.

⚠️ Use the appliance only outside, never use it in confined and bad ventilated areas.

The mower must not be used for cutting bushes, hedges and thickets, for cutting and mulching creepers or lawns on roofs or in balcony boxes. The mower must also not be used as a crusher for mulching tree cuttings and hedges or levelling any terrain roughness.

Requirements for operating staff

The operating staff must carefully read the Operating Instructions before using the appliance.

This device is not intended for use by persons (including children) with limited physical, sensory or mental capabilities or without the necessary lack experience or knowledge unless they are supervised by a person who is responsible for their safety or were instructed by that person in how to use the device.

Qualification: Apart from the detailed instructions by a professional, no special qualification is necessary for appliance using.

Minimum age: Persons over 16 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.

Local regulations may stipulate the minimum age of the user.

Training: Using the appliance only requires corresponding training by a professional or the Operating Instructions. No special training is necessary.

Emergency procedure

Danger of injury!

Never put your hands and feet near the rotating parts. Keep a distance from the ejection opening at all times.

Danger of burns!

Some parts of the appliance get too hot when the appliance is operated. Do not touch any hot parts, e.g. engine and muffler.

Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. For the sake of eventual accident, in accordance with DIN 13164, a workplace has to be fitted with a first-aid kit. It is essential to replace any used material in the first-aid kit immediately after it has been used. If you seek help, state the following pieces of information:

1. Accident site
2. Accident type
3. Number of injured persons
4. Injury type(s)

Symbols

Caution!

Read the Operating Instructions

Wear ear protectors! Wear eye protective goggles!

Caution - hot surface! Danger of burns!

Warning against bounced subjects

Keep distance of persons! Observe to keep out of dangerous zone

Switch the engine off and remove the socket plug before any work on the engine.

Keep a sufficient distance from the cutting knife when operating the appliance.

Risk of explosion Refuel the engine only when switched off.

Risk of poisoning! Use the appliance only outside, never use it in confined and bad ventilated areas.

Prohibited smoking and open fire using.

Any damaged or disposed devices must be delivered to appropriate collection centres.

Batteries, oil, and similar substances must not enter the environment.

Protect against humidity

This side up

Safety Instructions

WARNING

Read all safety warnings and all instructions, including those given in the accompanying brochure.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

Keep children and other persons including animals in a safe distance when using the appliance. Minimum safe distance is 5 m.

Wear personal protective equipment.

Wear solid shoes and long trousers. Never use the appliance when barefooted or in light sandals.

Wear protective gloves if necessary.

Use the appliance in broad daylight or in a well-lit environment.

Check carefully the terrain where the appliance is being used and remove any items that could get caught and be thrown away.

Fuel is highly flammable.

Keep the fuel in suitable containers only.

The appliance may only be refuelled outdoors and not near open fire or burning cigarettes.

Refuel before starting the appliance. If the engine is running or still hot, it must not be refuelled or the tank cover opened.

Make sure the fuel does not overflow. If the fuel overflows, the engine must not be started. Remove any dirt from the appliance and prevent any attempt at ignition until fuel fumes have evaporated.

The engine must necessarily be filled with engine oil before being put into operation for the first time.

Check the oil level whenever the appliance is to be put into operation. Add engine oil if necessary.

Carry out a visual inspection before any use to make sure the appliance, especially the cutting tools, fastening parts and the entire cutting unit are not damaged.

Check all screw and plug-in connections and tective equipment if firm and tightened perly and whether all moving parts are ning smooth whenever the appliance is to be into operation.

The protective equipment on the appliance is strictly prohibited to be disassembled, changed, and in conflict with the designation and it is inhibited to attach any protective equipment of other manufacturers.

The appliance must not be used if damaged safety equipment is defective. Replace any n-out and damaged parts.

Do not start the engine before your feet are in a safe distance from the cutting tools.

Do not incline the appliance when being started.

Do not start the appliance when you are standing in front of the ejection opening.

Make sure your posture is safe, especially on slopes. Do not cut on too steep slopes. Be particularly careful when changing travelling direction on slopes.

Pay maximum attention when turning around and pulling the appliance to you.

Switch the mower off whenever carrying or inclining it or when being outside a grass area. Wait until all rotating parts have stopped.

If an undesirable item is encountered or the appliance starts vibrating, the appliance must be switched off and the socket plug removed. Check whether the appliance is not damaged. Repair any damage.

Switch the appliance immediately off after finishing your work.

Do not store the appliance in enclosed places just after being switched off but let it cool down outdoors instead.

Never store the appliance with petrol in the tank inside a building where petrol fumes may potentially get in touch with open fire or sparks.

When the appliance is not going to be used for a long time, store it with an empty tank.

Replace any defective muffler.

Do not change the controlled engine setting and do not rev the engine up.

Maintenance

Switch the engine off and remove the socket plug before any work on the engine. Wait until all rotating parts have stopped and ambiance has cooled down.

Keep the appliance, especially the tank and engine, clean at all times. Clean the ejection opening and cover at regular intervals.

Apply environment-friendly oil to all moving parts.

Check the collection bag at regular intervals for any wear and aging.

Refer all servicing to qualified service personnel.

Use only original accessories and original spare parts.

Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

Guarantee

Guarantee claims as per guarantee card attached. The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be submitted for any claim in the guarantee period.

The guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the operating and assembly instructions and common wear are also not included in the guarantee.

Service

Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureaucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label. Please enter it here for future reference:

Serial No.:

Art. No:

Year of production:

EC-Declaration of Conformity

GÜDE GmbH & Co. KG

We, hereby declare the conception and construction of the below mentioned appliances correspond - at the type of construction being launched - to appropriate basic safety and hygienic requirements of EC Directives. In case of any change to the appliance not discussed with us the Declaration expires.

Petrol Lawnmower

PM 460 D, PM 510 D, PM 560 D

Appropriate EU Directives

2006/42/EG

2004/108/EG

2000/14/EG & 2005/88/EG

97/68/EG & 2004/26/EC

Harmonised standards used

EN 836:1997+A1+A2+A3

EN ISO 14982:2009

Method of compliance assessment.:

2000/14/EG - Annex V

Guaranteed sound power level I_WA

PM 460D 96 dB(A)

PM 510D 98 dB(A)

PM 560D 98 dB(A)

Measured sound power level

PM 460D dB(A)

PM 510D dB(A)

PM 560D 93,1 dB(A)

Wolpertshausen, 2011-09-07 Helmut Arnold Managing Director

Technical documentation Joachim Bürkle

Inspection and maintenance plan

Regular servicing period Before		any start-up	After 1 month	After 3 months	After 6 months	After 12 months	After 24 months
			5 Hours of operation	25 Hours of operation	50 Hours of operation	100 Hours of operation	250 Hours of operation
Engine oil (15W-40)	Inspection	√
	Change		√		√
Air filter Inspection		√
		Change				√
Spark plug	Inspection Clean					√
	Change						√

Provide appropriate servicing upon the earlier of the following: in the given month or after the specified hours of operation have expired.

Defects searching

Defect	Causes	Measure
The motor does not start	Start-Stop lever has not been pressed Press the Start-Stop lever
	Choke has not been used Use the choke
	Lack of fuel Add some fuel
	Bowden cables are too long Adjust the Bowden cables using the coupling nut.
	Wrong fuel, storing without petrol tank being drained	Drain the fuel tank and carburettor.Add fresh petrol.
	Sooted spark plug (carbon residues on electrodes), electrodes distance too big	Clean the spark plug, check the plug thermal value, possibly change the plug, set the electrodes distance to 0.6-0.7 mm
	The spark plug is wet from petrol (oversaturated engine).	Dry the spark plug out and refit it.
Grass is not collected	Blocked channelFull collection bagToo wet grass	Clean the ejection channelEmpty the collection bagCut in dry weather
Automatic feed is not working	Bowden cables are too long Adjust the Bowden cables using the coupling nut.

97/68/EG & 2004/26/EC

97/68/EG & 2004/26/EC

Brandstof ....Loodvrije benzine....Loodvrije benzine ....Loodvrije benzine

Gewicht....36,7 kg....39,4 kg....41,1 kg

Afmeting....1300 x 570 x 990 mm.....1400 x 570 x 1000 mm.....1500 x 650 x 1000 mm

Geluidsdrukniveau L _pA¹⁾ ....79,0 dB (A)....81,9dB (A)....80,5 dB (A)

Geluidsvermogenniveau L _WA¹⁾ ....96 dB (A)....98 dB (A)....98 dB (A)

Draag oorbeschermers!

Trillingsemissiewaarde a_h²⁾ 3,1 m/s 3,4 m/s² 4,3 m/s²

97/68/EG & 2004/26/EC

97/68/EG & 2004/26/EC

97/68/EG & 2004/26/EC

97/68/EG & 2004/26/EC

97/68/EG & 2004/26/EC

97/68/EG & 2004/26/EC

Nivelul presiunii acustice L _nA¹⁾ ....79,0 dB (A)....81,9dB (A)....80,5 dB (A)

Nivelul puterii sunetului L_WA^(p_A1) 96 dB (A) 98 dB (A) 98 dB (A)

97/68/EG & 2004/26/EC

Norme armonizate aplicate.

EN 836:1997+A1+A2+A3

EN ISO 14982:2009

97/68/EG & 2004/26/EC

Primenjeni harmonizovani standardi

EN 836:1997+A1+A2+A3

EN ISO 14982:2009

Kolarov Technologic O.O.D.

Jordan Bogdar 4

BG-8800 Sliven

Tel: [phone]

Fax: [phone]

GÜDE GmbH & Co. KG

Birkichstrasse 6

74549 Wolpertshausen

Deutschland
