Product type	Petrol wheeled lawn mower
Brand	Güde
Model	460 Big Wheeler
Cutting width	46 cm
Cutting height	25-75 mm (manually adjustable)
Engine type	4-stroke petrol engine
Displacement	125 cm³
Power	2.5 kW (3.4 HP)
Tank capacity	0.8 L
Fuel type	Unleaded petrol
Cutting system	Rotary steel blade
Functions	Mulching, bagging, side discharge
Collection bag volume	70 L
Drive	Rear wheel drive (self-propelled)
Wheel diameter	Front: 30 cm, Rear: 40 cm
Weight	35 kg
Dimensions (L x W x H)	80 x 60 x 50 cm
Noise level	95 dB(A)
Start type	Manual recoil starter
Maintenance	Oil change, bag cleaning, blade sharpening
Spare parts available	Blade, bag, wheels, air filter, spark plug
Safety	Engine stop by releasing handle, blade guard
Warranty	2 years

Frequently Asked Questions - 460 Big Wheeler GUDE

How to start the Güde 460 Big Wheeler lawn mower?

Make sure the tank has petrol and the engine is filled with oil. Place the mower on a flat surface, engage the choke if necessary, then firmly pull the manual starter after pressing the primer button.

What oil to use for the engine?

Use a 4-stroke engine oil SAE 30 or 10W-30 for normal conditions. The oil capacity is approximately 0.5 liters. Check the level before each use.

How to adjust the cutting height?

Operate the central height adjustment lever to select the desired position (7 levels from 25 to 75 mm). The mower must be stopped and on a stable surface.

The mower won't start, what to do?

Check the petrol and oil levels, as well as the condition of the spark plug. Make sure the safety handle is pressed. If the engine is flooded, wait a few minutes before trying again.

How to maintain the cutting blade?

Disconnect the spark plug wire before any intervention. Remove the blade, clean it and sharpen it with a file if necessary. Check the balance. Replace it if damaged.

The collection bag does not fill correctly, why?

Check that the bag is properly clipped on and that the discharge deflector is in the bagging position. Grass that is too tall or wet can block the chute. Clean the bag and chute regularly.

What is the petrol tank capacity?

The tank has a capacity of 0.8 liters. Use unleaded petrol without ethanol if possible.

How to change the engine oil?

Run the engine for a few minutes to warm it up, then turn it off. Place a container under the drain plug, remove it and let the oil drain. Replace the plug and fill with new oil to the correct level.

The mower vibrates abnormally, what to do?

Stop the mower immediately. Check that the blade is not unbalanced, damaged or improperly fastened. Tighten the blade bolts and inspect the wheel mounts.

What type of battery is used?

This mower does not have a battery; it starts manually with a recoil starter.

USER MANUAL 460 Big Wheeler GUDE

Three black-and-white photos of a lawn mower with visible wheels and headlamps (no text or symbols)

Big Wheeler

460 4 IN 1

95333

5104 IN 1

95347

561 S-Plus

95350

Güde

®

ENGLISH Please read the instructions carefully before starting the machine.

English TECHNICAL DATA | SPECIFIED CONDITIONS OF USE | SAFETY INSTRUCTIONS | MAINTENANCE | GUARANTEE | EC-DECLARATION OF CONFORMITY \_\_\_\_ 26

Français CARACTÉRISTIQUES TECHNIQUES | UTILISATION CONFORME À LA DESTINATION | CONSIGNES DE SÉCURITÉ | ENTRETIEN | GARANTIE | DÉCLARATION DE CONFORMITÉ CE \_\_\_\_ 31

Mechanical lawn mower with attached blade and handle, showing mechanical components without any text or symbols

DE Montage SI Montaža

GB Assembly HR Montaža

FR Montage BG Монтаж

IT Montaggio RO Montaj

NL Montage BA Montaža

CZ Montáž

SK Montáž

HU Szerelés

1

2-4

Illustration of a grass lawn mower with an open box below showing the upward arrow (no text or symbols)

DE montage

GB Assembly

FR Montage

IT Montaggio

NL Montage

CZ Montáž

SK Montáž

HU Szerelés

SI Montaža

HR Montaža

BG Монтаж

RO Montaj

BA Montaža

510 4 IN 1 #95347 | 561 S-Plus #95350

1	DE montage	SI Montaža
	GB Assembly	HR Montaža
	FR Montage	BG Монтаж
	IT Montaggio	RO Montaj
	NL Montage	BA Montaža
	CZ Montáž
	SK Montáž
	HU Szerelés

460 4 IN 1 #95333 | 510 4 IN 1 #95347 | 561 S-Plus #95350

Black-and-white photo of a lawn mower with attached tool, shown with a close-up inset showing a magnified view of the blade (no text or symbols visible)

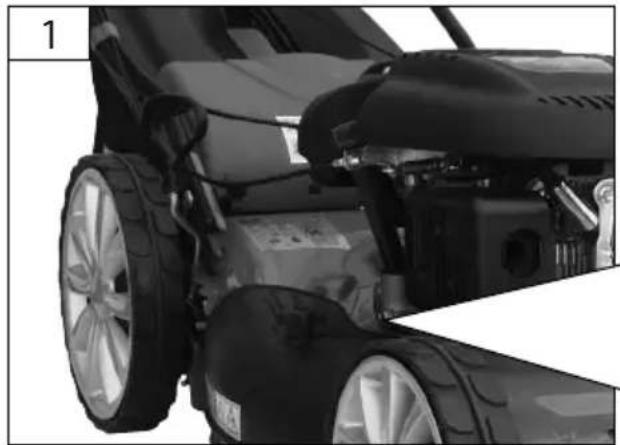

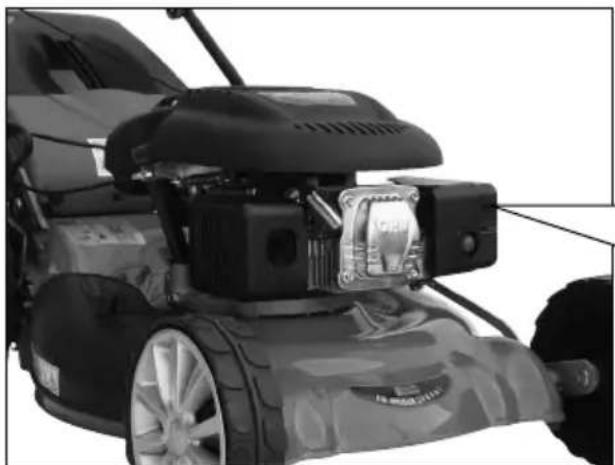

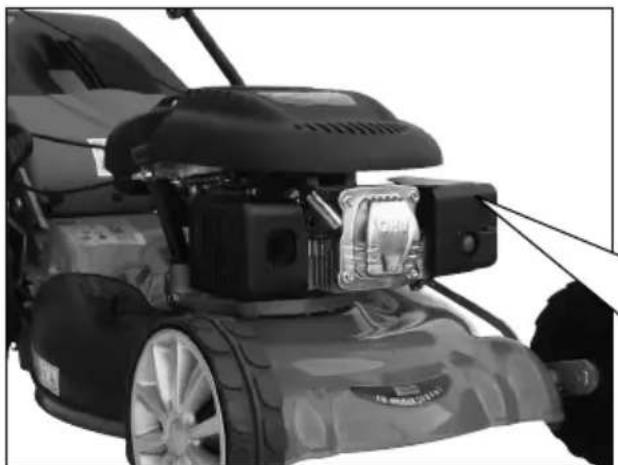

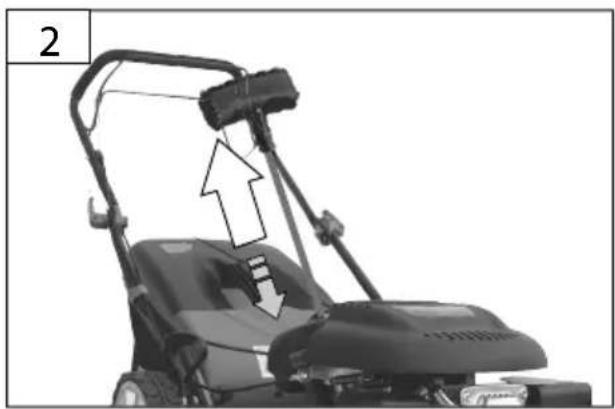

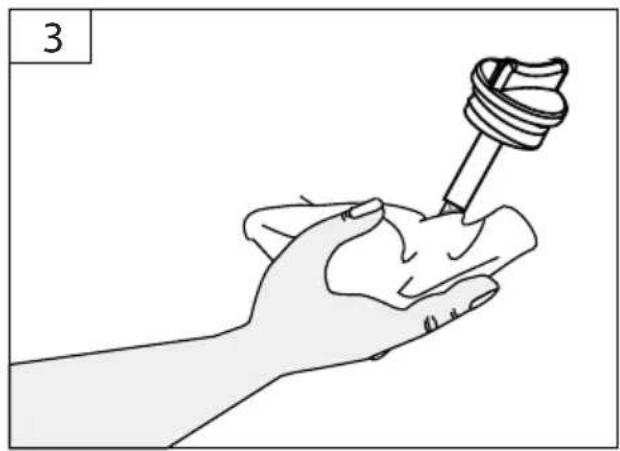

DE Ölstand kontrollieren

GB Oil level inspection

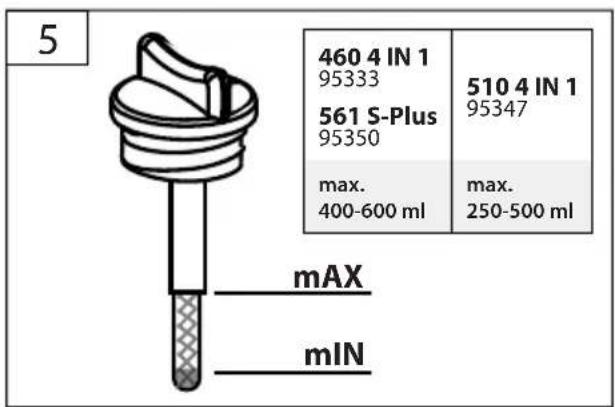

GB Check the oil level whenever the appliance is to be put into operation. Add engine oil if necessary. Check the oil level whenever the appliance is to be put into operation. Add engine oil if necessary.

Simple line drawing of a lawn mower with a checkmark indicating right-hand rule (no text or symbols)

2

DE Ölstand kontrollierenGB Oil level inspectionFR Contrôle du niveau d'huileIT Controllo livello d'olioNL Oliepeil controlerenCZ Kontrola stavu olejeSK Kontrola stavu olejaHU Olajszint ellenőrzése

SI Kontrola stanja oljaHR Kontrola razine uljaBG Контрол на състоянието на маслотоRO Verifi carea stării uleiuluiBA Kontrola nivoa ulja

460 4 IN 1 #95333 | 510 4 IN 1 #95347 | 561 S-Plus #95350

Line drawing of a hand holding a small object with a pipette inserted, no text or symbols present

DE	Tanken	SI	Dolivanje goriva
GB	Fuel tank fi lling	HR	Dopunjavanje goriva
FR	Ravitaillement	BG	Зареждане
IT	Rabbocco	RO	Alimentarea cu combustibil
NL	Tanken	BA	Dopunjavanje goriva
CZ	Tankování
SK	Tankovanie
HU	Tankolás

460 4 IN 1 #95333 | 510 4 IN 1 #95347 | 561 S-Plus #95350

Close-up of a car's engine compartment with lock and valve mechanism (no text or symbols)

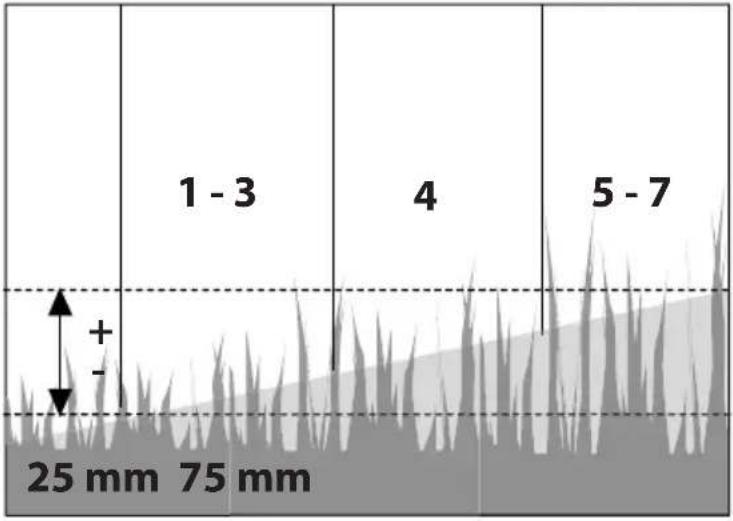

	DE	Schnitthöhe einstellen	SI	Nastavitev višine košnje
	GB	Cutting height setting	HR	Podešavanje visine sječenja
	FR	Réglage de la hauteur de coupe	BG	Pegyliранe na viscochinata na cechene
	IT	Impostazione dell'altezza di taglio
	NL	Instelling van de maaihoogte	RO	Reglarea înăltimii de tăiere
	CZ	Nastavení výšky sečení	BA	Podešavanje visine sječenja
	SK	Nastavenie výšky kosenia
	HU	Kaszálási magasság beállítása

460 4 IN 1 #95333 | 510 4 IN 1 #95347 | 561 S-Plus #95350

Close-up of a car wheel with attached battery pack and handle, showing no text or symbols

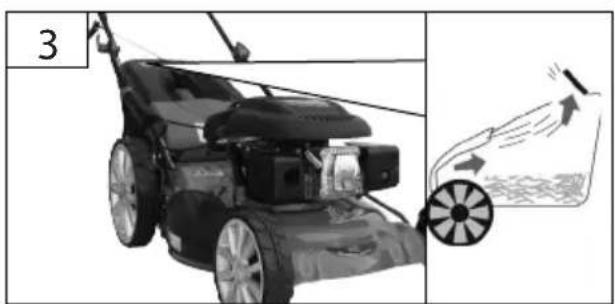

DE mähen - mulchen

GB mow - mulching

FR tondre - paillage

Mechanical lawn mower with attached blade and mounting bracket (no visible text or symbols)

Close-up of a white plastic mechanical component with a recessed cavity and mounting holes (no visible text or symbols)

2

DE Mähen - SammelnGB mow - collectFR tondre - collecterIT falciare - raccogliereNL maaien - verzamelenCZ sekat - sbíratSK kosit' - zbierat'HU szénaboglya - gyűjt

SI kosite - zbiratiHR kositi - prikupitiBG koся - събиране наRO cosi - colectaBA kositi - prikupiti

460 4 IN 1 #95333 | 510 4 IN 1 #95347 | 561 S-Plus #95350

Close-up of a mechanical component with a hammer and wrench, showing internal structure and a circular arrow indicating rotation (no text or symbols)

Close-up of a grass lawn mower being cleaned with a Gudi-branded power strip, showing mechanical components and wiring (no text or symbols visible)

Mechanical diagram of a lawn mower with labeled parts, showing blade and wheel assembly (no text or symbols)

Illustration of a lawn mower and a grassy lawn mower with motion arrows (no text or symbols)

Illustration of a tractor pulling a field with a gear shift, no text or symbols present

DE mähanweisungen

GB Cutting instructions

FR Consignes de tonte

Illustration of a lawn mower with directional arrows and two pictograms below showing different actions (no text or symbols)

Illustration of a person crossing a road with a construction vehicle and warning sign (no text or symbols)

Silhouette of a person pushing a cart with a curved ramp, no text or symbols present

Silhouette of a person using a power tool to cut a machine, with a warning sign and hazard symbol (no text or labels)

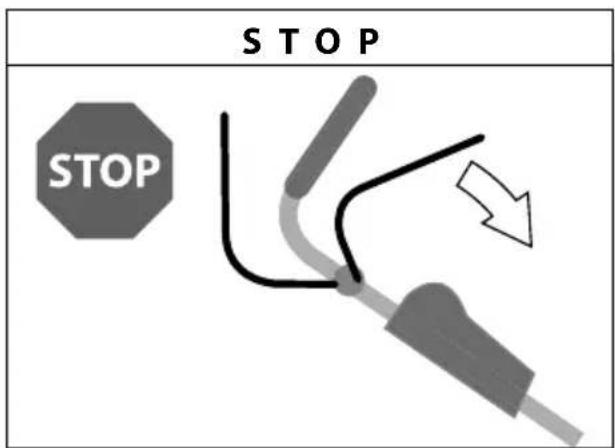

DE Betrieb - START

GB Operation - START

Diagram of a mechanical component with a curved line and arrow indicating direction (no text or symbols)

Lhouette of a lawn mower with attached hose and mounting bracket, shown in black and white (no text or symbols visible)

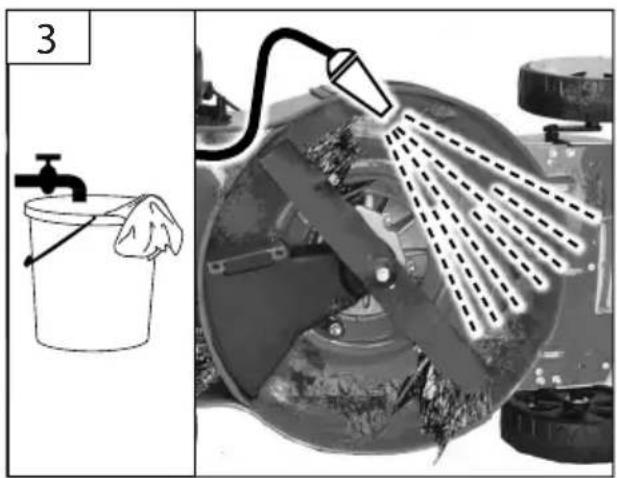

5	DE Reinigung / Wartung	SI Čiščenje / Vzdrževanje
	GB Cleaning / Maintenance	HR Čiščenje / Održavanje
	FR Nettoyage / Entretien	BG Чистене / Поддръжка
	IT Pulizia / Manutenzione	RO Curățare / Întreținere
	NL Schoonmaken / Onderhoud	BA Čiščenje / Održavanje
	CZ Čištění / Údržba
	SK Čistenie / Údrzba
	HU Tisztítás / Karbantartás

460 4 IN 1 #95333 | 510 4 IN 1 #95347 | 561 S-Plus #95350

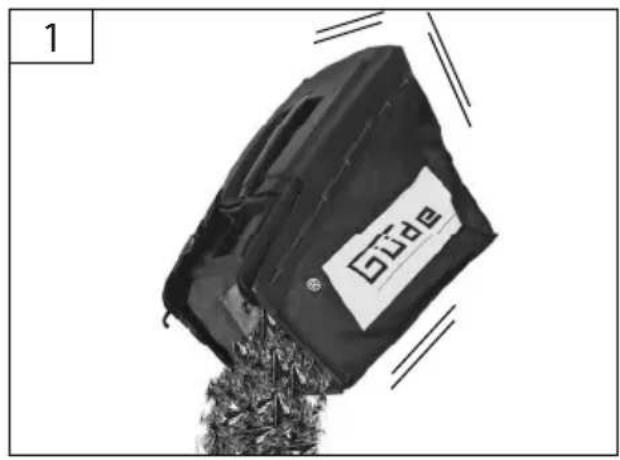

Black and white photo of a Guide bag with a pile of coins, no visible text or symbols on the bag itself.

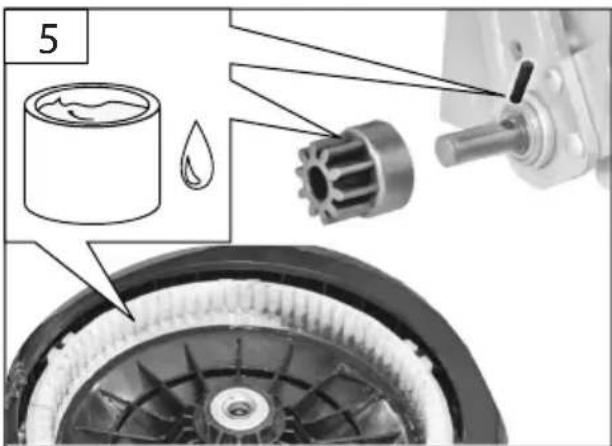

DE Reinigung / Wartung SI Čiščenje / Vzdrževanje
GB Cleaning / Maintenance HR Čišćenje / Održavanje
FR Nettoyage / Entretien BG Чистене / Поддръжка
IT Pulizia / Manutenzione RO Curățare / Întreținere
NL Schoonmaken / Onderhoud BA Čišćenje / Održavanje
cz Čištění / Údržba
SK Čistenie / Údrzba
HU Tisztítás / Karbantartás

510 4 IN 1 #95347 | 561 S-Plus #95350

Mechanical assembly diagram showing a wheel rim, tire components, and motor assembly (no text or symbols)

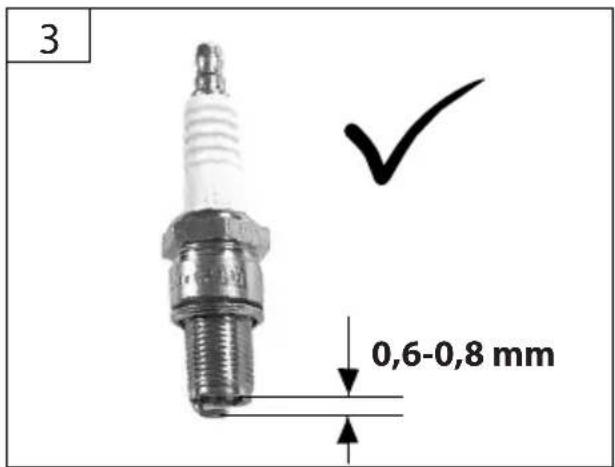

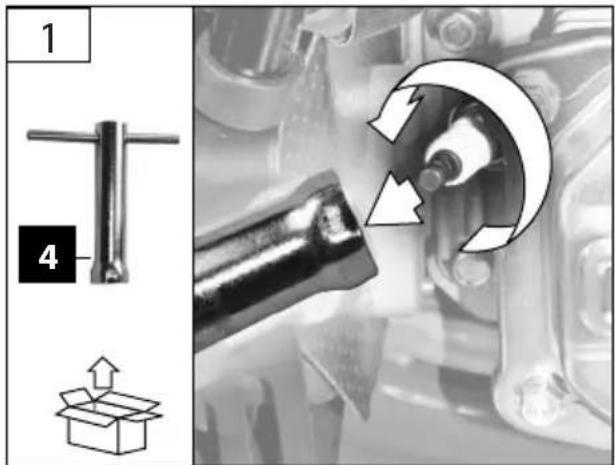

5	DE Zündkerze	SI Vžigalna svečka
	GB Spark plug	HR Svijeća za paljenje
	FR Bougie d'allumage	BG Запалваща свещ
	IT Candela d'accensione	RO Bujie
	NL Bougie	BA Svijeća za paljenje
	CZ Zapalovací svíčka
	SK Zapalovacia sviečka
	HU Gyújtógyertya

460 4 IN 1 #95333 | 510 4 IN 1 #95347 | 561 S-Plus #95350

Two types of electric shock absorbers shown: a toothbrush and a spark plug, with no visible text or labels.

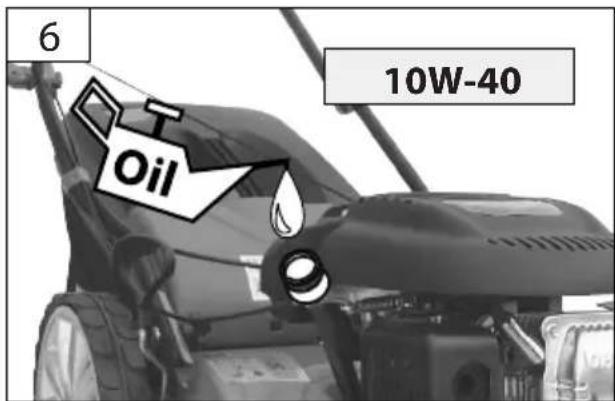

DE Ölwechsel

GB Oil change

460 4 IN 1 #95333 | 510 4 IN 1 #95347 | 561 S-Plus #95350

Close-up of a car's front wheel assembly and chassis (no visible text or symbols)

Close-up of a mechanical component with a hexagonal nut and directional arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a motor with wheels and a black tool inserted into a circular component (no text or symbols)

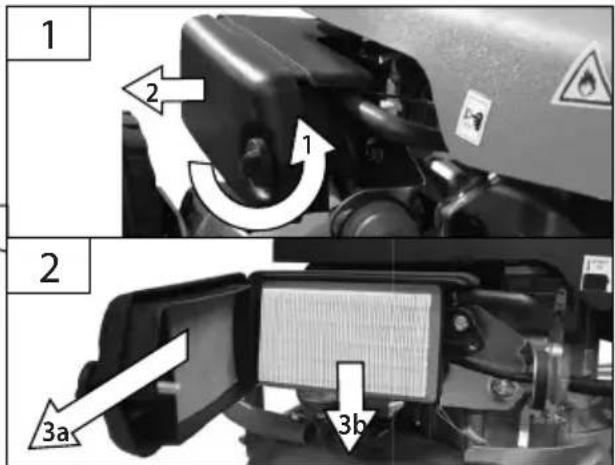

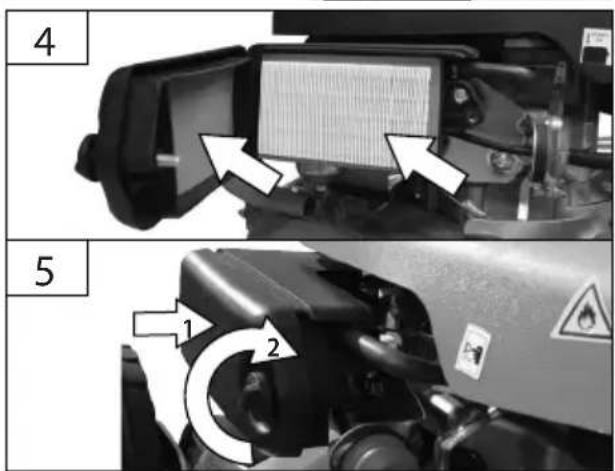

5	DE Luftfi Iter	SI Zračni fi Iter
	GB Air fi Iter	HR Zračni fi ltar
	FR Filtre à air	BG Въздушен филтър
	IT Filtro d'aria	RO Filtru de aer
	NL Luchtfi Iter	BA Zračni fi ltar
	CZ Vzduchový fi ltr
	SK Vzduchový fi Iter
	HU Levegőszűrő

460 4 IN 1 #95333 | 510 4 IN 1 #95347

Close-up of a lawn mower with visible blade and mounting bracket (no text or symbols)

Close-up of a vehicle engine compartment with visible components and a white arrow pointing to a component (no text or symbols)

Close-up of a mechanical component with a highlighted internal structure and an arrow pointing to it (no visible text or symbols)

Illustration of a hand reaching toward a sun and a rock, with no text or symbols present

Close-up of a mechanical component with arrows indicating parts of the interior (no visible text or symbols)

DE Luftfilter

GB Air filter

FR Filtre à air

IT Filtro d'aria

NL Luchtfilter

CZ Vzduchový fi ltr

561 S-Plus #95350

Close-up of a lawn mower with visible blades and mounting bracket (no text or symbols)

Collection bag capacity ....65 | ....65 | ....65 |

Fuel ....Unleaded petrol ....Unleaded petrol ....Unleaded petrol

Weight....30 kg....33,1 kg....35,9 kg

Dimensions....1520 x 560 x 990 mm ....1550 x 560 x 950 mm ....1660 x 560 x 960 mm

Noise and Vibration Information

Sound pressure level L_nA^1) 83,4 dB (A) 83,5 dB (A) 84,5 dB (A)

Sound power level L 96 dB (A) 96 dB (A) 98 dB (A)

Wear ear protectors!

Vibration emission value a_b^2) 4,131 m/s ^2 6,9 m/s ^2 8,91 m/s ^2

^1) Uncertainty K=3 dB (A), ^2) Uncertainty K=1,5 m/s ^2

Warning: The vibration emission level will vary because of the ways in which a power tool can be used and may increase above the level given in this information sheet.

The vibration emission level may be used to compare one tool with another.

It may be used for a preliminary assessment of exposure.

An accurate estimate of the vibratory load should also take into account the times when the tool is shut down or when it is running but not actually in use. This may significantly reduce the vibratory load over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Read and understand the operating instructions before using the appliance. Familiarise with the

control elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties.

The operator is responsible for accidents or risks to third parties.

In case of any doubts about connection and operation refer please to our customer center

delivered items

1 Mulching wedge

2 Side ejection

3 Collection bag

4 Spark plug wrench

5 Bowden clamps

6 Wheels/screens including star screw/U-washer

Specified Conditions Of Use

The mower has been designed for cutting grass and grass areas with a maximum climb of 20^ in private gardens around the house and in garden colonies.

Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.

⚠️ Use the appliance only outside, never use it in confined and bad ventilated areas.

The mower must not be used for cutting bushes, hedges and thickets, for cutting and mulching creepers or lawns on roofs or in balcony boxes. The mower must also not be used as a crusher for mulching tree cuttings and hedges or levelling any terrain roughness.

Requirements for operating staff

The operating staff must carefully read the Operating Instructions before using the appliance.

This device is not intended for use by persons (including children) with limited physical, sensory or mental capabilities or without the necessary lack experience or knowledge unless they are supervised by a person who is responsible for their safety or were instructed by that person in how to use the device.

Qualifi cation: Apart from the detailed instructions by a professional, no special qualifi cation is necessary for appliance using.

Minimum age: Persons over 16 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.

Local regulations may stipulate the minimum age of the user.

Training: Using the appliance only requires corresponding training by a professional or the Operating Instructions. No special training is necessary.

Emergency procedure

Danger of injury!

Never put your hands and feet near the rotating parts. Keep a distance from the ejection opening at all times.

Danger of burns!

Some parts of the appliance get too hot when the appliance is operated. Do not touch any hot parts, e.g. engine and muffler.

Conduct a fi rst-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. For the sake of eventual accident, in accordance with DIN 13164, a workplace has to be fitted with a fi rst-aid kit. It is essential to replace any used material in the fi rst-aid kit immediately after it has been used. If you seek help, state the following pieces of information:

1. Accident site
2. Accident type
3. Number of injured persons
4. Injury type(s)

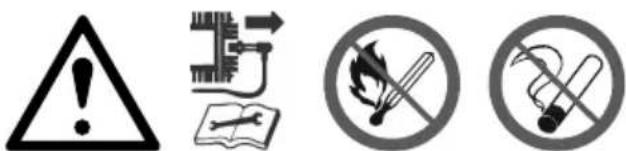

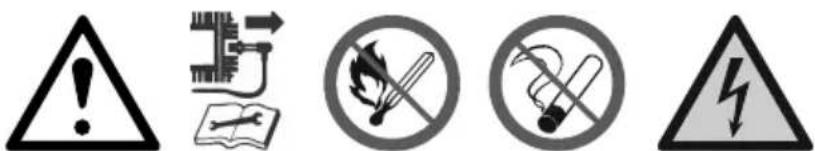

Symbols

Caution!

Read the Operating Instructions

Wear ear protectors! Wear eye protective goggles!

Caution - hot surface! Danger of burns!

Warning against bounced subjects

Keep distance of persons! Observe to keep out of dangerous zone

Switch the engine off and remove the socket plug before any work on the engine.

Keep a sufficient distance from the cutting knife when operating the appliance.

Caution, risk of drawing-in

Risk of explosion Refuel the engine only when switched off.

Risk of poisoning! Use the appliance only outside, never use it in confined and bad ventilated areas.

Prohibited smoking and open fire using.

Warning against dangerous voltage!

Protect against humidity

This side up

Safety Instructions

WARNING

Read all safety warnings and all instructions, including those given in the accompanying brochure.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

Keep children and other persons including animals in a safe distance when using the appliance. Minimum safe distance is 5 m.

Wear personal protective equipment.

Wear solid shoes and long trousers. Never use the appliance when barefooted or in light sandals.

Wear protective gloves if necessary.

Use the appliance in broad daylight or in a well-lit environment.

Check carefully the terrain where the appliance is being used and remove any items that could get caught and be thrown away.

Fuel is highly flammable.

Keep the fuel in suitable containers only.

The appliance may only be refuelled outdoors and not near open fire or burning cigarettes.

Refuel before starting the appliance. If the engine is running or still hot, it must not be refuelled or the tank cover opened.

Make sure the fuel does not overflow. If the fuel overflows, the engine must not be started. Remove any dirt from the appliance and prevent any attempt at ignition until fuel fumes have evaporated.

The engine must necessarily be filled with engine oil before being put into operation for the first time.

Check the oil level whenever the appliance is to be put into operation. Add engine oil if necessary.

Carry out a visual inspection before any use to make sure the appliance, especially the cutting tools, fastening parts and the entire cutting unit are not damaged.

⚠️ Check all screw and plug-in connections and protective equipment if firm and tightened properly and whether all moving parts are running smooth whenever the appliance is to be put into operation.

The protective equipment on the appliance is strictly prohibited to be disassembled, changed, used in conflict with the designation and it is prohibited to attach any protective equipment of other manufacturers.

The appliance must not be used if damaged or safety equipment is defective. Replace any worn-out and damaged parts.

Do not start the engine before your feet are in a safe distance from the cutting tools.

Do not incline the appliance when being started.

Do not start the appliance when you are standing in front of the ejection opening.

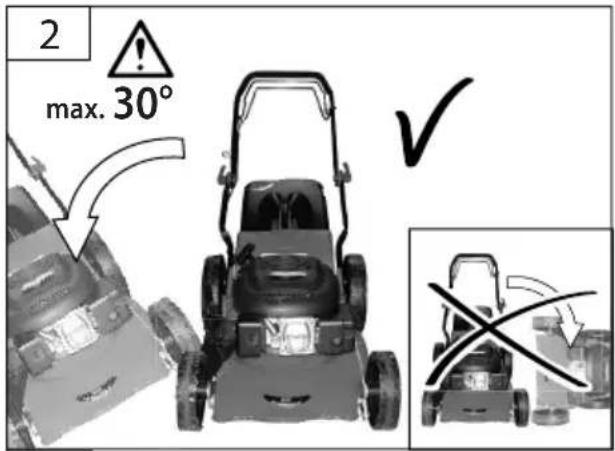

Make sure your posture is safe, especially on slopes. Do not cut on too steep slopes. Be particularly careful when changing travelling direction on slopes.

Pay maximum attention when turning around and pulling the appliance to you.

Switch the mower off whenever carrying or inclining it or when being outside a grass area. Wait until all rotating parts have stopped.

If an undesirable item is encountered or the appliance starts vibrating, the appliance must be switched off and the socket plug removed. Check whether the appliance is not damaged. Repair any damage.

Switch the appliance immediately off after finishing your work.

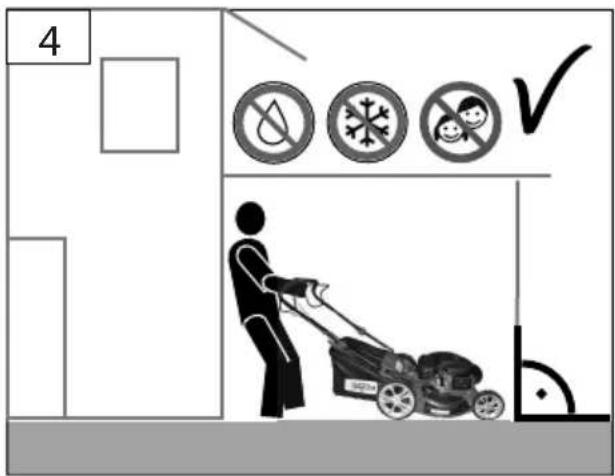

Do not store the appliance in enclosed places just after being switched off but let it cool down outdoors instead.

Never store the appliance with petrol in the tank inside a building where petrol fumes may potentially get in touch with open fire or sparks.

When the appliance is not going to be used for a long time, store it with an empty tank.

Replace any defective muffler.

Do not change the controlled engine setting and do not rev the engine up.

maintenance

Switch the engine off and remove the socket before any work on the engine. Wait until all ing parts have stopped and the appliance poled down.

Keep the appliance, especially the tank and engine, clean at all times. Clean the ejection opening and cover at regular intervals.

Apply environment-friendly oil to all moving parts.

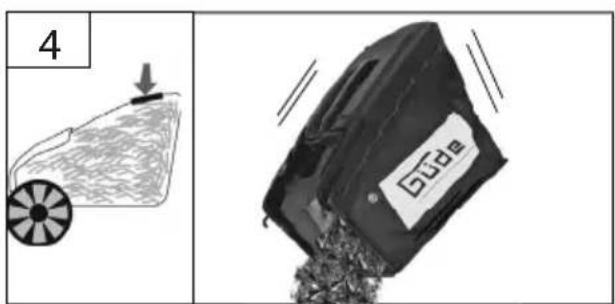

Check the collection bag at regular intervals for any wear and aging.

Refer all servicing to qualified service personnel.

Use only original accessories and original spare parts.

Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

Guarantee

The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be submitted for any claim in the guarantee period.

The guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the operating and assembly instructions and common wear are also not included in the guarantee.

Service

Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureaucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label. Please enter it here for future reference:

Serial No.:

Art. No:

Year of production:

Inspection and maintenance plan

Regular servicing period Before		any start-up	After 1 month	After 3 months	After 6 months	After 12 months	After 24 months
			5 Hours of operation	25 Hours of operation	50 Hours of operation	100 Hours of operation	250 Hours of operation
Engine oil (10W-40)	Inspection	√
	Change		√		√
Air filter Inspection		√
					√
Spark plug	Inspection Clean					√
	Change						√

Provide appropriate servicing upon the earlier of the following: in the given month or after the specified hours of operation have expired.

Defects searching

Defect	Causes	Measure
The motor does not start	Start-Stop lever has not been pressed Press the Start-Stop lever
	Primary pump has not been used Use the primary pump
	Lack of fuel Add some fuel
	Bowden cables are too long Adjust the Bowden cables using the coupling nut.
	Wrong fuel, storing without petrol tank being drained	Drain the fuel tank and carburettor.Add fresh petrol.
	Sooted spark plug (carbon residues on electrodes), electrodes distance too big	Clean the spark plug, check the plug thermal value, possibly change the plug, set the electrodes distance to 0.6-0.7 mm
	The spark plug is wet from petrol (oversaturated engine).	Dry the spark plug out and refit it.
Grass is not collected	Blocked channelFull collection bagToo wet grass	Clean the ejection channelEmpty the collection bagCut in dry weather
Automatic feed is not working	Bowden cables are too long Adjust the Bowden cables using the coupling nut.

Brandstof......Loodvrije benzine......Loodvrije benzine......Loodvrije benzine

Gewicht ....30 kg....33,1 kg....35,9 kg

Afmeting....1520 x 560 x 990 mm..... 1550 x 560 x 950 mm.....1660 x 560 x 960 mm

EC-Declaration of Conformity

We, hereby declare the conception and construction of the below mentioned appliances correspond - at the type of construction being launched - to appropriate basic safety and hygienic requirements of EC Directives.

In case of any change to the appliance not discussed with us the Declaration expires.

97/68/EG & 2004/26/EC 97/68/EG & 2004/26/EC 97/68/EG & 2004/26/EC

Angewandte harmonisierte Normen | Harmonised standards used | Normes harmonisées applicables | Applicate norme armonizzate | Gebruikte harmoniserende normen | Použité harmonizované normy | Použité harmonizované normy | Használt harmonizált normák | Uporabljeni usklajeni standardi | Primijenjeni harmonizirani standardi | Използвани хармонизирани норми | Norme armonizate aplicate | Primenjeni harmonizovani standardi

460 4 IN 1 #95333 510 4 IN 1 #95347 561 S-Plus #95350

EN 836/A3: 1997+A1+A2+A3+AC EN 836/A3: 1997+A4

EN 836/A3: 1997+A1+A2+A3+AC

EN ISO 14982: 2009 ZEK 01.2-08/12.08

ZEK 01.2-08/12.08

EN ISO 14982: 1998

EN ISO 14982: 2998

e1*97/68SN3-IIA*2004/26*0337*02

eIRL*97/68SA*2004/26*0095*00

e1*97/68SN3-IA*2004/26SN3-IIA*0331*03

Güde GmbH & Co. KG

Birkichstraße 6

74549 Wolpertshausen

Germany

Wolpertshausen, 2012-09-24

TÜV Rheinland LGA Products GmbH

Tillystraße 2

D-90431 Nürnberg

Deutschland

Kenn-Nr. 0197

Joachim Bürkle,

GÜDE GmbH & Co. KG,

Birkichstrasse 6, 74549 Wolpertshausen,

Germany

Technische Dokumentation | Technical documentation | Documents techniques | Documentazione tecnica Technische documentatie | Technická dokumentace Technická dokumentácia | Múszaki dokumentáció Technična dokumentacija | Tehnička dokumentacija Техническа документация | Documentaţie tehnică Tehnička dokumentacija

Helmut Arnold

Geschäftsführer | Managing Director | Gérant | Amministratore delegato | Bedrijfsleider | Jednatel | Konatel | Ügyvezető igazgató | Direktro | Direktor | Управител | Administrator | Direktor

GÜDE GmbH & Co. KG

birkichstrasse 6

74549 Wolpertshausen

Deutschland
