ZDT15001FA - Dishwasher ZANUSSI - Free user manual and instructions

Product type	Dishwasher
Brand	Zanussi
Model	ZDT15001FA
Dimensions (W x D x H)	59.8 x 55 x 81.8 cm
Net weight	Approximately 40 kg
Power supply	220-240 V, 50 Hz
Number of place settings	12
Noise level	49 dB(A) re 1 pW
Energy class	E (on a scale from A to G)
Water consumption per cycle	9.5 L
Power consumption per cycle	0.9 kWh
Wash programs	Intensive, Eco 50°C, Quick 30 min, Glass, Pre-rinse
Additional functions	Delayed start (3h, 6h, 9h), Intensive drying, Half load option
Drying system	Condensation
Maintenance and cleaning	Regularly clean the filters, spray arms, and door seal
Safety	Child safety, Leak protection
Spare parts and repairability	Available through Zanussi approved service, repairability index: 7.2/10
General information	User manual downloadable in PDF format from notice-facile.com

Frequently Asked Questions - ZDT15001FA ZANUSSI

How to load the dishes in the ZDT15001FA dishwasher?

Place plates facing the center, glasses in the top basket, and cutlery in the cutlery basket. Make sure not to block the spray arms.

What type of detergent to use?

Use a powder, gel, or tablet detergent suitable for dishwashers. For short cycles, prefer powder for quick dissolution.

How to clean the filters of the Zanussi dishwasher?

Unscrew the cylindrical filter at the bottom of the tub, rinse it under running water and remove residue. Put it back correctly.

What to do if the dishwasher does not start?

Check that the door is properly closed, the power supply is connected, and the water inlet tap is open. If the problem persists, reset the appliance by unplugging for 5 minutes.

How to set the delayed start?

Press the 'Delayed start' button and select the desired delay (3h, 6h, or 9h) with the same button. Close the door, the start will be automatic.

Why is my dishwasher making noise?

Noises can come from an unbalanced load or objects blocking the spray arms. Check that the dishes are stable and that the arms rotate freely.

What do the displayed error codes mean?

Codes like E10 indicate a water inlet problem (check the tap), E20 a drainage problem (clean the filter). Consult the manual for the full list.

How to maintain the spray arms?

Unscrew and remove the upper and lower spray arms. Clean the nozzles with a needle under running water. Reassemble them by clicking.

What is the water consumption of the Eco cycle?

The Eco 50°C cycle consumes approximately 9.5 liters of water and 0.9 kWh of electricity, for an efficient wash while respecting the environment.

Where to find spare parts for this model?

Contact Zanussi customer service or check authorized dealers. Use the model reference ZDT15001FA to order parts like filters or spray arms.

USER MANUAL ZDT15001FA ZANUSSI

Daily use 9
Care and cleaning ____ 10
Troubleshooting 11
Technical information 14
Environment concerns 14

Subject to change without notice.

Safety information

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

Children and vulnerable people safety

Warning! Risk of suffocation, injury or permanent disability.

• Do not let persons, children included, with reduced physical sensory, reduced mental functions or lack of experience and knowledge use the appliance. They must have supervision or instruction for the operation of the appliance by a person who is responsible for their safety. Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep all detergents away from children.
• Keep children and pets away from the appliance door when it is open.

Installation

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Do not install or use the appliance where the temperature is less than 0 °C.
• Obey the installation instruction supplied with the appliance.
• Make sure that the appliance is installed below and adjacent to safe structures.

Water connection

• Make sure not to cause damage to the water hoses.
• Before you connect the appliance to new pipes or pipes not used for a long time, let the water flow until it is clean.
• The first time you use the appliance, make sure that there is no leakage.

Warning! Dangerous voltage.

The water inlet hose has a safety valve and a sheath with an inner mains cable.

- If the water inlet hose is damaged, immediately disconnect the mains plug from the mains socket. Contact Service to replace the water inlet hose.

Electrical connection

Warning! Risk of fire and electrical shock.

• The appliance must be earthed.
• Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician.

• Always use a correctly installed shockproof socket.

• Do not use multi-plug adapters and extension cables.

• Make sure not to cause damage to the mains plug and to the mains cable. Contact the Service or an electrician to change a damaged mains cable.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

Use

Warning! Risk of injury.

• Use this appliance in a household environment.
• Do not change the specification of this appliance.
• Put knives and cutlery with sharp points in the cutlery basket with the points down or in a horizontal position.
• Do not keep the appliance door open without supervision to prevent to fall on it.
• Do not sit or stand on the open door.
• Dishwasher detergents are dangerous. Obey the safety instructions on the detergent packaging.
• Do not drink and play with the water in the appliance.
• Do not remove the dishes from the appliance until the programme is completed. There can be detergent on the dishes.

Warning! Risk of electrical shock, fire or burns.

• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.
• Do not use water spray and steam to clean the appliance.
• The appliance can release hot steam if you open the door while a programme operates.

Disposal

Warning! Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.
• Cut off the mains cable and dispose of it.
• Remove the door catch to prevent children and pets to get closed in the appliance.

Customer Care and Service

Contact the Service to repair the appliance.

We recommend only the use of original spare parts.

When you contact the Service, ensure that you have the following information that is available on the rating plate.

Model :

PNC :

Serial Number :

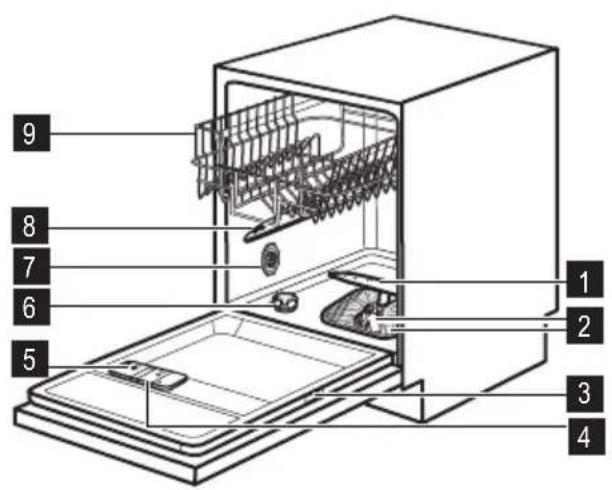

Product description

1 Lower spray arm
2 Filters
3 Rating plate

4 Rinse aid dispenser
5 Detergent dispenser
6 Salt container
7 Water hardness dial
8 Upper spray arm
9 Upper basket

Light beam

• When a programme starts to operate, a red light beam shows on the floor below the appliance door. It goes off when the programme is completed.
• When the appliance has a malfunction, the red light beam flashes.

Control panel

1 On/off button

2 Programme buttons

3 Delay button

4 Indicators

5 Function buttons

Indicators Description
	Salt indicator. This indicator is off while the programme operates.
	Multitab indicator.
→|	End indicator.

Programmes

Programme1)	Degree of soil Type of load	Programme phases	Duration (min)	Energy (kWh)	Water (l)
70°	Heavy soil Crockery, cutlery, pots and pans	Prewash Wash 70 °C Rinses Dry	80-90 1,6-1,8	22-24
AUTO 45°-70°2)	All Crockery, cutlery, pots and pans	Prewash Wash 45 °C or 70 °C Rinses Dry	90-140 1,1-1,8	12-23
60°A30,3)	Fresh soil Crockery and cutlery	Wash 60 °C Rinse	30 0,9 9
50°4)	Normal soil Crockery and cutlery	Prewash Wash 50 °C Rinses Dry	155-167 0,99	-1,04 13-14
45°	Normal or light soil Delicate crockery and glassware	Wash 45 °C Rinses Dry	60-70 0,8-0,9	14-15

1) The water pressure and temperature, the variations of the mains supply, the options and the quantity of dishes can change the programme duration and the consumption values.
2) The appliance senses the degree of soil and the quantity of items in the baskets. It automatically adjusts the temperature and quantity of the water, the energy consumption and the programme duration.
3) With this programme you can wash a load with fresh soil. It gives good washing results in a short time.
4) This is the standard programme for test institutes. With this programme you have the most efficient use of water and energy consumption for crockery and cutlery with normal soil. Refer to the supplied leaflet for test information.

Options

Multitab function

Activate this function only when you use the combi detergent tablets.

This function deactivates the flow of rinse aid and salt. The salt indicator is off.

The programme duration can increase.

Activating the multitab function

i Activate or deactivate the multitab function before the start of a programme. You cannot activate or deactivate this function while a programme operates.

1. Press the on/off button to activate the appliance.

2. Make sure that the appliance is in setting mode. Refer to 'SETTING AND STARTING A PROGRAMME'.

3. Press and hold function buttons (D) and (E) at the same time until the multitab indicator comes on.

The function stays on until you deactivate it. Press and hold function buttons (D) and (E) at the same time until the multitab indicator goes off.

If you stop to use the combi detergent tablets, before you start to use separately

detergent, rinse aid and dishwasher salt, do these steps:

1. Deactivate the multitab function.
2. Set the water softener to the highest level.
3. Make sure that the salt container and the rinse aid dispenser are full.
4. Start the shortest programme with a rinsing phase, without detergent and without dishes.
5. Adjust the water softener to the water hardness in your area.
6. Adjust the released quantity of rinse aid.

Acoustic signals

The acoustic signals operate in these conditions:

• The programme is completed.
• The appliance has a malfunction.

- The level of the water softener is adjusted electronically.

i Factory setting: on. You can deactivate the acoustic signals.

Deactivating the acoustic signals

1. Press the on/off button to activate the appliance.
2. Make sure that the appliance is in setting mode. Refer to 'SETTING AND STARTING A PROGRAMME'.

Before first use

1. Make sure that the set level of the water softener agrees with the water hardness in your area. If not, adjust the water softener. Contact your local water authority to know the water hardness in your area.
2. Fill the salt container.
3. Fill the rinse aid dispenser.
4. Open the water tap.
5. Processing residues can stay in the appliance. Start a programme to remove them. Do not use detergent and do not load the baskets.

i If you use the combi detergent tablets, activate the multitab function. These tablets

1. Press and hold function buttons (B) and (C) at the same time until the indicators of function buttons (A), (B) and (C) flash.

2. Press function button (C),

3. The indicators of function buttons (A) and (B) go off.

4. The indicator of function button (C) continues to flash.

5. The end indicator comes on.

6. Press function button (C). The end indicator goes off, the acoustic signals are deactivated.

7. Deactivate the appliance to confirm.

Activating the acoustic signals

1. Refer to 'Deactivating the acoustic signals', step (1) through (3).
2. Press function button (C),

- The indicators of function buttons (A) and (B) go off.

- The indicator of function button (C) continues to flash.

- The end indicator is off.

1. Press function button (C). The end indicator comes on, the acoustic signals are active.
2. Deactivate the appliance to confirm.

contain detergent, rinse aid and other added agents. Be sure that these tablets are applicable to the water hardness in your area. Refer to the instructions on the packaging of the products.

Adjusting the water softener

Hard water contains a high quantity of minerals that can cause damage to the appliance and bad washing results. The water softener neutralises these minerals.

The dishwasher salt keeps the water softener clean and in good conditions. Refer to the table to adjust the water softener to the right level. It

makes sure that the water softener uses the correct quantity of dishwasher salt and water.

You must adjust the water softener manually and electronically.

Water hardness				Water softener adjustment
German degrees (°dH)	French degrees (°fH)	mmol/l Clarke	degrees	Manual Elec- tronic
51 - 70	91 - 125	9.1 - 12.5	64 - 88	21)	10
43 - 50 76 - 90	7.6 - 9.0 53 - 63			21)	9
37 - 42 65 - 75	6.5 - 7.5 46 - 52			21)	8
29 - 36 51 - 64	5.1 - 6.4 36 - 45			21)	7
23 - 28 40 - 50	4.0 - 5.0 28 - 35			21)	6
19 - 22 33 - 39	3.3 - 3.9 23 - 27			21)	51)
15 - 18	26 - 32	2.6 - 3.2	18 - 22	1	4
11 - 14	19 - 25	1.9 - 2.5	13 - 17	1	3
4 - 10 7 - 18	0.7 - 1.8 5 - 12 1 2
< 4 < 7 < 0.7 < 5				12)	12)

1) Factory position.
2) Do not use salt at this level.

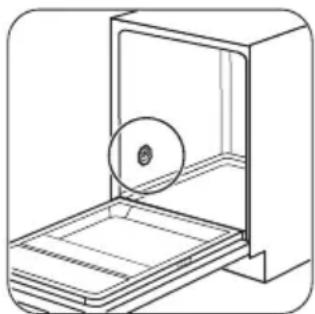

Manual adjustment

Line drawing of a mechanical device with a circular component inserted into a housing (no text or symbols)

1

Technical diagram of a mechanical gear assembly with cross-sectional view (no text or labels)

2

Turn the water hardness dial to the position 1 or 2.

Electronic adjustment

1. Press the on/off button to activate the appliance.

2. Make sure that the appliance is in setting mode. Refer to 'SETTING AND STARTING A PROGRAMME'.

3. Press and hold function buttons (B) and (C) at the same time until the indicators of function buttons (A), (B) and (C) flash.

4. Press function button (A).

5. The indicators of function buttons (B) and (C) go off.

6. The indicator of function button (A) continues to flash.
7. Intermittent acoustic signals operate and the end indicator flashes showing the setting of the water softener.

- The number of flashes of the end indicator and the number of the acoustic signals show the level of the water softener.

Example: 5 acoustic signals and 5 flashes + pause + 5 acoustic signals and 5 flashes = level 5.

1. Press function button (A) again and again to change the setting. Each time you press function button (A) you go to the next level.
2. Deactivate the appliance to confirm.

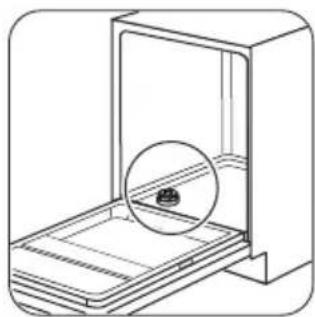

Filling the salt container

Caution! Only use dishwasher salt. Other products can cause damage to the iance.

Water and salt can come out from the salt container when you fill it. Risk of corrosion. To prevent it, after you fill the salt container, start a programme.

Line drawing of a mechanical device with a circular inset showing a component (no text or symbols)

1

Diagram showing a mechanical component being processed with a rotating arrow, no text or symbols present

2

3

4

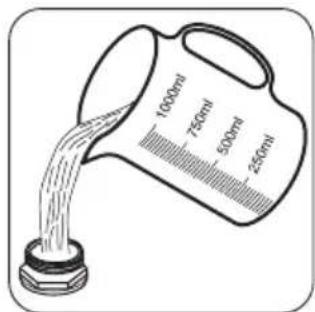

Put 1 litre of water in the salt container (only for the first time).

Illustration of a hand cleaning a wall with a small container (no text or symbols)

5

Diagram showing a gear mechanism with an arrow indicating rotational motion (no text or symbols)

6

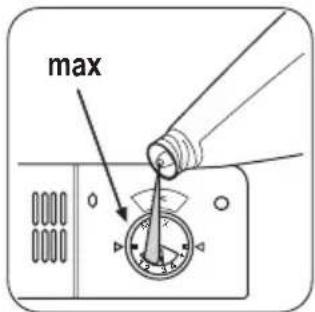

Filling the rinse aid dispenser

Caution! Only use rinse aid for dishwashers. Other products can cause age to the appliance.

The rinse aid, during the last rinsing phase, helps to dry the dishes without streaks and as.

Line drawing of a refrigerator interior with an inset showing a small object on the tray (no text or symbols)

1

Hand holding a rotary switch with a dial and arrow indicator (no text or symbols)

2

3

Illustration of a hand pressing down on a device with a circular symbol and leaf motifs (no text or symbols present)

4

Fill the rinse aid dispenser when the lens (A) is clear.

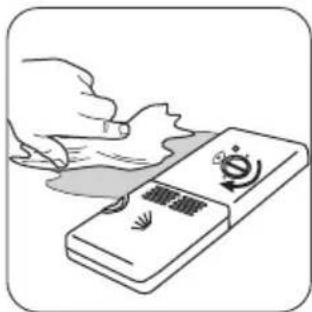

To adjust the re- leased quantity of rinse aid, turn the sele- lector between posi- tion 1 (lowest quanti- ty) and position 4 (highest quantity).

Daily use

1. Open the water tap.

2. Press the on/off button to activate the appliance. Make sure that the appliance is in setting mode. Refer to 'SETTING AND STARTING A PROGRAMME'.

- If the salt indicator is on, fill the salt container.

- If the rinse aid indicator is on, fill the rinse aid dispenser.

1. Load the baskets.

2. Add the detergent.

3. Set and start the correct programme for the type of load and soil.

Loading the baskets

Refer to the supplied leaflet with examples of the load of the baskets.

• Only use the appliance to wash items that are dishwasher-safe.
• Do not put in the appliance items made of wood, horn, aluminium, pewter and copper.
• Do not put in the appliance items that can absorb water (sponges, household cloths).
• Remove remaining food from the items.
• Make soft the remaining burned food on the items.
• Put hollow items (cups, glasses and pans) with the opening down.
• Make sure that cutlery and dishes do not bond together. Mix spoons with other cutlery.
• Make sure that glasses do not touch other glasses.
• Put small items in the cutlery basket.
• Put light items in the upper basket. Make sure that the items do not move.
• Make sure that the spray arms can move freely before you start a programme.

Using the detergent

Caution! Use only detergents for dishwashers.

Do not use more than the correct quantity of detergent. Refer to the instructions on the detergent packaging.

Technical line drawing of a mechanical assembly with a magnified inset showing a small component (no text or symbols)

1

2

3

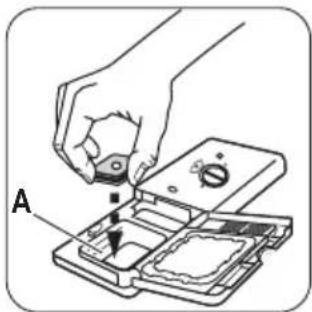

Put the detergent or the tablet in compartment (A).

If the programme has a prewash phase, put a small quantity of detergent in compartment (B).

Isometric illustration of a handheld electronic device with a screen and indicator lights (no text or symbols)

4

Detergent tablets do not fully dissolve with short programmes and detergent residues can stay on the dishes.

We recommend that you use detergent tablets with long programmes.

Setting and starting a programme

Setting mode

The appliance must be in setting mode to accept some operations.

The appliance is in setting mode when, after the activation:

- All the programme indicators come on. If the control panel shows other conditions, press and hold function buttons (B) and (C) at the same time until the appliance is in setting mode.

Starting a programme without delay start

1. Open the water tap.
2. Press the on/off button to activate the appliance. Make sure that the appliance is in setting mode.

3. Press the button of the programme you want to set.

4. The related programme indicator stays on.

5. All the other programme indicators go off.

6. Close the appliance door. The programme starts.

Starting a programme with delay start

1. Set the programme.
2. Press the delay button again and again until the indicator of the number of hours you want to set comes on. You can set 3, 6 or 9 hours.
3. The delay indicator comes on.
4. Close the appliance door. The countdown starts. When the countdown is completed, the programme starts.

Opening the door while the appliance operates

If you open the door, the appliance stops. When you close the door, the appliance continues from the point of interruption.

Care and cleaning

Cancelling the delay start

Press and hold function buttons (B) and (C) at the same time until the delay indicator goes off and all the programme indicators come on.

When you cancel a delay start, the appliance goes back to setting mode. You have to set the programme again.

Cancelling the programme

Press and hold function buttons (B) and (C) at the same time until all the programme indicators come on.

i Make sure that there is detergent in the detergent dispenser before you start a new programme.

At the end of the programme

When the programme is completed, an intermittent acoustic signal operates and the end indicator comes on.

1. Press the on/off button to deactivate the appliance.
2. Close the water tap.
3. Let the dishes become cold before you remove them from the appliance. Hot dishes can be easily damaged.
4. First remove the items from the lower basket, then from the upper basket.

There can be water on the sides and on the door of the appliance. Stainless steel becomes cool more quickly than the dishes.

Warning! Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.

Dirty filters and clogged spray arms decrease the washing results.

Make a check regularly and, if necessary, clean them.

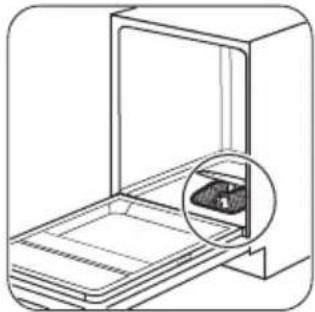

Cleaning the filters

Diagram of a device with a magnified inset showing internal components (no text or symbols)

1

2

Illustration of a hand holding a flat object with a circular arrow indicating rotation or movement (no text or symbols)

3

Illustration of a hand pressing down on a mechanical component labeled 'A' (no text or symbols beyond label)

4

To remove filters (B) and (C), turn the handle counterclockwise and remove. Pull apart filter (B) and (C). Wash the filters with water.

Remove filter (A). Wash the filter with water.

Troubleshooting

The appliance does not start or it stops during operation.

First try to find a solution to the problem (refer to the table). If not, contact the Service.

5

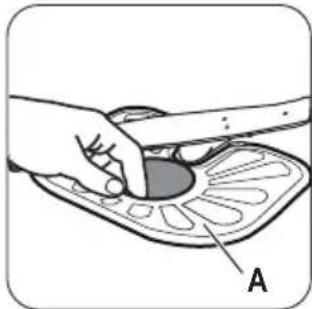

Put filter (A) to its initial position. Make sure that it assembles correctly under the two guides (D).

Illustration of a hand using a tool to adjust or install a component on a curved surface (no text or symbols visible)

6

Assemble filters (B) and (C). Put them into position in filter (A). Turn the handle clockwise until it locks.

An incorrect position of the filters can cause bad washing results and damage to the appliance.

Cleaning the spray arms

Do not remove the spray arms.

If the holes in the spray arms are clogged, remove remaining parts of soil with a thin pointed object.

External cleaning

Clean the appliance with a moist soft cloth.

Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads or solvents.

With some problems, some indicators flash continuously and/or intermittently at the same time to show an alarm code.

Alarm code Problem

• The indicator of the set programme flashes continuously.
• The end indicator flashes 1 time intermittently.
• The indicator of the set programme flashes continuously.
• The end indicator flashes 2 times intermittently.

The appliance does not fill with water.

The appliance does not drain the water.

Alarm code Problem
The indicator of the set programme flashes continuously.The end indicator flashes 3 times intermittently.	The anti-flood device is on.

Warning! Deactivate the appliance before you do the check.

Problem Possible cause Possible solution
The programme does not start.	The mains plug is not connected in the mains socket.	Connect the mains plug.
The appliance door is open.	Close the appliance door.
The fuse in the fuse box is damaged. Replace the fuse.
	The delay start is set.	Cancel the delay start or wait for the end of the countdown.
The appliance does not fill with water.	The water tap is closed. Open the water tap.
	The water pressure is too low.	Contact your local water authority.
The water tap is clogged or there is limescale on it.		Clean the water tap.
The filter in the water inlet hose is clogged.		Clean the filter.
The water inlet hose has a kink or a bend.		Make sure that the position of the hose is correct.
The anti-flood device is on. There are water leakages in the appliance.		Close the water tap and contact the Service.
The appliance does not drain the water.	The sink spigot is clogged. Clean the sink spigot.
The water drain hose has a kink or a bend.		Make sure that the position of the hose is correct.

After the checks are completed, activate the appliance. The programme continues from the point of interruption.

If the problem occurs again, contact the Service. If other alarm codes show, contact the Service.

The washing results and drying results are not satisfactory

Problem Possible cause Possible solution
The dishes are not clean.	The filters are clogged.	Clean the filters.
	The filters are not correctly assembled and installed.	Make sure that the filters are correctly assembled and installed.
	The spray arms are clogged.	Remove remaining soil with a thin pointed object.
	The programme was not applicable for the type of load and soil.	Make sure that the programme is applicable for the type of load and soil.
Problem Possible	cause Possible solution
Incorrect position of the items in the baskets. Water could not wash all items.		Make sure that the position of the items in the baskets is correct and that the water can easily wash all items.
	The spray arms could not turn freely.	Make sure that the position of the items in the baskets is correct and does not cause the blockage of the spray arms.
The quantity of detergent was not sufficient.		Make sure that you add the correct quantity of detergent in the dispenser before you start a programme.
There was no detergent in the detergent dispenser.		Make sure that you add detergent in the dispenser before you start a programme.
Limescale particles on the dishes.	The salt container is empty. Make sure that there is dishwasher salt in the salt container.
The set level of the water softener is incorrect.		Make sure that the set level of the water softener agrees with the water hardness in your area.
The cap of the salt container is loose. Tighten the cap.
Whitish streaks and stains or bluish layers on glasses and dishes.	The released quantity of rinse aid is too much.	Decrease the released quantity of rinse aid .
The quantity of detergent was too much.		Make sure that you add the correct quantity of detergent in the dispenser before you start a programme.
Dry water drop stains on glasses and dishes.	The released quantity of rinse aid was not sufficient .	Increase the released quantity of rinse aid.
The quality of the detergent can be the cause.		Try a different brand of detergent.
The dishes are wet.	The programme had no drying phase.	Set a programme with the drying phase.
The dishes are wet and matt.	The rinse aid dispenser is empty. Make sure that there is rinse aid in the rinse aid dispenser.
The quality of the rinse aid can be the cause.		Try a different brand of rinse aid.
The quality of the combi detergent tablets can be the cause.		· Try a different brand of combi detergent tablets. · Activate the rinse aid dispenser and use the rinse aid together with the combi detergent tablets.

Activating the rinse aid dispenser with the multitab function activated

1. Press the on/off button to activate the appliance.

2. Make sure that the appliance is in setting mode. Refer to 'SETTING AND STARTING A PROGRAMME'.

3. Press and hold function buttons (B) and (C) at the same time until the indicators of function buttons (A), (B) and (C) flash.

4. Press function button (B).

5. The indicators of function buttons (A) and (C) go off.

6. The indicator of function button (B) continues to flash.

7. The end indicator is off.

8. Press function button (B) to change the setting.

9. The end indicator comes on. The rinse aid dispenser is active.
10. Deactivate the appliance to confirm.
11. Adjust the released quantity of rinse aid.
12. Fill the rinse aid dispenser.

Technical information

Dimensions Width / Height / Depth (mm) 596 / 818-898 / 555
Electrical connection Refer to the rating plate.
Voltage 220-240 V
Frequency 50 Hz
Water supply pressure	Min. / max. (bar / MPa)	(0.5 / 0.05) / (8 / 0.8)
Water supply1)	Cold water or hot water2)	max. 60 °C
Capacity Place settings 12

1) Connect the water inlet hose to a water tap with a 3/4" thread.

2) If the hot water comes from alternative sources of energy, (e.g. solar panels, aeolian energy), use the hot water supply to decrease energy consumption.

Environment concerns

The symbol ☒ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the

environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

- Discard correctly the packaging material. Recycle the materials with the symbol 📋.

Sommaire

Line drawing of a mechanical device with a circular component inserted into a housing (no text or symbols)

1

Technical diagram of a mechanical gear assembly with cross-sectional view (no text or labels)

2

Technical line drawing of a mechanical assembly with a circular inset showing a component (no text or symbols)

1

Diagram showing a mechanical component being processed with a curved arrow indicating rotation (no text or symbols present)

2

3

4

Illustration of a hand cleaning a wall with a small container (no text or symbols)

5

Diagram showing a shoe being lifted by a rotating gear mechanism (no text or symbols)

6

Line drawing of a refrigerator with an inset showing a small object inside (no text or symbols)

1

Hand holding a rotary switch with a dial and control knob (no text or symbols visible)

2

3

4

Line drawing of a refrigerator interior with a small inset showing a small object inside (no text or symbols)

1

2

Illustration of a hand using a wrench to adjust a component into a device (no text or symbols visible)

Isometric illustration of a handheld device with a black arrow and control knob (no text or symbols)

Diagram of a device with an open lid and a magnified inset showing internal components (no text or symbols)

1

2

Illustration of a hand using a tool to interact with a device (no text or symbols visible)

3

Illustration of a hand pressing a button on a device component labeled 'A' (no text or symbols beyond label)

4

Illustration of a hand using a tool to adjust or install a component on a curved surface (no text or symbols visible)

6

Line drawing of a mechanical device with a circular component inserted into a housing (no text or symbols)

1

Technical diagram of a mechanical gear assembly with cross-sectional view (no text or labels)

2

Technical line drawing of a mechanical assembly with a circular inset showing a component (no text or symbols)

1

Diagram showing a mechanical component being processed with a rotating arrow, no text or symbols present

2

3

4

Illustration of a hand cleaning a wall with a jar and cloth (no text or symbols)

5

Mechanical assembly diagram showing a gear and a sliding component with an arrow indicating motion (no text or symbols)

6

Line drawing of a refrigerator interior with a small inset showing a small object inside (no text or symbols)

1

Hand holding a rotary switch with a dial and arrow indicator (no text or symbols)

2

3

Illustration of a hand pressing down on a device with a cartoon character inside (no text or symbols)

4

Line drawing of a refrigerator with an open door and a small inset showing a car (no text or symbols)

2

1

3

Illustration of a mobile phone with a black arrow pointing to the screen (no text or symbols)

Diagram of a refrigerator interior with an open door and a magnified inset showing the interior (no text or symbols)

1

2

Illustration of a hand using a tool to interact with a device (no text or symbols visible)

3

Illustration of a hand pressing down on a curved surface with labeled point A (no text or symbols beyond label)

4

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

6

www.zanussi.com/shop
