SP-19H - Massage device HOMEDICS - Free user manual and instructions

Product Type	Massage Device
Brand	Homedics
Model	SP-19H
Power Supply	12V mains adapter (included)
Dimensions (L x W x H)	30 x 15 x 10 cm
Weight	1.2 kg
Material	ABS plastic, foam cushion
Main Functions	Kneading massage, infrared heat, vibrations
Massage Intensities	3 levels
Massage Zones	Neck, shoulders, back, lower back
Integrated Heating	Yes, with automatic shut-off after 15 minutes
Timer	Yes, automatic shut-off after 15 minutes
Removable Covers	Yes, machine washable
Care and Cleaning	Clean with a soft, damp cloth, do not immerse
Safety Certification	CE, RoHS
Power Consumption	24 W
Included Accessories	Mains adapter, protective cover
Warranty	2 years
Repairability	Spare parts available from the manufacturer
Intended Use	Domestic use, muscle relaxation

Frequently Asked Questions - SP-19H HOMEDICS

How to use the Homedics SP-19H for an effective massage?

Place the device on a stable surface, plug in the mains adapter, then turn it on. Select the intensity and heat function according to your preference. Use it on the desired area (neck, shoulders, back) by pressing lightly for an optimal kneading massage.

How to clean the massage device?

Unplug the device before cleaning. Use a soft, damp cloth to wipe the surface. The removable covers can be machine washed at 30°C. Never immerse the device in water.

What is the recommended operating time?

It is recommended not to exceed 15 minutes of continuous use. The device is equipped with an automatic shut-off after 15 minutes to prevent overheating.

Can the Homedics SP-19H be used on the legs?

This device is mainly designed for the upper body: neck, shoulders, and back. It can be used on the legs, but it is more effective on areas suited to its ergonomic shape.

How to activate the heat function?

Press the heat button (flame icon) after turning on the device. A red indicator shows that the infrared heat is active. The heat turns off automatically after 15 minutes.

What to do if the device does not turn on?

Check that the mains adapter is properly plugged in and that the power outlet works. If the problem persists, contact Homedics customer service for assistance.

Is the massage too strong or too weak?

The device offers 3 intensity levels. Turn the selector to adjust the power. Start with the lowest level if you are sensitive.

Can I use the device during pregnancy?

It is not recommended to use an electric massage device during pregnancy without medical advice, especially on the stomach and lower back. Consult your doctor.

How to store the device after use?

Allow the device to cool down, then store it in a dry place away from dust. Use the included protective cover to avoid scratches.

Where to find spare parts for the SP-19H?

Spare parts (adapter, covers) are available on the official Homedics website or through their repair service. Refer to the manual for part numbers.

USER MANUAL SP-19H HOMEDICS

Instruction Manual

SP-10HS-EU

SP-10HS-GB

2year guarantee

READ ALL INSTRUCTIONS BEFORE USE.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

IMPORTANT SAFEGUARDS:

WHEN USING ELECTRICAL PRODUCTS, ESPECIALLY WHEN CHILDREN ARE PRESENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING:

• ALWAYS unplug the appliance from the electrical outlet immediately after using and before cleaning. To disconnect, turn all controls to the 'OFF' position, then remove plug from outlet.
• NEVER leave an appliance unattended when plugged in. Unplug from the mains outlet when not in use and before putting on or taking off parts or attachments.
  This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• DO NOT reach for an appliance that has fallen in water or other liquids. Switch off at the mains and unplug it immediately. Keep dry – DO NOT operate in wet or moist conditions.
• NEVER insert pins or other metallic fasteners into the appliance.
• Use this appliance for the intended use as described in this booklet. DO NOT use attachments not recommended by HoMedics.
• NEVER operate the appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Return it to the HoMedics Service Centre for examination and repair.
• Keep cord away from heated surfaces.
• Excessive use could lead to the product's excessive heating and shorter life. Should this occur, discontinue use and allow the unit to cool before operating.
• NEVER drop or insert any object into any opening.
• DO NOT operate where aerosol (spray) products are being used or where oxygen is being administered.
• DO NOT operate under a blanket or pillow. Excessive heating can occur and cause fire, electrocution or injury to persons.
• DO NOT carry this appliance by the cord or use cord as a handle.
• DO NOT use outdoors.
• DO NOT crush. Avoid sharp folds.
  • This product requires a 220-240 V AC power.
• DO NOT attempt to repair the appliance. There are no user serviceable parts. For service, send to a HoMedics Service Centre. All servicing of this appliance must be performed by authorised HoMedics service personnel only.
• Never block the air openings of the appliance or place it on a soft surface, such as a bed or couch. Keep air openings free of lint, hair etc.
• Do not place or store appliance where it can fall or be pulled into a bath or sink. Do not place in or drop into water or other liquid.
• The rear strap should only be used to hold the cushion in position against a chair back. It is not intended for any other use.
• Failure to follow the above may result in the risk of fire or injury.
• Burns can result from improper use.
• When the unit is working, do not touch the moving massage mechanism with any body part except your back.

SAFETY CAUTIONS :

PLEASE READ THIS SECTION CAREFULLY BEFORE USING THE APPLIANCE.

• If you have any concerns regarding your health, consult a doctor before using this appliance.
• Individuals with pacemakers and pregnant women should consult a doctor before using this appliance. Not recommended for use by Diabetics
• DO NOT use on an infant, invalid or on a sleeping or unconscious person. DO NOT use on insensitive skin or on a person with poor blood circulation.
• This appliance should NEVER be used by any individual suffering from any physical ailment that would limit the user's capacity to operate the controls.
• NEVER use directly on swollen or inflamed areas or skin eruptions.
• If you feel any discomfort whilst using this appliance, discontinue use and consult your doctor.
• This is a non-professional appliance, designed for personal use and intended to provide a soothing massage to worn muscles. DO NOT use as a substitute for medical attention.
• DO NOT use before going to bed. The massage has a stimulating effect and can delay sleep.
• Do not use for longer than the recommended time.
• Not recommended for use on wooden surfaces as the zipper may damage the wood. Caution is also recommended when using on upholstered furniture.
• Care should be taken when using heated surfaces. If the product feels excessively hot, switch off at mains and contact the HoMedics Service Centre.
• Only gentle force should be exerted against the seat in order to eliminate risk of injury.
• You may soften massage force by placing a towel between yourself and the unit.
• The appliance has a heated surface. Persons insensitive to heat must be careful when using the appliance.
• Not recommended for use on leather furniture.
• Please ensure that all hair, clothing and jewellery are kept clear of the massage mechanism or any other moving parts of the product at all times.

MAINTENANCE:

Cleaning

Unplug the appliance and allow to cool before cleaning. Clean only with a soft, slightly damp sponge.

• Never allow water or any other liquids to come into contact with the appliance.
• Do not immerse in any liquid to clean.
• Never use abrasive cleaners, brushes, glass / furniture polish, paint thinner etc to clean.

Storage

Place the appliance in its box or in a safe, dry, cool place. Avoid contact with sharp edges or pointed objects which might cut or puncture the fabric surface. To avoid breakage, DO NOT wrap the power cord around the appliance. DO NOT hang the unit by the cord.

Plug (MODEL SP-10HSW GB ONLY)

If the plug on this appliance is damaged, it can be replaced with a BS 1363 plug, fitted with a 3A BS 1362 fuse. Only use a 3 amp fuse with this appliance. Care must be taken when changing the plug.

If in doubt, contact a qualified electrician.

WEEE explanation

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

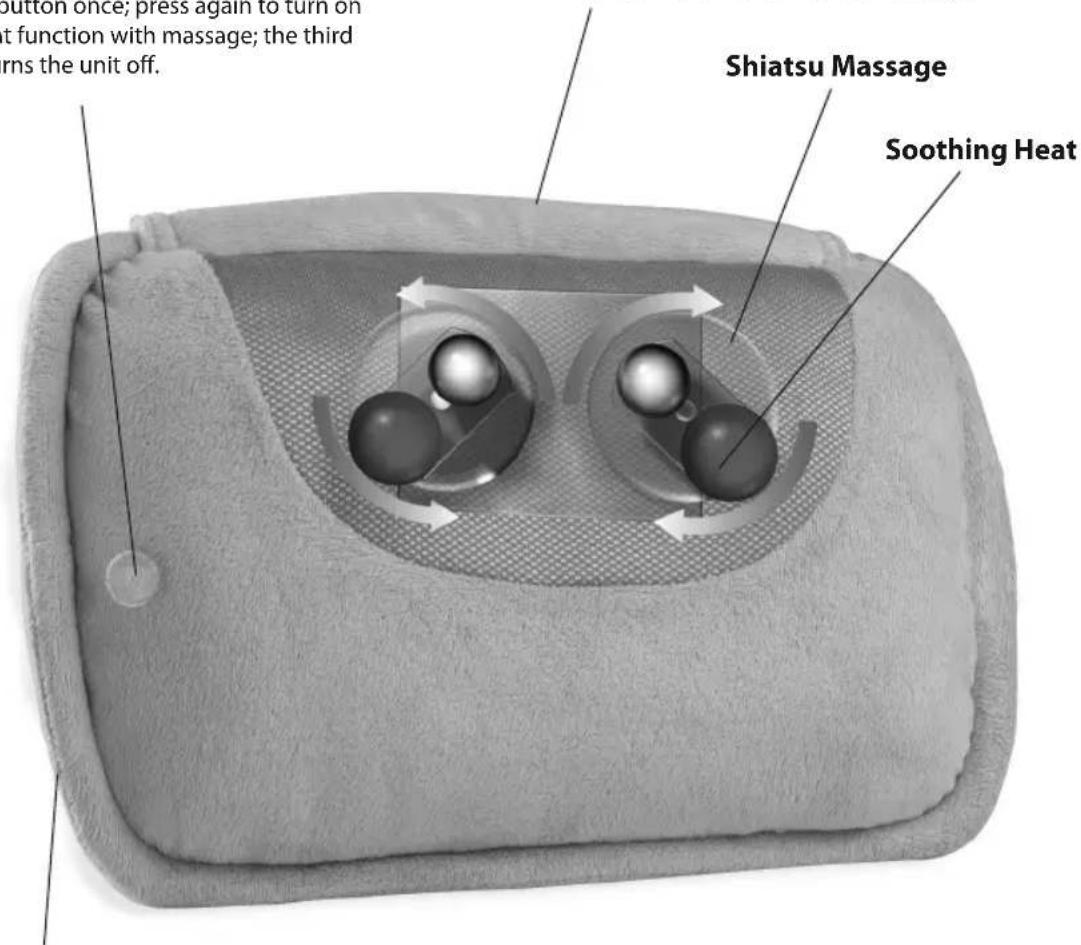

PRODUCT FEATURES:

Power Button

To turn the massage cushion on, press the power button once; press again to turn on the heat function with massage; the third press turns the unit off.

Flap

Flip back for a more intense massage.

Power Supply Cord
Note: There is a 20 minute auto shutoff on the unit for your safety

INSTRUCTIONS FOR USE:

Massage Function

NOTE: The first press of the power button turns the unit on; the second press turns on the heat function with massage and the third press turns the unit off.

1. Plug the appliance into a 220-240V mains outlet.
2. To activate the massage action, press power button once (Figure 1).
3. To activate soothing heat with the massage, press the power button a second time. Massage heads will glow red (Figure 2). Allow a few moments for the heating action to warm up.
4. When finished press the power button again to turn off the massage and heat function and unplug the pillow.

NOTE:

• The Shiatsu Cushion is designed for use on the neck, back and shoulders (see Figures 3 and 4).
- There is a 20 minute auto shut-off on this appliance for your safety. This feature should not be considered as a substitute for 'OFF'. Always remember to switch the appliance off when not in use.
- For the neck and shoulders it may work better to use the massager upside down (as shown in Figure 5).
- The elasticated Velcro strap (situated on the rear of the massager) can be used to secure the massager to the chair back (see figure 6).

CAUTION:

To avoid pinching do not lean on Shiatsu back massage mechanism in the cushion when adjusting your body position.

Do not jam or force any part of your body in the moving massage mechanism.

(Figure 2) (Figure 3)(Figure 1)

(Figure 5)(Figure 4) (Figure 6)

LIRE TOUTES LES INSTRUCTIONS AVANT UTILISATION. LES CONSERVER POUR POUVOIR LES CONSULTER ULTÉRIEUREMENT.

(Figure 1)

(Figure 2) (Figure 3)

(Figure 5)(Figure 4) (Figure 6)

(Abbildung 1)

(Figura 1)

(Figura 2) (Figura 3)

(Figura 5)(Figura 4) (Figura 6)

LEGGERE INTEGRALMENTE LE PRESENTI ISTRUZIONI PRIMA DELL'USO. CONSERVARE LE PRESENTI ISTRUZIONI PER CONSULTAZIONI SUCCESSIVE.

NOTE IMPORTANTI PER LA SICUREZZA :

AL MOMENTO DI UTILIZZARE APPARECCHI ELETTRICI, SOPRATTUTTO IN PRESENZA DI BAMBINI, OCCORRE SEMPRE OSSERVARE ALCUNE PRECAUZIONI DI SICUREZZA. IN PARTICOLARE SI RACCOMANDA QUANTO SEGUE.

(Figura 1)

(Figura 2) (Figura 3)

(Figura 5)(Figura 4) (Figura 6)

LEIA TODAS AS INSTRUÇÕES ANTES DE UTILIZAR. CONSERVE ESTAS INSTRUÇÕES PARA REFERÊNCIA FUTURA.

AVISOS IMPORTANTES:

QUANDO UTILIZAR APARELHOS ELÉCTRICOS, ESPECIALMENTE SE HOUVER CRIANÇAS POR PERTO, HÁ QUE RESPEITAR SEMPRE AS PRECAUÇÕES BÁSICAS DE SEGURANÇA, INCLUINDO AS SEGUINTES:

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

(Figura 1)

(Figura 2) (Figura 3)

(Figura 4)

(Figura 5)

(Figura 6)

ALLE INSTRUCTIES LEZEN ALVORENS HET PRODUCT IN GEBRUIK TE NEMEN. DEZE INSTRUCTIES ZORGVULDIG BEWAREN.

BELANGRIJKE VOORZORGSMAATREGELEN :

BIJ HET GEBRUIK VAN ELEKTRISCHE PRODUCTEN, VOORAL WANNEER ER KINDEREN IN DE BUURT ZIJN, DIENEN ALTIJD ALGEMENE VOORZORGSMAATREGELEN TE WORDEN GETROFFEN, WAARONDER:

(fig. 1)

(fig. 2) (fig. 3)

(fig. 5)(fig. 4) (fig. 6)

KULLANMADAN ÖNCE TÜM TALİMATLARI OKUYUN. BU TALİMATLARI DAHA SONRA BAŞVURMAK ÜZERE SAKLAYIN.

Güç Kaynağı Kablosu

(Σχήμα 1)

(Σχήμα 2) (Σχήμα 3)

(Рисунок 1)

(Rysunek 1)
