Product Type	Blender
Brand	Philips
Model	Avance Collection HR3655
Power	1200 W
Jar Capacity	2 L
Jar Material	Tritan
Speed Settings	Variable + Pulse
Functions	Blending, chopping, pureeing, ice crushing
Dimensions (H x W x D)	40 x 18 x 18 cm
Weight	3.5 kg
Power Cord Length	1.2 m
Dishwasher Safe Parts	Jar, lid, measuring cup
Non-slip Feet	Yes
Safety Lock	Lid locking mechanism
BPA Free	Yes
Spare Parts Available	Jar, blade assembly, lid, seal ring
Repairability Index	8/10 (spare parts and service)
Certifications	CE, ETL, FCC

Frequently Asked Questions - Avance Collection HR3655 PHILIPS

Can the Philips HR3655 crush ice?

Yes, the Philips Avance Collection HR3655 is capable of crushing ice thanks to its powerful 1200 W motor and sturdy blades. Use the pulse function for best results.

What is the jar capacity?

The jar has a 2-liter capacity, suitable for making large batches of smoothies, soups, or sauces.

Is the blender jar BPA-free?

Yes, the jar is made from Tritan material which is BPA-free and shatter-resistant.

Can I put the parts in the dishwasher?

Yes, the jar, lid, and measuring cup are dishwasher safe. The blade assembly should be rinsed under running water.

Does it have a pulse function?

Yes, the blender features a pulse setting for short bursts of power, ideal for chopping or crushing.

How do I clean the blender properly?

Add warm soapy water to the jar, run the blender for 30 seconds, then rinse. For tough stains, use a soft brush. Do not immerse the motor base.

What type of blade does it use?

It uses a 4-blade stainless steel assembly designed for efficient blending and chopping.

Is there a safety lock?

Yes, the blender will not operate unless the lid is securely locked in place, ensuring safe use.

Can I blend hot liquids?

The jar is heat-resistant, but we recommend letting liquids cool to below 60°C before blending to avoid pressure buildup.

Where can I find spare parts?

Spare parts like the jar, blade assembly, lid, and seal ring are available through Philips official service centers or online retailers.

USER MANUAL Avance Collection HR3655 PHILIPS

© 2017 Korengie Prozern v. 78 (gys. contend) (4): 165 (10.39)

TN User manual 7			IT Manual atente	49
D' Banatzeränderbuch 13			NO Brukeränderbach	55
DA Brugenvollöding 19			FT Manual do utilizador	61
NL Gebruktssanatigung	25		ES Manual del ususante	67
H Kaytöppas J1			SV Anwanderhambos	70
H Mode d'emploi	37		HK Kuliznim klavuzu	79
I Egypläse spfjeng	43

1

2

3

4

5

6

7

1 Important

Read this user manual carefully before you use the appliance and save it for future reference.

Warning

• Do not touch the sharp blades when the appliance is plugged in. If the blades get stuck, unplug the appliance before you remove the ingredients. Be careful when handling the sharp cutting blades, emptying the bowl and during cleaning.

• Switch off and unplug the appliance from the power supply before:

• Removing it from the stand, changing accessories or approaching parts that move in use.

• Assembling, disassembling or cleaning it.
  • It is left unattended.

• Do not immerse the appliance in water or any other liquid.

• Check if the voltage indicated on the

appliance corresponds to the local mains voltage before you connect the appliance.

• Do not use the appliance if the plug or the mains cord is damaged or has visible cracks. If the mains cord is damaged, you must have it replaced by Philips, a service centre authorised by Philips or similarly qualified persons in order to avoid a hazard.
  • Make sure the blade unit is securely fastened and the lid is properly assembled to the blender jar before you use the appliance.
• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
• This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they

understand the hazards involved.

• Children should be supervised to ensure that they do not play with the appliance.
- Be careful if hot liquid is poured into the blender as it can be ejected out of the appliance due to a sudden steaming.
- Never assemble or disassemble the blender jar, the mill or the tumbler to the motor base while the power is on.
- This appliance is intended for household use only.
- Read the cleaning procedure from “User Manual” before use.
- Do not operate the blender for more than 30 seconds without any ingredient. It may lead to overheating.

Caution

- In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied

through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

• Never use any accessories or parts from other manufacturers or that Philips does not specifically recommend. If you use such accessories or parts, your guarantee becomes invalid.
• Do not exceed the maximum indication on the blender jar.
• Do not exceed the maximum quantities and processing times indicated in the relevant table.
• If food sticks to the wall of the blender jar, switch off the appliance and unplug it. Then use a spatula to remove the food from the wall.
• Never fill the blender jar with ingredients hotter than 80 °C.

Blender

Warning

- Never reach into the blender jar with your fingers or an object while the appliance is running.

Caution

• To prevent spillage, do not put liquid more than the maximum capacity of the blender jar. When you process hot liquid or ingredients that tend to foam, do not put more than 1.5 liters in the blender jar.
• Do not let the appliance run for more than 3 minutes at a time. Let the appliance cool down to room temperature before you continue processing.
  • Always make sure the lid is properly closed/ assembled on the jar and the measuring cup is inserted properly in the lid before you switch on the appliance.

- Do not use glass jar right after taking it out from dishwasher or refrigerator. Let it stay at room temperature for at least 5 min before use.

Built-in safety lock

This feature ensures that you can only switch on the appliance if the blender jar, the mill or the tumbler is assembled on the motor unit properly. If the blender jar the tumbler is correctly assembled, the built-in safety lock will be unlocked.

Safety Feature

This blender is fitted with a safety feature which safeguards against excessive loads. In case of overloading, the blender automatically activates the protection and operation will stop and the overloading symbol 📁 will light up on the control panel. If this occurs, set the rotary knob to OFF, unplug the appliance and allow it to cool down for 15 minutes. Remove the ingredients and clear up the blender jar before starting operation.

Electromagnetic fields (EMF)

This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

Recycling

This symbol means that this product shall not be disposed of with normal household waste (2012/19/EU).

Follow your country's rules for the separate collection of electrical and electronic products. Correct disposal helps prevent negative consequences for the environment and human health.

2 Overview (Fig. 1)

① Measuring cup of the glass jar (HR3652/HR3655/HR3656/HR3657/HR3658 only)
② Lid of the glass jar (HR3652/HR3655/HR3656/ HR3657/HR3658 only)
③ Glass blender jar (HR3652/HR3655/HR3656/HR3657/HR3658 only)
④ Blade unit
⑤ Collar
⑥ Motor unit
⑦ Measuring cup of the plastic jar (HR3651/HR3653/HR3657/HR3663 only)
⑧ Lid of the plastic jar (HR3651/HR3653/HR3657/HR3663 only)
⑨ Plastic blender jar (HR3651/HR3653/HR3657/HR3663 only)
⑩ Spatula
⑪ Lid of the tumbler (HR3655/HR3658 only)
⑫ Jar of the tumbler (HR3655/HR3658 only)
⑬ Mill jar cover (HR3656/HR3658 only)
⑭ Mill jar (HR3656/HR3658 only)

⑮ Rotary knob and preset buttons:

• MIN/MAX/ON: to turn on the blender and select a blending speed setting.
• OFF: to turn off the blender.
• to make smoothie.
• to crush ice.
• Ⓟ to blend briefly and for easy clean.

3 Before first time use

Before you use the appliance and accessories for the first time, thoroughly clean the parts that come into contact with food. (Fig. 6)

Precut food into pieces of approx. 2 × 2 × 2 cm.

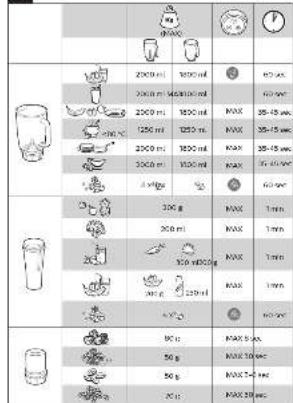

The maximum quantity listed above is for reference only. For more recipes, go to www.kitchen.philips.com.

Note

- If you want to prepare a larger quantity, let the appliance cool down to room temperature before you process the next batch of ingredients.

4 Important notes

Stop and unplug the appliance if there is a pungent smell or smoke. Let it cool down for 15 minutes.

Do not add overweight ingredients. Otherwise, the ingredient mixture will become too thick or too heavy to process.

To avoid overloading the appliance, you can

• Add more liquid ingredient
• Process in several small batches
• Use a higher speed setting

5 Safety protection

The blender has a safety protection system. When Blender run over 3 minutes at a time, it will stop process automatically. If you have not finished processing after 3 minutes, switch off the appliance and let it cool down to room temperature. Never use over 3 minutes consecutively.

When assembling the blender jar, make sure that the rotary knob is pointing to OFF first.

Do not attempt to process very thick recipes such as bread dough or mash potatoes.

6 Using your blender

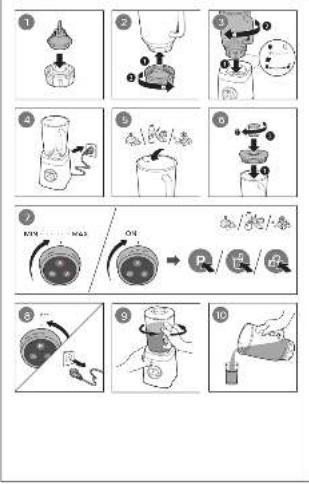

Using the blender jar (Fig. 2)

To process ingredients briefly (such as garlic), press and hold the Ⓟ button.

To make a smoothie, press the button. To stop, press the selected program again or turn the rotary knob to the OFF position.

To crush ice, press the button. To stop, press the selected program again or turn the rotary knob to the OFF position.

Note

• After 1 minute, the blender will stop the process automatically.
- Do not blend dry ingredients (for example pepper corn or star anise).

Using the tumbler jar (Fig. 3)

Make your smoothies or shakes directly with the tumbler. Remove the blade unit and attach the lid of the tumbler. Then you can bring the tumbler out and enjoy directly.

Note

• Never overfill the tumbler jar above the maximum level indication to avoid spillage.
• Never fill the tumbler jar with soft drinks to avoid spillage.

Using the spatula (Fig. 4)

When the blender is switched on, use the spatula to enhance the smoothness and consistency of result.

When the blender is switched off, use the spatula to remove the sticky ingredients on the jar.

Using the mill (Fig. 5)

You can use the mill to grind and chop ingredients such as coffee beans, peppercorns, sesame seeds, rice, wheat, coconut flesh, nuts (shelled), dried soy beans, dried peas, cheese, breadcrumbs, etc.

Note

• The mill is not suitable for chopping very hard ingredients like nutmeg and ice cubes.
- Do not use the mill to process liquids such as fruit juice.
- Do not process ingredients more than the mill jar's MAX mark.
- Never fill the mill with hot ingredients.
- You can order a mill (HR3650) from your Philips dealer or a Philips service center as an extra accessory.
• To avoid over processing the ingredients, follow the recommended quantity and processing time. Especially for ingredients like nuts that can be lumpy when over processed.

7 Cleaning (Fig. 6)

Caution

• Before you clean the appliance, unplug it.
- The cutting edges are sharp. Be careful when you clean the blade unit.
• Make sure that the cutting edges of the blade do not come into contact with hard objects. This may cause the blade to get blunt.

Clean the motor unit with a moist cloth.

Clean the other parts in hot water (< 60 °C) with some washing-up liquid or in a dishwasher.

Easy clean

Follow the steps in Fig. 6.

Note

- Make sure to press and hold the button a few times.

8 Guarantee and service

If you have a problem, need service, or need information, see www.philips.com/support or contact the Philips Consumer Care Center in your country. The phone number is in the worldwide guarantee leaflet. If there is no Consumer Care Center in your country, go to your local Philips dealer.
