Product type	Beard trimmer
Brand	Philips
Model	Series 3000 QT4000
Dimensions (L x W x H)	15 x 4 x 4 cm
Weight	150 g
Power source	Rechargeable, lithium-ion battery
Battery life	60 minutes
Charging time	10 hours
Main features	20 height settings, DualCut technology, self-sharpening blades
Care and cleaning	Removable blades, washable under water
Safety	Waterproof, can be used in the shower
Spare parts and repairability	Comb attachment, USB cable, protective cap
General information	Ergonomic design, LED charging indicator

Frequently Asked Questions - Series 3000 QT4000 PHILIPS

How to adjust the cutting height?

Turn the adjustment wheel on top of the trimmer to select from the 20 heights available.

Is the trimmer usable in the shower?

Yes, the Philips Series 3000 QT4000 is waterproof and can be used in the shower for wet shaving.

How to clean the blades?

Remove the blade unit by pushing the unlock button and rinse it under running water. Dry thoroughly before reassembling.

How long does the battery last?

Battery life is about 60 minutes after a full charge.

How to charge the trimmer?

Connect the provided USB cable to the trimmer and to a power adapter or USB port. Full charge takes 10 hours.

Can I use the trimmer wirelessly while charging?

It is recommended to use the trimmer wirelessly for better freedom of movement. However, you can use it plugged in if necessary.

How to replace the blades?

The blades are self-sharpening and do not require regular replacement. If needed, get the compatible replacement blade unit.

Is the trimmer delivered with a comb attachment?

Yes, it comes with a comb attachment for uniform length.

How to know if the battery is low?

An orange LED flashes to indicate low battery. During charging, the LED is solid.

Can I use the trimmer for areas other than the beard?

Yes, it can be used for hair or body trimming with appropriate accessories (not included).

USER MANUAL Series 3000 QT4000 PHILIPS

Always here to help you

Register your product and get support at

www.philips.com/welcome

QT40 05

QT4000

Black Philips brand hairbrush with adjustable brush and control buttons (no text or symbols on body)

User manual

PHILIPS

ENGLISH 4

ESPAÑOL 10

FRANÇAIS 16

INDONESIA 23

한국어 29

BAHASA MELAYU 35

PORTUGUÊS 42

ภาษาไทย 49

TIÊNG VIÊT 55

繁體中文 61

简体中文 67

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

General description (Fig. 1)

1 Trimming comb
2 Cutting unit
3 Precision Zoom Lock™ adjustment ring
4 On/off slide
5 Socket for appliance plug
6 Brush
7 Appliance plug
8 Adapter with charging light

Important

Read this user manual carefully before you use the appliance and save it for future reference.

Danger

- Make sure the adapter does not get wet.

Warning

• The adapter contains a transformer. Do not cut off the adapter to replace it with another plug, as this causes a hazardous situation.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.

Caution

• Never immerse the appliance in water or rinse it under the tap. Only the cutting unit can be rinsed under the tap.
• Use, charge and store the appliance at a temperature between 5^ C and 35^ C.
• Only use the adapter supplied.
• If the adapter is damaged, always have it replaced with one of the original type in order to avoid a hazard.
• This appliance is only intended for trimming the human beard. Do not use it for any other purpose.
• Do not use the appliance if the cutting unit or the trimming comb is damaged or broken, as this may cause injury.

Electromagnetic fields

This Philips appliance complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.

General

• The appliance is equipped with an automatic voltage selector and is suitable for mains voltages from 100 to 240 volts.
• The adapter transforms 100-240 volts to a safe low voltage of less than 24 volts.

Charging

Illustration of a hand holding a handheld device with a black arrow pointing to the handle (no text or symbols present)

Charge the appliance fully before you use it for the first time or after a long period of disuse.

It takes approximately 10 hours to fully charge the appliance.

When it is fully charged, the appliance has a cordless operating time of up to 35 minutes.

Note: For safety reasons, the epilator can only be used cordlessly. Make sure the appliance is charged before use.

Illustration of a plug inserted into a socket with an arrow indicating direction, and a magnified inset showing a socket with a smiley face (no text or symbols)

1 Make sure the appliance is switched off.

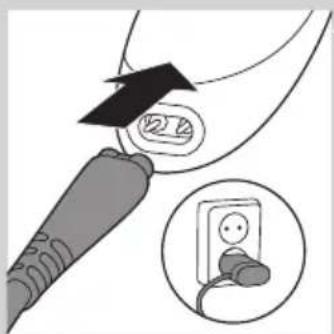

2 Insert the appliance plug into the appliance.

3 Put the adapter in the wall socket.

The charging light on the adapter lights up green continuously to indicate that the appliance is charging.

Note: The charging light on the adapter does not change colour and does not go out when the appliance is fully charged.

4 After charging, remove the adapter from the wall socket and pull the appliance plug out of the appliance.

Optimising the lifetime of the rechargeable battery

When you have charged the appliance for the first time, we advise you to use it until the battery is completely empty. Continue to use the appliance until the motor almost stops running during a session. Then recharge the battery. Follow this procedure at least twice a year.

Using the appliance

Always comb the beard and/or moustache with a fine comb before you start trimming.

When you trim for the first time, be careful. Do not move the trimmer too fast. Make smooth and gentle movements.

Trimming with comb

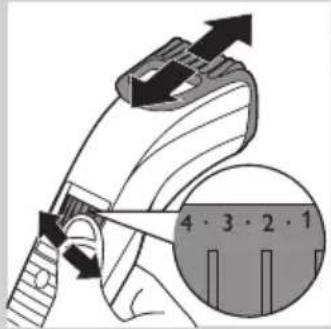

1 Turn the Precision Zoom Lock™ adjustment ring to the desired setting. The selected setting is the setting in the centre of the adjustment ring.

See the table below for an overview of the settings and the resulting hair lengths.

Setting Resulting hair length

1	1mm
2	2mm
3	3mm
4	4mm
5	5mm
6	6mm
7	7mm
8	8mm
9	9mm
10	10m

Note: When you trim for the first time, start at the highest setting (10) to familiarise yourself with the appliance.

2 Switch on the appliance.

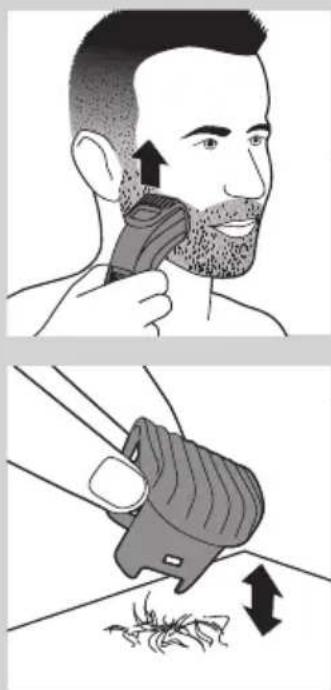

3 To trim most effectively, move the trimmer against the hair growth direction. Make sure the surface of the comb always stays in contact with the skin.
4 If a lot of hair has accumulated in the beard trimming comb, remove the comb and blow and/or shake the hair out of it. The selected setting does not change when you do this.

Trimming at the unique 'stubble look' setting

Illustration of a person's face with a circular button labeled '1' pointing to the nose area (no text or symbols beyond the number)

1 To create a 'stubble look', trim with the beard trimming comb set to setting 1.

Trimming without comb

Illustration of a hand holding a car seatbelt with an upward arrow indicating force or movement (no text or symbols present)

Use the trimmer without beard trimming comb to trim full beards and single hairs.

Be careful when you trim without comb because the cutting element removes every hair it touches.

1 Pull the beard trimming comb off the appliance as shown in figure 8.
2 Switch on the appliance.
3 Make well-controlled movements. Touch the hair lightly with the trimmer.

Illustration of a person applying a hair to their beache with a brush (no text or symbols)

Cleaning

Diagram showing a hand holding a device with an arrow indicating rotation, and a close-up of the device's interior (no text or symbols present)

Never use scouring pads, abrasive cleaning agents or aggressive liquids such as alcohol, petrol or acetone to clean the appliance.

1 Make sure the appliance is switched off and disconnected from the mains.
2 Wipe the housing of the appliance with a dry cloth.

Never immerse the appliance in water or rinse it under the tap.

3 Remove the trimming comb and clean it with the brush.

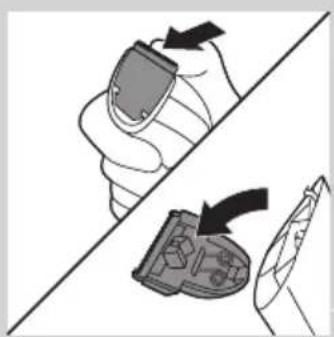

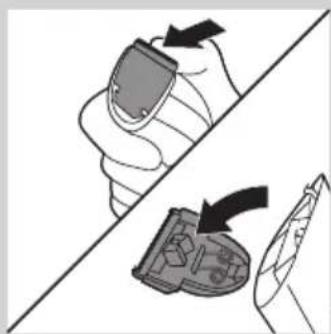

4 Remove the cutting unit by pushing against the teeth of the cutting unit and clean it with the brush or rinse it under the tap.

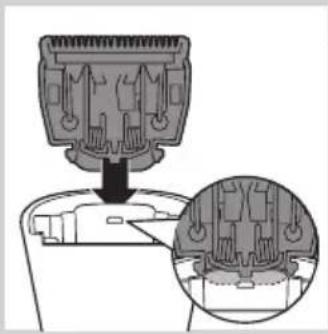

5 Shake off excess water and place the cutting unit back by inserting the lug of the cutting unit into the guiding slot.
6 Push the cutting unit back onto the appliance ('click').

Diagram showing a mechanical component being inserted into a housing, with an inset close-up highlighting the internal structure (no text or symbols present)

Replacement

Only replace a worn or damaged cutting unit with an original Philips cutting unit, available from authorised Philips service centres.

1 Open the cutting unit.

ENGLISH8

Diagram showing a hand holding a device with an arrow indicating rotation, and a close-up of a device with a handle (no text or symbols present)

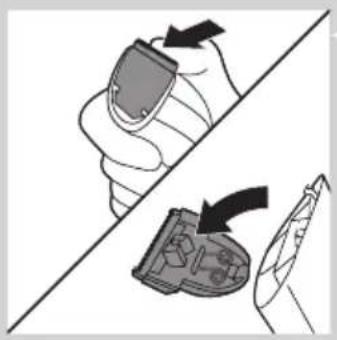

2 Remove the old cutting unit by pushing against the teeth of the cutting unit.

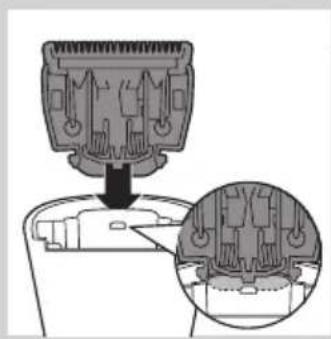

Technical illustration of a mechanical component with a downward arrow and magnified inset showing internal structure (no text or symbols)

3 Insert the lug of the new cutting unit into the guiding slot.

Diagram of a hand pressing down on a mechanical component with motion lines indicating force or motion (no text or symbols)

4 Push the cutting unit back onto the appliance ('click').

Ordering accessories

To purchase accessories for this appliance, please visit our online shop at www.shop.philips.com/service. If the online shop is not available in your country, go to your Philips dealer or a Philips service centre. If you have any difficulties obtaining accessories for your appliance, please contact the Philips Consumer Care Centre in your country. You find its contact details in the worldwide guarantee leaflet.

Environment

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

- Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

- The built-in rechargeable battery contains substances that may pollute the environment. Always remove the battery before you discard and hand in the appliance at an official collection point. Dispose of the battery at an official collection point for batteries. If you have trouble removing the battery, you can also take the appliance to a Philips service centre. The staff of this centre will remove the battery for you and will dispose of it in an environmentally safe way.

Removing the rechargeable battery

Line drawing of a tool interacting with a mechanical component (no text or symbols)

Only remove the rechargeable battery if it is completely empty.

1 Disconnect the appliance from the mains and let the appliance run until the motor stops.
2 Insert a screwdriver in the hair chamber to separate the housing part.

Line drawing of scissors cutting through a cylindrical tool (no text or symbols)

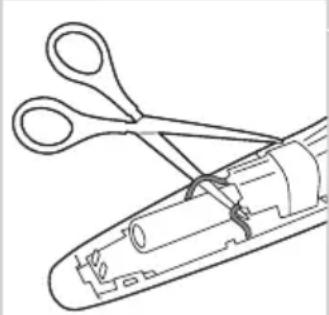

3 Cut the wires close to the battery with a pair of household scissors.

4 Remove the rechargeable battery.

Do not connect the appliance to the mains again after you have opened it.

Guarantee and service

If you need service or information or if you have a problem, please visit the Philips website at www.philips.com/support or contact the Philips Consumer Care Centre in your country. You find its phone number in the worldwide guarantee leaflet. If there is no Consumer Care Centre in your country, go to your local Philips dealer.
