Product type	Built-in induction hob
Brand	Bosch
Model	Series 8 PXX995DE1E
Number of cooking zones	5 (including one FlexInduction flexible zone)
Dimensions (W×D×H)	90 cm × 52 cm × 5.5 cm
Power supply	220-240 V, 50/60 Hz, 7.4 kW
Main functions	FlexInduction, PowerBoost, QuickStart, Timer, Touch control
Maintenance and cleaning	Clean with special ceramic hob cleaner and soft cloth
Safety	Child lock, automatic shut-off, overheating detection, residual heat indicator
Spare parts	Available through Bosch after-sales service (reference on the rating plate)
Repairability index	8.2/10 (according to French index)
General information	Made in Germany, 2-year warranty

Frequently Asked Questions - Serie 8 PXX995DE1E BOSCH

How to activate the child lock on the Bosch Series 8 PXX995DE1E?

Press the Child lock key (padlock icon) for 4 seconds until the symbol lights up. To deactivate, repeat the operation.

What to do in case of error code E- on the display?

The E- code generally indicates a fault with the hob or wiring. Turn off the power for 30 seconds, then turn it back on. If the problem persists, contact customer service.

Can I use aluminum or copper cookware?

No, induction requires cookware made of ferromagnetic material (cast iron, steel, enameled). Test with a magnet: if it sticks, the pot is compatible.

How to clean stubborn stains on the ceramic hob?

Use a special ceramic hob cleaner and a scraper for burnt residue. Apply the cleaner, let it sit, then wipe with a soft cloth.

What is the maximum power of a zone with PowerBoost?

PowerBoost increases the power up to 3.7 kW for fast cooking. It lasts about 10 minutes then automatically returns to the normal level.

How to use the FlexInduction zone?

The FlexInduction zone allows you to combine two cooking zones to use a large pan or rectangular dish. Activate it via the FlexInduction key (pan icon).

Is there an automatic shut-off mode?

Yes, if a zone remains on without detecting a pan, it turns off after one minute. Additionally, if the hob gets too hot, it automatically reduces power.

What is the required cutout depth for installation?

The cutout must measure 88 cm × 49 cm (W×D). Leave an air gap of at least 5 cm between the hob and the walls.

My old wiring is three-phase, can I connect this hob?

This model is designed for single-phase 220-240 V power supply. If your installation is three-phase, call an electrician to adapt the connection.

Where to find the serial number of the appliance?

The serial number (E-Nr.) is on the rating plate under the hob. You must remove the hob to access it.

USER MANUAL Serie 8 PXX995DE1E BOSCH

Modern kitchen electric stove with four circular burners on a black glaze (no text or symbols visible)

Register your new Bosch now: www.bosch-home.com/welcome

Frying vegetables including carrots, bell peppers, and chili peppers in a pan (no text or symbols visible)

Wireless Temperature Sensor HEZ39050

BOSCH

de Gebrauchsanleitung. 3
en Instruction manual ..... 8
fr Mode d'emploi....13
it Istruzioni per l'uso ..... 18
nl Gebruiksaanwijzing ..... 23
da Brugsanvisning....28
no Bruksveiledning .... 33
sv Bruksanvisning....38
fi Käyttöohje 43
es Instrucciones de uso ..... 48
pt Instruções de serviço.....54
el Oδηγίες χρήσης ..... 59
tr Kullanma kılavuzu 64
cs Návod k použití ..... 69
sk Návod na používanie .....74
hu Használati utasítás ..... 79
pl Instrukcja obsługi....84
ro Instructiuni de utilizare ..... 90
bg Ръководство 95
ru Правила пользования..... 100
uk Інструкція з використання. . 106
sr Uputstva za upotrebu.....112
hr Upute za uporabuuređaja....117
sl Navodila za uporabo.....122
sq Udhëzim për përdorim ..... 127
mk Упатство за употреба..... 132
zh 说明手册 137
zh-hk 說明手冊 140

Inhaltsverzeichnis

Illustration of a cooking pot with a hand pressing it on a stove (no text or symbols)

de

Hinweise

Illustration of a blue mechanical component with a blue arrow indicating rotation (no text or symbols)

Technical illustration of a mechanical component with a screwdriver inserted into a housing (no text or symbols)

Diagram showing a mechanical component with two views: top view of a cylindrical housing and side view of a flanged circular housing (no text or symbols)

Achtung!

Diagram of a mechanical component with two views showing internal components and directional arrows (no text or symbols)

Technical illustration of a mechanical component with a tool and screwdriver (no text or symbols)

Diagram of a mechanical component with a blue ring and arrow indicating direction (no text or symbols)

Important safety information...

9 Read these instructions carefully. Please keep the 9 instruction in a safe place for later use or for subsequent owners.

Environmental protection .....

Environmentally-friendly disposal.....9

Wireless temperature sensor.

Preparing and maintaining the wireless temperature sensor ....10 Cleaning ....12 Declaration of Conformity ....12

10 Check the appliance after removing it from the packaging. If it has suffered any damage in transport, do not use the appliance, contact the Technical Assistance Service and provide written notification of the damage caused, otherwise you will lose your right to any type of compensation.

Additional information on products, accessories, replacement parts and services can be found at www.bosch-home.com and in the online shop www.bosch-eshop.com

This appliance is intended for private domestic use and the household environment only. The appliance must only be used for the preparation of food and beverages. The cooking process must be supervised. A short cooking process must be supervised without interruption. Only use the appliance in enclosed spaces.

This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsible for

their safety how to use the appliance safely and have understood the associated hazards.

Children must not play with, on, or around the appliance.

Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised.

When using the cooking functions, set the hotplate on which you have placed the saucepan with the temperature sensor.

Important safety information

Warning

Hazard due to magnetism!

The wireless temperature sensor is magnetic. The magnetic elements in it may damage electronic implants, e.g. pacemakers or insulin pumps. People fitted with electronic implants should therefore not carry the temperature sensor in their pockets and always keep it at least 10 cm away from their pacemaker or similar medical device.

⚠ Warning Risk of injury!

■ The battery in the wireless temperature sensor may become damaged or explode if it gets too hot. Remove the sensor from the hob after cooking and do not store it near sources of heat.
■ The temperature sensor may be very hot when removing it from the saucepan. Wear oven gloves or use a tea towel to remove it.

Environmental protection

Environmentally-friendly disposal

Dispose of packaging in an environmentally-friendly manner.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

The wireless temperature sensor is battery-powered. Dispose of used batteries in an environmentally responsible manner.

Wireless temperature sensor

Additional information can be found in the detailed instruction manual for the hob in chapter "Cooking Assist Functions". Read it through carefully.

Preparing and maintaining the wireless temperature sensor

In this section, you will find the following information:

■ Adhering the silicone patch
■ Using the wireless temperature sensor
■ Changing the battery

You can obtain a temperature sensor and silicone patches from specialist retailers or through our technical after-sales service. Always quote the relevant reference number.

00577921 Set of 5 silicone patches

HEZ39050 Temperature sensor and set of 5 silicone patches

Adhering the silicone patch

The silicone patch attaches the temperature sensor to the cookware.

A silicone patch must be adhered when using a saucepan with the cooking functions for the first time.

Proceed as follows:

1. The adhesion point on the saucepan must be free of grease. Clean the saucepan, dry it thoroughly and wipe the adhesion point with a degreasing agent such as spirit.

2. Remove the protective film from the silicone patch. Adhere the silicone patch to the saucepan in the correct place using the enclosed template as a guide.

1. Press the silicone patch down, including its inside surface. The adhesive requires 1 hour to fully harden. The cookware must not be used or cleaned during this time.

Notes

■ Cookware with the silicone patch must not be left to soak for long periods in soapy water.
If the silicone patch comes off, attach a new one.

Using the wireless temperature sensor

Attach the temperature sensor to the silicone patch and align it correctly.

Illustration of a cooking pot with a hand pressing a button on its side, placed on a stovetop (no text or symbols)

Notes

■ Make sure that the silicone path is completely dry before attaching the temperature sensor.
■ Position the cookware in such a way that the temperature sensor is pointing towards the outer side of the hob.

■ To prevent overheating, the temperature sensor must not be pointed towards another item of cookware that is hot.
■ Remove the temperature sensor from the saucepan after cooking. Store it in a clean, safe place away from sources of heat.

Changing the battery

If you press the wireless temperature sensor symbol and the LED does not light up, the battery is flat.

Changing the battery:

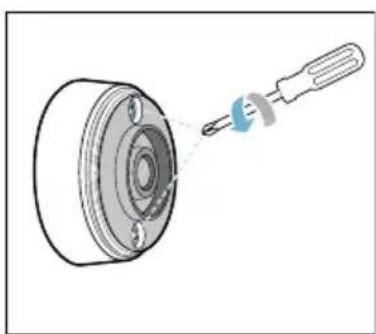

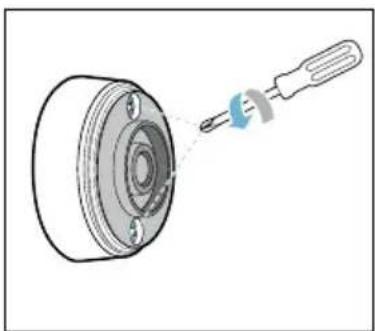

1. Remove the silicone cover from the lower section of the casing. Unscrew the screws with a screwdriver.

Diagram of a mechanical component with a blue pulley and a gray ring, showing a rotation arrow (no text or symbols)

Technical illustration of a mechanical component with a screwdriver inserted into a circular housing (no text or symbols)

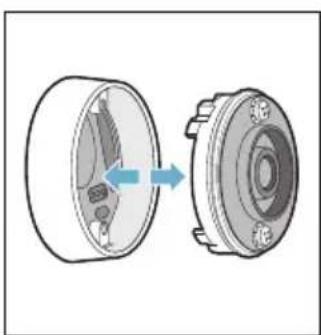

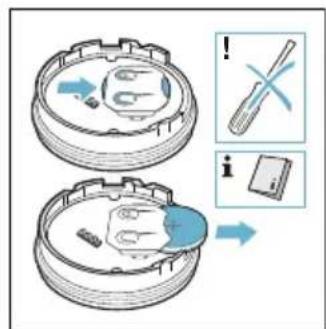

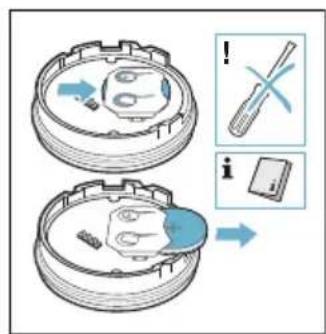

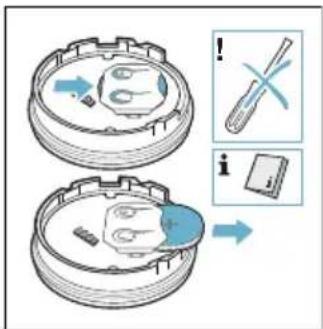

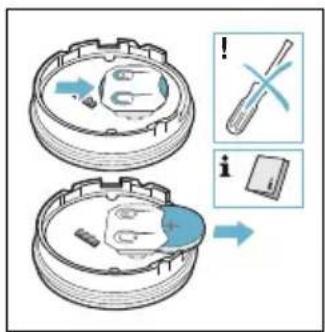

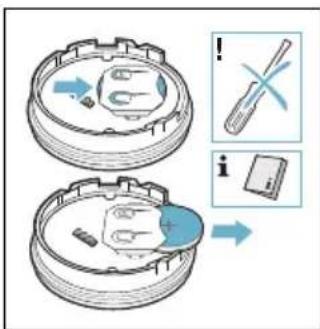

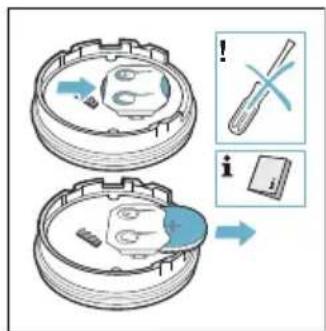

1. Remove the upper section of the casing. Take the old batteries out. Put the new batteries in. Make sure that the polarity is correct.

Diagram showing two views of a mechanical component with internal parts and mounting holes (no text or symbols)

Caution!

Do not use metal objects to remove the battery. Do not touch the contacts.

Diagram of a mechanical assembly with a gear and housing, showing directional arrows and polarity indicators (no text or symbols)

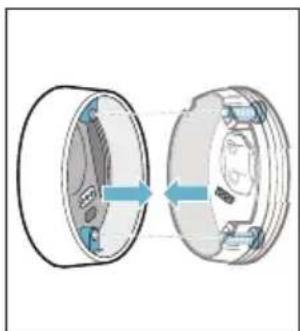

1. Put the upper and lower sections of the casing back together. Make sure that the contact pins are aligned correctly.

Diagram of a mechanical component with two circular parts and directional arrows indicating movement (no text or symbols)

Diagram of a mechanical component with a tool and a circular base, no text or symbols present

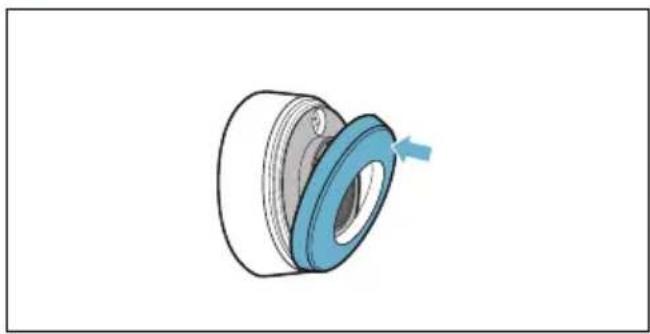

1. Put the silicone cover back on the lower section of the temperature sensor casing.

Diagram of a mechanical pulley or wheel assembly with a blue arrow indicating direction (no text or symbols present)

Note: Only use premium-quality CR2032 batteries. These have an especially long service life.

Cleaning

Temperature sensor

Clean the temperature sensor with a damp cloth. Never clean it in the dishwasher. Do not immerse it in water or clean it under running water.

Remove the temperature sensor from the saucepan after cooking. Store it in a clean, safe place (such as in its packaging) away from sources of heat.

Silicone patch

Clean and dry before attaching to the temperature sensor. Dishwasher safe.

Note: Cookware with the silicone patch must not be left to soak for long periods in soapy water.

Temperature sensor window

The sensor window must always be clean and dry. Proceed as follows:

■ Remove dirt and oil splatters regularly.
■ Use a soft cloth or cotton buds and window cleaner for cleaning.

Notes

• Do not use abrasive cleaning agents such as scouring pads, scrubbing brushes or cream cleaners.
• Do not touch the sensor window with your fingers. This may make it dirty or scratch it.

Declaration of Conformity

Robert Bosch Hausgeräte GmbH hereby declares that the appliance with wireless temperature sensor function meets the basic requirements and other relevant provisions of the Directive 1999/5/EG.

A detailed R&TTE Declaration of Conformity can be found online at www.bosch-home.com on the product page for your appliance under "Additional documents".

The logos and the Bluetooth® brand are registered trademarks and property of Bluetooth SIG, Inc. These trademarks are used by Robert Bosch Hausgeräte GmbH under licence. All other trademarks and brand names are owned by the respective companies.
