Product Type LED TV
Model LED3201
Brand Manta
Screen Size 32 inches (81 cm)
Resolution 1366 x 768 (HD Ready)
Dimensions (without stand) 730 x 435 x 80 mm
Dimensions (with stand) 730 x 475 x 180 mm
Weight (without stand) 4.5 kg
Weight (with stand) 4.8 kg
Power Supply AC 100-240V, 50/60Hz
Power Consumption (Max) 50 W
Standby Power Consumption < 0.5 W
TV Tuner DVB-T/T2/C
Input Ports HDMI x2, USB x1, VGA x1, AV x1, RF x1
Output Ports Headphone Jack x1, Coaxial Audio x1
Audio Output Power 2 x 8 W
Wall Mount Pattern VESA 200 x 200 mm
Remote Control Included (batteries not included)
Maintenance Clean with soft dry cloth; avoid liquids
Safety Keep away from heat sources and moisture
Spare Parts & Repairability Contact authorized service for replacement parts

Frequently Asked Questions - LED3201 Manta

How do I connect my TV to a Wi-Fi network?
This model does not have built-in Wi-Fi. Use an external streaming device connected via HDMI.
What is the maximum USB storage size supported?
The USB port supports FAT32 drives up to 32 GB. NTFS drives may not be compatible.
Can I mount this TV on the wall?
Yes, the TV supports a VESA 200x200 mm wall mount (not included).
How do I perform a factory reset?
Go to Settings > System > Factory Reset. Enter PIN 0000 if prompted.
Why is there no sound from the TV speakers?
Check if headphones are plugged in, or if audio output is set to external. Also verify volume level and mute status.
What should I do if the remote control stops working?
Replace batteries with fresh ones. Ensure no obstacles between remote and TV sensor. Try resetting the remote by removing batteries and pressing any button for 3 seconds.
How do I scan for digital channels?
Press Menu, go to Channel > Auto Tuning. Select your country and search for channels. An antenna must be connected.
Can I connect Bluetooth headphones?
No, this TV does not support Bluetooth. Use wired headphones via the headphone jack or a Bluetooth transmitter connected to the audio output.
What is the recommended way to clean the screen?
Use a soft, lint-free microfiber cloth slightly dampened with water. Do not spray liquids directly. Avoid alcohol or abrasive cleaners.
How do I enable subtitles?
Press the SUBTITLE button on the remote (or go to Menu > Channel > Subtitle). Select your preferred language if available.

User questions about LED3201 Manta

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Television in PDF format for free! Find your manual LED3201 - Manta and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. LED3201 by Manta.

USER MANUAL LED3201 Manta

natural_image Abstract black-and-white circular logo with interlocking curved shapes (no text or symbols)

MANTA

LED TV 32"

LED3201

Instrukcja obsługi

User's Manual

Control Panel Button Function....16

TV Terminal Connections....16

Optional Configuration as below 16

Remote Control....17

OSD Basic adjustment 18

Installation Guide....18

Channel 18

Picture 19

Sound 19

Lock System....20

Setup 20

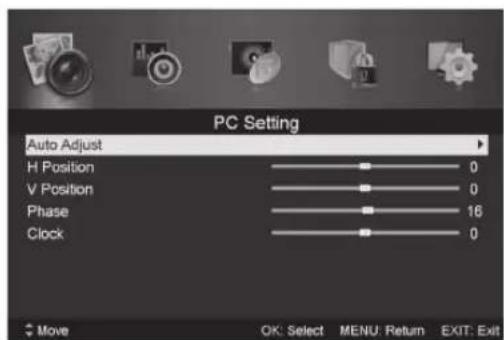

PC 21

DTV Features....21

LED TV

Favorite List....21

Program Information....21

Audio....21

Electronic Program Guide EPG 22

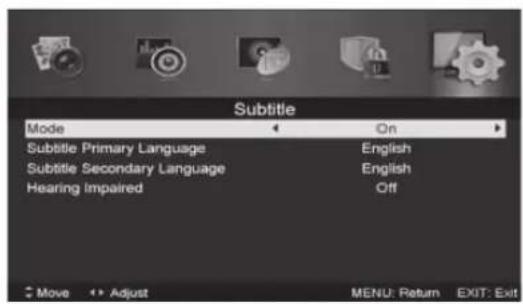

Subtitle 22

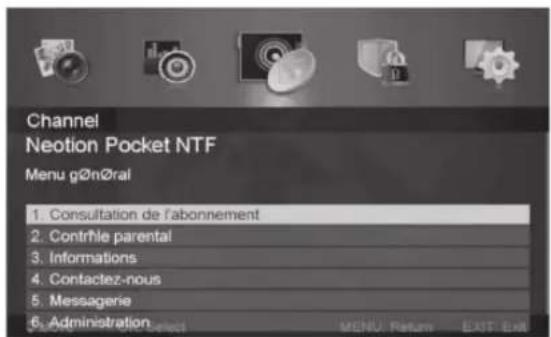

Common interface 22

USB Features....22

Photo 22

Music....23

Movie....23

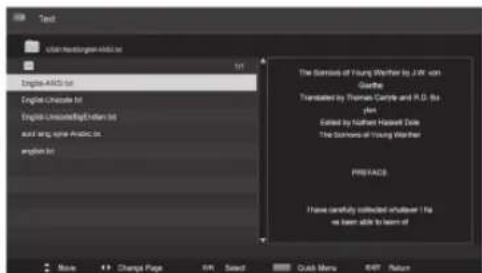

Text....23

PVR Operation 23

Trouble Shooting....24

Specification 25

INSTRUKCJA OBSŁUGI

Instrukcja obsługi

INSTRUKCJA OBSŁUGI

Złącze Cl

natural_image Black-and-white beach scene with palm trees and a single palm tree, no visible text or symbols
natural_image Black-and-white photo of a waterfront cityscape with a boat and distant buildings under cloudy sky (no visible text or symbols)

Uwaga:

Control Panel Button Function

VOL+ : Volume up.

VOL-: Volume down.

CH+: TV channel up.

CH-: TV channel down.

MENU : Press to select the main menu.

SOURCE: Select the input signal.

POWER: Turn the TV on or off.

Optional Configuration as below

Connect the USB to the USB jack on the set.

NOTE

- It is only 500 mA MAX of DC current output when you connect with USB jack

- To ensure the Mobile HD works well, you should use other power supply for the Mobile HD. And do not use the USB jack in the same time.

- It supports Mobile HD by connecting with USB jack (must more than 2 GB). The partitions of the Mobile HD can't be more than 4 partitions. The max partition is 2TB. It supports FAT/FAT32 document. The max FAT document is 4GB and the max FAT32 document is 2TB.

TV Terminal Connections

1 23456 789101112

  1. Video input terminal.
  2. AUDIO input terminal.
  3. SCART input terminal.
  4. PC AUDIO terminal.
  5. VGA input terminal.
  6. TV antenna.
  7. Mini-YPBPR input terminal.
  8. HEADPHONE output terminal.
  9. HDMI input terminal.
  10. Cl slot.
  11. USB input terminal.
    12.COAXIAL connect to a 5.1 audio system.

USER'S MANUAL

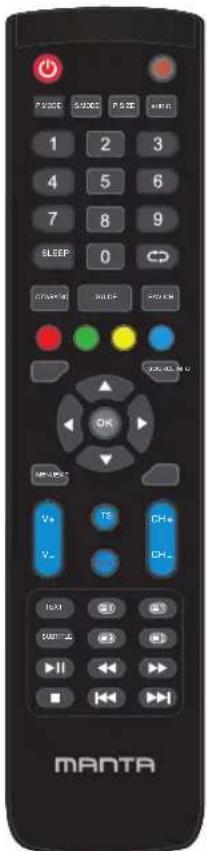

Remote Control

PULSE 1 2 3 4 5 6 7 8 9 SLEEP 0 DOWN/THI SLEEP DOWN/THI OK HOLD/THI V+ TS CH+ V- CH- HOT START/THI << > ■ << > mANTA

POWER Turns the LED TV on and into standby mode.

P.MODE Selects picture mode

S.MODE Selects sound effect options

P.SIZE Cycles through Wide mode settings

AUDIO Audio selection button

0-9 Pressing a number selects a channel.

SLEEP Set the sleep timer.

Switches back and forth between the current and previous channels.

DTV/RADIO In DTV mode, press DTV/RADIO button to enter DTV or RADIO mode.

GUIDE Displays the Programme Guide on the screen in DTV mode. Pressing again to turn GUIDE off.

FAV.CH Pressing FAV.CH displays favorites.

Press the appropriate colour to direct access functions in TELETEXT, GUIDE mode.

INFO Pressing once displays a variety of information such as the current channel and the input source.

SOURCE Pressing SOURCE displays the source list, use ▲▼ to select the video equipment connected to the video inputs of your LED TV and press OK button to confirm.sound.

▲▼◀▶/OK Allows you to navigate the on-screen menus and adjusts the system setting to you preference, OK confirms option settings. OK displays the channel list.

MENU Displays the OSD menu on the screen.

EXIT Exits the OSD menu.

V+/V- Increases and decreases volume.

CH+/CH- Scans up and down the channels.

TIME SHIFT In DTV mode. Click in the DTV mode key to start the delay function, press the play button to start playing delay program, press the ■ key to terminate the delay functions.

REC In DTV mode, Press REC button to start recording, press ■ button to stop recording

TEXT Turns on and off the Teletext function.

E! Displays the main index in Teletext mode.

☐? Reveals hidden information such as the answer to a quiz in TELETEXT mode.

SUBTITLE Displays the subtitle menu on the screen in DTV mode, use ▲▼ to select the TV subtitle options.

Displays the top, bottom or all of page,

Freeze a multi-page passage on screen in Teletext mode.

▶II In Media mode, press to start playback or pause.

In Media mode, use to reverse/advance

▶▶ playback rapidly.

In Media mode, press to stop playback. track.chapter or track.

In Media mode, press to jump to the previous of the currently played chapter or track.

In Media mode, press to jump to the next of the currently played chapter or track.

USER'S MANUAL

OSD Basic adjustment

Installation Guide

If this is the first time you are turning on the TV and there are no programs in the TV memory, the installation Guide menu will appear on the screen.

  1. Press the ◀/▶/▼/▲ button to select the local language.
  2. Press the ◀/▶/▼/▲ button to select mode.
  3. Press the ◀ / ▶ / ▼ / ▲ button to select the local country you want to
  4. Press the ◀/▶/▼/▲ button to select Air or cable.
  5. Press the ◀ / ▶ / ▼ / ▲ button to select mode :DTV + ATV,DTV,ATV.
  6. Press the ◀/▶/▼/▲ button to select "ON" or "OFF".

First Time Setup OSD Language Mode Setting Country Tuner Type Auto Scan L C N Start English Home Mode UK Antenna DTV+ATV On Move Adjust MENU: Return EXIT: Exit

Note:

Searching for platform will take a long time, please be patient!

Channel

Press MENU button to display the main menu. Press ◀ / ▶ button to select CHANNEL in the main menu

Channel Tuner Type ← Antenna > Auto Scan Manual Scan Channel Edit Common Interface Signal Information Move ↕ Adjust MENU: Return EXIT: Exit

  1. Auto Scan

Press ▲ / ▼ button to select "Auto Scan"

Press ▲ / ▼ button to select country and press the ◀ / ▶ button to select mode.

Press ▲/▼ button"and then press▶ button to start scanning. Press "MENU" or "EXIT" button to stop

Note: Searching for platform will take a long time. Please be patient!

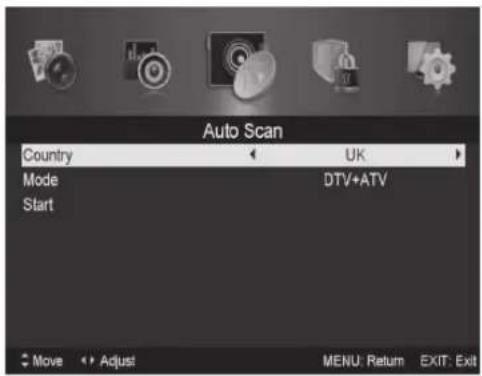

Auto Scan Country UK Mode DTV+ATV Start Move Adjust MENU: Return EXIT: Exit

Auto Scan Scanning 145.25 MHz Digital Channels Found: DTV :19 Radio :1 Data :1 Analog Channels Found: 3 MENU: Stop EXIT: Exit

  1. Analog Manual Scan

Press ▲ /▼ button to select "Manual scan" and press the ▶ button to Analog manual scan.

Press "MENU" button to return the previous menu. Press "EXIT" button to exit the menu.

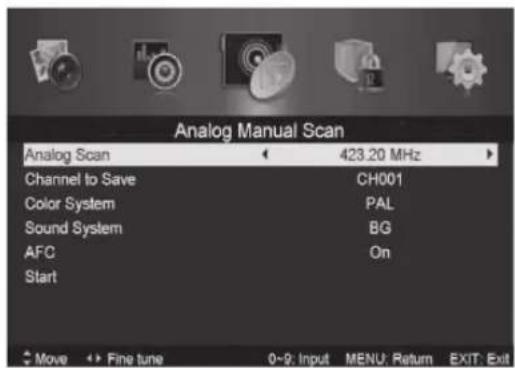

Analog Manual Scan Analog Scan 423.20 MHz Channel to Save CH001 Color System PAL Sound System BG AFC On Start Move Fine tune 0-9: Input MENU: Return EXIT: Exit

USER'S MANUAL

3. Digital Manual Tuning

Press ▲ /▼ button to select "Diigital Manual Scan" and press the ▼ button to start.

Press "MENU" button to return the previous menu.

Press "EXIT" button to exit the menu.

Digital Manual Scan Digital Scan ← CH26 > Start Frequency 514.00 MHz Strength 0 Move Adjust 0-9: Input MENU: Return EXIT: Exit

4.Channel Edit

Press ▲ / ▼ button to select "Channel Edit" and press the "ENTER" button to enter.

a. DELETE

Press ▲ / ▼ button to select the program and press "RED" button once to delete the program.

b. RENAME

Press ▲ / ▼, button to select the program and press "GREEN" button to rename the program. Press ◀ / ▶, button to select the item which you want to change and press the ◀ / ▶, button to select the different item. Press "ENTER" button to confirm.

NOTE:

RENAME only use in ATV.

b. MOVE

Press ▲ / ▼, button to select the channel and press the "YELLOW" button to move. Then press the ▲ / ▼, button to select the channel with which you want to move. Press "YELLOW" button again to confirm.

c. SKIP

Press ▲ / ▼, button to select the channel which you want to skip and press the "BLUE" button to skip. Press "BLUE" button again to cancel the setting.

5. Signal information (only use in DTV)

Press ▲ / ▼, button to select "Signal information" and press the "ENTER" button. Press "MENU" button to return the previous menu. Press "EXIT" button to exit the menu.


You can select the type of picture, which best corresponds to your viewing.

Press the "MENU" button to enter the OSD menu. Then press ◀/▶, button to select the "PICTURE" menu. Press ▲/▼ button to select "Picture Mode" and press the ◀/▶, button to select.

Picture Picture Mode Standard Brightness 50 Contrast 50 Sharpness 50 Saturation 50 Hue 0 Color Temp Standard Aspect Ratio Full Move Adjust MENU: Return EXIT: Exit

  1. Pressk ▲ / ▼ button to select "Brightness" and press the ◀ / ▶ button to enter brightness adjustment menu to adjust brightness.
  2. Press ▲ / ▼, button to select "Contrast" and press the ◀ / ▶ button to enter contrast adjustment menu to adjust contrast.
  3. Press ▲ / ▼ button to select "Sharpness" and press the ◀ / ▶ button to enter sharpness adjustment menu to adjust sharpness.
  4. Press ▲ / ▼ button to select "Saturation" and press the ◀ / ▶ button to enter Saturation adjustment menu to adjust saturation.
  5. Press ▲ / ▼ button to select "Hue" and press the ◀ / ▶ button to enter hue adjustment menu to adjust hue.
  6. Press ▲ / ▼ button to select "Sharpness" and press the ◀ / ▶ button to enter sharpness adjustment menu to adjust sharpness.
  7. Press ▲ / ▼ button to select "Color Temp" and press the ◀ / ▶ button to select mode Standard/Cool/Warm..
  8. Press ▲ / ▼ button to select "Aspect Ratio" and press the ▲ / ▼ button to select.
    Press ▲ / ▼ button to select "Advanced Settings" and press the ▶ button to enter Advanced Settings adjustment menu to adjust.

Sound

You can select the type of sound, which best corresponds to your listening.

Press the "MENU" button to enter the OSD menu. Then press

◀/▶ button to select the "SOUND" menu.

USER'S MANUAL

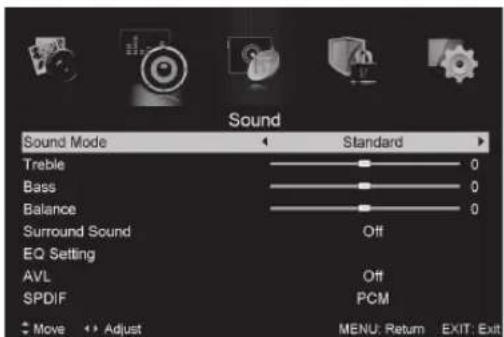

Sound Sound Mode Standard Treble 0 Bass 0 Balance 0 Surround Sound Off EQ Setting AVL Off SPDIF PCM Move Adjust MENU: Return EXIT: Exit

  1. Press ▲ / ▼ button to select "Sound Mode" and press the ◀ / ▶ button to select mode.
  2. Press ▲ / ▼ button to select "Treble" and press the ◀ / ▶ button to adjust.
  3. Press ▲ / ▼ button to select "Bass" and press the ◀ / ▶ button to adjust.
  4. Press ▲ / ▼ button to select "Balance" and press the ◀/▶ button to adjust.
  5. Press ▲ / ▼ button to select "Surround sound" and ◀ / ▶ button to select "ON" or "OFF".
  6. Press ▲ / ▼ button to select "EQ Setting" and ◀/▶ button to enter EQ Setting adjustment menu to adjust EQ..
  7. Press ▲ / ▼ button to select "AVL" and press the ◀ / ▶ button to select "On" or "Off".

Lock System

Press the "MENU" button to enter the OSD menu. Then press ◀/▶ button to select the "Lock System" menu. The default password is "0000".

Note:

The administrator password is "8899".

Lock System Enter Password Enable Channel Locks Parental Rating Lock Keypad New Password Clear Lock 0-9 Input MENU: Return EXIT: Exit Move

  1. Press ▲ / ▼ button to select "Enable" and then press ◀ / ▶ button to select "On" or "Off"

  2. Press ▲ / ▼ button to select "channel locks" and press the ▶ button to select channels to lock.

  3. Press ▲ / ▼ button to select "Parental Rating" and press the ◀/▶ button to set.

  4. Press ▲ / ▼ button to select "Lock Keypad", then press button to select "On" or "Off", The key board will be invalid if you set Lock Keypad "On".
  5. Press ▲ / ▼ button to select "Hotel Model" and press the ▶ button to enter the sub-menu to set.

Hotel mode Active Hotel Mode On Max Vol. 100 Default Vol. 20 Source Lock Default source DTV Default Dtv program 1 Default Adv program 1 Backup to USB Restore from USB Recall Move Adjust EXIT: Exit

  1. Press ▲ / ▼ button to select "New Password" and set your new password.

6.. Press ▲ / ▼ button to select "Clear Lock" and then press the ▶ button to clear.

Setup

Press the "MENU" button to enter the OSD menu. Then press

◀/▶ button to select the "SETUP" menu.

Setup OSD Language ← English ► Audio Languages Subtitle Teletext Mode Setting Home Mode Time Settings PVR Settings First Time Setup Move ↕ Adjust MENU: Return EXIT: Exit

  1. Press ▲ / ▼ button to select "OSD Language" and press the ◀ / ▶ button to select the OSD language which you desire.
  2. Press ▲/▼ button to select "Audio Language" and press the ▶ button to enter the Audio language adjustment menu to select the Audio language which you desire.
  3. Press▲ / ▼ button to select "Subtitle" and press the ▶ button to select "On" or "Off".

USER'S MANUAL

Note:

This function is only used for DTV source.

  1. Press ▲ / ▼ button to select "Teletxt" menu and press the ▶ button to enter sub-menu.
  2. Press ▲ / ▼ button to select "Blue Screen" and press the ◀ / ▶ button to select "On" or "Off".
  3. Press ▲ / ▼ / ◀ / ▶ button to select Mode Setting.
  4. Press ▲ / ▼ / ◀ / ▶ button to select "Time Setting".
  5. Press ▲ / ▼ / ◀ / ▶ button to select "PVR Settings".
  6. Press ▲ / ▼ button to select "First Time Installation", then press "ENTER" button to set relevant options including OSD language, country and tuning.
  7. Press ▲ / ▼ / ◀ / ▶ button to select "OAD", then press "ENTER" button to enter sub menu.
  8. Press ▲ / ▼ button to select "Reset", then press "ENTER" a dialogue. Press ▶ button selecting "Yes" to restore all setting to default setting.

PC

Press the "MENU" button to enter the OSD menu. Then press ◀ / ▶ button to select the "PC Setting" menu. (Only available in PC model).

PC Setting Auto Adjust H Position V Position Phase Clock 0 0 16 0 Move OK: Select MENU: Return EXIT: Exit

Press ▲ / ▼ button to select "Auto Adjust" menu and press the ▶ button to auto adjustment.

Press ▲ / ▼ button to select "H Position" and press the◀ / ▶ button to adjust.

Press ▲ / ▼ button to select "V-Position" and press the◀ / ▶ button to adjust.

Press ▲ / ▼ button to select "Phase" and press the ◀ / ▶ button to adjust.

Press ▲ / ▼ button to select "Clock" and press the ◀ / ▶ button to adjust.

DTV Features

Favorite List

When the source is selected as DTV, users can enter Favorite List by pressing "FAV" button. The "Favorite List" window is illustrated as follows:

Favorite List 003 AFD1, 16:9 Delete Add Move Page OK: Select EXIT: Exit

Program Information

When the source is selected as DTV, you can press "display" button to display the channel's information. The program information window is illustrated as follows:

001 YLE TV1 01 Jan 2010 01:37 Friday No Event Information Now

Audio

Audio Languages Audio Primary Language ← English → Audio Secondary Language English Move ↑ Adjust MENU: Return EXIT: Exit

USER'S MANUAL

When the source is selected as DTV, users can enter the Setup menu to enter the "Audio Language" menu. The "audio language" window is illustrated, and press ▲ / ▼ button to select the "audio language" menu.

Electronic Program Guide EPG

Electronic Program Guide (EPG) provides program information which will be broadcasted now or in the future. The system will display EPG window by pressing "EPG" button. DATE and TIME information is displayed on the right of the window. The left side shows all channels. The right side shows the programs in the channel. The selected program is also displayed on the top of the screen.

Press the ▲ / ▼ button to select the "program". You can press "RED" button to enter record mode. Press "GREEN" button to display the program's detail. Press "YELLOW" button to Check details at PVR's Schedule List introduction. Press "Blue" button to enter remind setting.

Press the ▲ / ▼ button to select "CH" and press the ◀ / ▶ button to select the channel number to see the current channel's program forecast.

Note: The U disk will be formatted when in burning, please do not store important files in the U disk.

Subtitle

When the source is selected as DTV, users can go to the menu to set.

Note:

The pictures in regard to function are provided for reference purposes only.

Subtitle Mode On Subtitle Primary Language English Subtitle Secondary Language English Hearing Impaired Off Move Adjust MENU: Return EXIT: Exit

Common interface

Press the ◀ / ▶ button to select Common interface, then press ENTER button to enter sub menu.

Only available when there is CI card under DTV.

Manta LED3201 - Common interface - 1

Press the "SOURCE" button to change to the "MEDIA" source.

Photo Music Movie Text


Manta LED3201 - Photo - 1

natural_image Black-and-white beach scene with palm trees and ocean (no visible text or symbols)
  1. Press the ◀/▶ button enter the "PHOTO" option, and press enter button to enter
  2. Press ◀/▶ button to select drive disk you want to watch, then press enter button to enter.
  3. Press "BLUE" button to enter the sub menu to set.
  4. Press the "exit" button to back to the previous menu.

USER'S MANUAL

Music

Music V810.mp3/12.mp3 1/1 Video 1. (I) mb 1 /JFK, 16300000000000000000000000000000000000000000000000000000000000000000 2. (S) mb V85.mp3 V85.mp3 Tie Artist Album Track Hour Color: 2022-11-14 Picture: A 49991 OK Select Quick Men OK Return Share Edit File List

  1. Press ◀/▶ button to select MUSIC in the main menu, then press enter button to enter
  2. Press ◀/▶ button to select drive disk you want to watch, then press enter button to enter
  3. Press "BLUE" button to enter the sub menu to set.
    4.. Press the "exit" button to back to the previous menu

Movie

Manta LED3201 - Movie - 1

natural_image Black-and-white photo of a boat on a river with city skyline in background (no visible text or symbols)
  1. Press ◀/▶ button to select MOVIE in the main menu, then press enter button to enter
  2. Press ◀/▶ button to select drive disk you want to watch, then press enter button to enter
  3. Press "BLUE" button to enter the sub menu to set.
  4. Press the "exit" button to back to the previous menu.

Text

Text User: New England English English ABCs for English Universe for English Universe/Definition for and very simple American for english for The Commons of Young Weather by J.W. born Griene Translated by Thomas Davis and R.D. who been Edited by Jonathan Howard Cabe The Commons of Young Weather PREBACK I have carefully collected whatever I live we learn able to learn of

  1. Press ◀ / ▶ button to select TEXT in the main menu, then press enter button to enter.
  2. Press ◀/▶ button to select drive disk you want to watch, then press enter button to enter
  3. Press "BLUE" button to enter the sub menu to set.
  4. Press the "exit" button to back to the previous menu.

PVR Operation

In DTV source, press the "MENU" button to enter the OSD menu. Then press ◀/▶ button to select the "Setup" menu.

Setup OSD Language ← English → Audio Languages Subtitle Teletext Mode Setting Home Mode Time Settings PVR Settings First Time Setup Move ↑↑ Adjust MENU: Return EXIT: Exit

  1. Press ▲ / ▼ button to select "PVR Settings" and press the "ENTER" or ▶ button to enter.

PVR Settings Move Left Move Right OK Select EXIT Exit File Manager Device List Scheduled Record

a) Press ◀/▶ button to select "File Manager" and press the "ENTER" button to check PVR file system.

File Manager Project Manager Project Manager Project Manager Project Manager Project Manager Project Manager Project Manager Project Manager Project Manager Project Manager Project Manager Project Manager Project Manager Project Manager Project Manager Project Manager Project Manager Project Manager Project Manager Project Manager Project Manager Project Manager Project Manager Project Manager Project Manager Project Manager Project Manager Project Manager Project Manager Project Manager Project Manager Project Manager Project Manager Project Director Project Director Project Director Project Director Project Director Project Director Project Director Project Director Project Director Project Director Project Director Project Director Project Director Project Director Project Director Project Director Project Director Project Director Project Director Project Director Project Director Project Director Project Director Project Director Project Director Project Director Project Director Project Director Project Director Project Director Project Director Project Director Project Director Project Director

USER'S MANUAL

b) Press ◀/▶ button to select "Device List" and press the "ENTER" button to the sub menu.

Device List Device Available Space Fish System USB1 636 MB PAT32 Functional Format Hotkey Move Up Move Down OK Select MENU Return EXIT Exit

c) Press ◀/▶ button to select "Scheduled Record" and press the "ENTER" button to set.

Unproduced Physical Setting List 1.0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 12.33 12.33 12.33 12.33 12.33 12.33 12.33 12.33 12.33 12.33 12.33 12.33 12.33 12.33 12.33 12.33 12.33 12. 12. 12. 12. 12. 12. 12. 12. 12. 12. 12. 12. 12. 12. 12. 12. 12. 12. 12. 12. 12. 12. 12. 12. 12. 12. 12. 12. 12. 12. 12. 12. 12. 12.

Note:

  1. The U disk will be formatted when in format, please do not store important files in the U disk.
  2. Press "● button for the first time to start recording, for the second time, the sign of recorder will be slimmed down, but it's still under recording.

Trouble Shooting

Before consulting service personnel, check the following chart for possible solutions.

PROBLEM SOLUTION
TV will not turn onMake sure the power cord is plugged in.The batteries in the remote control may beExhausted; replace the batteries.
No picture, no soundCheck the cable between TV and antenna/ external AV device.Press the power button on the remote.Press the SOURCE button the remote, then press the ▲ / ▼ button repeatedly to select the TV source.
Poor picture, sound OKCheck the cable between TV and antenna/ external AV device.Try another channel, the station may have broadcast difficulties.Adjust the brightness/contrast in the Video menu. Check that the unit is set to PAL
Audio noiseMove any infrared equipment away from the TV.

USER'S MANUAL

Specification

Screen size: 32" DLED panel

DVB-T with H264

Aspect ratio: 16:9

Resolution: 1366X768 HD Ready

Viewing angle: 170o (W); 160o (Sz)

Brightness: 250cd/m2

Contrast ratio: 1000:1

Response time: 5ms

Speaker system details: 2 x 6 Watt

Screen mode: 4:3, 16:9

TV tuner reception system: PAL/SECAM

Dolby Digital Plus (E-AC-3)

Stereo reception system: B/G,D/K,I,L/L,M/N

DBX noise reduction

Teletext: 1000 pages (Europa only)

In/Out Connections: HDMI, SCART AV-in., Earphone out., VGA

in., PC AUDIO in, USB

Consumption Standby: 1W

Working Consumption: 70W (max)

Manta LED3201 - Specification - 1

INFORMACJA O PRAWIDŁOWYM POSTĘPOWANIU W PRZYPADKU UTYLIZACJI URZĄDZEŃ ELEKRONICZNYCH I ELEKTRYCZNYCH

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : Manta

Model : LED3201

Category : Television
