Product type	Built-in fridge-freezer
Brand	Bosch
Model	KAF99PI30
Height	177 cm
Width	91 cm
Depth	78 cm
Net weight	Approx. 85 kg
Energy class	A+++
Total net volume	596 L (fridge: 415 L, freezer: 181 L)
Cooling technology	NoFrost (automatic defrost)
Special features	SuperCool, SuperFreeze, EcoMode, SabbathMode
Lighting	Interior LED
Power supply	220-240 V, 50 Hz, 10 A
Annual consumption	Approx. 290 kWh/year
Noise level	38 dB
Installation type	Built-in (free-standing possible)
Door reversibility	Yes, reversible
Maintenance and cleaning	Interior cleaning with soft cloth and soapy water; condenser cleaning every 6 months
Safety	Open door alarm, child lock (via controls), temperature safety
Spare parts and repairability	Available on Bosch website or from authorized dealers; repairability index of 8.5/10
General information	User manual included; 2-year warranty

Frequently Asked Questions - KAF99PI30 BOSCH

How to adjust the temperature of the KAF99PI30 refrigerator?

Use the control buttons on the front panel. Press Temp for the fridge, then adjust between 2°C and 8°C. For the freezer, press Freezer Temp and adjust between -16°C and -24°C.

What to do if frost forms in the freezer?

The model is equipped with NoFrost technology that prevents frost. If frost appears, check that the door is properly closed. Defrost manually if necessary, following the instructions in the manual.

Can I reverse the door opening direction?

Yes, the doors are reversible. Consult the manual for the procedure: disassemble the hinges, swap the stops, then reassemble. It is recommended to call a professional.

How to activate SuperCool mode?

Press the SuperCool button (often with a snowflake or cooling symbol). The indicator lights up, and the refrigerator runs at full power for 6 hours. Automatic deactivation.

Why does the audible alarm sound?

The alarm triggers if the door stays open too long (>2 min) or if the internal temperature rises. Close the door or check that the freezer is not too warm. Press Alarm to stop it.

How to clean the interior of the refrigerator?

Unplug the appliance. Remove the shelves and bins. Clean with a soft cloth soaked in warm water and dish soap. Rinse and dry. Do not use abrasive products. Replace after drying.

What is the energy class of this model?

The KAF99PI30 is rated A+++, the highest energy efficiency class. Its annual consumption is approx. 290 kWh.

What does Sabbath mode mean?

Sabbath Mode disables light displays, alarms, and automatic fan operation during religious rest periods. To activate, consult the manual.

Where to find spare parts for this refrigerator?

Spare parts are available on the official Bosch website (www.bosch-home.com), or from authorized dealers. Use the model reference. The repairability index is 8.5/10.

How to change the charcoal filter (if present)?

Some Bosch models include a charcoal filter for odors. If yours is equipped, replace it every 6 months. Remove the filter at the rear or in the refrigerator compartment, insert the new one following the arrows.

USER MANUAL KAF99PI30 BOSCH

Free-standing appliance

Using the installation instructions ..... 8

Installation location 8

Installing appliances next to each other 9

Changing over the door hinges ...... 9

Changing the door handle 10

Fitting the wall spacer 10

Aligning the appliance 10

Using the installation instructions

Please fold out the illustrated last page. These installation instructions refer to several models.

The diagrams may differ.

Installation location

A dry, well ventilated room is suitable as an installation location. The installation location should not be exposed to direct sunlight and not placed near a heat source, e.g. a cooker, radiator, etc. If installation next to a heat source is unavoidable, use a suitable insulating plate or observe the following minimum distances from the heat source:

■ 3 cm to electric or gas cookers.
■ 30 cm to an oil or coal-fired cooker.

The floor of the installation location must not give way; if required, reinforce floor. If the floor is uneven, compensate with supports.

Distance from wall

When installing the appliance, ensure that the door can be opened by 90°.

Installing appliances next to each other

Fig. 3

When installing two appliances, ensure that the refrigerator is on the left and the freezer is on the right.

The right side panel of the refrigerator is heated slightly. This prevents condensation from forming between the appliances.

Attaching spacers

Fig. 4

1. On the right side of the refrigerator degrease the adhesive areas with petroleum ether or spirit.
2. Stick spacers in all four corners at a distance of 5 cm from the side edges to ensure a minimum gap between the appliances.

Note

You can purchase a connection set from your dealer.

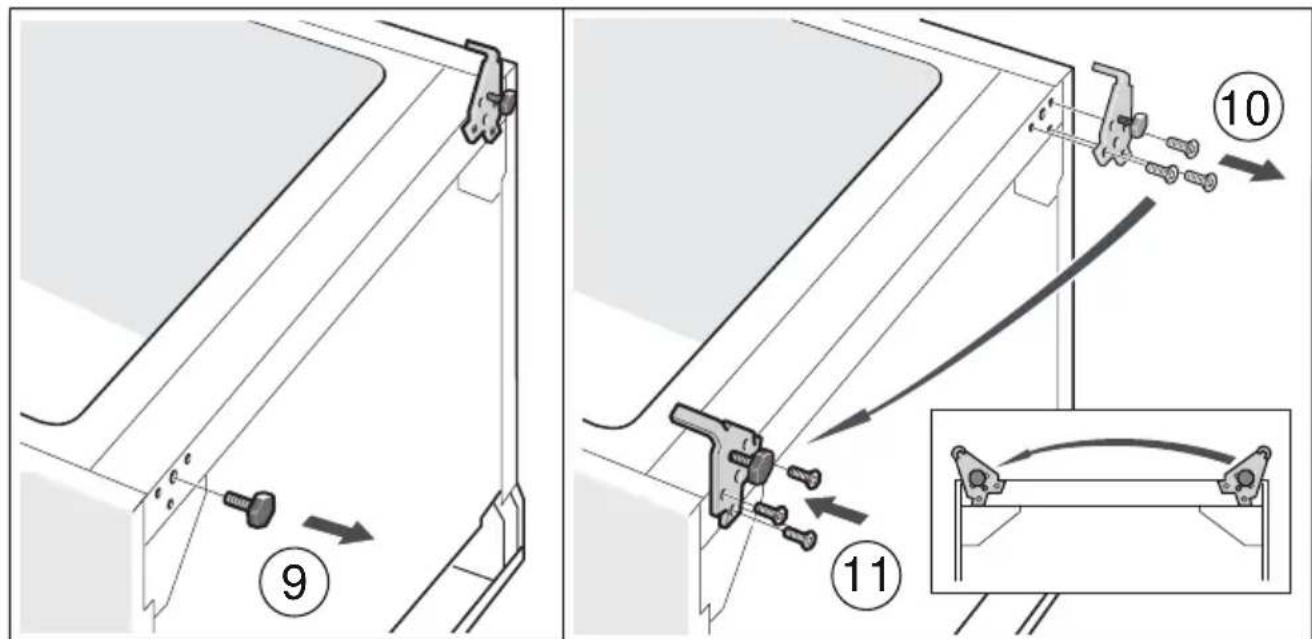

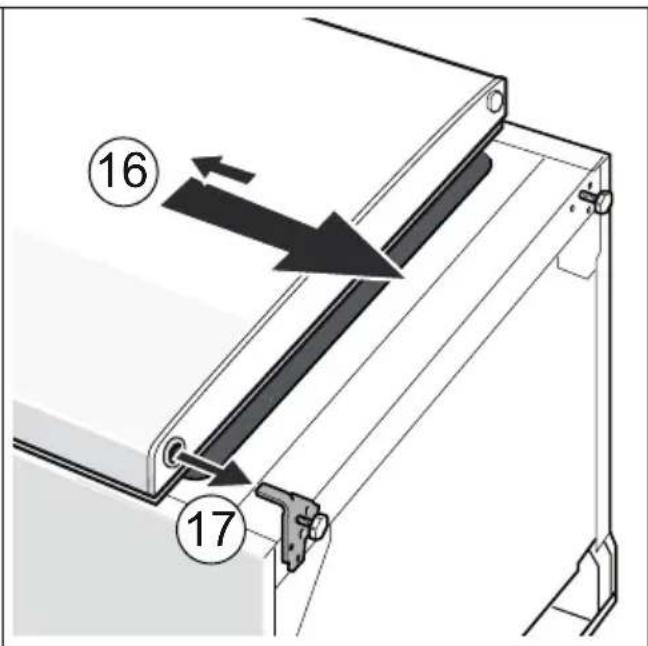

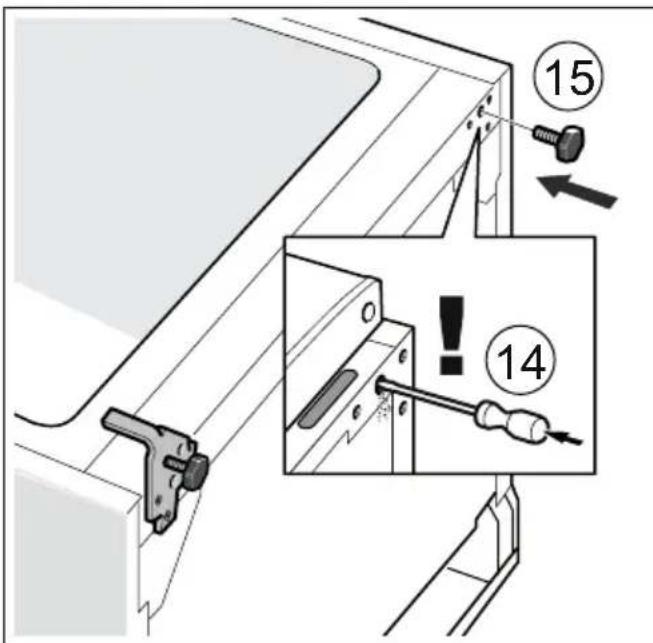

Changing over the door hinges

(if required)

We recommend that you have the door hinges changed over by our customer service. You can find out the costs for changing over the door hinges from your appropriate customer service.

Warning

While changing over the door hinges, ensure that the appliance is not connected to the power supply. Pull out the mains plug beforehand. To prevent damaging the back of the appliance, place adequate padding underneath. Carefully place the appliance on its back.

Change over the door hinges in numerical sequence. Fig. 1

Note

If the appliance is placed on its back, ensure that the wall spacer is not fitted.

Changing the door handle

(if required)

Fig. 2 A/B

Change the door handle in numerical sequence.

Fitting the wall spacer

Fig. 5

If available:

Fit wall spacers to obtain the indicated energy absorption of the appliance.

A reduced wall gap will not restrict the function of the appliance. The energy absorption may then change slightly.

Aligning the appliance

Place the appliance in the designated location and align. The appliance must be level. If the floor is uneven, use the front height-adjustable feet. Adjust the height-adjustable feet with a wrench.

Note

The appliance must be upright. Please align it with a spirit level.
