Product Type	Beard Trimmer
Brand	Philips
Model	Series 7000 HC7460
Length Settings	40 adjustable length settings (0.2–10 mm)
Cutting Width	32 mm (self-sharpening blades)
Battery Type	Lithium-ion
Charging Time	1 hour
Usage Time	80 minutes
Quick Charge	5 minutes for one full use
Power Supply	Cordless (rechargeable, universal voltage 100–240 V)
Washable	Yes, fully washable under running water
Water Resistance	IPX5 (splash proof)
Display	LED battery indicator
Blade Material	Stainless steel, self-sharpening
Precision Trimmer	Yes, pop-up detail trimmer
Travel Lock	Yes
Low Battery Indicator	Yes (LED flashing)
Included Accessories	3 combs (1, 2, 3 mm), cleaning brush, charging stand
Weight	Approximately 200 g (trimmer only)
Dimensions	20 × 5 × 5 cm (L × W × H)

Frequently Asked Questions - Series 7000 HC7460 PHILIPS

How to clean the Philips Series 7000 HC7460?

Remove the blade unit and rinse under running water. Use the included cleaning brush for stubborn hairs. The trimmer is fully washable.

What is the battery life and charging time?

Full charge takes 1 hour and provides 80 minutes of cordless use. A 5-minute quick charge gives enough power for one full use.

Can I use the trimmer wet or dry?

Yes, it is designed for both wet and dry use. It is splash-proof (IPX5) and fully washable.

How to adjust the cutting length?

Use the zoom wheel to select from 40 length settings (0.2 to 10 mm) without changing combs. The comb attachments snap on for longer lengths.

Are the blades replaceable?

Yes, the self-sharpening blades can be replaced. Order model SH70 from Philips for replacements.

How to activate travel lock?

Press and hold the on/off button for 3 seconds. The LED will flash to indicate lock. Repeat to unlock.

Is the trimmer suitable for body grooming?

It is primarily designed for beard and mustache. Using on body hair may cause discomfort. Use with appropriate attachment if desired.

What accessories come in the box?

The kit includes the trimmer, 3 comb attachments (1, 2, 3 mm), cleaning brush, and charging stand.

Does the trimmer have a low battery indicator?

Yes, the LED battery light flashes when the battery is low, and the trimmer will gradually reduce power.

What is the warranty period for Philips Series 7000 HC7460?

Philips offers a 2-year warranty from the date of purchase. Keep your receipt as proof of purchase.

USER MANUAL Series 7000 HC7460 PHILIPS

Always here to help you

Register your product and get support at

www.philips.com/welcome

HC7460

PHILIPS

ENGLISH 4

DANSK 11

DEUTSCH 18

GREEK 26

SPANISH 34

FINNISH 42

FRENCH 50

ITALIAN 58

DUTCH 66

NORWEGIAN 74

PORTUGUESE 82

BRAZILIAN PORTUGUESE 90

SWEDISH 98

TURKISH 105

PERSIAN 118

ARABIC 125

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

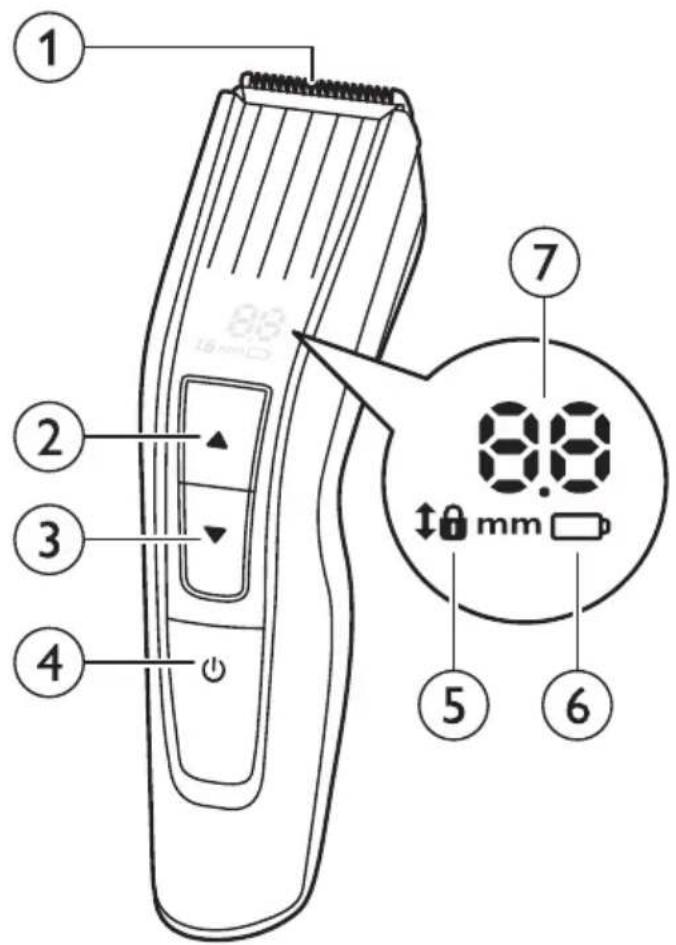

General description (Fig. 1)

1 Cutting unit 2 Up button 3 Down button 4 On/off button 5 Length setting lock 6 Charging light 7 Display 8 Trimming comb 1-7mm 9 Trimming comb 7-24mm 10 Trimming comb 24-42mm 11 Adapter 12 Small plug 13 Cleaning brush

Important

Read this user manual carefully before you use the appliance and save it for future reference.

Danger

- Keep the appliance and the adapter dry.

Warning

• The adapter contains a transformer. Do not cut off the adapter to replace it with another plug, as this causes a hazardous situation.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Caution

• This appliance is not washable. Never immerse the appliance in water, nor rinse it under the tap.
• Always check the appliance before you use it. Do not use the appliance, adapter or any other part if it is damaged, as this may cause injury.
• Always replace a damaged adapter or part with one of the original type.
• Only use this appliance for its intended purpose as shown in the user manual.
• Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.

Electromagnetic fields (EMF)

This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

General

• The appliance is equipped with an automatic voltage selector and is suitable for mains voltages from 100 to 240 volts.
• The adapter transforms 100-240 volts to a safe low voltage of less than 24 volts.

Charging

Charge the appliance fully before you use it for the first time or after a long period of disuse.

When it is charged for 1 hour, the appliance has a cordless operating time of up to 120 minutes.

Note: After charging the appliance fully for the first time, you can also use the appliance directly from the mains. Simply connect the appliance to the mains.

Charging indications

Battery low indication

- When the battery is almost empty, the charging light starts to flash orange.

Charging

- When the appliance is charging, the charging light flashes red.

Battery fully charged

- When the battery is fully charged, the charging light lights up red continuously.

Note: After 30 minutes, the charging light switches off automatically.

Charging the appliance

1 Make sure the appliance is switched off. 2 Insert the small plug into the appliance. 3 Put the adapter in the wall socket. 4 After charging, remove the adapter from the wall socket and pull the small plug out of the appliance.

Optimising the lifetime of the rechargeable battery

When you have charged the appliance for the first time, we advise you to use it until the battery is completely empty. Continue to use the appliance until the motor almost stops operating during a session. Then recharge the battery. Follow this procedure at least twice a year.

Using the appliance

The hair length settings are indicated in millimeters. The settings correspond to the remaining hair length after trimming.

Be careful when you trim for the first time. Do not move the trimmer too fast. Make smooth and gentle movements.

Tip: Start trimming at a high length setting and reduce the length setting gradually until you have reached the desired hair length.

Trimming with comb

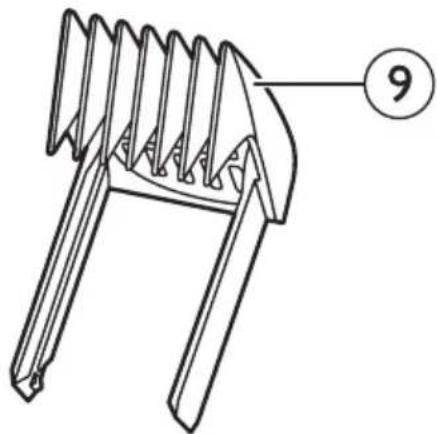

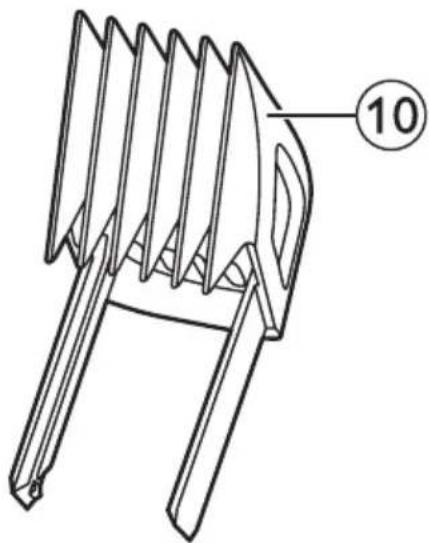

There are 3 different combs:

-1-7mm -7-24mm -24-42mm

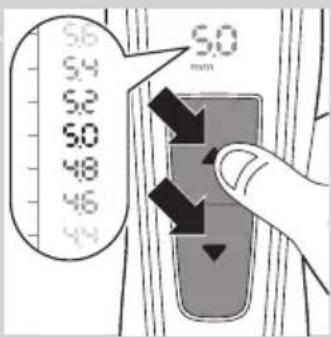

1 Attach one of the combs to the appliance. 2 Press up button or down button to select the desired length setting.

Note: When you trim for the first time, start at the highest length setting to familiarise yourself with the appliance.

3 Switch on the appliance.

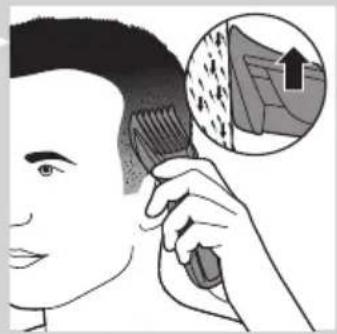

4 To trim most effectively, move the trimmer against the hair growth direction. Make sure that the surface of the comb always stays in contact with the skin.

Trimming without comb

Use the trimmer without the trimming comb to trim hair close to the skin (0.5mm) or to contour the neckline and sideburns.

Be careful when you trim without comb because the cutting element removes every hair it touches.

1 Push the comb off the appliance.

2 Switch on the appliance.

3 Touch the hair lightly with the trimmer. Make well-controlled movements.

Features

Length setting lock

This feature prevents accidental changing of the length setting during trimming. Every time you switch on the appliance, the length setting lock is activated. You can only change the length setting if you switch off the appliance.

1 Press the up button or down button to select the length setting.

2 Switch on the appliance. The lock symbol starts to flash. You cannot change the length setting anymore.

Note: If you want to select a different length setting, switch off the appliance. Press the up button or down button to select the desired length setting and switch on the appliance again.

Cleaning

Never use scouring pads, abrasive cleaning agents or aggressive liquids such as alcohol, petrol or acetone to clean the appliance.

Never immerse the appliance in water or rinse it under the tap.

1 Make sure the appliance is switched off and disconnected from the mains. 2 Wipe the housing of the appliance with a dry cloth. 3 Remove the comb and clean it with the brush. 4 Press the release button (1). The cutting unit comes off the appliance (2).

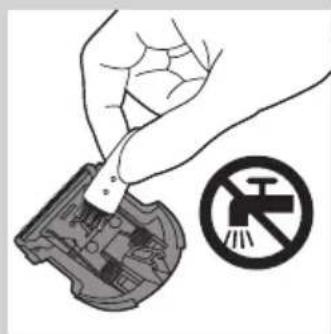

5 Clean the cutting unit with the brush.

6 Clean the inside of the appliance with the cleaning brush. Never immerse the appliance in water or rinse it under the tap.

7 Insert the lug of the cutting unit into the guiding slot (1) and push the cutting unit back onto the appliance (2).

Note: If the message 'CL' is shown on the display, too much hair has collected between the comb and the cutting unit. Remove the comb and cutting unit and clean them with the cleaning brush supplied. Also clean the top edge of the handle with the cleaning brush supplied.

Replacement

Only replace a worn or damaged cutting unit with an original Philips cutting unit, available from authorized Philips service centers.

1 Press the release button (1). The cutting unit comes off the appliance (2).

2 Insert the lug of the new cutting unit into the guiding slot (1) and push the cutting unit onto the appliance (2).

Ordering accessories

To buy accessories or spare parts, visit www.shop.philips.com/service or go to your Philips dealer. You can also contact the Philips Consumer Care Center in your country (see the worldwide guarantee leaflet for contact details).

Recycling

- This symbol on a product means that the product is covered by European Directive 2012/19/EU.

• This symbol means that the product contains a built-in rechargeable battery covered by European Directive 2006/66/EC which cannot be disposed of with normal household waste. We strongly advise you to take your product to an official collection point or a Philips service center to have a professional remove the rechargeable battery.
• Inform yourself about the local separate collection system for electrical and electronic products and rechargeable batteries. Follow local rules and never dispose of the product and rechargeable batteries with normal household waste. Correct disposal of old products and rechargeable batteries helps prevent negative consequences for the environment and human health.

Removing the rechargeable battery

Note: We strongly advise you to have a professional remove the rechargeable battery.

Only remove the rechargeable battery if it is completely empty.

1 Disconnect the appliance from the mains and let the appliance operate until the motor stops.

2 Press the release button (1) and remove the cutting unit (2).

3 Insert the screwdriver between the motor unit and the back panel of the appliance. Press down the screwdriver as far as it will go

4 Tilt the handle of the screwdriver downwards (1) and separate the back panel from the appliance (2).

5 Remove the side panels. Pull the bottom part of the printed circuit board with the rechargeable battery attached from the appliance.

6 Cut the wires to separate the rechargeable battery from the appliance.

Do not connect the appliance to the mains again after you have opened it.

Guarantee and support

If you need information or support, please visit www.philips.com/support or read the separate worldwide guarantee leaflet.
