SECCO PICCOLO - Heat gun Sonnenkönig - Free user manual and instructions

Product type	Heat gun
Brand	Sonnenkönig
Model	SECCO PICCOLO
Power supply	230 V ~ 50 Hz
Rated power	1500 W
Max temperature	600 °C
Air flow	300 L/min
Temperature adjustment	Progressive
Number of speeds	2 speeds
Dimensions (L x W x H)	22 x 8 x 10 cm
Weight	0.5 kg
Cable length	1.5 m
Housing material	Heat-resistant plastic
Main functions	Hot air blowing, paint stripping, shrinking, plastic welding
Included accessories	Concentrator nozzle, reflector nozzle, welding nozzle
Maintenance and cleaning	Clean the ventilation grilles after cooling
Thermal protection	Automatic shut-off in case of overheating
Spare parts and repairability	Nozzles and filters available separately
Manufacturer	Sonnenkönig
Country of origin	Germany

Frequently Asked Questions - SECCO PICCOLO Sonnenkönig

What is the maximum temperature of the SECCO PICCOLO heat gun?

The maximum temperature reaches 600 °C, adjustable progressively via the dial.

How to clean the heat gun after use?

Wait for it to cool completely, then clean the ventilation grilles with a dry cloth. Do not use water.

Can I use this device to strip paint?

Yes, the SECCO PICCOLO is suitable for paint stripping. Use the supplied reflector nozzle.

What accessories are included with the gun?

Included: a concentrator nozzle, a reflector nozzle, and a welding nozzle.

How to adjust the temperature?

Turn the dial on the handle to select the desired temperature, from ambient to 600 °C.

What to do if the device suddenly stops?

The thermal protection is activated. Let the device cool down for a few minutes before turning it on again.

Is this device suitable for shrinking heat-shrink tubing?

Yes, use the concentrator nozzle for a precise air flow, ideal for shrinking.

What is the power of the SECCO PICCOLO?

Its rated power is 1500 W, sufficient for most household tasks.

Where can I buy spare parts?

Nozzles and filters are available from the manufacturer or authorized Sonnenkönig dealers.

Is the power cable detachable?

No, the cable is fixed with a length of 1.5 m. Avoid damaging it.

USER MANUAL SECCO PICCOLO Sonnenkönig

White electronic device with ventilation grille and control knob, no visible text or symbols on body

D

Inhaltsverzeichnis

White electronic device with ventilation grille and control knob, no visible text or symbols on body

F

Sommaire

Modifications techniques

White electronic device with ventilation grille and control knob, no visible text or symbols on body

I

Indice

White electronic device with ventilation grille and control knob, no visible text or symbols on body

GB

Index

1 Safety Instructions 27
2 Intended use 28
3 Product diagram 28
4 Operation 29
5 Technical data 29
6 Trouble shooting 30
7 Cleaning and maintenance 30
8 Warranty / Disposal / Technical change 31

Thank you for choosing a SONNENKÖNIG Dehumidifier to ensure a low-noise environment. This user manual will provide you with valuable information necessary for the proper care and maintenance of your new dehumidifier. Please take a few moments to read the instructions thoroughly and familiarize yourself with all the operational aspects of this dehumidifier.

Please also KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.

1 Safety Instructions

• Use this dehumidifier only in the specified temperature and humidity conditions. As the humidity in colder temperatures is low, there is no need for dehumidification.
• Do not block the front air inlet and the air outlet of the dehumidifier; do not insert any foreign objects into the air outlet, as this will lead to damage.
• The dehumidifier should be placed on a level surface, otherwise the water will overflow.
• When this dehumidifier is not being used for an extended period of time, please make sure that the water tank is drained.
• When removing the water tank of the dehumidifier, do not tilt it to avoid water being poured out
• Please do not store the dehumidifier in moist places. It shall be kept in a dry and well-ventilated place.
• After each use, please shut down the dehumidifier and unplug it to end the operation.

2 Intended use

This dehumidifier can be used in a wardrobe, bookcase, storage box, rest room, kitchen or a similar small space which has an area of about 20 m2 and reduces the level of humidity in the air. It is only intended for household use.

GB

The ideal environment for use:

1) Temperature: > 15 °C
2) Humidity: > 45 %

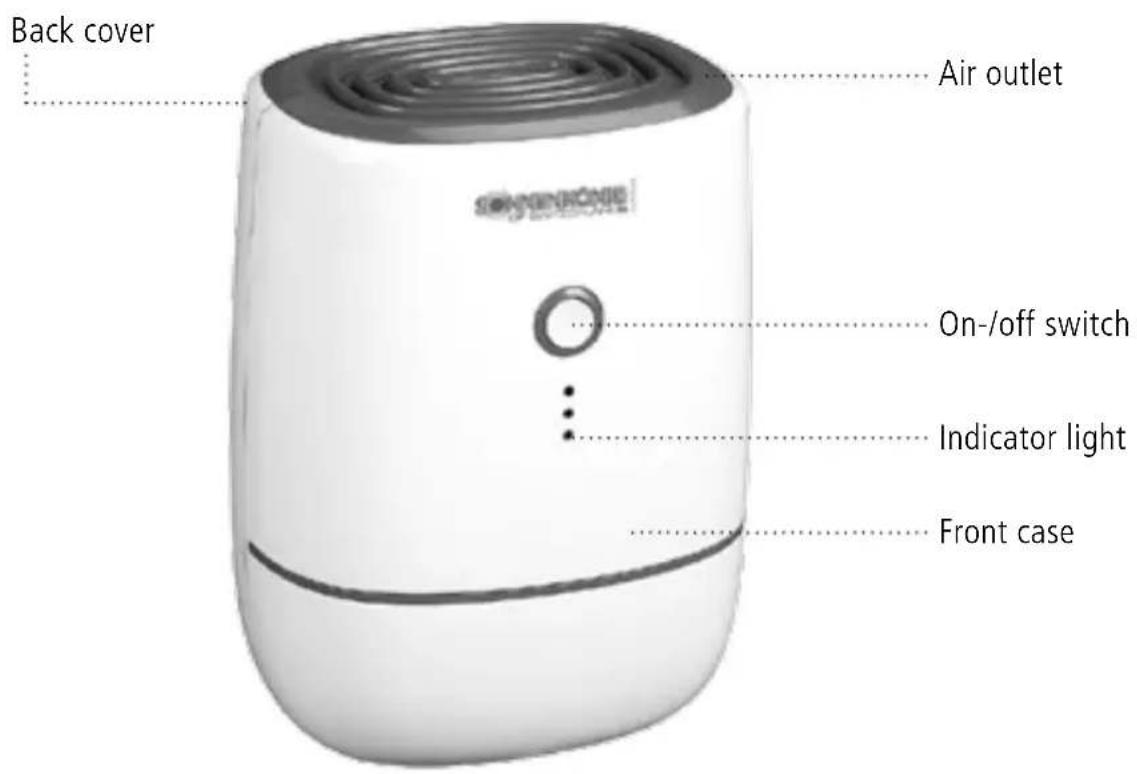

3 Product diagram

Note: This is only for reference. It can vary in different models. All rights reserved.

4 Operation

1) Use an AC power supply. Place the water tank into the dehumidifier. Plug the DC plug into the DC port of the appliance and the adapter into the socket outlet. The power light will turn on (blue) and the fan will run continuously.
2) If the red indicator lights up, please check if the water tank is in the correct position.
3) This dehumidifier will stop dehumidifying automatically if the water reaches the maximum level and the red indicator will turn on, which means the water tank is full. Please cut off the power supply before you take out the tank. Remove the black drain cover of the water tank and discard the collected water. Then place it back.
4) Wipe and dry the water tank and the dehumidifier.

5 Technical data

1) Adapter: 9 V DC, 2.5 Amp.
2) Power: 23.4 W
3) Portable water tank capacity: 500 ml
4) Water level sensor: The indicator will turn on in red when the water tank is full and the appliance will shut down automatically.
5) Dehumidifying capability: 220 ml/24 hours
6) Area for dehumidifying: < 20 m ^4
7) Size: 154 x 218 x 130 mm
8) Operating environment: temperature: > 15 °C relative humidity: > 45 %

6 Trouble shooting

GB

Problem Possible cause Solution
After connecting, the red indicator lights up.	The water tank is full.	Empty the water tank and place it back in the correct position.
	The float got jammed.	Press the float and put the water tank back.
The dehumidifier does not work.	The power supply is cut off.	Check if the adapter is plugged in.
	DC switch is OFF. Turn the switch on.
	The air outlet is blocked.	Maintain the minimum clearance of at least 10 cm around the dehumidifier when the unit is operating.

7 Cleaning and maintenance

Before cleaning and maintenance please pull the plug out of the socket outlet. Wipe the shell of the appliance with a soft damp cloth; never use abrasive agents and resolvents, as these will damage this appliance.

8 Warranty/Disposal/Technical change

Warranty

The Products are controlled just before delivery. If despite a lack of your product, try trustfully your seller. Please bring your receipt, as this is to be submitted for each warranty. The guarantee period is 24 months from date of purchase.

GB

Disposal

The device must be disposed of properly. The device can be distributed free of charge for disposal at each dealer.

Technical changes

Reserving technical changes in technology and design

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Please make sure to place the device on a suitable and waterproof surfaces, so that spilled liquids can not cause harm.

CE Declaration of Conformity

This device complies with the following standards

EN 60335-1:2012 +A11:2014

EN 60335-2-40:2003 +A11:2004 +A12:2005 +A1:2006 +A2:2009 +A13:2012

EN 62233:2008
