Type of product	Powerline Adapter
Model	AV1000
Brand	TP-Link
Dimensions (approx.)	95 x 55 x 35 mm
Weight (approx.)	170 g
Power supply	AC 100-240V, 50/60 Hz via mains socket
Data transfer rate	Up to 1000 Mbps
Number of Ethernet ports	1
Ethernet standard	10/100/1000 Mbps
Pairing method	Press and hold Pair button for 1 second
Security	128-bit AES encryption
Compatibility	All HomePlug AV and AV2 standards
Operating temperature	0°C to 40°C
Storage temperature	-40°C to 70°C
Operating humidity	10% to 90% non-condensing
LED indicators	Power, Powerline, Ethernet
Care and cleaning	Wipe with a soft, dry cloth. Do not use liquids or aerosols.
Safety precautions	Do not expose to moisture, heat sources, or plug into a power strip.
Spare parts / Repairability	Not user-serviceable. No spare parts available. Replace unit if defective.
General information	Designed to extend your home network through existing electrical wiring. Plug and play setup.

Frequently Asked Questions - AV1000 TP-LINK

How do I set up the TP-Link AV1000 powerline adapter?

Plug the adapter into a wall socket near your router and connect it via Ethernet cable. Press the Pair button on both adapters within 2 minutes to establish a secure connection.

Why is the Powerline LED off?

Ensure both adapters are plugged directly into wall sockets (not power strips) and are on the same electrical circuit. The LED should turn on when a connection is established.

What is the maximum data speed of the AV1000?

The AV1000 supports up to 1000 Mbps, but actual speeds depend on your home's wiring quality and distance.

Can I use the AV1000 with routers from other brands?

Yes, the AV1000 is compatible with any router that has an Ethernet port, regardless of brand.

How many powerline adapters can I connect?

You can connect up to 16 adapters on the same network, but performance may decrease with more than 8.

Does the AV1000 support WiFi?

No, the AV1000 is a wired powerline adapter without Wi-Fi. For Wi-Fi, consider the TP-Link AV1000 Powerline Wi-Fi Kit.

What does the Pair button do?

The Pair button creates a secure encrypted connection between adapters. Press and hold 1 second to start pairing.

Can I plug the adapter into a power strip?

It is recommended to plug directly into a wall socket for best performance. Power strips can reduce signal quality.

How do I reset the adapter to factory defaults?

Press and hold the Pair button for about 10 seconds until all LEDs blink, then release. The adapter will restart.

Is the AV1000 compatible with HomePlug AV2 devices?

Yes, the AV1000 is backward compatible with HomePlug AV and AV2 standards, but speeds may drop when mixed.

USER MANUAL AV1000 TP-LINK

TP-Link Technologies Co., Ltd. South Building(floors 1,3,4,5) and 28(floors 1-4), Central Science

& Technology Park, Shennan Rd, Nanshan, Shenzhen, China

TP-Link UK Limited Unit 2 & 3 Riverview (142-144), Cardiff Road, Reading, RG1 8EW

TP-Link Hellas Ltd. Marathonodromou 77, Marousi 151 24, Greece

Specifications are subject to change without notice. TP-Link is a registered trademark of TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-Link Technologies Co., Ltd. Copyright © 2018 TP-Link Technologies Co., Ltd. All rights reserved.

MADE IN CHINA

7106507904 REV2.1.1

tp-link

Quick Installation Guide

Powerline Adapter

CONTENTS

01 / Deutsch
05 / English
09 / Español
13 / Ελληνικά
17 / Français
21 / Italiano
25 / Português
29 / Suomi
33 / Nederlands
37 / Svenska
41 / Norsk
45 / Dansk

Plug and Play

1. Connect one adapter to a LAN port of your router using an Ethernet cable.
2. Plug the other adapter into the wall outlets on the same electrical circuit.
3. Wait until the Powerline LED 📁 on any adapter turns on.
4. Connect your computer to the adapter using an Ethernet cable.
5. Enjoy!

More: To add additional Powerline adapters and extenders with the default settings, simply plug them into the wall outlets on the same electrical circuit.

English

Attention

• Plug the powerline devices directly into the wall outlets but not the power strips.
• For passthrough powerline devices, plug the power strips into the integrated electrical sockets of the powerline devices.

Secure the Powerline Network with the Pair Button

Tips: We recommend that you plug in the powerline devices near each other when pairing.

Set up a secure network:

1 Press the Pair button for 1 second on one adapter.

2 Within 2 minutes, press the Pair button for 1 second on another adapter.

3 Done.

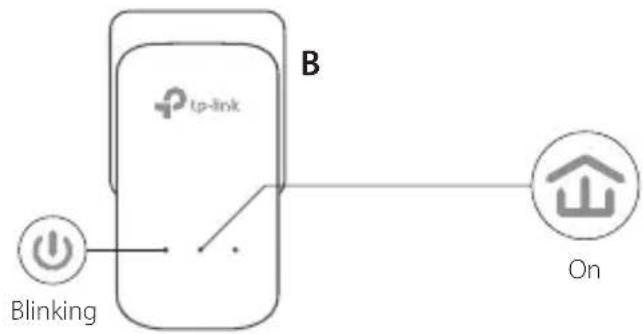


If you have more than 2 powerline devices, repeat the steps below on each additional devices to be configured:

1 Press the Pair button for 1 second on any powerline device in the secure network.

2 Within 2 minutes, press the Pair button for 1 second on the additional powerline device.

3 Done.

FAQ (Frequently Asked Questions)

Q1. How do I reset my powerline adapter?

A1. With the powerline adapter plugged into to the electrical outlet, press and hold the Pair button until the Power LED ⏻ goes off momentarily and comes back on.

A2. Use the tpPLC Utility to reset the powerline adapter.

English

Q2. How to troubleshoot if there is no internet connection in my powerline network?

A1. Make sure all powerline devices are on the same electrical circuit.

A2. Make sure all Powerline LEDs are on. If not, pair your adapters and extenders again.

A3. Make sure all hardware connections are correctly and securely connected.

A4. Check if you have an internet connection by connecting the computer directly to the modem or router.

A5. Make sure your computer's IP address is in the same segment as your router's.

Q3. What can I do if a successfully-paired powerline device does not reconnect after it has been moved to a new location?

A1. Try another socket and make sure it is on the same electrical circuit.

A2. Try to pair it again, and make sure the Powerline LED is on.

A3. Check for possible interference, such as a washer, air conditioner or other household appliances that may be too close to one of the powerline devices. Plug the appliance into the integrated electrical socket (if the powerline device has one) to remove some electrical noise.

More advanced configurations, such as firmware upgrade and QoS configuration, can be accessed through the tpPLC Utility. You can install the tpPLC Utility from the TP-Link official website.

Plug and Play

FAQ (Perguntas Frequentes)

TP-Link hereby declares that this device is in compliance with the essential requirements and other relevant provisions of directives 2014/30/EU, 2014/35/EU, 2009/125/EC and 2011/65/EU.

The original EU declaration of conformity may be found at http://www.tp-link.com/en/ce.

Español

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device.
• The socket-outlet shall be installed near the equipment and shall be easily accessible.
• For passthrough devices, plug the power strips into the integrated electrical sockets of the devices, but devices of the same or another type not be stacked in normal use.
• Plug the powerline devices directly into the wall outlets but not the power strips.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

TP-Link Three Years Limited Product Warranty

For TP-Link Branded Products Only.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for a period of THREE YEARS form the date of original retail purchase by the end-user purchaser.

Español
