Product Type	Gaming Headset
Brand	HyperX
Model	Cloud Core
Connectivity	Wired, 3.5mm jack
Driver	Dynamic, 53mm
Frequency Response	15Hz – 25kHz
Impedance	60 Ω
Sensitivity	98 dBSPL/mW
Microphone	Detachable noise-cancelling
Microphone Frequency Response	50Hz – 18kHz
Cable Length	1.3m + 2m extension
Weight	322g (with microphone)
Type	Over-ear, closed-back
Ear Cushions	Memory foam with leatherette
Controls	Inline audio control (volume, mute)
Compatibility	PC, PS4, PS5, Xbox One, Xbox Series X|S, Nintendo Switch, Mobile devices
Warranty	2 years
Maintenance	Wipe with dry cloth; store in a cool, dry place
Safety	Avoid prolonged high-volume listening
Spare Parts	Replacement ear pads, microphone, cable

Frequently Asked Questions - Cloud Core HYPERX

Can I use HyperX Cloud Core on my PS4?

Yes, the Cloud Core features a 3.5mm jack and is compatible with PC, PS4, PS5, Xbox One, Xbox Series X|S, Nintendo Switch, and mobile devices via the included extension cable.

How do I mute the microphone?

The microphone can be muted by flipping the boom mic up or using the inline mute slider on the audio control box. A red LED indicates mute is active.

Is the microphone detachable?

Yes, the microphone is detachable via a 3.5mm jack on the left ear cup. You can remove it for a cleaner look when not needed.

What is the frequency response of the headset?

The HyperX Cloud Core has a frequency response of 15Hz – 25kHz for the drivers, and 50Hz – 18kHz for the microphone.

Can I replace the ear pads?

Yes, ear pads are replaceable. They are attached with a simple snap-on design. Genuine HyperX replacement ear pads are available.

Does the Cloud Core have a built-in battery?

No, the Cloud Core is a wired headset, so it does not require charging. It draws power from the connected device.

How do I adjust the volume?

Volume is controlled via the inline audio control box on the cable. There is a rotating wheel for volume and a slider for microphone mute.

Is the headset compatible with Xbox One?

Yes, it works with Xbox One controllers that have a 3.5mm jack. For older controllers without a jack, you may need the Xbox One Stereo Headset Adapter.

What is the weight of the headset?

The HyperX Cloud Core weighs approximately 322g (with microphone), making it comfortable for extended gaming sessions.

How to clean the headset?

Use a soft, dry cloth to wipe the ear cups and headband. Avoid using liquids or harsh chemicals. Store the headset in a dry place when not in use.

USER MANUAL Cloud Core HYPERX

HyperX Cloud Core Wireless

Part Numbers

HHSC1C-CG-BK/G

TABLE OF CONTENTS

Overview ....3

Specifications 4

Setting up with PC....6

Setting up with PlayStation 4....9

Setting up with PlayStation 5....10

Controls 12

Status LED....12

Power button....12

Mic mute / mic monitoring button 13

Volume wheel....13

Charging the Headset....14

Wired charging.... 14

DTS Headphone:X....15

Manually Pairing the Headset and USB Adapter....17

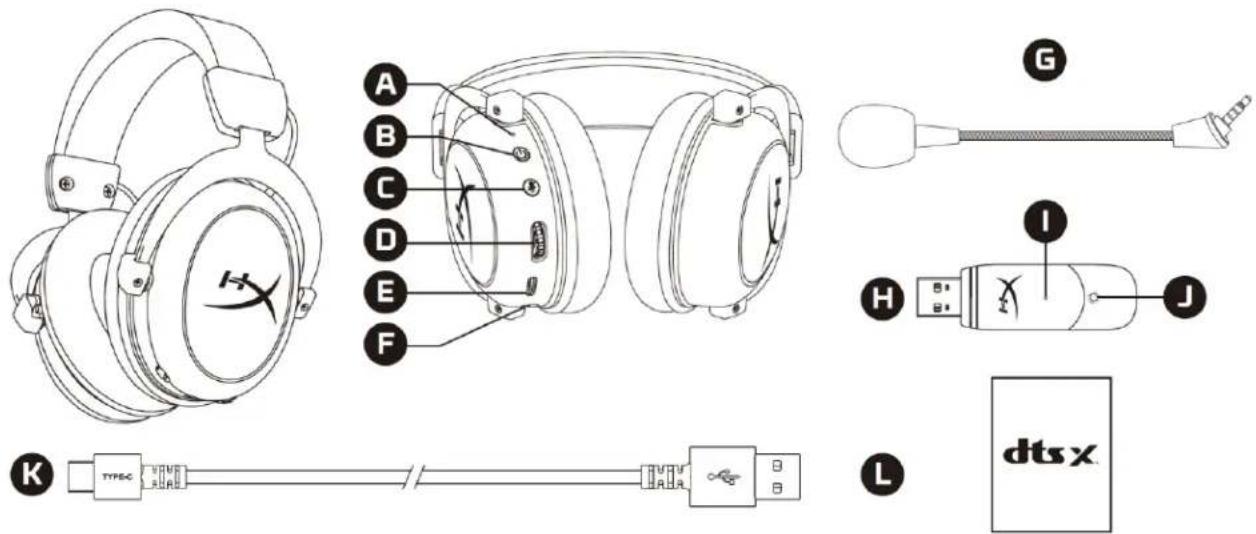

Overview

A. Status LED
B. Power button
C. Mic mute / mic monitoring button
D. Volume wheel
E. USB-C charge port
F. Microphone port

G. Detachable microphone
H. USB adapter
I. Wireless pairing pin hole
J. Wireless status LED
K. USB-C charge cable
L. DTS instruction card

Specifications

Headphone

Driver: Dynamic, 53mm with neodymium magnets

Form factor: Over ear, circumaural, closed back

Frequency response: 10 Hz – 21 kHz

Impedance: 60 Ω

Sensitivity: 99 dBSPL/mW at 1 kHz

T.H.D.: ≤ 1%

Frame type: Aluminum

Ear cushions: Memory foam

Microphone

Element: Electret condenser microphone

Polar pattern: Bi-directional, Noise-cancelling

Frequency response: 20 Hz – 6.8 kHz

Sensitivity: -44 dBV (1 V/Pa at 1 kHz)

Connections and Features

Audio connection: Wireless USB

USB audio format: Stereo

USB specification: USB 2.0

Sampling rates: 48 kHz

Bit-Depth: 16 bit

Included virtual surround sound: DTS Headphone:X

Audio controls: Onboard audio controls

Battery

Type: Rechargeable lithium-polymer

Battery life*: 20 hours

Charge time: 3 hours

Wireless

Type: 2.4 GHz

Wireless range**: Up to 20 meters

Physical

Weight: 283g

Weight with microphone: 294g

Cable length(s) and type(s): 0.5m USB charge cable

*Tested at 50% headphone volume. Battery life varies depending upon the usage.

**Wireless range may vary due to environmental conditions.

Setting up with PC

1. Connect the wireless USB adapter to the PC.
2. Power on the headset.

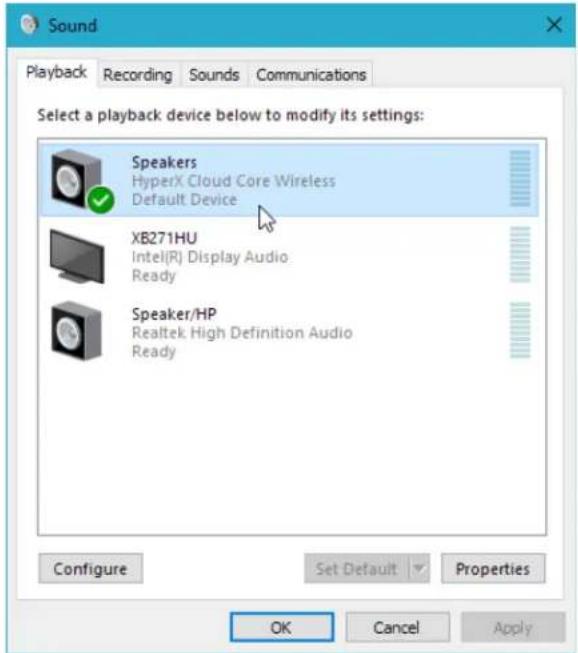

3. Right click Speaker icon > Select Sounds

1. Under the Playback tab, click on "HyperX Cloud Core Wireless" and click on the Set Default button.

1. Under the Recording tab, click on "HyperX Cloud Core Wireless" and click on the Set Default button.

1. Under the Playback tab, verify that "HyperX Cloud Core Wireless" is set as Default Device. Under the Recording tab, verify that "HyperX Cloud Core Wireless" is set as Default Device. The Set Default button should also be grayed out when selecting these devices under the Playback tab and the Recording tab.

Setting up with PlayStation 4

1. Set Input Device to USB Headset (HyperX Cloud Core Wireless)
2. Set Output Device to USB Headset (HyperX Cloud Core Wireless)
3. Set Output to Headphones to All Audio
4. Set Volume Control (Headphones) to maximum level.

Audio Devices

Input Device

USB Headset (HyperX Cloud Core Wireless)

Output Device

USB Headset (HyperX Cloud Core Wireless)

Adjust Microphone Level

Volume Control (Headphones)

Output to Headphones

All Audio

Switch Output Device Automatically

Setting up with PlayStation 5

1. Go to the home page and select Settings > Sound
2. Under Microphone, set the following:

• Input Device to USB Headset (HyperX Cloud Core Wireless)

1. Under Audio Output, set the following:

• Output Device: USB Headset (HyperX Cloud Core Wireless)
• Output to Headphones: All Audio

1. Under Volume, set Headphones slider to maximum level.

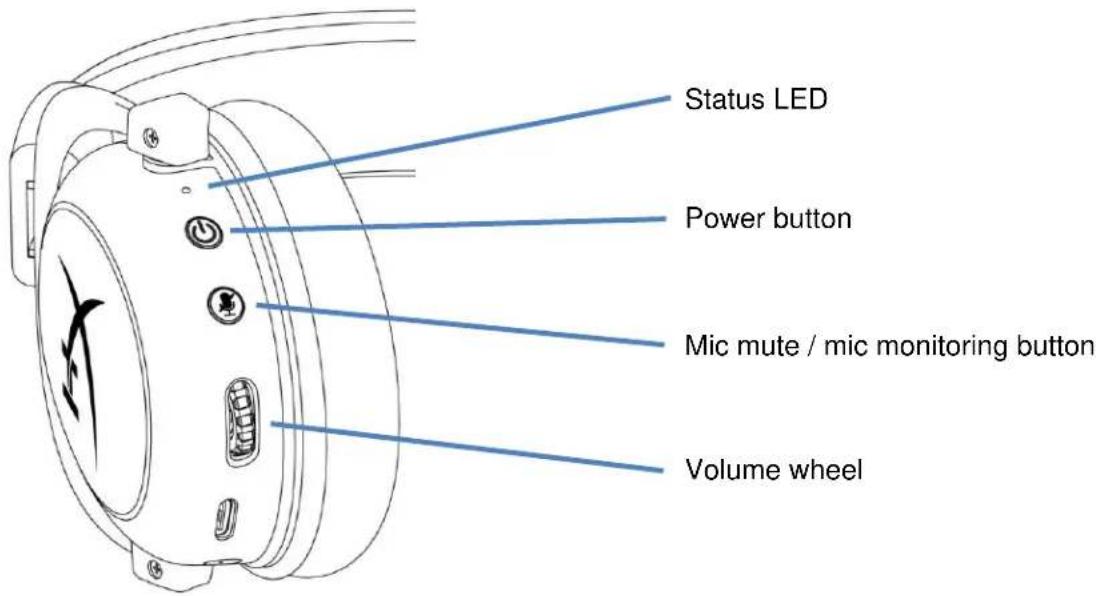

Controls

Status LED

Status	Battery Level	LED
Pairing	-	Flash green and red every 0.2s
Searching	-	Slow breathing green
Connected	90% - 100%	Solid green for 5s
	10% - 90%	Blinking green for 5s
	< 10%*	Blinking red for 5s

*Headset will play a beep notification (hi-low-hi-low) when battery level is less than 10%.

Power button

• Hold button for 3 seconds to power headset on/off
• Press button once to see the battery level status on the status LED

- The status LED will automatically turn off after 5 seconds to conserve battery life

Mic mute / mic monitoring button

• Press button to toggle mic mute on/off
• Hold button for 3 seconds to toggle mic monitoring on/off

- Headset will play a double beep notification indicating mic monitoring has been toggled

Volume wheel

- Scroll wheel up and down to adjust volume level

WARNING: Permanent hearing damage can occur if a headset is used at high volumes for extended periods of time

Charging the Headset

It is recommended to fully charge your headset before first use.

When charging the headset, the headset status LED will indicate the current charge status.

Status LED	Charge Status
Solid green	Fully charged
Breathing green	10% - 99% battery level
Breathing red	< 10% battery level

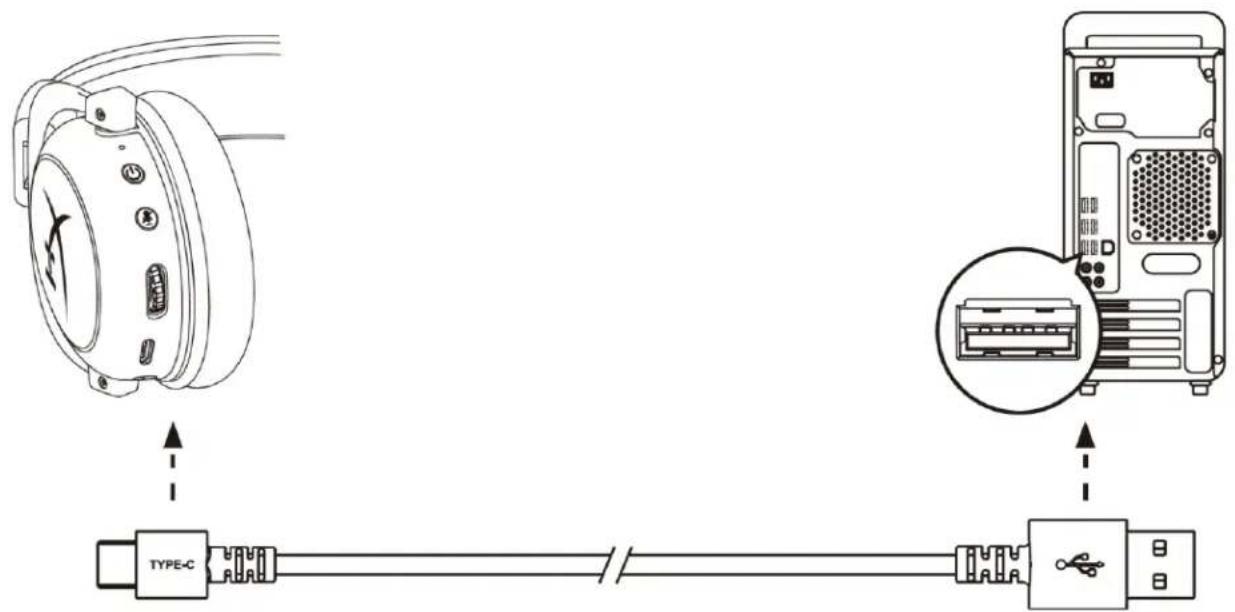

Wired charging

To charge the headset, plug the headset to a USB port with the included USB-C charge cable.

DTS Headphone:X

To use DTS Headphone:X, the DTS Sound Unbound app must be installed first. This app can be found in the Microsoft Store.

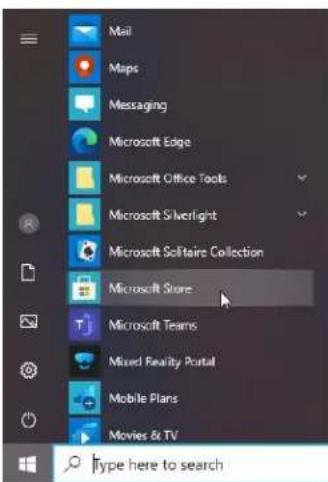

1. On Windows 10, open the Microsoft Store app.

1. In the app store search bar, type "DTS Sound Unbound" and search for the app.

1. Download and install the "DTS Sound Unbound" app.

1. Launch "DTS Sound Unbound" app to enable and configure DTS Headphone:X.

DTS Headphone:X can be enabled as long as the headset USB adapter is plugged into the PC. It can be enabled either in the DTS Sound Unbound app or through the Sound icon shortcut in the taskbar. To enable DTS Headphone:X through the taskbar, follow the steps below:

- Right click Speaker icon > Select Spatial sound > Select DTS Headphone: X

Manually Pairing the Headset and USB Adapter

The headset and USB adapter are automatically paired together out of the box. But if manual pairing is needed, follow the steps below to pair the headset and USB adapter.

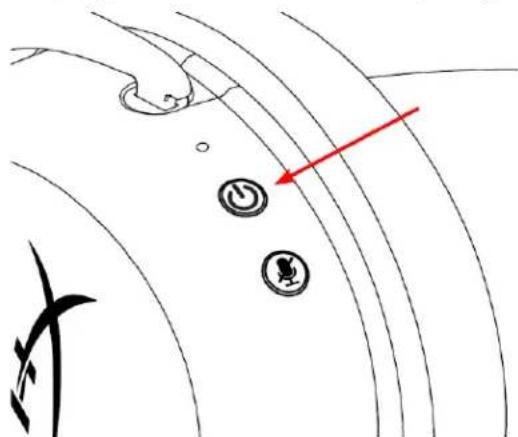

1. While the headset is powered off, hold down the power button until the headset status LED starts blinking red/green rapidly. The headset is now in pairing mode.

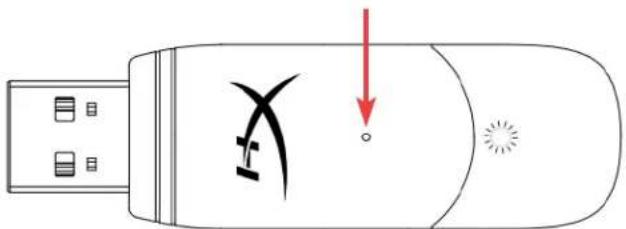

1. While the USB adapter is plugged in, use a small tool (e.g. paper clip, SIM tray ejector, etc.) to hold down the button inside the pin hole until the USB adapter LED starts blinking rapidly. The USB adapter is now in pairing mode.

1. Wait until both the headset LED and the USB adapter LED are solid. The headset and USB adapter are now paired together.

Questions or Setup Issues?

Contact the HyperX support team at: hyperxgaming.com/support/
