TL-WA855RE - Wi-Fi repeater TP-LINK - Free user manual and instructions

Brand	TP-Link
Model	TL-WA855RE
Product Type	Wi-Fi Repeater
Wi-Fi Standards	IEEE 802.11n/g/b
Maximum Speed	300 Mbps
Frequency Band	2.4 GHz
Antennas	2 fixed external antennas
Ports	1 Ethernet RJ45 10/100 Mbps port
Buttons	WPS, Reset
LED Indicators	Power, Signal, Ethernet, WPS
Power Supply	Direct plug-in (wall outlet)
Dimensions	110 x 65 x 75 mm
Weight	150 g
Wireless Security	WPA/WPA2, WEP
Maintenance	Clean with a soft, dry cloth
Operating Temperature	0°C to 40°C

Frequently Asked Questions - TL-WA855RE TP-LINK

How do I configure my TL-WA855RE repeater?

Plug the repeater into a power outlet near your router. Press the WPS button on the router, then press the WPS button on the repeater within 2 minutes. The signal LED becomes solid green when the connection is established. You can also configure via the web interface by connecting to the TP-LINK_Extender network and following the wizard.

What to do if the signal LED is off?

If the signal LED is off, the repeater is not connected to the router. Check that the router is on and the repeater is within range. Try moving the repeater closer to the router or restarting the WPS connection. If the problem persists, reset the repeater.

How to reset the repeater to factory settings?

With the repeater powered on, use a paperclip or pointed object to press the Reset button on the back for about 6 seconds. The LEDs flash, then the repeater restarts. Factory settings are restored.

Can I use the TL-WA855RE as an access point?

Yes, the TL-WA855RE can work in Access Point mode. Connect it to your router via an Ethernet cable, then access the web interface to switch the operating mode in advanced settings.

How to connect wired devices to the repeater?

The TL-WA855RE has one Ethernet RJ45 port on the back. Connect a wired device (computer, console) to this port. The device will obtain an IP address from the router and be able to access the Internet.

What is the maximum range of the repeater?

The range depends on the environment. Indoors, the TL-WA855RE can extend the Wi-Fi signal up to 100 meters line of sight, but walls and obstacles reduce this distance. Place the repeater halfway between the router and the area to cover.

How to update the firmware of the TL-WA855RE?

Download the latest firmware from the TP-Link website. Log into the repeater's web interface, go to System Tools > Firmware Upgrade, select the downloaded file, and click Upgrade. Do not power off during the process.

What to do if the repeater does not connect to the router?

Check that the router is broadcasting a Wi-Fi network (2.4 GHz) and the repeater is within range. Try restarting the WPS connection or configure manually via the web interface by entering the router's SSID and password. Make sure the router's MAC filter is not enabled.

Does the repeater work with all routers?

The TL-WA855RE is compatible with most standard Wi-Fi routers (IEEE 802.11b/g/n). It works with any router using the 2.4 GHz band. For dual-band routers, make sure the 2.4 GHz signal is active.

How to optimize the repeater's position for better coverage?

Place the repeater halfway between the router and the area with weak signal. Avoid metal obstacles and thick walls. The signal LED helps you: solid green = good connection, orange = acceptable, red = weak. Adjust the position until you get a green LED.

USER MANUAL TL-WA855RE TP-LINK

TP-Link Technologies Co., Ltd. South Building(floors 1,3,4,5) and 28(floors 1-4), Central Science & Technology Park, Shennan Rd, Nanshan, Shenzhen, China

TP-Link UK Limited Unit 2 & 3 Riverview (142-144), Cardiff Road, Reading, RG1 8EW

TP-Link France SARL 16-18 avenue Morane Saulnier 78140 Vélizy-Villacoublay France

TP-Link Hellas Ltd. Marathonodromou 77, Marousi 151 24, Greece

Specifications are subject to change without notice. 📄tp-link is a registered trademark of TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-Link Technologies Co., Ltd. Copyright © 2020 TP-Link Technologies Co., Ltd. All rights reserved.

For technical support, the user guide and other information, please visit https://www.tp-link.com/support/, or simply scan the QR code.

7106508577 REV3.0.0

Quick Installation Guide

Wi-Fi Range Extender

*Images may differ from actual products.

Contents

Deutsch----1

English 4

Español 7

Ελληνικά----10

Français----13

Italiano 16

Português 19

Suomi 22

Nederlands 25

Svenska----28

Norsk----31

Dansk 34

1 Einschalten

oder

→

Methode 2: Per Webbrowser

Plug the extender into an electrical outlet near your router and press the power button if it has one.

2 Connect your computer to the extender

Via Wireless

Disconnect your Ethernet connection from your computer and connect to the extender's network (e.g. TP-Link_Extender or TP-Link_Extender_XXXX).

Via Ethernet Cable (If the extender has an Ethernet port)

Disable the Wi-Fi on your computer. Connect your computer to the extender via an Ethernet cable.

3 Configure

Set up your extender via one of the methods.

Method 1: Via TP-Link Tether App

Get the up-to-date Tether app, and follow the app instructions to complete the setup.

Method 2: Via a Web Browser

1 Launch a web browser and enter http://tplinkrepeater.net or

http://192.168.0.254 in the address bar.

Create a password to log in.

2 Follow the instructions on the web page to complete the initial configuration.

4 Relocate

To achieve better signal quality, plug in the extender halfway between your router and the Wi-Fi dead zone.

Enjoy!

Connect your device to the extender using the extended SSID and Wi-Fi password that you've set during the configuration. The default Wi-Fi password is the same as your host network.

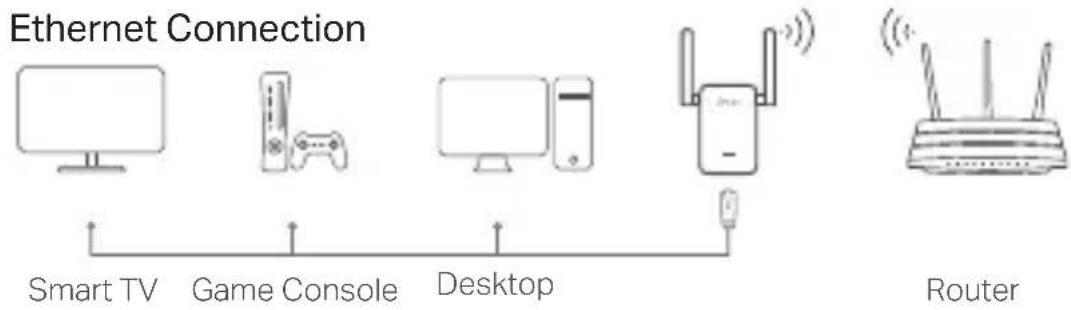

Entertainment Adapter

If your extender has an Ethernet port, it can be used as a wireless adapter to connect any Ethernet-only device such as a Blu-ray player, game console, DVR, or smart TV to your Wi-Fi network.

First, connect the extender to your router, then connect your Ethernet-only device to the extender via an Ethernet cable.

FAQ (Frequently Asked Questions)

Q1 Why can't I see the login page after entering http://tplinkrepeater.net in the browser?

A1: Make sure your computer is connected to the extender either via the extended SSID or via an Ethernet cable (if the extender has an Ethernet port).

A2: Make sure your computer is set to obtain an IP address automatically.

A3: Use the IP address to access the extender. The default IP is 192.168.0.254. If the extender is connected to the router, you should go to your router's DHCP client list to obtain the extender's current IP address.

A4: Reset the extender and connect to its wireless network, enter http://tplinkrepeater.net or http://192.168.0.254 in a web browser and press Enter.

Q2 How do I reset the extender?

A: With the extender powered on, press the RESET button until the LEDs turn on momentarily, then release the button.

1 Encender

Metodo 2: tramite Browser Web

Ou

→

Eller

Eller

→

Metode 2: Via a nettleser

- Keep the device away from water, fire, humidity or hot environments.

- Do not attempt to disassemble, repair, or modify the device.

- Do not use the device where wireless devices are not allowed.

- The socket-outlet shall be installed near the equipment and shall be easily accessible.

- For passthrough devices, plug the power strips into the integrated electrical sockets of the devices, but devices of the same or another type not be stacked in normal use.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

TP-Link Three Years Limited Product Warranty

For TP-Link Branded Products Only.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for a period of THREE YEARS form the date of original retail purchase by the end-user purchaser.

Español

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives (EU)2015/863, 2014/53/EU, 2009/125/EC and 2011/65/EU.

The original EU declaration of conformity may be found at http://www.tp-link.com/en/ce.

Español
