BC1400 - Kitchen scale UFESA - Free user manual and instructions

Product type	Electronic kitchen scale
Brand	UFESA
Model	BC1400
Maximum capacity	5 kg
Precision	1 g
Measurement units	g, kg, lb, oz, ml (water/milk)
Tare function	Yes, zeroes container weight
Display	LCD, backlit
Power supply	2 AAA batteries (not included)
Dimensions	20 x 15 x 2 cm
Net weight	300 g
Platform material	Stainless steel
Housing material	ABS plastic
Auto-off	Yes, after 2 minutes of inactivity
Overload indicator	Yes, displays 'Err'
Low battery indicator	Yes, icon on display
Non-slip surface	Rubber feet
Maintenance	Clean with a damp cloth, do not immerse
Safety	Do not use near water, household use only
Spare parts	Not available separately
Repairability	Repairability index not communicated
Warranty	2 years

Frequently Asked Questions - BC1400 UFESA

How to change the batteries of the UFESA BC1400 scale?

Open the battery compartment under the scale. Insert 2 AAA batteries respecting polarity (+/-). Close the cover.

What to do if the scale does not turn on?

Check that the batteries are properly installed and not worn out. If the screen stays off, replace with new batteries.

How to use the tare function?

Place an empty container on the scale, then press the TARE button. The display will show 0. Then add ingredients.

What is the maximum capacity of the scale?

The UFESA BC1400 scale can weigh up to 5 kg. Beyond that, an error message 'Err' appears.

How to clean the scale?

Wipe the platform and housing with a soft, slightly damp cloth. Never immerse the scale in water.

The scale turns off by itself, is this normal?

Yes, to save batteries, the scale automatically turns off after 2 minutes of inactivity.

Can we weigh liquids?

Yes, use a suitable container and the tare function. The scale can measure in ml for water and milk.

How to switch between units?

Press the UNIT button to switch between g, kg, lb, oz, ml. The unit is displayed on screen.

Is the scale accurate?

Yes, the precision is 1 g for reliable weighing in the kitchen.

What to do if the scale displays an unstable weight?

Place the scale on a flat, hard surface. Avoid drafts. Make sure the weighed object does not touch an obstacle.

USER MANUAL BC1400 UFESA

fes

Simple line drawing of a bowl with liquid and a diagonal line crossing through it (no text or symbols)

Simple line drawing of an umbrella crossed out by a diagonal line, no text or symbols present.

Utilización

Congratulations on your choice of our appliance, and welcome among the users of ufesa products. Please read this instruction manual carefully. Pay special attention to important safety instructions. Keep this instruction manual for future reference.

Handling instructions

Simple line drawing of a bowl with liquid and a diagonal line crossing through it (no text or symbols)

Do not immerse the scale base with grip in water

Simple line drawing of an umbrella with raindrops, no text or symbols present

Do not use or store in humid locations

Technical data

The technical parameters are indicated on the rating plate.

Accuracy: 1 g / 0.1 oz / 1 ml / 0.1 fl. oz

Maximum load: 3000 g / 6:9.8 lb.oz / 1200 ml / 42.2 fl.oz Batteries: 1 x CR2032 3 V

The appliance meets the requirements of applicable standards.

The appliance meets the requirements of COMMISSION REGULATION (EC) No. 1275/2008 on ecodesign requirements.

The appliance meets the requirements of Directives: -Electromagnetic compatibility (EMC) - 2004/108/EC. The CE mark is shown on the product's rating plate.

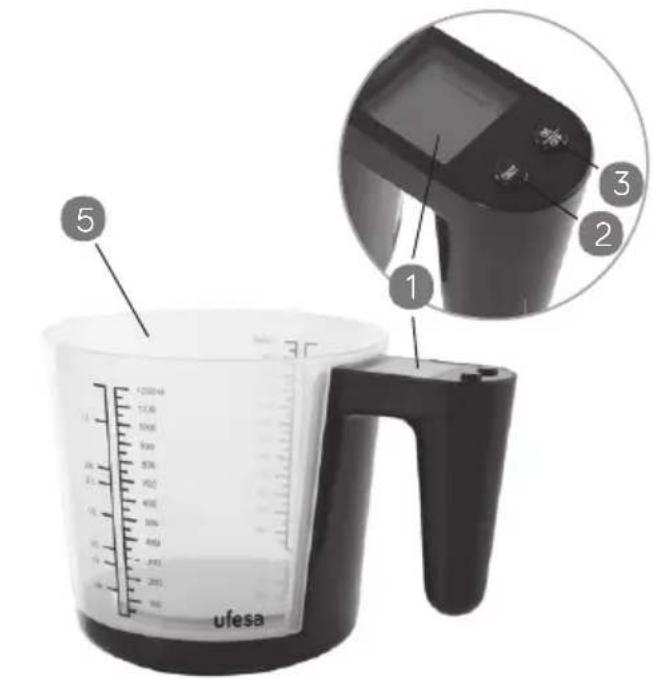

Product features

1 Display
2 Unit selection button UNIT ON
3 On/Off button (reset button) OFF
4 Rubber feet
5 Measuring cup
6 Battery compartment
7 Cup release button
8 Base with handle

Operation

Before first use

1 Unpack the appliance.

2 Insert a battery into the battery compartment (6) (see "Replacing batteries").

Using the appliance

1 Place the appliance on a hard and even surface. Do not use the appliance on a rug or other soft surface.

2 Fit the measuring cup (5) onto the base (8). A characteristic "click" will indicate that the measuring cup has been fitted properly.

3 Press the On/Off button ON to switch on the appliance.

4 Wait until the display shows "1".

5 Select your desired unit (see "Selecting weight units").

6 Place products in the measuring cup (do not overload the appliance; the max. weigh is 3000 g).

7 Weight of the product will appear on the display in the selected unit.

8 When finished weighing, switch off the appliance by pressing and holding down the On/Off button ON OFF for approx. 2 seconds.

Warning indicators

Replace the battery – the display will show "L"0 The appliance will switch off automatically after a few seconds.

Overload indicator – the display will show “” Remove the product from the weight to avoid damage.

Never put items exceeding the maximum permissible load of 3000 g (3 kg).

Display symbols

- - negative value tare - scale reset (tare) lb oz - pounds ounces fl.oz - ounces g - grams ml - millilitres

The display will show the "minus" symbol when using the tare function and after removing a measuring cup or other product after resetting the scale.

Functions

Reseting the appliance - tare

When the appliance is on, and the display shows a different symbol than "press the on/off button (zero value setting) ON (3) to set the zero value.

Automatic switch-off

The appliance will switch off automatically if no operation is performed for approx. 60 seconds.

It is recommended to switch off the appliance when finished weighing in order to maximize the battery life time.

Selecting weight units

The appliance is equipped with a weight unit selection function. To change the weight unit, press the unit change button until the desired unit is displayed.

Replacing batteries

The battery compartment is located at the bottom of the appliance. Before first use, open the compartment and insert a new battery.

1 To replace a battery, open the cover of the battery compartment (6) and remove the old battery.
2 Insert a new CR2032 battery.
3 Close the cover of the battery compartment.

Cleaning and maintenance

Clean with a damp cloth. Do not immerse the base in water or use chemical/abrasive cleaning products.

Clean all plastic components immediately if soiled with grease, spices, vinegar or food with an intense taste/ colour. Avoid contact of the appliance with citrus fruit juices.

When removed from the appliance base, the measuring cup may be immersed in water and cleaned with a dishwashing detergent or in a dishwasher.

Never use any aggressive, abrasive or alcohol-based cleaning products.

Abrasive clothes or sponges may scratch the surface of your appliance.

Advice on disposal

Our goods come in optimised packaging. This basically consists in using non-contaminating materials which should be handed over to the local waste disposal service as secondary raw materials.

This product complies with EU Directive 2002/96/EC. The crossed wheelie bin symbol shown on the appliance indicates that when it comes to dispose of the product it must not be included in with household refuse. It must be taken to a special refuse collection point for electric and electronic appliances or returned to the distributor when purchasing a similar appliance. Under current refuse disposal regulations, users who fail to take discarded appliances to special refuse collection points may be penalised. Correct disposal of discarded appliances means that they can be recycled and processed ecologically, helping the environment and allowing materials used in the product to be reused. For more information on available waste disposal schemes contact your local refuse service or the shop where the product was purchased. Manufacturers and importers are responsible for ecological recycling, processing and disposal of products, whether directly or via a public system.

Your local town council can provide you with information about how to dispose of obsolete appliances.

The manufacturer/importer does not accept any liability for any damages resulting from unintended use or improper handling. The manufacturer/importer reserves his rights to modify the product any time in order to adjust it to law regulations, norms, directives, or due to construction, trade, aesthetic or other reasons, without notifying in advance.
