Product Type	Smartphone Scanner
Brand	Reflecta
Model	Smartphone Scanner
Dimensions (approx.)	110 x 55 x 22 mm
Weight (approx.)	85 g
Power Source	Rechargeable Li-ion battery (USB charging)
Connectivity	Bluetooth 4.0 or Wi-Fi (depending on model)
Compatibility	iOS and Android devices
Scanning Resolution	Up to 600 dpi (interpolated)
Scanning Area	Up to A4 size (210 x 297 mm)
Software	Reflecta Scan app (free download)
Document Formats	PDF, JPEG, TIFF
Battery Life	Up to 200 scans per charge
Charging Time	Approx. 2 hours
Maintenance	Clean lens with a soft, dry cloth; avoid solvents
Safety Precautions	Do not expose to moisture; keep away from direct sunlight
Spare Parts & Repairability	Contact Reflecta support; battery replacement possible
Box Contents	Scanner, USB cable, carrying pouch, quick start guide
Warranty	1 year manufacturer warranty
General Information	Reflecta smartphone scanner is designed for portable document scanning on the go.

Frequently Asked Questions - Smartphone Scanner Reflecta

How do I connect the smartphone scanner to my phone?

Download the Reflecta Scan app from the App Store or Google Play. Turn on the scanner and enable Bluetooth or Wi-Fi on your phone. The app will guide you through pairing.

What is the maximum scanning resolution?

The scanner can capture up to 600 dpi interpolated resolution. For most documents, 300 dpi is recommended for a balance of quality and file size.

Can I scan documents larger than A4?

No, the maximum scanning area is A4 size (210 x 297 mm). For larger documents, use the app's stitching feature to combine multiple scans.

How long does the battery last?

The built-in rechargeable battery supports up to 200 scans on a full charge. Charging via USB takes approximately 2 hours.

What file formats are supported?

Scanned documents can be saved as PDF, JPEG, or TIFF directly from the app. You can also adjust compression settings.

Do I need an internet connection to use the scanner?

No, the scanner works offline. However, the app requires internet for downloading and updates. Scanning and saving are done locally.

How do I clean the scanner lens?

Use a soft, lint-free cloth slightly dampened with water or lens cleaning solution. Do not spray liquid directly on the scanner. Avoid abrasive materials.

My scanned images are blurry. What should I do?

Ensure the document is flat and the scanner is held steady. Clean the lens and check if the scanner's sensor is unobstructed. Try increasing the resolution in the app.

Can I scan slides or negatives with this scanner?

No, this model is designed for flat documents only. For slides or negatives, consider Reflecta's dedicated film scanners.

Where can I find the user manual?

The user manual is available for free download on notice-facile.com in PDF format. You can also access it within the Reflecta Scan app.

USER MANUAL Smartphone Scanner Reflecta

Film and slide scanners for any purpose

Contents

Smartphone Scanner 4

x1 - Scan....5

S1-Scan 6

x5-Scan....7

x7-Scan....8

MemoScan....9

iPad-Scan....10

KWIK-Scan....12

PhotoScan A4....13

ImageBox LCD9....15

iScan 3600....16

CrystalScan 7200 ....17

ProScan 7200....18

RPS 7200 Professional....19

DigitDia 6000 ....20

Midformatscan MF 5000....23

Overview and technical data....24-27

Film strip collage showing a film with black film strips and scattered square screens (no text or symbols)

Tropical beach scene with a white jet boat and palm tree in the foreground under a clear blue sky (no text or symbols visible)

Smartphone Scanner

With reflecta Smartphone Scanner and iPhone 4/4S/5 or a Samsung Galaxy S2/S3, users can now digitize slides and negatives (35mm) as well photos (9x13 cm, 10x15 cm) very easily.

Simply fix your smartphone into the envisaged bay on top of the reflecta Smartphone Scanner. The reflecta Smartphone Scanner features built-in LED's as light source.

For the best software, you are recommended to download the free “ipphotojet” app from the Apple App Store and Android Play Store.

The scan is started with the press of a button. The results are stored as JPG files directly in the smartphone, while the photos are inserted and scanned individually.

x1 - Scan

Due to the application of a high performance CMOS image sensor and the enhancement of the color depth from 24 bit to 30 bit, the x1-Scan achieves very good scans. The scanning speed is only 1

second at 1800 ppi fine scan. Quick connection using USB 2.0; no additional mains adapter required.

S1 - Scan

The reflecta S1-Scan offers a 2,4" LCD-Display on which you can see the pictures right away, an integrated storage of 32 MB, an integrated SD/SDHC-card slot as well as a TV-Out- and USB port. Therefore reflecta

S1-Scan is universal and PC independent and with his small, compact and handy size all-round deployable. Via the menu it's possible to arrange a brightness correction. The Scans can be directly stored at the SD/SDHC card via the card slot to display them afterwards onto a Digital Photo frame. The files card can be transferred onto the Computer via the USB-cable. The enclosed software is only an image editing program.

x5-Scan

White and black digital camera with a screen displaying a photo, no visible text or symbols on the device itself.

The reflecta x5-Scan regulates about 2,4 inch LCD-Display on which you can see the pictures immediately, stored on 32 MB internal memory, an integrated SD/SDHC-card slot as well as a TV-Out and a USB port.

The reflecta x5-Scan is universal and PC independent deployable. With the SD-card slot the pictures can be stored directly on SD card for watching them as example on a Digital

Picture Frame. The files can be transferred onto the computer via the USB-Cable. The brightness can be quickly adjusted by the correction button

on top of the scanner. The enclosed software is only an image editing program.

Black square electronic device with open lid and close-up photo of a person holding a photo (no visible text or symbols)

With the reflecta x7-Scan with 3200 dpi resolution it's possible to scan with 14,0 Megapixel and beside film and slide additionally pocketfilm (110) and 126 mm film. The reflecta x7-Scan offers a 2,4" LCD-Display, an integrated SD/SDHC card slot and a Lithium-Ion battery to allow using the scanner completely independent from a PC or power supply, respective as Stand-Alone Scanner. The Scans can be directly stored at the SD/SDHC card via the card slot to display them afterwards onto a Digital Photo Frame. The files from SD/SDHC card can be transferred onto the Computer via the USB port and USB-cable.

The brightness can be quickly adjusted by the correction button on top of the scanner. The enclosed Software is only an image editing program.

MemoScan

The reflecta MemoScan is the first scanner with CMOS sensor which offers an automatic dust and scratch removal via infrared sensor (MAGIC TOUCH). The fast scan speed and the dust and scratch removal function allow for an efficient working.

The included slide holder accommodates up to 4 mounted slides, the film holder film strips with up to 6 photos.

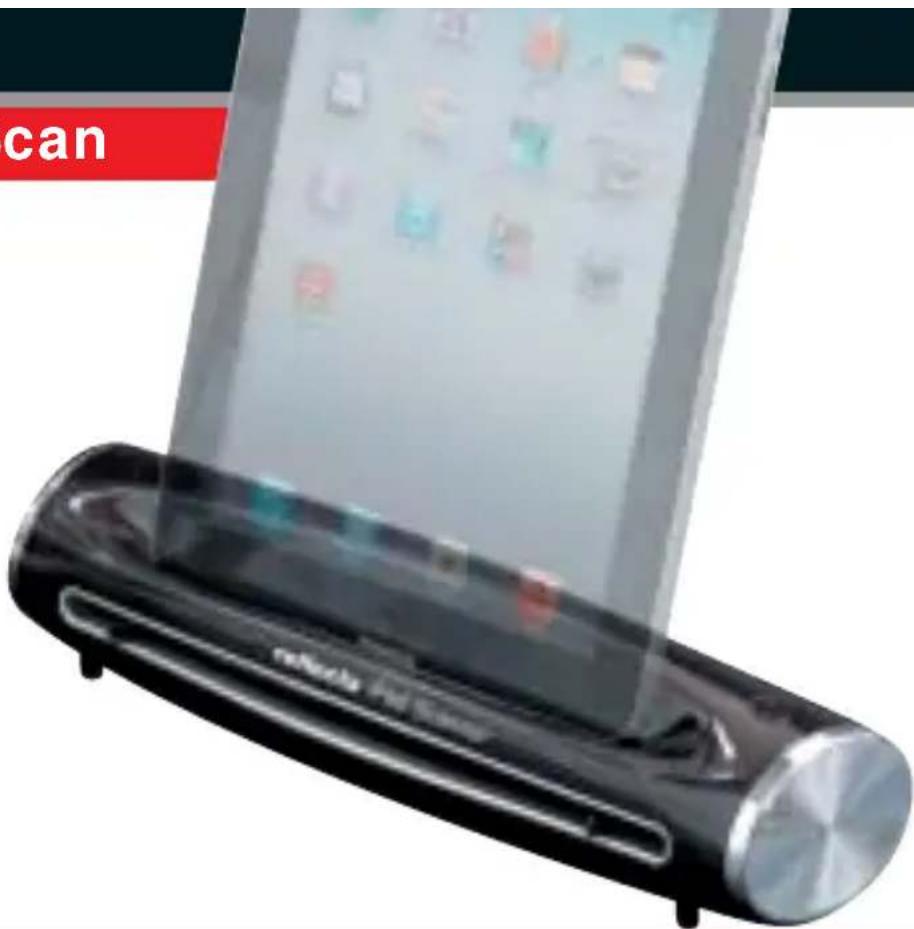

iPad-Scan

With the reflecta iPad-Scanner you can scan automatically documents / photos up to size of 21,59 x 35,56 cm (US-Legal) directly on your iPad / iPad2 / iPad3.

The scanner has got a reso- lution of 300 dpi and the ori-

ginals are feeded automatically and directly saved as JPEG files. The scanner can also be used as Docking-Station for iPad / iPad2 / iPad3.

A lifebuoy with orange ring and white stripes stands on a beach, overlooking the ocean and distant island (no text or symbols visible)

KWIK-Scan

This is the fast, comfortable and easy way to scan, archive and organise books, newspaper articles, recipes, contracts, documents and photos. Simply drag the scanner over the scan document.

The data is stored in the JPG format directly on the supplied microSD card. The scanner can be connected to the computer via the USB port to read the data.

With its low weight and compact design, the KWIK-Scan can be used anytime and anywhere (no Mains or USB power is needed).

Editing the scanned documents on the computer is very simple with the included OCR software.

PhotoScan A4

This is the fast, comfortable and easy way to scan, archive and organise, recipes, contracts, documents and photos. The scanner feeds the original automatically. The data is stored directly onto a memory card (SD /SDHC, MS, MS Pro, MMC) in the JPG or EXIF format.

The scanner can be connected to the computer via the USB port to read the data. With its low weight and compact design, the reflecta PhotoScan A4 can be used on any desk. Editing the scanned documents on the computer is very simple with the included OCR software. Also you can transfer for example business cards into Outlook system/Software.

Close-up of a smiling woman holding a smartphone, with no visible text or symbols

Autumn landscape with a large tree and scattered yellow and orange leaves on grass under a clear blue sky (no text or symbols)

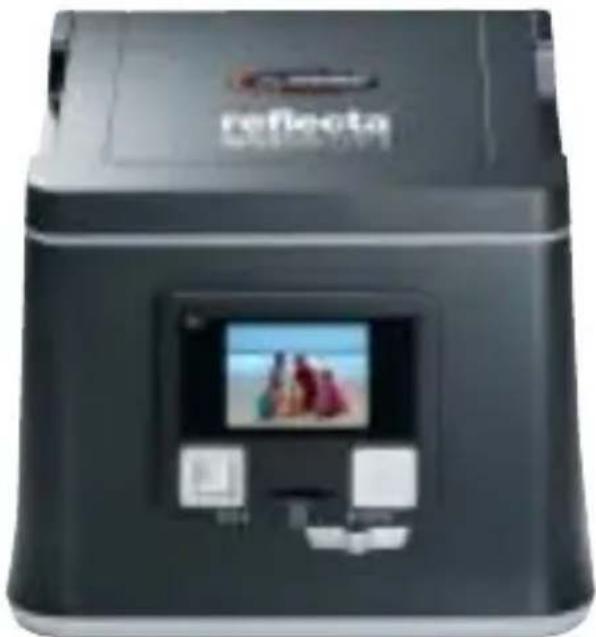

IMAGEBOX LCD9

Exterior view of a reflective digital camera device (no visible text or symbols on body)

With the reflecta IMAGEBOX LCD9 it is very easy to scan slides, negatives and photos. The Imagebox LCD9 has an amazing resolution of 9 mega-pixels (2400 dpi), as well as a 2,7" LCD-Display. Thereby the IMAGEBOX LCD9 is computer independent and can nearly be used always and everywhere. A highlight is the MAGIC TOUCH technology, a scratch and dust removal system based on infrared technology for slides and negatives (not for photos!). To scan the photos (up to size 10x15 cm) just put them on the scan surface and start. You don't need a holder. The IMAGEBOX LCD9 comes with a slide holder for 4 framed slides, a film strip holder for negative/positive film strips up to 6 photos. The scantime for all medias is 1 second.

iScan 3600

Teal-colored medical device with a black internal component, no visible text or symbols

The iScan 3600 is a model with a favourable price and easy operating with 3600 dpi. Due to the CCD sensor it has a lot of professional features to digitalise quick and com-

fortable all negatives and slides. This digital files could be processed in a different way on a computer.

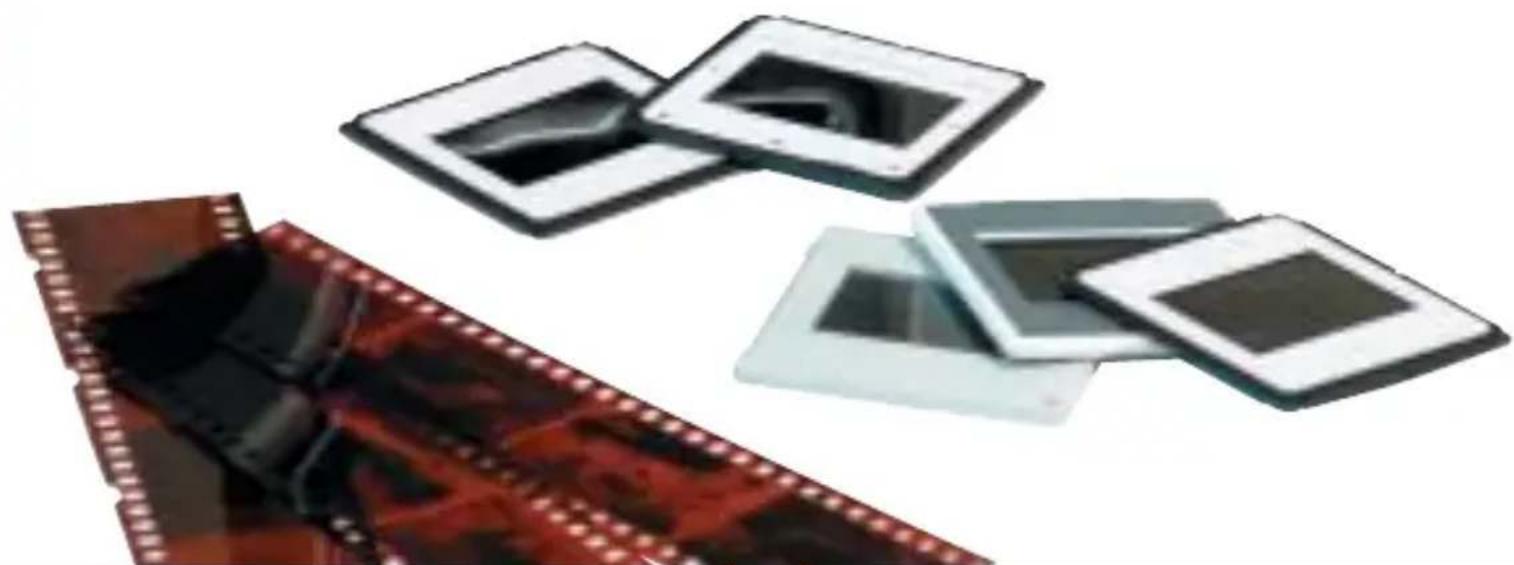

Film strip with film fragments and a film reel, no visible text or symbols

This scanner is the ideal device for high-resolution digitalization of your slides and negatives. The scanner is equipped with 7200x3600 dpi permitting extremely high-quality print production up to A4 size. Therefore the fast scanning speed and the digital ICE3™ – hardware dust and scratch removal - enables the user a effective working. Digital ICE3 ^TM means:

• Digital ICE™ – Hardware based Dust and Scratch removal with infrared sensors and automatically Software correction
• Digital ROC™ – Color Restoration; Image Quality will be restored
• Digital GEM™ – Grain Management; minimize grain to restore the image’s sharpness

ProScan 7200

The ProScan 7200 provides an optical Resolution of 3600 dpi, a Dynamic Range of 3.8 Dmax and an extreme fast scanning time of 1 min 35 Sec for an colour scan with 3600 dpi and 48 Bit Colour Depth. The high scanning speed and also the hardware based dust and scratch removal system ICE contribute the ProScan 7200 to a very effective working tool. Using the attached slide and filmholder allows a high Scan efficiency and finally results in a time saving.

Digital ICE3™ means:

- Digital ICE™ – Hardware based Dust and Scratch removal with infrared sensors

- Digital ROC™ – Color Restoration; Image Quality will be restored

- Digital GEM™ – Grain Management; minimize grain to restore the image’s sharpness

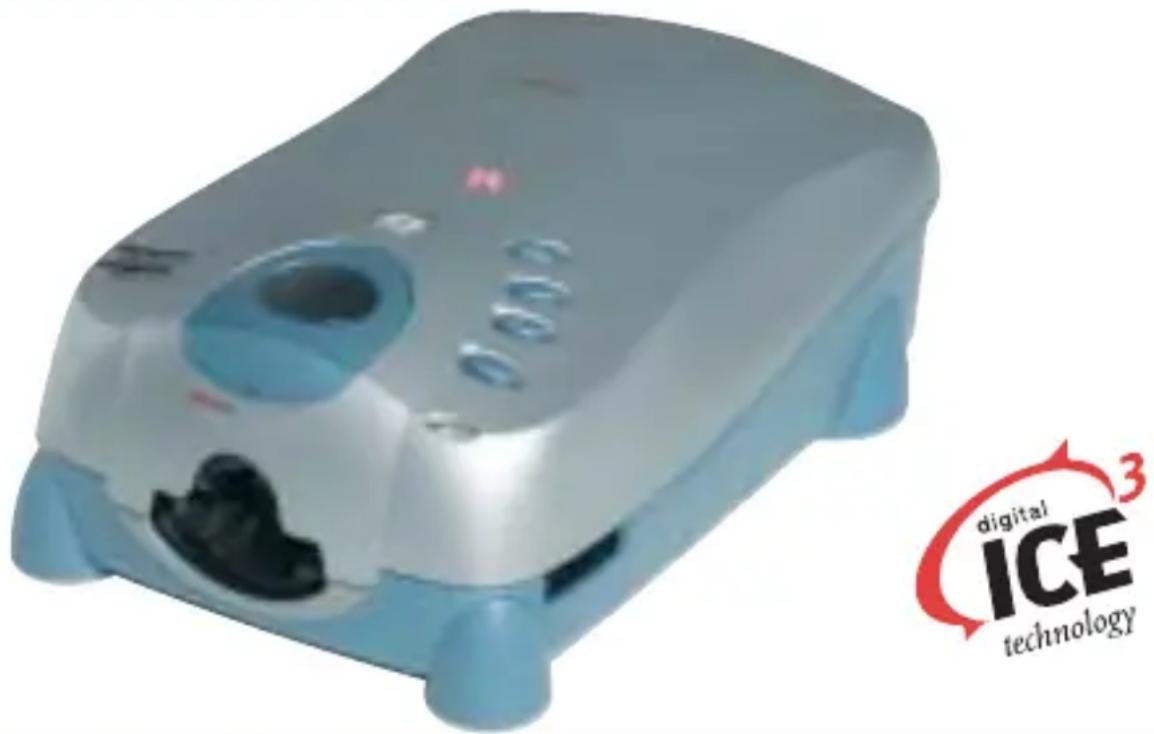

RPS 7200 Professional

3D rendered medical device with blue and silver casing, no visible text or symbols on the device itself

The RPS 7200 Filmscanner offers the highest resolution and simultaneously a favourable price. The scanner increases the productivity by using the batch scanning possibility. The auto filmloader allows scanning film stripes up to 36 exposures means a whole film roll. The amazing resolution of 7200x7200 dpi and his enormous flexibility will make this scanners as first choice for demanding jobs in imaging editorial offices, photo studios, graphic studios, science institutes, but also in the home sector.

Digital ICE3 ^TM means:

• Digital ICE™ – Hardware based Dust and Scratch removal with infrared sensors
• Digital ROC™ – Color Restoration
• Digital GEM™ – Grain Management

DigitDia 6000

The DigitDia 6000 is the only scanner which allows you to scan slides directly from the slide magazine in batch operation. With a resolution of 5000 dpi and a colour depth of 48 bit, the reflecta DigitDia 6000 produces scans in top quality. The fast scanning speed together with the integrated dust and scratch removal feature MAGIC TOUCH 3 allow for an effective working. The scanner offers automatic scanning of up to 100 slides straight from the magazine (CS, Universal, LKM and Paximat) to save time.

MAGIC TOUCH 3 means:

• Magic Touch: Hardware based Dust and Scratch removal via infrared sensors
  • Auto Color: Colour correction; improved colour quality
• Digital Noise Reduction: Sharpness correction; grain is reduced to improve image sharpness

Exterior view of a large amusement park ride with passengers on swings under a clear blue sky (no signage or text visible)

Scenic view of a calm lake reflecting in the sky with autumn trees and rocky cliffs in the background (no text or symbols visible)

Midformatscanner MF 5000

With the first reflecta Midformat-scanner it is possible to scan 120/220 mm, 6x4,5, 6x6, 6x7, 6x8, 6x9, 6x12 as well as 35 mm (positive and negative). Due to the application of 3-lines-CCD Sensor with MAGIC TOUCH 3

(automatic Dust and Scratch removal with infrared sensor) you can expect excellent quality.

Black rectangular electronic device with multiple film strips and small square components, no visible text or symbols

Overview

Smartphone x1- S1- x5- x7- Scanner Scan Scan Scan Scan

Film material

Negative strips · · · · ·

Positive strips · · · · ·

Framed slides (5 x 5) · · · · ·

Pocket film strips (110) --

Medium format

Photos

Documents (DIN A4)

Business cards

Manuel loading

Motor driven loading

Batch scan unit

Scan unit

Optical resolution (DPI) – 1800	1800	1800	3200
Scan range (mm) max.	10x15	24x36	24x36	24x36	24x36
Color depth (Bit)	-	30	30	30
Optical densitiy (Dmax)	-	3.0	3.0	3.0
Linear colourCCD	--	--	-
CMOS sensor	-·····
Color Contact Image Sensor (CIS)	--	---
Scanning speed(1800 dpi) –	1s	1s	1s	1s
ICE3TM-/Magic Touch .	-	-/-	-/-	-/-

Interfaces

USB / USB2.0 -/- -/-•	•/-	•/- -/-•
TV-Out	--	•	• •

Software

Scansoftware Cyberview	--	--	-
Scansoftware Silverfast SE	--	--	-
Scansoftware Silverfast AI Studio	-	-	-	-	-
SilverFast Archive Suite --	--	-
ArcSoft Photoimpression	-	-	•	•	-
ArcSoft Mediaimpression - •	-- •
Optical Character Recognition --	-- -

Operating systems

Windows	-	XP/Vista/7	-	-	-
Mac OSx	--	--	-

Dimensions and weight

Dimensions (mm)	24,5x12,5x15,8	100x90x165	92x90x100	92x92x175	105x104x164
Weight (g)	1000	450	500	500	500
Ref. No.	64380	64210	64270	64250	64370

Memo iPad KWIK- PhotoScan Imagebox Scan Scan Scan A4 LCD9

●	—	—	—	●
●	—	—	—	●
●	—	—	—	●
—	—	—	—	—
—	—	—	—	—
—	●	●	●	●
—	●	●	●	—
—	●	●	●	—
●	—	●		—
—	●	—	●	—
—	—	—	—	—

1800 300 300/600 300/600 2400

24x36 215,9 x 355,6 210 breit DIN A4			100x150
24	-			30
3.0	-			3.0
-	-	-	-	-
•	-	-	-	•
-	•	•	•	-
1s	6 pages/min.			1s
-/-	-	-/-	-/-	-/-
-/-	-/-	-/-	-/-	-/-
-	-	-	-	•
•	-	-	-	-
-	-	-	-	-
-	-	-	-	-
-	-	-	-	-
-	-	-	-	-
-	-	•	•	-
/Vista/7/8	-	-	-	-
10.4 +	-	-	-	-
5x104x96	308x111x72	225x32x34	269x59x44	245x229
450	680	350	395 1400
64230	65958	65950	65956	6414

Close-up of a pink flower with orange stamens against a blurred blue and white background (no text or symbols)

Overview

	iScan3600 Scan	Crystal7200 7200 7200 6000	ProScan	RPS	DigitDia
Film material
Negative strips • • • • –
Positive strips • • • • –
Framed slides (5 x 5) • • • • •
Pocket film strips (110) – – – –
Medium format – – – – –
Photos	– – – – –
Documents (DIN A4)	– – – – –
Business Cards	– – – – –
Manuel loading	• • •	–	–
Motor driven loading	– – –	• •
Batch scan unit	– – –	• •
Scan unit
Optical resolution (DPI) 3600	7200x3600	3600 7200 5000
Scan range (mm)	24x36	24x36	24x36	24x36	37x37
Colour depth (Bit)	48	48	48	48	48
Optical densitiy (Dmax)	3.0	3.2	3.8	3.6	3.8
Linear colour CCD	• • • • •
CMOS sensor	– – – – –
Color Contact Image Sensor (CIS)	– – – – –
Scanning speed (1800 dpi)	35s	35s	35s	50s	50s
ICE3TM-/Magic Touch	–/–	•/–	•/–	•/–	–/•
Interfaces
USB / USB2.0	•/–	•/•	•/•	•/•	•/•
TV-Out	– – – – –
Software
Scansoftware Cyberview	• •	• •	•
Scansoftware Silverfast SE	optional	optional	optional	–	–
Scansoftware Silverfast AI Studio	–	optional	optional	optional	optional
SilverFast Archive Suite	– – – –	optional
ArcSoft Photoimpression	– – – – –	–
ArcSoft Mediaimpression – – – – –
Optical Character Recognition – – – – –
Operating systems
Windows	XP/Vista/7	XP/Vista/7/8	XP/Vista/7/8	XP/Vista/7/8	XP/Vista/7/8
Mac OSx	10.4–10.6.9	10.5+	10.5+	10.5+	10.5+
Dimensions and weight
Dimensions (mm)	268x166x66	278x169x70	275x167x80	274x183x97	300x290x125
Weight (g)	810	1000	1000 1400	2900
Ref. No.	64150	65380	65430	65920	65660

MF-5000 Scanner

6x4,5 - 6x12

3200

max. 6x12 cm

48

3.6

•

一

-

-/-

•/•

-

•

一

optional

optional

-

-

一

XP/Vista/7/8

10.5+

320×165×160

5300

66000

Flooded canal scene in Venice with brick buildings and a gondola, reflecting on water (no text or symbols visible)

As part of our continued efforts to improve the quality of our products, we reserve the right to change our products without notification.

Ref. No. 72235 V08/13 E
