Brand	Samsung
Model	HW-J250
Category	Soundbar
Product type	2.1 channel soundbar with wireless subwoofer
Dimensions (W x H x D) main unit	940 x 55 x 80 mm
Dimensions (W x H x D) subwoofer	171 x 302 x 261 mm
Weight main unit	2.2 kg
Weight subwoofer	4.5 kg
Power supply	220-240 V, 50/60 Hz
Power consumption	30 W (standby), 300 W (max)
Total power	300 W RMS
Audio channels	2.1 (left, right, subwoofer)
Main features	Bluetooth, USB, optical input, auxiliary input, Dolby Digital
Connectivity	Bluetooth 4.0, USB, Optical Toslink, AUX 3.5 mm
Subwoofer	Wireless, automatic connection
Remote control	Yes, included
Safety	Automatic power off (Auto Power Off)
Maintenance and cleaning	Use a soft, dry cloth. Do not use solvents.
Spare parts	Remote control, power cable, optical cable
Repairability	Repairs must be carried out by an authorized Samsung service.

Frequently Asked Questions - HW-J250 SAMSUNG

How do I connect the soundbar to my TV?

Use an optical cable (Toslink) by connecting the TV's optical output to the soundbar's optical input. You can also use an AUX 3.5 mm cable or the Bluetooth connection if your TV supports it.

How do I pair the wireless subwoofer?

The subwoofer connects automatically to the soundbar when first powered on. If not, turn both devices off and then on again. Make sure the subwoofer indicator turns solid blue, indicating a successful connection.

The remote control does not work, what should I do?

First check the batteries: replace them with new ones. Then make sure there is no obstacle between the remote and the soundbar. If the problem persists, try to reset the soundbar by unplugging and re-plugging the power.

How do I stream music from my smartphone via Bluetooth?

Press the Source button on the remote until Bluetooth mode is selected. Activate Bluetooth on your smartphone and select 'Samsung HW-J250' from the list. The connection is automatic after pairing.

The soundbar does not turn on at all.

Check that the power cable is properly connected to the soundbar and the wall outlet. Try another outlet. If it still does not turn on, the problem may be with the internal power supply; contact Samsung after-sales service.

How do I adjust the bass level?

Use the Bass Boost button or adjust the bass level via the remote (+/- buttons on the 'Bass' function). You can also adjust via the SmartThings app if your model supports it (not available for this model).

Can I use the soundbar with a projector?

Yes, if your projector has an optical audio output or an AUX 3.5 mm jack. Connect it via the corresponding input on the soundbar. Some projectors may require a Bluetooth adapter if wired connection is not possible.

How do I update the soundbar firmware?

This model does not support user firmware updates. Any improvements must be made through an authorized service center. Make sure you have the latest version by contacting Samsung.

What to do in case of hissing or background noise?

Move the soundbar away from other electronic devices (router, phone) that may cause interference. Check that cables are securely connected. If the problem persists, try a reset by holding the power button for 10 seconds.

How do I reset the soundbar to factory settings?

Turn off the soundbar. Press and hold the Source button on the soundbar for about 5 seconds until 'INIT' appears on the display. Release. The soundbar will restart and return to factory settings.

USER MANUAL HW-J250 SAMSUNG

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/register

FEATURES

TV SoundConnect

TV SoundConnect lets you listen to audio from your TV on your Soundbar via a Bluetooth connection and lets you control the sound.

Special Sound Effects

You can select different Sound Effects - Voice (Red) / Sports (Green) / 3D Sound Plus (White) / STANDARD (Original Sound) - depending on the type of content you want to enjoy.

Multi-function Remote Control

You can use the supplied remote control to control various operations with the simple press of a button.

USB Host Support

You can connect and play music files from external USB storage devices such as MP3 players, USB flash memory, etc. using the Soundbar's USB HOST function.

Bluetooth Function

You can connect a Bluetooth device to the Soundbar and enjoy music with high quality stereo sound, all without wires!

Using the Samsung Audio Remote App

To control the product with your Smart Device via the Samsung Audio Remote app, download the Samsung Audio Remote App by accessing the app through the Google Play store.

LICENSES

DOLBY

AUDIO

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

2.0 Channel

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS 2.0 Channel are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

				This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any internal part of this product.
				This symbol indicates that this product has included important literature concerning operation and maintenance.

	Class II product : This symbol indicates that it does not require a safety connection to electrical earth (ground).
	AC voltage : This symbol indicates that the rated voltage marked with the symbol is AC voltage.
	DC voltage : This symbol indicates that the rated voltage marked with the symbol is DC voltage.
	Caution, Consult instructions for use : This symbol instructs the user to consult the user manual for further safety related information.

WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

• This apparatus shall always be connected to an AC outlet with a protective grounding connection.
• To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.

CAUTION

• Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases, on the apparatus.
• To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power plug must be easily and readily accessible at all times.

PRECAUTIONS

Ensure that the AC power supply in your house complies with the power requirements listed on the identification sticker located on the back of your product. Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation (7~10 cm). Make sure the ventilation slots are not covered. Do not place the unit on amplifiers or other equipment which may become hot. This unit is designed for continuous use. To fully turn off the unit, disconnect the AC plug from the wall outlet. Unplug the unit if you intend to leave it unused for a long period of time.

During thunderstorms, disconnect the AC plug from the wall outlet. Voltage peaks due to lightning could damage the unit.

Protect the product from moisture (i.e. vases), and excess heat (e.g. a fireplace) or equipment creating strong magnetic or electric fields. Unplug the power cable from the AC wall socket if the unit malfunctions. Your product is not intended for industrial use. It is for personal use only. Condensation may occur if your product has been stored in cold temperatures. If transporting the unit during the winter, wait approximately 2 hours until the unit has reached room temperature before using.

Do not expose the unit to direct sunlight or other heat sources. This could lead to overheating and cause the unit to malfunction.

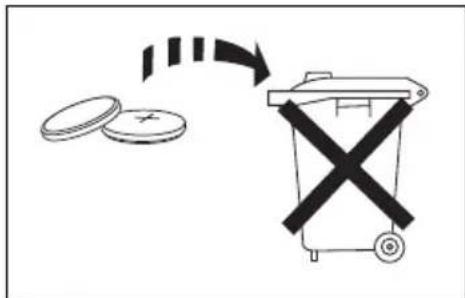

The battery used with this product contains chemicals that are harmful to the environment. Do not dispose of the battery in the general household trash. Do not expose the battery to excess heat, direct sunlight, or fire. Do not short circuit, disassemble, or overheat the battery. Danger of explosion if the battery is replaced incorrectly. Replace only with the same or equivalent type.

WARNING: DO NOT INGEST BATTERY. CHEMICAL BURN HAZARD. The remote control supplied with this product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the remote and make

sure to keep it away from children. If you think the battery might have been swallowed or placed inside any part of the body, seek immediate medical attention.

CONTENTS

2 FEATURES

2 Licenses

3 SAFETY INFORMATION

3 Safety Warnings

4 Precautions

6 GETTING STARTED

6 Before reading the User's Manual

6 What's Included

7 DESCRIPTIONS

7 Top/Front Panel

8 Rear Panel

9 REMOTE CONTROL

9 Remote Control Buttons and Functions

11 CONNECTIONS

11 Installing the Wall Mount

12 Detaching the Wall Mount

13 Installing the bracket without referring to the Wall-mount Installation Guide

14 Connecting an External Device using Audio (analog) cable or Optical (digital) cable

15 FUNCTIONS

15 Input Mode

16 Bluetooth

18 Using the Samsung Audio Remote APP

19 TV SoundConnect

20 USB

21 Software update

22 TROUBLESHOOTING

23 APPENDIX

23 Specifications

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.

An administration fee may be charged if either

(a) An engineer is called out at your request and there is no defect with the product (i.e. where the user manual has not been read).

(b) You bring the unit to a repair centre and there is no defect with the product (i.e. where the user manual has not been read).

You will be informed of the administration fee amount before a technician visits.

GETTING STARTED

BEFORE READING THE USER'S MANUAL

Note the following terms before reading the user manual.

▶ Icons used in this manual

Icon	Term	Definition
	Caution	Indicates a situation where a function does not operate or settings may be canceled.
	Note	Indicates tips or instructions on the page that help you operate a function.

▶ Safety Instructions and Troubleshooting

1) Be sure to familiarize yourself with the Safety Instructions before using this product. (See page 3) 2) If a problem occurs, check Troubleshooting. (See page 22)

▶ Copyright

©2015 Samsung Electronics Co., Ltd.

All rights reserved; no part of this user's manual may be reproduced or copied without the prior written permission of Samsung Electronics Co., Ltd.

WHAT'S INCLUDED

Check for the supplied accessories shown below.

Remote Control / Lithium Battery (3V : CR2032)

User Manual

(Wall Mount L: 1EA)

(Holder-screw1: 2EA)

(Wall Mount R: 1EA)

(Holder-screw2: 2EA)

Wall Mount Guide

Power Cord DC Adapter Optical Cable

Holder-screw

USB Cable

• The appearance of the accessories may differ slightly from the illustrations above. • Use the dedicated USB cable to connect external USB devices to the unit.

DESCRIPTIONS

TOP/FRONT PANEL

Displays the current mode.

Display Color	Input mode
	White	D.IN (Optical Digital input) mode
	Red	AUX input mode
	Green	TV SoundConnect
	White	BLUETOOTH mode
	White	USB mode
	Red	Voice Mode
	Green	Sports Mode
	White	3D Sound Plus Mode

• When you turn on this unit, there will be a 4 to 5 seconds delay before it produces sound.
• If you want to enjoy sound only from the Soundbar, you must turn off the TV's speakers in the Audio Setup menu of your TV. Refer to the owner's manual supplied with your TV.

REAR PANEL

Connect to the digital (optical) output of an external device.

• When disconnecting the power cable of the AC power adaptor from the wall outlet, pull the plug. Do not pull the cable.
• Do not connect this unit or other components to an AC outlet until all connections between components are complete.

REMOTE CONTROL

REMOTE CONTROL BUTTONS AND FUNCTIONS

Installing the Batteries in the Remote Control

1. Use a suitable coin to turn the remote control's battery cover counterclockwise to remove it as shown in the figure above.

1. Insert a 3V lithium battery. Keep the positive (+) pole facing up when inserting the battery. Put the battery cover on and align the '●' marks side by side as shown in the figure above.

1. Use a suitable coin to turn the remote control battery cover clockwise as far as it will go to fix it in place.

MUTE

Push the Mute button to turn the volume down to 0. Press again to restore the sound to the previous volume level. If you turn mute on, the current function LED blinks.

WOOFER LEVEL

You can control the woofer volume.

Press the or button on the WOOFER LEVEL button to increase or decrease the woofer volume. You can select SW (-12, -6, -5, -4, -3, -2, -1, 0, +1, +2, +3, +4, +5, +6). When you select the SW -12 or SW +6, the function LED lights.

- To adjust woofer level using mobile APP (Samsung Audio Remote), use I◀, ▶▶I buttons to decrease or increase woofer level within 3 seconds since WOOFER button is pressed.

USB

Press the USB button to select the USB mode.

REPEAT

Press to set the REPEAT function during music playback from a USB device.

OFF-REPEAT : Cancels Repeat Playback (White 📧).

TRACK-REPEAT: Repeatedly play a track (Red

ALL-REPEAT: Repeatedly play all tracks (Green→).

RANDOM-REPEAT: Plays tracks in random order. (A track that has already been played may be played again.) (The Red ⇌ and Green ⇌ blink alternately.)

TV SOUND CONNECT

Press the TV SOUND CONNECT button to select TV SoundConnect mode.

Skip Forward

If there is more than one file on the device you are playing, and you press the ▶ button, the next file is selected.

AUTO POWER

Auto Power Link: Synchronizes the Soundbar to a connected Optical source via the Optical jack so it turns on automatically when you turn on your TV.

Press the AUTO POWER button. Each time the button is pressed, the selection changes as follows:

AUTO POWER Link ON: Green ● and White → blink.

AUTO POWER Link OFF: Red and White blink.

SOUND EFFECT

Press the SOUND EFFECT button on the remote control to select a sound mode (Voice, Sports, 3D Sound Plus, STANDARD). Select the STANDARD mode if you want to enjoy the original sound. We recommend that you select a Sound Effect mode based on the source material and your personal taste.

• Voice: (Red
• Sports : (Green • 3D Sound Plus : (White

• Soundbar is a Samsung proprietary name. - Operate the TV using the TV's remote control.

CONNECTIONS

INSTALLING THE WALL MOUNT

You can use the wall mount bracket to mount this unit on a wall.

▶ Installation Precautions

• Install on a vertical wall only. - For the installation, avoid a location with high temperature or humidity, or a wall that cannot sustain the weight of the set. - Check the strength of the wall. If the wall is not strong enough to support the unit, reinforce the wall or install the unit on a different wall that can support the unit's weight.

• Purchase and use the fixing screws or anchors appropriate for the kind of wall you have (plaster board, iron board, wood, etc.). If possible, screw the support screws into wall studs.

• Purchase wall mounting screws according to the type and thickness of the wall you will mount the Soundbar on.

• Diameter : M5
• Length: 1 3/8 inches (35 mm) or longer recommended.

- Connect cables from the unit to external devices before you install it on the wall.

- Make sure the unit is turned off and unplugged before you install it. Otherwise, it may cause an electric shock.

To install the Soundbar on a wall, follow these steps:

1. Place the installation guide against the wall surface.

The installation guide must be level. If the TV is mounted on the wall, install the Soundbar at least 2 inches (5 cm) below the TV.

1. Mark the location where the screws will go through on the wall, and then remove the installation guide. Next, drill holes for the screws using an appropriately sized drill bit.
2. Fasten the wall mounts and screws to the marked locations.

The left and right mounts are different shapes. Make sure to position them correctly.

1. Secure the two holder screws to the screw holes on the back of the Soundbar's main body, one on the left and one on the right.
2. Insert the USB cable into the back of the Soundbar before installing it on the wall.
3. Set the holder screws on the back of the Soundbar into the grooves of the wall mounts. For safe installation, make sure to push the holder screws all the way to the bottom of the grooves.

Wall Mounting the Soundbar

DETACHING THE WALL MOUNT

1. Pull the Soundbar upwards as shown in the figure to separate it from the wall mounts.

Detaching the Soundbar from the Wall Mounts

• Do not hang onto the installed unit and avoid striking or dropping the unit.
• Secure the unit firmly to the wall so that it does not fall off. If the unit falls off, it may cause an injury or damage the product.
• When the unit is installed on a wall, please make sure that children do not pull any of the connecting cables, as it may cause it to fall.
• For the optimal performance of a wall mount installation, install the speaker system at least 2 inches (5 cm) below the TV, if the TV is mounted on the wall.
• For your safety, if you do not mount the unit on the wall, install it on a secure, flat surface where it is unlikely to fall.

INSTALLING THE BRACKET WITHOUT REFERRING TO THE WALL-MOUNT INSTALLATION GUIDE

1. Place Wall Mount L on the desired wall surface parallel to the floor as shown above. Mark the location of the screw holes on the wall. Drill holes for the screws at the places you have marked.
2. Match the screw holes on Wall Mount L to the screw holes on the wall, and then screw one screw through the hole in its right end. Tighten the screw until it is firmly fixed to the wall.
3. Place Wall Mount R on the desired wall surface parallel to the floor and aligned with Wall Mount L as shown above. Mark the location of the screw holes on the wall. Drill holes for the screws at the places you have marked.
4. Match the screw holes on Wall Mount R to the screw holes on the wall, and then screw one screw through the hole in its right end. Tighten the screw until it is firmly fixed to the wall.

- If you are mounting the Wall Mounts beneath the TV, make sure to position the mounts 5 cm or more below the TV and to align the mounts with the center of the TV as shown above.

1. Insert screws through the remaining holes, and then tighten.

CONNECTING AN EXTERNAL DEVICE USING AUDIO (ANALOG) CABLE OR OPTICAL (DIGITAL) CABLE

This unit comes equipped with one digital optical in jack and one analog audio in jack (Aux In), giving you two ways to connect it to a TV.

AUX IN

Connect AUX IN (Audio) on the main unit to the AUDIO OUT jack of the TV or Source Device. To use, change the function to AUX.

or,

OPTICAL IN

Connect OPTICAL IN (Audio) on the main unit to the OPTICAL OUT jack of the TV or Source Device. To use, change the function to D.IN.

- Do not connect the power cord of this product or your TV to the wall outlet until all connections between components are complete.

- Before moving or installing this product, be sure to turn off the power and disconnect the power cord.

FUNCTIONS

INPUT MODE

Press each mode button on the remote control or the (→) button on the main unit's top panel to select the mode you want.

Input mode Display
D.IN (Optical Digital in)	(White)
AUX input	(Red)
TV SoundConnect	(Green)
BLUETOOTH mode	(White)
USB mode (White)

- Use the provided cable if a USB flash memory device cannot be connected directly to the unit.

The unit turns off automatically in the following situations:

D.IN/BT/TV/USB Mode

- If there is no audio signal for 5 minutes.

- AUX Mode

- If the AUX cable is disconnected for 5 minutes.

- If there is no KEY input for 8 hours when the AUX cable is connected. (Auto Power Down function can be turned off only in that case.)

- To turn off Auto Power Down function, while in AUX mode, press and hold the ▶II button for 5 seconds.

Auto Power Down	LED
ON	Green ● and Red → blink
OFF	Red ● and Red → blink

BLUETOOTH

You can connect a Bluetooth device to the Soundbar and enjoy music with high quality stereo sound, all without wires!

▶ To connect the Soundbar to a Bluetooth device

Check if the Bluetooth device supports the Bluetooth compliant stereo headset function.

1. Press the (→) button on the main unit's top panel or press the Bluetooth button on the remote control to display the ✕on LED.

- The ✦ED will blink indicating that the Bluetooth device is not connected yet.

1. Select the Bluetooth menu on the Bluetooth device you want to connect. (Refer to the Bluetooth device's user manual.)
2. Select the Stereo headset menu on the Bluetooth device.

• You will see a list of scanned devices.

1. Select "[Samsung] Soundbar J-Series" from the list.

- If the Bluetooth device is successfully connected to the Soundbar, then the LED will stop blinking.

- If the Bluetooth device has failed to pair with the Soundbar, delete the previous "[Samsung] Soundbar J-Series" found by the Bluetooth device and have it search for the Soundbar again.

1. Play music on the connected device.

• You can listen to the music playing on the connected Bluetooth device over the Soundbar.

- In BT mode, the Play/Pause/Next/Prev functions are not available. However, these functions are available in Bluetooth devices supporting AVRCP.

- If asked for a PIN code when connecting a Bluetooth device, enter <0000>.

- Only one Bluetooth device can be paired at a time.

- The Bluetooth connection will be terminated when you turn the Soundbar off.

- The Soundbar may not perform Bluetooth search or connection correctly under the following circumstances:

- If there is a strong electrical field around the Soundbar.

- If several Bluetooth devices are simultaneously paired with the Soundbar.

- If the Bluetooth device is turned off, not in place, or malfunctions.

Note that such devices as microwave ovens, wireless LAN adaptors, fluorescent lights, and gas stoves use the same frequency range as the Bluetooth device, which can cause electric interference.

- The Soundbar supports SBC data (44.1kHz, 48kHz).

- Connect only to a Bluetooth device that supports the A2DP (AV) function.

- You cannot connect the Soundbar to a Bluetooth device that supports only the HF (Hands Free) function.

- Once paired, if the Soundbar is in D.IN, AUX, or USB mode, selecting "[Samsung]Soundbar J-Series" from the list on your Bluetooth device will automatically change the Soundbar's mode to BT.

▶ Bluetooth POWER on (Bluetooth POWER)

When the Bluetooth Power On function is on and the Soundbar is turned off, if a previously paired Bluetooth device tries to pair with the Soundbar, the Soundbar turns on automatically.

1. To turn Bluetooth Power ON, press the Bluetooth POWER button on the remote while the Soundbar is turned on.
2. The Green or Red ⚙, White ⚗, and Green ➕ LEDs appear on the Soundbar's display.

Bluetooth POWER LED
ON	Green ●, Green - and White blink
OFF	Red ●, Green - and White blink

• Available only if the Soundbar is listed among the Bluetooth device's paired devices. (The Bluetooth device and the Soundbar must have been previously paired at least once.)
• The Soundbar will appear in the Bluetooth device's searched devices list only when the Bluetooth LED is blinking. • In the TV SoundConnect mode, the Soundbar cannot be paired to another Bluetooth device.

▶ To disconnect the Bluetooth device from the Soundbar

You can disconnect the Bluetooth device from the Soundbar. For instructions, see the Bluetooth device's user manual.

• The Soundbar will be disconnected. - When the Soundbar is disconnected from the Bluetooth device, the ✝ will blink on the Soundbar's top display.

▶ To disconnect the Soundbar from the Bluetooth device

Press one of the other mode buttons on the remote control or the (→) button on the main unit's top panel to switch from ⚙ to another mode or turn off the Soundbar.

- The connected Bluetooth device will wait a certain amount of time for a response from the Soundbar before terminating the connection. (Disconnection time may differ, depending on the Bluetooth device)

• In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Soundbar and the Bluetooth device exceeds 16.25 ft. (5 m). • The Soundbar automatically turns off after 5 minutes in the Ready state.

More About Bluetooth

Bluetooth is a technology that enables Bluetooth-compliant devices to interconnect easily with each other using a short wireless connection.

• A Bluetooth device may cause noise or malfunction, depending on usage, if: - A part of your body is in contact with the receiving/transmitting system of the Bluetooth device or the Soundbar. - It is subject to electrical variation from obstructions caused by a wall, corner, or office partition. - It is exposed to electrical interference from same frequency-band devices including medical equipment, microwave ovens, and wireless LANs.

• Pair the Soundbar with the Bluetooth device while they are close together.

- The further the distance between the Soundbar and Bluetooth device, the worse the quality is. If the distance exceeds the Bluetooth operational range, the connection is lost.

• In poor reception areas, the Bluetooth connection may not work properly.

- The Bluetooth connection only works when it is close to the unit. The connection will be automatically cut off if the Bluetooth device is out of range. Even within range, the sound quality may be degraded by obstacles such as walls or doors.

• This wireless device may cause electric interference during its operation.

USING THE SAMSUNG AUDIO REMOTE APP

Installing the Samsung Audio Remote App

To control the product with your Smart Device via the Samsung Audio Remote app, download the Samsung Audio Remote App from the Google Play store.

Market search: Samsung Audio Remote

Starting the Samsung Audio Remote App

After you install the Samsung Audio Remote app, follow the instructions in the app.

- The Samsung Audio Remote APP is only supported on phones running Android OS 3.0 or above.

TV SOUNDCONNECT

You can enjoy TV sound through your Soundbar when it is connected to a Samsung TV that supports the TV SoundConnect function.

▶ Connecting a TV to the Soundbar

1. Turn on the TV and Soundbar.

- Set the "Add New Device" menu selection of the TV to "On".

1. Press the (→) button on the main unit's top panel or the TV SOUND CONNECT button on the remote control to select the TV mode.

- The Green LED will blink indicating that TV is not connected yet.

1. On the TV, a message asking whether to enable the TV SoundConnect function appears. "[Samsung] Soundbar" is displayed on the TV screen.
2. Select using the TV remote to finish connecting the TV and Soundbar.

- The Green-LED will stop blinking when the TV has successfully connected.

• Switching the Soundbar's mode from TV to another mode automatically terminates TV SoundConnect. • To connect the Soundbar to another TV, the existing connection must be terminated.
• To terminate the existing connection, press and hold the ▶II button on the remote for 5 seconds to connect to the other TV, follow Steps 1 through 4 above.

• The TV SoundConnect (SoundShare) function is supported by some Samsung TVs released from 2012 on. Check whether your TV supports the TV SoundConnect (SoundShare) function before you begin. (For further information, refer to the TV's user manual.)
• If your Samsung TV was released before 2014, check the SoundShare setting menu.

- If the distance between the TV and Soundbar exceeds 16.25 ft. (5m), the connection may not be stable or the audio may stutter. If this occurs, relocate the TV or Soundbar so that they are within operational range, and then re-establish the TV SoundConnect connection.

• TV SoundConnect Operational Ranges:
• Recommended pairing range: within 20 inches (within 50cm)
• Recommended operational range: within 16.25 ft. (5m)
• The Play/Pause, Next, and Prev buttons are not operable in TV SoundConnect mode.

▶ Using the Bluetooth POWER On function

The Bluetooth POWER On function is available after you have successfully connected the Soundbar to a Bluetooth compatible TV using TV SoundConnect. When the Bluetooth POWER On function is ON, turning the connected TV on or off will turn the Soundbar's power on and off as well.

1. Connect the TV to your Soundbar using the TV SoundConnect function.
2. Press the Bluetooth POWER button on the Soundbar remote. The Green or Red ⚙, ⚙ and Green → LEDs appear on the Soundbar's display.
3. Green: The Soundbar turns on and off when you turn the TV on or off.
4. Red: The Soundbar only turns off when you turn the TV off.

- This function is supported by some Samsung TVs released from 2013 on.

USB

You can play music files located on USB storage devices through the Soundbar.

USB port

Display

1. Connect the USB device to the USB port on the product.
2. Press the (☐) button on the main unit's top panel or the USB button on the remote control to select the USB mode.
3. The LED will blink indicating that the USB device is not connected yet or the Soundbar is in stop/pause mode or the USB is in "no data" mode.
4. The LED will stop blinking when the USB device has successfully connected.
5. The Soundbar automatically turns off if no USB device has been connected for more than 5 minutes.

▶ Before you connect a USB device

Be aware of the following:

• This product may not be compatible with certain types of USB storage media. • The Soundbar supports the FAT16 and FAT32 file systems.

- The NTFS file system is not supported.

- Connect USB devices directly to the USB port of the product. Otherwise, you may encounter a USB compatibility problem.

• Do not connect multiple storage devices to the product via a multi-card reader. It may not operate properly. • Digital camera PTP protocols are not supported.
• Do not remove the USB device while it is transferring files.
• DRM-protected music files (MP3, WMA) from commercial web sites cannot be played. • External HDDs are not supported. • Mobile phone devices are not supported. • File Format Type Compatibility list:

Format	Codec Sampling Rate Bitrate
*.mp3	MPEG 1 Layer2	16KHz ~ 48KHz	80kbps~320kbps
	MPEG 1 Layer3
	MPEG 2 Layer3
	MPEG 2.5 Layer3
*.wma	Wave_Format_MSAudio1		56kbps~128kbps
	Wave_Format_MSAudio2
*.aac	AAC	16KHz ~ 96KHz	48kbps~320kbps
	AAC-LC		128kbps~192kbps
	HE-AAC	24KHz ~ 96KHz	48kbps~64kbps
*.wav	-	16KHz ~ 48KHz	up to 3000kbps
*.ogg	OGG 1.1.0		50kbps~500kbps
*.flac	FLAC 1.1.0, FLAC 1.2.1	16KHz ~ 96KHz	up to 3000kbps

SOFTWARE UPDATE

Samsung may offer updates for the Soundbar's system firmware in the future.

If an update is offered, you can update the firmware by connecting a USB device with the firmware update stored on it to the USB port on your Soundbar.

Note that if there are multiple update files, you must load them onto the USB device singly and use them to update the firmware one file at a time.

Please visit samsung.com or contact the Samsung call center to receive more information about downloading updates files.

- The product has a DUAL BOOT function. If the firmware fails to update, you can update the firmware again.

- Insert a USB device containing the firmware update into the USB port on the main unit.

- Updating firmware may not work properly if audio files supported by the Soundbar are stored in the USB storage device.

- Do not disconnect the power or remove the USB device while updates are being applied. The main unit will turn off automatically after completing the firmware update.

- After the update, all settings are reset to their factory default settings. We recommend you write down your settings so that you can easily reset them after the update. If the firmware fails to update, we recommend formatting the USB device in FAT16 and trying again.

- Once the software update is complete, turn off the product and then press and hold the (▶II) button on the remote control for more than 5 seconds. The Red ● LED will blink and the unit powers off. The upgrade is complete.

- Do not format the USB device in the NTFS format. The Soundbar does not support the NTFS file system.

- Depending on the manufacturer, some USB devices may not be supported.

TROUBLESHOOTING

Before requesting service, please check the following.

The unit will not turn on.
• Is the power cord plugged into the outlet?	→ Connect the power plug to the outlet.

A function does not work when the button is pressed.
• Is there static electricity in the air?	→ Disconnect the power plug and connect it again.

Sound is not produced.
Is the Mute function on?Is the volume set to minimum?	→ Press the Mute button to cancel the MUTE function.→ Adjust the Volume.

The remote control does not work.
Are the batteries drained?Is the distance between the remote control and main unit too far?	→ Replace with new batteries.→ Move closer to the unit.

The TV SoundConnect (TV pairing) failed.
Does your TV support TV SoundConnect?Is your TV firmware the latest version?Does an error occur when connecting?Reset the TV MODE and connect again.	→ TV SoundConnect is supported by some Samsung TVs released from 2012 on. Check your TV to see if it supports TV SoundConnect.→ Update your TV with the latest firmware.→ Contact the Samsung Call Center.→ Press and hold button for 5 seconds to reset the TV SoundConnect connection.

APPENDIX

SPECIFICATIONS

Model name

HW-J250

GENERAL	USB	5 V / 0.5 A
	Weight	1.8 Kg
	Dimensions (W x H x D)	720 × 67 × 75 mm
	Operating Temperature Range	+5°C~+35°C
	Operating Humidity Range	10 % to 75 %
AMPLIFIER	Rated Output Power	80 W(TWT= 4 OHM, THD = 10 %, 1 kHz, WOOFER = 4 OHM, THD = 10 %, 100Hz)
	S/N Ratio (Analog Input)	65 dB
	Separation (1kHz)	65 dB
Supported play formats(DTS 2.0 sound is played in DTS format.)		LPCM 2ch, Dolby AudioTM(supporting Dolby® Digital), DTS
Wireless device output power	BT max transmitter power	100mW at 2.4GHz – 2.4835GHz

* S/N ratio, distortion, separation, and usable sensitivity are based on measurements using AES (Audio Engineering Society) guidelines. * Nominal specification

- Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.

- Weight and dimensions are approximate.

- For information about the power supply and power consumption, refer to the label attached to the product.

※ Open Source License Notice

- For further information on Open Sources used in this product, please visit the website: http://opensource.samsung.com

- To send inquiries and requests regarding open sources, contact Samsung via Email ([e-mail]).

Overall Standby Power Consumption (W)		2.7 W
Bluetooth Port deactivation method		Press the “Bluetooth POWER” button on the remote control when “BT” mode.

• Hereby, Samsung Electronics, declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.samsung.com go to Support > Search Product Support and enter the model name. This equipment may be operated in all EU countries.

CE

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care Centre.

Country Contact Centre		Web Site
■ Europe
UK 0330 SAMSUNG (7267864) www.samsung.com/uk/support
IRELAND (EIRE) 0818 717100 www.samsung.com/ie/support
GERMANY 06196 77 555 77 www.samsung.com/ie/support
FRANCE 01 48 63 00 00 www.samsung.com/ir/support
ITALIA 800-SAMSUNG (800.7287864) www.samsung.com/it/support
SPAIN 0034902172678 www.samsung.com/es/support
PORTUGAL	808 207 267	www.samsung.com/pt/support
LUXEMBURG	261 03 710	www.samsung.com/be_fr/support
NETHERLANDS	088 90 90 100	www.samsung.com/nl/support
BELGIUM 02-201-24-18		www.samsung.com/be/support (Dutch)www.samsung.com/be_fr/support (French)
NORWAY	815 56480	www.samsung.com/no/support
DENMARK 707 019 70 www.samsung.com/dk/support
FINLAND	030-6227 515	www.samsung.com/fi/support
SWEDEN	0771 726 786	www.samsung.com/se/support
POLAND	801-172-678* lub [phone]** (koszt polączenia według tanyf operatora)	http://www.samsung.com/pl/support/
HUNGARY	0680SAMSUNG (0680-726-7864)	www.samsung.com/hu/support
AUSTRIA	0800-SAMSUNG (0800-7267864)[Only for Dealers] 0810-112233	www.samsung.com/at/support
SWITZERLAND	0800 726 78 64 (0800-SAMSUNG)	www.samsung.com/ch/support (German)www.samsung.com/ch_fr/support (French)

Country Contact Centre		Web Site
CZECH	800 - SAMSUNG (800-726786)	www.samsung.com/cz/support
SLOVAKIA	0800 - SAMSUNG (0800-726 786)	www.samsung.com/sk/support
CROATIA	072 726 786	www.samsung.com/nr/support
BOSNIA	055 233 999	www.samsung.com/support
MONTENEGRO 020 405 888
SLOVENIA	080 697 267 (brezplačna števikaj www.samsung.com/si/support
SERBIA	011 321 6899	www.samsung.com/rs/support
ALBANIA	045 620 202	www.samsung.com/al/support
BULGARIA	*3000Цена в мрежата0800 111 31 , Безпапта телефонна линия	www.samsung.com/og/support
ROMANIA	*8000 (apel in retca)08008-726-78-64 (08008-SAMSUNG)Apel GRATUT	www.samsung.com/ro/support
CYPRUS 8009 4000 only from landline, toll free		www.samsung.com/gr/support
GREECE	80111-SAMSUNG (80111 726 7864) onlyfrom land line([phone] from mobileand land line
LITHUANIA	8-800-77777	www.samsung.com/lt/support
LATWA	8000-7267	www.samsung.com/lw/support
ESTONIA	800-7267	www.samsung.com/ee/support

[Correct disposal of batteries in this product]

(Applicable in countries with separate collection systems)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

2.0 Channel

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS 2.0 Channel are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

SAFETY INFORMATION

WARNINGS

TO PREVENT RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER. THE UNIT CONTAINS NO USER-SERVICEABLE PARTS; REFER TO QUALIFIED SERVICE PERSONNEL.

Wall Mounting the Soundbar

REMOVING THE WALL MOUNT

▶ Bluetooth POWER on (Bluetooth POWER)

Connection

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

2.0 Channel

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS 2.0 Channel are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

TOP/FRONT PANEL

GER

▶ Bluetooth POWER on (Bluetooth POWER)

Connect

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

2.0 Channel

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS 2.0 Channel are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

• When disconnecting the power cable of the AC power adaptor from the wall outlet, pull the plug. Do not pull the cable.
• Do not connect this unit or other components to an AC outlet until all connections between components are complete.

REMOTE CONTROL

REMOTE CONTROL BUTTONS AND FUNCTIONS

POWER

Turns the soundbar on and off.

D.IN

Bluetooth POWER on (Bluetooth POWER)

Display

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

2.0 Channel

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS 2.0 Channel are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

SAFETY INFORMATION

Bluetooth POWER on (Bluetooth POWER)

Connect

Display

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS 2.0 Channel are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

SAFETY PRECAUTIONS

SAFETY REGULATIONS

TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE DEVICE COVER. THERE ARE NO USER-SERVICEABLE PARTS INSIDE. HAVE THE DEVICE SERVICED BY QUALIFIED PERSONNEL.

▶ Bluetooth POWER on (Bluetooth POWER)

Display

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

2.0 Channel

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS 2.0 Channel are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

SAFETY INFORMATION

SAFETY WARNINGS

TO PREVENT FIRE AND ELECTRIC SHOCK HAZARDS, DO NOT REMOVE THE FRONT (OR BACK) COVER.

DO NOT ATTEMPT TO REPAIR THE DEVICE YOURSELF. LEAVE REPAIRS TO QUALIFIED SERVICE PERSONNEL.

1. Secure the battery compartment cover of the remote control in place by turning it with a suitable coin until it locks into position.

MUTE BUTTON

• 3D Sound Plus: (White

Mounting the Soundbar on the wall

REMOVING THE WALL MOUNT

Režim Vstupu Displej
D.IN (Optický digitálny vstup)	( Biela)
Vstup AUX	(Červená)
TV SoundConnect	(Green)
Režim BLUETOOTH	( Biela)
Režim USB	( Biela)

- Use the supplied cable if a USB flash memory device cannot be connected directly to the device.

▶ Bluetooth POWER on

When Bluetooth Power On is enabled and the Soundbar is off, if a previously paired Bluetooth device attempts to pair with the Soundbar, the Soundbar will automatically turn on.

1. Turn on the TV and the Soundbar.

- Set the TV's "Add New Device" selection menu to "On".

1. Press the (→) button on the top panel of the main unit or the TV SOUND CONNECT button on the remote control to select TV mode.

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

2.0 Channel

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS 2.0 Channel are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

SAFETY INFORMATION

SAFETY WARNINGS

TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE BACK COVER OF THE DEVICE. THERE ARE NO SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

▶ Bluetooth POWER on (Bluetooth POWER)

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

2.0 Channel

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS 2.0 Channel are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

SAFETY INFORMATION

SAFETY WARNINGS

TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT OPEN THE BACK (REAR) COVER. THE DEVICE HAS NO USER-SERVICEABLE PARTS. SERVICING SHOULD BE DONE BY QUALIFIED PERSONNEL.

REPEAT

▶ Bluetooth POWER on (Bluetooth POWER)

Display

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

2.0 Channel

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS 2.0 Channel are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

2.0 Channel

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS 2.0 Channel are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE BACK COVER (OR REAR). THERE ARE NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL.

Bluetooth device

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

2.0 Channel

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS 2.0 Channel are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

2.0 Channel

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS 2.0 Channel are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK PANEL). THERE ARE NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

				Ovaj simbol ukazuje na to da je unutar uređaja prisutan visoki napon. Svaka vrsta kontakta sa unutrašnjim komponentama ovog uređaja predstavlja opasnost.
				Ovaj simbol ukazuje na to da se uz proizvod isporučuje važna dokumentacija koja se odnosi na rukovanje i održavanje.

Ensure that the AC mains voltage in your home matches the label on the back panel of the product. Install the product horizontally on a suitable surface (furniture) with enough space around it for ventilation (7~10 cm). Make sure the ventilation openings are not covered. Do not place the device on amplifiers or other equipment that may heat up. This device is intended for continuous use. To completely power off the device, disconnect the AC plug from the wall outlet. Unplug the device if you do not intend to use it for an extended period.

During thunderstorms, unplug the power cord from the outlet. Voltage spikes due to lightning can damage the device.

Do not expose the device to direct sunlight or other heat sources. This may cause overheating and malfunction.

Protect the product from moisture (e.g., vases) and excessive heat (e.g., fireplace) or equipment that generates strong magnetic or electric fields. Unplug the power cord from the mains outlet if the device does not function properly. This product is not intended for industrial use. Use this product only for personal use.

Batteries used with this product contain chemicals harmful to the environment. Do not dispose of batteries in household waste. Take care not to expose batteries (installed battery pack or batteries) to excessive heat, such as sunlight, fire, or similar. Do not short-circuit, disassemble, or overheat batteries. There is a risk of explosion if batteries are replaced incorrectly. Replace only with the same or equivalent type.

1. Use a coin to turn the battery compartment cover of the remote control counterclockwise to remove it, as shown in the figure above.
2. Insert a 3 V lithium battery. When inserting the battery, hold the positive (+) pole facing up. Place the battery cover and align the '●' marks next to each other, as shown in the figure above.
3. Use a coin to turn the battery compartment cover clockwise to the end to secure it.

MUTE

Press the mute button to mute the sound to 0. Press the button again to restore the volume to the previous level. If you activate the mute function, the current function LED indicator blinks.

WOOFER LEVEL

You can control the volume of the woofer speaker.

Press ∧ or √ on the WOOFER LEVEL button to increase or decrease the volume of the woofer speaker. You can select SW (-12, -6, -5, -4, -3, -2, -1, 0, +1, +2, +3, +4, +5, +6). When you select SW -12 or SW +6, the function LED indicator blinks.

- To adjust the woofer speaker volume using the mobile app (Samsung Audio Remote), use the I◀, ▶▶ buttons to decrease or increase the woofer volume within 3 seconds of pressing the WOOFER button.

USB

Press the USB button to select USB mode.

REPEAT

Press to set the REPEAT function during music playback from a USB device.

OFF-REPEAT: Cancels repeated playback (white).

TRACK-REPEAT: Repeats the track (red).

ALL-REPEAT: Repeats all tracks (green).

Mod ulaza Displej
D.IN (Optički digitalni ulaz)
AUX ulaz
TV SoundConnect
BLUETOOTH režim
USB režim

- Use the supplied cable if the USB flash memory device cannot be connected directly to the device.

AUTO POWER DOWN FUNCTION

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

2.0 Channel

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS 2.0 Channel are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). THERE ARE NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

				Ovaj simbol znači da je struja u unutrašnjosti visokog napona. Opasno je dolaziti u bilo kakav doticaj s unutarnjim sklopovima proizvoda.
				Ovaj simbol naznačuje da je uz uređaj priložena važna dokumentacija o njegovom radu i održavanju.

	Proizvod klase II: ovaj simbol označava da električno uzemljenje nije potrebno.
	Izmjenični napon: ovaj simbol označava nazivni napon koji je izmjenični napon.
	Istosmjerni napon: ovaj simbol označava nazivni napon koji je istosmjerni napon.
	Oprez, pogledajte upute za upotrebu: ovaj simbol upućuje korisnika da dodatne sigurnosne informacije potraži u korisničkom priručniku.

WARNING: To reduce the risk of fire or electric shock, do not expose this device to rain or moisture.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH THE WIDE BLADE OF THE PLUG TO THE WIDE SLOT, INSERT FULLY.

Ensure that the AC power supply in your household matches the identification label on the back of the product. Place the product horizontally on a suitable surface (furniture) with enough space for ventilation 7~10 cm. Make sure the ventilation openings are not covered. Do not place the unit on amplifiers or other equipment that heats up. This unit is designed for continuous use. To completely turn off the unit, unplug the power cord from the wall outlet. If you do not intend to use the unit for a long time, unplug it.

Do not expose the device to direct sunlight or other heat sources. This may cause overheating and malfunction of the device.

Batteries used with this product contain chemicals that are harmful to the environment. Do not dispose of batteries with household waste. Warning that batteries (battery pack or installed batteries) shall not be exposed to excessive heat such as sunshine, fire or the like. Do not short-circuit, disassemble, or overheat batteries. If the battery is not replaced correctly, there is a risk of explosion. Replace batteries only with the same or equivalent type.

WARNING: DO NOT SWALLOW BATTERY, CHEMICAL BURN HAZARD

[Supplied with remote control] This product contains a coin/button cell battery.

If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment

does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

CONTENTS

2 FEATURES

2 License

3 SAFETY INFORMATION

1. To remove the remote control battery cover, insert a coin into the slot on the cover and turn it counterclockwise as shown above, then remove the cover.

1. Insert a 3V lithium battery. When inserting the battery, the positive pole (+) must face upward. Replace the battery cover and align the '●' marks with each other as shown above.

WOOFER LEVEL

Attaching the Soundbar to the wall

REMOVING THE WALL MOUNT

1. Pull the Soundbar upward as shown in the figure to detach it from the wall mount.

Način ulaza Zaslon
D.IN (Optički digitalni ulaz)	(Bijela)
Ulaz AUX	(Crvena)
TV SoundConnect	(Zelena)
Način BLUETOOTH	(Bijela)
Način USB (Bijela)

- Use the supplied cable if the USB flash drive cannot be connected directly to the unit.

AUTO POWER DOWN FUNCTION

1. Connect a USB device to the product's USB port.
2. To select USB mode, press the (→) button on the top panel of the main unit or the USB button on the remote control.
3. The LED will blink, indicating that the USB device is not yet connected, the Soundbar is stopped/paused, or the USB is in "no data" mode.
4. The LED indicator ↔ stops blinking when the USB device is successfully connected.
5. The Soundbar automatically turns off if no USB device is connected for more than 5 minutes.

▶ Before connecting a USB device
