Product Type	CD Player/Recorder (CD Soundmachine)
Manufacturer	Philips
Model	AZ1068
Dimensions (W x H x D)	291 x 142 x 243 mm
Weight	1.7 kg (main unit)
Power Supply	AC 220 V, 50 Hz; or 6 x 1.5 V R14/UM2/C batteries (not supplied)
Power Consumption	16 W
Supported Disc Formats	CD-DA, CD-R, CD-RW, MP3-CD
Audio Output Power	5 W total
Frequency Response (Disc)	60 Hz – 16 kHz, ±3 dB
Signal-to-Noise Ratio	>55 dBA
FM Tuner Range	87.5 – 108 MHz
USB Compatibility	USB 1.1/2.0, supports FAT12/16/32, MP3 up to 320 kbps
USB Power Output	5 V, ≤500 mA
SD Card Support	SD card slot for MP3 playback
Microphone Input	3.5 mm jack (MIC IN) with volume control
Play Modes	Program (up to 20 tracks), Repeat (track/album/all), Shuffle
Display	LCD display panel
Antenna	Built-in FM antenna (wired)
Recommended Cleaning	Clean with dry cloth; avoid moisture and liquids
Safety Precautions	Do not remove casing; keep away from heat, water, and objects with flames/liquids
Service	Refer to qualified service personnel only

Frequently Asked Questions - AZ1068 PHILIPS

How do I play a CD on the Philips AZ1068?

Set the source selector to CD, lift the lid, insert a disc with the printed side up, and close the lid. Play starts automatically. Use ▶II to pause and ■ to stop.

Can I play music from a USB drive or SD card?

Yes. For USB, set source selector to USB/SD and switch to USB, then insert the drive. For SD, switch to SD and insert the card. Compatible formats include MP3 with FAT12/16/32 file systems.

How do I use the microphone for karaoke?

Connect a microphone (not supplied) to the MIC IN jack. Adjust MIC VOL for sensitivity – set to HI for low-sensitivity mics, LO for high-sensitivity. Use VOLUME to control mic input level. Sing along with any audio source.

How do I program tracks to play in a specific order?

In CD/USB/SD mode, press ■ to stop, then press PROG. [PROG] blinks. For MP3 albums, use ALBUM+/- to select an album. Use ◀◀/▶▶ to choose a track, press PROG to add it. Repeat up to 20 tracks, then press ▶II to play the program. Press ■ to erase the program.

How can I improve FM radio reception?

Fully extend the FM antenna and adjust its position. Keep the unit away from TV, VCR, or other radiation sources. Rotate TUNING +/- to find the best frequency.

What should I do if the device has no power?

Check that the AC power cord is securely connected and the outlet has power. If using batteries, ensure they are inserted with correct polarity (+/-) and are fresh. Replace batteries if needed.

Why is there no sound from the speakers?

Adjust the VOLUME knob. Confirm the source (CD/USB/SD/FM) is selected correctly and a compatible track is playing. If using headphones, remove them. Also ensure MUSIC/SPEECH mode is set appropriately.

Does the AZ1068 support MP3 CDs?

Yes, it supports MP3-CD discs. The disc must be finalized and in ISO9660/Joliet format. It can handle up to 999 tracks and 99 albums.

What batteries does the unit use and how long do they last?

It requires 6 x R14/UM2/C CELL batteries (1.5V each). Battery life depends on usage; for long periods of non-use, remove batteries to prevent leakage. Alternatively, use the AC power cord.

How do I clean the Philips AZ1068?

Clean the exterior with a soft, dry cloth. For the CD lens, use a lens cleaning disc. Do not use liquids, solvents, or abrasive cleaners. Keep the device away from moisture.

USER MANUAL AZ1068 PHILIPS

Always there to help you

Register your product and get support at

www.philips.com/welcome

AZ1068

User manual

PHILIPS

Contents

1 Important 2

Safety 2

2 Your CD Soundmachine 3

Introduction 3

What's in the box 3

Overview of the main unit 4

3 Get started 5

Install batteries 5

Connect AC power 6

Turn on 6

4 Use your CD Soundmachine 7

Play CD 7

Play from USB 7

Play from SD card 8

Listen to radio 8

Use your microphone 8

Program tracks 9

Control play 9

5 Product information 10

Specifications 10

Supported MP3 disc formats 10

USB playability information 10

6 Troubleshooting 11

7 Notice 12

1 Important

Safety

This 'bolt of lightning' indicates uninsulated material within the device may cause an electrical shock. For the safety of everyone in your household, please do not remove the covering.

The 'exclamation mark' calls attention to features for which you should read the enclosed literature closely to prevent operating and maintenance problems.

WARNING: To reduce the risk of fire or electric shock, the device should not be exposed to rain or moisture and objects filled with liquids, such as vases, should not be placed on the device.

CAUTION: To prevent electric shock, fully insert the plug. (For regions with polarized plugs: To prevent electric shock, match wide blade to wide slot.)

Important Safety Instructions

• Follow all instructions.
• Heed all warnings.
• Do not use this apparatus near water.
• Clean only with dry cloth.
- Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
- Do not install near any heat sources such as radiators, heat registers, stoves, or other device (including amplifiers) that produce heat.

• Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the device.
• Only use attachments/accessories specified by the manufacturer.
• Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer or sold with the device. When a cart is used, use caution when moving the cart/device combination to avoid injury from tip-over.

• Unplug this device during lightning storms or when unused for long periods of time.
- Refer all servicing to qualified service personnel. Servicing is required when the device has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the device, the device has been exposed to rain or moisture, does not operate normally, or has been dropped.
- Battery usage CAUTION – To prevent battery leakage which may result in bodily injury, property damage, or damage to the device:

• Do not mix batteries (old and new or carbon and alkaline, etc.).
  • Install batteries correctly, + and - as marked on the device.
• The batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
• Remove batteries when the device is not used for a long time.

• Device shall not be exposed to dripping or splashing.

- Do not place any sources of danger on the device (e.g. liquid filled objects, lighted candles).

- Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

Warning

• Never remove the casing of this device.
• Never lubricate any part of this device.
• Never place this device on other electrical equipment.
- Keep this device away from direct sunlight, naked flames or heat.
• Never look into the laser beam inside this device.
- Ensure that you always have easy access to the power cord, plug, or adaptor to disconnect this device from the power.

2 Your CD Soundmachine

Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

Introduction

With this unit, you can:

• enjoy audio from discs, USB/SD storage devices;
  • enjoy Karaoke by connecting a microphone;
• listen to FM radio stations.

The unit supports these media formats:

What's in the box

Check and identify the contents of the package:

• Main unit (without battery)
- Power cord
- User Manual

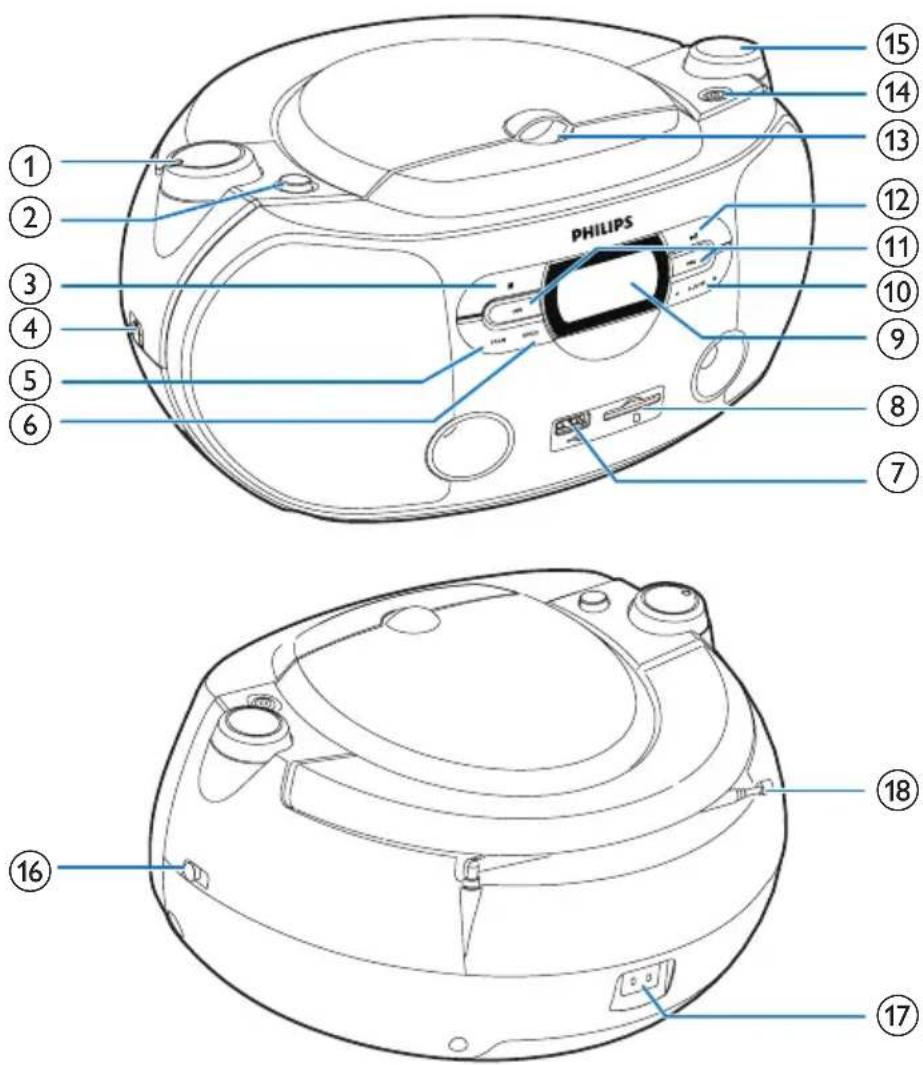

Overview of the main unit

① VOLUME

- Adjust volume.

② MIC VOL

• For a low sensitivity microphone, button up to increase microphone loudness
  • For a high sensitivity microphone, button up to avoid echo noise.

③

• Stop play.
• Erase a program.

④ CD•USB/SD•FM•OFF

• Select a source: CD, USB, SD, or FM.
- Turn off the unit.

⑤ PROG

• For CD/USB/SD: program the play sequence of tracks.

⑥ MODE

• Select repeat or shuffle play mode.

⑦

- USB socket.

⑧ SD

- SD card slot.

⑨ Display panel

• Show display information.

⑩ - ALBUM+

- Skip to previous or next album in CD/USB/SD card with MP3 folder.

⑪

• Skip to previous or next track.
  • Search within a track.

12

- Pause or resume play.

13

LIFT TO OPEN

- Open or close the disc compartment.

14

MIC IN

- Socket for connecting a microphone.

15

TUNING

• Tune to FM radio stations.

16

USB·SD

- Select USB or SD source.

17

AC MAINS\~

• Power supply socket.

18

FM antenna

- Adjust FM reception.

3 Get started

Caution

- Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

Always follow the instructions in this chapter in sequence.

If you contact Philips, you will be asked for the model and serial number of this apparatus. The model number and serial number are on the bottom of the apparatus. Write the numbers here:

Model No.

Serial No.

Install batteries

Note

• You can use both batteries and AC power as power supply of this device.

1 Open the battery compartment.
2 Insert 6 × 1.5 V R14/UM2/C CELL batteries (not supplied) with correct polarity (+/-) as indicated.

3 Close the battery compartment.

Line drawing of a device with a plug and cable, showing internal components connected to a terminal block (no text or symbols)

Turn on

After connected to power, the device switches to the last selected source automatically.

Tip

- Switch the source selector to OFF and disconnect the power plug from the wall outlet after use to save energy.

Connect AC power

Caution

• Risk of product damage! Ensure that the power supply voltage corresponds to the voltage printed on the back or the underside of the unit.
• Risk of electric shock! When you unplug the AC adaptor, always pull the plug from the socket. Never pull the cord.
  • Before you connect the AC power cord, make sure that you have completed all other connections.

4 Use your CD Soundmachine

Play CD

Note

• You cannot play CDs encoded with copyright protection technologies.

You can play commercially available audio CDs:

• CD-Recordables (CD-R)
• CD-Rewritables (CD-RW)
- MP3-CDs

1 Switch the source selector to CD.

→ [cd] is display.

2 Lift to open the lid of the CD compartment.
3 Insert a CD with the printed side facing up, and close the CD lid.

→ The total number of tracks are displayed.

→ Play starts automatically. If not, press

• To select a track, press ◀◀. ▶▶
• To pause CD play, press▶.

[ ] flashes.

• To resume CD play, press▶ again.
• To stop CD play, press

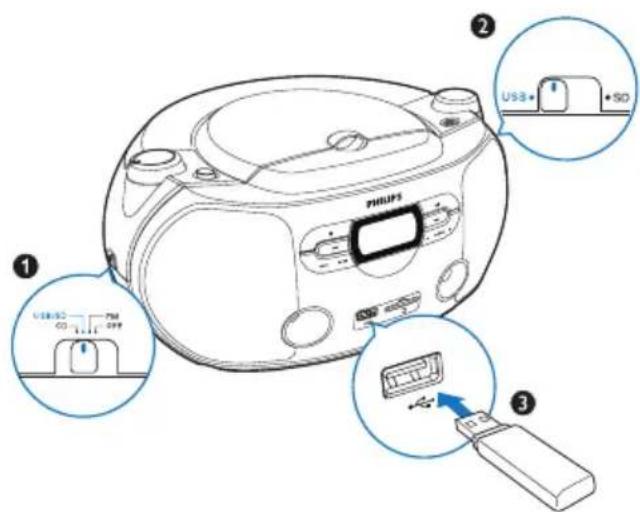

Play from USB

Note

• Make sure that the USB device contains playable audio contents for supported formats.
• The USB terminal can be loaded with 500 mA.

1 Switch the source selector to USB/SD.
2 Switch the USB/CD selector to USB.
3 Insert a USB storage device into the socket.

→ [uSb] is displayed.

→ Play starts automatically. If not, press

Play from SD card

Note

• Make sure that the USB device contains playable audio contents for supported formats.

1 Switch the source selector to USB/SD.
2 Switch the USB/SD selector to SD.
3 Insert an SD card into the SD slot.

→ [Sd] is displayed.

→ Play starts automatically. If not, press

▶ II.

Listen to radio

Tip

- Position the antenna as far as possible from TV, VCR, or other radiation source.

1 Fully extend and adjust the position of the antenna for optimal reception.
2 Switch the source selector to FM.
3 Rotate TUNING +/- until you find optimal reception.
4 Repeat step 3 to tune to more stations.

Note

• No information is displayed in FM mode.

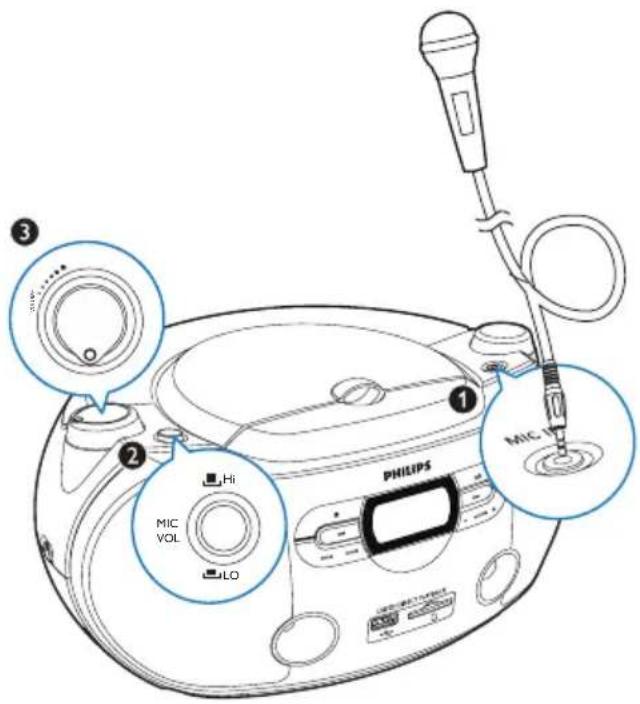

Use your microphone

You can connect a microphone (not supplied) to sing along with a music source.

Note

• Before you connect a microphone, set the microphone volume to the minimum to prevent howling.

1 Connect a microphone to the MIC IN socket.
2 Press MICVOL up or down due to microphone sensitivity (see the microphone user manual for microphone sensitivity).

• When use a low sensitivity microphone, press MICVOL up to HI to increase microphone loudness.
• When use a high sensitivity microphone, press MICVOL down to LO to avoid echo noise.

3 Rotate VOLUME to adjust microphone input volume.
4 Speak or sing through the microphone.

Tip

• To avoid echo noise, disconnect the microphone, or turn off the microphone, or put the microphone away from the device if not use it.
- Different microphones may have different sound quality due to sensitivity.

Program tracks

In CD/USB/SD mode, you can program a maximum of 20 tracks.

1 Press ■ to stop play, and press PROG to activate the program mode.

→ [PROG] (program) starts to blink.

2 For MP3 tracks, press ALBUM +/- to select an album.

3 Press ◀◀ to▶elect a track number, and then press PROG to confirm.

4 Repeat step 3 to program more tracks.

5 Press ▶play the programmed tracks. → During play, [PROG] (program) is displayed.

• To erase the program, at the stop position, press ■

Control play

VOLUME Rotate to adjust volume.

Stop play.

▶II Pause or resume play.

◀◀ / ▶Press to select previous/next track. Press and hold to fast backward/ forward in a track.

PROG In CD/USB/SD mode, program tracks.

MODE Select a play mode.

[ ] (repeat): Repeat a track.

[ ALB] (repeat album): Repeat an album.

[CALL] (repeat all): Repeat an entire CD/program.

[∞] (shuffle): Play tracks randomly.

To return to normal play, press

MODE repeatedly until the repeat icons disappear.

-ALBUM+ Select previous/next album.

Tip

- When search reaches the end of the last track, the CD stops.

- Shuffle play cannot be selected when you play programmed tracks.

5 Product information

Note

• Product information is subject to change without prior notice.

Specifications

Amplifier

Total Output Power 5 W
Frequency Response	125 -16000 Hz, -3dB
Signal to Noise Ratio	>55 dBA
Total Harmonic Distortion	<1 %

Disc

Laser Type Semiconductor
Disc Diameter 12 cm/8 cm
Support Disc CD-DA, CD-R,CD-RW, MP3-CD
Audio DAC 24 Bits / 44.1 kHz
Total Harmonic Distortion	<1% (1 kHz)
Frequency Response	60 Hz - 16 kHz;±3 dB
S/N Ratio >55 dBA

USB

USB Direct Version USB 1.1 or 2.0
USB 5 V Power	≤500 mA

Tuner

Tuning Range	FM: 87.5-108 MHz
Total Harmonic Distortion	<3%
Signal to Noise Ratio	>50 dBA

General information

Power Supply:
- AC Power	220 V~, 50 Hz;
- Battery	6 × 1.5 V R14/UM2/CCELL batteries
Operation Power Consumption	16 W
Dimensions
- Main unit (W × H × D)	291 × 142 × 243 mm
Weight - main unit	1.7 kg

Supported MP3 disc formats

• ISO9660, Joliet
  • Maximum title number: 999 (depending on file name length)
  • Maximum album number: 99
  • Supported sampling frequencies: 32 kHz, 44.1 kHz, 48 kHz
  • Supported Bit-rates: 32\~256 (kbps), variable bit rates

USB playability information

Compatible USB devices:

• USB flash memory (USB1.1 or 2.0)
• USB flash players (USB1.1 or 2.0)

Supported USB formats:

• USB or memory file format FAT12, FAT16, FAT32 (sector size: 512 bytes)
• MP3 bit rate (data rate): 32-320 Kbps and variable bit rate
• Directory nesting up to a maximum of 8 levels

• Number of albums/ folders: maximum 99
• Number of tracks/titles: maximum 999
- File name in Unicode UTF8 (maximum length: 16 bytes)

Unsupported USB formats:

• Empty albums: an empty album is an album that does not contain MP3 files, and is not shown in the display.
• Unsupported file formats are skipped. For example, Word documents (.doc) or MP3 files with extension .dlf are ignored and not played.
  • AAC, WAV, PCM audio files

6 Troubleshooting

Warning

• Never remove the casing of this device.

To keep the warranty valid, never try to repair the system yourself.

If you encounter problems when using this device, check the following points before requesting service. If the problem remains unsolved, go to the Philips Web page (www.philips.com/support). When you contact Philips, make sure that the device is nearby and the model number and serial number are available.

No power

• Make sure that the AC power plug of the unit is connected properly.
• Make sure that there is power at the AC outlet.
• Insert the batteries with polarities (+/- signs) aligned as indicated.
• Replace the battery.

No sound

• Adjust volume.
• Make sure that the track played is of a compatible format.
• Make sure that MUSIC is selected when play CD/USB/SD card, and SPEECH is selected when use microphone.

Cannot play disc

• Make sure that the disc is inserted with the printed side facing up.
• Wipe the disc with fibre cleaning cloth from the centre to the edge in a straight line.
• This disc may be defective. Play another disc.
• Make sure that the CD is a finalized CD/CD-R/CD-RW.
• Make sure that the laser lens is clean.
• Make sure that the CD is not encoded with copyright protection technologies.

USB device or SD card not supported

- The USB device or SD card is not compatible with this device. Try another one.

Poor radio reception

• Increase the distance between the unit and your TV or VCR.
  • Fully extend the FM antenna.

7 Notice

Any changes or modifications made to this device that are not expressly approved by Philips Consumer Lifestyle may void the user's authority to operate the equipment.

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

Never dispose of your product with other household waste. Please inform yourself about the local rules on the separate collection of electrical and electronic products and batteries. The correct disposal of these products helps prevent potentially negative consequences on the environment and human health.

Your product contains batteries, which cannot be disposed of with normal household waste. Please inform yourself about the local rules on separate collections of batteries. The correct disposal of batteries helps prevent potentially negative consequences on the environment and human health.

Please visit www.recycle.philips.com for additional information on a recycling center in your area.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.) Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

The making of unauthorized copies of copy-protected material, including computer programs, files, broadcasts and sound

recordings, may be an infringement of copyrights and constitute a criminal offence. This equipment should not be used for such purposes.

This apparatus includes these labels:

Class II equipment symbol

This symbol indicates that the apparatus has a double insulation system.

Note

• The type plate is located on the bottom of the device.

部件名称Name of the Parts	有毒有害物质或元素Hazardous/toxic Substance
	铅(Pb, Lead)	汞(Hg, Mercury)	镉(Cd, cadmium)	六价铬(Chromium 6+)	多溴联苯(PBB)	多溴二苯醚(PBDE)
Housing外壳	O	OOOOO
Loudspeakers喇叭单元	OOOOOO
PWBs电路板组件	X	OOOOO
Accessories(Remote control & cables)附件(遥控器,电源线,连接线)	X	OOOOO

○：表示该有毒有害物质在该部件所有均质材料中的含量均在SJ/T11363-2006标准规定的限量要求以下。
O: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement in SJ/T11363 - 2006.

X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this part is above the limit requirement in SJ/T11363 - 2006.

环保使用期限 Environmental Protection Use Period

This logo refers to the period (10 years)

This logo refers to the period (10 years) during which the toxic or hazardous substances or elements contained in electronic information products will not leak or mutate so that the use of these [substances or elements] will not result in any severe environmental pollution, any bodily injury or damage to any assets.

Specifications are subject to change without notice

All rights reserved.

AZ1068_93_UM_V1.0
