Product type	Refrigerator with freezer compartment
Brand	Severin
Model	KS 9828
Dimensions (H x W x D)	85 cm x 55 cm x 60 cm
Net weight	Approximately 45 kg
Electrical supply	220-240 V, 50 Hz
Energy class	E (according to EU standard)
Total net volume	Approximately 200 liters
Refrigerator volume	Approximately 160 liters
Freezer volume	Approximately 40 liters
Cold storage time (freezer)	Approximately 12 hours
Freezing capacity	4 kg/24h
Noise level	42 dB(A)
Adjustable thermostat	Yes
Interior lighting	LED
Reversible door	Yes
Defrosting	Manual (refrigerator and freezer)
Care and cleaning	Clean the interior with a soft cloth and soapy water. Defrost regularly.
Safety	Secure door, automatic climate control stop when door is left open (not applicable)
Spare parts and repairability	Parts available from the manufacturer or authorized dealers
General information	User manual available for download. Warranty 2 years.

Frequently Asked Questions - KS 9828 SEVERIN

How to properly install the Severin KS 9828 refrigerator?

Place the appliance on a flat and stable surface, away from heat sources. Leave at least 10 cm of space at the back for ventilation. Plug into a grounded outlet.

What is the ideal temperature for the refrigerator and freezer?

The recommended temperature for the refrigerator is 4°C and for the freezer -18°C. Use the thermostat to adjust.

How to adjust the temperature of the Severin KS 9828?

Turn the thermostat knob inside the refrigerator. Higher numbers correspond to colder temperatures. Adjust according to your needs.

Why is my refrigerator making noise?

Light noises (gurgling, clicking) are normal. If noise is excessive, check that the appliance is level, accessories are securely attached, and there is no contact with furniture.

How to defrost the freezer of the Severin KS 9828?

Unplug the appliance and empty the freezer. Leave the door open to melt the ice. Do not use sharp objects. Clean and dry before plugging back in.

The door of my refrigerator does not close properly, what to do?

Check the door alignment, the door seals for dirt or tears. Clean the seals with warm water. If necessary, adjust the leveling feet.

How to change the refrigerator light bulb?

Unplug the appliance. Remove the interior light cover. Replace the bulb with a LED bulb of the same type (max 15 W). Replace the cover and plug back in.

How to save energy with my Severin refrigerator?

Place the appliance away from heat sources, do not leave the door open too long, do not put hot food inside, and defrost regularly to avoid frost buildup.

Can I transport the refrigerator lying down?

It is not recommended to transport the appliance lying down. If necessary, place it upright and wait at least 2 hours after transport before plugging it in to allow the compressor oil to return to its place.

Where to find spare parts for the Severin KS 9828?

Spare parts are available from Severin customer service or authorized dealers. Check the official website or contact technical support.

USER MANUAL KS 9828 SEVERIN

White refrigerator with lid and front panel, no visible text or symbols on the device itself

GB Instructions for use Refrigerator 10

Simple line drawing of an eye with a lens and iris, no text or symbols present

Technical line drawing of a mechanical component with an inset showing a hand holding a circular component (no text or symbols)

Before using the appliance, please read the following instructions carefully and keep this manual for future reference. The appliance must only be used by persons familiar with these instructions.

Connection to the mains supply

The appliance should only be connected to an earthed socket installed in accordance with the regulations. Make sure that the supply voltage corresponds with the voltage marked on the rating label. This product complies with all binding CE labelling directives.

• Do not operate this unit by means of a transformer.
• To prevent noise vibration, ensure that the power cord does not touch any part of the rear of the unit

General information

• This appliance is a compressor refrigerator, designed for the short-term storage of food in the main cabinet and long-term storage of food in the freezer compartment.
• Refrigeration appliances are classified into certain climate classes. Please refer to the product data sheet for information on the classification for this unit.
• No responsibility is accepted if damage results from improper use, or if these instructions are not complied with.

Important safety instructions

• This appliance is intended for domestic or similar applications, such as
• in shops, offi ces and other similar working environments,
• in agricultural areas,
• by customers in hotels, motels etc. and similar establishments,
• in bed-and breakfast type environments.
• This appliance is not intended for commercial use, nor for use in the catering business or similar wholesale environments.

- The cooling circuit in this appliance contains the refrigerant isobutane (R600a), a natural gas with a high level of environmental compatibility,

which is nevertheless fl ammable. Ensure, therefore, that none of the components of the refrigerant circuit become damaged during transportation and

installation of the appliance. If damage to the cooling circuit does occur, do not switch on or connect the appliance to the mains power. In the case that there is an open fire or any other sources of ignition in the vicinity of the refrigerant gas, make sure it is removed immediately from this area and that the room is then thoroughly ventilated.

• Warning: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. Suffi cient ventilation must be ensured at all times.
• Warning: Do not damage the cooling circuit. Any escaping refrigerant causes damage to the eyes; there is also a danger of the gas igniting.
• Warning: Do not use any external device (e.g.; heaters or heating fans) to accelerate de-frosting; follow only the methods recommended in this manual.
• Warning: Do not operate any electrical appliances (e.g. ice makers) inside the storage compartment that are not specifically permitted in these instructions.
• Before it is connected to the mains power, the unit must be thoroughly checked for transport damage, including its power cord. In the event of any such damage being found, the appliance must not be connected to the mains.
• This appliance is not designed for the storage of explosive substances such as aerosol cans with a flammable propellant.
• If the unit is sold, handed over to a third party or disposed of at a suitable recycling facility, attention must be drawn to the presence of the insulation agent ‘cyclopenthane’ as well as to the refrigerant R600a.
• In order to comply with safety regulations and to avoid hazards, any repairs or modifications to this unit must be carried out by our authorised service personnel, including the replacement of the power cord.
• This appliance may be used by children (at least 8 years of age) and by persons with reduced physical, sensory or mental capabilities, or lacking experience

and knowledge, provided they have been given supervision or instruction concerning the use of the appliance and fully understand all dangers and safety precautions involved.

• Children must not be permitted to play with the appliance.
• Children must not be permitted to carry out any cleaning or maintenance work on the appliance.
- For frequent cleaning we recommend the use of warm water with some mild detergent. For detailed information on cleaning the appliance, please refer to the section De-frosting and cleaning.

- For detailed information on replacing the light bulb, please refer to the section Interior lighting.

• To prevent the risk of personal injury or damage to the unit, it must only be transported while in its original packaging.

- Caution: Keep any packaging materials well away from children: there is a risk of suffocation.

- The ice removed from the unit during de-frosting is not suitable for human consumption.

- The power cord should be regularly examined for any signs of damage. In the event of such damage being found, the appliance must no longer be used.

- To avoid the risk of fire, do not place any thermo-electric appliances on top of the unit. Do not place liquid containers on top of the unit, to prevent any leaking or escaping liquid damaging the electrical insulation.

• This unit is designed for storing food only.

- Alcoholic substances may be stored only in properly sealed containers and in upright positions.

- Do not store any glass bottles containing carbonated or other freezable liquids in the unit: such bottles may burst during the freezing process.

- To avoid the risk of food poisoning, do not consume food after its storage time has expired. Thawed foods must not be frozen a second time.

- Do not lean or put undue weight on the shelves, compartments, door etc.

- Protect the inside of the refrigerator at all times from open flames and any other sources of ignition.

- Remove the plug from the wall socket

• in case of any malfunction,
• before de-frosting,
• during cleaning,
• before maintenance or repair work is carried out.

- When removing the plug from the wall socket, never pull on the power cord; always grip the plug itself.

- If the unit is not used for an extended period of time, we recommend keeping the door open.

• We reserve the right to introduce technical modifications.

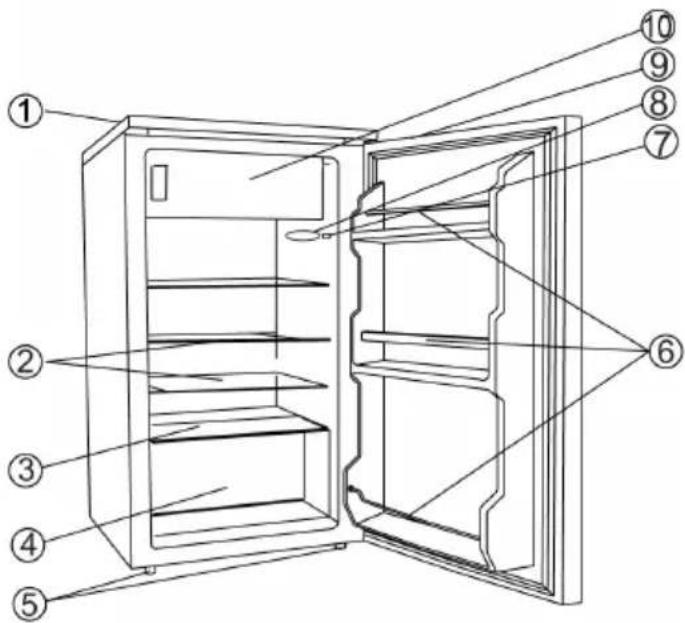

Familiarisation

1. Top panel
2. Glass shelves
3. Lower glass enclosure
4. Vegetable compartment
5. Adjustable feet
6. General and bottle storage
7. Temperature control
8. Interior lighting
9. Grip recess
10. Freezer compartment

There is a freezer compartment in the upper section of the unit that can be closed by a door. The main storage area is under the freezer compartment.

Before using for the first time

• Remove any exterior and interior packaging materials completely, including the adhesive strips.
• Before it is connected to the mains, the unit must be thoroughly checked for transport damage, including its power cord.
• Clean the unit as described in the section De-frosting and cleaning.
• Once the unit has been positioned, wait for about 30 minutes before it is connected to the mains.
• If the unit has been tilted more than 30^ during transport, allow it to stand upright for at least 4 hours before it is connected to the mains.
• When the unit is first switched on, a slight 'new' smell may be noticed. However, this will disappear once the cooling process has begun.

Installation

• The appliance should be set up in a well-ventilated, dry room.

• It should be operated in conditions where the relative humidity is no more than 70 %.

• The product data sheet contains details of the ambient temperature range suitable for this appliance.
  • Do not use the appliance outdoors.

• Ensure that the plug is accessible and can be removed from the wall socket at any time.
• Do not expose the appliance to direct sunlight, and do not position it next to any heat sources (radiators, cookers etc). If this cannot be avoided, however, suitable insulation must be in installed between the heat source and the unit.
• The unit must not be installed inside a cabinet, nor directly below a hanging cupboard, shelf or similar object.
• Ensure that the door can swing open to an angle of 160^ .
  In the case of uneven floors, the adjustable feet on the unit can be used to compensate and ensure optimum stability.

Ventilation

Ensure that there is enough space around the unit so that the air circulation round and behind it is not obstructed. (Rear and sides 5 cm, top 10 cm.)

Reversible door

If required, the door may be reversed, i.e. from right-hinged (default installation) to left-hinged.

Warning: Always disconnect the unit from the mains before any maintenance or repair work is carried out.

1. Remove the two screw covers (11) and the screws (10).
2. Remove the entire top panel (9).
3. Remove the three threaded bolts (6) securing the upper hinge plate (5) on the right-hand side.
4. Carefully lift up the door and place it on a suitable surface to protect it from scratches.
5. Take off the protective corner-piece (7) and re-fi t it in the groove on the right-hand side, pushing it firmly down.
6. Remove the hinge pin from the upper hinge plate (5) and screw it back in from the opposite side.
7. Remove the two screws from the left-hand side in the upper hinge plate mounting and re-fi t them on the right.
8. Remove the three screws (1) holding the lower hinge plate

(2) on the right-hand side.
9. Remove the hinge pin from the lower hinge plate and re-fi t it in the next hole.
10. Remove the adjustable foot (4) from the left-hand side and re-fi t it on the right.
11. Attach the lower hinge plate (2). Do not tighten the screws for the moment.
12. Replace the door in its new position. Ensure that the hinge pin is inserted into the guide bushing (hole) on the lower part of the door frame.
13. Attach the upper hinge plate (5) (removed earlier in step 3) on the left-hand side. Ensure that the hinge pin is inserted into the guide bushing (hole) on the upper part of the door frame. Do not tighten the screws for the moment.
14. Adjust the closed door to its proper position and tighten the screws of the upper and lower hinge plates.
15. Replace the top panel (9).
16. Replace the screws (10) and the screw covers (11) in the top panel (9).
17. Put the unit back in its intended position and wait for about two hours before connecting it to the mains.

Freezer compartment door

1. Open the door
2. Insert a screwdriver into the slot under the lower hinge, push the spring up and hold it.
3. Remove the door and hinge assembly.
4. Take off the protective cover from the left-hand side and re-fi t it in the opening on the right-hand side.
5. Turn the door round 180^ , place the lower hinge onto the lower door pin and insert the upper door pin into the upper hinge.
6. Now slide the lower hinge into the corresponding opening, ensuring it locks into place.

Temperature control

The unit is re-activated by connecting it to the mains. It is only switched off completely when the plug is removed from the wall socket.

Simple line drawing of an oval with internal segments labeled 3, 4, and 5 (no text or symbols beyond labels)

The temperature in the refrigerator cabinet can be adjusted by setting the temperature control. Turning the control clockwise will decrease the temperature, while turning it anti-clockwise will increase it.

• After switching on, the temperature control should be set to its maximum setting.
  • After 30 minutes, the setting should be changed to a medium setting, usually sufficient for home use.

Following a power interruption, or if the unit has been switched off on purpose, it may take 3 to 5 minutes before it switches on again.

In position '0', the cooling function is switched off, though the appliance is still connected to the mains.

Interior lighting

Changing the light bulb:

- Remove the plug from the wall socket.

• Use a suitable screw-driver to remove the screw holding the light cover and take the cover off to the back.
• Take out the defective bulb and fit a new one (max. 15 W, socket type E14).
• Slide the cover back into position, replace the screw and tighten it.
• Connect the unit to the mains power. It may take 3 to 5 minutes before it switches on again.

Freezer compartment door

To ensure that frozen food will not de-frost prematurely, the door to the freezer compartment should be kept closed at all times. This will also prevent an undue build-up of ice and frost. Ensure, therefore, that the door is only opened briefly to place food in the freezer compartment or to remove it.

Freezing and storing food

The temperatures inside the refrigerator cabinet and freezer compartment depend mainly on the ambient temperature, the temperature control setting and the amount of food stored.

Freezer compartment:

• The freezer compartment is designed for deep-freezing and long-term storage of frozen food, and for making ice cubes.
  • To ensure that nutritious elements such as vitamins are not lost, fresh food should be deep-frozen right through as quickly as possible. To that effect, the prepared food should be placed into the freezer compartments, properly spaced in one or two rows.
• Avoid contact with food that has already been frozen.
• Caution: Do not exceed the maximum freezing capacity per day. The product data sheet contains details of the maximum daily freezing capacity.
• Set the temperature control to Max. After 24 hours, once the food is well frozen, the temperature control can be set back to its original position.
• The time required to freeze food may be shortened by dividing it into smaller portions.
• For short-term storage of food in the freezer compartment, the temperature control should be set to a minimum or medium position. For longer-term storage, set the control to maximum.
• Suitable packaging materials for frozen food are transparent (i.e. non-coloured) plastic wrap or bags, or aluminium foil. The packaging materials should be well aired before use; check that the package is air-tight before freezing the food. We strongly recommend that you label every item stored in the freezer with all relevant information such as type of food, freezing date and use-by date.

Use-by dates for frozen food are specified (in months) in the table below.

Do not exceed these storage times.

• If the unit remains switched off for an extended period (eg during a power failure), the door should be kept closed; this will help to maintain the lowest possible temperature in the cabinet. The product data sheet contains detailed information of the maximum safe storage time in case of malfunction.
  It should be noted, however, that even a slight rise in the inside temperature will shorten the storage life of the food.

Main cabinet

• Different areas of the refrigerator cabinet are affected differently by the cooling effect. The warmest area is around the door in the higher part of the cabinet, the coldest around the rear wall and in the lower part of the cabinet.
  • The food should therefore be stored as follows:
• On main cabinet shelves (from top to bottom): bakery items, ready meals, dairy products, meat, fi sh and cold meats/sausages.
  • In the vegetable compartment: vegetables, salad and fruit.
• In the door (from top to bottom): butter, cheese, eggs, tubes (eg mustard), small bottles, large bottles, milk and fruit-juice tetra-packs.
• Initially, the temperature control should be set to position 4. If the cooling effect is too strong, lower it to position 1-3; if it is insufficient, raise it to 5-7.
  If you notice frost on the rear wall, the most likely cause is that the door has been left open for too long, or that warm food has been placed inside the refrigerator or that the temperature control has been set too high.
• Liquid or strong-smelling food, or food which is likely to absorb strong odours (e.g. cheese, fish, butter), should be stored separately or in hermetically sealed containers.
• Warm food should be left to cool down to room temperature before being placed in the refrigerator.
  • Always ensure that the door is properly closed and that the seal is not obstructed by food stored inside the cabinet or door.

Making ice cubes

A special ice-cube tray is provided for making ice cubes. Fill the tray 34 full with drinking water and place it in the freezer compartment. The ice cubes are easier to remove from the tray if the tray is left standing at room temperature for 5 minutes.

De-frosting and cleaning

- Always remove the plug from the wall socket before cleaning.

- For frequent cleaning we recommend the use of warm water with some mild detergent. To prevent any unpleasant odour within the refrigerator, it should be cleaned about once a month.

- Any accessories should be cleaned separately with soapy water. Do not put them in a dishwasher.

- Do not use abrasives or harsh cleaning solutions or any cleaning agents that contain alcohol.

- After cleaning, thoroughly clean all surfaces with fresh water before wiping them completely dry. When re-inserting the plug into the wall socket ensure that you have dry hands.

- To save energy and to ensure optimum performance, the condenser (at the rear) as well as the compressor should be cleaned at least twice a year with a broom or a vacuum cleaner.

• Take care not to remove or damage the rating plate inside the cabinet during cleaning.

When de-frosting the freezer compartment

Once the build-up of ice inside the freezer compartment has reached a thickness of 2-4 mm, it needs to be de-frosted. This should be done at least twice a year.

- Ensure that the plug has been removed from the wall socket.

- Remove all food from the compartment and store it in a cool location, eg together with pre-frozen freezer-packs in a closed plastic container. Note that, even with a slight increase in temperature, the storage life will be shortened and the food should be used as soon as possible.

- Keep the door open. To accelerate defrosting, one or several containers with hot (but not boiling) water may be placed inside the freezer compartment.

Warning: do not use any external device or other means (e.g. heaters or heating fans) to accelerate de-frosting.

• After cleaning, ensure that the freezer compartment is thoroughly dried and set the temperature control to its maximum position. After 24 hours, it may turned back to its normal setting.

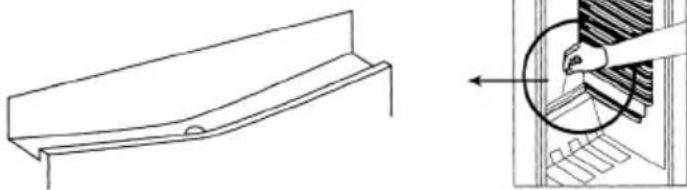

Defrosting the refrigerator cabinet :

The integral vapouriser is sealed in foam in the rear wall; you may therefore notice a build-up of frost around the rear area. This layer of frost will start melting when the compressor is not working. Through a system of hoses, the melt-water drains into the collection tray below the compressor, where it will be absorbed into the surrounding air. The unit does not therefore require de-frosting, but only proper cleaning instead.

Technical line drawing of a mechanical component with an inset showing a magnified view of a circular feature (no text or symbols)

- To enable the melt-water to drain freely, always ensure that the channel and discharge opening in the cabinet are free of any blockage.

Energy saving tips

- The appliance should be set up in a well-ventilated, dry room.

- Do not expose the appliance to direct sunlight, and do not position it next to any heat sources (radiators, cookers etc). If this cannot be avoided, however, suitable insulation must be installed between the heat source and the unit.

- Do not cover the ventilation openings and grilles, and ensure sufficient air circulation behind the unit.

- The compressor (at the rear) should be cleaned at regular intervals. Accumulated dust causes an increase in energy consumption.

- Warm food should be allowed to cool down before it is stored inside.

• To prevent an increased build-up of ice, do not leave the doors open for too long when loading or taking out food.

- Frequent de-frosting helps to save energy. For detailed information on cleaning the appliance, please refer to the section De-frosting and cleaning.

- Do not set a lower-than-necessary temperature. For detailed information on the temperature settings, please refer to the section Temperature control.

Trouble-shooting

Certain typical sounds can be heard when the appliance is switched on. These sounds are:

- caused by the electrical motor within the compressor assembly; during compressor start-up the sound level will be slightly higher for a limited period of time.

- caused by the cooling agent flowing through the circuit.

The following table lists possible malfunctions and their probable causes and solutions. In the event of operational problems, check first whether a solution can be found using this table. If the problem persists, disconnect the appliance from the mains power and contact our Customer Service Department.

Problem Possible cause and solution
The appliance is not working at all.	There is a power failureThe main fuse has blown.The temperature control is set to ‘0’.The fuse in the wall socket (if applicable) has blown. This can be checked by connecting another electrical device to the socket and checking for function.
The temperature inside the freezer compartment is not low enough.	Too much food has been stored in the appliance.The doors are not properly closed.There is too much dust on the condenser.Insufficient ventilation: the unit is too close to a wall or other structure or object.The temperature control is set too low.
The normal operating sound changes or becomes louder.	Check for proper positioning (uneven floor?).Are any adjacent objects affected by the running of the cooling unit (i.e. causing them to vibrate?)Are there any objects on top of the unit which might be vibrating?
Water is collecting on the bottom of the unit.	The melt-water drain system is blocked. Remove the blockage and clean the system.

Transporting the appliance

To prevent damage to the unit during transport, ensure that all accessories and components inside and around the appliance are securely fastened.

The unit must only be transported in its vertical position; do not tilt any more than 30^ .

Once the unit has been positioned, wait for about 30 minutes before it is connected to the mains.

If the unit has been tilted more than 30^ during transport, allow it to stand in an upright position for at least 4 hours before it is connected to the mains.

Disposal

This appliance has been manufactured from recyclable materials. After removing the plug from the wall socket, the unit should be rendered unusable by cutting off the power cord before disposing of

it through special waste collection points in accordance with local regulations. The refrigerant and the chemical agent in the insulation foam must be disposed of through a competent agency. Take special care not to damage the cooling circuit before the unit is handed over for such disposal.

Guarantee

This product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modified, repaired or interfered with by any unauthorised person, or damaged through misuse.

This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal rights you may have as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase.

Information needed by the Customer Service Department Should repairs to the appliance become necessary, please contact our Customer Service Department, providing a detailed fault description and quoting the model number KS ... on the rating plate of the appliance (see picture). This information will help us to handle your request efficiently.

In case of any malfunction or other problem, please contact our Customer Services Department. The address can be found in the appendix to this manual.

Product data sheet

Art. no. KS 9826 KS 9828	KS 9836
Product category	Refrigeration/Freezer unit	Refrigeration/Freezer unit	Refrigeration/Freezer unit
Energy efficiency classification	A++	A+++	A+
Energy consumption in kWh/year 137 94 170
The actual consumption depends on the pattern of use and the location of the appliance
Usable refrigerator capacity (litres) 104 104 104
Usable capacity * * * * - Freezer unit (litres)	14 14 14
Frost-free : refrigeration unit / freezer unit yes / no yes / no yes / no
Safe storage time in case of malfunction, hrs	12 10 12
Freezing capacity, kg/24h	2	2	2
Climate classification	N,ST	T	N
Ambient temperature range, °C	16-38°C	16-43°C 16-32°C
Noise emission	43 dB(a)	41 dB(a)	43 dB(a)
Dimensions (H x W x D) in mm	845 x 545 x 570	845 x 545 x 570	845 x 545 x 570
Weight (kg)	32 32 32
Electrical specifications	See rating plate	See rating plate	See rating plate

Réfrigérateur

Chère cliente, Cher client,

Simple line drawing of an oval with a smaller inner circle and a vertical line, no text or symbols present.

Technical line drawing of a mechanical component with an inset showing a hand holding a circular component (no text or symbols)

Vriezer compartiment:

Technical line drawing of a mechanical component with an inset showing a hand holding a circular component (no text or symbols)

Puerta del compartimento congelador

Simple line drawing of an elliptical shape with a central circle and two smaller ovals (no text or symbols)

Simple line drawing of a structural beam or support bracket (no text or symbols)

Diagram showing a hand holding a circular object over a mechanical component, with no visible text or symbols.

Warning symbol of a flame inside a triangle (no text or numbers)

Technical line drawing of a mechanical component with an inset showing a hand holding a circular component (no text or symbols)

Warning symbol of a flame inside a triangle (no text or numbers)

Technical line drawing of a mechanical component with an inset showing a circular component being inserted (no text or symbols present)

Simple line drawing of an elliptical shape with a central circle and two concentric ellipses (no text or symbols)

Technical line drawing of a mechanical component with an inset showing a hand holding a circular component (no text or symbols)

Warning symbol of a flame inside a triangle (no text or numbers)

Simple line drawing of an elliptical shape with a circular cross-section (no text or symbols)

Technical line drawing of a mechanical component with an inset showing a hand holding a circular component (no text or symbols)

Warning symbol of a flame inside a triangle (no text or numbers)

Regulator temperature

Simple line drawing of an oval with internal segments labeled 1, 2, 3, and 4 (no text or symbols beyond labels)

Technical line drawing of a mechanical component with an inset showing a hand holding a circular component (no text or symbols)

Warning symbol of a flame inside a triangle (no text or numbers)

Technical line drawing of a mechanical component with an inset showing a hand operating a circular component (no text or symbols)

Simple line drawing of an oval with internal segments labeled 1, 2, 3, and 4 (no text or symbols beyond labels)

Technical line drawing of a mechanical component with an inset showing a hand holding a circular component (no text or symbols)

2/F., Block A, Dong He Industrial Building

Yue He Street, Sha Shen Road, Sha Tou Jiao

Shenzhen

Tel.: [phone] or 25550852

Fax: [phone] or 25357498

eMail: [e-mail]

Web: http://www.severinchina.com

Czech Republic

BVZ Commerce s.r.o.

Parkerova c.p. 618

CZ 25067 Klecany

Tel.: [phone]

Fax: [phone]

Danmark

F&H of Scandinavia A/S

Gl. Skivevej 70

DK-8800 Viborg

Tel.: [phone]

Fax: [phone]

F-67210 OBERNAI CEDEX

Tel.: [phone]

Fax: [phone]

eMail: [e-mail]

Web: http://www.severin.fr

Greece

BERSON

C. Sarafi dis Bros. S.A.

Agamemnonos 47

176 75 Kallithea, Athens

Tel.: [phone]

Philippos Business Center

Service Post of Thermi

570 01 Thessaloniki, Greece

Tel.: [phone]

Hong Kong

Pacifi c Coff ee Company

7/F Hollywood Centre, 233 Hollywood Road,

Sheung Wan, Hong Kong

Tel.: [phone]

Fax: [phone]

eMail: espresso@pacifi ccoff ee.com

India

Zansaar

1210, 2nd Floor

Fawar Manor, 100ft Road

Indiranagar, Bangalore 560 038

Tel.: [phone]

eMail: [e-mail]

Web: http://www.zansaar.com

Iran

IRAN-SEVERIN KISH CO. LTD.

No. 668, 7th. Floor

Bahar Tower

Ave. South Bahar

TEHRAN - IRAN

Tel.: [phone]

Fax: [phone]

[e-mail]

www.iranseverin.com

Iraq

Al JOUD Home Appliances Manufacturing Co. Ltd

PIC: Eng. Ahmad Al-Sharabi

Al Joud Building Karadat Kharej

Baghdad - Iraq

Tel.: [phone]

[phone]

[phone]

Ireland

Bluestone Sales & Distribution Ltd

26 Oaktree Business Park

Trim Co Meath Ireland

Tel.: [phone]

Fax: [phone]

Web: www.bluestone.ie

Italia

via Dino Col 52r-54r-56r,

I - 16149 Genova

Green Number: 800224155

Tel.: [phone]

Fax: [phone]

e-mail: [e-mail]

Jordan

J.L.C.

P.O. Box 910330

Mecca Street, Jaber Complex Building No. 193

Amman 11191 Jordan

Tel: [phone]

Korea

Jung Shin Electronics co., Ltd.

501, Megaventuretower 77-9,

Moonrae-Dong 3ga, Yongdeungpo-Gu

Seoul, Korea

Tel: [phone]\~7

Fax: [phone]

Service Hotline: [phone]

Kuwait

Mohammed Abdulrahman Al Bahar

Al Bahar Building P.O. Box 148

Safat 13002 Kuwait

Tel: [phone]

Latvia

SERVO Ltd.

Mr. Janis Pivovarenoks

Tel: [phone]

Lebanon

Khoury Home

7th Floor, Cité Dora 3 Building, Dora

P.O.Box 70611

Antelias, Lebanon

Tel: [phone]

Fax:[phone]

eMail: [e-mail]

Internet: www.khouryhome.com

Luxembourg

Ser-Tec

GHALA 112, P.O. Box 996

Muscat Sultanate of Oman

Tel.: [phone]

Fax.: [phone]

Philippines

COLOMBO MERCHANT PHILIPPINES, INC.

Mezzanine 1, South Center Tower

2206 Venture Street, Madrigal Business Park

Alabang, Muntinlupa City

Tel.: [phone]

eMail: [e-mail]

Polska

SERV- SERWIS SP. Z 0.0.

UL. WSCHODNIA 4

46-070 CHMIELOWICE K/OPOLA

Tel: [phone]

Fax: [phone]

Serbia and Montenegro

tel: + 381-21-524-638

tel: [phone]

fax: [phone]

Singapore

Beste (S) Pte. Ltd.

Tagore Building

6 Tagore Drive, #03-04

Singapore 787623

Tel.: [phone]

Fax: [phone]

eMail: [e-mail]

Slovenia

SEVTIS d.o.o.

Smartinska 130

1000 Ljubljana

Tel: [phone]

Fax: [phone]

Slowak Republic

PREMT,s.r.o.

Skladová 1

917 01 Trnava

Tel: [phone]

Fax: [phone]

eMail: [e-mail]

South Africa

AL.CD. Ashley (Pty) Ltd

ABSA on Grove

Grove Avenue

Claremont, Cape Town 7708

Tel.: [phone]

Fax: [phone]

eMail: [e-mail]

Web: www.alcdashley.co.za

Svenska

Rakspecialisten HS

Möllevångsgatan 34

214 20 Malmö

Tel.: [phone]

Fax: [phone]

eMail: [e-mail]

Switzerland

VB Handels Sàrl GmbH

Postfach 306

1040 Echallens

Tel: [phone]

Fax: [phone]

mail: [e-mail]

Syria

Joud Industries Domestic Appliances Co.

P.O. Box 199 or 219

Motorway entrance

Lattakia - Syria

Tel.: [phone]

[phone]

Fax: [phone]

Thailand

Verasu Ltd. part.

83/7 Wireless Rd., Lumpini,

Patumwan, Bangkok 10330

Tel.: [phone]

eMail: [e-mail]

United Arab Emirates

Juma al Majid Est

P.O. Box 156

Dubai U.A.E.

Tel.: [phone]

Fax: [phone]

eMail: [e-mail]

Web: www.al-majid.com

United Kingdom

Homespares Centres Limited

Firwood Industrial Estate

Thicketford Road

Bolton, BL2 3TR

Tel.: [phone]

Fax: [phone]

eMail: offi [e-mail]

Web: www.hscl.info

Vietnam

Brand Partner

W.22, D. Binh Thanh

180/38 Nguyen Huu Canh Street

Ho Chi Minh City. Vietnam

Tel.: [phone]

Fax: [phone]

eMail: [e-mail]

Stand: 08.2014 (Special Edition)
