Product type	Integrated refrigerator-freezer
Brand	Bosch
Model	KSF36PI40
Height	177 cm
Width	56 cm
Depth	55 cm
Net weight	65 kg
Power supply	220-240 V, 50 Hz
Energy class	A+
Annual consumption	180 kWh
Refrigerator capacity	180 L
Freezer capacity	80 L
Power failure autonomy	12 h
Freezing capacity	4 kg/24 h
Climate class	SN-T (10 °C to 43 °C)
Noise level	39 dB(A)
Refrigeration function	FreshSense, SuperCool
Freezing function	SuperFreeze, LowFrost
Lighting	LED interior
Cold distribution	MultiAirflow
Maintenance and cleaning	Clean with warm water and mild detergent
Safety	Door closure with alarm, child safety
Spare parts and repairability	Repairability index 7.5/10
General information	User manual available online

Frequently Asked Questions - KSF36PI40 BOSCH

How to adjust the refrigerator temperature?

Use the adjustment button located inside the refrigerator. The ideal temperature is 4°C for the refrigerator and -18°C for the freezer.

What to do if the refrigerator is no longer cooling?

First, check that the appliance is plugged in and that the thermostat is set correctly. Make sure the ventilation grilles are not blocked. If the problem persists, contact Bosch after-sales service.

How to clean the inside of the refrigerator?

Unplug the appliance, remove all food and shelves. Clean with a soft cloth soaked in warm water and a mild detergent. Rinse and dry thoroughly before restarting.

Can the door opening direction be reversed?

Yes, the door is reversible. Consult the manual for disassembly and reassembly steps. You will need a screwdriver and possibly an Allen key.

What does the error display on the panel mean?

Error codes vary. For example, 'E1' may indicate a sensor fault. Refer to the fault table in the manual or contact customer service.

How to use the SuperCool mode?

Press the SuperCool button to quickly cool fresh food. The function stops automatically after about 6 hours.

What is the maximum freezing capacity per day?

The appliance can freeze up to 4 kg of fresh food in 24 hours. Distribute the food in small portions for even freezing.

How to change the interior light bulb?

Unplug the appliance. Remove the LED light cover. The lighting is LED type not user-replaceable; contact customer service if defective.

What to do in case of a prolonged power cut?

Frozen food stays cold for about 12 hours if the door remains closed. Avoid opening unnecessarily. After the outage, check the condition of the food: do not refreeze thawed products.

Where to find spare parts for this model?

Spare parts are available on the Bosch website or from authorized dealers. Use the model number KSF36PI40 for your search.

USER MANUAL KSF36PI40 BOSCH

Free-standing appliance

Using the installation instructions ..... 8

Installation location 8

Installing appliances next to each other 9

Changing over the door hinges ...... 9

Changing the door handle 10

Fitting the wall spacer 10

Aligning the appliance 10

Using the installation instructions

Please fold out the illustrated last page. These installation instructions refer to several models.

The diagrams may differ.

Installation location

A dry, well ventilated room is suitable as an installation location. The installation location should not be exposed to direct sunlight and not placed near a heat source, e.g. a cooker, radiator, etc. If installation next to a heat source is unavoidable, use a suitable insulating plate or observe the following minimum distances from the heat source:

■ 3 cm to electric or gas cookers. ■ 30 cm to an oil or coal-fired cooker.

The floor of the installation location must not give way; if required, reinforce floor. If the floor is uneven, compensate with supports.

Distance from wall

Appliances with fitted handles must be situated at least 525 mm from the wall on the hinge side so that the door can be opened by 160°.

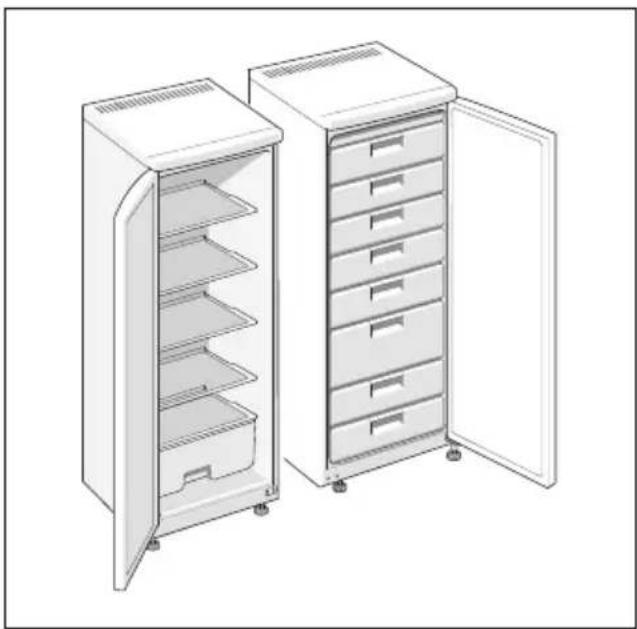

Installing appliances next to each other

Fig. 3

When installing two appliances, ensure that the refrigerator is on the left and the freezer is on the right.

The right side panel of the refrigerator is heated slightly. This prevents condensation from forming between the appliances.

Attaching spacers

Fig. 4

1. On the right side of the refrigerator degrease the adhesive areas with petroleum ether or spirit.
2. Stick spacers in all four corners at a distance of 5 cm from the side edges to ensure a minimum gap between the appliances.

Note

You can purchase a connection set from your dealer.

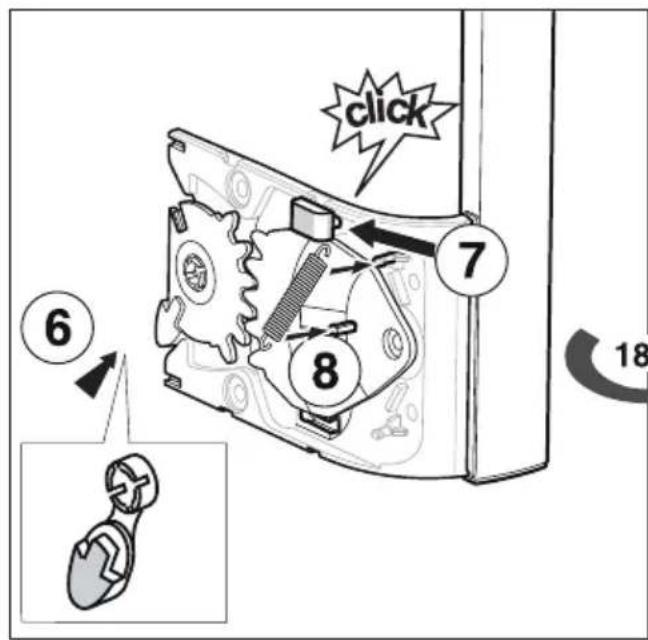

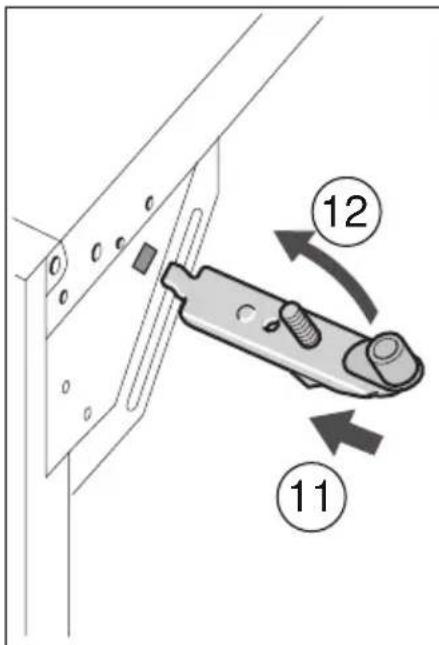

Changing over the door hinges

(if required)

We recommend that you have the door hinges changed over by our customer service. You can find out the costs for changing over the door hinges from your appropriate customer service.

Warning

While changing over the door hinges, ensure that the appliance is not connected to the power supply. Pull out the mains plug beforehand. To prevent damaging the back of the appliance, place adequate padding underneath. Carefully place the appliance on its back.

Change over the door hinges in numerical sequence. Fig. 1

Note

If the appliance is placed on its back, ensure that the wall spacer is not fitted.

Changing the door handle

(if required)

Fig. 2 A/B

Change the door handle in numerical sequence.

Fitting the wall spacer

Fig. 5

If available:

Fit wall spacers to obtain the indicated energy rating of the appliance.

A reduced wall gap will not restrict the function of the appliance. The energy rating may then increase slightly.

Distance to the back wall

The distance of 75 mm must not be exceeded.

Aligning the appliance

Place the appliance in the designated location and align. The appliance must be level. If the floor is uneven, use the front height-adjustable feet. Adjust the height-adjustable feet with a wrench.

Note

The appliance must be upright. Please align it with a spirit level.
