70610 ChefPrep - Food Processor HAMILTON BEACH - Free user manual and instructions

Product type	Food processor
Brand	Hamilton Beach
Model	70610 ChefPrep
Dimensions (L x W x H)	25 x 20 x 35 cm
Weight	4.5 kg
Power supply	220-240 V ~ 50/60 Hz, 600 W
Bowl capacity	2.8 L (12 cups)
Main functions	Chopping, slicing, grating, mixing, kneading
Number of speeds	2 speeds + pulse
Included accessories	Stainless steel blade, slicing/grating disc, work bowl, lid with pusher
Bowl material	BPA-free plastic
Safety	Lid lock, non-slip base
Care and cleaning	Removable parts dishwasher-safe
Spare parts and repairability	Parts available on manufacturer's website
Color	White or silver

Frequently Asked Questions - 70610 ChefPrep HAMILTON BEACH

How to start the Hamilton Beach 70610 food processor?

Make sure the bowl and lid are properly locked. Plug in the appliance, then select the desired speed with the rotary knob. Use the pulse function for precise control.

Can I wash the parts of the food processor in the dishwasher?

Yes, all removable parts (bowl, lid, blade, discs) are dishwasher safe. Place them on the top rack to avoid deformation.

What to do if the food processor does not start?

Check that the lid is locked in the closed position. Make sure the bowl is properly locked onto the base. If the problem persists, unplug the appliance for 30 seconds then plug it back in.

How to use the slicing disc?

Insert the slicing disc onto the central shaft of the bowl, blade side up. Place the lid and push food with the pusher using medium speed.

Is the bowl glass or plastic?

The bowl is made of BPA-free plastic, durable and lightweight. It is transparent to see the preparation.

What is the motor power?

The motor delivers 600 watts, enough to chop, slice, grate and knead light doughs.

Can I knead bread dough with this food processor?

Yes, use the kneading blade (included) and speed 1. Do not exceed 500 g of flour to avoid overloading the motor.

How to clean the stainless steel blade?

Wash it by hand or in the dishwasher. For manual cleaning, use a soft brush and soapy water. Dry immediately to avoid spots.

Is there a warranty on the Hamilton Beach 70610 food processor?

Yes, Hamilton Beach offers a limited one-year warranty from the date of purchase. Keep your receipt.

Where to find spare parts for this model?

Spare parts are available on the official Hamilton Beach website or from authorized dealers. Search for reference 70610.

USER MANUAL 70610 ChefPrep HAMILTON BEACH

Line drawing of a modern kitchen blender with handle and control knob (no text or symbols)

English....2

USA: 1.800.851.8900

Visit hamiltonbeach.com for delicious recipes and to register your product online!

Français 11

Canada : 1.800.267.2826

• Do not immerse this appliance in water or other liquid.
• This appliance has a polarized plug (one wide blade) that reduces the risk of electrical shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or using an adaptor. If the plug does not fit, reverse the plug. If it still does not fit, have an electrician replace the outlet.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read and save all instructions.
2. To protect against risk of electrical shock, do not immerse base, motor, cord, or plug in water or other liquid.
3. Close supervision is necessary when any appliance is used by or near children.
4. This appliance should not be used by children.
5. Unplug cord from outlet when not in use, before putting on or taking off parts, and before cleaning.
6. Avoid contacting moving parts.
7. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or is dropped or damaged in any manner. Call our toll-free customer service number for information on examination, repair or electrical or mechanical adjustment.
8. The use of attachments not recommended or sold by Hamilton Beach/Proctor-Silex, Inc. may cause fire, electric shock, or injury.
9. Do not use your food processor if any part is broken.
10. Do not use appliance outdoors.
11. Do not let cord hang over edge of table or counter, or touch hot surfaces.
12. Never feed food into food chute by hand. Always use food pusher.
13. The blade and disc are sharp. Handle carefully. Store out of reach of children.
14. Make sure the blade or disc has come to a full stop before removing lid.

15. Be certain lid is securely locked in place before operating appliance.

16. To reduce the risk of injury, never place cutting blade or disc on base without first putting bowl properly in place.

17. Keep hands and utensils away from moving blade and disc while processing food to reduce the risk of severe personal injury and/or damage to the food processor. A rubber scraper may be used but ONLY when the food processor is not running.
18. Do not attempt to defeat the lid interlock mechanism.
19. To reduce the risk of injury, be sure to insert or remove blade and disc using hubs provided for this purpose. Use caution when removing blade and disc from the bowl, when emptying the bowl, and when cleaning.
20. Be sure to turn Control Knob to OFF position after each use. Always use the pusher to clear the food chute. When this method is not possible, turn the motor off, unplug cord from outlet, and disassemble unit to remove the remaining food.
21. The appliance is not intended for commercial, professional or industrial use. It is designed and built exclusively for domestic use only.
22. Never use appliance for a longer period or with a larger amount of ingredients other than that recommended by Hamilton Beach/Proctor-Silex, Inc.
23. Do not place on or near a hot gas or electric burner or in a heated oven.
24. Do not use appliance for other than intended use.

SAVE THESE INSTRUCTIONS!

Other Consumer Safety Information

This appliance is intended for household use only.

To avoid an electrical circuit overload, do not use another high wattage appliance on the same circuit with your food processor.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in, or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used.

The electrical rating of the extension cord must be equal to or greater than the rating of the food processor. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

The maximum rating of this unit is based on using the Slicing/Shredding Disc. Using the Chopping/Mixing Blade may draw significantly less power.

Before First Use

Unpack processor. Handle Chopping/Mixing Blade and Slicing/Shredding Disc(s) carefully; they are very sharp. Wash all parts except base in hot, soapy water. Rinse then dry. These parts can also be placed on the top rack of a dishwasher.

Parts and Features

Optional Accessory

Reversible Fine Shred/ Crinkle Cut Disc

To Order Call:

1.800.851.8900 (U.S.)

1.800.267.2826 (Canada)

hamiltonbeach.com

Using Your Food Processor

How to Lock the Bowl

Technical line drawing of a mechanical component with no visible text or symbols

Align base and bowl as illustrated. Turn bowl clockwise until it locks into place.

NOTE: The food processor will not work unless the bowl is locked into position.

How to Lock the Lid

Align lid as illustrated. Place lid on bowl and turn clockwise until it locks into place.

NOTE: The food processor will not work unless the lid is locked into position.

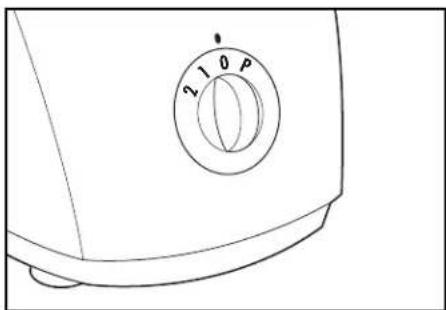

How to Operate the Controls

Line drawing of a kitchen appliance with a circular dial indicator (no text or symbols)

Rotate the knob to select a speed:

$$ 1 = \text { LOW } $$

$$ 2 = \text { HIGH } $$

The processor will run continuously.

For instant on and off control, use the PULSE (P) setting.

Processing with Chopping/Mixing Blade

The Chopping/Mixing Blade can be used to coarsely chop, finely mince, mix, or puree food to a smooth consistency.

1. Make sure the Control Knob is turned to OFF (O) and the unit is unplugged.
2. Lock the bowl onto base (see "How to Lock the Bowl").

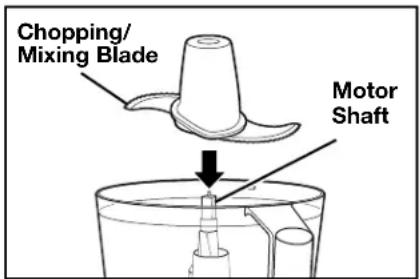

3. Place the Chopping/Mixing Blade onto motor shaft of food processor in center of bowl. Turn slowly until blade drops into place. Handle carefully; the blade is sharp.

4. Place food in bowl.

5. Lock lid onto bowl (see "How to Lock the Lid"). Insert food pusher into chute.
6. Plug in unit and process food. The processing speed and time will determine the finished consistency of the food. The Pulse button can help you avoid overprocessing.
7. Wait until blade has stopped rotating before removing lid.

Processing with Reversible Slicing/Shredding and Optional Reversible Fine Shred/Crinkle Cut Disc

• To slice or shred cheese, select firm cheese like cheddar, monterey jack, or swiss. Place cheese in freezer for 30 minutes before processing.
• The Reversible Slicing/Shredding Disc and Reversible Fine Shred/Crinkle Cut Disc has a slicing blade on one side and shredding teeth on the other. Place on motor shaft with desired cutting edge facing up.

- To julienne vegetables, slice then remove from bowl and restack the vegetables. Pack into food chute with slices vertical. Slice again to make match-stick cut vegetables.

Optional Accessory

A Reversible Fine Shred/Crinkle Cut Disc is available. This Disc makes meals more interesting—foods may be crinkle cut or finely shredded for added variety.

To Order Call:

1.800.851.8900 (U.S.) • 1.800.267.2826 (Canada)

or visit hamiltonbeach.com

1. Make sure the Control Knob is turned to OFF (O) and the unit is unplugged.
2. Lock the bowl onto base (see "How to Lock the Bowl").

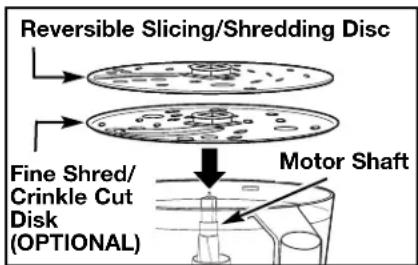

3. Put Reversible Slicing/Shredding Disc OR optional Reversible Fine Shred/Crinkle Cut Disc on motor shaft with the desired side facing up for either slicing or shredding.

1. Lock lid onto bowl (see "How to Lock the Lid").
2. Cut food to fit food chute. Fill chute with food and push food through chute with food pusher. Always use the food pusher to feed food into the chute. NEVER PUSH FOOD THROUGH CHUTE WITH HANDS.
3. Plug in unit and process food.
4. Select speed. While pressing on food pusher, select LOW (1) or HIGH (2) or PULSE (P) to process food.
5. When food chute is empty, select OFF (O) or release from PULSE (P) position. Wait until blade has stopped rotating before removing lid.

Processing Tips and Techniques

• For a uniform consistency when chopping, leave room in the bowl for the food to be tossed around.
• For a consistent texture, foods should be cut into 1-inch cubes before mincing or chopping with the Chopping/Mixing Blade.
• Do not puree or mash starchy vegetables like potatoes. They will be over-processed in a second and turn gummy.
• Operating time will depend on quantity of food being processed. Most foods can be sliced, chopped, or shredded in seconds. Do not operate processor for more than 1 minute at a time. If processing large quantities, let the processor rest about 1 minute before continuing.

- The bowl will hold 2 cups of liquid. Refer to Food Processing Charts for other capacities. Do not overfill.

NOTE: To maintain peak performance, and to prevent etching or clouding of the bowl, do not use your food processor for the following:

- grinding grain, coffee beans or spices

- slicing frozen meat; or crushing ice.

Food Processing Charts

Disc attachments are reversible and labeled. This label should face up for the desired function. When using disc attachments, do not process past the Max Fill Line on the Bowl.

ATTACHMENTS FOODS
Slicing Disc Cucumbers, apples, mushrooms(slicing blade facing up) Optional Crinkle Cut Disc(slicing blade facing up)	shrooms,carrots, potatoes, cabbage, firm cheeses
Chopping/Mixing Blade Cl , meatMince, puree vegetables, fruit
Shredding Disc Vegetables(shredding teeth facing up) Optional Fine Shred Disc(shredding teeth facing up)

For best results do not exceed the following amounts when chopping, mincing, or pureeing with the Chopping/Mixing Blade.

FOOD MAXIMUM AMOUNT
Fruits and vegetables 1 pound or 2 to 3 cups
Meats 16 ounces or 2 cups, cubed
Parmesan or Romano cheese 5 ounces, cubed
Cheddar, Jack, or Mozzarella cheese 8 ounces, cubed
Crackers 10 cups (may fill bowl and lid up into chute)

Cleaning

1. Unplug food processor from electrical outlet.
2. Wash the bowl, lid, blade, discs, and food pusher in hot, soapy water. Rinse and dry thoroughly. These parts may also be washed in the top rack of a dishwasher.
   NOTE: Do not store food processor with lid in the locked position, as this may put strain on the interlock tab.
3. Wipe the base, control panel, and cord with a damp cloth or sponge. To remove stubborn soil, use a mild non-abrasive cleanser.

WARNING

Electrical Shock Hazard

• Disconnect power before cleaning.
• Do not immerse cord, plug or base in any liquid.

Failure to follow these instructions can result in death or electrical shock.

1. To store, place bowl on base and then place Chopping/Mixing Blade and Slicing/Shredding Disc onto the motor shaft. Place lid on bowl but do not lock.

Troubleshooting Guide

Before calling the Hamilton Beach/Proctor Silex, Inc. Customer Service Number, carefully check the list below for a possible solution to your question.

POTENTIAL PROBLEM	PROBABLE CAUSE/SOLUTION
Unit does not operate on any speed or Pulse.	Are the Bowl and Lid locked in place? See “Using Your Food Processor.”
Food is not sliced or shredded uniformly.	Packing too much food into food chute, or pushing too hard on food pusher may cause the processed food to be irregularly sliced or shredded.
Unit stops and will not come back on.	Are the bowl, bowl lid, and food chute lid all locked in place? They may have moved slightly during processing. See “Using Your Food Processor.”Is the outlet working? Check it by plugging in a working lamp or other appliance. You may have overloaded the circuit and blown a fuse or tripped the circuit breaker.If none of these suggestions correct the problem, DO NOT attempt to repair the unit. Call Hamilton Beach/Proctor-Silex Customer Service.
Unit has a burning smell.	There may be a residue left on the motor from the manufacturing process, causing a slight odor during initial use. This will go away. If a strong odor or any visible smoke appears, unplug the unit IMMEDIATELY and call the Hamilton Beach/Proctor-Silex Customer Service number.

Customer Service

If you have a question about your food processor, call our toll-free customer service number. Before calling, please note the model, type, and series numbers and fill in that information below. These numbers can be found on the bottom of your food processor. This information will help us answer your question much more quickly.

MODEL: ____ TYPE: ____ SERIES: ____

This warranty applies to products purchased in the U.S. or Canada.

LIMITED WARRANTY

This product is warranted to be free from defects in material and workmanship for a period of one (1) year for Hamilton Beach products or one hundred eighty (180) days for Proctor-Silex and Traditions products from the date of original purchase, except as noted below. During this period, we will repair or replace this product, at our option, at no cost. THE FOREGOING WARRANTY IS IN LIEU OF ANY OTHER WARRANTY OR CONDITION, WHETHER EXPRESS OR IMPLIED, WRITTEN OR ORAL INCLUDING, WITHOUT LIMITATION, ANY STATUTORY WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. ANY LIABILITY IS EXPRESSLY LIMITED TO AN AMOUNT EQUAL TO THE PURCHASE PRICE PAID, AND ALL CLAIMS FOR SPECIAL, INCIDENTAL AND CONSEQUENTIAL DAMAGES ARE HEREBY EXCLUDED. There is no warranty with respect to the following, which may be supplied with this product, including without limitation: glass parts, glass containers, cutter/strainers, blades, seals, gaskets, clutches, motor brushes, and/or agitators, etc. This warranty extends only to the original consumer purchaser and does not cover a defect resulting from abuse, misuse, neglect including failure to clean product regularly in accordance with manufacturer's instructions, use for commercial purposes, or any use not in conformity with the printed directions. This warranty gives you specific legal rights, and you may also have other legal rights which vary from state to state, or province to province. Some states or provinces do not allow limitations on implied warranties or special, incidental or consequential damages, so the foregoing limitations may not apply to you. If you have a claim under this warranty, DO NOT RETURN THE APPLIANCE TO THE STORE! Please call our CUSTOMER SERVICE NUMBER. (For faster service please have model, series, and type numbers ready for operator to assist you.)

CUSTOMER SERVICE NUMBERS

In the U.S. 1-800-851-8900

In Canada 1-800-267-2826

hamiltonbeach.com or proctorsilex.com

KEEP THESE NUMBERS FOR FUTURE REFERENCE!

⚠️ AVERTISSEMENT

CONSERVEZ CES INSTRUCTIONS!

The maximum rating of this unit is based on using the Slicing/Shredding Disc. Using the Chopping/Mixing Blade may draw significantly less power.

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a kitchen appliance with a circular dial and handle (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Mixcoac MEXICO 03910 D.F.

Tel: [phone]

Fax: [phone]

Nuevo Leon

263 Yadkin Road, Southern Pines, NC 28387

PROCTOR-SILEX CANADA, INC.

Picton, Ontario K0K 2TO

hamiltonbeach.com • proctorsilex.com

hamiltonbeach.com.mx • proctorsilex.com.mx

840154701
